Towards a More Intuitive Specification and Automatic
Verification of System Properties with FBT: A Tool for
Translating Interval Formulas into Büchi Automata
Miguel J. Hornos
Dpto. de Lenguajes y Sistemas Informáticos. University of Granada
E.T.S. Ingeniería Informática, Periodista Daniel Saucedo, s/n. 18071 Granada, Spain
Abstract. This paper presents the FBT (FIL
to Büchi automaton Translator)
tool which automatically translates any formula from FIL (Future Interval
Logic) into its semantically equivalent Büchi automaton. There are two advan-
tages of using this logic for specifying and verifying system properties instead
of other more traditional and extended temporal logics, such as LTL (Linear
Temporal Logic): firstly, it allows a succinct construction of specific temporal
contexts, where certain properties must be evaluated, thanks to its key element,
the interval; and secondly, it also permits a natural, intuitive, graphical repre-
sentation. The underlying algorithm of the tool is based on the tableau method
and is specially intended for application in on-the-fly model checking. In addi-
tion to a description of the design and implementation structure of FBT, we
also present some experimental results obtained by our tool, and compare these
results with the ones produced by another tool of similar characteristics (i.e.
based on an on-the-fly tableau algorithm), but for LTL.
1 Introduction
The FBT (FIL to Büchi automaton Translator) tool presented in this paper automati-
cally translates a formula from FIL (Future Interval Logic) [11] into its semantically
equivalent Büchi automaton. The underlying algorithm [6] is based on the tableau
method [13], and is specially intended to be applied to on-the-fly model checking.
Until very recently, the integration of both approaches (tableau and on-the-fly) for an
interval logic was considered unfeasible for this type of logic. For this reason, we
consider FBT to be not only an innovation but also an important achievement.
Traditional temporal logics, such as LTL (Linear Temporal Logic) [10], allow
rea-
soning about the relative ordering of events in a system. However, we must formulate
quite intricate expressions with them in order to describe a temporal context in which
certain requirements or properties must only be satisfied within it. This, together with
the fact that these logics do not have an intuitive representation, such as a semanti-
cally equivalent graphical notation, has lead many system designers to believe that
they are difficult to use as formal description languages for the requirement specifica-
tion of systems, and that many of the specifications created with them are formulas
which are too complicated to understand. All of this has hindered a more extended
J. Hornos M. (2004).
Towards a More Intuitive Specification and Automatic Verification of System Properties with FBT: A Tool for Translating Interval Formulas into Büchi
Automata.
In Proceedings of the 2nd International Workshop on Verification and Validation of Enterprise Information Systems, pages 26-33
DOI: 10.5220/0002680600260033
Copyright
c
SciTePress
use of the mentioned logics as specification languages during the analysis phase of
the development cycle of industrial applications. Unlike these logics, the formal
specification language FIL which our tool uses, allows the succinct construction of
bounded temporal contexts, thanks to its key element, the
interval
, which defines
such contexts clearly and concisely. In addition to the textual representation of its
formulas, this logic also has a natural, intuitive, graphical representation, called GIL
(Graphical Interval Logic) [1], and both the textual and graphical representation are
semantically equivalent.
This paper is organized as follows. Section 2 introduces the textual syntax of FIL
and the graphical syntax of GIL, and also the semantics associated with these. Section
3 describes the design structure and implementation of FBT, while Section 4 presents
some of the experimental results obtained, and compares these with the results ob-
tained with another similar tool (i.e. based on an
on-the-fly tableau
algorithm), but
with LTL as the specification formalism. Finally, we present the conclusions and
related lines of research which we would like to follow in the future.
2 Specification Formalism
Since our purpose is to specify the temporal properties of a system in a formalism
that is very close to the way in which a human being reasons, we shall use a proposi-
tional, linear-time temporal logic, which uses an intuitive, graphical representation for
its formulas. This logic, called GIL (Graphical Interval Logic) [1], allows us to carry
out logical reasoning at the level of time intervals instead of instants. Nevertheless, its
primitive elements are instants. An interval is therefore formed by identifying its end-
points, which are instants satisfying certain properties. These points are searched for
in the global context representing an infinite sequence of states corresponding to a
system execution. Once the end-points of an interval have been located, the semantics
of the nested formula (to the interval) is restricted to the subtrace delimited by these
points. Each interval therefore represents a specific temporal context.

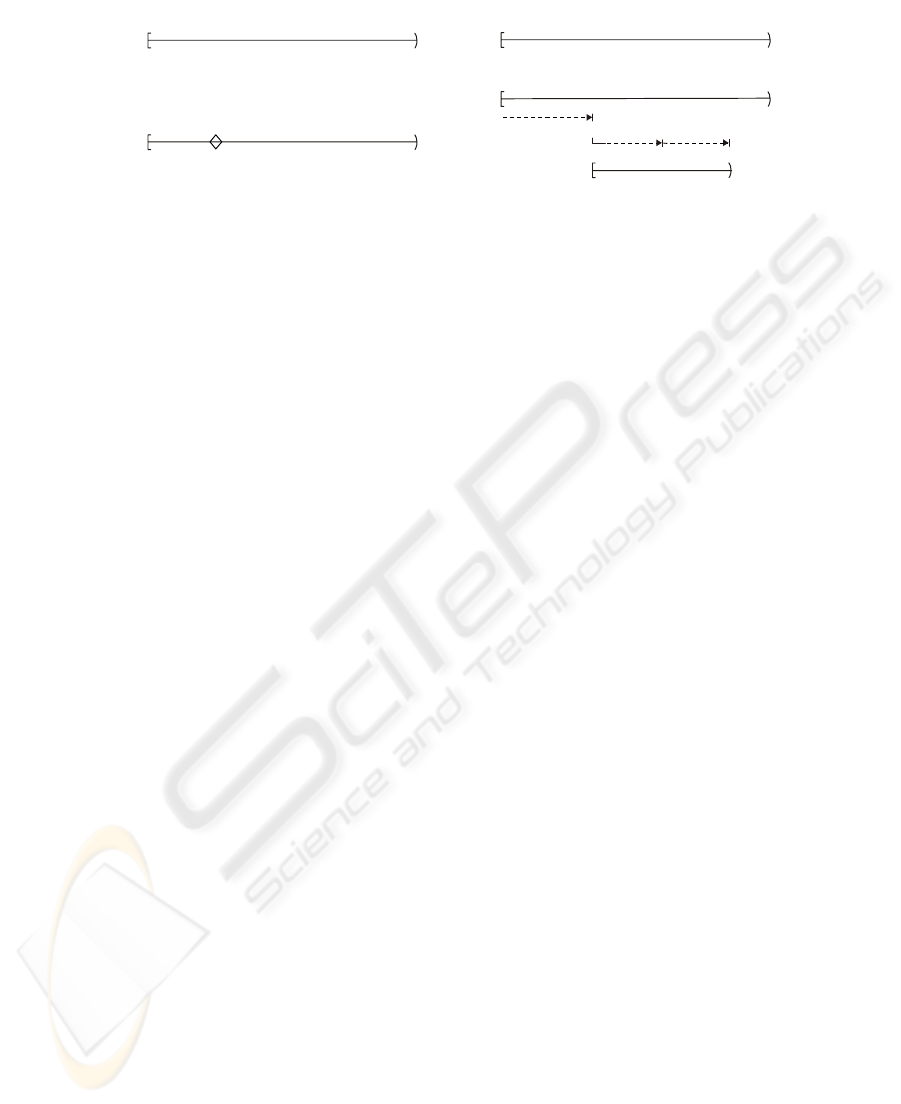

The first three graphical formulas in Figure 1 show the basic types of properties
that can be expressed over an interval. Thus, (a) is an
initial property
, which states
that the formula
f
expressing such a property holds at the first state of the interval,
where
f
is drawn left-justified below its left end-point; (b) represents an
invariant
property
over the interval, where
f
is placed below it and indented to the right of its
left end-point to express that
f
holds at every state of the interval; and (c) give us an
eventuality property
stating that
f
eventually holds at some state within the interval,
where a diamond is placed on it with
f
left-justified below the diamond.
In the formulas explained,
f
can be any GIL formula, even another interval for-
mula, and the intervals in them can represent the global context or a subinterval ex-
tracted from a larger interval. Each end-point of a subinterval is defined by a
search
pattern
represented by a horizontal concatenation of dashed search arrows, where
search targets are left-justified below the arrowheads. Thus, the formula (d) in Figure
1 states that
i
is an initial property in the subinterval extracted from the global context
by using a first search that locates the earliest state at which
f
holds (its left end-
point), and from this, the right end-point is located by searching for the formula
h
from the state where
g
is found.
27
(a)
f
(b)
f
(c)
f
(d)
.
f
g
h
i
Fig. 1. GIL formulas expressing different types of properties
Every GIL formula is read from top to bottom and from left to right. The topmost
interval represents the global context. Formulas can be composed using the usual
infix Boolean operators laid out horizontally or vertically. Further details about the
visual syntax of GIL can be found in [1].
FIL (Future Interval Logic) [11] is the textual representation used for defining the
semantics of GIL. The equivalence between the textual formulas of FIL and the cor-
responding graphical formulas in GIL is established in [1]. The
syntax of FIL
for a
finite set
P
of primitive propositions, where
p
P
,
is defined as follows:
f
::==
p
| ¬
f
|
f
1
f
2
|
I f
/* FIL formulas */
I
::== [θ
1
|θ
2
) | [|θ
2
) | [θ
1
|) /* Intervals */
θ
::==
f
|
f
,θ
/* Search patterns */
A FIL formula is
purely propositional
when it does not contain any interval. Oth-
erwise, it is an
interval formula
, with its structure given by
I
f
, where
I
represents an
interval and
f
represents any other FIL formula nested to it. All the intervals are half-
open, including their left but not their right end-point. Each interval end-point is de-
fined by a
search pattern
, which is either a sequence of one or more searches or a
trivial
pattern (represented by or ). Each
search
, e.g.
f
, locates the first point in
the reflexive future (which includes the current state) where the target formula
f
holds. When several searches are sequentially composed, such as in
g
,
h
, each
subsequent search begins in the state located by the previous search; the last of these
therefore locates the end-point of the interval that such a pattern defines. The
trivial
search pattern
leaves us at the point where we are, while takes us to the end of
the current context.
The other standard constructs of Propositional Logic are defined as abbreviations
of certain expressions, i.e.
T
=
p
∨¬
p
,
F
T
, ¬¬
f
=
f
,
f
1
f
2
=
¬(¬
f
1
∨¬
f
2
) and
f
1
f
2
=
¬
f
1
f
2
. The
restricted
syntax presented above for FIL can be extended with several
LTL temporal operators, defined as other abbreviations. Thus, since the logical con-
stant
F
can only hold in the null context, the formula [→¬
f
|)
F
can never therefore
be satisfied in a trace in which ¬
f
holds at some state, with this formula being
equivalent to
f
. Its dual, ¬[
f
|)
F
, states that there is some instant in the future
where
f
holds, which is why it is equivalent to
f
. The operator
strong until
is defined
as
f
1
U
f
2
=
¬[(¬
f
1
f
2
)|)¬
f
2
. The complete FIL formal semantics can be found in
[11]. The FIL formulas corresponding to the GIL ones in Figure 1 are: (a)
f
, (b)
f
,
(c)
f
, and (d) [
f
|
f
,
g
,
h
)
i
.
28
3 Design and Implementation of FBT

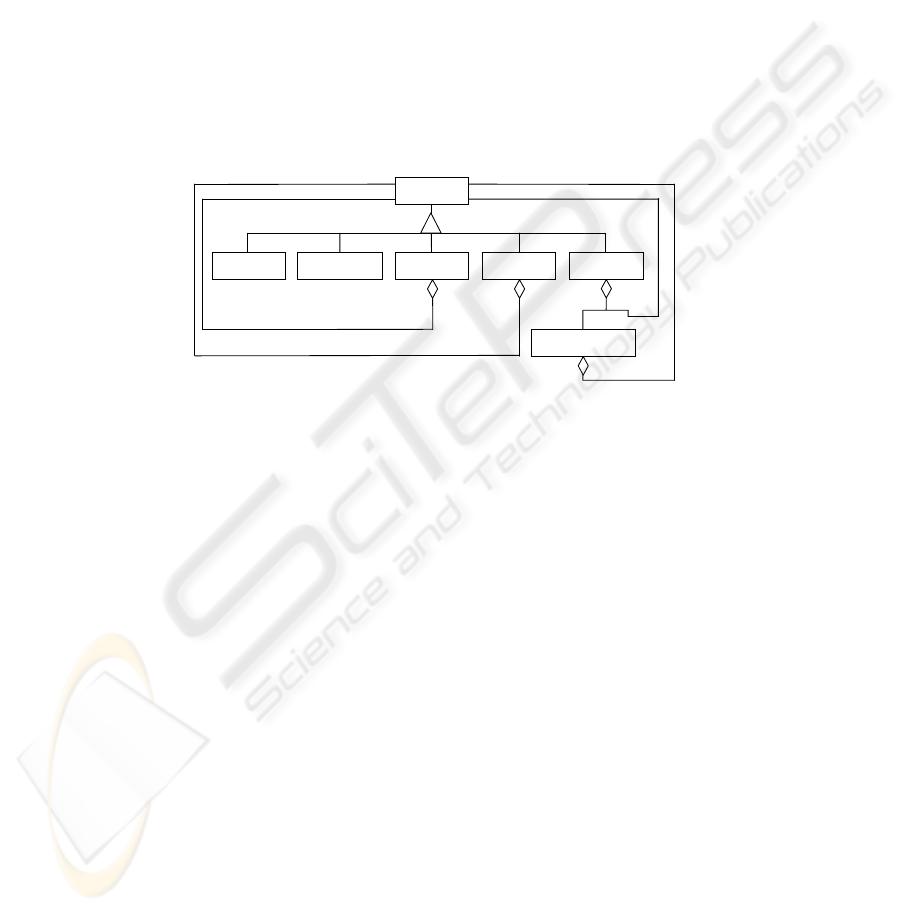

Figure 2 describes the structure of the different classes of FIL formulas considered in
the design and implementation of FBT, using a class diagram in UML (Unified Mod-
eling Language) [12].
Fil
is an abstract class that defines the elements which are
common to the different types of formulas, defined in its subclasses, which are:
FilA-
tom
, the class that represents the literals (atomic propositions, negated or not);
Fil-
Constant
stands for the logical constants (
T
or
F
);
FilJunct
implements the conjunc-
tions and disjunctions of (two) FIL formulas, while
FilIff
does something similar, but
with equivalences and exclusive disjunctions; and
FilInterval
, the class that builds
interval formulas, comprising two search patterns which attempt to locate each end-
point of the interval, and a FIL formula nested to it. An instance of the class
Search-
Pattern
is a sequence of zero (if it is a trivial pattern) or more FIL formulas, as many
searches as comprise that pattern.
Fil
1 nested_formula
2
SearchPattern
2
2
0..N searches
FilAtom FilJunct FilIff FilIntervalFilConstant
Fig. 2. UML class diagram representing the different types of FIL formulas

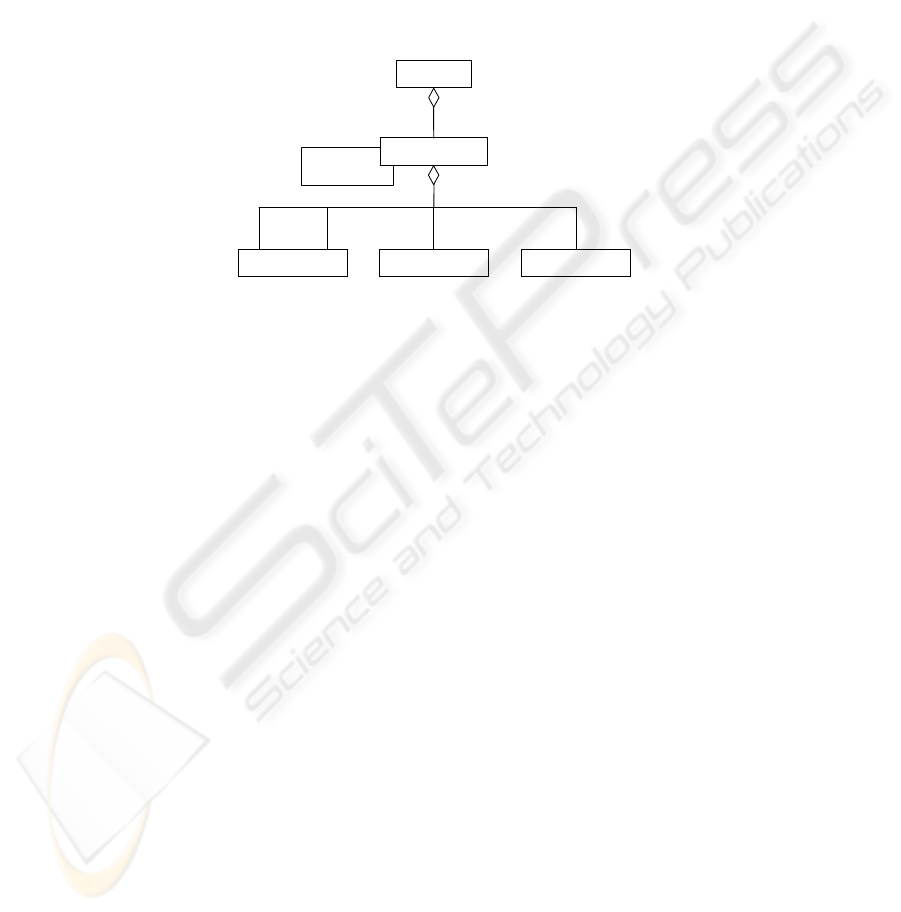

The UML class diagram shown in Figure 3 describes the structure of the graph that
FBT generates from a FIL formula.
FilGraph
is therefore the class representing the
graph, which is formed by the aggregation of nodes (i.e. objects of class
Fil-
GraphNode
). Two nodes of the graph are related if a transition exists between them.
This has been represented by means of an association with two role names:
predeces-
sor
and
successor
. The structure of each node is constituted for the aggregation of the
following sets of (zero or more) FIL formulas:
New
: Temporal properties that must hold in the node and have not yet been proc-
essed. When a node has been processed completely, this set is empty.
Old
: Formulas that must hold in the node and have already been analysed.
Next
: Temporal properties that must be satisfied in all the next nodes (i.e. states
which are its immediate successors). This set can only contain interval formulas,
since these are the only FIL formulas that can postpone their fulfilment.
Literals
: Literals stored in
Old
.
The implementation of FBT is based on the C++ code of LBT (LTL to Büchi
automaton Translator) [8], a tool of similar characteristics, since it is based on an on-
the-fly tableau algorithm [3], but with LTL as the specification formalism. Conse-
quently, both tools share the same input and output interface, and the syntax and
notation for all the formula components that are commonly accepted by both, i.e. the
29
logical constants, literals, propositional operators and temporal operators of LTL. Our
initial intention was to integrate FBT into M
ARIA
[9], a tool that performs on-the-fly
model checking. This was the main reason for reusing part of the LBT code in order
to make integration easier, since LBT is the translator used in M
ARIA
. Obviously, we
have had to incorporate a series of specific classes and functions for the analysis of
interval formulas, which are not present in LTL. We have also implemented a series
of heuristics in order to improve and optimise the code; we have therefore managed
to generate automata with fewer nodes and edges and in less time, and to determine
the accepting states more quickly. The FBT input and output interface as well as
additional details about the tool design and implementation can be found in [5].
Next
FilGraph
FilGraphNode
FilAtomFil FilInterval
nodes
successor
OldNew Literals
1..N
predecessor
1..N
0..N
0..N0..N 0..N0..N
Fig. 3. Structure in UML of the graph generated from a FIL formula
4 Experimental Results
As FBT has been implemented from the LBT code, this section not only presents
some experimental results obtained with our tool, but also those generated by LBT
for the same or equivalent specifications, in order to compare both tools.
FBT recognizes not only the unique temporal operator of FIL, i.e. the interval, but
also the following temporal operators of LTL: (
always
or
henceforth
) and its dual
(
eventually
), and U (
until strong
) and its dual V (
release
), but as abbreviations of
the corresponding FIL interval formulas. FBT therefore accepts LTL formulas, such
as the one shown in the following example, but automatically transforms them into
their equivalent ones in FIL, which are the ones that it really stores and processes.
Example 1: For the input specification p0
p1, FBT processes the FIL formula
¬[p0|)
F
¬[p1|)
F
in order to build its semantically equivalent automaton,
which is graphically represented in Figure 4 using the tool G
RAPH
V
IZ
[2]. It should
be noted that each edge is labelled with the conjunction of literals (in prefix notation)
that enables that transition. The upper number labelling each node is its state identi-
fier, while the lower numbers identify the acceptance conditions that it satisfies. The
initial state is always shaded and numbered 0. In order to compare the automata gen-
erated by FBT and LBT, we count the number of nodes, edges and acceptance condi-
tions, as well as the number of states that satisfy each condition. Since both tools
produce
generalized Büchi automata
,
the resulting automaton generally have
k
accep-
tance conditions; each one defines a set of accepting states,
F
i
(with
i
=1..
k
), which
30
contains those states that satisfy it. The automaton in Figure 4 has 9 nodes (the initial
node is not considered), 20 edges (the ones leaving the initial node are counted), and
two acceptance conditions (
k
=2), the first (identified by the number 0) is satisfied by
six states (nodes 3, 4, 5, 7, 8 and 13), while the second one (identified by the number
1) is satisfied by another six (nodes 3, 4, 7, 11, 13 and 14). When
k
>1, if we want to
obtain a
classic
Büchi automaton, i.e. one with only one set of accepting states,
F
, we
only need to obtain the states that are in the intersection of the sets
F
i
(i.e.
F
=
F
i
).
There are therefore four accepting states in our example (nodes 3, 4, 7 and 13).

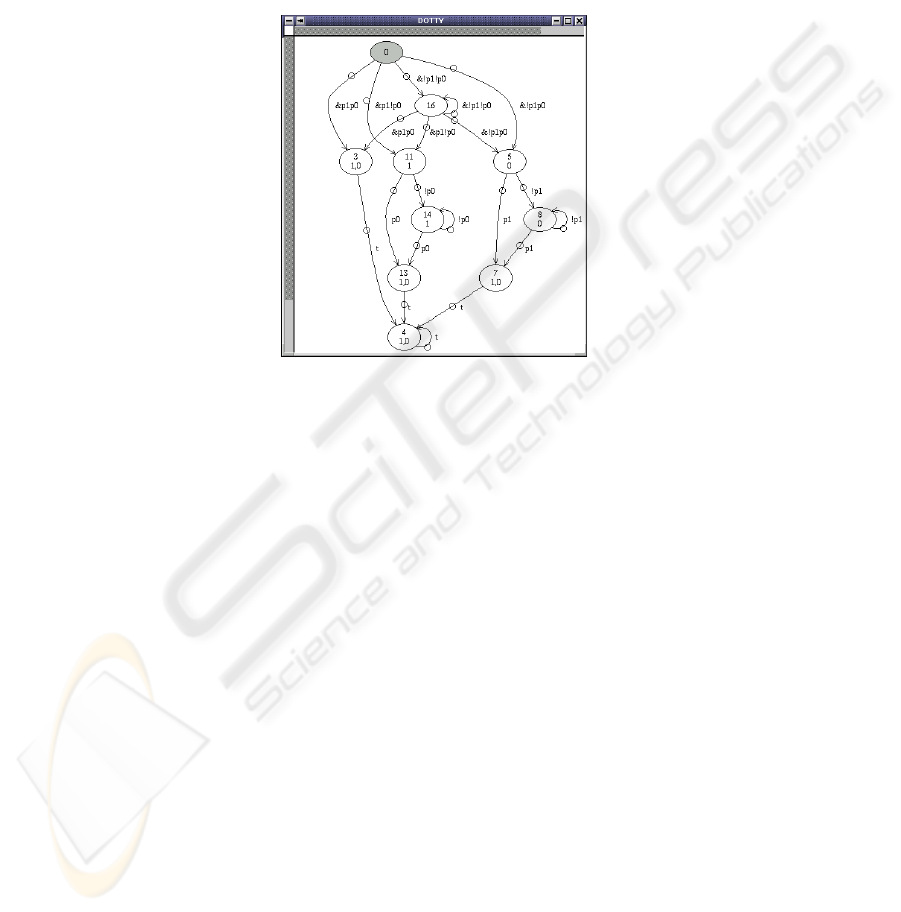

Fig. 4. Büchi automaton generated by FBT for the formula p0
p1
Table 1 gathers the values counted in the automata generated by FBT and LBT for
various specifications. The one explained in Example 1 is shown in Case 5. Each case
occupies two rows: the first row corresponds to the results obtained with LBT, and
the second row is for those produced by FBT. It should be noted that in the second
one, the input specification is represented in the extended syntax of FIL, while the
processed formula is expressed in its restricted syntax. We can observe that for the
simplest specifications (Cases 1 and 2), we obtained the same values in the automata
generated by both tools. However, for slightly more complex specifications (Cases 4,
5 and 6), FBT generally produces smaller automata than those obtained with LBT.
The formulas containing either the operator U or its dual V are usually the exception
to this rule, since for these, LBT usually produces automata which are slightly sim-
pler than those generated by FBT (Case 3). This is due to the fact that the correspond-
ing interval formula which is analysed by FBT attempts to “simulate” the property
that these operators represent more naturally. Something similar happens in the oppo-
site way with interval formulas: since LBT does not admit interval formulas, it is
necessary to resort to appreciably more complicated expressions (Case 7) in order to
provide it with an equivalent LTL formula, as Example 2 explains.
Example 2: Since LBT does not recognize the formula [p0|p1)¬p2, we must
input an equivalent LTL formula. The semantics associated with this interval formula
indicates that it holds whenever one of the following four conditions is fulfilled:
31
1. p0 does not hold in the future, i.e. the LTL formula ¬p0
holds.
2. p1 never holds in the future, i.e. ¬p1 is true.
3. p1 precedes p0, which is expressed as p1
V
¬p0 in LTL. This formula asserts that in
the first state where p1 holds as well as in all the previous ones to it ¬p0
holds.
4. Either p0 and p1 hold in the same state or p0 holds strictly before p1 and (in this
case) ¬p2 is invariantly satisfied from the instant in which p0 holds until p1 is ful-
filled. Both conditions are formulated in LTL as ¬p1
U
(p0
¬p2
U
p1).
Consequently, the equivalent formula to [p0|p1)¬p2 that must be inputted
into LBT is the disjunction of the previous four LTL formulas, i.e. ¬p0 ¬p1
p1
V
¬p0 ¬p1
U
(p0
¬p2
U
p1). The interval formula clearly expresses the ex-
plained property more concisely and elegantly. Moreover, the analysis carried out by
FBT produces a simpler automaton (see Case 7 in Table 1).
Table 1. Comparison of results obtained with LBT and FBT
Specification Size Accept statesing
Input Processed Nodes Edges
k
|
F
i
|
|F
i
|
¬
p0
1 2 0
1
¬
p0
[
p0|
)
F
1 2 0
p0
3 6 1 2
2
p0
¬
[p0|)
F
3 6 1 2
p1
U
p2
3 6 1 2
3
p1
U
p2
¬[(¬p1 p2)|)¬p2
4 9 1 3
◊◊
p1
6 13 2 4, 5 3
4
◊◊
p1
¬
[
¬
[p1|)
F
|)
F
4 8 2 3, 3 2
p0
p1
13 29 2 8, 8 4
5
p0
p1
¬
[p0|)
F
¬
[p1|)
F
9 20 2 6, 6 4
p1
p2
9 19 2 7, 7 5
6
p1
p2
¬
[
[
p1|
)
F
|
)
F
[
[
p2|
)
F
|
)
F
5 15 3 4, 3, 4 2
¬
p0
¬
p1
p1
V
¬
p0
¬
p1
U
(p0
¬
p2
U
p1)
17 33 2 15, 14 12
7
[p0|p1)
¬
p2
[
p0|
p1)[
p2|
)
F
12 25 2 9, 9 7
5 Conclusions and Future Work
In this paper, we have presented the FBT tool, which is specially intended to be ap-
plied to the automatic verification of systems, using the on-the-fly model checking
method and FIL formulas. We have adopted this logic as the specification formalism
of our tool for two reasons: firstly, its ability to express succinctly limited temporal
contexts in which certain properties must be satisfied; and secondly, its natural, intui-
tive, graphical representation, which makes the specifications easier to develop and
understand.
We have also included class diagrams illustrating the design and implementation
structure of FBT, and some experimental results which we have compared with the
results obtained with LBT for the same or equivalent formulas. The automata gener-
ated by both translators are of a similar complexity, but those produced by FBT are
slightly simpler in most of the analyzed cases. As a good specification formalism is
32
the one that describes the most frequently used properties in verification with specifi-
cations that are relatively short and not difficult to check in practice, we can conclude
that FIL is a good specification formalism and that FBT is a good tool for the effi-
cient translation of its formulas into Büchi automata.
In future work, we intend to supply FBT with a graphical editor for GIL formulas,
so that the specifications can be pictorially provided, instead of in the textual syntax
of FIL. GILED [7] is an editor of this type that automatically translates the graphical
specifications created with it into the corresponding FIL formulas. The idea is to
adapt this editor or to build one of similar characteristics for FBT. We also intend to
integrate our translator into an on-the-fly model checking tool. Although FBT has
been designed so that it may be easily incorporated into the model checker of M
ARIA
[9], it can also be adapted to be integrated into other more popular finite-state verifi-
cation tools such as SPIN [4].
References
1. Dillon, L.K., Kutty, G., Melliar-Smith, P.M., Moser, L.E. Ramakrishna, Y.S.: A Graphical
Interval Logic for Specifying Concurrent Systems. ACM Transactions on Software Engi-
neering and Methodology, 3, 2 (1994) 131–165
2. Gansner, E.R., Koutsofios, E., North, S.C., Vo, K.-P.: A Technique for Drawing Directed
Graphs. IEEE Transactions on Software Engineering, 19, 13 (1993) 214–230
3. Gerth, R., Peled, D., Vardi, M.Y., Wolper, P.: Simple On-the-fly Automatic Verification of
Linear Temporal Logic. Proceedings of the 15th International Symposium on Protocol
Specification, Testing and Verification, Warsaw, Poland. Chapman & Hall (1995) 3–18
4. Holzmann, G.J.: The SPIN Model Checker: Primer and Reference Manual. Addison-Wesley,
Boston (2003)
5. Hornos, M.J.: Tool Design and Implementation. In: From Interval Logic Specifications to
Property Automata: A Tableau Construction for Application to On-the-fly Model Checking.
Chapter 6, PhD. Thesis, University of Granada (2002) 153–182 (in Spanish)
6. Hornos, M.J., Capel, M.I.: On-the-fly Model Checking from Interval Logic Specifications.
ACM SIGPLAN Notices, 37, 12 (2002) 108–119
7. Kutty, G., Dillon, L.K., Moser, L.E., Melliar-Smith, P.M., Ramakrishna, Y.S.: Visual Tools
for Temporal Reasoning. Proceedings of the IEEE Symposium on Visual Languages, Ber-
gen, Norway (1993) 152–159
8. Mäkelä, M.: LBT: LTL to Büchi Conversion. http://www.tcs.hut.fi/Software/maria/tools/lbt/
9. Mäkelä, M.: Maria: Modular Reachability Analyser for Algebraic System Nets. Proceedings
of the 23rd International Conference on Application and Theory of Petri Nets, Adelaide,
Australia. Lecture Notes in Computer Science, Vol. 2360, Springer-Verlag (2002) 434–444
10. Manna, Z., Pnueli, A.: The Temporal Logic of Reactive and Concurrent Systems: Specifi-
cation. Springer-Verlag, New York (1992)
11. Ramakrishna, Y.S., Dillon, L.K., Moser, L.E., Melliar-Smith, P.M., Kutty, G.: Interval
Logics and Their Decision Procedures. Part I: An Interval Logic. Theoretical Computer Sci-
ence, 166, 1–2 (1996) 1–47
12. Rumbaugh, J., Jacobson, I., Booch, G.: The Unified Modeling Language Reference Man-
ual. Addison-Wesley, Reading (1999)
13. Wolper, P.: The Tableau Method for Temporal Logic: An Overview. Logique et Analyse,
110–111 (1985) 119–136
33
