Ubiquitous Application Development using a Mobile

Agent-based System

Kazutaka Matsuzaki

, Nobukazu Yoshioka

, and Shinichi Honiden

1,2

University of Tokyo,

7-3-1 Hongo, Bunkyo-ku, Tokyo 113-0033, Japan

National Institute of Informatics,

2-1-2 Hitotsubashi, Chiyoda-ku, Tokyo 101-8430, Japan

Abstract. This study proposes a methodology that allows the ﬂexible and main-

tainable development of application based on mobile agent to a ubiquitous en-

vironment. Ubiquitous environment is to support people’s movement in an in-

conspicuous and unobtrusive way while they are executing applications. This

requires the various kinds of concerns to be written in application code, which

makes the application code monolithic. A monolithic code reduces its ﬂexibility

and maintainance faculty. Coding techniques to improve the efﬁciency and test-

ing makes the matter worse. This paper introduce a Worklfow-awareness model

based on agent pairing which makes it possible to tune up a performance of the

application without disorganizing the application logic. AspectJ is used to com-

bine the non-application logics speciﬁc to a deployed environment.

1 Introduction

With the recent developments in wireless networks and diffusion of mobile devices, it is

likely that mobile users would use Internet or Intranet services from their mobile termi-

nals. [11] proposes to make hardware devices (printers) to serve as Web Services from

a mobile terminal. [2] supports such service discovery for mobile users. We focus on

a usage style in which mobile user uses services which stand physically near and logi-

cally available via network. For example, we think of situations where mobile user uses

some interactive services through his mobile terminal with walking to other ﬂoor. After

he ﬁnishes using the services, he might print out the result of the service with available

printer in his reach. Application for such usage style will be needed in many situations.

Its whole execution ﬂow will be much more complicated when realizing application

logic by using multiple services. We aim for aiding such application development.

Generally, there are many network groups even in a single building because of the

social contexts. There may be some companies and some departments in a building.

It is feasible that they belong to different network groups. As a result, mobile user is

restricted using services; he can access the services only when he connects to the same

network groups of the services. To overcome such restrictions, [22,18] proposes to use

mobile agent technologies. Mobile agents are deployed in a wired network and work as

proxies in using services for mobile user who requests to uses the services.

Matsuzaki K., Yoshioka N. and Honiden S. (2004).

Ubiquitous Application Development using a Mobile Agent-based System.

In Proceedings of the 1st International Workshop on Ubiquitous Computing, pages 204-212

DOI: 10.5220/0002681802040212

 SciTePress

Our motivation is realizing an efﬁcient application development which is based

on good maintenance ability from separation of concerns. Target application (mobile

agent) contains application logic, service adjustment (discovery, negotiation, check alive),

performance tuning technique (e.g. interleaving access), testing and other supportive

tasks. This makes application code monolithic and complex, which troubles the appli-

cation programmers. To tackle this problem, we propose Workﬂow-awareness model.

The model consists of some notions: Pairing, Workﬂow-awareness (WFA) and practi-

cal use of AspectJ. Pairing means that the application is composed of two agents. The

one is for executing application logic and the other is for subsidiary tasks. WFA means

that execution states of the application logic agent are watched by the pairing agent to

process its subsidiary tasks in assigned timings. AspectJ is used to weave concerns into

an agent for application logics to realize WFA and to alter the behavior of method used

in WFA.

Our methodology goal is to keep the agent for application logic being able to run

anywhere without any modiﬁcation to itself. Pairing agents are changed to glue appli-

cation logic and deployment environment and intention depending on the situation.

In Sect. 2 we discuss the assumptions of our target environments and the actual

problems for developing in target application. Sect. 3 presents our methodology feature.

Sect. 4 surveys related work and Sect. 5 provides a summary and discusses future issues.

2 Assumptions and problems of the target domain

The focus of this study is on the development of mobile agent application which uses

(multiple) Web Services in ad hoc way and tracks user’s mobility in a building. In

order to gain a narrower scope, we describe some assumptions about the application

deployment environment and the application style. After reviewing the assumptions,

we discuss the target problems to solve.

2.1 Assumptions for deployment environment

– User tracking systems: In order to track the physical mobility of the user (applica-

tion owner), mobile agents are able to look up the user’s position in a building [9,

3].

– Service advertisement/discovery mechanisms: Services are properly advertised with

respect to its service description and their belonging network groups so that appli-

cation (mobile agent) can judge which services are preferable for the user [2,1].

– Mobile agent run-time: Each host in a network group has an agent hosting environ-

ment with proper access controls mechanisms. This enables mobile agents to use

target services by migrating and messaging among these hosts and services.

With these three assumptions, we imagine the situation illustrated in Fig. 1.

2.2 Assumptions for application style

– Coding agent in a state based programming style [20, 10]: Application is writ-

ten in a state based agent code. The left part of Fig. 3 shows that of Bee-gent

205

network group A

network group B

1. moves into another network group

tracking

system

user

2.sense the user’ s movement

sensor

agent

3.notify

4.migrate

taget

service

agent

directory

service

P2P service

sharing network

1. query service

(message)

1‘. query service



message + migration)

2.’ service provider

list

2. service provider

list

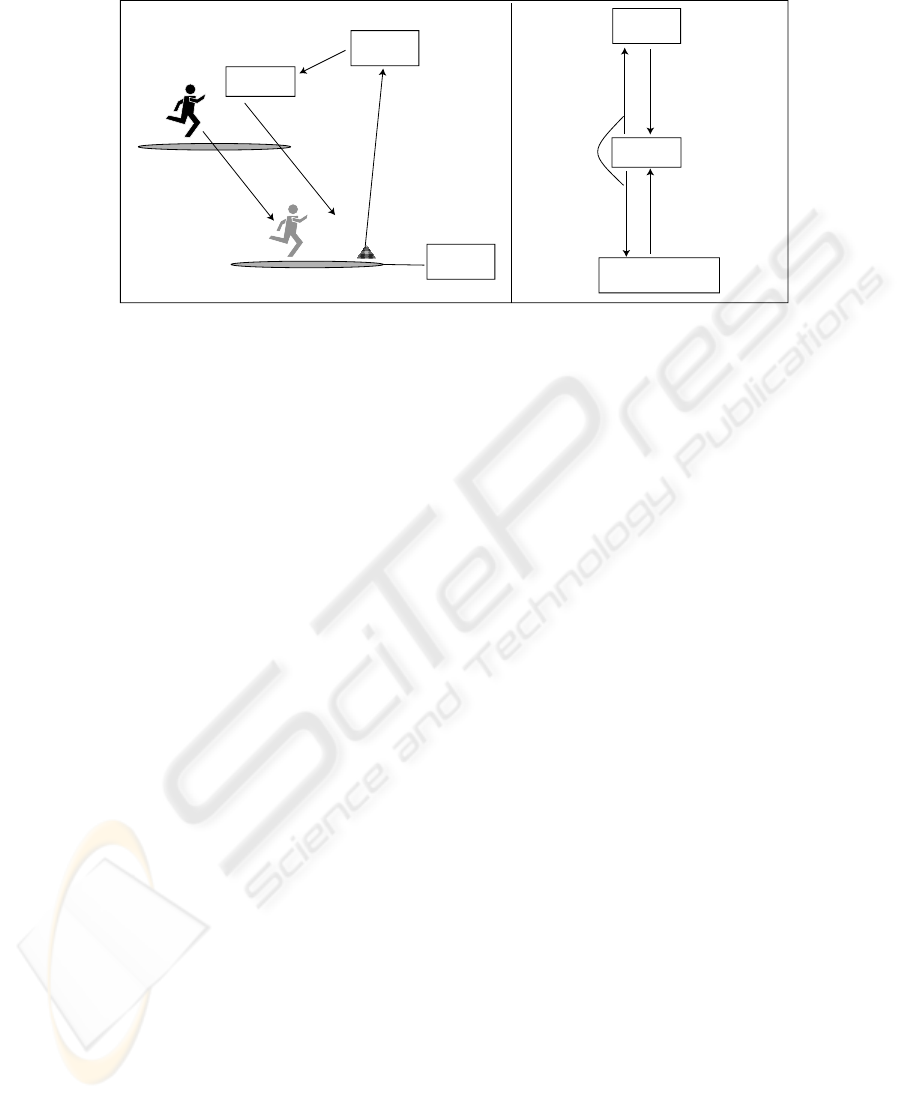

Fig.1. Concise description of the target situation is shown. (a) mobile agents can follow the

user’s movement between network groups. (b) mobile agents can know the service provider’s

both logical and physical location from either a directory service or P2P service sharing protocols.

[10]. It is based on the concept of “states” and “state transitions”. Following the

“Transaction-Rule”, a transition occurs from one state to a state where its “Pre-

Condition” matches the Rule.

2.3 Problems

Our target application has many aspects of distributed computing as described above.

Requirements for programmers to realize the target application includes

– application logic: a series of process deﬁnitions for the application

– service arrangements: arrange services to keep available, i.e. service matching, ser-

vice preparation, linkage checking between user and services.

– pre-processing: a series of processes needed prior to using services, e.g. authenti-

cations, encryption, ﬁle format conversion and so on.

– adaptation: control for adapting to dynamic environmental changes due to user mi-

gration.

Furthermore, performance tuning code and testing code are also necessary for real de-

ployment. Coding these items with predicting run-time situations at the design stage

is quite challenging to application programmers and presents totally a new sphere of

problems.

3 Approach

3.1 Pairing of agents

To solve the above-mentioned problems, we propose a new methodology that introduces

two types of mobile agents: the Master Agent (MA) and the Shadow Agent (SA). The

206

fundamental objective is the separation of concerns which are entangled in one agent’s

code and keeps the required functions satisﬁed. A monolithic agent that is made with

existing method is to be divided into MA and SA depending on the kind of tasks.

– Master Agent (MA) has an application logic fulﬁlled by the communication with

both the user and the services. MA’s state transition reﬂects the application logic

ﬂows.

– Shadow Agent (SA) carries out supportive tasks well-timed for MA execution

states. SA’s tasks are dependent upon the environment or situation where the MA

is deployed, e.g. service matching, service preparation, linkage checking between

user and services, pre-processing needed for using services, adaptation to the changes

of the environment at the run-time, performance tuning, and testing (See Sect.2.3).

As for performance tuning, SA works as a proxy of MA for some tasks (interleaving

execution, preemptive execution etc.). For example, preemptively searching services

(service matching) and Future communication [13] against the output from the service

execution. These behaviors are only enabled when MA and SA work at the remote

places each other. Thus, task separation is done in the form of paired agents, which

have remote communication ability between the components. This separation is a kind

of AOP in agent development [12]. SA is supposed to be created or customized by the

application programmer or code generator adapting the deployment environment and

situations. SA is coded using APIs fetching information of the MA execution states,

and weaving well-timed tasks. We describe more details in the following sections.

3.2 Workﬂow-awareness model

Workflow

agent application

with existing method

Master Agent

Shadow Agent

devide

workflow update module

control logic

Application logic

update

design phase

execution phase

agent application

with existing method

devide

design phase

Workflo

control logic

(monitoring)

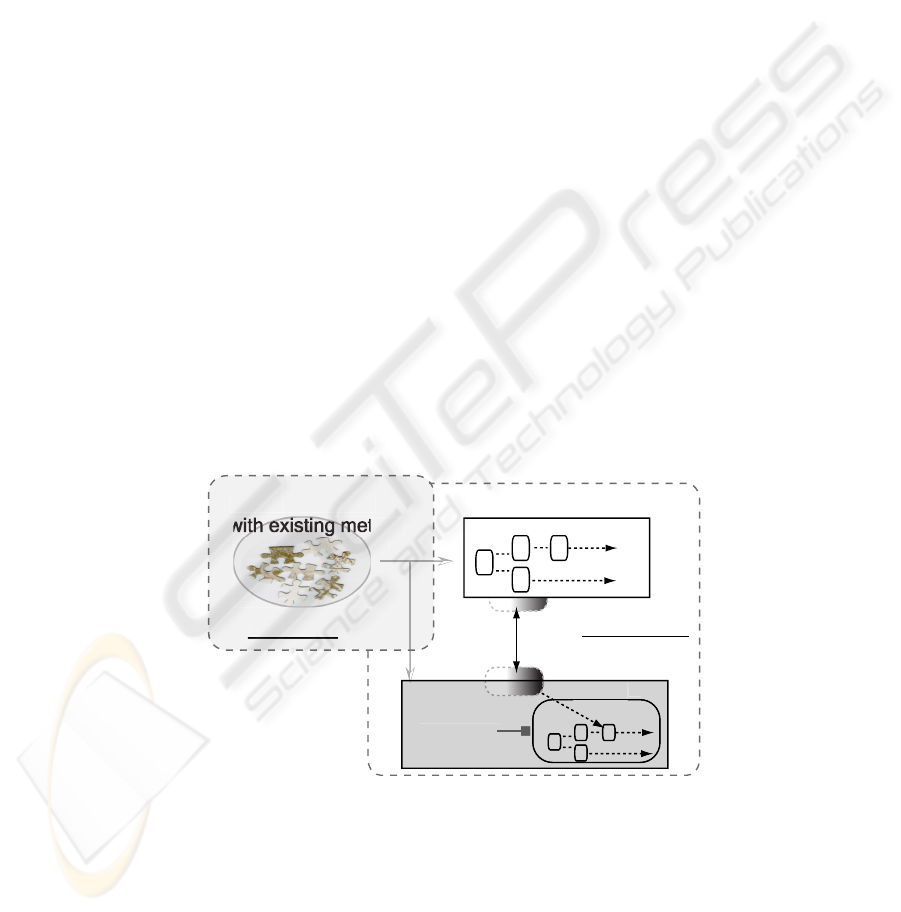

Fig.2. Concise descriptions of WFA. At the design phase, an old-style agent application is divided

into MA and SA. At the execution phase, workﬂow instance is kept fresh.

207

StateC{ޓ

ޓ// find matched services providers info

resourceID = serviceMatch("spec.rdf");

ޓ// migrate to the proper place

migrate(somewhere);

ޓ// service invocation

requestID = invoke(resourceID, "job");

ޓ// set posterior state

if (condition) {

setPostcond("stateD");

} else {

setPostcond("stateE");

}

Workflow

WFState

service_info

migration_info

invocation_info

poststate_info

.....

State-based agent

code structure

Workflow structure

.....

getCurrentState()

enterState()

stayStateFor()

action definition of State C

Translate

translate

DDE

Pre-

condition

Transition

rule

action

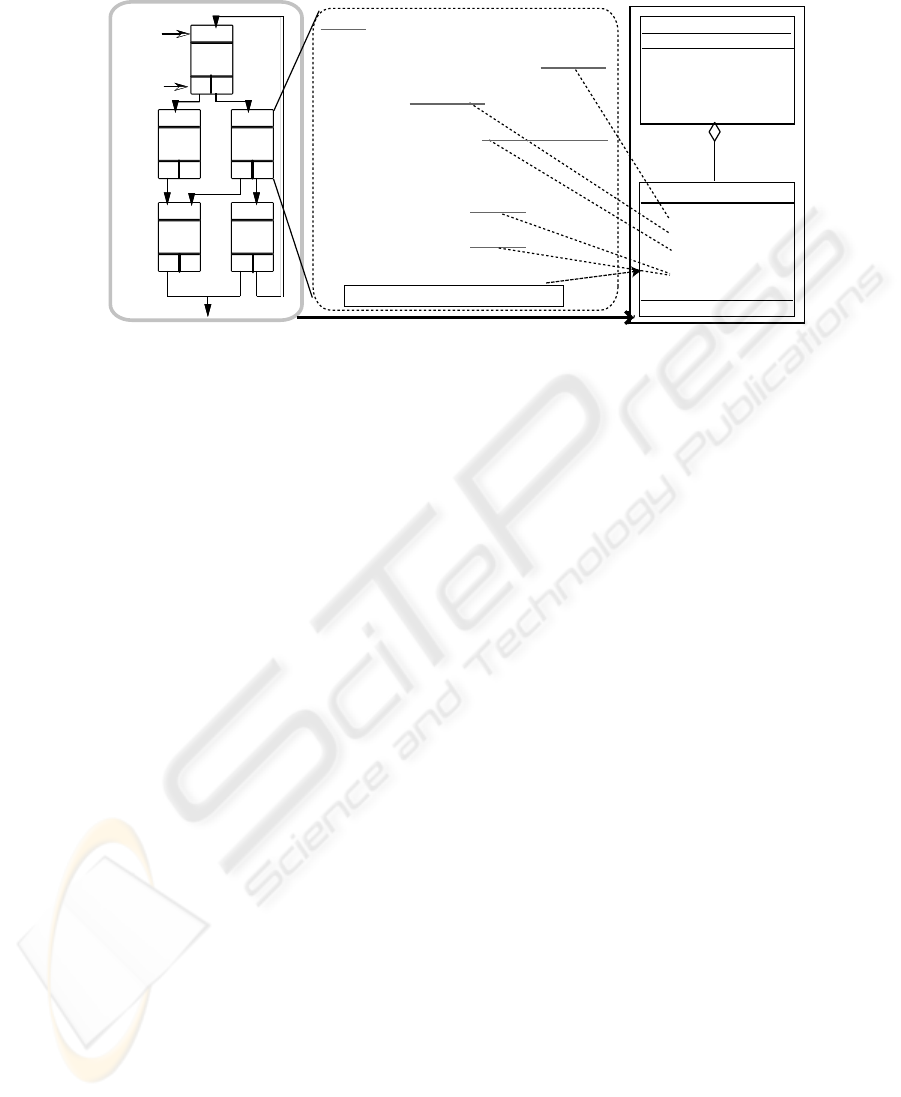

Fig.3. Translation processes of an agent code. Each state of an agent code is translated into WF-

State, which becomes a workﬂow object’s component. In this ﬁgure, state C is used as example.

Potential workﬂow elements (method arguments) are extracted into WFState.

We propose to use Workﬂow-Awareness (WFA) to promote the separation of con-

cerns. The key characteristic is that the SA can trace the MA execution states at run-time

through the workﬂow object. A workﬂow object is a structure that is composed of ex-

tracted elements of the MA state transitions (WFState), i.e. the workﬂow object has

miniature state machine (Fig. 3). workﬂow elements are as follows:

– state name: This is used as an identiﬁer.

– migration sentence: An MA migration event would be transparent to the SA.

– service matching sentence: An MA service matching message transition to the ser-

vice provider would be intercepted by the SA.

– service invocation sentence: An MA service invocation message transition to the

service provider would be intercepted by the SA.

– state transition command: MA state transition must be cached by the SA, because

the workﬂow object must be kept updated during the MA execution.

Programmer can code the SA with awareness of the timings of important MA ac-

tions through the provided WFA related APIs. Fig. 4 is a list of some examples of WFA

APIs. These APIs are implemented to send/receive ACL messages [8] bi-directly, which

enables SA to make order to the MA actively.

SA’s action is basically workﬂow event driven, e.g. ”if the MA enters state food,

then starts service matching preemptively which will be used by the MA in posterior

state.” The important point of this is that the application logic would be preserved even

when testing or performance tunings occur.

208

get the MA field values

get the MA info

ResourceID prefetch(Spec specfile)

control the service matching command

service matching

control

boolean suspendMA()

control the MA internal state

state control

boolean enterState(String state)

gather the information related to the MA

state information

Object getMAFieldValue(String tag)

output control

work as a proxy

RequestID proxyRecieve([signature of invoke()])

example

description

return true if the MA enters state identified by “state”

suspend the MA’s execution

find the services matched with specfile beforehand

ask the values of the MA field identified by “tag”

invoke the service as a proxy and control the output data flow

Fig.4. Some examples of APIs in WFA.

3.3 Practical use of AspectJ

AspectJ is an AOP programming language which is a seamless aspect-oriented exten-

sion to the Java programming language. AspectJ is typically used to generally insert

mostly nonfunctional concerns into functional code.

Since WFA intends to support development, some smart measures to realize WFA

are needed so as not to make it either difﬁcult to develop or taking much time at run-

time.

To meet the requirements, we use AspectJ in some points:

– Automation of workﬂow instance updating: Each MA state transition is handled

by the workﬂow update module interwoven by aspect. This module send/receives

notiﬁcation messages to keep the workﬂow information up-to-date (Fig. 5(a)).

• main concern: Application logic mapped into MA states

• cross cutting concern: Notiﬁcation message passing

– WFA method delegation: WFA supported performance tunings are done by an SA’s

processing as a proxy of an MA. (See Sect. 3.2) Since we do not want to lose an

MA’s ability to run stand-alone, AspectJ seems to suit well. Fig. 5(b) illustrates

how the delegation occurs. Suppose that main function of serviceMatching (send

query etc.) in main part. This part is rewritten by the advice in the aspect as in Fig.

5(b), which would change the behavior of the MA to make use of the SA. This

ﬁgure follows the notation of [7]. The “xor” in Fig. 5(b) means that only explicitly

declared method invocation should be changed, otherwise “proceed” the normal

execution (service matching activity by the MA itself).

• main concern: MA’s WFA method execution

• cross cutting concern: Alternate the actor of the method execution

209

Owing to this methodology, performance tuning can be made with the MA’s logics

being entirely kept.

DDE

//intercept the setter of post-condition

pointcut pc_setPostcond(String next) : call(

void MAStateClass.setPostcond(String))

&& args(next)

&& !within(this);

//send update message to SA

after(String next) : pc_setPostcond(next){

MAStateClass hookedMA =

(MAStateClass)thisJoinPoint().getThis());

hookedMA.sendXML(createUpdateMsg());

}

setPostcond : setter of post-condition

MAStateClass : super class for defining MA's

Interation Protocols

pointcut

(a)

<<refine>>

<<include>>

<<extend>>

on ‘proceed

{xor

}

<<include>>

serviceMatch

main_part

<<advice>>

wovenServiceMatch

on ‘proceed

redefine serviceMatch so

as to wait for info from SA

(b)

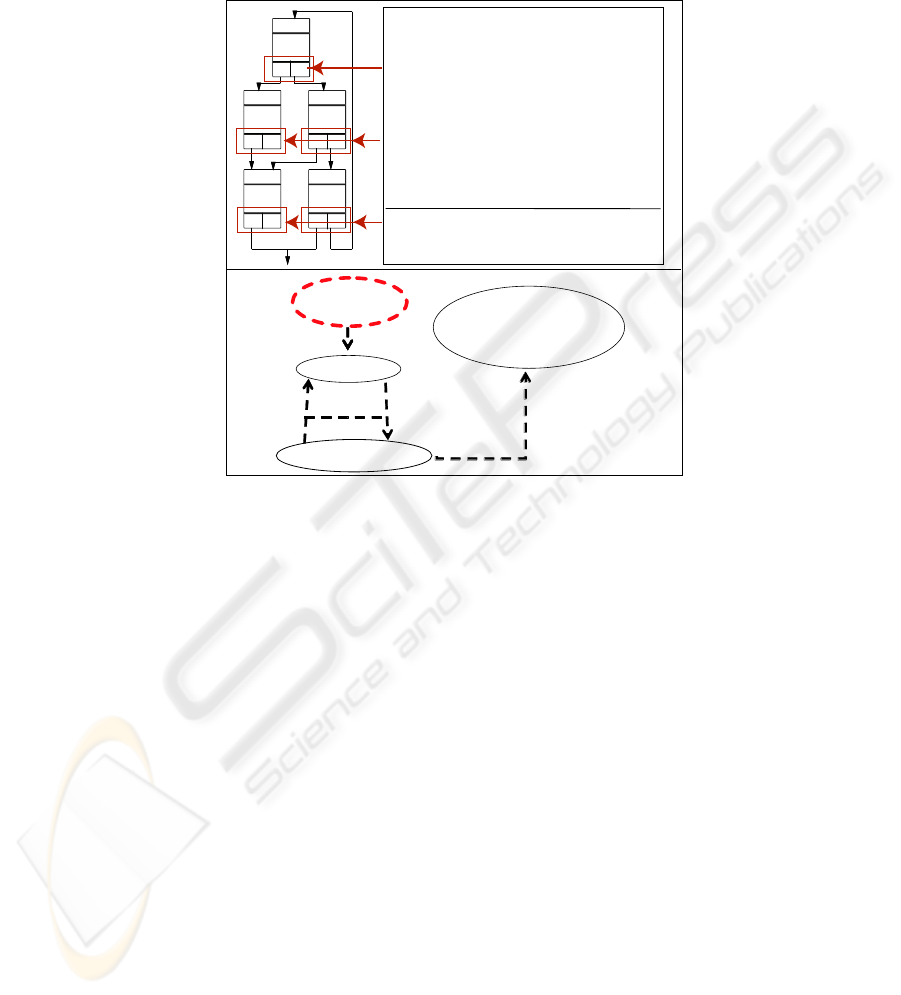

Fig.5. (a): MA state structure and aspect which offers workﬂow update functions. (b): Delegation

of the method execution by being rewritten with AspectJ.

4 Related Work

This section discusses several studies that haveinﬂuenced various aspects of this method-

ology, which is in conjunction with research areas.

As for pairing of the agents, [21] introduces a secure protocol using a cooperation

agent recording the path history of each other. [15] uses a pair of agents for interleaving

access to services. [15] deploys a delegate-agent for using web services so that efﬁ-

ciency and reliability are increased. In our methodology, the MA and SA each have

their own programmed tasks and sometimes act in remote places, which enables a new

function in addition to interleaving effects.

Several papers haveexplored meta-levelarchitecture and reﬂection for mobile agents

[6,14, 4]. In [6], an agent reasons about the beliefs of another agent, as well as about the

actions that other agents may take. This meta-reasoning is similar to WFA : however, it

does not support the agent division of labor in different places. This support is desirable

under mobile settings so as to efﬁciently complete tasks.

210

Several papers discuss mobile agents from an AOP point of view. [12] proposed to

introduce the Role Model into an agent system for analysis, design, and implementa-

tion. [17] took another approach for separation of concerns for mobile agents by using

policy control for binding. In this approach, a mobile agent, called a shadow proxy,

roams a ﬁxed network to bind needed resources in place of the applications on mo-

bile terminals. [17] has good mechanisms for resource binding treatment. This is done

under the control of Ponder [5], a policy speciﬁcation language. In our methodology,

mobile agent tasks not only work as a proxy resolver for resources but also coordinate

between applications and services in wired and wireless networks, i.e. a main part of

the application logic. Our priority is considered in two points:

– Availability of the agent execution state enabling the programmer to adapt it to the

environment characteristics

– Capability to handle complex jobs by coordination of a pair, which cannot be re-

solved only by forking a new process.

Most of the approaches intended to exploit logical mobility for supporting user’s

physical mobility provide middleware [19,16, 18,22]. These middleware supports log-

ical mobility in infrastructure levels. [18] realizes the access control of resources from

the context information of the middleware components (mobile proxies). Relevant ac-

cess control rules, client location, user preferences, privacy requirements, terminal char-

acteristics, and current state of hosting environments can be considered, which helps

mobile clients obtain ﬂexible access to the resources. [22] is characterized in capabili-

ties, a unit that provides a speciﬁc functionality to the user, the middleware or to other

applications and adheres to a speciﬁc interface. These capabilities provide the middle-

ware (SATIN) with modularization and make it easy to deploy and update applications.

We would like to investigate a middleware design to ﬁt our methodology reusing

some functions of these existing approaches.

5 Conclusions and Future Work

In the present study, a mobile agent based development methodology for ubiquitous ap-

plication has been proposed. The approach offers a Workﬂow-awareness model based

on paired agent cooperation for aiding programmers in handling run-time events ef-

ﬁciently while separation of concerns is kept. The methodology also applies AspectJ

practically in its implementation. A workﬂow object contains the latest information on

the agent execution state and the pair agent can decide on its action accordingly. This

cooperation enables the effective behavior of agents at the service exploitation time.

The direction of our future research is to provide some patterns or rules for pro-

grammers as for SA’s functions. We are also presently striving to design middleware

that suits well with WFA methodology.

References

1. Jxta v2.0 protocols speciﬁcation, 2003.

211

2. Web services dynamic discovery, 2004.

3. Paramvir Bahl and Venkata N. Padmanabhan. RADAR: An in-building RF-based user loca-

tion and tracking system. In INFOCOM, pp. 775–784, 2000.

4. Walter Cazzola, Shigeru Chiba, and Thomas Ledoux. Reﬂection and Meta-Level Archi-

tectures : State of the art and future trends. In Object-Oriented Technology (ECOOP 2000

Workshop Reader), Vol. 1964 of Lecture Notes in Computer Science, pp. 1–15. Springer-

Verlag, 2000.

5. Nicodemos Damianou, Naranker Dulay, Emil Lupu, and Morris Sloman. The ponder policy

speciﬁcation language. Lecture Notes in Computer Science, Vol. 1995, pp. 18–38, 2001.

6. J¨urgen Dix, V. S. Subrahmanian, and George Pick. Meta-Agent Programs. Technical Report

21–98, 1998.

7. Stefan Hanenberg Dominik Stein and Rainer Unland. An uml-based aspect-oriented design

notation for aspectj. In Proceedings of the 1st international conference on Aspect-oriented

software development (AOSD ’02 ), pp. 106–112, 2002.

8. FIPA, 2001. FIPA ACL Message Structure Speciﬁcation, Foundation for Intelligent Physical

Agents.

9. D. Garlan, D. Siewiorek, A. Smailagic, and P. Steenkiste. Project aura: Toward distraction-

free pervasive computing. IEEE Pervasive computing, Vol. 1, No. 2, pp. 22–31, 2002.

10. Bee gent Website, 1999. http://www2.toshiba.co.jp/beegent/.

11. The Printer Working Group, 2003. Print Service Interface Version 1.0 Working Draft.

12. Elizabeth A. Kendall. Role modeling for agent system analysis, design, and implementation.

IEEE Concurrency, Vol. 8, No. 2, pp. 34–41, 1999.

13. Doug Lea. Concurrent Programming in Java: Design Principles and Patterns, Second edi-

tion. Addison-Wesley, 1999.

14. Thomas Ledoux and Noury M. Bouraqadi-Saadani. Adaptability in mobile agent systems

using reﬂection. In RM’2000, Workshop on Reﬂective Middleware, Middleware’2000, April

2000.

15. Zakaria Maamar, Quan Z. Sheng, and Boualem Benatallah. Interleaving web services com-

position and execution using software agents and delegation. In AAMAS 2003 Workshop on

Web Serices and Agent-Based Engineering.

16. C. Mascolo, L. Capra, S. Zachariadis, and W. Emmerich. Xmiddle: A data-sharing middle-

ware for mobile computing. Wireless Personal Communications, Vol. 21, No. 1, pp. 77–103,

2002.

17. Rebecca Montanari Paolo Bellavista, Antonio Corradi and Cesare Stefanelli. Dynamic bind-

ing in mobile applications : A middleware approach. Internet Computing, Vol. 7, No. 2,

2003.

18. Rebecca Montanari Paolo Bellavista and Daniela Tibaldi. Cosmos: A context-centric access

control middleware for mobile environments. In Mobile Agents for Telecommunication Ap-

plications, 5th International Workshop, MATA 2003, Vol. 2881 of Lecture Notes in Computer

Science, pp. 77–88, 2003.

19. Gian Pietro Picco, Amy L. Murphy, and Gruia-Catalin Roman. LIME: Linda meets mobility.

In International Conference on Software Engineering, pp. 368–377, 1999.

20. Martin C. Rinard and Monica S. Lam. The design, implementation, and evaluation of Jade.

ACM Transactions on Programming Languages and Systems, Vol. 20, No. 3, pp. 483–545,

1 May 1998.

21. Volker Roth. Secure recording of itineraries through co-operating agents. In ECOOP Work-

shops, pp. 297–298, 1998.

22. Stefanos Zachariadis and Cecilia Mascolo. Adaptable mobile applications through satin: Ex-

ploiting logical mobility in mobile computing middleware. UK-UbiNet Workshop, Septem-

ber 2003.

212
