TERRAIN CLASSIFICATION FOR OUTDOOR AUTONOMOUS
ROBOTS USING SINGLE 2D LASER SCANS
Robot perception for dirt road navigation
Morten Rufus Blas, Søren Riisgaard, Ole Ravn, Nils A. Andersen, Mogens Blanke, Jens C. Andersen
Section of Automation, Ørsted
DTU, Technical University of Denmark, DK 2800 Kgs. Lyngby,Denmark
Keywords: terrain classification, obstacle detection, road following, laser scanner, classifier fusion.
Abstract: Interpreting laser data to allow autonomous robot navigation on paved as well as dirt roads using a fixed
angle 2D laser scanner is a daunting task. This paper introduces an algorithm for terrain classification that
fuses four distinctly different classifiers: raw height, step size, slope, and roughness. Input is a single 2D
laser scan and output is a classification of each laser scan range reading. The range readings are classified
as either returning from an obstacle (not traversable) or from traversable ground. Experimental results are
shown and discussed from the implementation done with a department developed Medium Mobile Robot
and tests conducted in a national park environment.
1 INTRODUCTION
Safe autonomous navigation in unstructured or semi-
structured outdoor environments presents a
considerable challenge. Solving this challenge
would allow applications within many areas such as
ground-based surveillance, agriculture, as well as
mining.
To achieve this level of autonomy, a robot must
be able to perceive and interpret the environment in
a meaningful way. Limitations in current sensing
technology, difficulties in modelling the interaction
between robot and terrain, and a dynamically
changing unknown environment all makes this
difficult.
Imperative for successful and safe autonomous
navigation is the identification of obstacles which
either can be damaged or hurt, or in turn can disable
or cause damage to the robot. Analogous to this it
must also be possible to identify traversable terrain
(e.g. the road). Bertozzi and Broggi (1997) argues
that this problem can be divided into lane following
and obstacle detection. This paper concentrates on
the detection of obstacles.
Much current work in laser scanner classification
tends to focus on using 3D laser scanners, vision or a
combination of 3D laser scanners and vision.
Vandapel (2004) used a 3D laser scanner to classify
point clouds into linear features, surfaces, and
scatter. Classification was based on a learnt training
set. Montemerlo and Thrun (2004) identified
navigable terrain using a 3D laser scanner by
checking if all measurements in the vicinity of a
range reading had less than a few centimetres
deviation. Wallace et al (1986) used a vision-based
edge detection algorithm to identify road borders.
Jochem et. Al (1993) followed roads using vision
and neural networks. Macedo et al (2000) developed
an algorithm that distinguished compressible grass
(which is traversable) from obstacles such as rocks

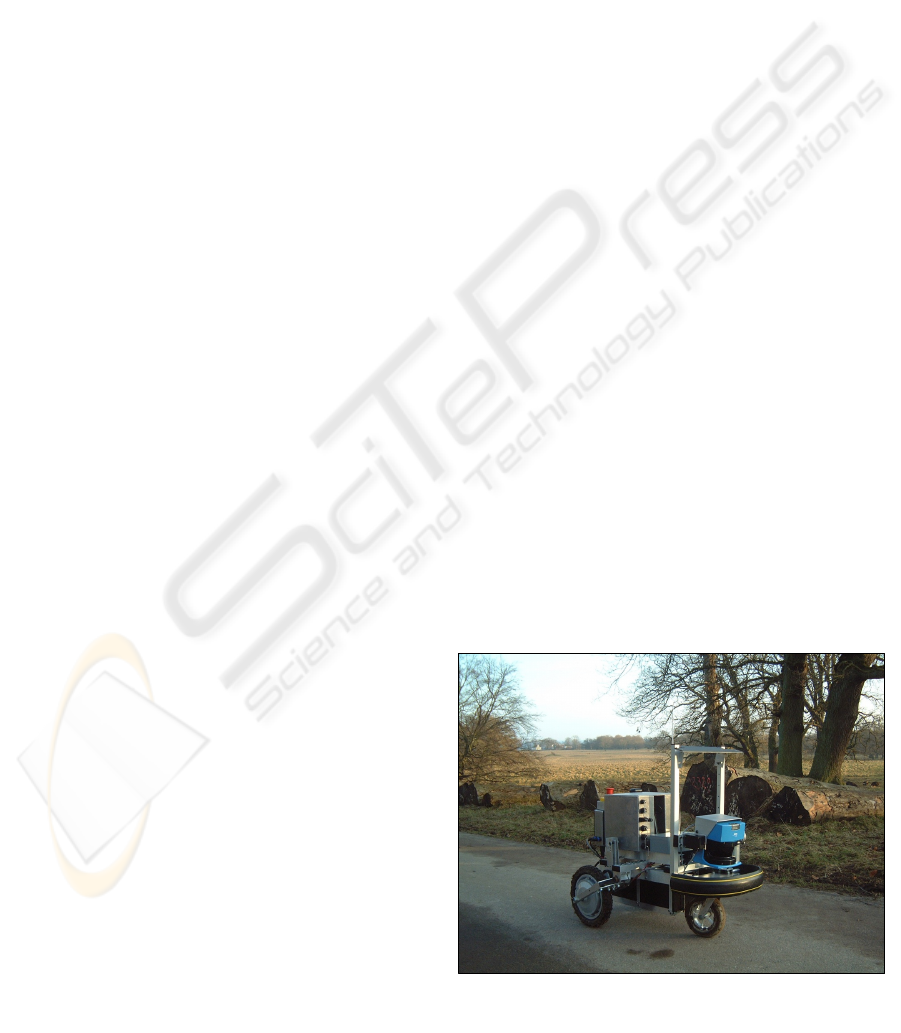

Figure 1: The robot platform tested in the dirt-road semi-
structured environment from a Danish national park
347
Rufus Blas M., Riisgaard S., Ravn O., A. Andersen N., Blanke M. and C. Andersen J. (2005).
TERRAIN CLASSIFICATION FOR OUTDOOR AUTONOMOUS ROBOTS USING SINGLE 2D LASER SCANS - Robot perception for dirt road
navigation.
In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 347-352
DOI: 10.5220/0001176003470352
Copyright
c
SciTePress
using spatial coherence techniques with an omni-
directional single line laser.
Wettergreen et al (2005) extracted three metrics
from stereovision data and used these to traverse a
rock field. Iagnemma et al (2004) followed quite
another route and proposed a tactile and vibration-
based approach to terrain classification.
This paper proposes a terrain classification
algorithm that discriminates between obstacles and
traversable terrain using a fixed 2D laser scanner as
the main sensor. This is notoriously harder than
using 3D sensor inputs as there is much less
information available.
In the classification algorithm proposed here, four
essential environment features are associated with
signatures in the 2D laser scan range readings, and
classification is done using a combined classifier on
the extracted features. The salient features looked at
are: terrain height, terrain slope, increments in
terrain height, and variance in height across the
terrain.
This work is a contribution towards demonstrating
that it will become feasible to achieve autonomy
over long distances (>4km) in a natural outdoor
terrain using only a 2D laser scanner for terrain
classification.
The paper shows results of testing the classifier
on the Medium Mobile Robot (MMR) platform from
the Technical University of Denmark on various
paved and dirt roads in a national park (see Figure
1). The quality of classification is discussed for
different cases of natural environment encountered
in the tests. The contribution of the paper is to
demonstrate that the proposed classification
techniques suffice to navigate the MMR safely and
to demonstrate that the proposed method is robust to
the variation encountered in the natural environment
using simple equipment: 2D laser scanner, a cheap
commercial GPS sensor and odometry.
2 TERRAIN CLASSIFICATION
The terrain classification algorithm combines four
distinctly different terrain classifiers: raw height,
step size, slope, and roughness.
Input for each run of the algorithm is a single
laser scan. Output as stated in the Introduction is a
classification for each range reading as returning
from either an obstacle or as traversable terrain. The
terrain classifiers all work on point statistics.
2.1 Coordinate System
On the MMR the laser scanner is tilted at 8° down
towards the ground and gives 180 range readings in
a 180° frontal arc. Only the range readings in a 120°
arc in front of the robot were used for terrain
classification as this approximately corresponds to
which range readings would hit the ground with the
given scanner tilt.
Each laser scan range reading is converted to a
3D point expressed in the vehicle frame. The
vehicle stands in (0, 0, 0). Assuming the robot is
standing on level ground then up (height) is the Z-
axis in the positive direction. The robot looks out
the positive Y-axis, and the X-axis increases towards
the right of the robot. The raw height and step size
classifier only look at the height (Z-axis).
In the following sections P will denote a set of
range readings converted to 3D points. The
hypothesis is that each 3D point can be mapped to
either belonging to an obstacle or traversable terrain.
This is explained in Eq. (1).
()
()\()
Hobstacle P
H
traversable P H obstacle
=
(1)
A single element of
P is denoted
i
p where i
represents the range reading angle (inside the 180°
frontal arc). The coordinates of a point are given by
(, , )
iiyiz
ix
pppp
=
. The conversion from range
readings to 3D coordinates is shown in Eq. (2).
i
range is the measured range at angle i .
tilt
θ
is the
angle the laser scanner is tilted (in our case 8°).
height
S is the height the laser scanner is mounted at
relative to the plane of the robots wheel-base (on the
MMR this is 0.41m).
*cos( )
cos( )* *sin( )
sin( ) * *sin( )
height
px range i
ii
py range i
i tilt i
pz range i S
itilt i
θ
θ
=
=
=+
(2)
2.2 Raw Height
This classifier looks at the height of each range
reading (point) in the vehicle frame. If a point is
higher or lower (on the Z-axis) than a value decided
by a height threshold then the point is labelled as
returning from an obstacle. In the tested system if a
point had a height of ±20cm it was labelled as an
ICINCO 2005 - ROBOTICS AND AUTOMATION
348
obstacle. In practice its purpose is to identify
obstacles such as people, tree trunks and pits.
Obstacles inside the ±20cm thresholds cannot be
detected. The robot has no sensors to measure pitch
and yaw of the laser scanner relative to the ground
surface. As such, the height thresholds are chosen to
allow for variations in measured height of the
ground due to lack of attitude determination. The
classifier is shown in Eq. (3) where height
max
and
height
min
are the height thresholds.
max
()
min
pheight
iz
Hobstacle p P
i
pheight
iz
>
⎧⎫
⎪⎪
=∈
⎨⎬
∨<
⎪⎪
⎩⎭
(3)
Here, the threshold
min
0height < enables
detection of non-traversable cavities in the ground.
2.3 Step Size
A step size classifier looks at the difference in height
between neighbouring points where neighbouring is
defined as a range within 1° of the specific point. If
the difference in height is higher than a threshold
(here 5 cm) a terrain step is detected that is too high
for the robot to traverse. The algorithm labels both
points that form the border between the step as
obstacles. As it only looks at the step size,
neighbouring points from an obstacle with similar
height may be erroneously labelled as traversable.
The 5 cm threshold was set based on the robot’s
physical specifications, the limiting factor being that
the front wheel cannot reliably climb anything taller.
The classifier is shown in Eq. (4) where step
max
represents the threshold for difference in height.
()
max
(1)
max
(1)
H obstacle
pp step
iz
iz
pP
i
pp step
iz
iz
=
⎧⎫
−>
⎪⎪
⎪⎪
⎨⎬
⎪⎪
∨− >
+
⎪⎪
⎩⎭
(4)
2.4 Slope
Slope classification aims at identifying terrain which
has too high an incline to be traversed. The
classification is done by calculating a 2D line fit
using least squares around a point sample. For each
point, the neighbouring points within ±2° are used.
The least squares line is then calculated using the X
and Z-axis values. The point examined is
subsequently classified based on its slope. If
exceeding a limit slope
max
= ±0.1 it is classified as
belonging to terrain that is too steep for the robot
and is labelled as an obstacle. The assumption here
is that the best-fit line approximates the steepness of
the terrain around this point sample. The value of
±0.1 was chosen for two reasons. First, it represents
what the robot can physically handle. Secondly, it
keeps the robot on reasonably level ground where
lack of attitude determination is less critical. The
classifier can be seen in Eq. (5) where slope
max
is the
slope threshold.
[]
{}
(2) (2)
(2) (2)
12
:
1
and
1
a singular value decomposition
; ;
, ,... last column of ;
:
1
;
2
:
()
max
ix iz
ix iz
TT T
T
n
g
iven
pp
A
pp
AUDV UU VV I
cc c V
let
c
a
c
calculate
H obstacle p P a slope
i
−−
++
⎡⎤
⎢⎥
=
⎢⎥
⎢⎥
⎣⎦
===
=
=−
=∈ >
###
(5)
2.5 Roughness
The roughness classifier looks at the variance in
height in the vicinity of a specific point. The
purpose is to identify areas with low variance as
these areas are more likely to be easily traversable.
For example, heavy underbrush in a forest may have
a high variance; a flat road will appear as a region of
points with a low variance. Trend removal is also
essential as a slightly sloping surface relative to the
vehicle frame may give a high variance in height
relative to the zero height plane {Z|Z=0}. The
variance in height is hence calculated relative to a
2D best-fit line. This line is calculated in the same
manner as in the slope classifier. The variance is
then calculated as the shortest distance from each
point (using again the two neighbouring points on
either side of the point) to the best-fit line using only
the X and Z-axis coordinates. If the variance in a
point sample in this method was found to be larger
than variance
max
= 2.5e-10 the point was labelled as
an obstacle. This classifier can give more accurate
results than the other classifiers (see Table 1) but it
cannot stand alone since, for example, a flat wall
TERRAIN CLASSIFICATION FOR OUTDOOR AUTONOMOUS ROBOTS USING SINGLE 2D LASER SCANS -
Robot perception for dirt road navigation
349
obstacle would return a low variance. The value of
the variance threshold was tuned based on several
kilometre long recorded datasets from the national
park environment (along both paved as well as dirt
roads). The roughness classifier algorithm is shown
in Eq.(6).
[]
(2) (2)
(2) (2)
12
st nd rd
:
1
and
1
a singular value decomposition
; ;
, ,... last column of ;
let , , be 1 , 2 and 3 column of ,
respectively and
1
ix iz
ix iz
TT T
T
n
g
iven
pp
A
pp
AUDV UU VV I
cc c V
X
ZE A
D
−−
++
⎡⎤
⎢⎥
=
⎢⎥
⎢⎥
⎣⎦
===
=
=
###
()
{}
;
12 3
:
1
2
5-1
:
2
( ) variance
max
T
cX c Z cE
k
let
DD
calculate
Hobstacle p P
i
σ
σ
++
=
=∈ >
(6)
2.6 Combining Classifiers
A combined classifier is created by running the
terrain classifiers in the sequential order: raw height,
step size, slope, and then roughness. Initially all
points are labelled as traversable. If a point is
classified as an obstacle by one of the classifiers it is
not further attempted classified in the subsequent
classifiers. Once all the classifiers have been run,
points that lie in gaps between obstacles which are
too narrow to allow the robot to traverse are labelled
as obstacles. The gap size is calculated using the
Euclidean distance between the obstacles in the XY
plane. As raw height and step size are
computationally less expensive than the two other
classifiers, it is computationally favourable to
classify points between obstacles as non-traversable
early in the algorithm.
3 EXPERIMENTAL RESULTS
The quality of the classification was tested using a
dataset of 30 laser scans taken using the MMR
travelling autonomously 200m along a forest dirt
road (see Figure 2). The laser scans have been
sampled at regular intervals along the 200m run.
Each of the points in the laser scans have been
manually classified as belonging either to
traversable terrain (the dirt road) or obstacles. This
manual classification was done to establish a ground
truth. The laser scans were compared to
photographs and time-stamped GPS/odometry data.
In certain situations along the forest dirt road, there
was ambiguity in what constituted the edge of the
road. In these cases, if the terrain appeared
navigable from photographs it was assumed to be so.
Each of the separate classifiers that compose the
combined classifier was tested individually along
with the combined classifier. The number of
misclassifications compared to the manual
classification was recorded and results are
summarised in Table 1. The results clearly show that
there is significant benefit in combining the different
classifiers.
A quality assessment is made using two
measures:
any
missed
p the probability of missed detection
of an obstacle by any single classifier;
all
missed
p the
misclassification of traversable road by combining
all available classifiers.
The measure of missed detection by any of the
classifiers is
{}
|
:() ( )
any
missed
i
i
p
pobstacle
prob
classifier H p H traversable
=
∃∈
∃=
⎩⎭
(7)
Such misclassification for the individual
classifiers was found to be as high as
(95%)
any
missed
p > .
The probability of misclassification of traversable
points
all
missed
p when combining all classifiers is
{}
|
:() ( )
all
missed
i
i
p
p traversable
prob
classifier H p H obstacle
=
∀∈
∀=
⎩⎭
(8)
The misclassification for the individual classifiers
was found to be as low as
(5%)
all
missed
p < .
ICINCO 2005 - ROBOTICS AND AUTOMATION
350
The detailed results in Table 1 show that although
raw height, step size, and slope all misclassify
around half the points on their own, they can still
enhance the combined classifier. This is because
they detect different types of obstacles. For
example, raw height only looks at the obstacles
height whereas step size only detects changes in
height. In the Combined (with gap removal)
classifier the 4.4% misclassifications have proven to
be acceptable in practice as often it is just small
parts of the road which are mislabelled as obstacles
(the robot simply navigates around the suspicious
terrain).
Table 1: Experimental results from the classifiers
Classifier Misclassifications Percentage
misclassified
Raw height 2334 64.8%
Step size 2156 59.9%
Slope 1657 46.0%
Roughness 663 18.4%
Combined 393 10.9%
Combined (with
gap removal)
157 4.4%
4 SUMMARY
A classifier fusion algorithm was proposed that
enable a mobile robot to locate and travel along a
safe path in a natural environment using a 2D laser
scanner, a civil GPS receiver and odometry.
Although performance of individual classifiers,
based on simple single scan statistics, was not
impressive, the combined set of classifiers were
found to perform quite accetably in classifying a dirt
road from surrounding terrain with less than 5% of
scanned points being misclassified. The performance
was documented in a natural environment. This
work has shown that 2D laser scans can give
considerable information about a semi-structured
natural environment.
Ongoing work includes maintaining an estimate
of the roads position across the trajectory of multiple
robot positions and using this information in the
classifier. Also, quantifying the accuracy of a given
classification without ground truth is being looked
into. Lastly, attempts are being made to detect the
type of road surface currently being navigated on.
This may allow for adaptive tuning of classifiers by
making the thresholds in the hypothesis tests
dependant on the road surface.
REFERENCES
Vandapel, N., 2004. Natural terrain classification using
3D ladar data. 2004 IEEE Int. Conf. On Robotics and
Automation, pp 5117-5122.
Macedo, J., Matthies, L., Manduchi, R., 2000. Ladar-
based Discrimination of Grass from Obstacles for
Autonomous Navigation. Proc. ISER 2000, USA pp
111-120.
Montemerlo, M., Thrun, S., 2004. A Multi-Resolution
Pyramid for Outdoor Robot Terrain Perception, Proc.
AAAI, pp 464-469.
Wettergreen, D., P. Tompkins, C. Urmson, M. D. Wagner
W. L. Whittaker, 2005. Sun-synchronous Robotic
Exploration: Technical Description and Field
Experimentation. Int. Joural of Robotrics Research, vol
24 (1), pp 3-30.
Iagnemma, K., Brooks, C., Dubowsky, S., 2004. Visual,
Tactile, and Vibration-Based Terrain Analysis for
Planetary Rovers. Proc. IEEE Aerospace Conference,
2004, pp 841-848.
Wallace, R., Matsuzaki, K., Goto, Y., Crisman, J., Webb,
J., Kanade, T., 1986. Progress in Robot Road-
Following. Int. Conference on Robotics and
Automation, 1986, pp 1615-1621.
Jochem, T., Pomerleau, D., Thorpe, C., 1993. MANIAC:
A next generation neurally based autonomous road
follower. Proc. of the Int. Conference on IAS-3, pp
592-601.
Bertozzi, M., Broggi, A., 1997. Vision-based vehicle
guidance. IEEE Computer, vol. 30, pp. 49-55, July
1997.
TERRAIN CLASSIFICATION FOR OUTDOOR AUTONOMOUS ROBOTS USING SINGLE 2D LASER SCANS -
Robot perception for dirt road navigation
351
(a)
−4 −3 −2 −1 0 1 2 3
−4 −3 −2 −1 0 1 2 3
−4 −3 −2 −1 0 1 2 3
0
1
2
3
4
5
6
−4 −3 −2 −1 0 1 2 3
0
1
2
3
4
5
6
−4 −3 −2 −1 0 1 2 3
−4 −3 −2 −1 0 1 2 3
(b
)
(c)
(d) (e) (f)

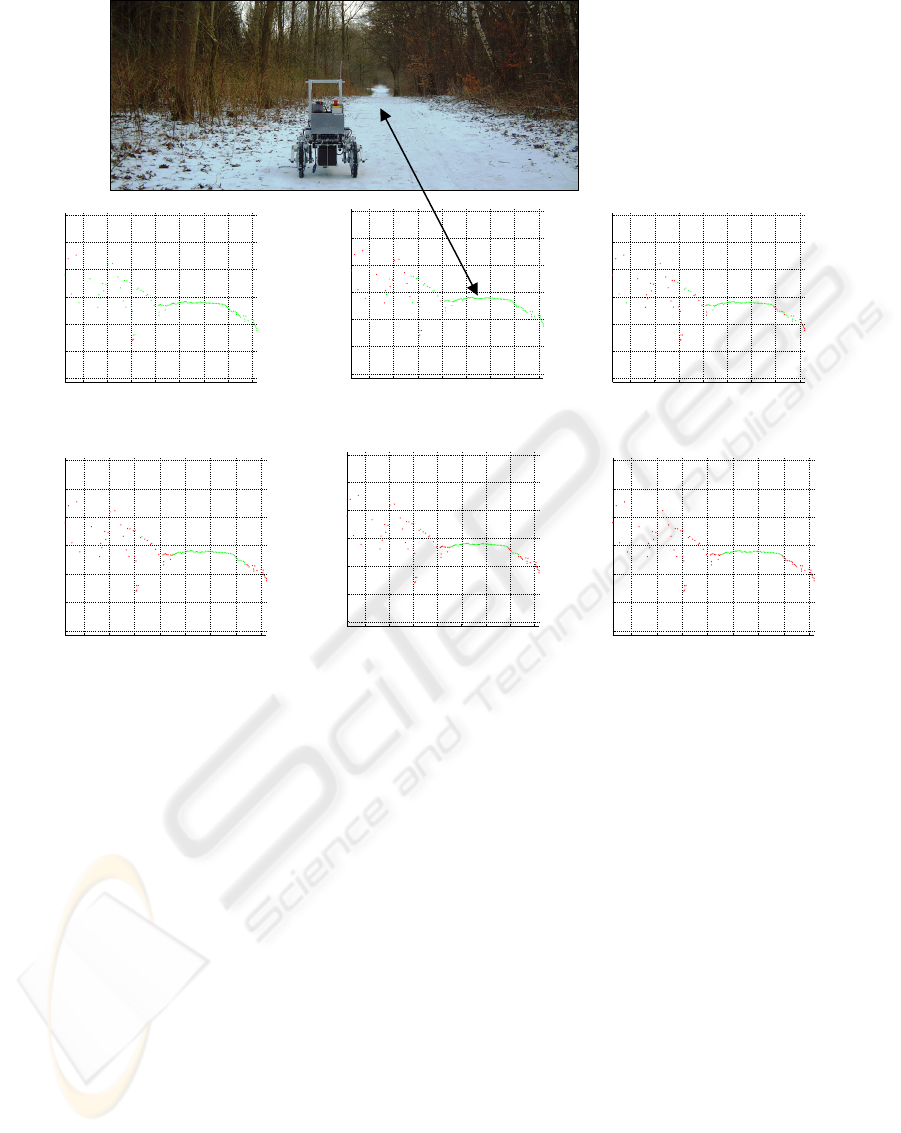

Figure 2: Results of different terrain classifiers on a single laser scan (Y-axis is up and the X-axis increases to the
right). A photograph shows roughly where the robot was standing. A double arrow shows how the road in the
p
hotograph corresponds to its location in the laser scan. The labels are (a) raw height, (b) step size, (c) slope, (d)
roughness, (e) combined, and (f) combined with gap removal. Red points represent obstacles and green
p
oints the
traversable terrain
ICINCO 2005 - ROBOTICS AND AUTOMATION
352
