SHARING SERVICE RESOURCE INFROMATION FOR

APPLICATION INTEGRTATION IN A VIRTUAL ENTERPRISE

Modeling the communication protocol for exchanging service resource information

Hiroshi Yamada, Akira Kawaguchi

NTT Service Integration Laboratories, 9-11, Midori-Cho, 3-Chome, Musashino-Shi, Tokyo, 180-8585, Japan

Keywords: Resource sharing, Protocol modeling, Business integration, EAI, Grid computing, Web service

Abstract: Grid computing and web service technologies enable us to use networked resources in a coordinated

manner. An integrated service is made of individual services running on coordinated resources. In order to

achieve such coordinated services autonomously, the initiator of a coordinated service needs to know

detailed service resource information. This information ranges from static attributes like the IP address of

the application server to highly dynamic ones like the CPU load. The most famous wide-area service

discovery mechanism based on names is DNS. Its hierarchical tree organization and caching methods take

advantage of the static information managed. However, in order to integrate business applications in a

virtual enterprise, we need a discovery mechanism to search for the optimal resources based on the given a

set of criteria (search keys). In this paper, we propose a communication protocol for exchanging service

resource information among wide-area systems. We introduce the concept of the service domain that

consists of service providers managed under the same management policy. This concept of the service

domain is similar to that for autonomous systems (ASs). In each service domain, the service information

provider manages the service resource information of service providers that exist in this service domain.

The service resource information provider exchanges this information with other service resource

information providers that belong to the different service domains. We also verified the protocol’s behavior

and effectiveness using a simulation model developed for proposed protocol.

1 INTRODUCTION

Integrated services using grid and web service

technologies are increasing. Using these

technologies, we can orchestrate several business

applications and share more resources in the network

autonomously. In an enterprise or a virtual

enterprise, EAI (enterprise application integration)

tools are used to integrate several applications and

resources in the enterprise network. This service

architecture needs to define mechanisms for creating,

naming, and discovering transient service instances.

In addition, it also needs to provide location

transparency and multiple protocols for binding a

service instance. That is the initiator of the

integrated service or resource-sharing service has to

be able to answer questions such as: “which server is

the target application with the name “A” running

on”, “which server has sufficient CPU power to deal

with our request”, and “which server has the lighted

load?.”

In the above architecture, the information service

should be designed to support the initial discovery

and ongoing monitoring of the existence and

characteristics of resources, services, computations,

and other things. Hereafter, we call these

characteristics service resource information (SRI).

Some SRI may be static and long-lived while other

service information may be highly dynamic. For

example, computation specifications like CPU

power, operating system name, and memory size are

static SRI, but the CPU load of the application

server is highly dynamic SRI.

109

Yamada H. and Kawaguchi A. (2005).

SHARING SERVICE RESOURCE INFROMATION FOR APPLICATION INTEGRTATION IN A VIRTUAL ENTERPRISE - Modeling the communication

protocol for exchanging service resource information.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 109-116

DOI: 10.5220/0001408801090116

 SciTePress

The most successful and famous wide-area

service resource discovery mechanism is the domain

name service (DNS). This is based on server names.

Its hierarchical tree-like organization and caching

methods take advantage of rather static information

like names. However in grid computing and web

service environments, the initiator of the integrated

services requires specific sets of service information

attributes, for example, the application name, and

required operating system in order to provide the

optimum service quality. The scheduling policy

engine can calculate and determine the appropriate

set of required service resources using the SRI

obtained by the discovery mechanism. In particular,

dynamic service resource information like CPU load

is one of the important parameters. Unlike the

discovery mechanism using static service resource

information, the search mechanism using dynamic

SRI can benefit from a certain degree of

approximation. For example, such a discovery

mechanism can search for the server whose CPU

load is less than 30% or idle disk space is larger than

6MB.

This paper is organized as follows. Related

work about discovery of SRI is summarized in

Section 2. Several concepts that define the

architecture for systematically exchanging SRI are

introduced in Section 3. Using a simulation model

developed for the proposed protocol (Yamada, 2004),

we verify the protocol’s behavior and effectiveness

in a case study in Section 4. Section 5 summarizes

the proposed protocol and mentions further studies.

2 RELATED WORK – DISCOVERY

OF SRI

SRI discovery mechanisms based on static resource

attribute like a file name are discussed in P2P

computing environments. In P2P computing, SRI is

used to search for the server location. There are

various searching mechanisms. For example,

Gnutella (Gnutella) uses flooding method. Freenet

(Clarke et al, 2000) uses a combination of informed

request forwarding and file replication methods.

These discovery methods are based on static SRI.

The decentralized resource discovery method in

the grid environment is discussed in (Iamnitchi et al,

2001). The basic framework of this discovery

mechanism is the request-forwarding mechanism. In

this framework, one or two SRI providers are

considered and the provider server is called a peer or

node. A virtual organization has one or two nodes.

Each node can store service resource information

and provide service information about one or more

resources. The initiator of the coordinated service

sends a request to the node. The node responds with

the matching service resource description if it has

the requested service information. Otherwise, the

node forwards the SRI request to other nodes. If a

node can respond to the request, it directly answers

the initiator. This framework needs a membership

protocol. Each node should know the other nodes to

which it forwards requests when it cannot respond.

In Web services, UDDI (Universal Description,

Discovery, and Integration) (UDDI) is the

information provider. The service provider registers

the service information including the XML code

(WSDL (Web services description language

(WSDL)) access the service provider. The

requester first accesses UDDI and learns how to

access the target service provider. A quantitative

study of the information service is the starting point.

The grid information service architecture was

proposed in (Czajowski et al, 2001). It consists of

two components: highly distributed service

information providers and specialized aggregation

directory service providers. The information

provider deals with dynamic information about grid

resources and the aggregate directory service

provider deals with static information. The

information provider sends a registration message to

the aggregate directory. Communication among

different aggregate directory providers and among

different information providers is not explicitly

considered. The service information flow follows a

tree structure.

One example of a resource information service is

the network weather service (NWS) (Wolski, 1997).

In this service, several sensors are implemented in

nodes or links in the network and they monitor

resource consumption. The collected sensory data is

sent to the central database. The data is analyzed by

several statistical methods. The central database

corresponds to the information provider.

In the discovery mechanism proposed in this

paper, the service resource information providers

exchange SRI each other. We also regard the SRI

provider as the nodes in (Iamnitchi et al, 2001). We

introduce the concept of the service domain like that

in autonomous systems (ASs) in BGP (border

gateway protocol). A virtual enterprise has several

service domains. The application service providers

are managed in one service domain. The SRI

provider stores the static and dynamic SRI of all

service providers in the service domain. The SRI

provider establishes connections between

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

110

neighboring SRI providers in different service

domains. The initiator of a coordinated service

sends a request to the SRI provider. Because the

service information provider exchanges the SRI with

other SRI providers, it can responds to the request.

The exchange of SRI is similar to the exchange of

NLRI (Network Layer Reachability Information) in

BGP.

3 ARCHITECTURE MODEL

3.1 Overview

In this paper, we consider three players: SRI

provider, service provider, and requester (the

initiator of the coordinated service). The service

provider is the server that provides the application

services, for example, processing the requester’s

computation or providing the files. The SRI

provider is the server that manages the SRI of the

service providers and exchanges the service resource

information about the managing service providers

with other service resource information providers.

The requester asks the service resource information

provider, obtains the service resource information,

and decides which server it should access based on

the obtained service information and the scheduling

rule, and finally accesses the service provider where

the target application service is running.

In grid computing, two protocols are used: grid

information protocol (GRIP) and grid registration

protocol (GRRP) (Czajowski et al, 2001). GRIP is a

protocol for looking up SRI and discovering the

appropriate server. The requester uses it. GRRP is a

protocol for sending the service information from

the service provider to the SRI provider.

In (Czajowski et al, 2001), the following

architecture is considered. This architecture has

information providers and aggregate directory

service providers. The service resource information

provider manages the SRI about several service

providers. The aggregation directory service

providers communicate with the SRI provider and

manage the aggregated service information. The

requester can ask either provider. In this

architecture, communication among different

information providers and among the aggregate

directory service providers is not explicitly

considered.

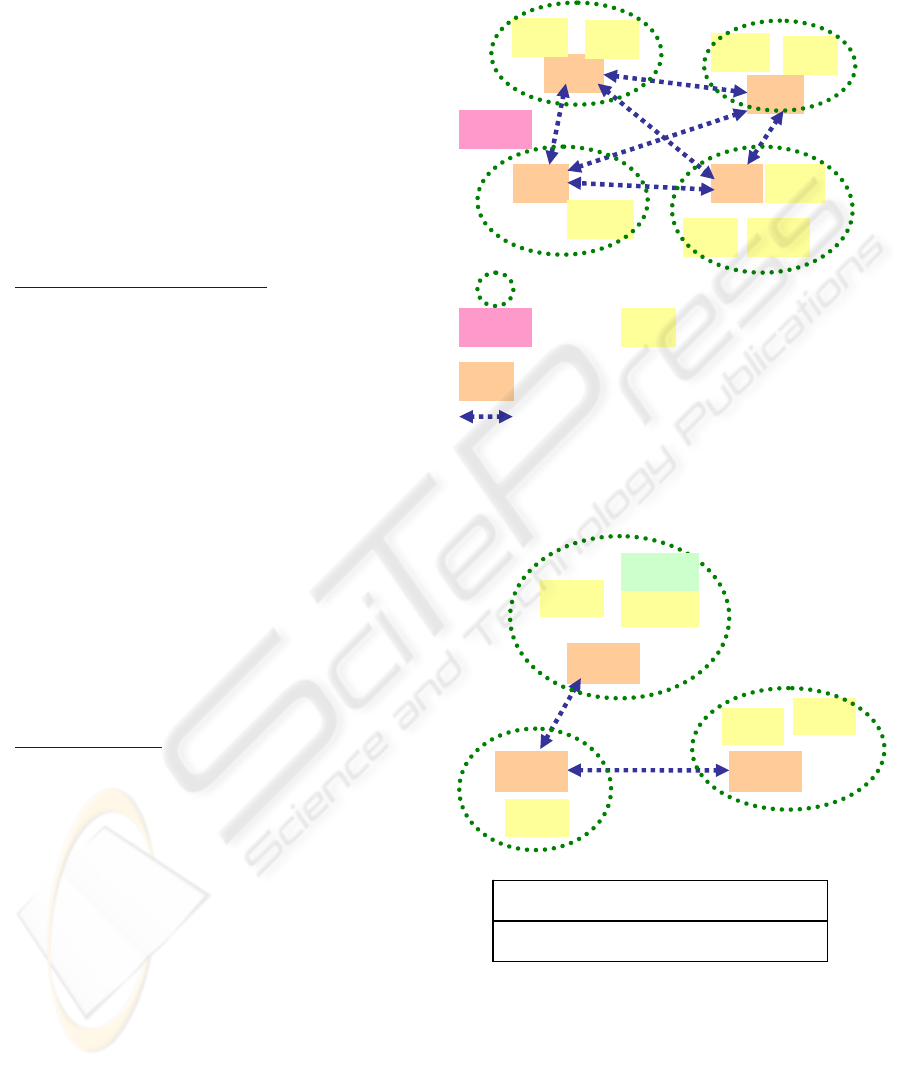

In this paper, we consider the architecture shown

in Figure 1. The SRI providers manage the SRI

about all service providers in the service domain and

communicate with other SRI providers in order to

exchange the SRI that each service provider

manages. The requester can access a nearby SRI

provider and ask for a SRI of the service provider

that can provide the application service that the

requester desires. Let us call the communication

protocol between the SRI providers service domain

information protocol (SDP).

Here we introduce the concept of the service

domain (SD), like that in anonymous systems (ASs)

in BGP, which is defined as a group of service

providers. The information provider is the

representative of the service domain. A unique

number is assigned to the service domain. Let us

call it the service domain number. The SRI provider

communicates with all the service providers. The

service provider registers the SRI and reports the

current load status (a dynamic resource attribute) in

order to update the registered SRI. If the service

provider stops providing the registered service, a

request to discard the SRI is sent to the SRI

provider. The SRI provider also communicates with

the other SRI providers to exchange SRI with them.

Let us call a peer for exchanging service information

a neighbor.

SDP can control and modify service resource

information and associated attributes. For example,

if the service resource information provider requires

that a neighboring SRI provider does not forward the

received SRI to any other information providers,

then SDP stops it being forwarded.

This mechanism is similar to the control scheme in

BGP. In BGP, the device manager can configure the

route map in order to control the forwarding route

information. Because the scheme for exchanging

SRI is based on BGP, SDP can also control the SRI.

SDP creates and maintains the SRI base (SIB) in the

SRI provider. When this SRI provider receives an

update message from a neighboring SRI provider, it

updates its SIB table. Figure 2 shows an example.

SD_path is included as one of the associated path

attributes. This shows the service domain numbers

for delivering the registered service resource

information. For example, an application called

“AP_1” is running on service provider “SP3”. This

SRI is created in the SRI provider with service

domain number 3. This service information is

delivered via service domains 3, 2, and 1 to “IP_1”.

SHARING SERVICE RESOURCE INFROMATION FOR APPLICATION INTEGRTATION IN A VIRTUAL

ENTERPRISE - Modeling the communication protocol for exchanging service resource information

111

3.2 Service domain information

protocol

Like BGP, SDP first tries to establish connections

with neighbors listed in the configuration file. The

procedure for establishing an SDP connection is the

same as that in BGP. First, the OPEN message is

exchanged. Then, the KEEPALIVE message is

exchanged. Finally, the UPDATE message

containing the service resource information is

exchanged and the SRI provider updates the local

SRI base (SIB). Once the SDP connection has been

established, UPDATE and KEEPALIVE messages

are exchanged between neighbors when there is and

is not, respectively, new SRI.

The SDP UPDATE message has a service

information field instead of the network layer

reachability information (NLRI) field in the BGP

UPDATE message. This field stores the service

information including the application name, CPU

power level, and CPU load status. The static SRI is

configured in SDP. The configured SRI is

exchanged through the SDP connection with other

SRI providers. This mechanism is the same as the

NLRI in BGP. On the other hand, dynamic SRI is

also exchanged. When the CPU load status in the

service provider is changed, the service provider

reports the current SRI that needs to be updated.

This SRI is set in the service information field in the

SDP UPDATE message and is exchanged among

neighbors. In BGP, the network route information

redistributed from interior gateway protocol (IGP,

e.g., OSPF and IGRP) is dynamically set in the

NLRI field in the BGP UPDATE message. The

neighbors that receive the SDP UPDATE message

also update their SIB and send the updated service

resource information to their neighbors.

The path attributes are also considered in SDP

protocol like in BGP. They are used to select the

appropriate SRI among multiple entries in SIB.

These entries have the same information about the

application name and server names and IP address

but they have different path attributes. In the current

version of the developed simulation SDP model, the

following are considered as SDP path attributes:

origin, SD path, community, and local preference.

Here, the origin means how to obtain the service

information and has two values: “DFP” or “ESDP”.

“DFP” means that the SRI is obtained from the

service provider by the registration protocol or is

statically configured in the SRI provider. “ESDP”

means that the SRI is obtained from another SRI

provider. The SD path means the set of SD

numbers of the service domain along which the SDP

UPDATE message traverses from the original

information provider to this information provider.

The local preference means the preference of the

original SRI provider. The SRI selection rule is

defined as follows in the current version. First, path

attributes preferences are compared. The SRI entry

that has the larger preference value is selected.

Second, if the preference values are the same, the

lengths of the SD path attributes are compared. The

SRI entry with its shorter SD path is selected. If the

SD path lengths are also the same, the values of the

origin are compared. Here, we select the SRI entry

with “DFP” rather than that with “ESDP”. If the

SRI entries have the same values for the above

condition, finally, we compare the identifiers of the

advertising SRI providers. The SRI providers have

unique identifiers. In this model, the largest value

among the IP addresses of the interfaces is assigned

as the SRI provider identifier. The SRI entry that is

advertised by the highest SRI provider identifier is

selected. We can consider several alternative rules

for selecting the SRI entries. And the path attribute

can be modified in the SRI provider when the SRI

provider exchanges service resource information

with neighbors as in BGP protocol. A sophisticated

scheme for controlling the path attributes is for

further study.

4 CASE STUDY

In order to verify and analyze the protocol behavior

and effectiveness, we developed a simulation model

of proposed protocol by OPNET (Yamada, 2004).

Using this simulation model, we considered the

following virtual enterprise system.

4.1 Network model

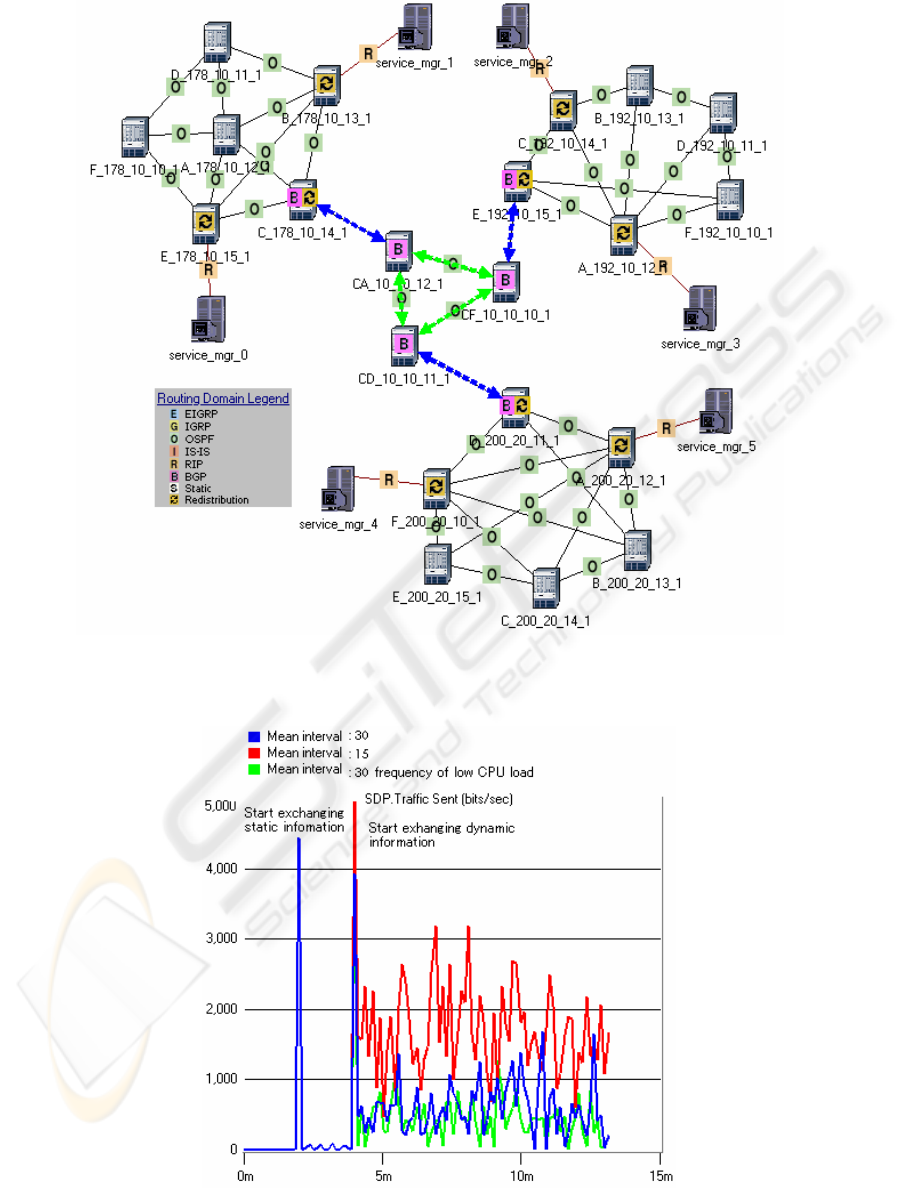

In this case study scenario, three companies that

have their own networks decide to make a virtual

enterprise, as shown in Figure 3. The core network

is created and these companies’ networks are

connected to the core network. The routing

architecture is as follows. The OSPF routing

protocol with each different tag number is running

on each company’s network. In the core network,

OSPF routing protocol is also running. Each

company’s network has a different AS number. The

AS numbers of networks 178.0.0.0/8, 192.0.0.0/8,

and 200.0.0.0/8, are 100, 300, and 200, respectively.

In the edge routers of each network, BGP protocol is

configured. Exterior BGP (EBGP) connections are

established between the edge routes in each network

and the core network. The Interior BGP connections

are fully meshed among edge routers in the core

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

112

network. The redistribution command is configured

in the edge routers of each company’s network. The

outside routes obtained by BGP protocol are

redistributed into ones by OSPF routing protocol and

the routes in the company’s network are also

redistributed into ones by BGP protocol.

Synchronization is off in the BGP configuration.

The SRI and router node are connected by RIP

protocol. In order that each is reachable from others,

redistribution is also done in the router. The SRI

provider is located for each service domain as in the

following table.

4.2 Service domain configuration

Each company’s network has two service domains.

Their service domain numbers are 1780 and 1781

for network 178.0.0.0/8, 1920 and 1921 for network

192.0.0.0/8, and 2000 and 2001 for network

200.0.0.0/8.

SDP connections are established among the SRI

providers in a fully meshed manner.

Table 1: Service resource information provider

Name Interface IP

address

Local

service_manager_0 178.0.100.2 1780 100

service_manager_1 178.0.101.2 1781 100

service_manager_2 192.0.60.2 1920 300

service_manager_3 192.0.61.2 1921 300

service_manager_4 200.0.60.2 2000 200

service_manager_5 200.0.61.2 2001 200

4.3 Service resource information

In this case study, we considered the two types of

the SRI: static and dynamic information. The SRI

attributes are service provider’s IP address, running

application name, CPU power, and CPU load in this

scenario.

The static SRI that each service resource

information provider maintains is shown in Table 2.

Here, the CPU load was fixed at time of the

configuration and does not change. The dynamic

service resource information was modeled as

follows. Except for the CPU load, the other

attributes were configured as shown in Table 3.

In this case study, the CPU load for the dynamic

SRI is modeled as follows. We considered that the

service resource update notification for dynamic

resource information occurred according to some

stochastic distribution (in numerical results, we

considered the Poisson process). In order to

determine the CPU load at the epoch of the update

notification, we also configured the upper and lower

bounds. If the outcome of the uniform distribution

was less than the lower bound, the CPU load was

low (L). If it was larger than the upper bound, the

CPU load was high (H). Otherwise the CPU load

was medium (M). If the CPU level changed from

the previous level, an update message was created

and exchanged among other SRI providers.

Table 2: Static service resource information

entry

Server IP

address

(manager #)

Running application

names

CPU

power/

load

178.0.120.10(0) ap_1, ap_2, ap_3, ap_4 H/H

178.0.121.20(0) ap_4, ap_6 M/M

178.0.102.10(1) ap_1 L/L

178.0.103.10(1) ap_2, ap_3 H/M

192.0.110.10(2) ap_7, ap_8, ap_10 M/H

192.0.111.11(2) ap_2 H/L

192.0.112.10(2) ap_3, ap_8, ap_9 H/M

192.0.140.10(3) ap_1 L/L

192.0.141.20(3) ap_7, ap_8 H/M

192.0.142.10(3) ap_3, ap_5 M/H

200.0.90.10(4) ap_1, ap_4, ap_6, ap_8 H/H

200.0.91.20(4) ap_4 L/L

200.0.80.10(5) ap_2, ap_11, ap_12 H/L

200.0.81.10(5) ap_5, ap_13 L/M

Table 3: Dynamic service resource information

entry

Server IP

address

(manager #)

Running application

names

CPU

power

178.0.126.1(0) ap_31, ap_32 M

178.0.127.11(0) ap_33, ap_35 H

178.0.128.20(0) ap_34 L

178.0.129.22(0) ap_36 M

178.0.52.10(1) ap_41 L

178.0.53.10(1) ap_42 H

178.0.54.20(1) ap_43 H

192.0.130.10(2) ap_57, ap_58, ap_59 M

192.0.131.11(2) ap_52 H

192.0.132.10(2) ap_53, ap_58, ap_59 H

192.0.150.10(3) ap_61 L

192.0.151.20(3) ap_67, ap_31 H

192.0.152.10(3) ap_32, ap_35 M

200.0.95.10(4) ap_41, ap_34, ap_53,

ap_58

200.0.96.20(4) ap_61 L

200.0.85.10(5) ap_57, ap_32, ap_58 H

200.0.86.10(5) ap_59, ap_43 L

SHARING SERVICE RESOURCE INFROMATION FOR APPLICATION INTEGRTATION IN A VIRTUAL

ENTERPRISE - Modeling the communication protocol for exchanging service resource information

113

4.4 Exchanging the service resource

information

In the simulation experiment, we considered the

following scenarios. Here, we set the mean value of

the update notification interval is 15 and 30. The

lower and upper bound were set to 0.3 and 0.6,

respectively.

Here, we focused on the SRI table maintained in

service_manager_0. Table 4 shows the part of the

SRI in the service_manager_0. We focused on the

entries of ap_3. This resource information was

statically configured in the SRI provider. Because

these entries were statically configured, their CPU

load attributes did not change. There were four

entries. The service provider is selected among

these four entries based on the selection rule.

Next, table 5 shows part of the table at 300, 400

and 800. Here we focused on the entries of

application, ap_32. There were three entries for

ap_32 in these tables. This application was

dynamically registered in the SRI provider, so, the

CPU load attribute of these entries varied. If the

policy for selecting the service provider was that a

lower CPU load and higher CPU power were the

best, then at 300, the requester selected 178.0.126.1.

At 400, the requester selected 200.0.85.10. And at

800, if the requester’s policy gave priority to the

CPU power, then 200.0.85.10 was selected. Of

course, we can consider the various selection

policies.

Let us consider the case where the SRI provider

with the service domain 2001 wants to reject access

from requesters in outside networks. Then, this

service resource provider sends an update message

in which the CPU load attribute in server

200.0.85.10 is set to “H”. So, the other SRI provider

receives the message and set the CPU load attribute

to “high”. Therefore, the requesters in an outside

network can never access server 200.0.85.10. Using

this service information discovery mechanism, the

manager of the virtual enterprise system can

configure the strategic policy to block the access.

Table 4: Service resource information table

(We focus on ap_3.)

IP address CPU

power

CPU

load

Source

protocol

path

192.0.112.10 H M ESDP 1920

192.0.142.10 M H ESDP 1921

178.0.103.10 H M ESDP 1781

178.0.120.10 H H SDP -

Table 5: Service resource information table

(We focus on ap_32.) At 300

IP address CPU

power

CPU

load

Source

protocol

path

192.0.152.10 M M ESDP 1921

200.0.85.10 H H ESDP 2001

178.0.126.1 M L SDP -

At 400 seconds

IP address CPU

power

CPU

load

Source

protocol

path

192.0.152.10 M H ESDP 1921

200.0.85.10 H L ESDP 2001

178.0.126.1 M H SDP -

At 800 seconds

IP address CPU

power

CPU

load

Source

protocol

path

192.0.152.10 M H ESDP 1921

200.0.85.10 H H ESDP 2001

178.0.126.1 M M SDP -

4.5 Update traffic

Figure 4 shows the sent traffic generated by this

protocol from the service_manager_0 in this case

study scenario. When we set the mean value of the

update notification interval to 15, the generated

traffic was larger than that when the mean was 30.

When the lower and upper bounds were set to 0.2

and 0.9, that is when the frequency of CPU load

status changes was low, the generated traffic was the

smallest. The update traffic generated by this SDP

protocol depended on the registered SRI, update

notification frequency, number of the neighbors, and

strategic policy.

5 CONCLUSION

In order to coordinate several applications and share

service resources autonomously, a service that

provides SRI is important in grid computing and

Web service environments. This paper presented a

communication protocol for exchanging SRI among

wide-area systems and showed its behaviour using a

simulation model. This communication protocol is

based on BGP. In future, we will expand its

attributes and introduce several strategic policies for

exchanging SRI. We plan to extend the protocol

that exchanges SRI among IP peers in a further

study. To reduce the number of SDP sessions,

hierarchical architecture and functions are useful for

dealing with the scalability issue. In the BGP, the

route reflector mechanism reduces the number of

iBGP sessions and enables us to make a scalable

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

114

network. We plan to expand our proposed SRI

exchanging protocol, which has the same

mechanism as the route reflector in the BGP. The

created SRI table is used to determine which server

is appropriate for the request. We will develop a

simulation model that autonomously simulates the

application integration according to the business

process. We will develop modeling to evaluate

service performance when this protocol is applied to

the application orchestration system.

REFERENCES

Gunutella protocol specification,

http://www.clip2.com/articles.html

Clarke, I., Sandberg, O., Wiley, B. and Hong, T., 2000. A

distributed anonymous information storage and

retrieval system, In Workshop on Design Issues in

Anonymity and Underservability.

Czajowski, K., Fitzgerald, S., Foster, I., and Kesselrnan,

C., 2001. Grid Information Services for Distributed

Resource Sharing, 10

IEEE International Symposium

on High-Performance Distributed Computing (HPDC-

10), IEEE press.

Iamnitchi, A., and Foster, I., 2001. On fully decentralized

resource discovery in grid environments, Proceedings

of the Second International Workshop on Grid

Computing 2001.

Wolski, R., 1997. Forecasting network performance to

support dynamic scheduling using the network

weather service, Proceedings of the 6

IEEE

symposium on High Performance Distributed

Computing, Portland, Oregon, IEEE Press.

Universal description discovery and integration (UDDI),

http://www.uddi.org

Web Services Description Language (WSDL),

htpp://www.w3.org/TR/wdsl.

Yamada H., 2004. OPNET modeling of the protocol to

of OPNETWORK2004, Washington DC, August 2004.

William, P., 2001. Cisco BGP-4 command and

configuration handbook, Cisco Systems.

Figure 1: Architecture

Figure 2: SD_path

Service domain

Requester

Service resource information provider

Service provider

Neighbor relationship

SHARING SERVICE RESOURCE INFROMATION FOR APPLICATION INTEGRTATION IN A VIRTUAL

ENTERPRISE - Modeling the communication protocol for exchanging service resource information

115

Figure 3: Case study network.

Figure 4: Traffic sent from service_mgr_0.

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

116
