Jim Longstaff, Mike Lockyer, Tony Howitt, Ian Elcoate, Paul Massey
School of ComputingUniversity of Teesside, Middlesbrough TS1 3BA, England
Keywords: Access Contol, Authorisation Models.
Abstract: We present the principles of permissions processing used in the Tees Confidentiality Model (TCM), a
general authorisation model which is suitable for complex web applications in addition to computer systems
administration. In particular, we present new techniques for authorising by multiple concepts, and also for
overriding access restrictions. A database implementation of the TCM is referred to, which can be used to
provide the basis for a general authorisation service. The TCM is an extension of Role-Based Access
Control (RBAC), and has had a significant impact on the development of healthcare computing in the UK.
A demanding scenario from Electronic Health Records is used to illustrate the permissions processing and
the power of the model.
An authorisation model, through its
implementation within an identity and access
management system, provides facilities to enable
users, whether they be human end-users or other
computer systems, to use resources in specified
ways. This can range from using sophisticated
application facilities to the simple querying of
Identity and access management systems are
usually perceived as consisting of three parts:
authentication, for establishing the identity of the
user; authorisation, for determining the resources
that the user is permitted to use; and
administration. One application for these systems
is to provide access control for distributed web-
based applications. The Tees Confidentiality
Model (TCM) is a powerful model for
authorisation, and is unique in that it includes
override capabilities (Longstaff, 2003a),
(Longstaff, 2003b), (Longstaff, 2002). The TCM
lends itself to implementation by database systems,
and we discuss elements of its implementation by
Microsoft Transact SQL.
The following sections show how the TCM can be
used to model and implement the kind of
authorisations debated for the national Electronic
Health Record (EHR) development for England,
called the Care Records Service (CRS) (Gaunt,
2005), (NPfIT, 2003), (NPfIT, 2005). We focus on
permissions processing by order of complexity,
defined according to the number of concepts in a
permission type. We have been advised that there
are many applications in eGovernment and
eCommerce that could benefit from the TCM
We start by outlining a scenario which
demonstrates the need for powerful authorisation
functionality in healthcare. We assume all
interactions with EHRs will be auditable.
2.1 Patient-specified ‘Sealed
Envelope’ Authorisation
This part of the scenario was written by a
Consultant Transplant Surgeon. It concerns a
fictitious patient who we will refer to as Alice, and
her GP, who we will call Fred. Alice is 50; some of
the major events in Alice’s medical history are
summarized as follows
She had a pregnancy termination when she
was 16
Was diagnosed diabetic at 25
Longstaff J., Lockyer M., Howitt T. and Elcoate I. (2005).
In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 74-79
DOI: 10.5220/0001421200740079
End Stage renal failure when she was 45
Renal transplant at 48
Acutely psychotic at 49
Crush fracture of T12 aged 50
Let us now suppose, not unreasonably, that Alice
expresses the desire to place the following
confidentiality restrictions on the availability of
her medical records data about two of these
conditions (i.e. she wishes to place them in a
patient’s Sealed Envelope, in CRS terminology):
1. My GP, Fred, can see all my data.
2. Nobody must know about my termination
except my GP, any Gynaecological
Consultant, and the Consultant Renal
Transplant Surgeon who operated on me.
3. My GP, Consultant Renal Transplant Surgeon
and Consultant Orthopaedic Surgeon can see
my psychosis data, but no-one else.
Let us add the following contrived requirement
(but still one which a health records authorisation
system must be capable of implementing):
4. I do not wish the members of the hospital
team who carried out my termination
operation to be ever able to see my psychosis
data, except if they are viewing in a
psychiatric role.
In one of our TCM demonstrators, these
confidentiality requirements can be specified using
electronic consent forms (Longstaff, 2002).
2.2 Health Service Authorisations
Let us also consider the authorisations that Health
Care Practitioners (HCPs) will be entitled to access
data based on their role, and a ‘Legitimate
Relationship’ with the patient, generally meaning
that the patient is registered with them, or has been
referred to them.
The following extracts from the CRS requirements
specification - the ICRS OBS (NPfIT,2003) -
illustrate the complexity of the proposed
authorisation functionality.
730.20.2 A user has a Legitimate Relationship with
a patient if they are currently involved in providing
care to the patient, or are a member of a health
and Social Care team which is providing care to
the patient. For example, a practice nurse in the
same team as the patient's GP would have a
Legitimate Relationship with the patient. If a GP
wished to exclude the nurse from inheriting the
Legitimate Relationship, the nurse would be
excluded from the defined team. In support of this,
it must be possible to establish Legitimate
Relationships with workgroups as well as
individual users.
730.16.2 Health information systems must be
capable of granting access to records based on
2.3 Override Capabilities
We must add to these requirements that they must
be capable of being overridden in carefully
controlled and auditable ways. Override for the
CRS system has been described as ‘breaking the
seal” on a Sealed Envelope. Our original scenario
included the following requirement.
Suppose Alice has been scheduled for a transplant.
Tests lead the surgeon to suspect a previous
pregnancy (if the tissue type of the father is similar
to the graft a very serious rejection may ensue).
However Alice refuses to confirm a previous
pregnancy. The surgeon then elects to use an
override facility (Specific Override, as described
below, section 5.2), which enables him to discover
and view the termination data. A safe treatment
can then be planned.
A further type of override, based on the concept of
Collection, is described below in section 5.4 .
We now proceed to demonstrate how the access
restrictions described in the scenario can be
handled by a single mechanism, which forms part
of the TCM. To do this, we must firstly introduce
some basic TCM concepts.

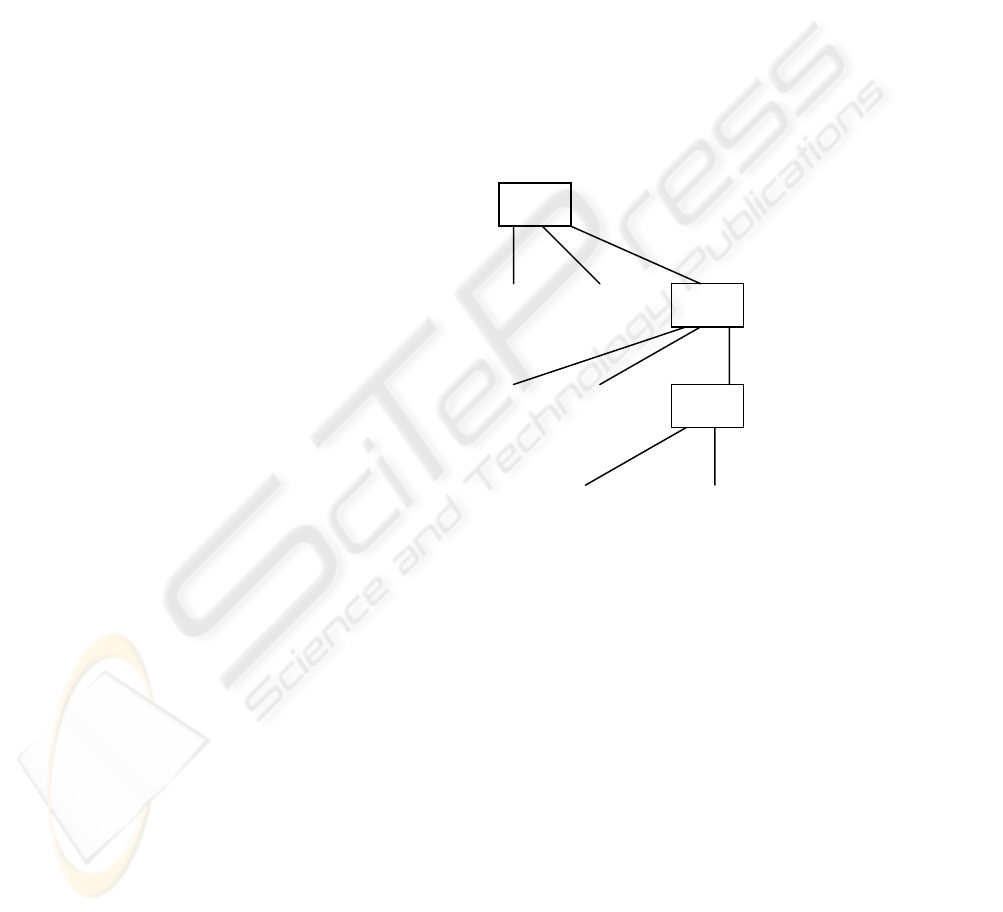

3.1 Collections
A collection has elements, which may be members
or other collections. Collections and elements are
uniquely-identified. Collections are inherently
hierarchical in that they can contain sub-
collections, which in turn can have their own sub-
collections. Elements can participate in more than
one collection. Confidentiality permissions (see
below) are defined with inheritance properties in
Collections are used for all structuring purposes in
the TCM, e.g. forming identities into teams, and
positioning roles into role hierarchies. A discussion
of collections, and the use of permissions for
collections, is given in section 5.3 below.
The preferred TCM mechanism for confidentiality
permission assignment is based on the concept of
collection. However, it is possible to assign
confidentiality permissions to Roles using general
and limited role hierarchies in the established
RBAC ways (Ferraiolo, 2001), (ANSI-INCITS),
3.2 TCM Applications Design
We introduce the following TCM concepts by
indicating their role in application development.
The development of a TCM application involves
the following steps:
Establishing identities (users), and protected
objects (objects accessed and used).
For the EHR projects, the identities are Health
Care Practitioners (HCPs, e.g. doctors,
nurses), and patients. The protected objects are
patients’ EHRs, with authorisations specified
to the granularity of their constituent parts
(which we call EHRobjects).
Determining the identifiers for both identities
and protected objects.
Patients in the UK are identified by NHS
Number; HCPs by various national and local
registration codes. Identifiers for EHRobjects
are determined by the designers of EHR
Specifying authorisation classifiers (or
classifiers), which are criteria to be used in
Authorisations are specified and enforced for
members of collections conforming to
classifiers, by confidentiality permissions.
Names for classifiers are chosen by the
application designer.
The classifiers associated with identities we
will call Identity, Role, and LegRel, and for
protected objects EHRobjectID,
Defining the practically useful confidentiality
permission types (CPTs), generated from the
full range of previously-specified classifiers
(see below for details)
Choosing the required overrides from the full
range generated from the previously-specified
confidentiality permission types (see below).
It is also possible to have classifiers for operations
on protected objects, but here we just consider a
single operation classifier corresponding to the
read operation.
3.3 Confidentiality Permissions
Classifiers are used to specify confidentiality
permission types (CPTs), which must contain at
least one Identity Classifier, one Operation
Classifier, and one Protected Object Classifier.
We will now describe an example of a CPT, and its
corresponding instances, which we call
confidentiality permissions (CPs). (Note that we
present an informal description, which assumes
downward inheritance for classifier collections.)
The notation we use for this CPT is as follows:
CPT2 (IdentityID, LegRel || R || EHRobjectID)
A CP which is an instance of the CPT2 type
specifies a read authorisation involving an Identity
Collection (e.g. a clinical team, workgroup or just
a single identity), for which a Legitimate
Relationship exists with the patient, and an
EHRobjectCollection (e.g. psychosis data for this
patient, including any subcollections such as
medication prescribed for psychosis). It therefore
grants or denies access to identities having
Legitimate Relationships to specific collections of
CPs are processed in order of precedence
according to complexity (ie the number of
classifiers present in the CPT specification). If two
CPTs exist with the same number of classifiers,
then the CPT with a higher precedence classifier
(as specified by the applications designer) is
processed first.
Now we are able to suggest a TCM for healthcare.
From the range of all possible CPTs, the following
might be selected as being practically useful as a
base set for the CRS. (Note that a final set of
permissions would only be arrived at following a
detailed TCM design exercise, which is to be
funded by the NHS National Programme for
Information Technology). They are listed in the
precedence order in which they are processed.
CPT1 (IdentityID,Role, LegRel
CPT2 (IdentityID, LegRel || R || EHRobjectID)
CPT3 (Role,LegRel || R || EHRobjectID)
CPT4 (Role,LegRel || R || EHRobjectType)
Note that we only consider and explain read
permissions; the TCM generally allows for
multiple operation classifiers to be defined.
We now illustrate how the Confidentiality
Permission Types listed in the previous section
may be used to represent the constraints on data
access described in the healthcare scenario.
Query by Fred, for termination data
Suppose that Fred queries Alice’s Electronic
Health Record (EHR), with authorisations
controlled by the TCM. He will see the data for the
termination, because the permissions would be
processed in the following order:
CPT1: IdentityID, Role, LegRel || R ||
EHRobjectID (none, for Fred)
(no match)
CPT2: IdentityID, LegRel || R || EHRobjectID
(read, for Fred)
match, data displayed
CPT3: Role, LegRel || R || EHRobjectID
CPT4: Role, LegRel || R || EHRobjectType
(inherited read)
The CPs are searched by order of type, i.e. CPT1,
CPT2, … CPT4, to find the first CP with classifer
values which match this user (Fred) and protected
object (Termination Data). The first permission to
be found is a CPT2 permission. This causes the
data to be displayed. The search algorithm stops,
which means that all remaining permissions are
ignored, or overridden by search order precedence.
(In our current demonstrator, this is implemented
entirely as database searching, programmed in
Query by a GP other than Fred, for
termination data
CPT1: IdentityID, Role, LegRel || R ||
EHRobjectID (none for this GP)
(no match)
CPT2: IdentityID, LegRel || R || EHRobjectID
(none for this GP)
(no match)
CPT3: Role, LegRel || R || EHRobjectID
(inherited denial, for GPs)
match, data not displayed
CPT4: Role, LegRel || R || EHRobjectType
(inherited read, for GPs)
The first permission to be found for this user and
data is a CPT3 permission, which denies access to
the user acting in this role, even though he has a
legitimate relationship with the patient.
A identity would generally need to be authorised to
use an override, and would have to subsequently
justify its use. Electronic notifications would be
sent to appropriate authorities when an override is
5.1 Override Types
There are four types of basic override defined for
the TCM EHR application.
Specific override, a CPT override which
cancels any negative (denial) effects of CPT1-
CPT3 permissions, leaving CPT4 and
operating. This will enable the enquirer to see
the information he would normally see by
virtue of his role, and any specialist Work
Area authorisation.
Team override, a Classifier Collection
override (see section 5.3), which enables an
Identity to view data read-authorised to a
higher-level of Identity Collection
Role Override, a Classifier Collection
override, which enables an Identity to view
data according to the Confidentiality
Permissions granted to a higher-level Role
Global Override, which removes all
restrictions on data.
5.2 Overriding Alice’s
requirements by HCP
In the Specific Override example described in
section 2.3, the permissions processing for the
termination data, for the Transplant Surgeon is as
Transplant Surgeon with Specific override,
for Termination data
CPT1: IdentityID, Role, LegRel || R ||
EHRobjectID (none for this TS)
CPT2: IdentityID, LegRel || R || EHRobjectID
(none for this TS)
CPT3: Role, LegRel || R || EHRobjectID
(inherited denial, for TS role)
CPT4: Role, LegRel || R || EHRobjectType
(inherited read, for TS role)
Match, data displayed
A CPT4 permission has now provided read access
for the TS role, the denial by the CPT3 permission
having been cancelled by Specific Override.
5.3 Overriding within Collections
We now give an example of overriding within
Identity Collections. In order to do this, we firstly
discuss the concept of Identity Collection and its
associated permission processing.
Generally speaking, collections associated with
Identities, and containing identifiers for Identities,
can be used to model naturally-occurring
team/subteam, or committee structures. The
assignment of Identities to Identity Collections
would mostly be made on the basis of Role – e.g.
an anaesthetist is needed at a certain level in a
team. Teams may have a temporary existence
(being formed for a single task), and may exist in a
succession of versions (members being replaced,
for whatever reason).
Consider a simple abstract team (identity
collection) structure shown in Figure 1. Here we
have a Team T1, with its members M11, M12
(perhaps senior members, team leaders). It also has
subteams, T11 and T111, which in turn have junior
members M111, M1111, etc. An example of a
team might be a Surgeon’s team, formed for the
purpose of carrying out emergency operations
during a fixed time period; subteams could include
an Anaesthetist Team, administration teams, and
also teams of Theatre Nurses and Ward Nurses.
Suppose the situation arises that selective sharing
of data between members of the team is required:
members of T1 and T11 need to have access to
data which is not to be usually made available to
T111: this can be achieved by the assignment of
confidentiality permissions as shown.
Figure 1: Team/subteam, with permissions, for a
specified EHRobjectCollection
Consider an emergency situation where a junior
member of a team, say M1111, needs to have
access to the clinical data which has been made
available to more senior members. (M1111 might
be the secretary for the Anaesthetist Team, who
has just received an emergency telephone call).
Suppose that M1111 has been granted the privilege
of using Team Override to the level of T11, and
she elects to do so. She will now be able to access
the data, because T11 and its members inherit the
access assigned to this data at level T1.
M11 M12
M1111 M1112
CP2.1 (read, down inherit)
CP2.2 (deny,
down inherit)
We have illustrated the TCM authorisation model
with examples from electronic health records. The
TCM has previously influenced the ICRS OBS
(NPfIT, 2003) (the requirements specification for
the EHR for England) and has been implemented
by several suppliers to the NHS as part of the
ERDIP Programme. It is currently being used as
part of a major project to further model and design
the information governance model adopted by the
National Health Service in England (based at the
University of Teesside and funded by the UK
Government). It also forms part of a new location
privacy project, supported by industry, concerning
the monitoring and tracking of individuals and
items. Additionally, it is also being evaluated and
applied within a location privacy project at the
University of Minnesota.
Longstaff JJ, 2003a. Longstaff JJ, Lockyer MA,
Nicholas J. The Tees Confidentiality Model: an
authorisation model for identities and roles, ACM
SACMAT 2003, Como, Italy, ACM ISBN 1-58113-
Longstaff JJ, 2003b. Longstaff JJ, Lockyer MA,
Nicholas J. An Authorisation Model for complex
web applications, ISSE 2003 Conference and
Procedings, www.eema.org/isse.
Longstaff JJ, 2002. Longstaff JJ, Thick MG, Capper G,
Lockyer MA. Eliciting and recording eHR/ePR
Patient Consent in the context of the Tees
Confidentiality Model, HC2002 Conference,
Harrogate, England.
Gaunt N, 2005. UK NHS Care Records Guarantee
NPfIT, 2003. Integrated Care Records Service, Output
Based Specification. National Programme for IT,
NPfIT, 2005. National Programme for IT, 2005,
Ferraiolo DF, 2001. Ferraiolo D F, Sandhu R, Gavrila S,
Kuhn D R, Chandramouli R (2001) “Proposed NIST
Standard for Role-Based Acess Control”, ACM
TISSEC, Vol 4, No 3.
ANSI INCITS. 2004. ANSI INCITS 359-2004,
American National Standard for Information
Technology: Role Based Access Control
