A WEB-BASED ARCHITECTURE FOR INDUCTIVE LOGIC

PROGRAMMING IN BIOLOGY

Andrei Doncescu

Laas, Toulouse, France

Katsumi Inoue

National Institute for Informatics, Tokyo, Japan

Muhammad Farmer, Gilles Richard

British Institute for Technology and E-commerce, London, UK

Keywords: Internet services, Inductive Logic Programming, biological application

Abstract: In this paper, we present a current cooperative work involving different institutes around the world. Our aim

is to provide

an online Inductive Logic Programming tool. This is the first step in a more complete structure

for enabling e-technology for machine learning and bio-informatics. We describe the main architecture of

the project and how the data will be formatted for being sent to the ILP machinery. We focus on a biological

application (yeast fermentation process) due to its importance for high added value end products.

1 INTRODUCTION

Our main aim is to provide a web-based machine

learning application. On one hand, we have at our

disposal a powerful inductive machinery

(inoue2004), enjoying interesting theoretical

properties (soundness, completeness) and whose

current version is implemented in JAVA. On the

other hand, there is a considerable effort made by

the biologists to understand and then to control a

well known bioprocess, namely yeast fermentation.

None of the available mathematical models (mainly

based on dynamic differential equations) allows a

precise understanding. But the possibility to

understand the biological processes leading to high

added value end-products like vitamins,

antibiotics,… is highly challenging. For instance, it

has recently been shown that the human yeast carry

out synthetically the different tasks of producing the

human biosynthesis protein. The recent results show

that a "humanised yeast" could simplify drug

manufacture by introducing a human gene inside

yeast chromosome. Since yeast grow faster and need

less tending than mammalian cells, it could be a

solution to produce proteins cheaper and easier.

More than that, there is today a huge effort to

imagine alternative to classical petrol-based fuel.

Ethanol is one of the possible solution. Several

governments encourage biologists to focus on bio-

processes leading to ethanol as side product of a

whole process. The more the final percentage of

ethanol, the more the fermentation process is

successful. It makes no doubt that, in a sustainable

development perspective, this research topics has to

be more deeply investigated. But, as previously

explained, it is difficult to produce these proteins to

a commercial scale due to the incapacity of the

biologist to keep the cell on a specific pathway. Due

to the lack of relevant models, micro-biologists are

not able to dynamically tune the relevant parameters

insuring a high percentage of ethanol output.

In this project, our aim is to apply techniques

issued from the field of In

ductive Logic

Programming to complement the standard

mathematical tools. We hope that our inductive

machinery will be able to highlight the relevant

parameters, and more than that, to provide simple

explanations in a logical form. Not only, we want to

send the output of the yeast fermentation observation

to an inductive machine, but we also focus on the

possibility to send online the data to the ILP

357

Doncescu A., Inoue K., Farmer M. and Richard G. (2005).

A WEB-BASED ARCHITECTURE FOR INDUCTIVE LOGIC PROGRAMMING IN BIOLOGY.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 357-361

DOI: 10.5220/0002516903570361

 SciTePress

machine. In this paper, we investigate the structure

of our web-based application.

The next section is devoted to a general presentation

of the advantages e-technology can bring in the

context of machine learning and especially in bio-

informatics. Section 3 briefly recall the main

philosophy of inductive logic programming, as a

sub-topic of machine learning. In section 4, we

describe how we process the data, using XML as a

backbone format, and we present the general

architecture of our system. We conclude in section5.

2 E-TECHNOLOGY

E- Technology has made it possible to carry out lot

of activities, previously locally achieved and are

remotely performed. All these activities constitute

what is usually called E-business. Government and

organisation have come to realise the value of e-

technology hence such projects i.e. e-learning, e-

government, e-commerce, e-health are being

implemented globally. In some sense, bio-

informatics aims to solve biological problems using

computing methods. That is why we think it is

essential to make bio-informatics benefit of these

techniques because the bio-informatics definitions

are changing in accordance with the development of

new areas in science. BITE (UK), IRIT (France),

LAAS (France) and NII (Japan) focus together on

maturing technology to globalise development and

research of bio-informatics.

A global platform [farmer and al.2004],

integrating grid computing, programming tools and

data visualization technologies would enable

scientists to gain greater insight into their research

through direct comparisons of simulations,

experiments and observations. Knowledge

repositories maintaining relationships, concepts, and

inference rules would be accessible through such a

global platform. Starting from these ideas, we

develop a web-based architecture around a machine

learning application : the target machinery is an

Inductive Logic Programming (ILP) system and the

target application is a bio-process leading to ethanol.

The next sections are devoted to a more precise

investigation of these two fields.

But it should be clear that our scheme is open

and that there is no conceptual obstacle to integrate

other inductive engines as well as there is no

obstacle to focus on other fields than bio-informatics

Starting from these ideas, we develop a web-

based architecture around a machine learning

application : the target machinery is an Inductive

Logic Programming (ILP) system and the target

application is a bio-process leading to ethanol. The

next sections are devoted to a more precise

investigation of these two fields.

But it should be clear that our scheme is open and

that there is no conceptual obstacle to integrate other

inductive engines as well as there is no obstacle to

focus on other fields than bio-informatics.

3 INDUCTIVE LOGIC

PROGRAMMING: A BRIEF

REVIEW

Inductive Logic Programming (ILP) is the part of

machine learning where the underlying model is

described in term of first-order logic. We briefly

outline here the standard definitions and notations.

Given a first-order language L with a set of variables

Var, we build the set of terms Term, atoms Atom and

formulas as usual. The set of ground terms is the

Herbrand universe H and the set of ground atoms or

facts is the Herbrand base B. A literal l is just an

atom a (positive literal) or its negation ~a (negative

literal). A substitution s is an application from Var

to Term with inductive extension to Atom. We

denote Subst the set of ground substitutions.

A clause is a finite disjunction of literals and a

Horn clause is a clause with at most one positive

literal. A Herbrand interpretation I is just a subset of

B : I is the set of true ground atomic formulas and its

complementary denotes the set of false ground

atomic formulas.

We can now proceed with the notion of logical

consequence. Given A an atomic formula, I, s |- A

means that s(A) belongs to I. As usual, the

extension to general formulas F uses

compositionality.

• I |- F means : forall s, I, s |- F (we say I is

a model of F).

• |- F means : forall I, I |- F.

• F |- G means that all models of F are

models of G.

Stated in the general context of first-order logic,

the task of induction is to find a set of formulas H

such that:

B U H |- E

Given a background theory B and a set of

observations E (training set), where E, B and H here

denote sets of clauses. In this paper, E is always

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

358

given as positive examples, but negative examples

can also be introduced as well.

A set of formulas is here, as usual, considered as the

conjunction of its elements. Of course, one may add

two natural restrictions~:

• ~ (B |- E) since, in such a case, H would not

be necessary to explain E.

• ~ (B U H |-

┴

) : this means B U H is a

consistent theory.

In the setting of relational databases, inductive

logic programming (ILP) is often restricted to Horn

clauses and function-free formulas, E is just a set of

ground facts. The main reason of this restriction is

due to easiness for handling such formulas. An

extension to non-Horn clauses in B, E, and H is,

however, useful in many applications. For example,

indefinite statements can be represented by

disjunctions with more than one positive literals, and

integrity constraints are usually represented as

clauses with only negative literals. A clause-form

example is also useful to represent causality. The

inductive machinery developed by (inoue, 2004) can

handle all such extended classes.

There are two other remarks on the logic for

induction.

• The distinction between B and E is a matter

of taste. In fact, some induction problems

which often be seen in data mining do not

distinguish between B and E, and extracts

rules merely from the whole knowledge

base. However, the distinction is

important from practical viewpoints [inoue

and al2004]. When we already have our

current knowledge B and then a new

observation E is obtained to update B, this

E should be assimilated into our knowledge

in a way that E should change the current

theory B into the augmented theory B U H

such that B U H |-

E holds. In this case,

background knowledge is intrinsic to

knowledge evolution. We cannot realize

continuous and incremental learning if we

merely treat examples without any prior

knowledge.

• When we investigate induction deeper,

some subtleties appear according to the

properties of induction (e.g., whether the

closed-world assumption is applied or not).

These issues are out of the scope of this

paper. See [inoue and al. 2004].

We give an example for an induction problem

for the inductive machinery by (inoue, 2004).

Suppose B contains only two rules B1 and B2 such

that every cat is a pet (B1) and that if a pet is small

and fluffy then it is cuddly (B2):

input(b1,bg,[-cat(X), +pet(X)]).

input(b2,bg,[-small(X), -fluffy(X), -

pet(X), +cuddly(X)]).

Suppose we observe E that any fluffy cat is

cuddly:

input(e1,obs,[-fluffy(X),-cat(X),+cuddly(X)]).

We also put some control information for the

inductive machinery such that the maximum allowed

length of clauses and the maximal term depth:

production_field([length <= 3, term_depth

< 3]).

strategy(depth_first_iterative_deepning([dep

th <= 4,iterative_depth_step = 1])).

inductive_bias([include_carc = 0, lgg = 0

, dropping = 1]).

Then we get the following result as H, namely, a

fluffy cat is small:

% java CF problem/example2.ax

Observations E: [-fluffy(_X), -cat(_X),

cuddly(_X)]

Background B:

[-cat(_X), pet(_X)]

[-small(_X), -fluffy(_X), -pet(_X),

cuddly(_X)]

Hypotheses:

[[-pet(_X), -fluffy(_X), -cat(_X),

small(_X), cuddly(_X)]]

selecting dropping literals in the

clause:

1,5.

Hypotheses:

[[-fluffy(_X), -cat(_X), small(_X)]]

That is the simple implication :

cat(X) and fluffy(X) -> small(X)

This is easily readable as a natural language

sentence :

A fluffy cat is small.

This is one of the great feature of first order

logic : the translation of the output into a human-

readable format is rather straightforward.

4 THE GENERAL

ARCHITECTURE

The expected architecture is rather simple and in

accordance with the n-tier e-application model. We

begin with the data i.e. the set E we have to provide

to the machine.

A WEB-BASED ARCHITECTURE FOR INDUCTIVE LOGIC PROGRAMMING IN BIOLOGY

359

4.1 The data

We distinguish 2 kinds of parameters which are

meaningful in the whole process and for which we

have data :

a)Macroscopic parameters : temperature,

pressure, increasing rates for these parameters

(kinetics of the process), etc.. These parameters

are evaluated online with the relevant sensors.

Each measure has a very low cost, so we can

potentially dispose of a huge database. These

parameters have numerical values.

b)Microscopic parameters : we need to

distinguish here two kinds :

- Cellular level : by image analysis, we can

get the form of a cell (spheric, elliptic, etc…).

These parameters are symbolic in nature and

belong to a finite set of values.

- Molecular level : these parameters

describe the DNA structure of the target

molecule. This kind of analysis is not only very

long to be achieved but very expensive. That is

why we cannot get a lot of data from this side.

These parameters have symbolic values.

Some other parameters are available but it is not

clear today if they make sense for the whole process.

The inductive machinery supplied by ILP usually

takes inputs with symbolic representation. For this

reason, numerical values are often discretized into

Boolean values like +1 (positive/increasing), 0

(neutral/no change), -1 (negative/decreasing), by

using theresholds and the multinominal distribution.

These Boolean values are suited for modeling

qualitative behaviors between parameters. Of course,

some intermediate values can be associated as

representation of fuzziness. For more complex

domains, we need a regression method to detect

linear and nonlinear relationships. A more practical

method would employ a profile data for an

important parameter.

We understand that we have a lot of parameters

to deal with. The data are abstractly described in an

XML format. Typical DTD definition of our data is :

<!ELEMENT dataset (data*)>

<!ELEMENT data (name, type, value>

And a set of data looks like :

<data>

<type>discrete</type>

</data>

</dataset>

Since the real data are mainly provided as a xls

format, there is no difficulty to compile into the

XML format. This XML file is sent to the server. A

simple compiler converts the XML files into

convenient data input format for the target ILP

machine. The output of the ILP machinery is just a

finite set of logical rules which are translated into a

human readable format, as previously explained.

There is few things to do since the rules are put in an

implicative form and this is generally

understandable as soon as the predicate names

support intuition.

4.2 The background knowledge

There is a very huge amount of litterature about the

subject and we have to extract, with the help of

biologists, the rules which could be useful as a way

to guide the research (see (Doncescu and al.2005)).

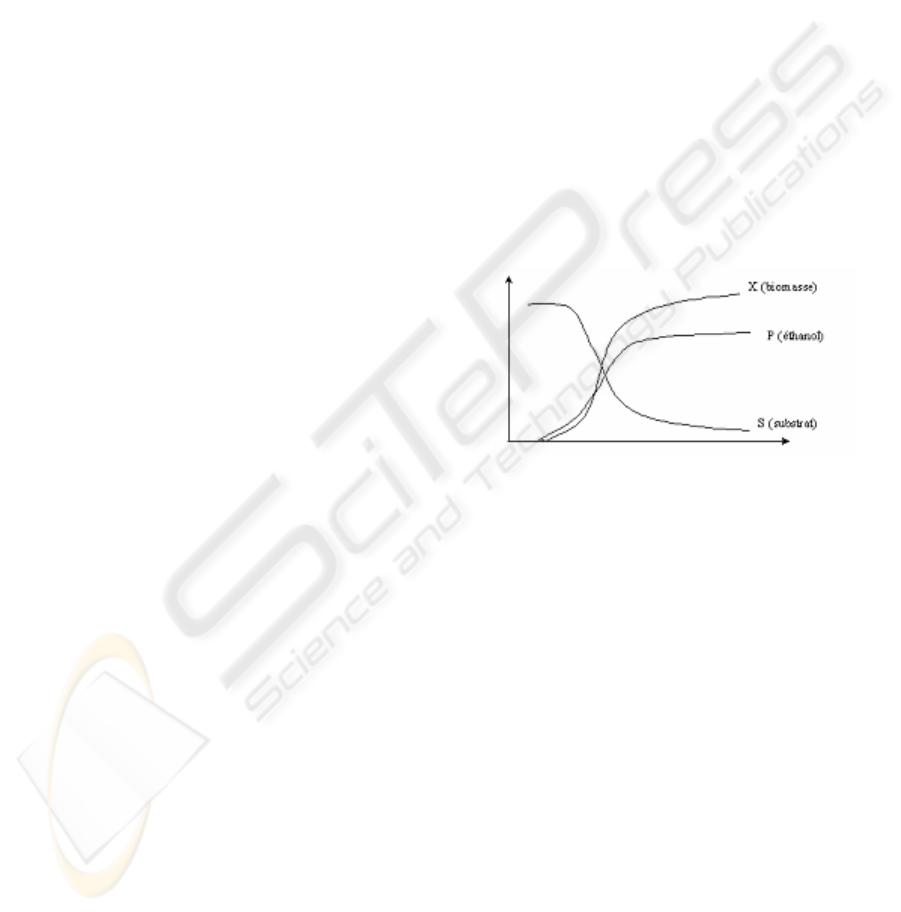

The experimental evolution for state variable of the

system : biomass, substrate and product could be

figure up by the curves below :

Figure 1

We understand that the consumption of substrat

increases the number of interesting cells (parameters

X and P (ethanol partial pressure)). This is translated

into a very simple logical rule :

not increase(S,t) OR [(increase(P,t) AND

increase(X,t))]

which is equivalent into

[not increase(S,t) OR increase(P,t)]

AND [not increase(t)

OR increase(,t)]

We get a set of 2 clauses (conjonctive normal

forms). The parameter t, representing the time,

appears in every predicate in order to capture the

dynamic of the process. The time is considered as a

discrete attribute corresponding to the discrete

sample steps. Such rules are translated in an XML

format, in order to be easily adaptable to the input

format of the remote ILP machine. It is remarkable

to see that XML format is very close to a logical

format. For instance, some DTD rules for a logic

program (not reduced to Horn clauses) are :

<!ELEMENT cnf (disjunction*)>

<!ELEMENT disjunction (literal*)>

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

360

<!ELEMENT literal (predicate,

argument*)>

In this case, the translation is straightforward and

there is no need to spend a lot of time for that. This

is mainly a recursive walk inside a text file.

4.3 A functional view of the whole

system

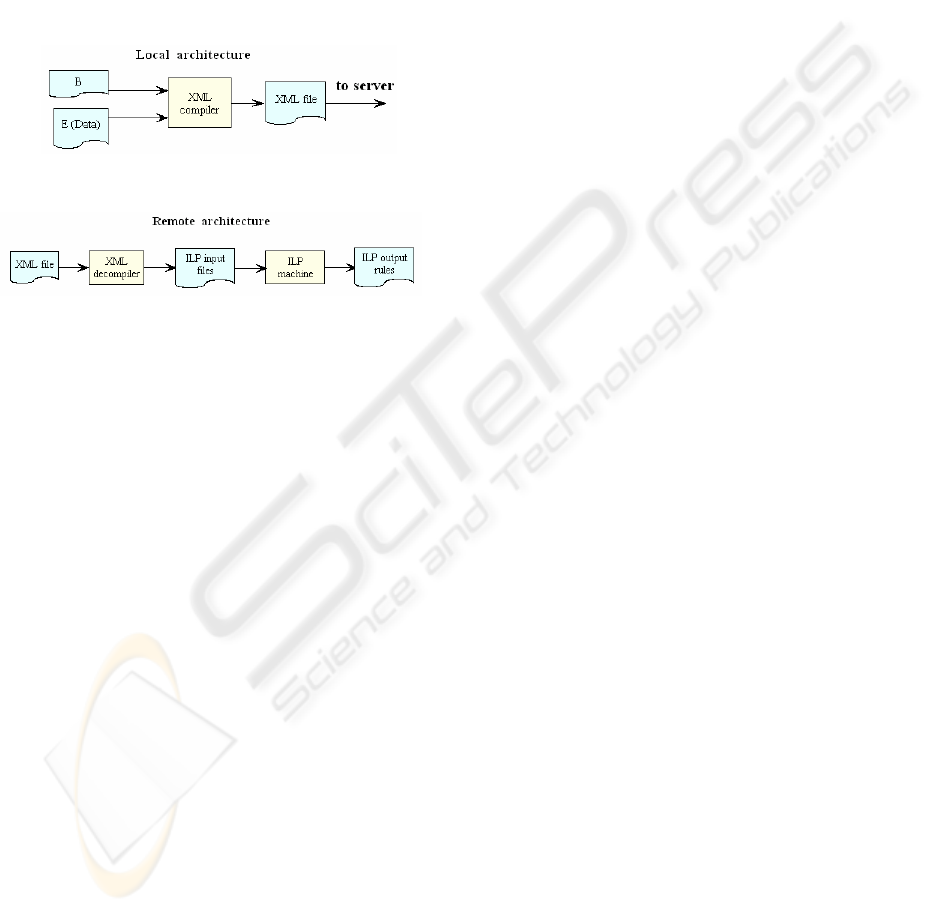

We have below two functional diagrams explaining

the flow of data and the expected output.

Figure 2

Figure 3

The output of the ILP machinery is a finite set of

logical rules that are translated into a human

readable format. The rules are output in an

implicative form and this is understandable as soon

as the predicate names support intuition.

5 CONCLUSION

Today, it is a common technique to enable a lot of

applications with e-technology. We investigate here

the field of Inductive Logic Programming targeting

to a biological application. Due to the similarity

between the first-order logic syntax and XML, there

is no difficulty to use XML as a standard format for

our files exchange. One of the main interest of our

approach is that we only manipulate data and files

which are almost human readable and the output

product (a set of rules) is easily understandable for

non-expert people. We expect to have a continuous

flow of data, and so to continuously improve the

target ILP machinery. As a mid-term objective, we

want to provide a public access to the machinery and

to make several ILP engines (see (Richard and

al.2004) for instance) to compete for extracting

rules. Since the underlying language is the same

(first order logic), it is very easy to compare and

why not, to mix different extracted rules to get a

better understanding of the process on hands. As a

long term objective, our platform could create a

vacuum of knowledge under one roof and open the

doors to a worldwide consortium of Bio Informatics

experts to access data, research, forums, resources

and application through the Internet.

REFERENCES

Farmer M., Zakariya M,.2004 : Enabling e-Technology for

bio-informatics. In: UK-Japan High Technology

Industry Forum, London.

Inoue, K. 2004, Induction as Consequence Finding. In:

Machine Learning, 55(2):109-135.

Inoue, K., Saito, H.2004: Circumscription Policies for

Induction. In: Proceedings of 14

Conf. on Inductive

Logic Programming, LNAI 3194, pp.164-179,

Springer.

Serrurier M, Prade D, Richard G.2004: A simulated

annealing framework for ILP. In: Proceedings of 14

Conf. on Inductive Logic Programming, LNAI 3194,

pp.288-304, Springer, September 2004.

Manyri L., Doncescu A., Benchaban F., Urribelarea J.L.

2005 : Parallel Differential Evolutionary Algorithms

for Parameters Estimation in Fermentation Process. In:

Journal of Parallel and Distributed Computing

Practice-SIAM

A WEB-BASED ARCHITECTURE FOR INDUCTIVE LOGIC PROGRAMMING IN BIOLOGY

361
