BENCHMARKING AN XML MEDIATOR

Florin DRAGAN, Georges GARDARIN

PRiSM Laboratory University of Versailles 78035 Versailles Cedex, France

Keywords: XML, mediation, benchmark

Abstract: In the recent years, XML has become the universal interchange format. Many investigations have been

made on storing, querying and integrating XML with existing applications. Many XML-based commercial

DBMSs have appeared lately. This paper reports on the analysis of an XML mediator federating several

existing XML DBMSs. We measure their storage and querying capabilities directly through their Java API

and indirectly through the XLive mediation tool. For this purpose we have created a simple benchmark

consisting in a set of queries and a variable test database. The main scope is to reveal the weaknesses and

the strengths of the implemented indexing and federating techniques. We analyze two commercial native

XML DBMS and an open-source relational to XML mapping middleware. We first pass directly the queries

to the DBMSs and second we go through the XLive XML mediator. Results suggest that text XML is not

the best format to exchange data between a mediator and a wrapper, and also shows some possible

improvements of XQuery support in mediation architectures.

1 INTRODUCTION

As XML capabilities have become more and more

popular, a lot of XML-based products and interfaces

have been proposed. Several XML DBMSs that

have been developed try, on the one hand, to offer

the well known capabilities of a standard DBMS,

and on the other hand, to implement new

functionalities and reach new levels of performance.

In the same time more and more classical DBMSs

add new extensions to store and retrieve XML

documents.

For measuring and comparing their performances, a

ot of XML benchmarks have been proposed that

"stress" different parts of the systems, most often the

storage engine and the query processor, by means of

a generally complex set of queries. Each benchmark

is composed of a test database and a set of queries

trying to be as general and complete as possible.

There are also a few benchmarks specific to a certain

domain that propose a specific format of database

and a set of queries specific to the simulated

applications. The most used metric is the response

time for executing a query, but a few other ones (like

the size on disk to store a certain document) are also

proposed.

The purpose of this paper is to present a simple

gene

ral mini-benchmark composed of a few queries

and a variable data set to evaluate some techniques

implemented in the core of the DBMSs under the

pressure of an XQuery mediator. We are mostly

interested in the implemented indexing and

mediation techniques and how they are influenced

by the size of the data set. Using our mini-

benchmark, we test two native XML commercial

DBMSs and one open source XML to relational

mapping middleware and analyze their response

times. Next, we apply our benchmark to an XML

mediator for finding the delays that are introduced

by the mediation operations. The conclusions show

that XML mediation is a time consuming operation

that has to be optimized both in communication and

processing time.

The rest of this paper is organized as follows. In the

section we give an overview of XML mediation

technology focusing on the XLive full-XML

mediator. Section 3 introduces our mini benchmark

(query set and data set). In section 4, we present the

results of the benchmarking operations using the

mediator and XML DBMSs. In conclusion, we

summarize our results and suggest some

improvements to the mediator architecture.

2 XML MEDIATION

Mediation technology based on XML and XQuery is

under development. Some products are already

191

DRAGAN F. and GARDARIN G. (2005).

BENCHMARKING AN XML MEDIATOR.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 191-196

DOI: 10.5220/0002517701910196

 SciTePress

available. In this section, we survey this new

technology and describe our XLive mediator (see

www.xquark.org for an industrial open source

version).

2.1 Basics and Backgrounds

With the advent of XQuery as a standard for

querying XML collections (XQuery, 2003), several

mediator systems have been developed using

XQuery and XML schema as pivot language and

model. Examples of full XML mediators are the

Enosys XML Integration Platform (EXIP

(Papakonstantinou, 2003),), the Software A.G.

EntireX XML Mediator, the Liquid Data mediator of

BEA derived from EXIP, the e-XMLMedia XML

Mediator, a predecessor of our current XLive project

(Gardarin, 2002).

XML Mediators are focused on supporting the

XQuery query language on XML views of

heterogeneous data sources. The data are integrated

dynamically from multiple information sources.

Queries are used as view definitions. During run-

time, the application issues XML queries against the

views. Queries and views are translated into some

XML algebra and are combined into single algebra

query plans. Sub-queries are sent to local wrappers

that process them locally and return XML results.

Finally, the global query processor evaluates the

result, using appropriate integration and

reconstruction algorithms.

XQuery is a powerful language, which encompasses

SQL and much more. Notably, it is able to query

rich and extensible data types; it is a functional

language, so that any valid expression applied to a

valid expression is a valid query; it will soon

incorporate XQuery Text for full text queries.

XQuery Text shall provide functionalities as single-

word search, phrase search, support for stop words,

search on prefix, postfix, infix, proximity searching,

word normalization, diacritics, ranking and

relevance. All these features will make XQuery an

ideal language for querying in an integrated way

heterogeneous data sources.

2.2 Overview of XLive Mediator

In the XLive project, we use a mediation

architecture to support enterprise information

integration shown in Figure 1. It follows the

classical wrapper-mediator architecture as defined in

(Wiederhold, 1992). The communication between

wrappers and mediator follows a common interface,

which is defined by an applicative Java or Web

service interface named XML/DBC. With

XML/DBC, requests are defined in XQuery and

results are returned in text XML format.

Our architecture is composed of mediators that deal

with distributed XML sources and wrappers that

cope with the heterogeneity of the sources (DBMS,

Web pages, etc.). The XLive mediator is a data

integration middleware managing XML views of

heterogeneous data sources. Using XLive mediator

one can integrate heterogeneous data sources

without replicating their data while the sources

remain autonomous.

XLive mediator is entirely based on W3C standard

technology: XML, XQuery, XML-Schema, SAX,

DOM and SOAP. All information exchanges rely on

XML format. XML-Schema is used for metadata

representation. Wrappers provide schemas to export

information about local data structures. XQuery is

employed for querying both the mediator and the

wrappers. Connectivity of mediator and wrappers

relies on the XML/DBC programming interface, an

extension of JDBC to integrate XQuery. More

information about the XLive mediator can be found

in (Dang-Ngoc, 2003).

3 PROPOSED BENCHMARK

Several benchmarks have been developed for XML

DBMSs, among them XMach-1 (XMach-1, 2001),

XMark (XMark, 2001) , X007 (X007, 2002),

XBench (XBench, 2004). They all have their

interests, but are in general too complex for current

mediators, both in functionality and size. In this

section, we introduce our simpler benchmark.

Web

Interface

Java

Application

Java Application

RDB1

Oracle

RDB2

MySQL

XML DB3

Xyleme

Wrapper Wrapper Wrapper

Mediator

3.1 Presentation

We propose a simple generic benchmark for testing

the basic functionalities of an XML mediator and

evaluating the performances of the different join

algorithms and indexing schemas of the local

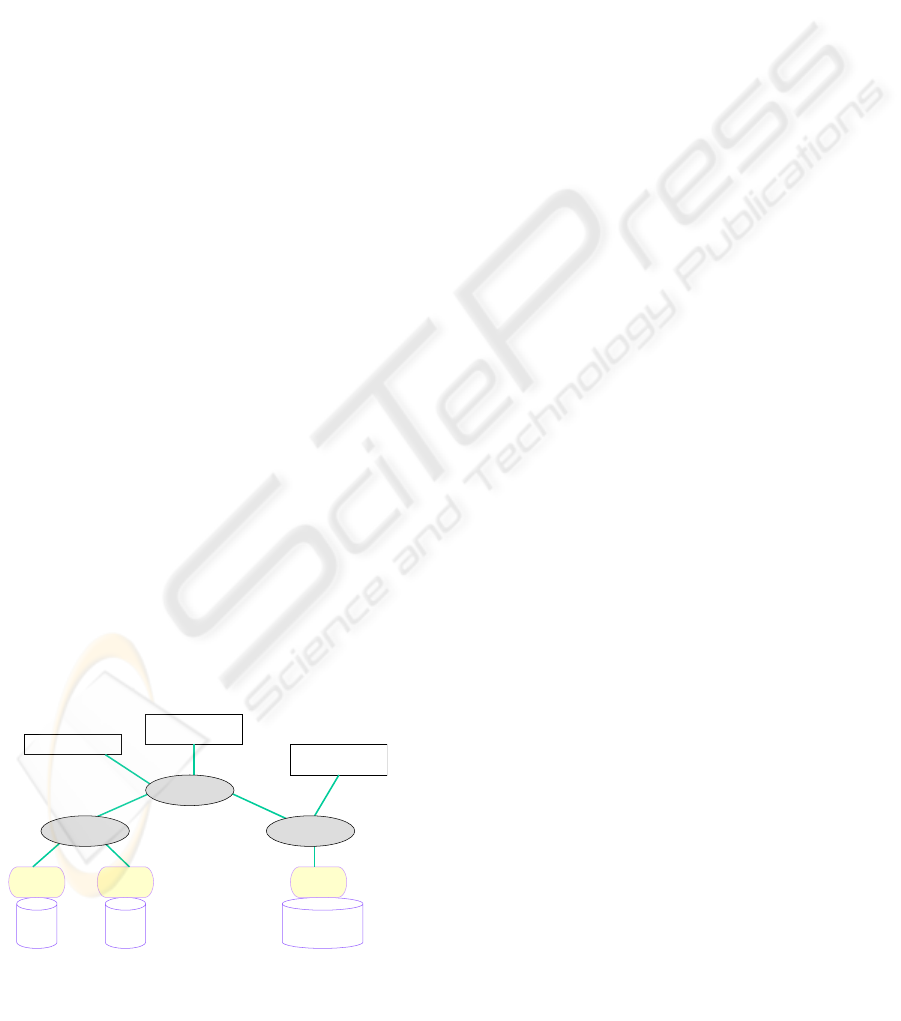

Figure 1: XLive architecture

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

192

sources. The existing benchmarks generally propose

a set of complex queries that evaluate many of the

properties of the query processor in the same query.

By appealing at simple operations, our goal is to

stress only certain functions: local indexing, XML

transfer and parsing, join algorithms, etc. Another

reason for proposing only simple queries is that we

used our benchmark to test the XLive mediator that

performs basic XQuery to integrate multiple sources.

Generally, it takes a long time for a mediator to

perform complex join operations (time that depends

on the mediator join algorithms and on other

external parameters as the network delay, the distant

DBMS capabilities, and on the source speed to

transfer the results). Yet another reason to use a

simple XQuery benchmark is that most tested

DBMSs only support the core of XQuery with

realistic performance on the computer we are using.

3.2 Data Set

The data set is composed of 2 document models: one

data oriented and the other text oriented. With a

small depth (of maximum 3) and a small width (of

maximum 5), the two documents have a simple

structure that facilitates the evaluation of different

structural selection queries. The two documents are

logically connected, which gives us the possibility to

perform simple join operations between documents

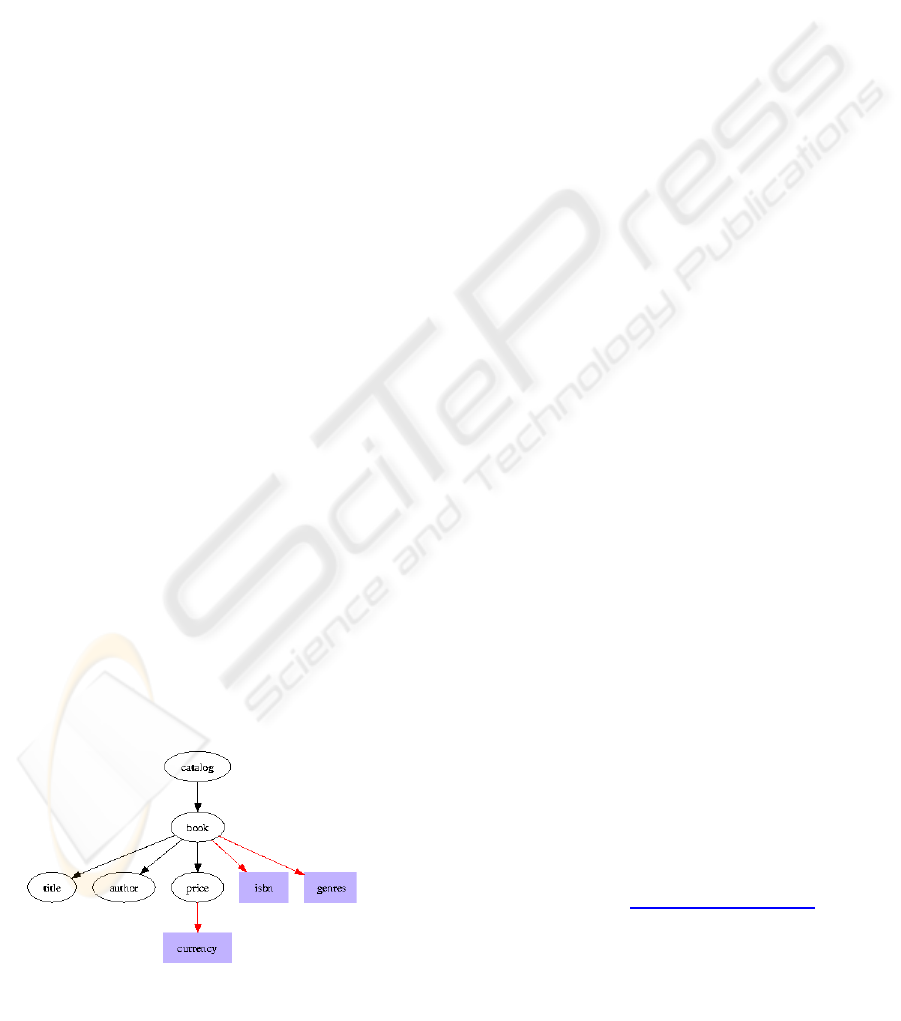

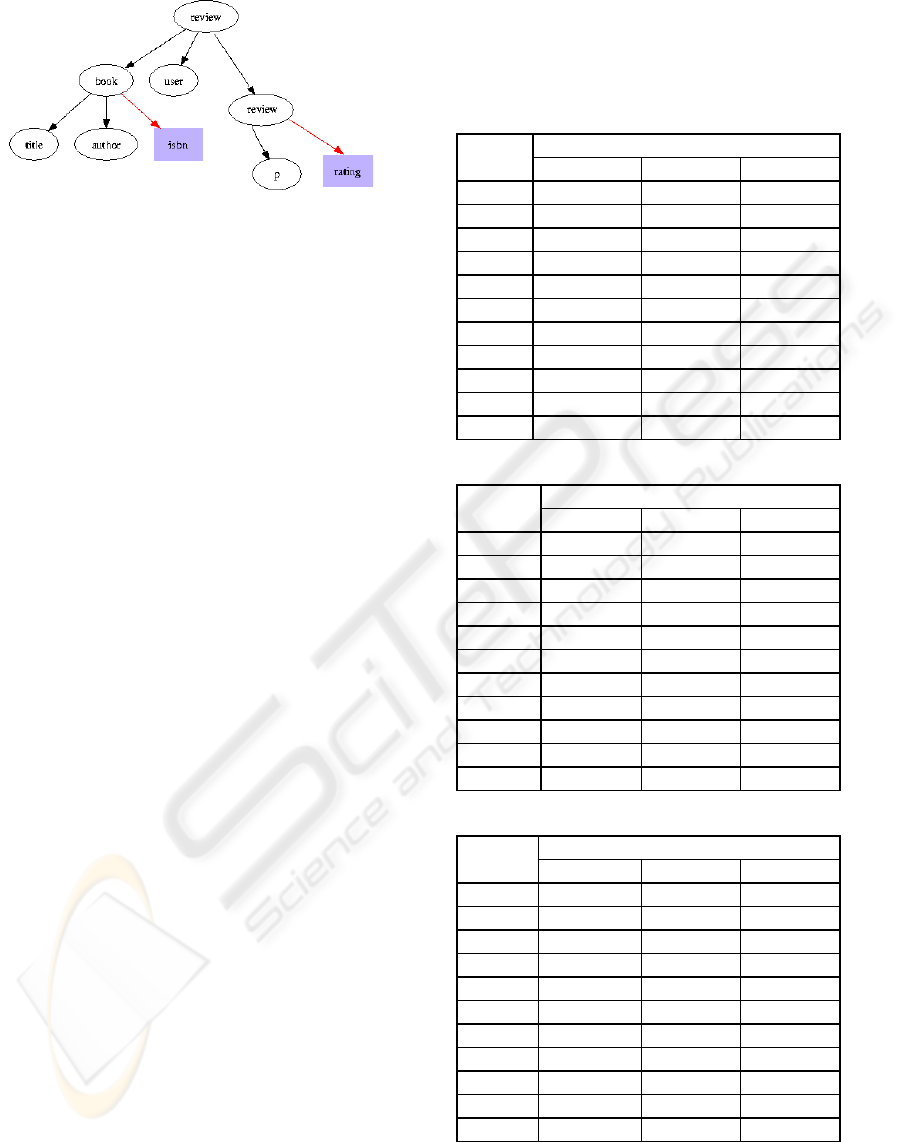

that are located on different systems. A graphical

representation of the schema of the two documents

is given in Figure 2 and 3. The schema is variable in

the sense that neither the number of "authors" of a

book nor the number of paragraphs in the reviews

are constant. The textual content is generated from

the most popular English words extracted from

Shakespeare’s plays.

In order to evaluate the performances of the XML

systems, we generated 3 data sets with 300/750/1500

documents, each documents having a size less than

2k. We used the utility toXgene (toXgene) and we

started from a provided example for generating our

data set.

3.3 Queries

Our benchmark proposes a representative set of

XML DBMS query functionalities, which can be

grouped as follows:

(i) Simple XPath expressions.

Queries Q1 and Q2 represents XQueries that require

selections on the elements and attributes names:

Q1: for $b in collection("catalog") /catalog/book return $b

Q2: for $currency in collection("catalog")/catalog/book/

price/@currency return $currency

(ii) XPath with predicates.

Q3, Q4, Q5 introduce predicates to perform simple

selections.

Q3 predicate tests for exact equality:

Q3: for $b in collection("catalog") /catalog/book where

$b/price/@currency = "CDN" return $b

Q4 contains a “range” predicate:

Q4: for $b in collection("catalog") /catalog/book where

$b/price < 100 return $b

Q5 contains the two previous predicates:

Q5: for $b in collection("catalog") /catalog/book where

$b/price < 100 and $b/price/@currency = "CDN" return $b

(iii) Recursive Path optimization.

Q6 contains a recursive wildcard "//" expression that

tests for the optimality of the path evaluation :

Q6: for $col in collection("catalog") return $col//price

(iv) Result ordering.

For testing the performances of generating an

ordered result, we have introduced an order-by

XQuery:

Q7: for $col_rev in collection("review"), $rev in

$col_rev/review, $rate in $rev/review/@rating order by

($rate) return $rev

(v) Text search.

Q8 contains the "contains" predicate to stress some

text indexing capabilities:

Q8: for $b in collection("catalog") /catalog/book where

contains($b/author, "Fumio") return $b

(vi) Joins on values.

Q9 and Q10 require joins between the two

documents; Q9 performs join and text searching:

Q9: for $col_cat in collection("catalog"), $col_rev in

collection("review"), $b in $col_cat/catalog/book,

$rev in $col_rev/review, $rev_rev in $rev/review

where $b/@isbn=$rev/book/@isbn and

contains($rev_rev,"dolphins") return $b/@genres.

Q10 performs equality join:

Q10: for $col_cat in collection("catalog"), $rev_cat in

collection("review"), $b in $col_cat/catalog/book, $r in

$rev_cat/review where

$b/@isbn=$r/book/@isbn

return $r/review/@rating

(vii) Result generation.

Q11 tests the performances of the "query processor"

to generate new results:

Figure 2: Catalog schema

BENCHMARKING AN XML MEDIATOR

193

Q11: for $col_rev in collection("review"), $rev in

$col_rev/review where $rev/review/@rating <2

return

<title>{$rev/book/title/text()}</title>

{for $col_cat in collection("catalog"),

$b in $col_cat/book

where $b/@isbn=$rev/book/@isbn

return <price>$b/price/text()</price>}

</lowRateBook>

3.4 Metrics

For evaluating a query processor, we measure the

query execution time and the size (in bytes) of the

result. For running the benchmark and evaluating the

different DBMSs, we have used a PC Intel®

Pentium® M processor 1600MHz with 1 gigabytes

of main memory. All the systems were evaluated

using the provided Java API.

4 MEDIATOR EVALUATION

We run the benchmark queries on top of the XLive

mediator using two native XML DBMSs as data

sources, namely XDBMS1 and XDBMS2. With

multiple data sources, times are sensibly the same as

with one. Thus, we only report the results for the

mediator on top of a unique data source.

4.1 Results of experiments

Tables 1,2 and 3 present the results of evaluating the

query using a mediator on top of XDBMS1 and

XDBMS2 for all the data sets. Most time in the

mediator is taken to iterate on the intermediate

results and construct the final result. As XLive

exchanges data with sources in text XML (as with

Web services), a reparsing of all the partial results is

required, which is costly in Java on a small portable

computer. Better results could be obtained if the

mediator would use a cache for temporary storing

source query results in an easy to serialize format.

Table 1: Mediator results for DS1

Query Time Results

XDBMS1 XDBMS2 elements

Q1 444,5 524,8 100

Q2 245,4 213,1 100

Q3 504,2 417,8 100

Q4 333,4 264,9 69

Q5 422,2 306,8 69

Q6 206,9 269,1 100

Q7 992,1 2151,8 200

Q8 137,5 4,61 4

Q9 423,3 1939,6 79

Q10 698,6 3293,5 200

Q11 945,5 1527,5 60

Figure 3: Review schema

Table 2: Mediator results for DS2

Query Time Results

XDBMS1 XDBMS2 elements

Q1 758,9 2378,5 250

Q2 335,7 313,6 250

Q3 879,1 1804,8 250

Q4 652,1 866,0 168

Q5 674,8 893,2 168

Q6 263,9 263,7 250

Q7 1242,7 3412,0 500

Q8 136,8 7,24 10

Q9 508,0 3128,4 212

Q10 997,5 7986,1 500

Q11 2008,4 2854,8 148

Table 3: Mediator results for DS3

Query Time Results

XDBMS1 XDBMS2 elements

Q1 1106,6 7490,3 500

Q2 388,3 759,5 500

Q3 1144,5 8174,7 500

Q4 759,2 3998,3 339

Q5 739,1 3661,3 339

Q6 933,8 979,3 500

Q7 1887,5 4816,6 1000

Q8 131,8 8,52 15

Q9 829,6 6160,3 428

Q10 1586,4 14962,6 1000

Q11 4411,7 4051,7 285

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

194

4.2 Some Discussions

It is important to mention that the mediator

evaluation time is strongly influenced by the Java

API provided by the mediated DBMSs. The

generated XQuery sub-queries are in general the best

possible, but compliant with the local source

capabilities.

Another important point is that at the mediator level,

it is not always possible to benefit from the best

indexing techniques of each local data source. For

example when evaluating Q8 on XDBMS2, in order

to take advantage of the text indexation, it is

required to use the non-XQuery function

“XDBMS2:fts” of XDBMS2. On the other hand the

mediator supports standard XQuery with no specific

functions. Thus, an optimized translation from

XQuery to XDBMS2 functions would require more

parameters and a constant phasing of the wrapper

with the vendor's different optimal functions.

Another actual problem that penalizes the mediator

evaluation is the translation between the XLive

XQuery to real DBMSs, which are in reality far

from the standards. These points demonstrate the

high importance of compliance to standards for

efficient mediation of XML DBMSs.

For DS1, total time for running the whole

benchmark with XDBMS1 is 499 ms while it is

5353 ms with the mediator on top of XDBMS1. This

shows an average factor of 10, mainly due to data

transfer and parsing. Total time with XDBMS2 is 71

versus 922 with the mediator on top of XDBMS2.

This shows an average factor of 13. The global

difference may come from the quality of the wrapper

(better optimizations have been made with

XDBMS1). Other ratios with the other data sets DS2

and DS3 are a bit better (approximately 7 and 5) for

XDBMS1. The more reduced ratios are caused by

the fact that the query processing time, at XDBMS1

level, grows “faster” than the time required to parse

additional results, at the mediator level.

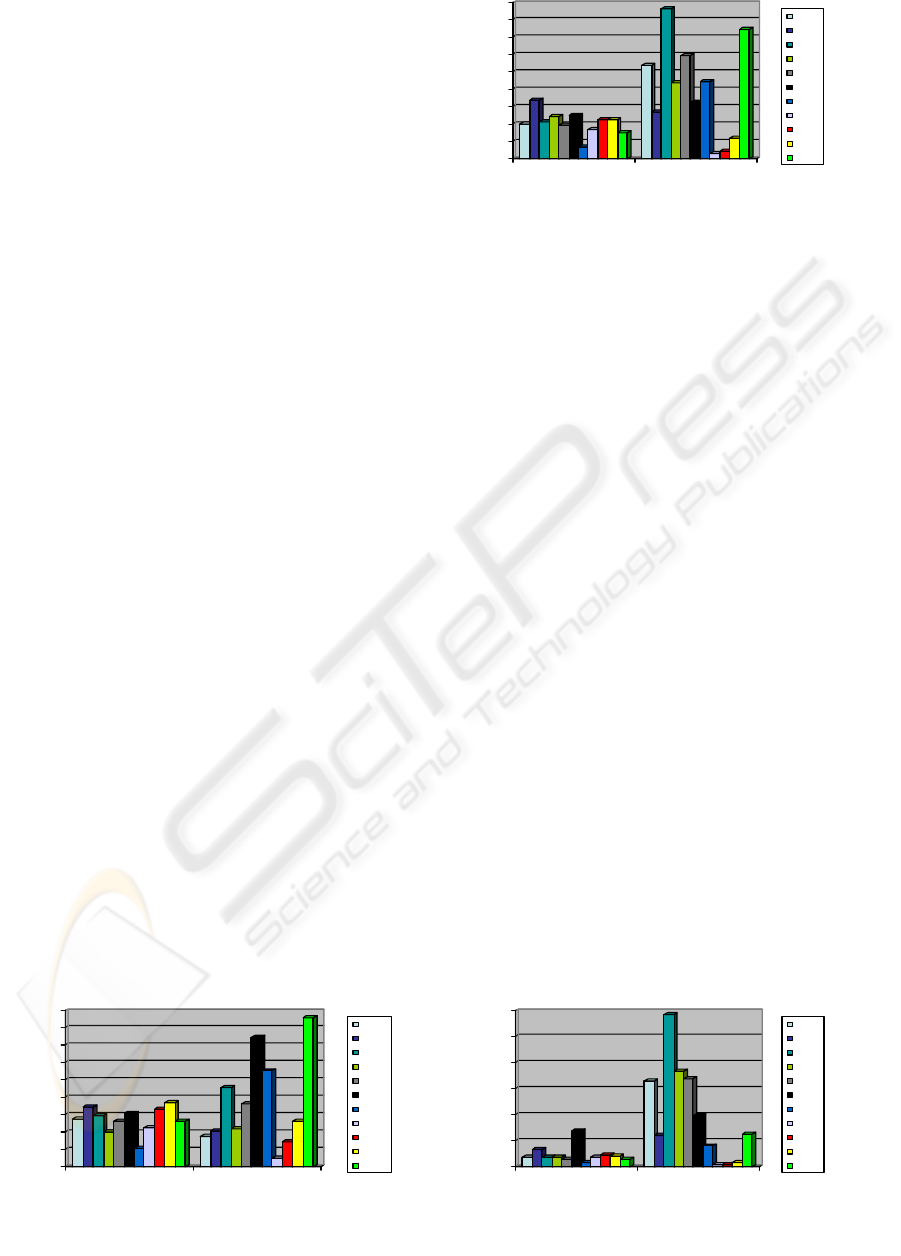

Figures 4, 5 and 6 gives the detailed ratios between

the response time with mediator versus direct

response time. The ratio for XDBMS2 increases for

bigger data sets. This means that the time required to

analyze more results (due to iteration, parsing, and

serialization) grows “faster” than the additional time

required by XDBMS2 to generate more results.

The same conclusion appears if we consider the

returned result: the first query returns a book (an

element node with many children having a big size)

and has the biggest increasing ratio for XDBMS2;

the second query returns only a text node and the

ratio increases very little (the same happens for Q8).

This means that indeed the mediator overhead

greatly depends on the analysis of the entire result

structure.

Q9 and Q10 (the join queries) have a very reduced

ratio that is caused by the fact that XDBMS2 does

not compute very well the joins.

5 CONCLUSION

In this paper, we introduced a new benchmark

composed of three data sets and 11 queries. It was

designed to evaluate commercial DBMSs behaviors

in a mediation architecture. Data sets are small in

order to make the benchmark fast to run. The data

sets are designed to cover several existing XML

schemas. The set of queries is composed of simple

queries that stress only the most important parts of a

DBMS and give fast results. However our query set

covers the typically used XQuery functionality. We

tried to compose our benchmark according to

previous existing benchmarks and to the

X DB M S1 X DBM S2

Q10

Q11

Figure 4: DS1 Mediator time increasing factor

XDBM S1 XDBM S2

Q10

Q11

Figure 5: DS2 Mediator time increasing factor

10 0

12 0

XDBM S1 XDBMS2

Q10

Q11

Figure 6: DS3 Mediator time increasing factor

BENCHMARKING AN XML MEDIATOR

195

specifications that are already implemented in the

considered source DBMSs. We tried to design and

run the benchmark without favoring one DBMS

versus another. The results were not post processed

because we wanted to present the real performances

of XML systems.

For presenting the actual “value” of some existing

XML DBMS, we ran our benchmark on two popular

systems and discovered which are their strong points

and weaknesses. Further, we also evaluate the

XQuark XQuery bridge, an open source mapping

XML-XQuery to table-SQL. The behaviour of the

bridge (reported in full paper see

www.gardarin.org)

is not very different from that of XDBMS1.

We evaluate the XLive mediator with the goal of

discovering some means of optimization. Our results

can help in the future development of the mediator

versions. It is realistic to say that the best

optimization should be the replacement of XML text

for data exchange by some parsed binary format

encoding XML in a compact way and avoiding

parsing and reparsing.

As part of our benchmark experience, we like to say

that the existence of a mediator facilitates the

evaluation of existing DBMSs offering a general

integrated platform: one single XQuery

implementation with a uniform API, whatever be the

DBMS type and specificities. In the same time the

mediator may add additional functionalities to some

DBMSs that have a weak implementation of the

standard query languages (XQuery in our case).

According to our tests, the mediator can even

accelerate the evaluation of certain queries taking

advantage of its query decomposition module.

The benchmark also shows that XLive can be

improved by changing the exchange format (e.g.,

compressed XML avoiding reparsing would be

great), adding some new modules (e.g.,

parameterized query compilation, a persistent cache

for storing partial results), optimizing existing ones

(e.g., memory allocation techniques, join and sort

algorithms), improving wrappers for specific

DBMSs (e.g., performing distributed index

management for XML sources).

REFERENCES

XQuery, 2004. XQuery 1.0: An XML Query Language.

http://www.w3.org/TR/2004/WD-xquery-20041029/

Papakonstantinou, 2003. Yannis Papakonstantinou et.al.:

XML queries and algebra in the Enosys integration

platform, Data Knowl. Eng. 44(3): 299-322

Gardarin, 2002. Georges Gardarin, Antoine Mensch,

Anthony Tomasic: An Introduction to the e-XML Data

Integration Suite, EDBT 2002: 297-306

Wiederhold, 1992. Wiederhold G.: Intelligent Integration

of Information, ACM SIGMOD Conf. on Management

of data, Washington D.C., USA, 1993, 434-437.

Dang-Ngoc, 2003. Tuyet-Tram Dang-Ngoc, Georges

Gardarin.: Federating Heterogeneous Data Sources

With XML, IASTED IKS 2003: Scottsdale, AZ, USA,

Nov. 2003.

XMach-1, 2001. Rahm, E., Böhme, T.: XMach-1: A Multi-

User Benchmark for XML Data Management, Proc.

VLDB workshop Efficiency and Effectiveness of

XML Tools, and Techniques (EEXTT2002),

Hongkong, Aug. 2002

XMark, 2001. A. R. Schmidt, F. Waas, M. L. Kersten, D.

Florescu, I. Manolescu, M. J. Carey, R. Busse:The

XML Benchmark Project, Technical Report INS-

R0103, CWI, Amsterdam, The Netherlands, April

2001

X007, 2002. Stéphane Bressan, Mong Li Lee, Ying Guang

Li, Zoé Lacroix and Ullas Nambiar: The XOO7

Benchmark, in the Lecture Notes in Computer Science

series (ISBN 3-540-00736-9), Springer-Verlag,

pp146-147.

XBench, 2004.

B. B. Yao, M. T. Özsu, and N. Khandelwal:

XBench Benchmark and Performance Testing of XML

DBMSs, In Proceedings of 20th International

Conference on Data Engineering, Boston, MA, March

2004, pages 621-632.

toXgene, 2002. www.cs.toronto.edu/tox/toxgene/

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

196
