CWM-BASED INTEGRATION OF XML DOCUMENTS AND

OBJECT-RELATIONAL DATA

Iryna Kozlova, Martin Husemann, Norbert Ritter, Stefan Witt, Natalia Haenikel

Distributed Systems and Information Systems, University of Hamburg, Germany

Keywords: Schema integration, XML Schema, SQL:1999

, metamodel, CWM

Abstract: In today’s networked world, a plenitude of data is spread across a variety of data sources with different data

models and stru

ctures. In order to leverage the potential of distributed data, effective methods for the

integrated utilization of heterogeneous data sources are required. In this paper, we propose a model for the

integration of the two predominant types of data sources, (object-)relational and XML databases. It employs

the Object Management Group’s Common Warehouse Metamodel to resolve structural heterogeneity and

aims at an extensively automatic integration process. Users are presented with an SQL view and an XML

view on the global schema and can thus access the integrated data sources via both native query languages,

SQL and XQuery.

1 INTRODUCTION

Nowadays, relational and object-relational database

management systems are the most widespread ones

in practical use while so-called native XML DBMSs

(e.g., Tamino (Tamino, 2004)) gain popularity since

they provide means for storage and management of

XML documents in a native format. The looming

parallel existence of two popular types of database

management systems calls for means to effectively

integrate (object-)relational and XML data sources.

This can be achieved by introducing a

mid

dleware layer that provides a uniform interface

for querying and updating both XML and

(object-)relational data in their local data sources.

The key idea here is a schema integration process

that generates a single global schema comprising the

entire information about the local data sources.

During this process, conflicts arising from structural

and semantic heterogeneity must be resolved.

We introduce an integration middleware called

XML. The name represents the focus on the two

data models and their unification into a common

metamodel. SQXML provides a number of unique

features for efficient handling of information stored

in (object-)relational and XML data sources, most

prominently the provision of two views on the

integrated data sources, an SQL view and an XML

view, allowing users to view the entire information

in their preferred format. The integrated data can be

accessed via both native query languages, SQL and

XQuery, while the local data sources remain

unchanged.

In this paper, we focus on the SQXML approach

o generating the global schema. This novel

approach is based on the Common Warehouse

Metamodel (CWM) (OMG, 2003), which has been

used to create a CWM-based SQXML metamodel

unifying the object-relational (SQL:1999) and XML

Schema metamodels. The process of creating the

global schema is conducted almost automatically,

requiring user interaction only during the schema

matching phase in order to improve the resolution of

semantic conflicts.

The paper is organized as follows: Section 2

resents a sample integration scenario. An overview

of the SQXML system is given in Section 3. Section

4 delineates our solution to the structural

heterogeneity problem, introducing the SQXML

metamodel that unifies the concepts of SQL and

XML. Section 5 describes the approach to resolving

the semantic heterogeneity between the local

SQXML schemas and to creating the global schema.

In Section 6, the conversion process that transforms

the global SQXML schema into the global

SQL:1999 and XML Schema representations is

proposed. Section 7 gives a survey of existing

related integration approaches, and section 8

concludes the paper.

Kozlova I., Husemann M., Ritter N., Witt S. and Haenikel N. (2005).

CWM-BASED INTEGRATION OF XML DOCUMENTS AND OBJECT-RELATIONAL DATA.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 35-43

DOI: 10.5220/0002523300350043

 SciTePress

2 MOTIVATING EXAMPLE

In this section, a simple example is given to

illustrate the SQXML integration approach. It will

be used as a running example throughout the paper.

For the sake of simplicity, we consider only one

local object-relational data source and one local

XML data source – in general, the goal of SQXML

is to operate on more than two local sources.

Suppose there are two data sources, one (object-)

relational and the other XML-based, both storing

information about books (see local schemas in

Figure 1). The local relational schema contains the

tables

books and authors, which hold titles,

publishers and author names of books on the topics

‘Java’ and ‘XML’. In contrast, the local XML

source stores information on Java books only, and its

XML Schema definition contains a complex type

javabook that consists of elements title,

author, price, and publisher.

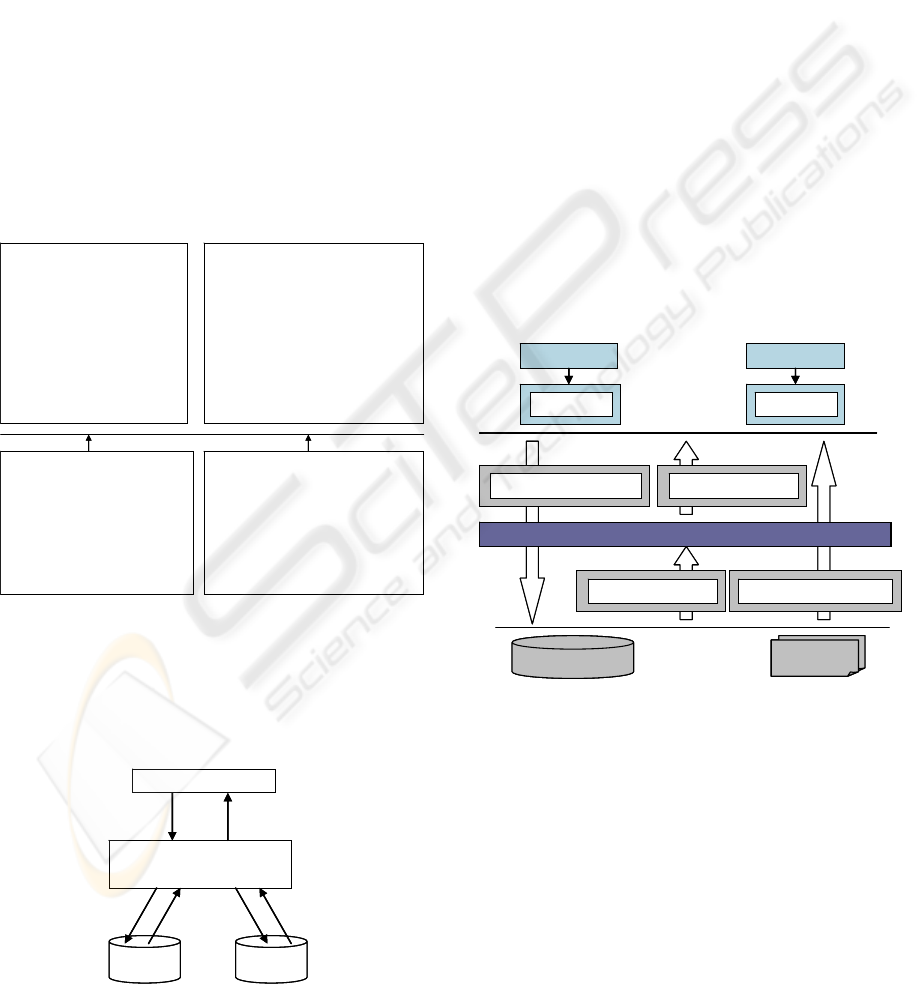

Figure 1: Sample local and global schemas

Beside the metamodel conflicts between SQL:1999

and XML Schema, the following representation

conflicts between the local schemas are obvious:

First, there is a conflict of missing attributes

Figure 2: Query processing

because price is missing in the relational schema

and topic in the XML Schema definition. Second,

there are an entity-versus-attribute conflict and an

attribute concatenation conflict regarding the

information about authors.

Such structural and semantic conflicts are

resolved by the SQXML integration process

resulting in two semantically equivalent global

schemas, as those shown in Figure 1. The SQXML

run-time component accepts SQL as well as XQuery

queries and processes them by query splitting and

result synthesis, as illustrated in Figure 2.

3 SQXML OVERVIEW

The major components of the SQXML Integration

System are illustrated in Figure 3. At the Data Level

we consider SQL:1999 databases and XML data

sources (providing XML schemas and XQuery

support). The User/Application Level at the top

represents two views on the integrated data, an SQL-

view available to SQL users/applications and an

XML-view available to XML users/applications.

Local XML Schema

<xsd:complexType name=“javabook“>

<xsd:sequence>

<xsd:element name=“title“ type=“xsd:string“/ >

<xsd:element name=“author“ type=“xsd:string“/ >

<xsd:element name=“price“ type=“xsd:decimal“/ >

<xsd:element name=“publisher“ type=“xsd:string“/>

</xsd:sequence>

</xsd:complexType>

Local SQL:1999 Schema

CREATE TABLE books (

booktitle VARCHAR(30),

author INTEGER REFERENCES authors,

publisher VARCHAR(20),

topic VARCHAR(4),

CHECK (topic IN (‘Java‘, ‘XML‘))

);

CREATE TABLE authors (

authorID INTEGER PRIMARY KEY,

firstName VARCHAR(20),

lastName VARCHAR(20)

) ;

Global SQL:1999 Schema

CREATE TABLE books (

booktitle VARCHAR(30),

author VARCHAR(40),

publisher VARCHAR(20),

price DECIMAL(5,2),

topic VARCHAR(4),

CHECK (topic IN (‘Java‘, ‘XML‘))

);

Global XML Schema

<xsd:complexType name=“books“>

<xsd:sequence>

<xsd:element name=“booktitle“ type=“xsd:string“/>

<xsd:element name=“author“ type=“xsd:string“/>

<xsd:element name=“publisher“ type=“xsd:string“/>

<xsd:element name=“price“ type=“xsd:decimal“/>

<xsd:element name=“topic“/>

<xsd:simpleType>

<xsd:restriction base=“xsd:string“>

<xsd:enumeration value=“Java“/>

<xsd:enumeration value=“XML“/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

Local XML Schema

<xsd:complexType name=“javabook“>

<xsd:sequence>

<xsd:element name=“title“ type=“xsd:string“/ >

<xsd:element name=“author“ type=“xsd:string“/ >

<xsd:element name=“price“ type=“xsd:decimal“/ >

<xsd:element name=“publisher“ type=“xsd:string“/>

</xsd:sequence>

</xsd:complexType>

Local SQL:1999 Schema

CREATE TABLE books (

booktitle VARCHAR(30),

author INTEGER REFERENCES authors,

publisher VARCHAR(20),

topic VARCHAR(4),

CHECK (topic IN (‘Java‘, ‘XML‘))

);

CREATE TABLE authors (

authorID INTEGER PRIMARY KEY,

firstName VARCHAR(20),

lastName VARCHAR(20)

) ;

Global SQL:1999 Schema

CREATE TABLE books (

booktitle VARCHAR(30),

author VARCHAR(40),

publisher VARCHAR(20),

price DECIMAL(5,2),

topic VARCHAR(4),

CHECK (topic IN (‘Java‘, ‘XML‘))

);

Global XML Schema

<xsd:complexType name=“books“>

<xsd:sequence>

<xsd:element name=“booktitle“ type=“xsd:string“/>

<xsd:element name=“author“ type=“xsd:string“/>

<xsd:element name=“publisher“ type=“xsd:string“/>

<xsd:element name=“price“ type=“xsd:decimal“/>

<xsd:element name=“topic“/>

<xsd:simpleType>

<xsd:restriction base=“xsd:string“>

<xsd:enumeration value=“Java“/>

<xsd:enumeration value=“XML“/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

SQLXQuery

XML-View

User/Application

Level

SQL-View

XML DB

SQL:1999 DB

Data Level

INTEGRATED GLOBAL SCHEMA

Result set construction

SQXML

Schema integration

View definitionQuery transformation

SQLXQuery

XML-View

User/Application

Level

SQL-ViewSQL-View

XML DBXML DB

SQL:1999 DBSQL:1999 DB

Data Level

INTEGRATED GLOBAL SCHEMA

Result set construction

SQXML

Schema integrationSchema integration

View definitionView definitionQuery transformationQuery transformation

Figure 3: SQXML System

The layer between the User/Application Level and

the Data Level contains the actual SQXML

Integration System, which is an integration

middleware layer. It comprises the schema

integration component (in charge of creating the

integrated global schema), the view definition

component (in charge of creating XML and SQL

views), and the query transformation and result set

construction components (in charge of evaluating

global user queries). In this paper, we focus on the

process of creating the global schema.

User/Application

SQXML Integration System

(query processing component)

SQL:1999

Database

XML

Source

SQL or

XQuery

SQL

result

table

result table or

XML document

XQuery

result XML

document

User/Application

SQXML Integration System

(query processing component)

SQL:1999

Database

XML

Source

SQL or

XQuery

SQL

result

table

result table or

XML document

XQuery

result XML

document

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

4 RESOLVING STRUCTURAL

HETEROGENEITY

SQL:1999 and XML Schema use different

constructs to represent schemas. The main idea to

resolve this structural heterogeneity is to unify SQL

and XML concepts into a single set of concepts.

This idea has been implemented in a new metamodel

called SQXML, representing a superset of both

models. The SQXML metamodel is used as a

common data model to achieve a structurally

homogeneous representation of the local SQL and

XML schemas. Represented in terms of the SQXML

metamodel, the local schemas can then be used in

the actual process of creating the integrated global

schema. The uniform representation of the local

schemas facilitates the automation of the integration

process as automatic schema-matching and schema-

merging techniques can be used. The resulting

global SQXML schema comprises the complete

information stored in the local data sources. In the

final phase of the process, the global schema is

converted into the data sources’ native

representations, creating two semantically equivalent

global schemas in terms of SQL:1999 and XML

Schema that are presented to the user. This allows

the user to formulate queries in SQL or XQuery.

For building the SQXML metamodel we used

the Common Warehouse Metamodel (CWM) (OMG,

2003). CWM is a metamodel of a generic data

warehouse architecture. Its original purpose is to

standardize the exchange of models between data

warehousing applications and repositories in

distributed, heterogeneous environments. Thus,

CWM offers a way to represent schemas, i.e., the

models, of heterogeneous information sources.

CWM consists of multiple components. The

Resource component includes packages for

metamodels of object-oriented, relational, record,

multidimensional, and XML data resources. The

Relational and XML packages are of special interest

for integration in our case.

There are a number of reasons to use CWM for

the unification of SQL:1999 and XML Schema.

Most importantly, CWM defines a standardized way

to represent heterogeneous models and a

standardized terminology for modelling. With the

Relational and the XML package it already provides

a metamodel for SQL:1999 and XML DTD, which

can be used as a starting point for the unification.

Note that there is no package for XML Schema in

CWM 1.2. Therefore we propose (Section 4.2) a

prototype of a CWM XML Schema Definition

(CWM XSD).

The model hierarchies of SQL:1999, XML

Schema, and SQXML, according to the OMG

metadata architecture (OMG; 2003), are shown in

Table 1.

Table 1: Metamodel hierarchy

Integrated DataXML DocumentsDatabaseM0: Instances (Data)

SQXML SchemaXML Schema DefinitionDatabase SchemaM1: Model (Schema)

SQXMLCWM:XML SchemaCWM:Relational PackageM2: Metamodel

MOFMOFMOFM3: Meta-Metamodel

SQXMLXML SchemaSQL:1999Meta-Level

Integrated DataXML DocumentsDatabaseM0: Instances (Data)

SQXML SchemaXML Schema DefinitionDatabase SchemaM1: Model (Schema)

SQXMLCWM:XML SchemaCWM:Relational PackageM2: Metamodel

MOFMOFMOFM3: Meta-Metamodel

SQXMLXML SchemaSQL:1999Meta-Level

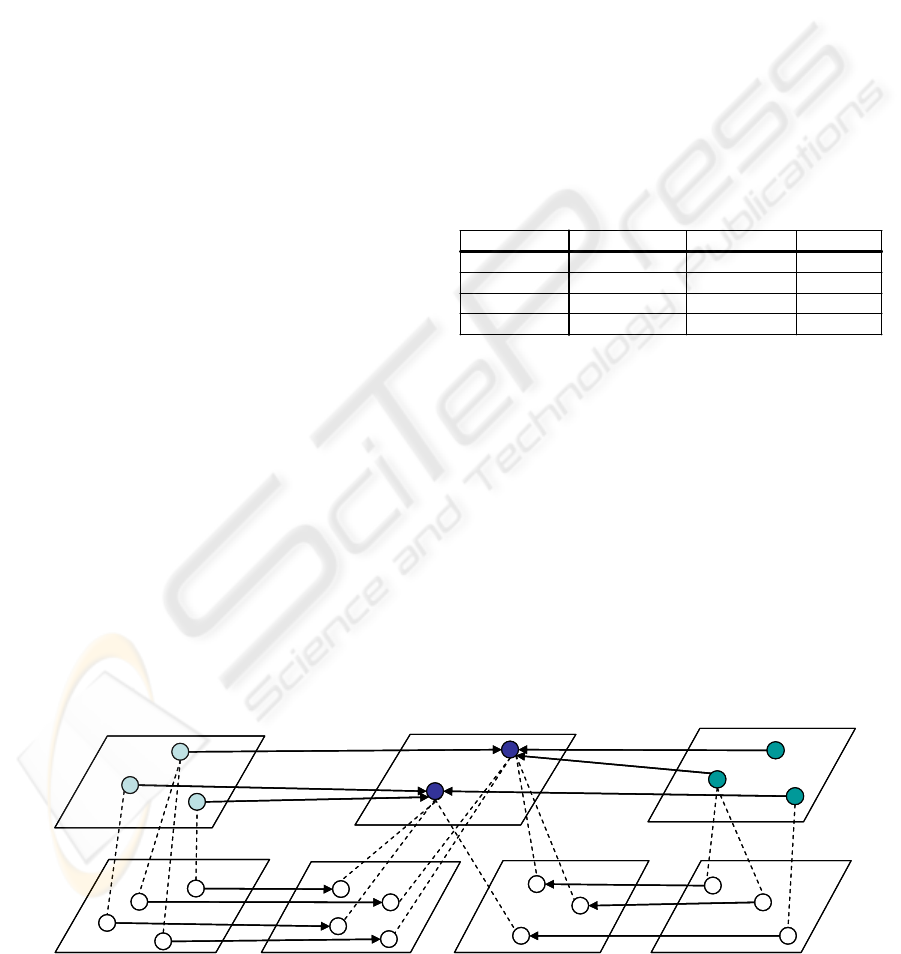

As illustrated in Figure 4, SQL:1999 database

schemas and XML Schema definitions are located at

level M1 and their metamodels at level M2. The

SQXML metamodel was constructed through a

unification process conducted at level M2. For each

modelling concept of SQL:1999 and XML Schema

there is a corresponding concept in the SQXML

metamodel. For example, SQL’s Table and

SQLStructuredType and XML Schema’s

ComplexTypeDefinition have been unified into

SQXML’s Entity concept (see detailed discussion in

Section 4.3). SQXML uses the data types from XML

Schema; the SQL:1999 data types have been

converted to XML Schema simple types using the

AttributeDeclaration

SQXML Schema 1

ComplexTypeDefinition

Level M1

ransformation

SQL:1999 DB Schema

XML Schema Definition

SQXML Schema 2

Level M2

Unification

Relational Metamodel

Column

Table

SQLStructuredType

XML Schema Metamodel

ElementDeclaration

SQXML Metamodel

Entity

ComplexType

CTt

CTst

CTD

ED1

ED2

CTctd

AttributeDeclaration

SQXML Schema 1

ComplexTypeDefinition

Level M1

ransformation

SQL:1999 DB Schema

XML Schema Definition

SQXML Schema 2

Level M2

Unification

Relational Metamodel

Column

Table

SQLStructuredType

XML Schema Metamodel

ElementDeclaration

SQXML Metamodel

Entity

ComplexType

CTt

CTst

CTD

ED1

ED2

CTctd

Figure 4: Metamodel unification and schema transformation

CWM-BASED INTEGRATION OF XML DOCUMENTS AND OBJECT-RELATIONAL DATA

SQL/XML standard (ISO/IEC, 2003).

The transformation process conducted at level

M1 proceeds as follows: Given an SQL database

schema and an XML Schema definition, each of

them is transformed into an equivalent SQXML

schema, depicted in Figure 4 as Schema 1 and

Schema 2, correspondingly.

The overall process of creating the global

schemas is illustrated in Figure 5. The first step in

this process is the transformation step, as discussed

above. The further steps, namely matching and

merging, are discussed in Section 5, and the

concluding conversion step is discussed later in

Section 6.

Figure 5: Process of creating the global schema

4.1 CWM Relational Metamodel

The CWM standard includes the package Relational,

which is a metamodel for SQL:1999 database

schemas (OMG, 2003). The complete UML diagram

of the metamodel as well as all details on the

package dependencies can be found in (OMG,

2003).

CWM Relational does not contain support for

some of the advanced features of SQL:1999, like

privileges and access control. SQXML supports

most features of Core SQL:1999 and offers basic

object-relational support, which is not a part of Core

SQL. Since not all features of SQL are needed for

data source integration and some simplifications

facilitate the integration, the following

simplifications were applied to the CWM Relational

package for our studies:

• Catalogs are not supported, as we consider one

SQL and one XML schema.

• SQLIndices have been left out because they are

not part of SQL:1999.

• Views are not supported. The inheritance

hierarchy of ColumnSet, NamedColumnSet,

QueryColumnSets and Table collapses into a

single class Table.

• Triggers have been omitted as they are not a part

of Core SQL.

Figure 6a illustrates (simplified for the sake of

readability) the central part of the CWM Relational

metamodel as it is used in the SQXML integration

system.

SQL Database

Schema

XML Schema

SQXML Schema 2

(of XML Schema)

SQXML Schema 1

(of SQL DB Schema)

Merged

SQXML

Schema

Mapping Model

Transformation Matching Merging

Global SQL DB

Schema

Global XML

Schema

Conversion

SQXML Schema 1

(of SQL DB Schema)

SQXML Schema 2

(of XML Schema)

SQL Database

Schema

XML Schema

SQXML Schema 2

(of XML Schema)

SQXML Schema 1

(of SQL DB Schema)

Merged

SQXML

Schema

Mapping Model

Transformation Matching Merging

Global SQL DB

Schema

Global XML

Schema

Conversion

SQXML Schema 1

(of SQL DB Schema)

SQXML Schema 2

(of XML Schema)

4.2 CWM XML Metamodel

We developed a CWM XML Schema metamodel

(CWM XSD) based on the XML Schema

recommendation (W3C, 2001a, 2001b). Due to

space restrictions, here we only describe its

simplified version as it is used in the SQXML

integration system. In comparison to the complete

version, XML namespaces and the following classes

have been omitted: Annotation and Notation-

Declaration, WildCard and AttributeWildcard.

Figure 6b shows that the top-level container of

an XML Schema definition is the Schema class. It

contains global type definitions, global attribute and

element declarations as well as global modelling

SQLStructuredType

SQLSimpleType

SQLDistinctType

Schema

SimpleType

ComplexType

TypeDefinition

Entity

ModelGroup

0..1

particles

ForeignKey

UniqueConstraint

PrimaryKey

1..*

0..1

1..*

BuiltInSimpleType

Facet

…Facet

…

Procedure

Parameter

type

0..1

TypeDefinition

SimpleTD ComplexTD

AttributeDeclaration

Particle

ElementDeclaration

ModelGroup

Definition

Schema

type

0..1

Term

Table

Column

Schema

type

0..1

SQLDataType

0..1

Procedure

SQLParameter

0..1

SQLStructuredType

SQLSimpleType

SQLDistinctType

Schema

SimpleType

ComplexType

TypeDefinition

Entity

ModelGroup

0..1

particles

ForeignKey

UniqueConstraint

PrimaryKey

1..*

0..1

1..*

BuiltInSimpleType

Facet

…Facet

…

Procedure

Parameter

type

0..1

TypeDefinition

SimpleTD ComplexTD

AttributeDeclaration

Particle

ElementDeclaration

ModelGroup

Definition

SchemaSchema

type

0..1

Term

Table

Column

Schema

type

0..1

SQLDataType

0..1

Procedure

SQLParameter

0..1

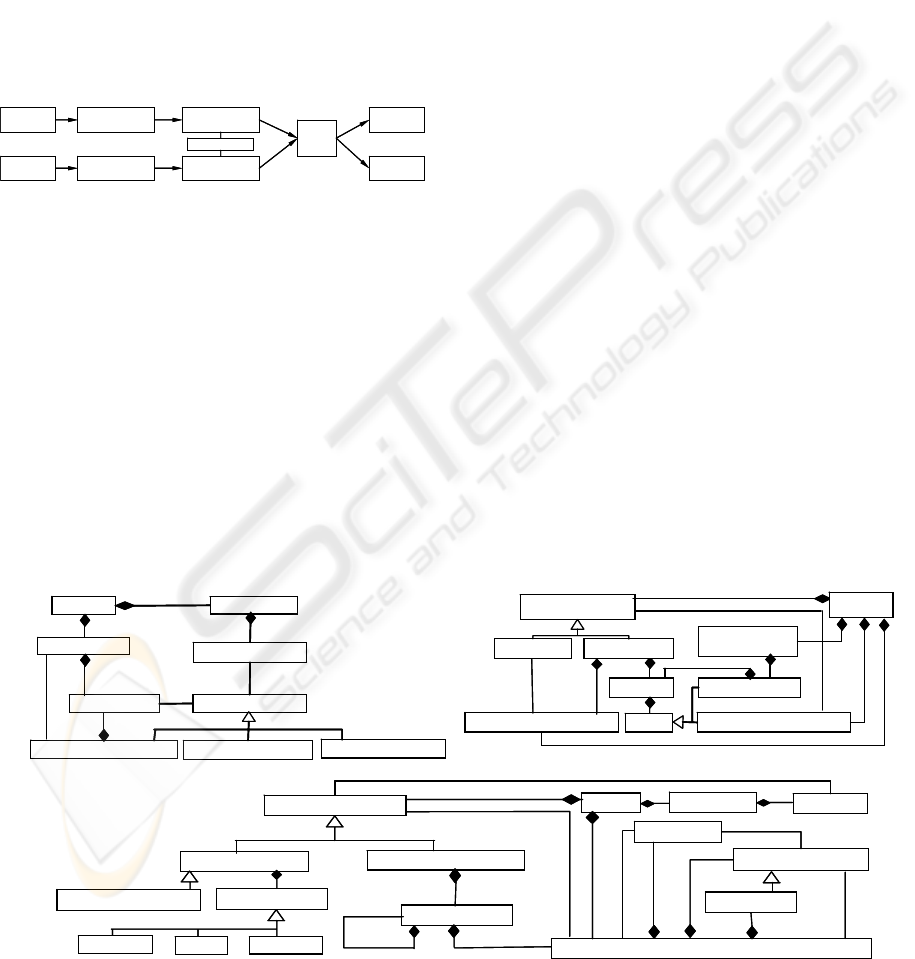

Figure 6: Simplified UML diagrams of:

a) CWM:Relational metamodel, b) XML Schema metamodel, c) SQXML metamodel

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

groups for elements and attributes. TypeDefinition is

the central class for the definition of a type

hierarchy. It is an abstract class which is specialized

by SimpleTypeDefinition and Complex-

TypeDefinition.

The class SimpleTypeDefinition has been defined

according to the XML Schema Definition Part 2

(W3C, 2001b): Each simple type is either built-in or

user-defined. A simple type is constrained by a set

of facets. These include the fundamental facets and

constraining facets, which are instances of the Facet

class (not shown in Figure 6b).

A ComplexTypeDefinition consists of

AttributeDeclarations and ElementDeclarations,

which can be combined using supplemental schema

components. As shown in Figure 6b, a

ComplexTypeDefinition cannot directly contain

ElementDeclarations, but must use a ModelGroup

(“sequence”, “choice”, or “all”) that contains

ElementDeclarations. It is modelled as follows: A

ComplexTypeDefinition contains a Particle; the

Particle must contain a ModelGroup, which is a

special kind of Term; a ModelGroup may then

contain other ModelGroups or ElementDeclarations.

Finally, ElementDeclarations can be constrained

by IdentityConstraintDefinitions, which are the key

constraints in XML Schema. The Identity-

ConstraintCategory attribute indicates the constraint

category: key specifies a primary key, keyref a

foreign key, and unique a unique constraint (not

shown in Figure 6b).

4.3 CWM SQXML Metamodel

With our approach, the essential step to resolve the

structural heterogeneity between SQL:1999 and

XML Schema was to unify the SQL:1999

metamodel (Section 4.1) and the XML Schema

metamodel (Section 4.2) into a single SQXML

metamodel. Its simplified class diagram is depicted

in Figure 6c.

The top-level container of SQXML is Schema. A

schema can contain TypeDefinitions, Entities and

Procedures. The Procedure class is the same as in

SQL because there are no routines in XML Schema.

The TypeDefinition class is used for modelling the

type hierarchies of SQL and XML. TypeDefinition is

an abstract class, which can be either SimpleType or

ComplexType.

The SimpleType class unifies the

SimpleTypeDefinition of XML Schema with

SQLSimpleType and SQLDistinctType of SQL. It is

entirely the same as SimpleTypeDefinition of the

XML Schema metamodel for two reasons: First, it is

trivial to map XML Schema data types to SQXML

data types (Section 4), and second, the mapping

from SQL to SQXML data types can be performed

using the SQL/XML standard (ISO/IEC, 2003)

(a detailed discussion is omitted here due to space

restrictions).

The ComplexType class is a unification of

structured types: It unifies XML Schema’s

ComplexTypeDefinition with Table and

SQLStructuredType of SQL (see also Figure 4). In

SQL:1999, tables and structured user-defined types

are similar enough to be unified. The information

from what an SQXML ComplexType originates is

stored in an additional Context class (not shown in

Fig. 6c) that is associated with the Entity class and

used during the conversion of the global SQXML

schema to SQL and XML Schema in the last step of

the integration process. The content of a

ComplexType is always a ModelGroup. This reflects

the modelling concept of XML Schema, which

requires a ComplexTypeDefinition to contain a

Particle containing a ModelGroup.

The class Entity unifies SQL’s Columns with

XML Schema’s ElementDeclaration and

AttributeDeclaration (see also Figure 4). The latter

two classes are similar enough to be unified into a

single class, and the origin of each of them is stored

in the Context class.

The classes ForeignKey, UniqueConstraint,

PrimaryKey

, and CheckConstraint of SQL and the

IdentityConstraintDefinition of XML Schema

provide the same concepts in a different syntactical

representation, so it is straightforward to convert the

XML Schema concepts to SQL, i.e.,

key from

IdentityConstraintDefinition becomes PrimaryKey,

keyref becomes ForeignKey, and unique becomes

UniqueConstraint.

To construct the SQXML metamodel, we have

considered the modelling concepts of SQL:1999 and

XML Schema as well as the structures (i.e., classes

and relationships) of the CWM Relational and CWM

XML Schema metamodels. Thus, each supported

SQL:1999 and XML Schema concept is also

available in SQXML and can be expressed in terms

of the SQXML metamodel.

5 RESOLVING SEMANTIC

HETEROGENEITY

The structural heterogeneity between SQL:1999 and

XML Schema has been resolved by the unification

approach described in Section 4. After the

transformation step (Figure 5), the local SQL and

XML schemas are represented in terms of the

SQXML metamodel, later on referred to as SQXML

Schema 1 and SQXML Schema 2. As shown in

Figure 5, the next steps of creating the global

CWM-BASED INTEGRATION OF XML DOCUMENTS AND OBJECT-RELATIONAL DATA

schema are schema matching and schema merging to

resolve the semantic heterogeneity between the local

schemas. The goal of schema matching is to find

how the schema elements of different schemas

correspond to each other and to identify

representation conflicts between the schemas. Using

these correspondences, the two local SQXML

schemas are merged, resulting in the global SQXML

schema.

5.1 Schema Matching

The traditional way to obtain a mapping model is

having a domain expert create it manually,

sometimes with the help of tools providing visual

editing.

The desirable alternative is to conduct automatic

schema matching. Different schema matching

algorithms have recently been developed. A

comparison and classification of their performance

can be found in (Rahm and Bernstein, 2001). Based

on these results, the Cupid algorithm (Madhavan et

al, 2001) has been chosen as automatic schema

matcher for SQXML. The matching process in

Cupid is both linguistic-based and constraint-based:

It compares elements by discovering element name

and data type similarities and analyzing the positions

of the elements in the schema. The Cupid algorithm

takes two schemas S1 and S2 as input and returns a

mapping. A mapping is defined as a set of mapping

elements, each of which indicates that certain

elements of schema S1 correspond to certain

elements of S2 (Rahm and Bernstein, 2001).

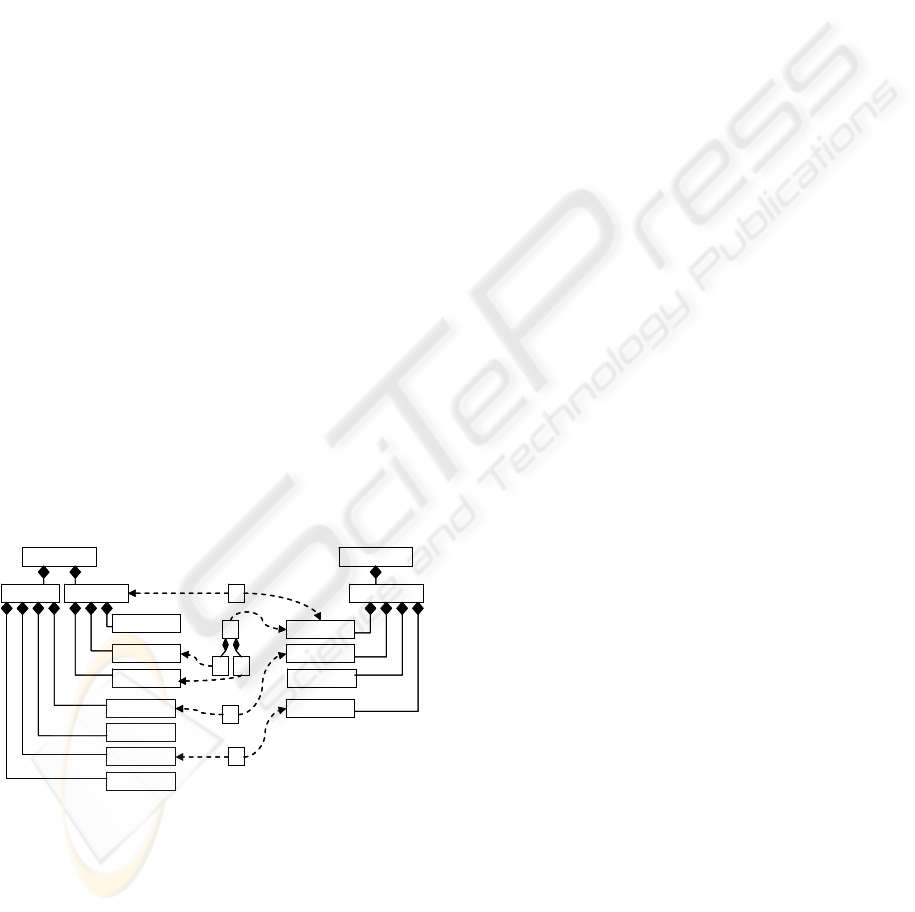

Figure 7: Sample (local) SQXML schemas and

corresponding mapping model

The Cupid algorithm cannot identify and solve all

representation conflicts. Thus, an enhancement of

the mapping result is needed. For this, we use a

notion of a mapping model (similar to (Pottinger and

Bernstein, 2003)) that identifies (in addition to the

corresponding schema elements detected by Cupid)

containment relations between mapping elements, as

illustrated in Figure 7: It shows the local schemas

from our example (Section 2), represented as

SQXML schemas, and the mapping model between

them. There are ‘equality’ mapping elements, like

m5, that indicate semantically equal elements, and

‘similarity’ mapping elements, that are represented

using a similarity mapping function. In Figure 7, the

‘similarity’ mapping element m2 and a

concatenation function f solve the attribute

concatenation conflict regarding the representation

of the author name.

5.2 Schema Merging

The mapping model resulting from the schema

matching is required for the schema merging phase.

Schema merging is performed by a merge operator

(Bernstein et al, 2000), which takes two schemas S1

and S2 and a mapping model M between S1 and S2

as input and produces the merged schema S

as a

result. It uses the correspondences between the

schemas to merge equal or similar elements into

single schema elements in the merged schema.

From the existing schema merging algorithms,

the Vanilla algorithm has been chosen (Pottinger and

Bernstein, 2003). SQXML uses an improved version

of Vanilla, as discussed in the following.

One essential drawback of the Vanilla algorithm

is that schema elements that are related by a

‘similarity’ mapping element remain separated in the

merged schema. Our solution to this problem is to

declare one of the schemas as ‘preferable’. The

‘similarity’ mapping elements are then treated as

‘equality’ mapping elements, and the elements of the

‘preferable’ schema are taken over into the merged

schema. During query processing, the similarity

mapping function is applied to the instances of one

local data source to display them according to the

representation used in the global schema. In our

example (Section 2), the element author is taken

over into the global schema, so that during query

processing the concatenation function is applied to

the elements firstName and lastName to

represent them as required by the global schema.

SQL Schema

publisher

XML Schema

sql.books xml.javabook

author

lastName

booktitle

authorID

firstName

author

title

price

sql.authors

topic

= =

publisher

m4m3

SQL Schema

publisher

XML Schema

sql.books xml.javabook

author

lastName

booktitle

authorID

firstName

author

title

price

sql.authors

topic

= =

publisher

m4m3

Another drawback of Vanilla is that it does not

store information about the relationship between the

local schemas and the global schema. This

relationship, also called semantic mapping, is later

on needed for query processing. Therefore, we

propose to co-create the semantic mapping during

the schema matching and schema merging steps

when all the required information is available.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

6 CONVERSION PROCESS

The integration steps described in sections 4 and 5

result in the integrated global schema, expressed in

terms of the SQXML metamodel. As a last step, the

global SQL:1999 schema and the global XML

Schema definition are created through the

conversion process, which is reverse to the

transformation process.

Since the SQXML metamodel uses data types

from XML Schema (Section 4) it is trivial to map

SQXML data types to XML Schema data types.

Converting SQXML types to SQL:1999 types is not

that straightforward. Some XML types, e.g., the

Gregorian Calendar types, have no direct

correspondences in SQL:1999. For XML types with

unbounded cardinality, such as integer and string, an

exact mapping cannot be provided either. Only

bounded subsets, i.e., integers with a maxInclusive

or maxExclusive facet or subtypes of integer

such as int or long, can be mapped exactly. In

this case, facets in XML Schema are converted to

appropriate

check constraints in SQL:1999.

Figure 8: Conversion algorithm

The conversion algorithm, which takes an SQXML

schema S as input and produces an SQL:1999

schema represented in terms of the CWM Relational

metamodel, is outlined in Figure 8. The schema

conversion is done using a top-down approach – the

schema S is traversed starting from globally defined

types and entities. First, all globally defined complex

types are mapped to structured user-defined types

(lines 3-5). Next, global entities are mapped to typed

tables (lines 6-8). User-defined structured types may

not have constraints in SQL:1999, so constraints are

discarded (line 10). Furthermore, if there is only one

typed table of a structured type or if there was no

structured type in the original SQL schema (i.e., if it

was originally a table in the local schema, according

to the information stored in the Context class) the

type is eliminated (line 11) because it is not

required. The structured types, typed tables, tables,

and procedures are glued together to an SQL:1999

schema (line 13).

The algorithms for the conversion of complex

types, entities and procedures are not presented here

due to space restrictions, as well as the conversion

algorithm from SQXML schema to XML Schema

definition.

The conversion process is also used for creating

an SQL view of the local XML schema as well as an

XML view of the local SQL schema, which are

needed to perform query processing.

A global query (SQL or XQuery) submitted by

the user to the SQXML middleware is formulated on

the global schema (SQL:1999 or XML Schema

respectively), so it must be split and reformulated in

terms of the local schemas to access the data in the

local sources (Figure 2). For this, the relationship

between the global schema and the local schemas

(the semantic mapping) is needed. SQXML uses the

global-as-view (GAV) approach (Halevy, 2000),

where the global schema is defined as a view on the

local schemas. The GAV approach was chosen

because that way the splitting of the global query

into the local queries is a simple process of view

unfolding. For the global SQL:1999 schema, the

query plans are based on SQL, so that an SQL:1999

view on the local XML schema is needed to answer

queries. Analogously, for the global XML Schema,

an XML view on the local SQL schema has to be

generated. This task is solved by applying the

conversion process to each local SQXML schema.

1 con vertSchemaT oSQL(Schema S)

2 beg in

3 for each Comp lexType t i n S do

4 convertComplexType( type: t);

5 end for

6 for each glob al Entity e in S do

7 convertEntit y(type:createTable(),

e ntity:e, mi xed:FALSE, alwaysNull able:FALSE) ;

8 end for

9 for each stru ctured type t do

10 delete co nstraints f rom t;

11 if t is referenced o nly once

or t.cont ext is mark ed as tabl e

then eliminate t;

12 end for

13 c reate SQL s chema from structured types,

t yped tables , tables, p rocedures;

14 o utput SQL s chema;

15 end;

7 RELATED APPROACHES

A wide spectrum of approaches related to our topic

has been developed. First of all, the information

integration systems developed for retrieving and

managing data stored in heterogeneous sources are

to be mentioned. Research and commercial

approaches to the problem of information integration

vary in the methods and techniques they use.

The wrapper-mediator approach, which is often

used in integration systems, is based on the

following idea: The data models of the local data

sources are first converted to a common data model

supported by the integration system. This translation

is conducted by wrappers, that is, hard-coded. The

integration rules are hard-coded as well and defined

in mediators. The end user’s view in this case is a

schema that is provided by some mediator. Such

approaches are quite good at resolving the

CWM-BASED INTEGRATION OF XML DOCUMENTS AND OBJECT-RELATIONAL DATA

heterogeneity problems; structural heterogeneity is

resolved at the wrapper level and semantic

heterogeneity is homogenized by the mediators.

Examples of such approaches are the TSIMMIS

(Garcia-Molina et al, 1997) and Florid (Ludäscher et

al, 1998) integration systems. TSIMMIS implements

virtual (or logical) integration, meaning that the data

stays in the sources and is delivered to the user on

request only. Florid follows the materialized

integration approach: the data from the local sources

is integrated and materialized so that the global

query is directly evaluated on the integrated set of

data.

The Garlic (Carey et al, 1995) integration

architecture is similar to those described above, with

the difference that no mediators are used. Instead,

the integration and query transformation are

performed centralized by the ‘Query Services and

Runtime System’ component.

Another strategy is to develop a special mapping

language. Such languages, like BRIITY (Härder et

al, 1999), allow the definition of mapping rules

which, in turn, determine the interoperability

between the global schema and the local schemas.

Heterogeneity conflicts can be solved explicitly by

coding appropriate integration rules.

Recently, various data integration strategies have

been developed for the interoperability of XML and

RDBMSs. They focus on using a relational database

management system to store and query XML data:

Either an RDBMS is used to store and query XML

data, or existing relational data is presented as an

XML view to the user or application. Commercial

solutions used by object-relational database

management systems (as Oracle 9i (Higgins et al,

2002), IBM DB2 (IBM Corporation, 2002),

Microsoft SQL Server 2000 (Microsoft Corporation,

2004)) provide various mechanisms for mappings

between relational tables and XML fragments, but

they do not provide schema integration: The user

still has to know both schema definitions (no global

schema is created), to use two query languages, and

to perform combining and cleaning of query results

manually.

Among the various research approaches for

XML Publishing, we mention SilkRoute, XPeranto

and Agora here. SilkRoute (Fernandez et al, 2000)

and XPeranto (Shanmugasundaram et al, 2001)

focus on defining XML views on relational data and

evaluating XML queries by decomposing the view.

In both approaches, a virtual XML view is created

and then the XML queries (XML-QL in SilkRoute

and XQuery in XPeranto) are evaluated

on this view. These approaches use only a single

local relational data source, and their main task is to

process XML queries on it.

The Agora (Manolescu et al, 2001) approach

focuses on the problem of translating XQuery

queries into SQL. Unlike SilkRoute and XPeranto, it

can handle relational as well as XML data sources.

In contrast to SQXML, Agora uses the local-as-view

(LAV) approach (Halevy, 2000) and supports only

one language, XQuery.

Integration solutions like TSIMMIS, Garlic, and

BRIITY are more generic with respect to the data

sources that can be integrated, and considerable

efforts would be required to adapt these approaches

to support SQL:1999 and XML Schema. Also,

considerable programming efforts would be required

to code wrappers and mediators or to define the

mapping rules.

In contrast, the SQXML approach resolves the

structural heterogeneity between SQL:1999 and

XML Schema fully automatically: With the SQXML

metamodel (Section 4), SQL:1999 schemas and

XML Schema definitions can be directly

transformed into uniform representations. The

semantic heterogeneity is resolved in a near-

automatic way, only possibly requiring some manual

changes and improvements to the mapping model

during the schema matching process.

The SQXML system is aimed at providing the

user or the application with bilingual access, i.e., it

supports both query languages, SQL and XQuery. In

contrast, related approaches define a new language

(e.g., Lorel in TSIMMIS or F-Logik in Florid) or use

SQL with appropriate extensions (e.g., object-

oriented extensions of SQL in Garlic) to provide

access to the integrated data.

None of the integration systems mentioned above

supports more than one query language, and most of

the approaches require significant user support

during the integration process. The SQXML

Integration System as proposed in this paper is

aimed at simplifying and automating the integration

process as well as providing efficient data access.

8 CONCLUSIONS AND FUTURE

WORK

This paper has presented SQXML, a system

designed to implement the integration of XML and

(object-)relational data sources. SQXML provides

new features that have not been available in other

integration systems. It aims at providing near-

automatic performance, that is, user interaction is

limited to the process of resolving semantic conflicts

between the schemas. Structural heterogeneity

between the schemas is resolved fully automatically.

To unify SQL:1999 and XML Schema, concepts

of the Common Warehouse Metamodel have been

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

used. A new CWM metamodel for XML Schema

has been developed, and based on the CWM

Relational and XML Schema metamodels, the

SQXML metamodel has been constructed. The

problem of overcoming the structural heterogeneity

has been solved by using the CWM and SQL/XML

standards to transform SQL and XML schemas to a

unified representation in terms of the SQXML

metamodel. This technique allows for the automated

resolution of structural conflicts at the data model

level.

Solutions to the problems of matching and

merging two SQXML schemas have been proposed.

An enhanced Cupid matching algorithm is used to

find correspondences between the schemas, and an

improved Vanilla algorithm is used for schema

merging.

An approach for converting an SQXML schema

to SQL:1999 and to XML Schema has been

presented. Applied to the global SQXML schema, it

results in the global SQL and XML schemas,

concluding the schema integration process and

allowing access to the integrated information in both

local sources’ query languages – SQL and XQuery.

Future work is aimed at enhancing the query

processing to support updates of the local data

sources through the global schema. Further aspects

we plan to investigate are data cleaning and

instance-level integration. Data cleaning deals with

the problem of handling inconsistencies between the

local data sources, e.g., data entries that refer to the

same real-world object, but contain contradictory

values. Instance-level integration is concerned with

the matching and integrated processing of local data

entries that contain different aspects of the same

real-world object.

REFERENCES

Bernstein, P. A. et al., 2000: A Vision for Management of

Complex Models. In: SIGMOD Record, Vol. 29, pp.

55-63.

Carey, M. et al., 1995: Towards heterogeneous multimedia

information systems: The Garlic approach. In: Proc. of

the 5th International Workshop on Research Issues in

Data Engineering, pp. 124-131.

IBM Corporation, 2002: XML Extender Administration

and Programming, Version 8. ftp://

ftp.software.ibm.

com/ps/products/db2/info/vr8/pdf/letter/db2sxe80.pdf

Fernandez, M. et al., 2000: SilkRoute: Trading between

relations and XML. In: WWW9/Computer Networks,

33(16), pp. 723-745.

Garcia-Molina, H. et al., 1997: The TSIMMIS Approach

to Mediation: Data Models and Languages. In: Journal

of Intelligent Information Systems, vol. 8, pp. 117-

132.

Halevy, A., 2000: Logic-based techniques in data

integration. In: Logic Based Artificial Intelligence, pp.

575-595.

Härder, T. et al., 1999: The intrinsic problems of structural

heterogeneity and an approach to their solution. In:

The VLDB Journal, 8, pp. 25-43.

Higgins, S. et al., 2002: Oracle 9i XML Developers Guide

– Oracle XML DB, Release 2 (9.2). Oracle

Corporation.

International Organization for Standardization. ISO/IEC

9075-14:2003: Information technology – Database

languages – SQL – Part 14: XML-Related

Specifications (SQL/XML).

Ludäscher, B. et al., 1998: Managing Semistructured data

with FLORID: A Deductive Object-Oriented

Perspective. In: Information Systems, 23(8), pp. 589-

612.

Madhavan, J. et al., 2001: Generic Schema Matching with

Cupid. In: Proceedings of the 27th VLDB Conference,

Roma, Italy, pp. 49-58.

Microsoft Corporation, 2004: SQL Server 2000 Product

Documentation. http//www.microsoft.com/sql/

techinfo/productdoc/2000/books.asp

Manolescu, I. et al., 2001: Answering XML queries over

heterogeneous data sources. In: Proc. of the 27th

VLDB Conf., Roma, Italy.

OMG, 2003: Common Warehouse Metamodel (CWM)

Specification, Version 1.1 Volume 1. Object

Management Group (OMG) Specification.

Pottinger, R. A., Bernstein, P. A., 2003: Merging Models

Based on Given Correspondences. In: Proc. of the

29th VLDB Conference, Berlin, Germany, pp. 862-

873.

Rahm, E., Bernstein, P. A., 2001: A Survey of Approaches

to Automatic Schema Matching. In: VLDB Journal

10(4), pp. 334-350.

Shanmugasundaram, J. et al., 2001: Querying XML views

of relational data. In: Proc. of the 27th VLDB

Conference, Roma, Italy.

Tamino XML Server, Software AG, 2004:

http://www2.softwareag.com/corporate/products/

tamino/default.asp

W3C, 2001a: XML Schema Part 1: Structures. W3C

Recommendation.

W3C, 2001b: XML Schema Part 2: Datatypes. W3C

Recommendations.

CWM-BASED INTEGRATION OF XML DOCUMENTS AND OBJECT-RELATIONAL DATA
