DECOUPLING MVC: J2EE DESIGN PATTERN INTEGRATION

Francisco Maciá-Pérez, Virgilio Gilart-Iglesias, Diego Marcos-Jorquera, Juan Manuel García-

Chamizo

Departamento de Tecnología Informática y Computación, Universidad de Alicante , AP. 99, 03080, Alicante, Spain

Antonio Hernández-Sáez

Servicio de Informática de la Escuela Politécnica Superior, Universidad de Alicante, AP. 99, 03080, Alicante, Spain

Keywords: Enterprise platforms, design patterns, J2EE, frameworks

Abstract: In this paper we propose a model based on the

Model-View-Controller design paradigm and built over the

integration of open source frameworks, which are widely supported by the software architect community.

The main contribution of this model lies in that it provides a true decoupling of the MVC paradigm’s model,

view and controller elements. This approach eases the horizontal development and maintenance of large-

scale distributed network applications. In order to concretize our model, we have based our prototype

application in the following three frameworks. First, the Struts framework in which the controller element

resides. Second, the Cocoon framework which serves as the basis for the view. And, finally, the J2EE

business components that constitute the model. This led us to integrate these three frameworks so as to

decouple the referred MVC elements, through the use of the Cocoon-Plugin (as the View-Controller tie) and

Struts-EJB (which links the Model and the Controller elements).

1 INTRODUCTION

The Internet has changed the way in which business

is understood. Nowadays, organizations can find in

the Internet’s environment new models to compete

which were previously targeted only by the largest

corporations, due to its high operation costs

(Harmon, 2001). These transformations imply new

requirements that are not satisfied by traditional

software models, therefore forcing to adopt new

strategies so as to adapt the business and software

processes – this is referred to as process

reengineering.

In most cases, organizations resistance to take

ove

r these changes is high and sometimes traumatic,

due to various facts: the effort necessary to give up

the former business culture, the complexity of

integrating inherited systems which hold critical

enterprise information, the changes needed in the

established infrastructures and the learning process

required for the organization’s personnel. In spite of

these difficulties, new enterprises that rapidly adapt

to the new technologies are arising, forcing older

companies to evolve towards these environments

(Harmon, 2001).

The traditional architectures do not provide a

obal solution to the new business models

requirements, since many of these were not in their

initial design: standards that support integration

between applications and different devices

(Hansmann, 2003), scalability to allow applications

growing as the business grows (Weaver, 2004),

flexibility towards new technologies and ubiquitous

computing systems (Hansmann, 2003), security in

not reliable environments prone to assaults (Sing,

2002), and portability over different systems (Cade,

2002). To fill in this architectural gap, a new

generation of software platforms based on

components over distributed (n-tier) architectures

has been developed, in order to provide a complete

solution allowing organizations to approach the new

business models and to take advantage of the

technological environment introduced by the

Internet (Harmon, 2001).

Among these platforms there is J2EE, which has

acqui

red, during the last years, a relevant role in

software development based on the new business

models (Sing, 2002). Its success probably resides in

its specification, which is based on an open process

participated by prestigious companies in the

280

Maciá-Pérez F., Gilart-Iglesias V., Marcos-Jorquera D., Manuel García-Chamizo J. and Hernández-Sáez A. (2005).

DECOUPLING MVC: J2EE DESIGN PATTERN INTEGRATION.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 280-287

DOI: 10.5220/0002524102800287

 SciTePress

technological sector that have contributed with their

particular point of view about the new models needs

(Allamaraju, 2002). This process has given birth to

an infrastructure that supports the requirements

demanded by enterprise applications in the new

environments – diverse information needs, complex

economic processes, diversity of applications, rapid

developments that produce lasting designs,

reliability, availability and security – (Weaver,

2004). For most organizations, creating such an

infrastructure by their own means would be

unfeasible due to its high costs in effort, time and

budget. Besides, in case of achieving its creation,

this custom infrastructure would probably lack

J2EE’s capabilities for integration with other

distributed computing models (Weaver, 2004).

J2EE defines a programming model and supplies

a set of associated services that provide the

necessary elements in order to develop enterprise

applications: transactions, security, administration,

standard communication protocols,

internationalization, scalability, integration,

availability, maintenance capabilities and flexibility

(Cade, 2002).

Nevertheless, while the foundations of the

platform are relatively easy to describe and

understand, applying them to outline an architecture

for the design of distributed applications is not a

trivial problem: it requires a deep understanding of

the platform and a careful decision-making process.

Thus, having the platform’s technical knowledge

– about components, services and communications –

is not enough in order to design good quality

applications (Johnson, 2003). We also need to know

when to use a particular solution for certain problem,

and the reasons that motivate this choice; this can

only be achieved through experience, which

necessarily requires time. There are also solutions

and advices – patterns, best practices, bad practices

– based on third party developers that share their

experience, pointing when and how to use each

technology (Berry, 2002).

In this article we propose a framework that

provides a true decoupling of the MVC paradigm’s

model, view and controller elements. This approach

eases the horizontal development and maintenance

for this type of applications, based on the J2EE

platform. To begin with, we will introduce the

current works related to the proposed model.

Secondly, we will describe the research tasks

performed in order to obtain our framework’s

general model. In the next stage, we will explain the

model’s integration and implementation process.

Finally, we will present the corresponding

conclusions and future research lines.

2 BACKGROUND

In B2C (business to customer) J2EE applications,

clients have access to the business logic through the

World Wide Web by means of the Web tier, which

manages the communication between the Web client

and the mentioned business logic (Sing, 2002).

For this type of applications, it is recommended

to use the Model-View-Controller (MVC) pattern

(Stelting, 2002). This pattern divides applications in

three parts, decoupling the specific responsibilities

for each one: the model represents the business

information and defines the business rules or

operations that manage the access to this

information, and its modification; the view takes

charge of the information presentation and allows

the interaction between the user and the model;

finally, the controller manages the requests in order

to update the model (Moczar, 2003). MVC is

therefore a generic design pattern oriented to

systems architecture, which is widely spread in

object-oriented programming. It provides ease of

maintenance, component reutilization and adaptation

capabilities (Stelting, 2002). It is also one of SUN’s

main recommendations for designs using the J2EE

platform (Johnson, 2003).

In (Sing, 2002), SUN defined a model (Model 2)

that establishes the design guides for J2EE

components on the MVC.

SUN introduces two recommendations

considered to be best practices:

 In first place, the use of frameworks in order to

develop applications based on the proposed

models. A framework is a generic architecture that

provides the basis for applications development. It

is an implementation of a set of patterns by means

of a particular technology.

 In second place, SUN recommends developers to

use existing frameworks instead of designing and

building one of their own, since developing a

framework incurs a large time cost, and it might

take several years to reach the required

technological maturity (Sing, 2002). Frameworks’

main advantage consists in providing an

infrastructure and a set of functionalities to the

development team, so as to let them concentrate in

the application’s implementation, abstracting them

from the design aspects. A good framework should

incorporate the following characteristics:

- The precise degree of flexibility

- The support of a wide, solid community.

- It should be easily learned

- It should contribute with power and robustness

to the applications developed on its base.

There are different implementations

(frameworks) of Model 2, each one having its own

DECOUPLING MVC: J2EE DESIGN PATTERNS INTEGRATION

281

degree of recognition in the Java community.

Among these, the most representative are Struts,

Maverick, WebWork, Spring, WAF and JSF. In

SUN’s Blueprints, it is proposed a model for Web

applications which is sustained on the Model 2. This

paradigm describes the patterns and best practices

that should be used in the design of such

applications.

Besides, in order to solve model 2’s limitations,

there has been an evolution towards Model 2X

described in (Mercay, 2002). The last model

replaces JSP pages with XML documents and XSLT

transformation sheets as the technology used for

view presentation, allowing developers to truly

separate the business logic’s results from the

presentation code.

Following the same line, we reach the scenario

proposed in (Giang, 2003), where the business

model resides in an EJB container, therefore

achieving a complete decoupling of the three parts

that form the MVC paradigm.

In the next point we describe the proposed model

for the development of J2EE enterprise applications,

based on the MVC paradigm. Unlike the MVC, our

goal is not to obtain a generic model. Instead, our

model points where to place the J2EE components in

a typical scenario of Web applications that interact

with the end user – similarly to Model 2’s

proceeding –, while establishing a design based on

patterns and best practices so as to ease the

development in real production environments. In

contrast to the mentioned models, our model seeks

for a complete independence of the view from the

rest of the MVC components. In order to achieve

this independence, our model is based on standards

(XML and XSLT), similarly to Model 2X but in a

more generic way, and focusing on providing a

complete solution to integrate the controller in a

distributed model, thus improving the scenario

proposed in (Giang, 2003).

3 MODEL

The primary target of the proposed model is to

simplify the development of large applications based

on the J2EE platform (Gilart-Iglesias, 2005), thus

providing a well structured architectural design,

which allows for a complete decoupling of the

system’s main elements and synthesizes existing

models, patterns and frameworks in the best way.

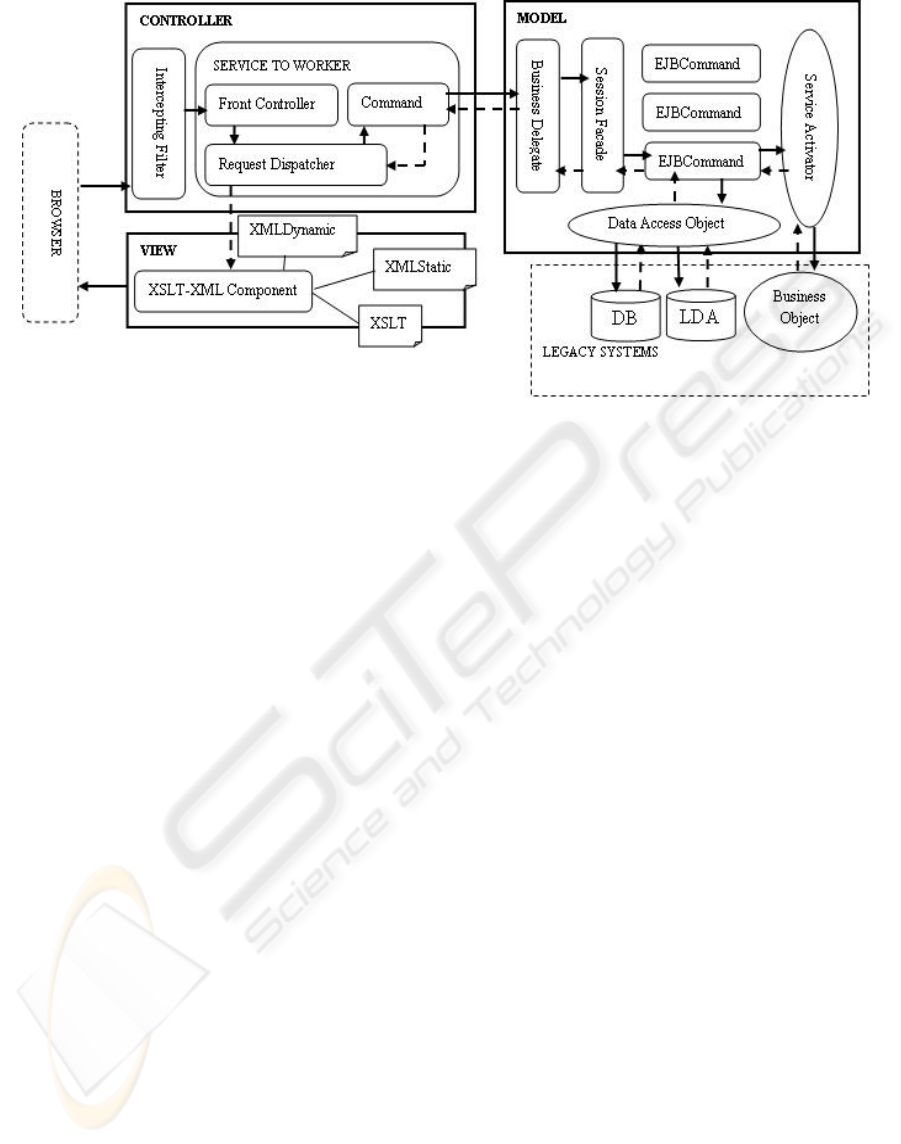

In this model, the controller serves as the

application’s entry point. It is implemented using

only two patterns: the Intercepting Filter and the

Service To Worker.

The Intercepting Filter is used in our model to

implement the requests pre-processor; this system

initially manages the entry requests from clients in

the presentation layer. There are different types of

requests, each one needing a particular processing

scheme. Therefore, when a request arrives to the

application, it should pass through a set of

verifications before reaching the main processing

phase – called the Front Controller –: authentication,

session validation, client IP address checking,

request authorization, data codification, auditory or

browser type used (Alur, 2001). The Intercepting

Filter pattern is a flexible and highly decoupled way

to intercept a request, applying a set of filters, thus

rejecting or allowing the request to arrive to the

initial process (Berry, 2002).

This initial process plays the controller’s role: it

analyzes each request to identify the operation to

perform, thus invoking the business logic associated

to each particular request and controlling the flow to

the following view (Sing, 2002). In the proposed

model (see fig 1), our controller is designed

following the Service To Worker pattern (see fig 2),

which combines a set of smaller patterns that

provide a complete and flexible solution to fulfil the

requirements for an MVC controller while allowing

the separation between actions – the model –, the

view and the controller (Crawford, 2003).

The Front Controller pattern (Alur, 2001)

describes a central point that manages the requests.

In order to reach a greater flexibility and

independence between the view and the model, the

Front Controller assumes only the request analysis

task, delegating in the Request Dispatcher the

selection of the view and the action to perform.

After the analysis phase, the Request Dispatcher will

be in charge to select the command that encapsulates

the operation to perform. Once this command has

generated the result, the Request Dispatcher will

select the next view to be shown to the user

(Crawford, 2003). Delegating these tasks in the

RequestDispatcher gives our model a greater

flexibility since we can introduce new views or

models in the scenario by altering the component’s

behaviour.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

282

Figure 1: Model architecture

The Command pattern represents each request

by means of an object, therefore providing a very

simple way to introduce new operations (Berry,

2002). In our model, the Command pattern is

responsible for encapsulating the request

information, parameters and the current state into a

command object that contains the business logic.

This command is then sent through the network to

the model, where it is finally executed

(EJBCommand). By using this approach, we

achieve a complete decoupling between the

controller and the model, which represents the

business data and implements the rules to operate

them (Sing, 2002). Following the same approach, in

the model shown in figure 1, we introduce the

business layer as a set of patterns that completely

disconnect the controller and the view from the

model, thus achieving MVC paradigm’s objective.

On the other hand, we define another set of patterns

in order to integrate our model with inherited

systems or other business models.

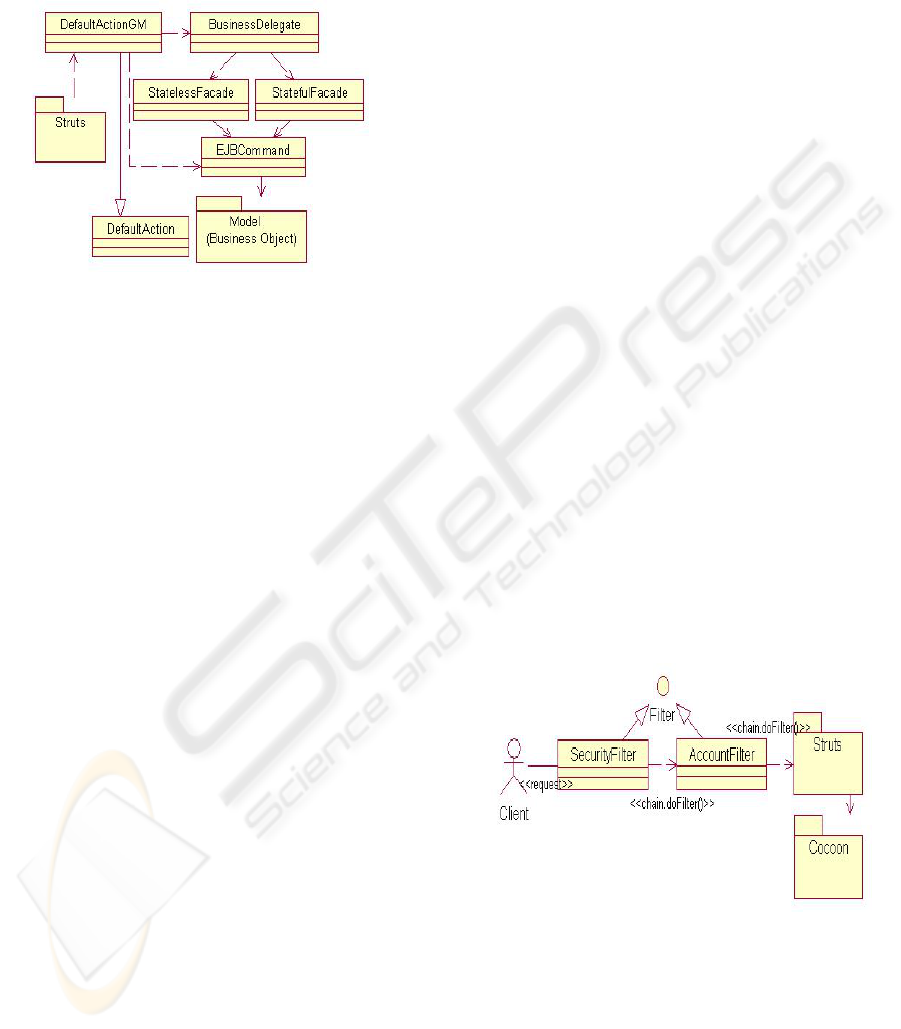

In the first case we apply the Business Delegate,

Session Facade and EJBCommand patterns. The

EJBCommand pattern (Marinescu, 2002) is a special

case of the Command pattern (Berry, 2002), where

the business logic is encapsulated into a serializable

object created by a remote client – the controller’s

Command – and sent through the network to the EJB

container where it will be executed – by invoking its

execute method (Johnson, 2003). This scheme

provides the advantages of the Command pattern in

an environment where the business logic is

distributed, therefore allowing the execution of

business rules without overloading the application

by a massive usage of EJBs. The EJBCommand’s

only requirement for its execution is a distributed

component that processes it. The other two patterns

– the Business Delegate and the Session Façade –

jointly provide a good solution in order to decouple

the model from the view and the controller. These

patterns also hide the business rules’ implementation

details and allow the execution of commands in the

Session Facade (Alur, 2001).

For the second case, we have defined two

patterns to ease the integration between the business

model and the inherited systems or other business

models. The Data Object Access pattern supplies a

mechanism to abstract and encapsulate access to the

data sources, therefore achieving warehouse

independency (Alur, 2001). It also achieves a clear

separation between the business logic and the data

logic, increasing the applications’ maintenance

capabilities (Berry, 2002). The Service Activator

pattern describes a way to access other business

models and services in an asynchronous manner.

When a message is received, the Service Activator

locates and invokes the business methods necessary

to resolve the request asynchronously (Alur, 2001).

The view is responsible for showing the data

output by the MVC model. One of our models’ goals

is to decouple the presentation from the controller

and the model, and to achieve this the model’s

output is first produced in XML format, for its later

transformation by XSLT sheets into the final

presentation shown to the client. XML/XSLT is an

elegant way to separate the data from the

presentation and to free it from any particular

technology (Johnson, 2003). In this scheme, the

Request Dispatcher returns the data initially output

by the model, as an XML document. In the next

step, at the view stage, the XML data is transformed

by XSLT. Since XSLT can return any format, it is a

notably flexible technology, supporting multiple

types of clients (Mercay, 2002). Besides, it provides

DECOUPLING MVC: J2EE DESIGN PATTERNS INTEGRATION

283

a simple way to modify the view without changing

the model, and facilitates parallel application

development.

In the next point we describe the implementation

of the proposed model, based on SUN's

recommendations (Sing, 2002) –use of existing

frameworks in the market–. We will detail the

process of framework selection and the integration

tasks carried out, finalizing with the advantages and

the power offered by the obtained implementation.

4 IMPLEMENTATION

We can find in the market different frameworks

based on Model 2 that facilitate the development of

J2EE applications. Some of these are integrated with

servers and tools specific of their corresponding

J2EE providers. There are also open source

frameworks supported by a solid community and

widely spread in the last years (Sing, 2002). In order

to select the most appropriate framework for our

purposes, we carried out a survey which focused on

open source frameworks, due to its inexpensive

costs and the technological maturity reached by

some of them.

A suitable framework must achieve the

following two objectives: first, it must adapt to our

model’s specifications, and second it must be a good

framework – as described in the background. After

analyzing the most used, widely spread open source

frameworks in the Java community (Struts, Cocoon,

Maverick, SOFIA, Spring, WebWork, Tapestry,

Turbina and JSF), we observed that none of these

completely satisfied the established requirements. So

we decided to use a different framework for each of

the model’s parts (the Model, the View and the

Controller): we chose Struts as the Controller,

Cocoon for the View and StrutsEJB for the Model.

In the next point, we describe each of these

frameworks and how they fit into our model.

4.1 Struts

Struts is a framework that implements a powerful

and flexible controller based on the Service To

Worker pattern. Struts’ main advantages are:

Integration flexibility: Struts’ architecture

provides flexibility for choosing the view and the

model to be used. The view is based on the plug-ins

concept. A plug-in is a dynamic mechanism by

means of which a component or set of components

that implement certain functionality in our

application can be replaced by another ones, by

simply modifying the application’s configuration.

This model is implemented through JavaBeans, thus

allowing its integration with other frameworks.

 It is supported by a solid community: Struts is a

project from the Apache Software Foundation

which has been consolidated as one of the most

important organizations in the open source scope.

In (Sing, 2002), SUN recommends using Struts as

the framework for the Web tier.

 Performance: Struts is a lightweight and mature

framework, recommended for production

environments.

For these reasons, Struts is the ideal choice in

order to implement our model.

Struts is composed of three main components:

CONTROLLER – SERVICE TO WORKER

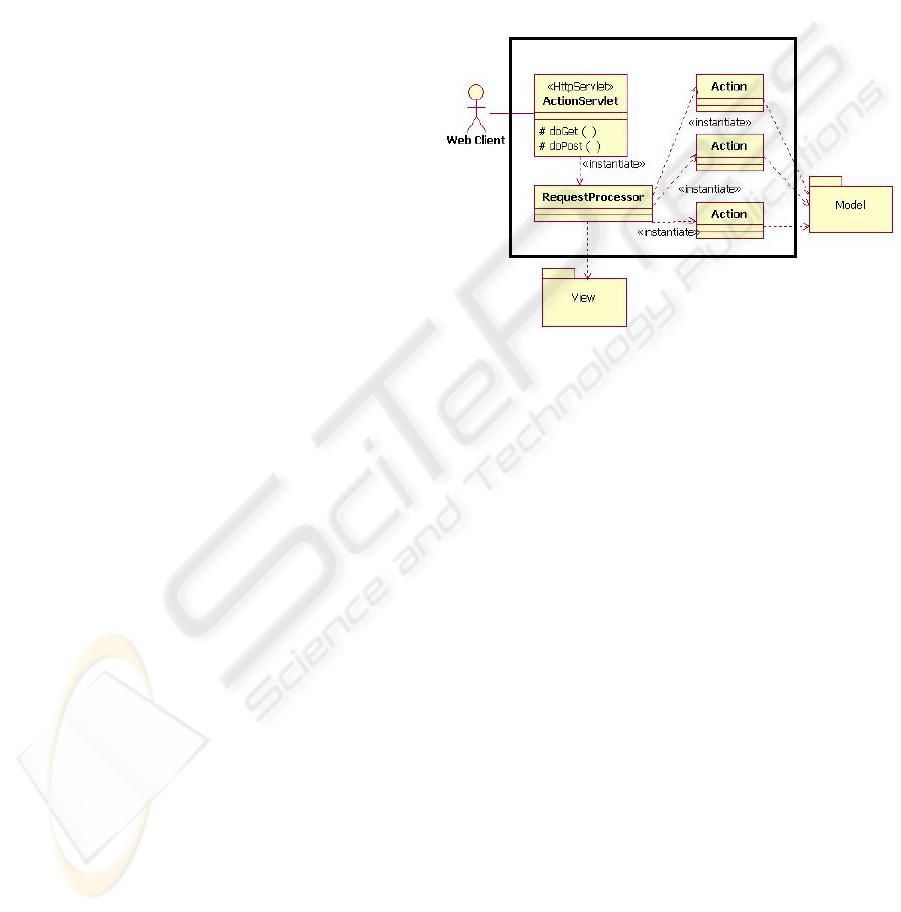

Figure 2: Struts’s class diagram

 The ActionServlet (the model’s Front Controller),

which is responsible for the application

configuration and for receiving and analyzing the

clients’ requests. This component extracts from the

configuration file (strut-config.xml) the general

configuration parameters, the set of components

that defines its behaviour (plug-ins) and the

properties of each request. After performing these

tasks, it delegates the control in the

RequestProcessor.

 The RequestProcessor (Request Dispatcher in the

model), that creates an instance of the action

(Command pattern) associated to the received

request and executes it.

 The Action (Command in the model). For each

operation or use case, the developer creates an

action (object) that inherits from the Action

component. Each action is associated to a request

type in Struts’ configuration file.

4.2 Cocoon

Cocoon is a framework that performs

transformations on XML documents using XSLT

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

284

stylesheets. It is a mature technology (from 1999),

created and maintained by the Apache Software

Foundation. It is considered as one of the most

powerful and robust frameworks in the

transformation of XML documents.

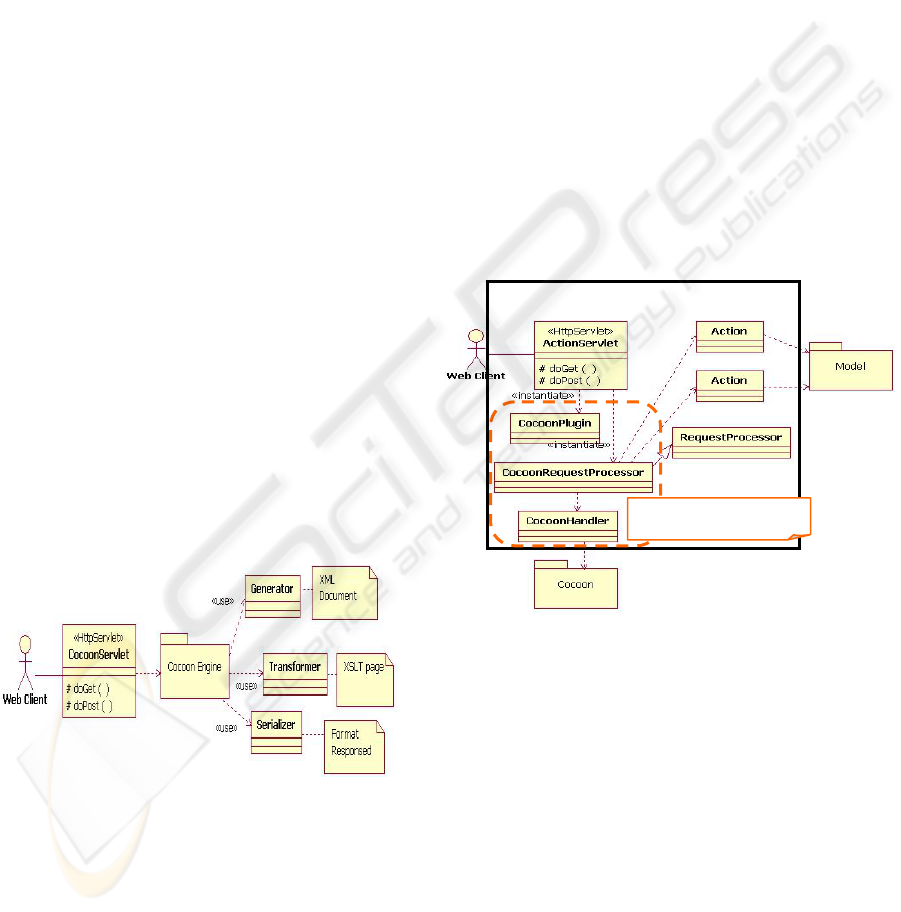

When Cocoon receives a request, it is analyzed

based on the configuration parameters stored in the

site-map.conf file. These parameters point to the

steps that Cocoon’s engine must follow in order to

present the final view. Generally, this process will

consist of three steps:

 The first step is to generate the XML document

associated to the request. For this purpose, Cocoon

uses the Generator (Moczar, 2003) interface,

which allows specifying different source types to

get the XML document from (a static file, JSP

page, Servlet, data stream, session variable or

request parameter). It also provides a simple

mechanism in order to develop our own

generators.

 The second step consists in defining the XSLT

sheet that will guide the transformation. To

achieve this, Cocoon uses the Transformer

(Moczar, 2003) interface, which is implemented

depending on the desired transformation type –like

in the generators’ case. By default, the XSLT sheet

is obtained from a static file.

 The third, final step consists in formatting the final

output. Cocoon invokes the Serializer (Moczar,

2003) interface, which is responsible for applying

a format based on the client’s needs (for example

FOP, XML, HTML or WML). It is also possible to

create new serializers based on the application’s

needs.

4.3 Cocoon plug-in for Struts

In order to generate the view, Struts uses the Tiles

framework (Sam-Bodden, 2004), which is based on

the JSP technology. To replace this framework we

must substitute the associated plug-in for a new one.

In (Brown, 2003), Cocoon Plug-in for Struts is

described as a framework that allows the integration

between Struts and Cocoon. In order to use the

mentioned plug-in, we must replace the Tiles plug-in

with it (this can be configured in the struts-

config.xml file).

Cocoon plug-in for Struts consists of three

components:

 The CocoonPlugin: this component replaces

Struts’ RequestProcessor with the

CocoonRequestProcessor, thus modifying the

behaviour so that the view is generated by Cocoon.

 The CocoonRequestProcessor: this component

inherits from Struts’ RequestProcessor object

class, implementing the functionality required to

generate the view in Cocoon. Like the

RequestProcessor, it creates and executes the

corresponding action. After obtaining the action’s

result, it delegates in the CocoonHandler

component.

 The CocoonHandler is responsible for

communicating with Cocoon’s engine, which

starts the view generation process.

CONTROLLER – SERVICE TO WORKER

Cocoon plugin for Struts

ure 4: Inte

ration between Cocoon and Struts

4.4 StrutsEJB

StrutsEJB is a mini-framework that implements the

patterns specified in our model (Business Delegate,

Session Façade and EJBCommand), therefore

completely decoupling the model from the view and

the controller (Yoshikawa, 2003). This framework

provides the architecture and design necessary to

integrate Struts with a distributed model based on

EJBs.

ure 3: Cocoon’s class dia

StrutsEJB’s main components are:

 DefaultAction: it is a Struts Action that represents

a generic action which avoids creating an action

for each operation in the Web tier. Its function

DECOUPLING MVC: J2EE DESIGN PATTERNS INTEGRATION

285

consists in creating an instance of the StrutsEJB

command (EJBCommand) associated to the

request and to store in this command the

parameters and session variables required to run its

business logic.

 BusinessDelegate: this component implements the

BussinessDelegate pattern. It resides in the Web

tier and acts as a model abstraction at the client’s

side, hiding the details of the business services

implementation, the search for these services and

the access to the EJB architecture. The

ServiceLocator is the helper component – an

implementation of the Service Locator pattern –

used to look for services.

 StatelessFacade and StatefulFacade: these

components implement the Session Facade

pattern, providing a facade to access the business

components, thus offering a uniform

communications system to clients. Usually, a

particular SessionFacade is created for each set of

use cases. Since StrutsEJB is based in the

EJBCommand pattern, this function is transferred

to the commands sent from the Web tier. In this

way, SessionFacade provide a distributed

environment in order to execute such commands.

The BusinessDelegate will invoke the

corresponding SessionFacade, passing the

command to this façade, which will in turn execute

the given command inside the EJBs container. The

StatefulFacade is to be used in applications where

it is necessary to maintain the state; otherwise, the

StatelessFacade will be used.

 EJBCommand: this component implements the

EJBCommand pattern, jointly with

BusinessDelegate and SessionFacade. It is an

abstract component that encapsulates the business

logic for each use case (or set of use cases).

Therefore, it is necessary to extend this component

for each operation (or set of related operations),

creating a new command. In this way, developers

do not need to use EJBs in their applications

(although they can still use them voluntarily), but

the business logic is kept inside the EJBs

container. EJBCommands are created from the

Web tier by means of an action (DefaultAction),

which sends them to the model where they will be

executed by a SessionFacade.

StrutsEJB was designed for its integration with

the Struts controller, but using JSP as the view

generator technology. In the proposed model we

base the view generation on XML/XSLT, which

implied modifying StrutsEJB in order to adapt it to

Cocoon. To achieve this task, we created a new

generic action that extended StrutEJB’s

DefaultAction’s functionality, DefaultActionGM.

This modification solved the problem of passing the

XML document generated in the model to the

CocoonRequestProcessor, as well as other

internationalization, multiple devices support and

error managing problems.

Figure 5: StrutsEJB class diagra

4.5 Filters

In the model’s specification we commented the

Intercepting Filter pattern’s importance. In order to

implement this pattern, we have not used any

framework. We have used the J2EE Filter, which

provides a mechanism similar to a Servlet. The Filter

is controlled by a Web container and can be inserted,

in a declarative way, into the request-reply HTTP

(Allamaraju, 2002) process. For each Filter needed,

the developer creates a new class that extends the

Filter interface and incorporates it to the application

adding the corresponding directives to the

configuration file, web.xml

Figure 6: Intercepting Filter class diagram

5 CONCLUSIONS

It is advisable for organizations to face changes in

the business processes with caution. These changes

are introduced mostly by the Internet’s evolution.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

286

The enterprise platforms are complex and their

learning curves are really steep. The amount of time

and the effort required in order to use them correctly

are seldom available in most projects’ planning,

often submitted to strong time constraints. In the

present work, we have analyzed these problems and

revised the main models, platforms and frameworks

that seek to facilitate the convergence towards the

new business models. The main conclusion derived

from this study is that there is no proposal that

satisfies all the requirements demanded by these

models. However, there are partial solutions for

them, which can be of great value. For this reason,

we propose a model based on the integration of

design patterns and standard technologies, a model

that keeps the independence proposed by MVC,

facilitating the analysis and development of complex

applications, focusing on the developers’ effort in

the implementation stage and allowing a progressive

learning of the technology involved.

We are currently applying this model and its

associated methodology to our own developments,

therefore allowing us to validate the proposal, to

refine the model and finally to take into account new

aspects. For example, we are currently working on

the integration of a security infrastructure called

Single Sign-On, called JOSSO. In future research

lines we would like to improve our proposal so that

it supports other business models and technologies,

and to extend our model in order to use Web

Services to further decouple the MVC elements.

REFERENCES

Allamaraju, S., Beust, C., Davis, J., Jewell, T., Johnson,

R., Longshaw, A., Nagappan, R., Dr. Sarang, P.G.,

Toussaint, A. Tyagi, S., Watson, G., Wilcox, M.,

Williamson, A., O’Connor, D., 2002. Programación

Java Server con J2EE Edición 1.3. Anaya

Multimedia.

Alur, D., Crupi, J., Malks, D., 2001. Core J2EE patterns,

best practices and design strategies. Prentice Hall.

Berry, A. C., Carnell, J., Juric, M.B., Moidoo

Kunnumpurath, M., Nashi, N., Romanosky, S., 2002

J2EE design patterns applied, real world development

with pattern frameworks. Wrox press

Brown, D., 2003. Cocoon Plugin For Struts 1.1.

http://struts.sourceforge.net/struts-cocoon.

Cade, M., Roberts, S., 2002. Sun certified enterprise

architecture for J2EE technology, studie guide.

Prentice Hall.

Crawford, W., Kaplan, J., 2003. J2EE design patterns.

O’Reilly.

Giang. Z., 2003.

http://www2.tw.ibm.com/developerWorks/tutorial/Sel

ectTutorial.do?tutorialId=77.

Gilart-Iglesias, V., Maciá-Pérez, F., Hernández-Sáez, A.,

Marcos-Jorquera, D., García-Chamizo, J. M. A model

for developing J2EE applications based on design

patterns. Proceedings of IADIS International

Conference on Applied Computing 2005. Algarve,

Portugal, 2005.

Gong, L., 1999. Inside Java 2 paltform security. Addison-

Wesley.

Harmon, P., Rosen, M., Guttman, M., 2001. Developing

E-business Systems and Architectures: A Manager’s

Guide. Morgan Kaufmann Publishers.

Hansmann, U., Merk, L., Niklous, M. S., Stober, T., 2003.

Pervasive Computing, second edition. Springer.

Johnson, R, 2003. Expert one-on-one, J2EE design and

development. Wrox press.

Marinescu, F., 2002. EJB design patterns, advanced

patterns, processes and idioms. Wiley.

Mercay, J., Bouzeid, G., 2002. Boost Struts with XSLT and

XML.

http://www.javaworld.com/javaworld/jw-02-2002/jw-

0201-strutsxslt.html

Moczar, L., Aston, J., 2003. Cocoon, Developer’s

handbook. Developer’s Library.

Sam-Bodden, B., Judd, C. M., 2004. Enterprise java

development on a budget, leveraging java open source

technologies. Apress.

Sing, I., Stearns, B., Jonson, M., 2002. Design Enterprise

Applications with J2EE Plantaform, Second Edition.

Addison-Wesley.

Stelting, S., Maassen, O., 2002. Patrones de diseño

aplicados a java. Prentice Hall.

Weaver, J.L., Mukhar, K., Crume, J., 2004. Beginning

J2EE 1.4, from novice to professional. Apress

Yoshikawa, K., 2003. StrutsEJB.

https://strutsejb.dev.java.net/

DECOUPLING MVC: J2EE DESIGN PATTERNS INTEGRATION

287
