IMPLEMENTATION OF A HYBRID INTRUSION DETECTION

SYSTEM USING FUZZYJESS

Aly El–Semary, Janica Edmonds, Jes

us Gonz

alez and Mauricio Papa

Center for Information Security, University of Tulsa

600 S. College Av., Tulsa, OK, 74104

Keywords:

Fuzzy logic, data mining, intrusion detection.

Abstract:

This paper describes an implementation of a fuzzy inference engine that is part of a Hybrid Fuzzy Logic

Intrusion Detection System. A data-mining algorithm is used ofﬂine to capture features of interest in network

trafﬁc and produce fuzzy-logic rules. Using an inference engine, the intrusion detection system evaluates

these rules and gives network administrators indications of the ﬁring strength of the ruleset. The inference

engine implementation is based on the Java Expert System Shell (Jess) from Sandia National Laboratories and

FuzzyJess available from the National Research Council of Canada. Examples and experimental results using

data sets from MIT Lincoln Laboratory demonstrate the potential of the approach.

1 INTRODUCTION

A signiﬁcant challenge in providing an effective de-

fense mechanism to a network perimeter is detecting

intrusions and implementing countermeasures. Com-

ponents of the network perimeter defense capable of

detecting intrusions are referred to as Intrusion De-

tection Systems (IDS). Typically, an IDS uses boolean

logic in determining whether or not an intrusion is de-

tected. More recently, the use of fuzzy logic (Zadeh,

1984) (Zadeh, 1988) has been investigated as an alter-

native to boolean logic in the design and implementa-

tion of these systems. Fuzzy logic techniques have

been successfully employed in the computer security

ﬁeld since the early 90’s (Ovchinnikov, 1994) and

provides a sound foundation to handle imprecision

and vagueness as well as mature inference mecha-

nisms using varying degrees of truth (Hosmer, 1993).

Because boundaries are not always clearly deﬁned,

fuzzy logic can be used to identify patterns or behav-

ior variations (Gomez and Dasgupta, 2002). This is

accomplished by building an IDS that combines fuzzy

logic rules with an expert system capable of evaluat-

ing rule truthfulness. This combination results in an

IDS capable of applying fuzzy logic reasoning to in-

coming data streams. Our approach uses an optimized

deterministic algorithm together with a preprocessor

to help reduce the amount of data that needs to be an-

alyzed by the inference engine.

IDS

output

records

packets

Preprocessor

Data Miner

Fuzzy Inference

Engine

rules

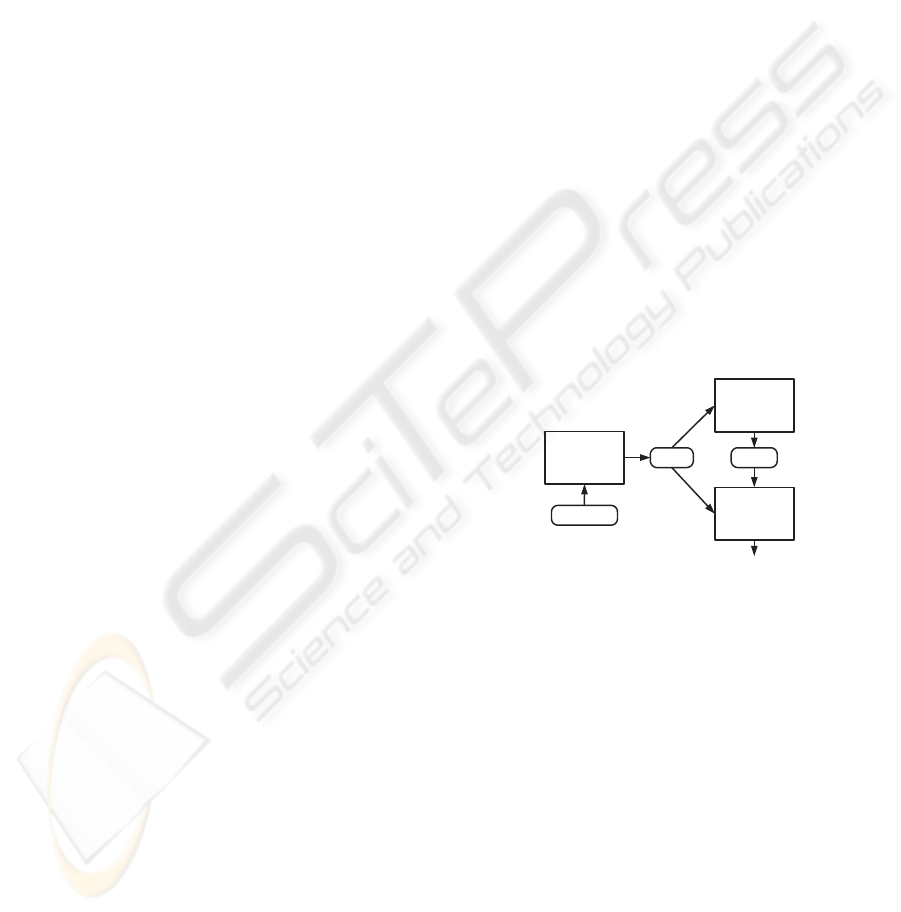

Figure 1: System Architecture

2 ARCHITECTURE

The Hybrid Fuzzy Logic IDS architecture (see Fig-

ure 1) has two modes of operation: rule–generation

and detection. When operating in the rule–generation

mode, the system processes network data and uses a

fuzzy data mining algorithm to generate rules. A sub-

set of the rules produced by the data mining algorithm

is used as a model for the input data. The detection

mode uses this rule subset for intrusion detection.

The Preprocessor is responsible for accepting raw

packet data and producing records. This component is

used in both modes and is capable of reading packets

from the wire or a tcpdump ﬁle. The output consists

of records, each containing aggregate information for

390

El–Semary A., Edmonds J., González J. and Papa M. (2005).

IMPLEMENTATION OF A HYBRID INTRUSION DETECTION SYSTEM USING FUZZYJESS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 390-393

DOI: 10.5220/0002524203900393

 SciTePress

each packet group. Using records and concentrating

only on attributes of interest greatly helps in reducing

the amount of information used by more computation-

ally intensive components of the architecture. Specif-

ically, records (and not packets) are used by the infer-

ence engine in our system to evaluate fuzzy rules.

The Data Miner implements a variation of Kuok’s

(Kuok et al., 1998) algorithm that allows for efﬁcient,

single-pass, record processing by partioning data into

hierarchical ﬁles to produce output rules. Candidate

rules are expressed in terms of itemsets, a grouping

of relevant attributes. In order to minimize the poten-

tially large number of candidate rules, the algorithm

uses the concept of large itemsets to maximize the ex-

pressive power of the rule. Our implementation inte-

grates the Apriori and Kuok’s algorithms and is capa-

ble of discovering association rules for binary, cate-

gorical and numerical attributes. The ﬁnal output of

the algorithm is a set of fuzzy rules. Rules are ex-

pressed as a logic implication p → q where p is the

antecedent and q is the consequence.

The fuzzy inference engine implements fuzzy logic

reasoning to evaluate the truthfulness of the incoming

records against the rules produced by the Data Miner.

Its implementation is the focus of this paper and a

more detailed description follows.

3 IMPLEMENTATION

The Fuzzy Inference Engine (Figure 1) makes use

of FuzzyJess (Orchard, 2001), a rule based expert

system shell that integrates the functionality of the

FuzzyJ Toolkit (Orchard, 2001) with Jess (Friedman-

Hill, 2004). The FuzzyJ Toolkit allows the expression

of fuzzy reasoning within the Java environment and

Jess provides a Java-based rule-engine in which rules

can be applied to data.

Jess, the Java expert system shell and scripting

language developed by Sandia National Laboratories,

can be used as either a general-purpose programming

language or as a rule-engine to efﬁciently apply rules

to data. Rule-based expert systems developed in Jess

can be ﬁrmly linked to Java code. Jess rules allow

for reasoning about knowledge that is expressed as

facts. These facts and rules, though, cannot handle

the imprecision and uncertainty that often abounds in

real-life applications.

The National Research Council of Canada devel-

oped The FuzzyJ Toolkit, a Java API that extends

Jess to allow reasoning about some forms of uncer-

tainty through the use of fuzzy sets and fuzzy rea-

soning. Fuzzy concepts are represented in the FuzzyJ

Toolkit using the keywords FuzzyVariable, Fuzzy-

Set, and FuzzyValue. A FuzzyVariable describes

a general fuzzy concept (Zadeh, 1975). It consists

Membership

TCP

0.25

0.00

1.00

0.6 1.0

Above

Average

0.20.0

Average

Below

Average

0.70

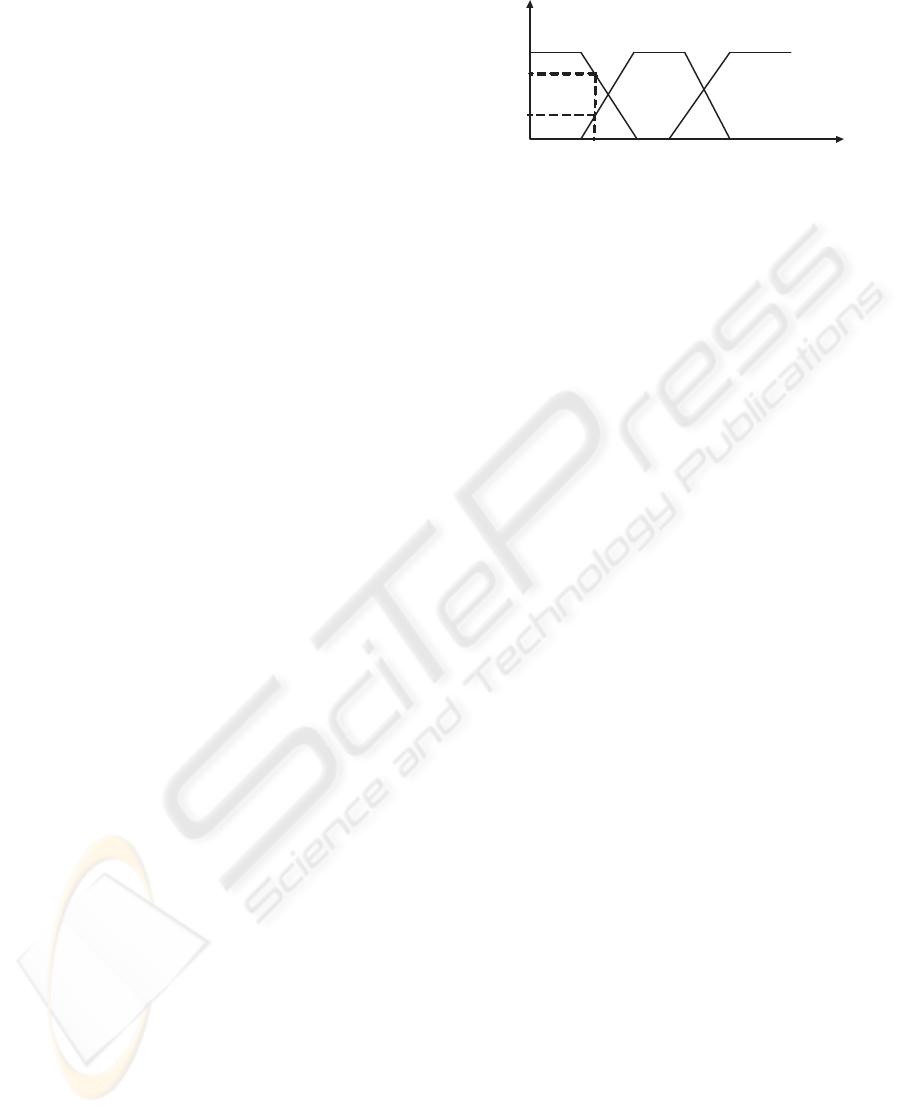

Figure 2: Fuzzy variable

of a name (T CP ), its units (N umberofP ackets), a

range ([0, 100]), and a set of terms that describe spe-

ciﬁc fuzzy concepts for this variable. These fuzzy

terms are deﬁned using a term name (Average or

AboveAverage) together with a fuzzy set.

A FuzzySet (Zadeh, 1965) identiﬁes the degree of

membership of the term over the range of the fuzzy

variable. Figure 2 illustrates the use of fuzzy sets

to describe the fuzzy variable T CP over [0,1] using

three fuzzy term sets. Thus, the fuzzy variable T CP

is a measure of the number of TCP packets received

within a certain time frame. All values that T CP can

assume must fall into at least one of those fuzzy sets.

Membership functions (Zadeh, 1965) map each ob-

ject in the fuzzy set to a real number in the inter-

val [0,1]. Fuzzy membership functions are used to

evaluate degrees of membership for each category or

term. Thus, the membership function f

(x) produces

a value that indicates the truth value of x in the term

A. For instance, in Figure 2, f

BelowAverage

(0.2) =

70% indicates that a T CP value of 0.2 belongs to

BelowAverage with 70% certainty.

A FuzzyValue represents a speciﬁc fuzzy concept.

The logic of the expert system is expressed in terms of

FuzzyRules. A FuzzyRule holds three sets of Fuzzy-

Values representing the antecendents, consequences,

and input values of the rule. The antecedents must be

true before the rule can execute (or ﬁre) and conse-

quences asserted. An example of a fuzzy rule is

if TCP is

Average

then SYN is

Average

For this rule to ﬁre the T CP value needs only to

match the fuzzy concept of Average to some degree

for the antecedent to be true.

Simple fuzzy systems can be created quite easily

using the FuzzyJ Toolkit, but larger systems with a

greater number and type (fuzzy, crisp, fuzzy-crisp) of

rules suggest that a convenient way to encode many

types of applications is needed. FuzzyJess is a rule

based expert system shell that integrates the fuzzy

logic of the FuzzyJ Toolkit with Jess to provide a

more robust tool for fuzzy reasoning. The Fuzzy In-

ference Engine is implemented using FuzzyJess.

The Fuzzy Inference Engine can be used with sam-

ple ofﬂine data or live trafﬁc. Use of sample data (read

IMPLEMENTATION OF A HYBRID INTRUSION DETECTION SYSTEM USING FUZZYJESS

391

p qfuzzy match

no fuzzy match

fuzzy match

no fuzzy match

firing

strength =

minimum

firing

strength of

p and  q

firing strength = 0firing strength = 1

Figure 3: Analysis of fuzzy rules

as records) is useful to test the system and evaluate the

validity of the rule base.

The three inputs to the Fuzzy Inference Engine are

1) the conﬁguration parameters that FuzzyJess uses

to deﬁne the FuzzyVariables; 2) the rules produced

by the Data Miner; and 3) the records, which are as-

serted as facts in FuzzyJess. The three term functions

Below Average, Average,

and

Above Average

were

deﬁned for each fuzzy variable using the parameters

in the conﬁguration ﬁle. The deﬁnitions made use

of functions within FuzzyJess as indicated:

Below

Average

: uses RightLinearFuzzySet,

Average

: uses

TrapezoidFuzzySet, and

Above Average

: uses Left-

LinearFuzzySet. The Fuzzy Inference Engine uses

FuzzyJess to determine the ﬁring strength of each rule

applied to each fact. FuzzyJess can be conﬁgured

to use Mamdani or Larsen inference mechanisms to

compute output. The evaluation of rules (see Figure

3) begins with the analysis of the antecedent, p. The

following cases for p:

• p does not have a fuzzy match so the rule does not

apply to the record and the ﬁring strength is one

• p does have a fuzzy match and the analysis of the

consequence q begins

Note that a fuzzy match occurs when the truth value

of the predicate is greater than zero. Similarly, the

following cases are considered for the consequence q:

• q does not have a fuzzy match and the ﬁring

strength of the rule is zero

• q has a fuzzy match and the ﬁring strength of

the rule is determined using Mamdani’s inference

mechanism.

Fuzzy rules, as produced by the data mining algo-

rithm, model a behavior represented by the data set

employed to run the algorithm. The output of the

Fuzzy Inference Engine is the ﬁring strength of each

rule for a given fact. This ﬁring strength determines

whether or not the fact satisﬁes the modeled behavior.

Firing strengths that have a value close to one indi-

cate that observed behavior closely follows the mod-

eled behavior, but when several facts register ﬁring

strengths at or close to zero for a given rule, then it

is likely that a deviation from the model has been de-

tected (a potential attack).

Membership

TCP

0.00

1.00

0.157 1.0

Above

Average

0.0

Average

Below

Average

0.50

0.8750.424

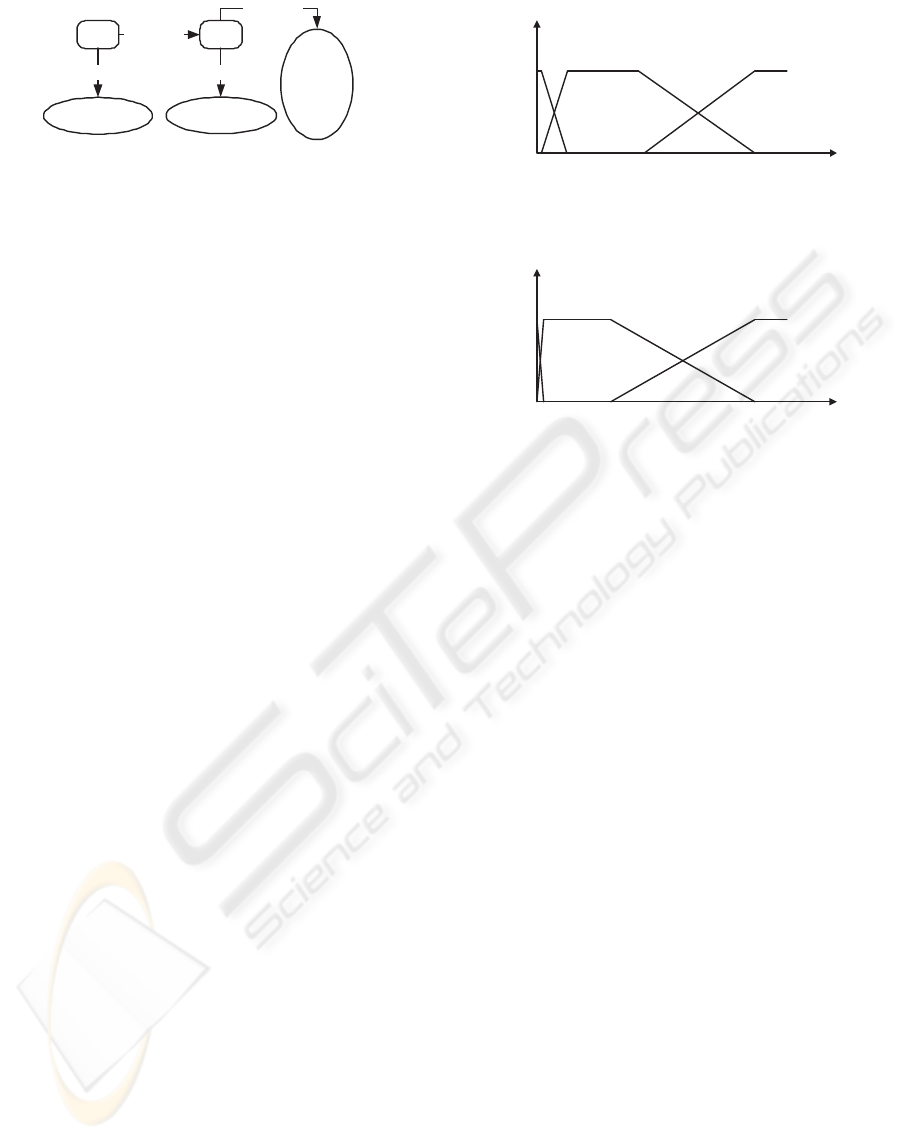

Figure 4: TCP fuzzy deﬁnition

Membership

SYN

0.00

1.00

0.003 1.0

Above

Average

Below

Average

0.50

0.8750.298

Figure 5: SYN fuzzy deﬁnition

4 ANALYSIS

The following examples illustrate how three records

are processed and rules evaluated by the Fuzzy Infer-

ence Engine. Consider the following rule:

if TCP is

Average

then SYN is

Average

where the

Average

membership function may be de-

ﬁned differently for each attribute. The input records

for the Fuzzy Inference Engine contain values for

each attribute in the form of {TCP, SYN}. The ﬁrst

record is {0.591, 0.372}. The Fuzzy Inference En-

gine evaluates the ﬁrst record against the rule by be-

ginning with the antecedent; from Figure 4 we ob-

serve that T CP

Average

(0.591) = 0.6297. Once the

antecendent has been evaluated and has a truth value

greater than 0.0, then the consequence is evaluated:

SY N

Average

(0.372) = 0.8718 (see Figure 5). Thus,

this rule has a ﬁring strength of 0.6297 for this record.

The second record is {0.011, 0.013}. Evalua-

tion of the antecedent shows T CP

Average

(0.011) =

0.0. Thus, the rule does not ﬁre, the consequence

is not analyzed, and the ﬁring strength of the rule

is 1.0 for this record. The third record is {0.266,

0.895}. Therefore, T CP

Average

(0.266) = 1.0 but

SY N

Average

(0.895) = 0.0. Thus, the truth value of

the rule for this record is 0.0.

The Fuzzy Inference Engine is used to analyze sets

of data and the training data used in our experiments

correspond to the 1999 DARPA Intrusion Detection

ofﬂine evaluation (Haines et al., 1999) data set as pro-

vided by Lincoln Laboratory (MIT, 1999). Data for

this experiment was taken during an ipsweep (pings

on multiple host addresses) attack. More speciﬁcally,

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

392

Figure 6: Rule output detects ipsweep attack

the trafﬁc seen from 4:00 pm to 5:00 pm of the fourth

day of the second week. The attack begins at 4:36pm.

For the next 5 minutes at least one ping request packet

is made from an outside network to each host on an

internal segment of the network. This scan drasti-

cally increases the number of ICMP packets in the

attack time interval. The Preprocessor produced ap-

proximately one record per second of data resulting

in 3570 records from all of the packets sent during

this speciﬁc time frame.

The Data Miner produced 31 rules with a 95%

conﬁdence value when inspecting normal trafﬁc data,

which were sent to the Fuzzy Inference Engine. Note

that since these rules model normal behavior, i.e., at-

tack trafﬁc was not used by the Data Miner, the sys-

tem serves as an anomaly-based IDS. The Fuzzy In-

ference Engine compared each record against all of

the rules and output a listing of the ﬁring strengths

of each rule for each record. These ﬁring strengths

are used to determine the likelihood that an attack is

in process. It took the Fuzzy Inference Engine about

13 minutes to evaluate 3570 records against 31 rules.

Thus, it took about 13 minutes to evaluate 60 minutes

of ofﬂine data. Our current implementation is capa-

ble of handling real-time data using using time win-

dows (records) in the order of milliseconds. Clearly,

smaller time windows would result in greater Fuzzy

Inference Engine times as the number of records to

be evaluated increases.

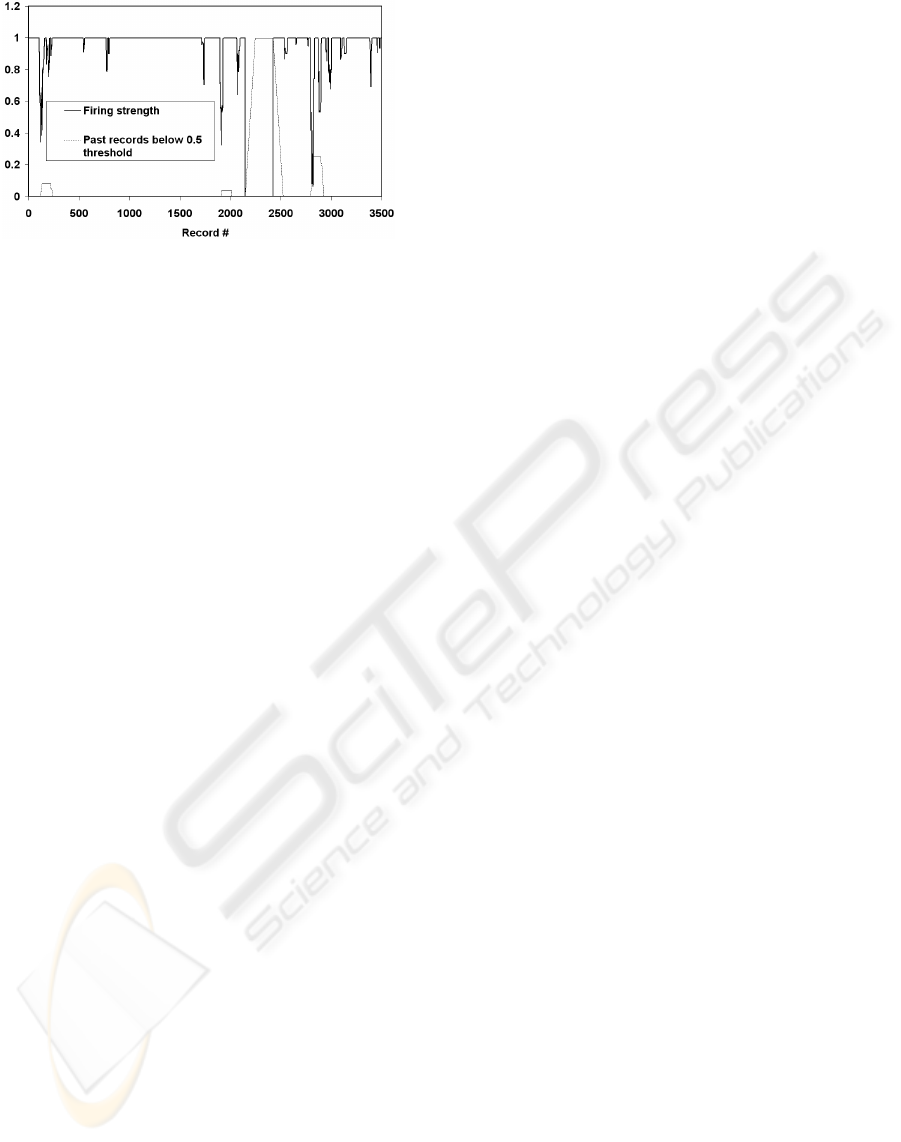

Figure 6 shows the ﬁring strength of Rule 2 for at-

tack data (solid line). In light grey, a count of recent

records with ﬁring strength below a value of 0.5 is

used to provide additional feedback. It is clear from

Figure 6 that this rule evidences an attack starting

around record 2,100 (see increasing counter value).

5 CONCLUSION

FuzzyJess proved to be an invaluable tool during our

implementation of a Hybrid Fuzzy Logic Intrusion

Detection system. It saved invaluable implementation

time by providing an efﬁcient inference engine that

could be easily integrated into our code base. Experi-

mental results show that the amount of time required

to process a relatively large number of records against

a set of rules allows this prototypical IDS to be used

in a real-time environment (for reasonably small time

windows). Optimization of the Fuzzy Inference En-

gine implementation would provide even faster analy-

sis times and quicker attack detection by opening the

door to new analysis and visualization techniques.

Future work will also concentrate on identifying sets

of relevant attributes that will allow detection of a

wide variety of attacks.

REFERENCES

Friedman-Hill, E. J. (2004). Jess, the java expert system

shell. In http://herzberg.ca.sandia.gov/jess. Sandia

National Laboratories.

Gomez, J. and Dasgupta, D. (2002). Evolving fuzzy clas-

siﬁers for intrusion detection. In 3rd Annual Informa-

tion Assurance Workshop. West Point, NY.

Haines, J., Lippmann, R., Fried, D., Tran, E., Boswell, S.,

and Zissman, M. (1999). 1999 darpa intrusion detec-

tion system evaluation: Design and procedures. In

MIT Lincoln Laboratory Technical Report.

Hosmer, H. A. (1993). Security is fuzzy! applying the fuzzy

logic paradigm to the multipolicy paradigm. In 1992-

93 workshop on New Secuity Paradigms. Little Comp-

ton, RI.

Kuok, C., Fu, A., and Wong, M. (1998). Mining fuzzy as-

sociation rules in databases. In The ACM SIGMOD

Record. Vol. 27, No. 1.

MIT (1999). Lincoln laboratory data sets. In

http://www.ll.mit.edu/IST/ideval/data/1999.

Orchard, R. (2001). Fuzzy reasoning in jess: The fuzzyj

toolkit and fuzzyjess. In ICEIS 2001, 3rd Interna-

tional Conference on Enterprise Information Systems.

Setubal, Portugal.

Ovchinnikov, S. (1994). Fuzzy sets and secure computer

systems. In Workshop on New security paradigms.

Little Compton, RI.

Zadeh, L. A. (1965). Fuzzy sets. In Information and Con-

trol. Vol. 8, Num. 3.

Zadeh, L. A. (1975). The concept of a linguistic variable

and its application to approximate reasoning, parts 1,

2, and 3. In Information Sciences.

Zadeh, L. A. (1984). Making computers think like people.

In Spectrum. IEEE.

Zadeh, L. A. (1988). Fuzzy logic. In IEEE-CS Computer.

Vol. 21, Num. 4.

IMPLEMENTATION OF A HYBRID INTRUSION DETECTION SYSTEM USING FUZZYJESS

393
