ANATOMY OF A SECURE AND SCALABLE MULTIAGENT

SYSTEM FOR EVENT CAPTURE AND CORRELATION

Timothy Nix, Kenneth Fritzsche, Fernando Maymi

Department of Electrical Engineering and Computer Science, U.S. Military Academy,West Point, New York

Keywords: Software Architectures, Component-Based System

s, Component Composition, Multi-Agent Systems, Event

Correlation, Distributed Intrusion Detection.

Abstract: Event monitoring and correlation across a large network is inherently difficult given limitations in

processing with regards to the huge quantity of generated data. Multiple agent systems allow local

processing of events, with certain events or aggregate statistics being reported to centralized data stores for

further processing and correlation by other agents. This paper presents a framework for a secure and scalable

multiagent system for distributed event capture and correlation. We will look at what requirements are

necessary to implement a generic multiagent system from the abstract view of the framework itself. We will

propose an architecture that meets these requirements. Then, we provide some possible applications of the

multiagent network within the described framework.

1 INTRODUCTION

Correlating multiple sensor readings in real-time or

near-real-time is process intensive when the sensors

generate data at even a moderate rate. In our

experience, it is not uncommon for servers in large

organizations to generate over two gigabytes of

event data per day. Centralized correlation with any

but the simplest rules would be severely taxing to

process in near-real-time. However there is a

solution. Agent architectures are appropriate for

problems that require systems to meet a variety of

goals in a dynamic, unpredictable environment

(Maes, 1992) and multiagent systems provide a

distributed framework for problem solving that is

too large for a centralized agent to solve because of

resource limitations or the risk of having a

processing bottleneck or single point of failure

(Sycara, 1998). The definition and advantages of

autonomous agents are described in detail in AAFID

(Balasubramaniyan, 1998). This paper will examine

some of the requirements that are necessary to a

generic, hierarchical multiagent network designed to

capture events and perform event correlation,

present some architectural considerations that meet

those requirements, and discuss some potential

applications for the architecture.

2 REQUIREMENTS

In a multiagent system, the correlation workload can

be distributed so that only events or statistics of

significance are reported up the agent hierarchy.

Obviously, this system can only be successful if the

definition of interesting events can adapt to the ever-

changing environment of production networks.

However, when using a multiagent system to

distribute the correlation workload, we want the

architecture to preserve the security and integrity of

the entire system, and make use of the existing

sensors whose data we want to correlate.

In creating such a distributed multiagent

architecture, i

t is necessary establish a set of

requirements and constraints upon our system.

These are much like Silva et al’s “agent properties”

which they refer to as non-functional requirements

(Silva, 2003). They are desired system qualities that

are not necessarily required for agents to complete

their goals. These include requirements such as: (1)

the system must be scalable; (2) it must be relatively

simple to implement, configure and maintain; (3) it

must be secure, meaning that the traffic generated by

the correlation network can not be sniffed of

spoofed; (4) it must not be limited by the network

topology; (5) it must be self-healing; and (6) it must

be time-synchronized.

233

Nix T., Fritzsche K. and Maymi F. (2005).

ANATOMY OF A SECURE AND SCALABLE MULTIAGENT SYSTEM FOR EVENT CAPTURE AND CORRELATION.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 233-238

DOI: 10.5220/0002533602330238

 SciTePress

• Scalability

In terms of scalability, we want to be able to

grow our agent network as large as functionally

necessary regardless of the size of the network.

Depending on the application of the correlation

network and the established correlation rule set, we

could have as few as one agent for the entire sensor

network or as many as one agent per sensor (1 ≤ x ≤

n : x is the number of deployed agents and n is the

number of individual sensors on the network).

• Simplicity

In order to keep the agent deployment and

distribution complexity to a minimum, we want all

agents to be identical. In other words, the coded

representation of each agent is the same. However,

this does not mean that they all behave the same.

Each agent’s role and functionality is determined not

by its binary code, but by data in its configuration

file and the specific sensors it monitors.

Configuration modification can either be performed

on a host local to the agent or via a graphical user or

web based interface that communicates strictly with

the “uber-agent”. The configuration changes are

then disseminated to the necessary agents in the

logical agent hierarchy.

We also want to avoid the need to develop new

sensors or to modify existing ones so that they

integrate into our framework. Modifications to

sensors such as syslog or SNORT would seriously

complicate deployment and could undermine

security. To this end, we want the framework to tap

into the data stores of a large variety of widely used

sensors such as Microsoft® Windows™ auditing,

syslog, SNORT, as well as others found in such

devices as firewalls and Honeynets.

• Security

To enhance security and limit the traffic

generated by the correlation network, each agent is

configured so that it can only communicate with a

limited number of other agents. This prevents rogue

agents from being launched in order to corrupt or

control the correlation network.

Each agent should contain a message

management class which handles encryption and

decryption of message traffic and key management.

The message management class of one agent uses

asymmetric encryption to communicate with the

message management class of other agents. Using

asymmetric encryption allows for both encrypted

and digitally signed traffic. Encrypted traffic

prevents sniffing and signed traffic prevents

spoofing.

• Independent of physical network topology

The topology of the multiagent network is

independent of the physical network. Thus, the

employment of agents and sensors may or may not

match the topology of the physical network. The

only requirement is that agents must be able to

communicate. Agents that are adjacent on the

correlation network may be located on entirely

different subnets. For example, the correlation

network can be organized by sensor type with the

sensors being distributed one per subnet or logical

work unit. On the other hand, an agent hierarchy

could be built to handle all web servers in the

enterprise, regardless of where they are in the

physical network. This requires agent hierarchies to

be deployed across functional business units within

an organization. For this reason, we do not want to

restrict our multiagent network by constraints that

may not apply to the application.

• Self Healing

The distributed nature of the system and the

requirement that each agent’s code be identical

means that any agent can perform in the role of

another agent. Thus, there is built in redundancy

and we do not have a single point of failure within

the system. This allows our agent network to have a

method of recovering from the failure of a single

agent, i.e. the network is self-healing. Any agent

can assume the role of another agent in the logical

agent hierarchy, and the agent network thus becomes

resilient against attack or localized network failure.

The agent network needs to be able to recover

from the loss of one or multiple agents within the

hierarchy. It needs to be able to self-heal in the

event it loses communication with other agents in

the network. Within its configuration file, the agent

could contain the address of one or more generations

of its ancestry and progeny. Thus if communication

is lost in either direction, communication can be re-

established. In this manner, one (or multiple) failed

agent(s) does not result in the failure of an entire

subnet within the multiagent hierarchy.

• Time synchronization

The distributed design of the agent network

requires a system be implemented for network time

synchronization. This is particularly important when

performing correlation of events across distributed

sensors/hosts to resolve relative order of events and

determine causality between events (Karp, 2003).

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

234

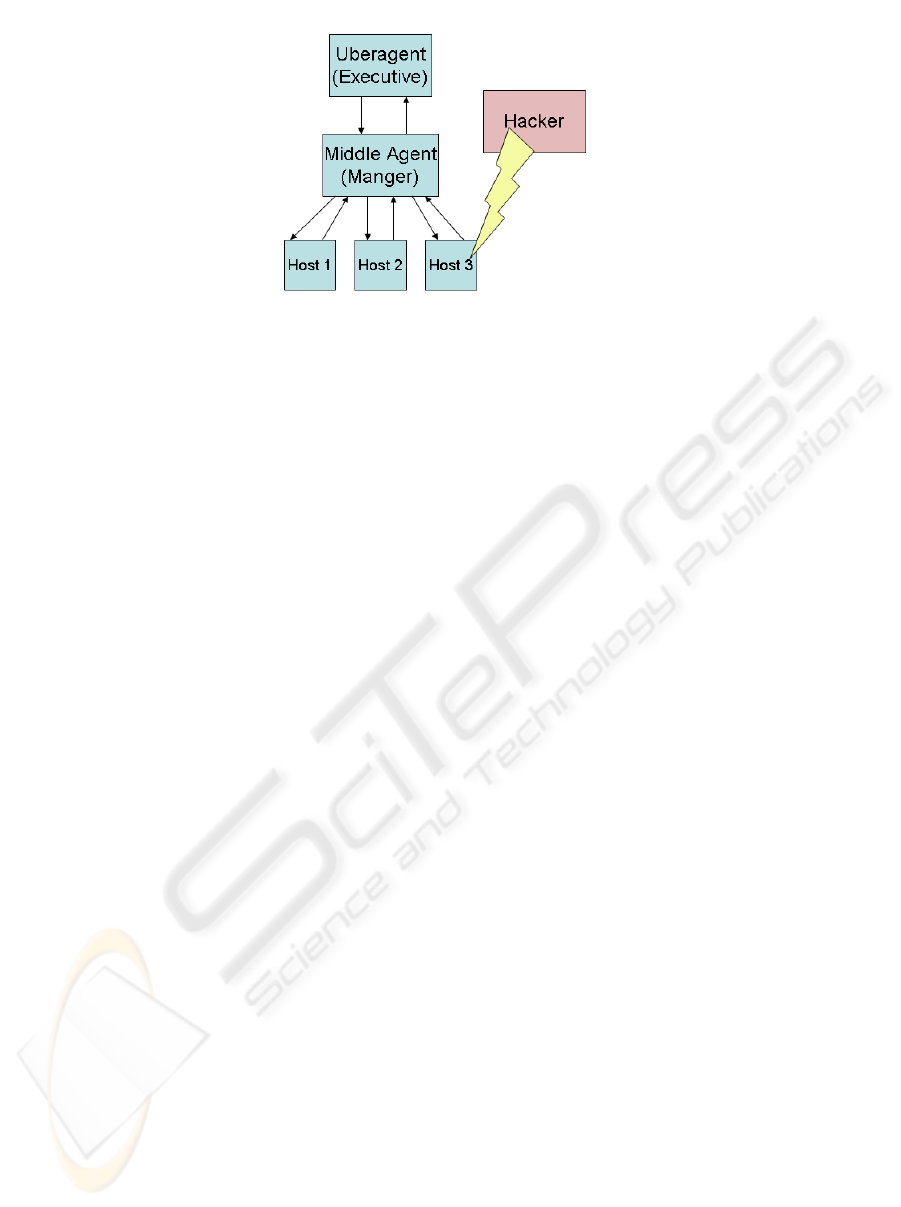

Figure 1: Agent Roles and Hierarchy. The above illustrates a malicious act (as defined in the agent’s rule set) on

Host 3. This in turn triggers the agent to send a report to the next higher agent in the hierarchy

3 ARCHITECTURE

CONSIDERATIONS

With these requirements in mind, we next strive to

develop an architecture that meets these

requirements while maintaining a degree of

independence from the actual application for which

it will be used. Our architecture consists of the

agents, which consult (correlate) sensor data. They

do this by querying the sensors’ data repositories

and the sensors themselves, which provide the data

tracking vital dimensions of the problem space. An

agent consists of a communication package that

provides secure communications with other agents; a

query engine that can formulate database queries and

search XML or flat files for specific information

(still field based); and a correlation engine which

processes query results and generates alerts and/or

query replies to/from another agent. The agents are

organized hierarchically with one agent at each tree

or subtree root designated as the “uber-agent” as

shown in Figure 1. A user interface ties into the

“uber-agent” for managing the multiagent network.

• Sensors

In the context of this architecture, a sensor is

anything that logs updates of a changing state either

internal or external to the network. In the classical

context, a sensor may measure or record physical

phenomena such as temperature, air pressure, light,

etc. But, a sensor could also “measure” a given

dimension of the network, by tracking packets or

logging events. Sensors can be imbedded in the

operating system as proposed by Kerschbaum

(Kerschbaum, 2000), or separate processes.

Examples of such sensor measurements or

recordings include log files produced by syslog, a

firewall log, an alert log generated by an intrusion

detection system, Windows™ events, etc. A sensor

must satisfy two constraints: (1) it must measure a

necessary dimension of our problem space; (2) and it

must record its measurement in some sort of

datastore. The datastore is not required to be on the

same host as the sensor. We have thus far restricted

a datastore to one of three formats (though others are

possible): a relational database; an XML file; or a

text file.

• Agents

An agent is a self-contained process that has the

ability to perform queries on a datastore, correlate

the results of the queries in accordance with the

agents query rules, and communicate with other

agents. Communication takes the form of queries,

query results, or configuration changes.

Communication is secure, meaning that the traffic

can not be sniffed of spoofed.

The agent network is hierarchical in nature. At

the top, a graphical or web-based interface

communicates with the “uber-agent”. The “uber-

agent” communicates with several “sub-agents”

and/or sensors. This can be seen in Figure 1. These

“sub-agents” communicate with one or more “sub-

agents” and/or sensors, recursively. Dispersion of

agents matches the distribution of the datastores

across the network. An agent is co-located on the

same host as a datastore. One agent suffices to

query all datastores located on a single host.

• Correlation Engine

The correlation engine is part of an agent. Within

the context of our architecture, the correlation

engine consists of two parts: (1) data correlation;

and (2) alert generation. Data correlation stems

from simple and compound Boolean and relational

operations on data queries. A compound Boolean

expression, or signature, can be easily parsed and

transformed into one or more queries of the

datastore. At this level, data correlation is a matter

of pattern matching the data within a datastore to a

signature (i.e. misuse detection).

Should a signature be matched then that may be

enough to generate an alert. In fact, this is how

many intrusion detection systems work. The

problem with this approach is that it is limited to

ANATOMY OF A SECURE AND SCALABLE MULTIAGENT SYSTEM FOR EVENT CAPTURE AND

CORRELATION

235

matching known signatures. We also need a way to

recognize hidden or new correlations for which we

have no signatures. One way of doing this is

through anomaly detection based on a statistical

analysis of “typical” network data. We register

“normal” data over time and generate an alert when

the correlation of data from one or more sensors flag

“abnormal” behaviour (i.e. anomaly detection).

The architecture presented in this paper really is a

framework which is independent of “how” the

correlation is done. All agents can correlate their

data in an identical manner, or agents can be

specialized as in (Chatzigiannakis, 2004). Our

architecture is suitable for use as a research platform

for exploring distributed AI. Furthermore, the

modular design of our framework makes it possible

for various agents to correlate events differently and

still maintain their sociability.

• Configuration

A configuration file for a given agent provides

the agent with the information it needs in order to

understand its environment. The configuration file

will contain information regarding one or more

levels of the agent’s “parent” and “children”

depending on the level of self-healing desired by the

agent network. Additionally, information is also

contained in the configuration concerning the sensor

datastore(s) for which the agent is responsible. The

agent’s configuration is also established by a set of

correlation rules that it applies locally on its own

datastores.

4 APPLICATIONS

Our multiagent architecture is generic enough to be

the basis for implementation in multiple

applications. An example of a possible deployment

of the multiagent network is shown in Figure 2 in

which we see sensors distributed throughout a

network. Each sensor logs its data either locally on

the same host or remotely to a different host. Sensor

logs take the form of a relational database, an XML

file, or a text file. Agents are distributed throughout

the system as well. To minimize the potential of

queries being attacked, agents are collocated with

the sensor logs. Agents query sensor logs and

correlate the results. Based on the correlation rules,

the agents could disseminate the results of its

correlation to other agents for further action. Agents

can have access to a special data store known as the

central logging facility (CLF). The CLF can store

either results of reports generated by agents, or raw

sensor data used for further correlation. The intent

is for storage of query results pending further action,

correlation rules, configuration rules, etc. The

multiagent network is hierarchical in structure and

managed at the root by a user interface.

The architecture discussed in this paper was

primarily developed for correlation of intrusion

detection systems with system and network logs.

The abstract and modular structure of the

architecture makes it easy to implement for

correlating any sensor network. In this or similar

contexts, we could use the system to implement a

system monitor or an intrusion detection system.

We could also use the system to guide forensics of a

network attack either as part of the network or as

part of a honeynet. Or, we could use the same

architecture in an entirely different way for

environmental monitoring.

• System monitor

A system monitor could perform data mining and

correlation on any logging process that monitors the

state of a host, network, etc. In this context, sensors

take the form of system logs such as syslog, httpd

log, firewall log, router log, etc. Agents then

perform distributed queries on the datastores (logs)

of these sensors. Correlation rules are developed in

order to match specific contextual criteria. For

example, a rule could be developed to return data

associated with events within a given time frame, or

generate an alert if a certain number of failed log-

ins, power interruptions, or other event of

significance occurs within a specified time. From

these rules and queries, the overall status of a

network, functional systems (like all web servers

within an enterprise) or workstations within a

business unit can be determined and reported.

• Intrusion detection

One of the problems with many available

intrusion detection systems is determining the proper

balance between rules that produce an excessive

number of false positives or potentially allow a false

negative. In the first case, the network administrator

wastes time chasing after ghosts, and in the second,

a wily hacker remains undetected while having free

reign of the network.

Using multiple individual intrusion detection

systems as sensors (such as Snort, Border Guard by

StillSecure, Cisco IDS, etc), forming a distributed

IDS or dIDS (Einwechter, 2001), the multiagent

network could potentially correlate the alerts

generated by the multiple IDS with other system

logs. For example, the IDS would log alerts to a file

or database. An agent would query an associated

IDS log and correlate the results with the results of

other agents and their queries on other IDS or

system logs in order to reduce the number of false

positives generated. Additionally, the multiagent

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

236

network could look for variations of attempted

attacks by taking a rule which generated an alert and

querying the system for data regarding things like all

traffic from the attacking host, all traffic directed to

the attacked port, etc. A different strategy might be

to correlate the results of various statistical-based

IDS with the results of other rule-based IDS. Then,

the agent could develop new rules for the rule-based

IDS based on the results.

Optionally, we could develop an IDS from

scratch that is rule-based, statistical-based, neural

network based, or based on any potential new

research in intrusion detection. Using a packet

sniffer that promiscuously logs all subnet traffic, the

agent network could look for patterns in the data.

For a rule-based approach, the agent’s local query

rules would be developed that match a potential

attack signature. Queries on the sensor logs would

be executed by the agents. Positive returns on the

queries would generate an alert. Used in

conjunction with perhaps a statistical correlation

engine, or a domain specific AI, a sophisticated

network IDS could be developed.

• Forensics

In the event that we detect a successful

penetration of our network “after the fact”, we will

ideally need to pull our network offline and study

how the hacker succeeded. In this scenario,

computer forensics is a means to analyze the

network events in order to determine what occurred

during the attack. Good forensics will help us

“generate” proper IDS rules to prevent hackers from

using the same method of attack in the future. Our

agent network, using the same sensor setup as used

in intrusion detection or system monitoring can

easily be used for forensics. Here, with an agent’s

configuration, correlation rules are generated at the

interface in accordance with the demands of the

security administrator. Thus, the administrator

would select the constraints with which to filter

network data. These constraints would be

transformed into the agent network’s query language

and disseminated through the network as

appropriate. Each agent would receive some form of

the original query, parse the query, forward the

query in part or in whole, and perform queries on its

local datastores, as necessary. The results received

from an agent’s “children” are then consolidated

with the results of the local queries and passed up to

the agent’s parent. The “uber-agent” passes the

results to the interface which displays them for the

administrator. Using this technique, a security

administrator should be able to narrow down which

network traffic applied to the hackers attack and

glean from the logs an attack’s modus operandi.

Additionally, by exporting log data and reports off a

compromised machine to the CLF on a recurring

basis allows a redundancy that can be used to

compensate for suspect logs from a hacked machine.

• Environmental monitoring

A completely different context for the same agent

network would be one where the network sensors

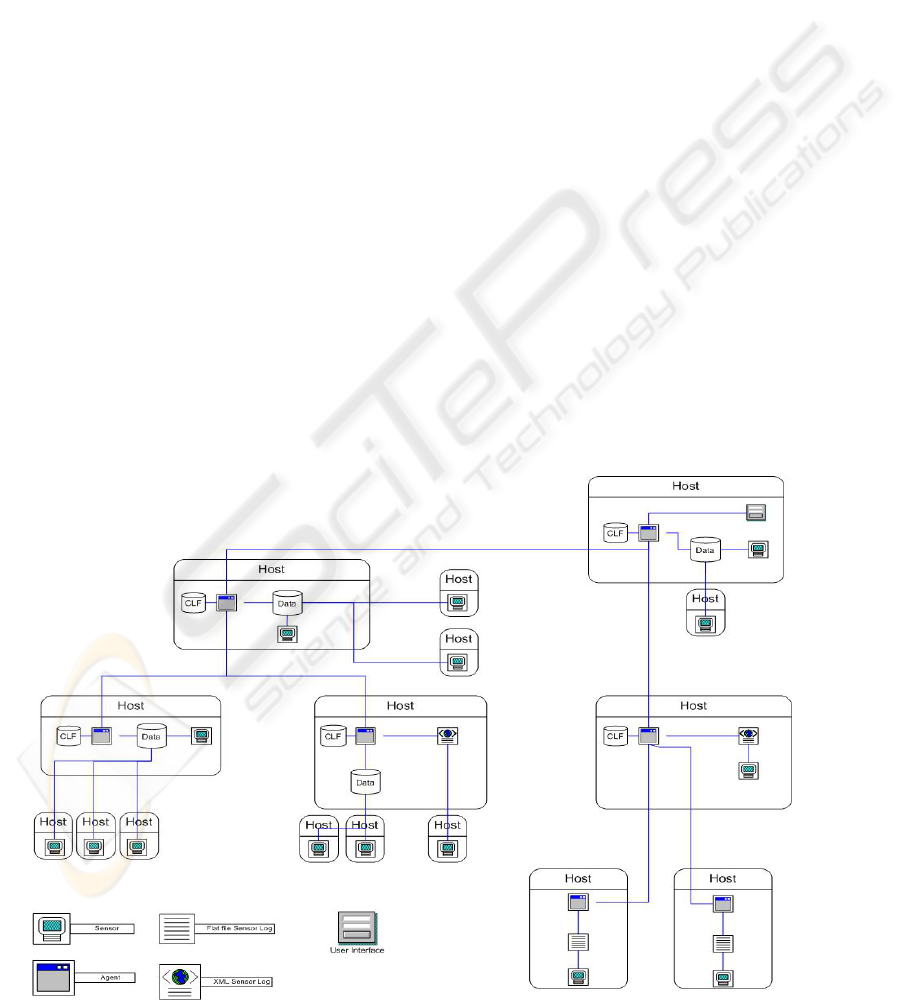

Figure 2: Picture depicting how sensors, agents and datastores can be deployed across a netwrok. Sensors must

create logs, either on the local host or at a distributed log site. For each host with a log data store, there is a co-

located agent that can query the data store and send information to agents higher in the hierarchy.

ANATOMY OF A SECURE AND SCALABLE MULTIAGENT SYSTEM FOR EVENT CAPTURE AND

CORRELATION

237

were actual physical sensors. Sensors such as those

that measure power consumption, temperature,

humidity, air pressure, wind speed, perhaps digital

camera, motion detectors, or just about anything that

digitally records a physical parameter can be used.

Examples of correlating such data would be to

generate an alert if the temperature dropped more

than ten degrees in an hour. This type of system

could be part of an IDS, a means to protect

equipment sensitive to changes in

weather/conditions, etc.

• Alert conditions (holistic vs. local)

By correlating sensor data across the entire

network, we can potentially generate one alert

condition for a local host or subnet and a different

alert condition for the entire network. A local alert

condition may be high if hacker penetration is

eminent, but the services on the affected host are

minimal enough that the host’s compromise would

not provide the hacker with much useful

information. For example, an agent is monitoring a

honeypot and an intrusion is detected. The result

would be a low alert condition for the network.

Also, we could change the rule set that an agent uses

based on the alert level - additional parameters could

be monitored, certain events could automatically be

forwarded to the CLF of the “uber-agent”, etc.

Another example, in an IDS application, if a

subnet was recently port scanned, it might set its

alert condition to “red” and use a looser set of rules

that would otherwise have generated a high number

of false positives. Other agents within the system

could be notified of the threat and adjust their threat

condition accordingly. The alert condition for high-

value targets would be set to “red”, some subnets

might increase to “amber”, and low-value systems

might not change at all.

In an environmental monitoring system, perhaps

the agents query sensor logs once every 15 minutes.

If one of the sensors record a drastic change

(temperature, air pressure, etc.) within one or more

monitoring periods, the agents could be set to query

the sensor logs once every minute.

5 CONCLUSIONS

A multiagent architecture shows great potential for

solving problems in a distributed manner that a

single agent could not process in a timely manner.

Research in this area tends to focus on ways to

implement a cooperative artificial intelligence. The

architecture presented in this paper provides a means

to separate the AI from the other important aspects

of a multiagent system. The modular design allows

for easy research, testing, and application of

distributed AI systems in a variety of contexts. The

scalability, simplicity, security, and robust nature of

the architecture provide a common structure in

which to compare and contrast competing paradigms

for learning, cooperation, network timing, etc.

REFERENCES

Balasubramaniyan, J., Garcia-Fernandez, J., Isacoff, D.,

Spafford, E., Zamboni, D. (1998, December). An

Architecture for Intrusion Detection using Autonomous

Agents. Proceedings of the Fourteenth Annual

Computer Security Applications Conference, pages 13-

24. IEEE Computer Society. Retrieved from http://

www.cse.buffalo.edu/~sbraynov/seminar%202004/pap

ers/zamboni-agents1.pdf

Chatzigiannakis, V., Androulidakis, G., Grammatikou, M.,

Maglaris, B. (2004, June) A Distributed Intrusion

Detection Prototype using Security Agents. In 11th

Workshop of the HPOVUA.

Einwechter, N. (2001, January 8).An Introduction to

Distributed Intrusion Detection Systems. Retrieved

from http://online.securityfocus.com/infocus/1532.

Gopalakrishna, R., Spafford, E. (2001) A Framework for

Distributed Intrusion Detection using Interest Driven

Cooperating Agents. Purdue University. Retrieved

from http://www.raid-symposium.org/raid2001/slides/

gopalakrishna_spafford_raid2001.pdf.

Karp, R., J. Elson, D. Estrin, and S. Shenker. (2003, April

11). Optimal and Global Time Synchronization in

Sensornets. Center for Embedded Networked Sensing

Technical Report 0012. Retrieved from http://www.

eecs.harvard.edu/~mdw/course/cs263/fa03/papers/time

sync-techrept03.pdf.

Kerschbaum, F., Spafford, E., Zamboni, D. (2000,

November). Using embedded sensors for detecting

network attacks. Proceedings of the First ACM

Workshop on Intrusion Detection Systems. Retrieved

from http://www.cerias.purdue.edu/homes/zamboni/

pubs/wids2000.pdf.

Maes, P. (1992) Modeling Adaptive Autonomous Agents.

Artificial Life Journal, Vol 1, No 1&2, pp 135-162.

MIT Press.

Silva, C., R. Pinto, J. Castro, and P. Tedesco. (2003,

November 27-28). Requirements for Multi-Agent

Systems. Workshop em Engenharia de Requisitos,

Piracicaba-SP, pp 198-212.

Sycara, K. (1998) Multiagent Systems. AI Magazine, Vol

19, No 2. pp. 78-92. Retrieved from http://www-

2.cs.cmu.edu/~softagents/papers/multiagentsystems.PD

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

238
