DESCRIPTION OF WORKFLOW PATTERNS BASED ON P/T NETS

∗

Guofu Zhou

School of Computer, Wuhan University

Wuhan University, Wuhan, 430072, China

Yanxiang He

Zhoumin Du

Keywords:

Workﬂow Patterns, Workﬂow process, P/T nets.

Abstract:

Through comparing and analyzing Aalst’s workﬂow patterns, we model these patterns with P/T nets without

additional elements. Based on these models, the number of Aalst’s patterns can be reduced signiﬁcatively.

Moreover, the synchronic distance is also presented to specify workﬂow patterns.

1 INTRODUCTION

The theoretical foundation of workﬂow has become

a hot problem. And, Petri nets is famous for the

feature of describing the concurrent semantics with

rich analysis techniques(CY.Yuan, 1998). Therefore,

Petri nets is an ideal modelling tool of workﬂow

process(WfMC, 1995). In (Aalst, 1998; Aalst et al.,

2000; Aalst, 2002), Aalst presents four special kinds

of transitions, four triggers and twenty workﬂow pat-

terns. Although there are advantages in describing the

semantics of workﬂow process by such new elements,

one obvious disadvantage is there are too many ad-

ditional elements to ensure conciseness. Moreover,

not all workﬂow patterns provided by Aalst are nec-

essary. In this paper, we model Aalst’s workﬂow pat-

terns with P/T nets, and conclude not all Aalst’s work-

ﬂow patterns are necessary. Additionally, an algebra

method is presented to specify patterns. The content

is arranged as follows: In section 2, all workﬂow pat-

terns are modelled by P/T nets. Then, we discuss

why some patterns are not necessary in section3; fur-

thermore, synchronic distance is presented to specify

these patterns. Finally, a conclusion is made and our

future work is introduced brieﬂy.

2 MODELLING PATTERNS

In workﬂow process, workpiece, wp for short, is ma-

nipulated by activities. wp is a computerized docu-

∗

Supported by TIF of Wuhan University, P. R. China.

ment with the necessary information. wp ﬂows among

activities and records data produced by activities. An

activity is an operation task performed by one role

on wp. Connector connects successive activities and

controls the ﬂow direction of workﬂow process. Con-

nector are called workﬂow pattern or pattern.

What we should pay much attention to logic and

schedule rule. Logic is the framework of workﬂow

process and it will not change in all workﬂow in-

stances. Schedule rule is effected by instance data

of workﬂow process and is included in wp. Abstract-

ing logic from workﬂow process is a key step to model

pattern with P/T nets. In this paper, we actually dis-

cuss how to model logic of patterns. Aalst’s pat-

tern(Aalst, 1999) speciﬁcation can be simpliﬁed if the

logic is separated from scheduling rules.

In this paper, connector is represented by P-

element(a circle or a broken line circle or ellipse). Ac-

tivity is represented by T-element(a rectangle or a bro-

ken line rectangle). The relationship between activity

and connector is represented by the directed arc.

SEQUENCE is modelled as Fig.1. Where, activ-

ity A does not produce any control data. Control data

is to regulate the ﬂow direction of workﬂow process.

For example, a role writes a sentence in wp: ”please

sent it to Mary”. Where, the sentence ”sent it to

Mary” is control data. For convenience, A is called

input activity and B is called output activity. AND-

Split is modelled as Fig.2. Where, activity A does

not produce any control data. The broken line el-

lipse denotes AND-Split. wp is replicated to several

copies in workﬂow management system, which ﬂow

to the output activities, e.g. one copy to B and another

439

Zhou G., He Y. and Du Z. (2005).

DESCRIPTION OF WORKFLOW PATTERNS BASED ON P/T NETS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 439-442

DOI: 10.5220/0002551204390442

Copyright

c

SciTePress

A B

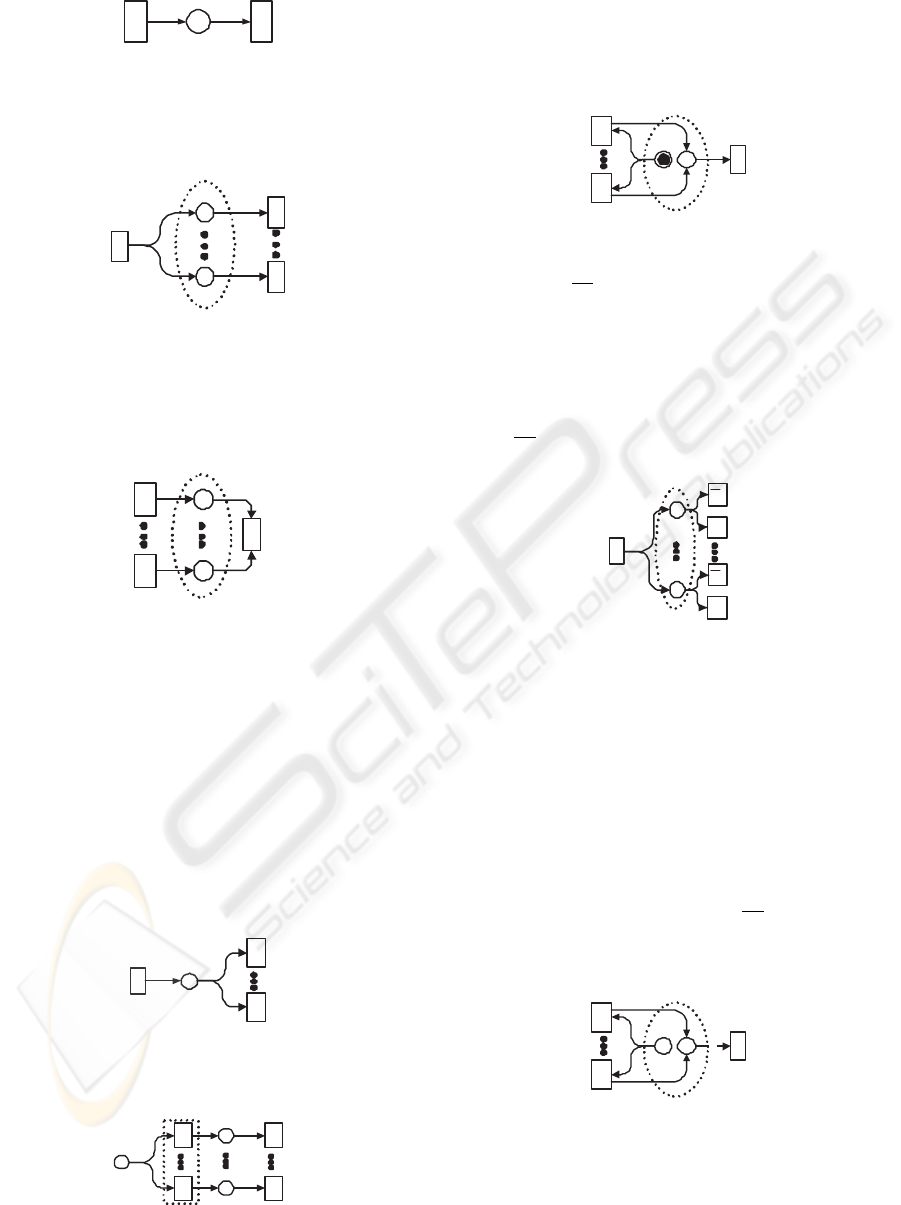

Figure 1: SEQUENCE.

one to C. AND-Join is modelled as Fig.3. Where,

A

B

C

Figure 2: AND-Split.

A

1

· · · A

n

don’t produce any control data. Through

AND-Join, workﬂow management system integrates

several copies of wp into one wp. XOR-Split is mod-

A

1

A

n

C

Figure 3: AND-Join.

elled as Fig.4 or Fig.5. In Fig.4, activity A does not

produce any control data. Based on wp and related

data, XOR-Split chooses one activity from B

1

· · · B

n

to activate. So A determines which one of B

1

· · · B

n

to be activated. Specially, XOR-Split has another rep-

resentation (Fig.5). Where, activity A contains exclu-

sive subactivities A

1

· · · A

n

. Each A

i

(i = 1, · · · , n)

produces control data. Therefore, A determines to ac-

tivate which one of A

1

· · · A

n

. Because A

1

· · · A

n

are

exclusive, A

i

is activated implies B

j

will not be ac-

tivated (1 ≤ i 6= j ≤ n). XOR-Join is modelled

A

B

1

B

n

Figure 4: One case of XOR-Split.

A

1

A

n

B

1

B

n

Figure 5: Another case of XOR-Split.

as Fig.6. Where, S

1

and S

2

form a connector. The

token in S

1

determines only one of A

1

· · · A

n

can be

activated and it will ﬂow into S

2

. C can be activated

only if S

2

has one token. OR-Split is modelled as

A

1

A

n

C

S

1

S

2

Figure 6: XOR-Join.

Fig.7. Where, B

i

denotes that activity B

i

(i = 1 · · · n)

is not be activated. When design workﬂow process,

we can’t know which activity will be activated. So

all possible activities must be listed, and each activ-

ity will either be activated or not. The option will be

determined by workﬂow management system based

on related data and control data produced by A. Ac-

tually,

B

i

can be regarded as an error output. OR-

A

B

1

B

1

B

n

B

n

Figure 7: OR-Split.

Join is modelled as Fig.8 or Fig.9. In Fig.8, x in

S

1

denotes that S

1

has x tokens, and the number of

tokens denotes the number of activities can be acti-

vated. Where, x ≤ n. Each A

i

(i = 1, · · · , n) can

be activated once and produce one token for S

2

. x in

the directed arc from S

2

to C denotes C can be acti-

vated only if S

2

has x tokens. Workﬂow management

system chooses activities from A

1

· · · A

n

to activate

based on wp and related data. OR-Join has another

representation (Fig.9). Where, A

1

· · · A

n

can deter-

mine whether activate B

i

or not.

B

i

denotes B

i

is

not activated and it can be regarded as an error out-

put. Multiple-Merge is modelled as Fig.10. Where,

A

1

A

n

x C

S

1

S

2

x

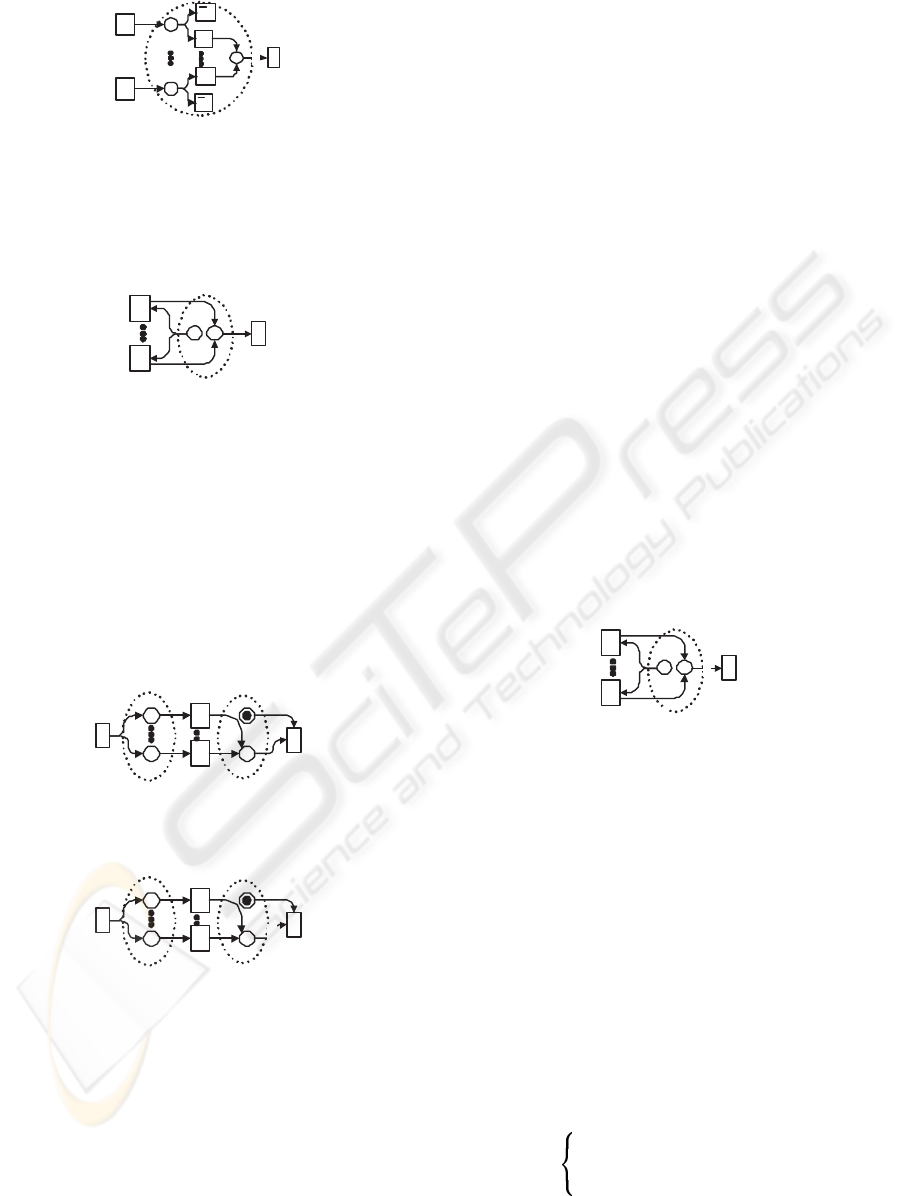

Figure 8: One case of OR-Join.

x tokens in S

1

denotes that x activities of A

1

· · · A

n

can be activated concurrently. The weight of directed

arc from S

2

to C is 1. If S

2

has one token, C will

be activated once. Each A

i

(i = 1 · · · n) can produce

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

440

A

1

B

1

B

1

B

n

B

n

Ax

A

n

Figure 9: Another case of OR-Join.

one token for S

2

, so A

1

· · · A

n

can produce x tokens

for S

2

. x tokens in S

2

implies C will be activated x

times. Discriminator is modelled as Fig.11. Where,

A

1

A

n

x C

S

1

S

2

Figure 10: Multiple-merg.

when S

1

and S

2

have one token respectively, D can

be activated and consume the tokens of both S

2

and

S

1

. Although each B

i

(i = 1 · · · m)can produce one

token for S

2

, D can’t be activated again because S

1

has no token. Actually, Discriminator is a special case

of N-out-of-M Join. In Fig.12, the weight of directed

arc from S

2

to D is n and the element number of S

2

’s

preset is m(n ≤ m). When S

2

has n tokens and S

1

has one token, D can be activated. In Discriminator,

n = 1. In(Aalst et al., 2000), Aalst also mentions

A

B

1

B

m

D

S

1

S

2

Figure 11: Discriminator.

A

B

1

B

m

D

S

1

S

2

n

Figure 12: N-out-of-M.

some other patterns. Arbitrary Cycles only modiﬁes

wp’s content but doesn’t change the logic of workﬂow

process. So it can be regard as a loop. Implicit Ter-

mination denotes the process is stop. Obviously it is

not necessary to study specially. Multiple Instance

Without Synchronization, Multiple Instances With a

Priori Design Time Knowledge, Multiple Instances

With a Priori Run Time Knowledge, and Multiple In-

stances Without a Priori Run Time Knowledge are re-

lated with multiple instances, therefore they should

be discussed as process instances. Deferred Choice is

an error of resources if time is regarded as a kind of

resource. So it shall not also be considered as a pat-

tern. Interleaved Parallel Routing determine the ac-

tivating order of the concurrent activities, so this pat-

tern is similar essentially to SEQUENCE. Milestone

can activate a new activity without terminating itself,

so actually Milestone is a activity. Cancel Activity and

Cancel Case are also not patterns but error outputs.

3 PATTERN SPECIFICATION

XOR-Split is a special case of OR-Split if only one of

output activities can be activated. In XOR-Join, only

input activity is activated and output activity will be

activated only once. In OR-Join, some of input activ-

ities are activated and output activity will be activated

only once. In Multiple Merge, some of input activities

are activated and output activity will be activated cor-

responding times. Therefore, the three patterns are the

special cases of merge. In Fig.13, when m = n = 1,

merge is XOR-Join. When m = n > 1, merge is OR-

Join. When m > n = 1, merge is Multiple Merge.

When n = 1, N-out-of-M is Discriminator. There-

fore, only SEQUENCE, AND-Split, AND-Join, OR-

Split, OR-Join and N-out-of-M merge are necessary.

A

1

A

n

m C

S

1

S

2

n

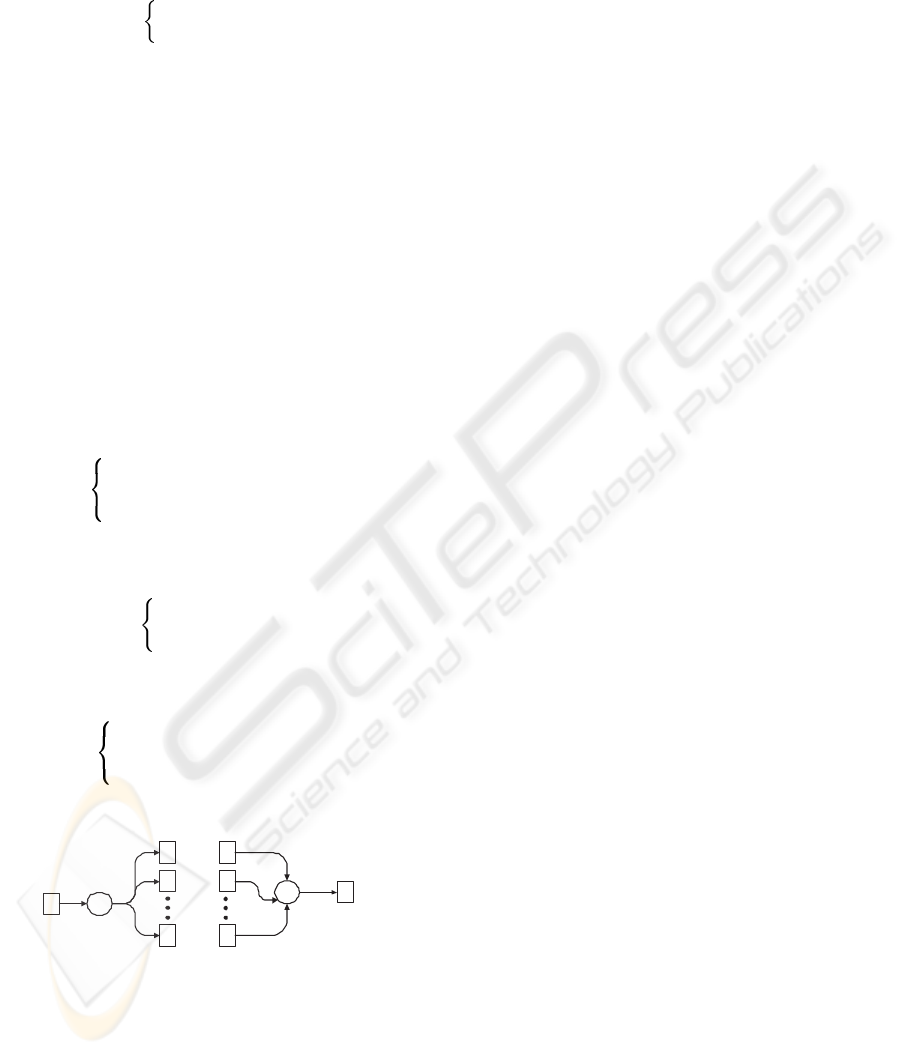

Figure 13: Merge.

3.1 Speciﬁcation

We specify the patterns by the algebra of Petri nets.

Let A be the set of activities and E

1

, E

2

be subsets

of A. E

1

< E

2

denotes E

1

’s activities are activated

before E

2

’s, and E1 ≤ E

2

denotes E

1

∩ E

2

6= ∅ ∧

E

1

− E

2

< E

2

− E

1

. It is called a point that wp

(and its copies) is in the hand of a role. Let p

1

, p

2

be arbitrary points. #(E

i

, p

1

, p

2

) denotes the number

of occurrences of E

i

’s activities from p

1

to p

2

(i =

0, 1, 2). p

0

is the point before the start activity.

Deﬁnition 1 Synchronic Distance

σ(E

1

, E

2

), the synchronic distance between E

1

and

E

2

, is deﬁned as below:

σ(E

1

, E

2

) =

max

p

1

,p

2

∈P

{|#(E

1

, p

1

, p

2

)

−#(E

2

, p

1

, p

2

)|} if #E

1

= #E

2

ε if #E

1

6= #E

2

Where, P is the set of all points, and #E

i

=

max

p∈P

(#(E

i

, p

0

, p))(i = 1, 2). ε denotes no value.

DESCRIPTION OF WORKFLOW PATTERNS BASED ON P/T NETS

441

Deﬁnition 2 Asymmetric Synchronic Distance

−→

σ (E

1

, E

2

), the asymmetric synchronic distance from

E

1

to E

2

, is deﬁned as below:

−→

σ (E

1

, E

2

) =

σ(E

1

, E

2

) if E

1

≤ E

2

ε if E

1

> E

2

Based on the above deﬁnition, we can easily get

speciﬁcations: SEQUENCE(Fig.1) is speciﬁed by

−→

σ (A, B) = 1. AND-Split(Fig.2) is speciﬁed by

−→

σ (A, B) =

−→

σ (A, C) = 1. AND-Join(Fig.3) is spec-

iﬁed respectively by

−→

σ (A

1

, B) =

−→

σ (A

n

, C) = 1

and

−→

σ (A

1

, A

1

) = ε

Let E

3

, E

4

be multiple sets on A, i.e. E

j

: A →

{0, 1, . . .}(j = 3, 4) is a mapping from A to the set

of non-negative integers. For example, a is an ele-

ment of A and E

j

(a) is the occurrence number of a

in E

j

. To count the weighted occurrences of E

j

’s ac-

tivities, we have deﬁnitions respectively: ∗(E

j

, p) =

P

a∈E

j

E

j

(a) • #(a, p) and ∗E

j

= max

p∈P

{∗(E

j

, p)},

Where, #(a, p) = #(a, p

0

, p), E

j

(a) is the occur-

rence number of a in E

j

.

Deﬁnition 3 Weighted Synchronic Distance

σ(E

3

, E

4

) =

max

p∈P

{| ∗ (E

3

, p) − ∗(E

4

, p)|}

if ∗E

1

= ∗E

2

ε if ∗E

1

6= ∗E

2

Deﬁnition 4 Weighted Asymmetric Synchronic Dis-

tance

−→

σ (E

3

, E

4

) =

σ(E

3

, E

4

) if E

′

3

≤ ∗E

′

4

ε if E

′

3

> ∗E

′

4

Where E

′

j

= {a|a ∈ A ∧ E

j

(a) 6= 0}, j = 3, 4. For

conciseness, there are:

−→

σ (E

3

, E

4

) =

−→

σ (a, E

4

) if E

3

= {a}

−→

σ (E

3

, b) if E

4

= {b}

−→

σ (a, b) if E

3

= {a} and E

4

= {b}

For example, the pattern in Fig.14 can be speciﬁed

a OR

b

1

b

m

bOR

a

1

a

m

b

2

a

2

Figure 14: Pattern OR.

by∃n :

−→

σ (n•a, {b

1

, b

2

, · · · , b

m

}) = n∧

−→

σ (b

i

, b

j

) =

ε(i 6= j) and ∃n :

−→

σ ({a

1

, a

2

, · · · , a

m

}, n • b) =

n ∧

−→

σ (a

i

, a

j

) = ε(i 6= j). Where, 0 < n ≤ m, n • a

denotes the number of a, and n is called OR-number.

When n = 1, the pattern is XOR (exclusive OR).

OR-number may be given at any time. The speciﬁca-

tion of pattern OR implies synchronization, including

synchronized multi-choice and synchronized multi-

merge. If not requiring synchronization, i.e. each

a

i

(i = 1, · · · , m) will activate b once, pattern OR can

be speciﬁed by ∃n :

−→

σ ({a

1

, a

2

, · · · , a

m

}, b) = n

where 0 < n ≤ m. This OR-number denotes the

number of times b will be executed.

From above discussion,similar to the graphic rep-

resentation of patterns, Synchronic distance with its

extensions also captures logic of workﬂow process.

4 CONCLUSION

We have analyzed and modelled all Aalst’s patterns

with P/T nets. Some patterns shall not be regarded

as patterns. The signiﬁcant thing is we model the

patterns without any extensions to Petri nets or trig-

gers. Furthermore, we propose synchronic distance to

specify logic of workﬂow process,which can not only

achieve the same effect as Aalst’s but also be more

concise and reasonable. By our standpoint, the model

of workﬂow process can be divided into two layers:

control ﬂow layer and data ﬂow layer. Control ﬂow

layer(modelled by Petri nets) is to check the valida-

tion and feasibility of workﬂow process. Data ﬂow

layer(data ﬂow) will be described and simulated by

UniNet (GF.Zhou, 2003).

REFERENCES

Aalst, W. (1998). The application of petri nets to workﬂow

managemen. Journal of Circuits, Systems, and Com-

puters, 8(1):21–66.

Aalst, W. (1999). Waﬂan: A petri-net-based workﬂow

analyzer. Systems Analysis, Modelling Simulation,

35(3):345–357.

Aalst, W. (2002). Making work ﬂow: On the applica-

tion of petri nets to business process management. In

ICATPN’02, 23rd International Conference on Appli-

cation and Theory of Petri Nets. Springer-Verlag.

Aalst, W., Hofstede, A., B.Kiepuszewski, and A.P.Barros

(2000). Advanced workﬂow patterns. In CoopIS2000,

7th International Conference on Cooperative Infor-

mation Systems. Springer-Verlag.

CY.Yuan (1998). Petri net theory. Electronics Publishing

House, Beijing, 1st edition.

GF.Zhou (2003). Doctor Dissertation:Research on Mod-

elling Technology of Software Architecture based on

UniNet. Beijing University, Beijing.

WfMC (1995). The workﬂow reference model. Techni-

cal Report TC00-1003, Workﬂow Management Coali-

tion.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

442
