ADAPTIVE BUSINESS OBJECTS

A New Component Model for Business Integration

Prabir Nandi, Santhosh Kumaran

IBM T J Watson Research Center, 1101 Kitchawan Road, Yorktwon Heights, NY, USA

Keywords: Business Process Integration, Business Performance Management, Model-driven Architecture, Model-

driven Development, Composite Application, Services Oriented Architecture, Web Services

Abstract: We present a new component model for creating next generation e-Business applications. These

applications have two overriding requirements: (1) Ability to change the application behaviour quickly and

easily in line with the fast-changing business conditions and (2) Seamless integration of people, process,

information, and systems. Our new component model is built around the concept of Adaptive Business

Objects, and fulfils both the above requirements. This paper describes this component model and

demonstrates its use in real business solutions.

1 INTRODUCTION

In today’s global economy, enterprises are changing

continually, entering into new markets, encountering

new competitors, introducing new products and

restructuring themselves through mergers,

acquisitions, alliances and divestitures. In order to

stay competitive in such environments, enterprises

not only need to organize and operate their business

processes in an efficient manner, but also require a

solution that can easily adapt to the changes. This

calls for new software platforms and technologies

that support adaptive business solutions. In contrast,

the emphasis of traditional business process

management systems is on defining and managing

the rigorous behaviour of highly repeatable business

processes, overlooking the necessity for

management of changes.

Another important trend in the enterprise IT

lutions area is the growing emphasis on

integration. The business value of IT grows

substantially when the IT solutions seamlessly

integrate people, processes, information, and

applications. Information technology has made

substantial progress on enterprise workflow systems,

information integration, people collaboration, and

application integration, but mostly in isolation.

There is a need for new programming paradigms

that bring people, processes, information, and

applications together to create integrated solutions.

In this paper, we discuss a new component

odel and an associated programming model that

begins to address these requirements. The

component model is based on a concept called

Adaptive Business Object (ABO). At its core, an

ABO is a component with the behaviour defined

using a Mealy Machine (Mealy, 1955) - a finite

automata with output. In this paradigm, a computer

program is a collection of communicating ABO

instances.

The outline of the paper is as follows. In section

, we present Adaptive Business Objects (ABOs) in

detail. Section 3 discusses the programming model

for creating programs using the ABO component

model. Section 4 employs a simple customer

scenario to illustrate the ABO programming model.

In Section 5, we provide a clear description of the

research contributions of this work and position it in

the context of what exists today. Section 6 provides

a brief overview of our experience in applying this

technology to real life business problems. We

provide a summary of related work in Section 7 and

conclude by reiterating the value propositions of this

technology in Section 8.

2 ADAPTIVE BUSINESS OBJECTS

An ABO is an abstraction of a business entity with

explicitly managed state. The state information is

manifested in a currentState attribute that provides a

condensed view of the overall state of the entity at a

specific point in its life cycle. However, the key

value proposition of ABOs is the additional

179

Nandi P. and Kumaran S. (2005).

ADAPTIVE BUSINESS OBJECTS - A New Component Model for Business Integration.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 179-188

DOI: 10.5220/0002553301790188

 SciTePress

functional contracts (depicted in Figure 1) that

combine seamlessly with this basic characteristic (of

explicitly managed state) to provide a holistic

component abstraction that is semantically and

syntactically complete in modelling all relevant

aspects of the business entity. Below we discuss

these functional contracts in detail.

2.1 Lifecycle & Behaviour

The lifecycle of the business entity modeled by an

ABO is defined using a finite state machine (FSM).

The states of the FSM represent the set of possible

states the entity may assume throughout its lifecycle.

An ABO receives external events via its public

interface (or Views) and reacts to it via state

transitions. Potential side effects are modeled by

associating Data and Remote actions with state

transitions. Thus the behaviour of an ABO is not

hard coded into the methods that implement the

interface as in traditional business objects. Instead, it

is externalized via a model with finite state machine

as its underpinnings.

2.2 Data Graph

Unlike traditional business objects, data is not

contained inside an ABO. Instead, ABO uses a data

graph to dynamically aggregate information on

demand from heterogeneous data sources.

Aggregation and presentation of data in this manner

is just another manifestation of the ABO behavior

and thus influenced by the state of the ABO. The

graph structure implicitly enforces the data

relationships and their cardinalities. This abstraction

provides the modeler with the ability to specify a

data model irrespective of the physical store i.e.

structured, semi-structured or unstructured data. In

other words data and metadata are not distinguished

as such.

2.3 State Adaptive Access

People and software applications may interact with

the ABO at various points in its life cycle. As part

of such interactions, parts of the data graph may be

accessed or manipulated or business events may be

sent to the ABO by invocations of ABO’s public

interface. However, the ability of the outside world

to raise events or access the ABO data will need to

adapt based on the current state of the ABO. For

example, a Purchase Order ABO may allow the

Requistioner the ability to manipulate the Order data

while the PO is in the Draft state. But once the PO

has been Accepted for processing, the Requisitioner

may have read-only access to the Order data. The

representation of the entity lifecycle by state

machine provides the ability to specify state adaptive

access control to business roles. The modeler can

specify read, write, search access on data and

authorize access for events for each business role in

each state.

2.4 Data Actions

The Data Actions are used to model CRUD

operations on parts of or the whole data graph.

However, they can only be added to the ABO as a

side effect on state transitions. This effectively

enforces the constraints regarding data integrity,

transaction scope, access control and business

semantics.

People

Lifecycle

Behaviou

Data

Graph

State

Adaptive

Access

Data

Actions

iews

Remote

Actions

Query

Data

Events

Factory

ABO

[identity]

[

current state]

Enterprise

Information

Systems

Applications

Processes

Figure 1: The ABO Component Model

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

180

2.5 Remote Actions

ABOs affect the outside world via the Remote

Actions. The model uses the well-known Command

design pattern (E. Gamma et.al, 1995) to define the

Remote Actions. The model can generate the

appropriate Web Services Definition Language

(WSDL) (Christensen, E. et.al, 2001) definitions for

the command interfaces and bound the receivers to

any network accessible service during deployment.

In the business process context, such services could

include other ABOs, workflow processes and

enterprise information systems.

2.6 Views

Views present the external interface or API of the

ABO. There are 3 main components that constitute

the View.

Query. This enables the user to search for ABO

instances satisfying certain criterion. Searchable

fields include the currentState and the entire data

graph. For example, one can search for all Purchase

Orders that are in the Approved state, with a

processing priority of ‘High’ and purchase amount

‘greater than $1000’. The query returns a list of

ABO instances.

Data. This is the interface to obtain partial or the

whole data graph of a particular ABO instance.

Events. These specify the events accepted by the

ABO and the corresponding event parameters.

For human users, the screens to drive user

navigation can be automatically generated based on

the state adaptive access. Thus there will be a ‘view’

for each ABO state for each interacting business

role.

3 ABO PROGRAMMING MODEL

The ABO programming model is based on Object

Management Group’s (OMG) Model Driven

Architecture/Development (MDA/MDD) (Mukerji,

J. et.al, 2001) approaches. MDA/MDD is emerging

as an important methodology to create software

applications. The basic premise is to express the key

abstractions (the models) of the application domain

in UML and then transform these models to create

executable code for a specific platform (e.g. J2EE).

We employ the MDA principles as the basis of the

ABO programming model.

Figure 2 shows the ABO programming model in

a nutshell. We have created a UML class diagram of

the ABO component model. A detailed description

of the UML model is out of scope of this paper but

we will capture the key facets in the next section.

Rational Rose XDE Modeler (Rational XDE, 2004)

was used as the tool to create the ABO UML model.

The Eclipse Modeling Framework (EMF, 2004), is a

modeling framework and code generation facility for

building tools and other applications leveraging

Object Management Group’s MOF (Meta-Object

Facility) technologies.

From a model specification described in XMI

(XML Metadata Interchange), EMF provides tools

and runtime support to produce a set of Java classes

for the model, a set of adapter classes that enable

viewing and command-based editing of the model,

and a basic editor.

Models can be specified using annotated Java,

XML documents, or modeling tools like Rational

Rose, then imported into EMF. The EMF plug-in for

Eclipse was used to import the ABO UML model,

generate the corresponding Java classes and also

create the basic editor. The basic editor was then

augmented to make it more user-friendly. This tool

was then used to create the application specific

ABOs. The EMF tool saves the ABO model in XMI

format. We created a collection of code generation

utilities that takes the ABO XMI files and generates

appropriate platform (J2EE) specific artifacts

deployable and executable on IBM WebSphere

platform. We will cover the details of the J2EE code

generation and mapping in our next section.

4 ABOS IN ACTION

In this section we illustrate the use of ABOs in

creating a business integration solution by applying

ABO EMF

Model Editor

(Ecli

ABO EMFModel Editor

(Eclipse)

ABO UML Model

(Rational Rose)

EMF Model

(Eclipse Modeling

Framework)

J2EE Platform

(IBM Websphere)

ort

Code Generation

Platform

Independent

Platform

Specific

Figure 2: The ABO Programming Model

ADAPTIVE BUSINESS OBJECTS - A New Component Model for Business Integration

181

the ABO programming model to solve a real

customer problem.

4.1 Scenario

The business scenario involves a large Retail store

fulfilling job openings in one of its stores. The

process starts with the Store Manager selecting a job

opening to be filled. Subsequently an advertisement

is released, applications are gathered, applicants are

short-listed, interviewed and screened. Finally one

or more applicants are selected for the job.

The process requires information to be integrated

from heterogeneous sources. For example, applicant

resumes are submitted online, faxed, or mailed.

Faxed or mailed resumes are converted to an

electronic format. The resumes are then kept with

the Retail store’s content/document management

system. The background screening required for

selected applicants is done via a Web Service made

available by a federal agency. The rest of the

information is available in structured formats and

stored in relational databases.

4.2 ABO Design

Traditional analysis and design of business

processes focus exclusively on activities performed

during the business process execution, the ordering

of these activities, and the data that flows through

these activities. We postulate that the artifacts are

just as important as the activities. The artifacts

correspond to entities that are created, modified, or

destroyed as a result of the business process

execution. This artifact view of the business process

is different from the data flow model just as the

activity flow model is different from the basic action

semantics of a computer program. Both specify

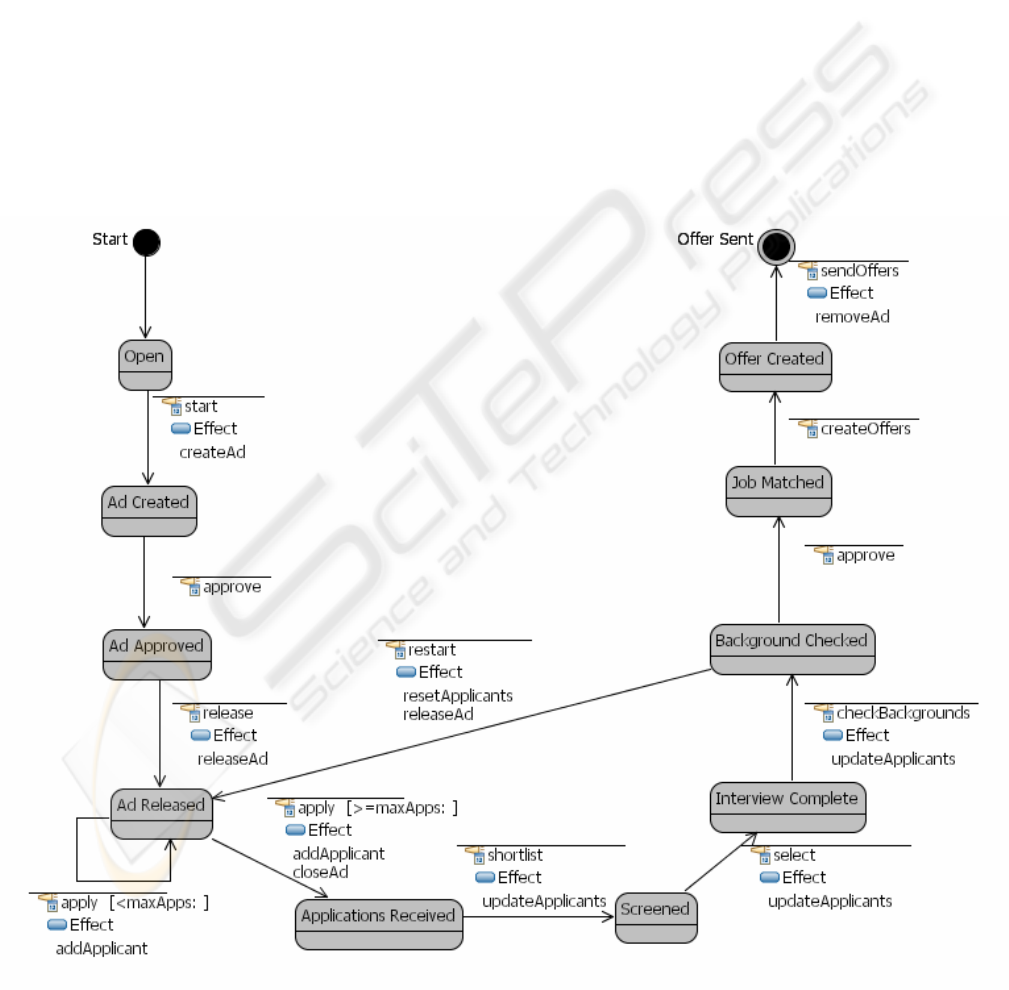

Figure 3: The Job Opening ABO State machine

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

182

meaningful constraints on a generic model such that

they can be applied to solve problems in a specific

application domain.

The artifact-centric analysis of the business

process leads to a view of the business process as a

sequence of activities used to create, manipulate, and

close a Job Opening. In other words, this business

process is really about managing the lifecycle of a

Job Opening. Thus we use an Adaptive Business

Object to model the Job Opening. This ABO brings

people, information, and applications in the context

of this business process. The business roles involved

in this process are the Store Manager, the HR

Representative and the Applicant.

4.2.1 Lifecycle and Behaviour

The Job Opening entity lifecycle is shown in Figure

3. The UML state chart is used as the design tool.

State transitions are labeled as

<Event>[Condition]/[Action]. For example, the

transition from the AdReleased state to the

ApplicationsReceived state is labeled as

Apply[>=maxApps]/addApplicant,closeAd where

Apply is the event, >=maxApps is the condition and

addApplicant, closeAd are the actions. The ABO

behavior demonstrated by this state transition

definition is as follows. When an application arrives,

the ABO state will be changed from AdReleased

state to ApplicationsReceived state and the applicant

will be added to the list of applicants if the number

of applications received so far (including the current

one) equals the maximum number specified. The

evaluation of >=maxApps condition, may be

delegated to a rules engine at runtime. The rules

engine may use the current business policies in place

to calculate the value of maxApps, the maximum

number of applications that will be received for the

job. The second action, closeAd, will initiate the

appropriate set of steps to withdraw the

advertisement, as the maximum number of

applications for the job has been reached.

4.2.2 Data and Remote Actions

The Data actions and Remote actions are indicated

in the state machine diagram as transition actions

e.g. Create Ad, Add Applicant etc. Data Actions will

be specified with the portion of the data graph that it

manipulates.

4.2.3 Data Graph

The information brokered by the Job Opening ABO

is federated among data repositories distributed

across the network. The Job Opening data graph,

shown in Figure 4, models the topology of this

information. The Job Opening ABO uses this

information to aggregate the views of the ABO on

demand. Specifically, the data graph shows that the

information needed to manage the Job Opening

process is provided by five relational stores (Job

Opening, Advertisement, Applicant, Contact,

Interview), one document store (Resume), and one

Web service (Background).

The nodes in the data graph are annotated with

the type of data store. The data graph does not

contain actual data, instead describes how data can

be aggregated from enterprise information systems,

services, and applications. For example, the

applicant resumes are stored in a document store and

the Resume node of the data graph merely holds the

relevant metadata with a field (resume doc) holding

the URI to the actual document. Thus the Job

Opening ABO data graph captures in a single logical

model the information that requires to be integrated

in the context of the process.

4.2.4 State Adaptive Access

Access for manipulating the Job Opening data graph

and/or sending events to it need to be restricted

between the three business roles at different states of

the Job Opening ABO. For example, Store Manager

and HR Rep are authorized to view the Job Opening

ABO while it is in AdCreated state. But only the HR

Rep can send the ApproveAd event.

4.3 Platform Specific Mapping

In this section we discuss the platform-specific

mapping of the ABO model to the J2EE platform.

Job

Opening

Applicant

Relati Docu

Resume

Contact

Interviewer

Background

Relati

Web

Relati

Figure 4: Job Opening ABO Data graph

ADAPTIVE BUSINESS OBJECTS - A New Component Model for Business Integration

183

This is accomplished by generating J2EE specific

code from the ABO XMI file.

Figure 5 shows the Job Opening solution running

on a J2EE platform e.g. IBM’s WebSphere

Application Server (IBM Websphere, 2004).

Each node (data group) of the Job Opening ABO

data graph maps to an Entity EJB. Appropriate

container managed relationships are generated to

indicate the relationships and their cardinalities. The

fields in the data graph become the entity EJB

attributes with some marked as key fields. The

sourceType field of each data group is mapped to the

different JCA resource adapters through which

connection and access of the heterogeneous data

stores are managed.

Client access to the “data graph” is via the Job

Opening Data Session EJB. We use an

implementation of the Service Data Object (SDO)

specifications (Beatty, J. et.al, 2003) for this

purpose. The ABO data graph is mapped to a SDO

disconnected data graph structure and read, filled,

and queried via the EJB Data mediator configured

with the Job Opening Data Session EJB. Although

the SDO architecture supports heterogeneous data

sources directly, we have preferred to implement

data graph nodes as entity EJBs backed by JCA

resource adapters (RA) primarily to take advantage

of the caching and transaction support provided by

the J2EE container. It also discards the necessity of

using diverse data mediators.

The Job Opening State Machine EJB is a

specialized implementation for state machine

support using container managed entity EJBs. The

operations/events from the ABO definition is

mapped as remote methods whereas data and remote

actions are mapped to private methods of the entity

EJB. A specialized state machine controller maps

remote method invocations to private methods based

on the current state of the EJB and the state machine

definition. Guards are also mapped to private

methods.

Lastly, the state adaptive access specifications

are used to create the portlets that bring together the

three view components – query, data and events

specific to the interacting business role player.

5 ANALYSIS

In this section, we discuss how the ABO component

model supports the requirements of adaptivity and

integration we laid out in the beginning of the paper

for the next generation enterprise solutions.

ABO model provides adaptivity at three levels:

1. There are two design points that contribute to the

adaptive behavior of an ABO at the lowest level.

Job Opening UI

(Portlets)

Job Opening

Data Session EJB

(

EJB Data Mediator

)

Job Opening

State machine

Entit

EJB

State

Machine

Applicant

Entity

Contact

Entity

EJB

Interview

Entity

EJB

Bkground

Entity

EJB

Advertise-

ment

Entity

Job

Opening

Entity EJB

Resume

Entity EJB

JDBC RA JDBC RA JDBC RA JDBC RA JDBC RA

Web Svc

Content

Mgr RA

RDBMS

Document

Manager

Federal

Web Svc

Data

Graph

Data

Graph

Read

Fill

Data

Actions

Figure 5: Job Opening Solution on the J2EE Platform

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

184

First, the use of command design pattern for

remote and data action invocations as part of

state transitions leads to dynamic service binding

and provides flexibility in the way an ABO

effects the environment in response to the

processing of an event. An example of this is the

“Release Ad” action of the Job Opening ABO.

The actual releasing of an advertisement could

change based on the business policies and

business environment. The command design

pattern enables the dynamic binding of an

appropriate release mechanism with the Release

Ad action at runtime. Second design point is the

use of a rule engine for condition evaluation. The

result from the condition evaluation is used to

determine which transition to take when an event

is received. By externalizing this to a rule

engine, it becomes possible to make this decision

based on business logic brought in play

dynamically at runtime.

2. The definition of the ABO behavior using a

formal computational model coupled with our

use of Model Driven Architecture as the basis of

the ABO programming model facilitate

adaptivity at the second level. The ability to

externalize the behavior via a formal model and

the ability to create runtime artifacts that

implement the behavior via automated code

generation lead to adaptive components. The

externalized models may be manipulated

programmatically or by human involvement. For

example, the Job Opening process may be

streamlined by triggering the screening process

as soon as an application is received. This

change can be easily implemented by changing

the state machine definition of the Job Opening

ABO using an n appropriate tool and

regenerating the runtime artifacts.

3. We envision the next generation enterprise

integration solutions to be made up of collections

of communicating ABO instances. The

emergent behavior of such a system is

determined by the behaviors of the participating

ABOs. System behavior may be changed by

adding a new ABO to the system and modifying

the behaviors of the existing ABOs. For

example, the Job Opening system with just one

type of ABO could be easily augmented to

include "offshoring" by creating an “Offshoring

Opportunity” ABO. The net result will be to

check for opportunities to offshore whenever a

job opening is created.

ABO model achieves seamless integration of people,

processes, information, and applications by having a

simple computational model that subsumes all these

facets of a business integration solution. Below we

describe how these facets are effortlessly captured in

the ABO computational model.

1. The views are the mechanisms by which people

are integrated with the system. The views

provide context-sensitive, role-based access to

the information brokered by the ABO.

Additionally, views also provide a mechanism to

send business events to the ABO.

2. The key to business process integration is the

explicit definition and management of the state

of the ABO. Essentially, a business process

results from the tracing of the states of the ABO

as it processes business events. People are easily

integrated with the business processes since the

views serve as the conduit of the business events

originating from people.

3. The data actions fired as part of state transitions

and the data graph these actions use to

dynamically aggregate information from

federated data repositories are the facets of ABO

that facilitate information integration. People,

processes, and information meld together as a

business event originates due to user interaction

with an ABO View, this event triggers a state

transition, this transition invokes a data action

with an appropriate data graph as an argument,

and his action returns with aggregated data that

is delivered via the modifications to the View.

ABO provides a simple component model such

that instances of ABO exhibits this integrated

behaviour at runtime. Application integration

with processes, people, and information is

achieved by invoking Remote actions as part of

state transitions.

In traditional workflow systems, data integrity

poses a big challenge as the complexity of the

workflow starts to grow. The ABO approach could

augment this process and provide encapsulated

artifacts to manage and mitigate this risk.

Encapsulated, state adaptive artifacts, like ‘an order’,

‘a customer service request’, ‘the job opening’ etc.,

ensure data integrity by allowing access to the

contained data if and only if the current state allows

it.

Designing business process applications around

a set of key business artifacts provides a nice

factoring of concerns and enables a way to ‘break’

and broker workflows. The ABO encapsulates what

needs to be done (via the events it can accept in that

state), while the workflows specify how to achieve it

(launched via transition actions). A process thus

designed can scale to an arbitrary limit in terms of

its complexity. Analogies can be drawn between

object orientated programming and procedural

programming. Workflow based languages (like

BPEL4WS (Andrews, T. et.al, 2003) ) provide a

“procedural” semantics to business process

ADAPTIVE BUSINESS OBJECTS - A New Component Model for Business Integration

185

modeling, whereas the artifact-centric modeling in

ABO’s augments ‘procedural’ descriptions with the

power of object-oriented paradigms. Additionally,

time tested object-oriented design patterns can more

naturally be applied to design complex, adaptive

business processes and systems.

6 REAL LIFE VALIDATION

In Section 4, we described a relatively simple

business application to illustrate the ABO concepts

and programming model. However, we have

successfully applied the ABO design principles,

tools, patterns and techniques to real world customer

problems. Below is a partial list with brief

descriptions about the business problem and the

ABO design choices.

The first customer provides IT outsourcing

services to Small and Medium Businesses. The end

to end business processes cover SOW, Quote, Order,

Installation, Invoicing, Parts management and

Supplier management. The process was designed

with 8 communicating ABOs,

Customer, is used to manage customer related

data and their business status – live, inactive etc.

Engagement, is a primary artifact that provides a

container for the master contract – the components

required for each site, the tasks and work breakdown

structures assigned to the individual service

providers and parts needed for each task. This ABO

also interfaces with a content management system

that stores the electronic copy of the master contract.

Parts Catalog, manages the parts data.

Schedule, is the other primary artifact that

handles the execution of the order from its inception

till installation is completed at every site. Its

lifecycle models problem resolution, coordinating

amongst the different tasks, supporting customer and

vendor interactions and ensuring the timeliness of

the order execution. Some of the lifecycle states are,

Pending, Plan, InInstallStart, Live, Exception,

InResolution, CustomerAccepted, Complete etc.

Services Catalog, manages the service provider

(vendor) data and the services they provide.

Site Profile manages information about the

installation sites.

Statement of Work (SOW), the live document

transacted between with the customer to negotiation

and settle on the cost, schedules and milestones.

Task, a primary artifact that manages the

execution of a single task. It communicates with the

Schedule ABO at different points in its lifecycle to

resolve problems and at the end signaling its

completion. Some of the lifecycle states are Live,

Rejected, Accepted, Reschedule, Exception,

Completed etc.

The second customer is a premier Auto Services

& Retail shop. The business process involves

managing their Service Work Order process from

appointment handling and scheduling, handling car

drop-offs, pricing, technician assignment and real

time line item level execution visibility. There

system is implemented around two main ABOs,

Service Transaction, manages the overall service

work order lifecycle and coordinates with individual

line item execution. Some of the lifecycle states are,

AppointmentScheduled, AppointmentConfirmed,

DroppedOff, Estimated, Purged, Hold,

ReadyForWork, Working, Complete,

ReadyForPickup, Delivered etc.

Line Item, manages the execution of a line item

from technician assignments, parts procurement,

customer authorization and relays status information

back to the Service Transaction as appropriate.

Some of the lifecycle states are,

HoldForAuhthorization, Unassigned, HoldForParts,

Assigned, Void, Working, Completed etc.

The third customer is one of the top Telecom

services providers. The business process provides

end to end Order Provisioning from Sales Support,

Ordering, Field Ops and Post Install. The Ordering

process has been implemented so far and consists of

4 ABOs,

Order, is the primary artifact and coordinates

amongst a number of workflows that do approvals,

site surveys and reviews. It moves into a

Provisioning state by creating and launching the

children ABOs and coordinates the concurrent

processing of individual parts of the Order. The

Order moves out of the Provisioning state when the

last of the order items have been provisioned. An

interesting use case is how the Order ABO reacts

appropriately to handle cancellation requests at

various stages of the provisioning process.

DSL, provisions the DSL service.

Long Distance, provisions the Long Distance

part of the provisioning. It has a dependency on

Local being provisioned first.

Local, provisions the Local service

7 RELATED WORK

This work builds on our earlier work on Adaptive

Documents (ADocs) (Nandi, P. et.al 2003). In

ADocs we proposed a programming model for

"business artifacts" that display state-dependent

behavior and its usefulness in implementing

complex business processes. The primary focus of

that work was to show the collaborative aspect of the

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

186

ADoc in its ability to facilitate collaboration

amongst a set of agents (human or software) to

execute activities as units of collaboration. We

demonstrated this with a real world business

example where activities were generated by

workflows. In ABOs we propose a formal

component model that maintains the collaborative

and state-dependent behavioral aspects of ADocs,

but extends it for information integration. We also

assert that ABOs provide a semantically complete

Model-View-Controller (MVC) programming model

in a single holistic component model.

There is significant amount of work in using

state charts as the basis of modeling the

accessibility, lifecycle and behavior of objects

including the well-known State pattern (E. Gamma

et.al, 1995). Some notable examples are its use for

interface sequencing (Whaley, J. et.al, 2002), service

composition (Jeng, J. et.al., 2000), communication

protocols (Hanson, J. et.al, 2002), as controllers in

MVC implementations, reactive and real-time

systems (Harel, D et.al, 1998). The ABO component

model draws from and builds on all such prior work.

Interface sequencing is the ability of an ABO

component to enforce constraints on the sequence in

which it accept events via its application interfaces.

Service composition is the ability of an ABO

component to choreograph various backend services

via actions on state transitions. ABOs may

participate in dynamic, stateful, multi-party

conversations by using remote actions for sending

messages, views for receiving messages, with the

messaging functionality delegated to the action

implementers. ABO composition supports protocol

nesting.

(Mukherjee, J. et.al, 2001) used state charts to

model video data. The video objects in the video

stream were partitioned into meaningful segments

by state charts according to the object properties and

their transitions. The database indexes were based

on the states assigned to a group of objects rather

than the objects themselves. If we use the ABO

model to solve this problem, the heterogeneous

content is aggregated based on relevant metadata

and retrieval and access is dynamically assigned

based on the state of ABO and the role of the

requester.

State machines are in common use to specify the

“system contracts” in most component models viz.

COM, CORBA, EJB etc. (Smith, R., 2001). These

system contracts describe persistence and

transactions policies required of the component

containers. The ABO component model can be

mapped to an implementation framework and we

have demonstrated one such mapping to J2EE. One

way to think about the use of state machines in the

ABO model is to prescribe the “application

contracts”. Note that when we map the ABO model

to the J2EE model, these application contracts are

implemented on the system contracts of the EJB

container.

8 CONCLUSION

We argue that new software technologies and

methodologies are needed to meet the demands of

the next generation enterprise solutions. The primary

characteristics of these solutions are adaptability and

seamless integration of people, processes,

information, and applications. In this paper, we

presented a new component model called Adaptive

Business Object (ABO) and a programming model

for ABOs based on Model Driven Architecture to

create adaptive business solutions that integrate

people, processes, information, and applications.

ACKNOWLEDGEMENT

The authors wish to acknowledge the constructive

feedback and critique provided by Nathan Caswell,

Terry Heath, Robert Guttman, Fred Wu, Kumar

Bhaskaran, Kamal Bhattacharya, Shubir Kapoor and

David Cohn at IBM Research. They would also like

to thank Mike Conner, Manish Modh and Eoin Lane

of IBM’s Software Group, for their enterprising

efforts in applying the ABO model successfully to

real life customer problems. Special thanks go to

Chang Shu, who designed and developed the code

generation utilities to map ABO models to IBM’s

Websphere platform and made this effort a reality.

REFERENCES

Mealy, 1955, George H. Mealy, A method for synthesizing

sequential circuits, Bell System Technical Journal,

34(5):1045-1079, 1955.

E. Gamma et.al, 1995, “Design Patterns – Elements of

Reusable Object Oriented Software,” Addison-Wesley

Publishing Company, NY, 1995.

Mukerji, J. et.al, 2001, Model Driven Architecture,

http://www.omg.org/cgi-bin/doc?omg/03-06-01

Rational XDE, 2004, Rational Rose XDE Modeler,

http://www-

306.ibm.com/software/awdtools/developer/modeler/

EMF, 2004, Eclipse Modeling Framework ,

http://www.eclipse.org/emf/

IBM WebSphere, 2004, Websphere Application Server,

http://www-

306.ibm.com/software/webservers/appserv/was/

ADAPTIVE BUSINESS OBJECTS - A New Component Model for Business Integration

187

Beatty, J. et.al, 2003, Service Data Objects,

ftp://www6.software.ibm.com/software/developer/libr

ary/j-commonj-sdowmt/Commonj-SDO-Specification-

v1.0.pdf

Nandi, P. et.al 2003, ADoc-Oriented Programming, The

2003 International Symposium on Applications and

the Internet (SAINT'2003, Jan 27-31, 2003, Orlando,

Florida, USA)

Smith, R., 2001, The Screw Analogy.(Industry Trend Or

Event), Smith, Roger - Software Development, v9 n3

March, 2001 / p7

Whaley, J. et.al, 2002, Automatic extraction of object-

oriented component interfaces, International

Symposium on Software Testing and Analysis.

Proceedings of the ACM SIGSOFT 2002 International

Symposium on Software Testing and Analysis 2002 p

221-231

Jeng, J. et.al., 2000, Designing an FSM architectural

framework for service-based applications, IEEE

Computer Society's International Computer Software

and Applications Conference 2000. IEEE, Los

Alamitos, CA, USA,00CB37156. p 234-239

Park, J. et.al. 1997, Compositional approach for designing

multifunction time-dependent protocols, Proceedings

of the 1997 International Conference on Network

Protocols International Conference on Network

Protocols 1997. IEEE Comp Soc, Los Alamitos, CA,

USA,97TB100174. p 105-112

Hanson, J. et.al, 2002, Conversation Support for Business

Process Integration, The 6th International Enterprise

Distributed Object Computing (EDOC'02 - Sep 17-20,

2002, Ecole Polytechnic, Switzerland)

Hanson, J. et.al, 2002, Conversation-enabled Web

Services for Agents and e-Business, The 3rd

International Conference on Internet Computing

(IC'02 - June 24-27, 2002, Las Vegas, Nevada, USA)

Mukherjee, J. et.al, 2001, State chart based approach for

modeling video of dynamic objects, Proceedings of

SPIE - The International Society for Optical

Engineering v.4520 2001 p.74-83

Sanden, Bo I. 2000, Implementation of state machines

with tasks and protected objects, Ada User Journal v

20 n 4 2000. p 273-288

Harel, D et.al, 1998, The Statemate Approach: Modeling

Reactive Systems with Statecharts. Harel, D., Politi,

M., McGraw-Hill, 1998.

Christensen, E. et.al, 2001, Web Services Definition

Language (WSDL), http://www.w3.org/TR/wsdl

Andrews, T. et.al, 2003, Business Process Execution

Language for Web Services (BPEL4WS), http://www-

106.ibm.com/developerworks/library/ws-bpel/

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

188
