A FRAMEWORK FOR PARALLEL QUERY PROCESSING ON

GRID-BASED ARCHITECTURE

Khin Mar Soe, Than Nwe Aung, Aye Aye Nwe

University of Computer Studies, Yangon, Myanmar

Thinn Thu Naing, Nilar Thein

University of Computer Studies, Yangon, Myanmar

Keywords: Grid computing, parallel query processing, distributed query processing, query optimization, dynamic

programming.

Abstract: With relations growing larger, distributed, and queries becoming more complex, parallel query processing is

an increasingly attractive option for improving the performance of database systems. Distributed and

parallel query processing has been widely used in data intensive applications where data of relevance to

users are stored at multiple locations. In this paper, we propose a three-tier middleware system for

optimizing and processing of distributed queries in parallel on Cluster Grid architecture. The main

contribution of this paper is providing transparent and integrated access to distributed heterogeneous data

resources, getting performance improvements of implicit parallelism by extending technologies from

parallel databases. We also proposed the dynamic programming algorithm for query optimization and site

selection algorithm for resource balancing. An example query for employee databases is used throughout

the paper to show the benefits of the system.

1 INTRODUCTION

Today, both commercial and scientific applications

increasingly require access to distributed resources.

Where there is more than one database supported

within a distributed environment, it is

straightforward to envisage higher-level services that

assist users in making use of several databases

within a single application. The Grid is an ideal

environment for running applications that need

extensive computational and storage resources

(Oldfield, R., Kotz, D., 2001). Grid technologies

facilitate efficient sharing of data and resources in a

heterogeneous distributed environment. The need to

reduce response time is evident in decision support

applications in which human beings pose complex

queries and demand interactive responses.

There are perhaps two principal functionalities

associated with distributed database

access and use.

They are distributed transaction management and

distributed query processing (Smith, J., Gounaris,

A., Watson, P., Norman W., Alvaro A.A.,

Sakellariou, R., 2003). This paper is concerned with

parallel query processing on the Grid which

describes a prototype infrastructure for supporting

parallel query optimization and evaluation within a

Grid setting. In Grid environment, finding the

answer of a user query will require translating it into

internal representations, structuring optimal query,

splitting it into parts, retrieving the answers of these

parts from remote nodes, and merging the results

together to calculate the answer of the initial query.

This paper presents an approach to parallel query

ocessing on Grid system. Query scheduling

including processor allocation and optimization that

support intra and inter-query parallelism for read-

only queries are discussed. The remainder of this

paper is organized as follows.

In Section 2, we briefly describe the related work

parallel execution of queries in a Grid

environment. In Section 3, we present some

background theories about parallel query processing.

In Section 4, we present our design of the system.

We conclude our system in Section 5.

203

Mar K., Nwe Aung T., Aye Nwe A., Thu Naing T. and Thein N. (2005).

A FRAMEWORK FOR PARALLEL QUERY PROCESSING ON GRID-BASED ARCHITECTURE.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 203-208

DOI: 10.5220/0002555202030208

 SciTePress

2 RELATED WORK

As stated in (Andrade, H., Kurc, T., Sussman, A.,

and Saltz, J., 2001)( Beynon, M. D., Sussman, A.,

Catalyurek, U.,. Kurc, T., and Saltz, J., 2001)( Dail,

H., Sievert, O., Berman, F., Casanova, H., YarKhan,

A., Vadhiyar, S., Dongarra, J., Liu, C., Yang, L.,

Angulo, D., Foster. I., 2003), several research

projects have been developed distributed data

management over the Grid. The Active Proxy-G

service (Alpdemir, N., Mukherjee, A., Paton, N. W.,

Watson, P., Fernandes, A. A. A., Gounaris, A.. and

J. Smith., 2003) is dedicated to be able to cache

query results, use these results for the parts of a

query that cannot be produced from the cache, and

submit the sub-queries for final processing at

application servers that store the raw data sets.

(Rodr´ guez-Mart´ nez, M., Roussopoulos., N.,

2000) proposed a database middleware (MOCHA)

which is designed to interconnect distributed data

sources.

Many types of environments for executing grid-

aware app

lications can be found in the literature.

(Gounaris, A., Norman W., Alvaro A.A.,

Sakellariou, R.)(Tierney, B., Johnston, W., Lee, J.,

Hoo, G., Thompson, M). In distributed database

systems, there is an infrastructure that supports the

deliberate distribution of a database with some

measure of central. In federated database systems,

we can see the systems that allow multiple

autonomous databases to be integrated for use within

an application, and in query-based middleware, there

is a query language that is used as the programming

mechanism for expressing requests over multiple

wrapped data sources. This paper is most closely

related to the third category, in that we consider the

use of parallel query processing for integrating

various Grid resources, including database systems.

3 PARALLEL QUERY

PROCESSING

Parallel query processing is a well established

mechanism in relational DBMS. The objective of

parallel query processing is to translate a high-level

query into an efficient low-level execution plan and

allocate processors to each operation in such a way

that the overall query execution time is minimized.

(Kossmann, D., 1998)( Lu, H., Shan, M-C., Tan, K-

L., 1991)( DeWitt, D.J., Gray, J., 1992)

3.1 Types of Parallelism

As pointed out in (Kossmann, D., 1998), the

methods for exploiting parallelism in a database

environment can be divided into three categories:

namely intra-operator, inter-operator(intra-query),

and inter-query parallelism. In intra-operator

parallelism, the major issue is task creation and the

objective is to split an operation into tasks in a

manner such that the load can be spread evenly

across a given number of processors. The second

form of parallelism is termed inter-operator

parallelism, meaning that several operators within a

query can be executed in parallel. This can be

achieved either through parallel execution of

independent operations or through pipelining

Thirdly, parallelism can be achieved by executing

multiple queries simultaneously within a

multiprocessor system. This is termed inter-query

parallelism. (Turek, J., Philip, S., Chan, M.S., Wolf,

J.L)

3.2 Exploiting Resources

There are many alternative approaches for the

queries to execute at the client machine at which the

query was initiated or at the server machines that

store the relevant data. These are query shipping,

which is executing the query at the server side, data

shipping, which is executing the query at the client,

and hybrid shipping, which is the combination of

above two.

Another important class of system in which

que

ries run over data that is distributed over a

number of physical resources is parallel databases.

Parallel databases are now a mature technology, and

experience shows that parallel query processing

techniques are able to provide cost-effective

scalability for data-intensive applications. The

purpose of a parallel database system is to improve

transaction and query response times, and the

availability of the system for centralized

applications.

4 ARCHITECTURE

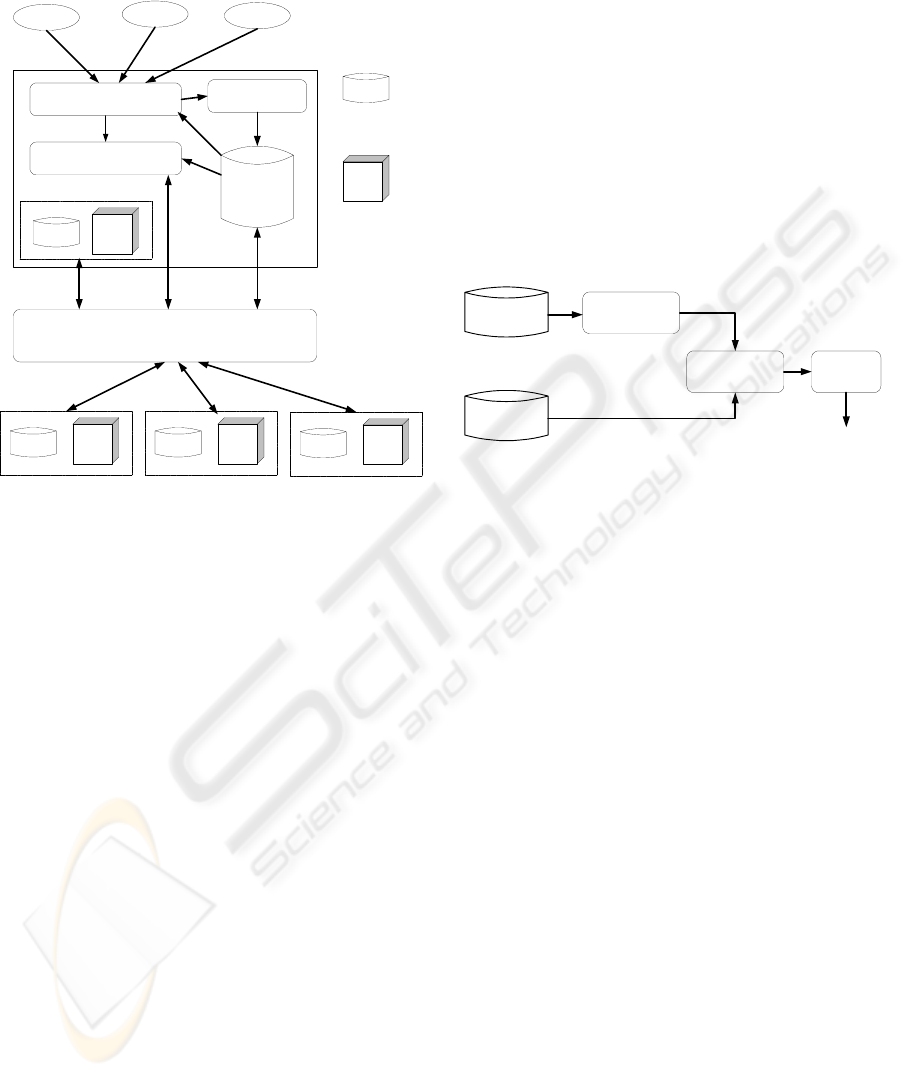

The proposed design of the system is shown in

figure 1. The system implements a multi-threaded

runtime environment in order to simultaneously

handle queries submitted by multiple users, and also

to manage multiple connections with application

servers. The system also performs resource

balancing between multiple application servers using

a replication model that employs statistics that

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

204

depend on the current and past workload of an

application server.

Query

Compiler

Query

Metadata

Administrator

Query Manager

Grid Data

Resources

Grid

Computational

Resources

Cluster Grid

Local Node

Node A Node B Node C

Query

Figure 1: The design of the system

The pseudo-code like representation of the

parallel query processing structure is as follows:

Input : User Query

Output : Result of Query

Let I be Input Query

Let O be the set of Query Output

Let R be the result to be output

Let M be Query Meta-information

Let T be the Internal Representation of Query

Let S be the set of sub-Query

Let C

be the client to execute the sub-Query S

Let P be the Optimal Query plan

Accept I; // input Query

O Å Null;

R Å Null;

T Å Null;

T Å Translate(I, M); // map user-defined query

to internal representation

P Å OptimizeQuery(T); // generate an

optimal plan

{S}Å SiteSelection(P); // Processor Allocation

for ∀ S

in {S} do

{C}

Å Ship-Query (S

) // sent sub-

Query to selected node

for ∀ C

in {C}do in parallel

{O}Å ExecuteQuery(S

);

for ∀ O

in {O} do

R Å R ∪ (O

); // Combine partial

results from each node

A representative query over employee databases

is used as a running example throughout the paper.

The query accesses the two employee databases on

different data nodes as follows:

SELECT e.name, budget(e.salary)

FROM Emp e, Dept d

WHERE e.salary > 100,000 AND

e.work-id = d.dno;

In the query, e and d are two different table

views from two databases. Before submitting the

query, a global database schema has been

constructed to describe and combine the views of the

participating databases along with the budget

program. The following figure shows the sample

evaluation of this query.

Employee

filter-

item=100,000

join on work id,

dno

budget

Result

Figure 2: Executing the sample query

We now describe the major components of the

system.

MDS (Metadata Directory Service):

The directory service in our system maintains all

the information needed in order to parse, rewrite,

and optimize a query. It stores the schema of the

database (i.e., definitions of fields, tables, databases,

link, integrity constraints, etc.) and the partitioning

schema (i.e., information about what tables have

been partitioned and how they can be reconstructed).

It also maintains the physical information such as

the location of copies of tables (replicas),

information about data nodes and process nodes.

User Query Translation:

The query compiler in our system has

responsibility for generating internal representations

for Structured Query Language (SQL) which may

access data and operation on many nodes. It uses

concept-based approach to translate the requests of

the user query. This approach hides heterogeneity

for user. It also takes care of data format, and map

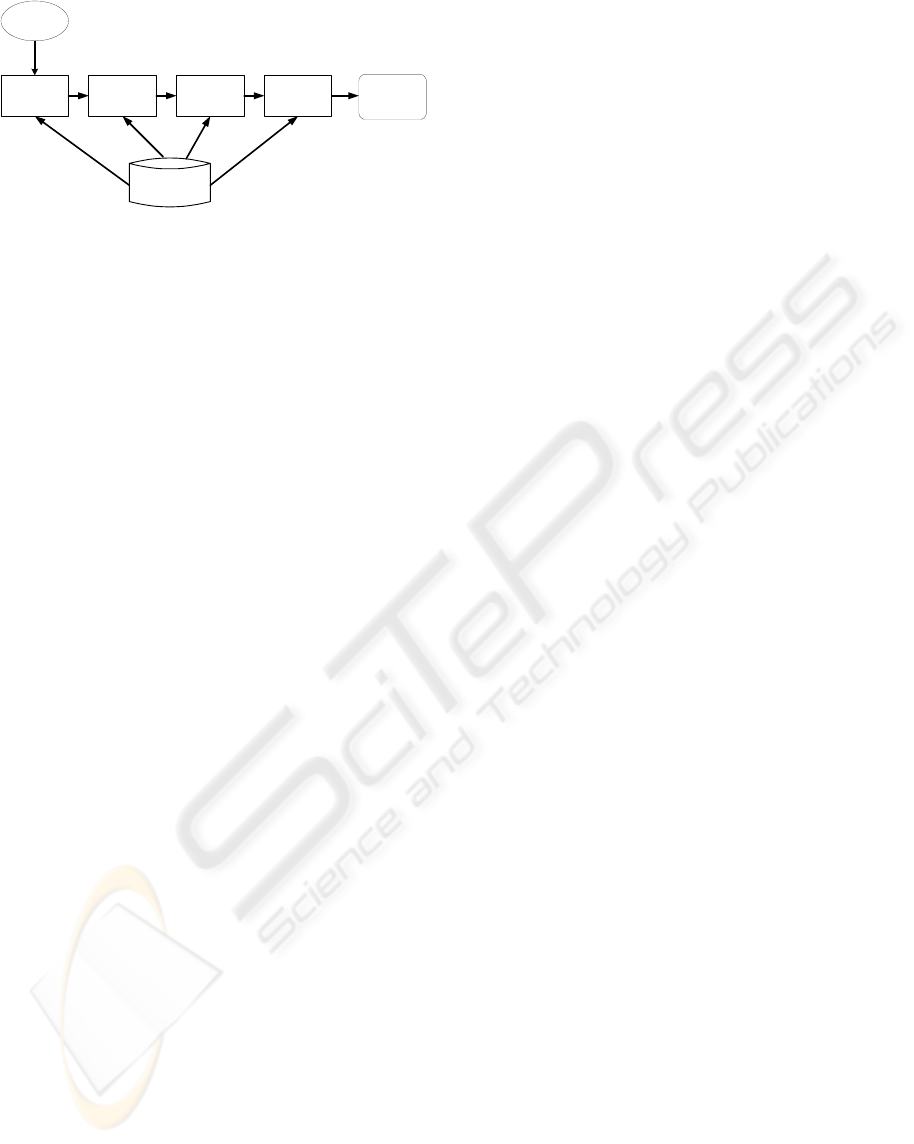

from local to global schema. Figure 3 shows the

compiler of our system.

A FRAMEWORK FOR PARALLEL QUERY PROCESSING ON GRID-BASED ARCHITECTURE

205

Parser

Metadata

User

Query

Optimizer

Query

Partitioner

Scheduler

Query

Execution

Figure 3: Compiler for Parallel Query Processing

Query Optimization:

Due to advances in network technology, modern

distributed systems can become very large and

complex. With the advent of automated tools for

data analysis and decision support systems, complex

queries are becoming common. In order to produce

results in minimum response time, query execution

needs to be optimized. (Ganguly, S., Hasan, W.,

Krishnamurthy, R)( Smith, J., Gounaris, A., Watson,

P., Norman W., Alvaro A.A., Sakellariou, R., 2003)(

Lu, H., Shan, M-C., Tan, K-L., 1991)

The query optimizer in our system transforms

internal requirements from translator into a

structured query (SQL) depending on the physical

state of the system in order to carry out by the

execution state. To do this, it follows the two-step

optimization paradigm, which is popular for both

parallel and distributed database systems. In the first

phase, the single node optimizer produces a query

plan as if it was to run on one processor. In the

second phase, the sequential query plan is divided

into several partitions or sub-plans which are

allocated machine resources by the scheduler.

One of our objectives of the optimization is to

better balance resource utilization. In inter-query

parallelism, decisions have to be made on allocating

the available processors among a number of

competing database operations running in parallel

and the overall objective is to minimize the query

response time. So, the partitioner and scheduler

perform the site selection process based on resource

balancing policy. In our system, we propose the

siteSelection algorithm is as follows:

Input : A set of Relations R

, …, R

Output: A set of available sites allocated balanced

Let S be the set of available sites

Let S

be the set of sites for Relation i

Let site

be the site (resource) for relation i

1: for i=1 to N do

2: { S

Å Null;

3: {S

} Å Search_Available_Sites(R

);

4: if |S

| = Null then

5: {Si} Å Find_Minimum_Resource_Site(R

);

6: if |S

|>1 then

7: { site

Å Select_Best_Site({S

});

8: {S} Å {S} ∪ site

i ;

9: update (site

); /* to be located */

10: }

11: else

12: {

13: {S} Å {S} ∪ {S

}

;

14: update (S

); /* to be located */

15: }

16: }

The algorithm works one time for each relation.

First, it finds the sites that contains relation i. Since

there are many copies (replicas) of the table, there

will be many sites that match relation i. However, in

order to make resource-usage balancing, the method

Search_Available_Sites in our system finds only the

available sites (i.e the site which doesn’t use the

table i at that time).

If there is no available site i, the method

Find_Minimum_Resource_Site finds a site that has

relation i currently in use but a few other relations

taken. In other case, if there are many available sites

for i, we further choose the best (i.e most

appropriate) table for relation i. Otherwise, we can

use the only one site for i. Then we add this site to

the set S and update the site to be located. (i.e not

available for next relation i)

The basic algorithm for query optimization is

Dynamic Programming as follows.

Input: SPJ query q on relations R

,…,R

,n<= N

Output: A query plan for q

1: for i = 1 to n do {

2: optPlan({Ri}) = accessPlans(Ri )

3: prunePlans(optPlan({Ri}))

4: }

5: for i = 2 to n do {

6: for all S ⊂ {R

, … , R

} such that |S| = i

do {

7: optPlan(S) = null;

8: for all O ⊂ S do {

9: optPlan(S) = optPlan(S) ∪

joinPlans(optPlan(O) , optPlan(S - O))

10: prunePlans(optPlan(S))

11: }

12: }

13: }

14: finalizePlans(optPlan({R

,….,R

}))

15: prunePlans(optPlan({R

,….,R

}))

16: return optPlan({R

,…., R

})

The algorithm works in a bottom-up way as

follows. First, dynamic programming generates so-

called access plans for every table involved in the

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

206

query (Lines 1 to 4 in Figure 8). In the second phase

(Lines 5 to 14 in Figure 8), dynamic programming

considers all possible ways to join the tables. First, it

considers all two-way join plans by using the access

plans of the tables as building blocks and calling the

joinPlans function to build a join plan from these

building blocks. In the same way, dynamic

programming continues to produce five-way, six-

way join plans and so on up to n-way join plans. In

the third phase (Lines 14 and 15), the n-way join

plans are managed by the finalizePlans function so

that they become complete plans for the query.

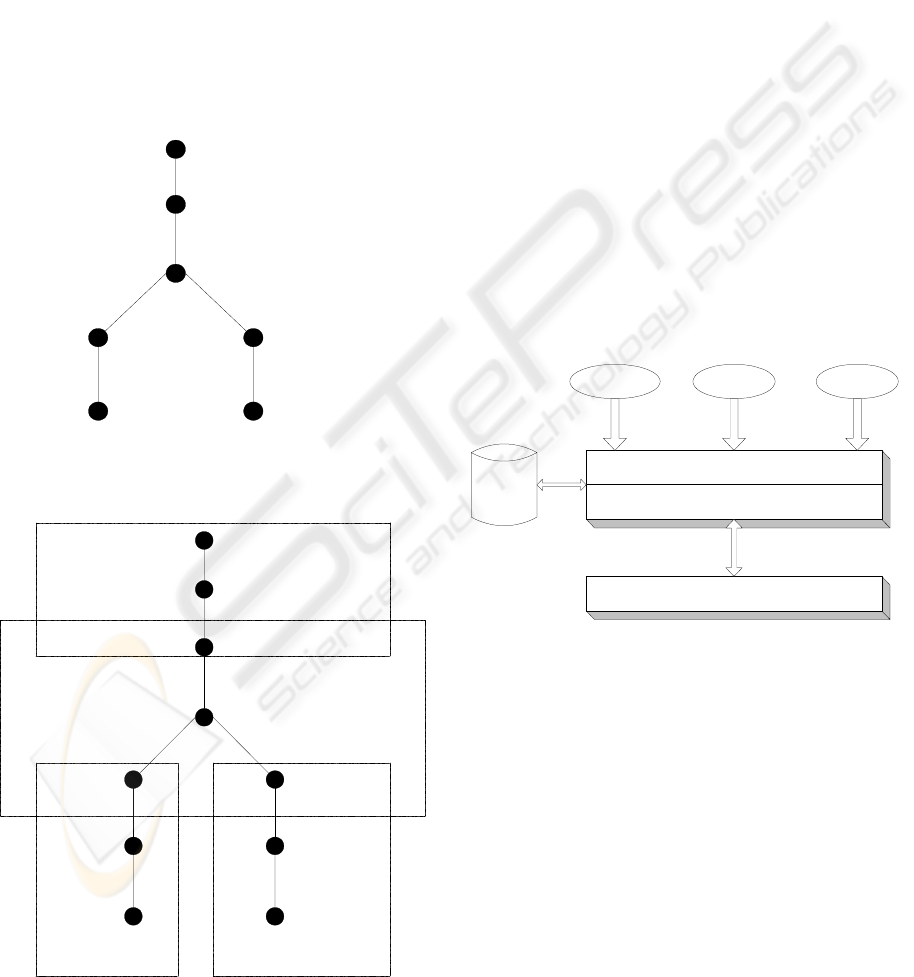

The figure 9 show the single node logical plan

after compilation and the figure 10 shows multi-

node physical plan after partitioning and scheduling

resources.

scan e

scan d

(salary > 100,000)

reduce

(work-id)

reduce

(dno)

function call

(budget(e.salary))

reduce

(e.name, budget)

join

(e.work-id=d.dno)

Figure 4: Single node plan

scan e

scan d

(salary > 100,000)

reduce

(work-id)

reduce

(dno)

function call

(budget(e.salary))

reduce

(e.name, budget)

join

(e.work-id=d.dno)

exchange

exchangeexchange

Figure 5: Multiple-node physical plan

Query Execution:

Our system is focused to run on a cluster grid

including resources such as PCs, workstations

connected by high performance networks/switches

(i.e, Gigabytes, Ethernet and Myrinet), running on

heterogeneous operating systems (i.e Windows,

Linux). In our system, we use Multi-Thread

Execution in which the decomposed and optimized

sub-queries are processed as each thread by the

servers in parallel. In execution queries, sometime

we use Data Shipping, but in many cases, we use

Query Shipping by acting a client as a gateway to

make inter-site joins. The final query result is

composed by joining the results of these sub-queries

by the client. The Multi-Threaded model can support

a high degree of parallelism. In this model, each

thread implements an interface comprising three

operations: send(), execute() and receive(). These

operations form the glue between the operations of a

query plan. The send and receive calls issued at the

MPI level in non-blocking synchronous mode, are

managed by multiple user level threads encapsulated

in the exchange operation. A parallel query can be

run as a parallel MPI program over a collection of

wide area distributed machines.

sub query

Execution

Threads Communication

MPI

data

Figure 6: Phases of query execution

The above figure shows the main phases of

query execution. The evaluator receives a set of sub

queries from the query compiler. First, the sub

queries are sent to the Grid nodes through the

network and, secondly, they are installed on them

via the MPI interface. The next phase involves the

execution of the operators comprising the query plan

as separated threads. This operator execution may in

turn lead to the moving of data between nodes, using

a flow-controlled communications infrastructure

which itself uses the MPI interface.

A FRAMEWORK FOR PARALLEL QUERY PROCESSING ON GRID-BASED ARCHITECTURE

207

5 CONCLUSION

The main goal of this work is to design and

implement the framework for supporting data

analysis applications in the context of highly

distributed environments, such as the computational

Grid. Our system concentrates the workload of

multiple clients in such a way that it is able to

leverage its own computational ability to based on

resource balancing capability. This approach results

in faster query responses, decreased use of network

resources, decreased utilization of possibly remote-

located application servers, and effectively better

utilization of available resources by partitioning and

concurrently executing sub-queries.

REFERENCES

Alpdemir, N., Mukherjee, A., Paton, N. W., Watson, P.,

Fernandes, A. A. A., Gounaris, A.. and J. Smith., 2003.

Service based distributed querying on the grid. In Proc.

of ICSOC, pages 467–482.

Andrade, H., Kurc, T., Sussman, A., and Saltz, J., 2001.

Effic

ient execution of multiple workloads in data

analysis applications. In Proceedings of the 2001

ACM/IEEE SupercomputingConference, Denver, CO.

Beynon, M. D., Sussman, A., Catalyurek, U.,. Kurc, T.,

and Saltz, J., 20

01. Performance optimization for data

intensive grid applications. In Proceedings of the Third

Annual International Workshop on Active Middleware

Services (AMS2001), pages 97–105. IEEE Computer

Society Press.

Bouganim, L., Florescu, D., Valduriez, P., 1996. Dy

namic

Load Balancing in Hierarchical Parallel Database

Systems. In Proc. of the Int. Conf. on Very Large Data

Bases (VLDB), Mumbai (Bombay), India.

Dail, H., Sievert, O., Berman, F., Casanov

a, H., YarKhan,

A., Vadhiyar, S., Dongarra, J., Liu, C., Yang, L.,

Angulo, D., Foster. I., 2003. Scheduling in the grid

application development software project. In Grid

resource management: state of the art and future

trends. Kluwer Academic Publishers Group.

DeWitt, D.J., Gray, J., 1992. Paral

lel Database Systems:

The Future of High Performance Database Systems,

Communication of the ACM, Volume 35.

Ganguly, S., Hasan, W., Krishnamurth

y, R.. "Query

Optimization for Parallel Execution", ACM SIGMOD

6/92 California, USA.

Gounaris, A., Norman W., Alvaro A.A., Sak

ellariou, R.

“Resource Scheduling for Parallel Query Processing on

Computational Grid”, University of Manachester,

Oxford Road, Manchester M139PL, UK

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

208
