AN APPLICATION TO INTEGRATE RELATIONAL AND XML

DATA SOURCES

Ana Mª Fermoso García, Roberto Berjón Gallinas

Computer Science Faculty, Pontificia University of Salamanca, C/ Compañía, 5, 37002 Salamanca (Spain)

Mª José Gil Larrea

Engineering Faculty (ESIDE), Deusto University, Avda. Universidades 24, 48014 Bilbao (Spain)

Keywords: Relational databases, XML, data integration, heterogeneous data sources.

Abstract: Nowadays, special with the Internet explosion, enterprises hav

e to work with data from heterogeneous

sources, such as data from conventional databases, or from new sources of Internet world like XML or

HTML documents. Organizations have to work with these different data sources at the same time, so, it’s

necessary to find some way to integrate this heterogeneous information.In this paper we are going to centre

in two main types of data, conventional data from relational databases, and the new web data format XML.

Traditional relational database continues being the main data store and XML has become the main format to

exchange and representation data on the web. At the end our purpose would be that the necessary data in

each moment were in the same and common format, in XML, because this is the most used format on the

web.This paper proposes an efficient environment for accessing relational databases from a web perspective

using XML. Our environment defines a query system based on XML for relational databases, called XBD.

XBD has a full XML appearance, query language and query results are in XML format. For the end user it

is similar to query a XML document. This system includes a model to adapt any relational database in order

it could be queried in two new query languages, derived from XSL and XQuery languages, and a software

tool to implement the functionality of the XBD environment.

1 INTRODUCTION

Nowadays business information systems are

suffering numerous changes. Business is

transforming in e-business and it has to manage

large data volumes and besides, from heterogeneous

sources.

When business gets into the web it has to

anage new types of web data as XML or HTML,

for example to exchange information with other

business. However, business information continues

also stored in the traditional databases as the

relational one.

At the same time, the volume of business

nformation is growing a lot. The information is the

power and data are transformed in information when

they are used to make business decision. This is

happening, for example, in the new data warehouse

store systems, where data are stored and analyzed

before using them like knowledge. Previously this

storing, it would be useful to integrate this

information from different formats.

In this context, where organizations have to

anage a lot of data but from heterogeneous

sources, like conventional database systems or the

new web data sources, it could be necessary to use

tools as mediators to integrate these different data to

a common format like XML, the main format

language on the web.

As we just say Internet has change the business

rld and has also made to appear new data formats

as XML. The XML history has always been

connected to the Web evolution (W3C, 2004a). In

fact XML has reached the status of standard of data

exchange and representation in Internet.

In order to manage large amounts of

nformation, Database Management Systems

(DBMS) continue to be one of the most used tools,

313

Fermoso García A., Berjón Gallinas R. and José Gil Larrea M. (2005).

AN APPLICATION TO INTEGRATE RELATIONAL AND XML DATA SOURCES.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 313-319

DOI: 10.5220/0002555403130319

 SciTePress

and the most extended model is the relational one,

although the object oriented model or data

warehouse is being used more and more.

Databases world, in order to manage data from

all these heterogeneous sources and formats, have

had to adapt also to the new market, allowing for

example to store these new types of web data, or

changing the way to work with the data using them

as knowledge, as in the data warehouse.

Therefore, because almost all organizations

eventually get into the web, where XML is emerging

as a more effective means of describing the semantic

content of WWW documents, and because the main

amount of business information continues stored in

relational databases, it would be useful to manage a

relational database from a web perspective using

XML. That is, not only to use XML language as

interface to pass information between systems that

interact with each other on the web, also to employ a

XML based language to access to the databases of

these systems.

In this paper we are going to centre only in these

two main data sources, the conventional relational

database system, because as we just say most of the

business data continuing store in them, and XML

data, because it is the most extended data format to

exchange and represent information on the web.

The idea would be how to integrate these two

types of data in order for example to use them later,

to store them in a data warehouse or exchange their

information in the web.

Besides, one of the main requirements of the

query system, as we just said, is its XML based

appearance.

Another important requirement would be that

data maintains its original format, the information

remains stored in the database and it does not have

to go through any migration process.

Our goal will be to permit to query a relational

database, without taking into account its complexity,

size or subject of its information, in a similar way

that if it was a XML document and obtaining XML

data after query execution too. The end user will not

need to know the real storage of the data, for him it

will appear as if he were querying a XML document.

The main contribution of this paper is to explain the

foundations of this new query system called XBD

(XML for Databases) which implements this

functionality. XBD is a query system based on XML

for querying relational databases.

2 OBTAINING XML FROM

RELATIONAL SOURCES

The purpose of this research is to help to integrate

relational database and XML data, obtaining XML

data from relational database data. One time all the

information, from databases or XML documents,

was in the same format, XML, will be easier to

manage it together.

Last versions of the traditional Database

Management Systems (DBMS) as Oracle (Oracle,

2002a) (Oracle, 2002b), Microsoft SQL Server

(Microsoft, 2002) or IBM DB2 (IBM, 2002), have

had to be updated to work with XML data.

According to this, they already can store XML data

together with relational information, carrying new

types of data like XMLType in Oracle and SQL

Server, or XML column and XML collection in

DB2. But in the present research we are not

interested in the storing of XML information in

databases systems, we are only interested in how to

obtain XML data from relational sources. In this

sense, these new versions of the most used DBMS,

allow to query relational data in the database query

language SQL, but returning the query results in

XML format.

Using active server pages designed with Java

Server Pages, Microsoft Active Server Pages or PHP

web pages, is also possible to attain the same effect.

The query to the database in SQL is included inside

the web page code, and they will return the database

query results in XML. These results are added when

the web page is showed in a explorer.

In both kinds of tools, DBMS tools or active

server pages, the query language is SQL. In our

query system we want not only the query results

have a XML appearance, also the query language

have to be derived from XML, so, we will not use

SQL as query language.

Other systems that could be in relation with our

research are the ones that transforming the data

model of a relational database model, to a special

XML View called virtual XML view. This view

show to the user the database content in order he can

make later, queries over this database using XML

languages and obtaining the results in XML format,

too. The virtual XML view is similar to a XML

document where would be stored the database

records content, but it is “virtual” because the

database data are not really translated physically to

XML.

The two main systems of this type are

XTABLES (Funderburk, 2002) and SilkRoute

(Fernández, 2002).

In XTABLES the virtual XML view are called

“default view”. This system use XQuery as query

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

314

language to obtain the default view and to make the

following queries over this view.

In SilkRoute the virtual view is called “query

view”. The first query to obtain this virtual view is

implemented in the RXL language, a special

language characteristic of this system. In the

following queries over this initial view, is used

XML-QL as query language.

To obtain XML data from databases is also our

purpose, but the problem is that in these systems it is

necessary a first query to create the Virtual XML

View, and only the database side affected by this

initial query, will be able to be queried in the

following queries. In our system each query will

have to be able to access any part of the database in

any moment.

One time we have made a short study about

some methods to obtain XML data from relational

sources, and studied their disadvantages compared to

our aims, we are going to explain our proposal,

called XBD system, to get the same goal. In

(Fermoso, 2004) we can find a detailed description

of this new query system.

3 XBD: A NEW QUERY SYSTEM

If we could access relational databases via XML,

this would make easy to integrate XML data

sources, not only with each other, also with

structured data like relational databases, and this is

the purpose of our new XBD system.

To develop our XBD query system, it would be

necessary a method to make any relational database

can be queried in this XML environment.

In the previous study, some analyzed systems

create first a virtual XML view allowing the

following queries over the database. In our case we

are going to implement other solution, we are going

to create the “database XML schema” document as

exit of the adaptation process. Only when we just

obtain this XML document, will be possible to make

queries in XML over the database. Later we will

explain the meaning of this document.

One time we describe the model to adapt a

database to the XBD query system, we have to

define the syntax of the language we will have to use

to query the database.

Finally, we are not going to use SQL as query

language because it is not XML based, but at the end

the query over the database will have to be executed

in SQL, therefore, it would be necessary to describe

the method to translate the query in our XML

language, to a query over database in SQL, in order

to execute it and return the query results in XML.

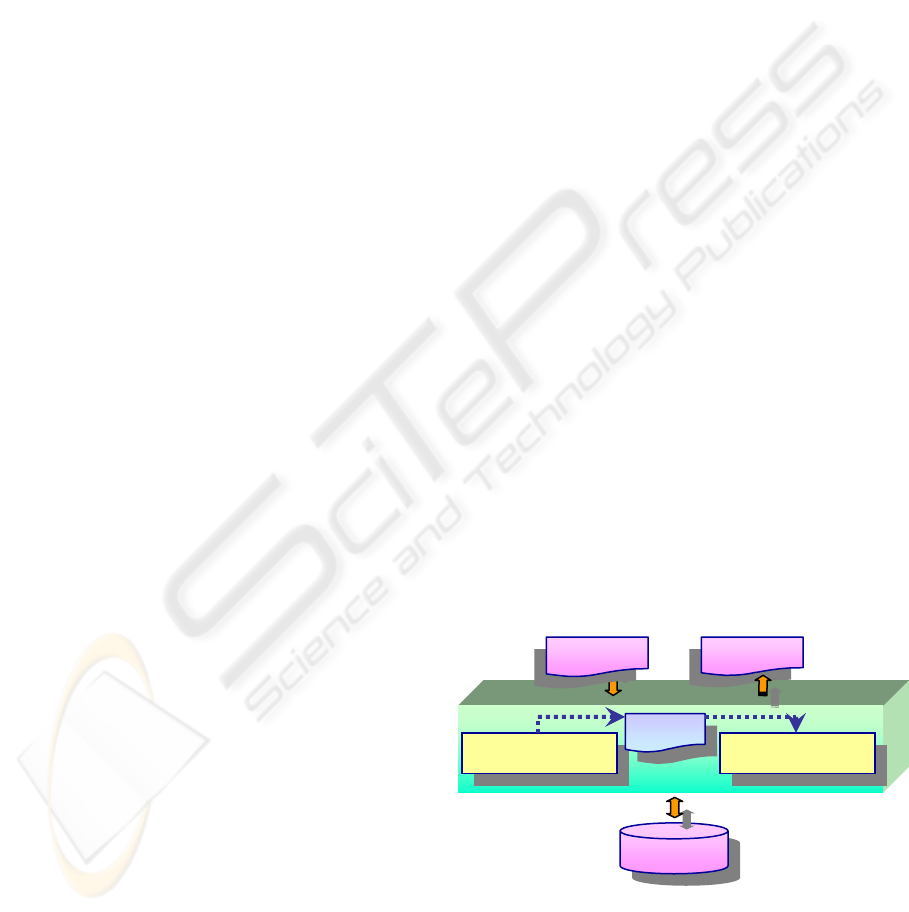

As we just say, the first step to get our goal,

would be to adapt any relational database to our

query system, this is, to establish, the model that

allows rewriting the relational database structure in a

special format, XML accessible, but without any

kind of physical translation to XML from the

database records content, because this would be

inefficient (we would need additional store size and

queried data would not be always updated). This

step is called “adaptation database system”.

The second step would be to establish the query

XML based language, to access the databases in our

environment.

The last step would be to define the model to

translate the query from this query language into a

SQL SELECT clause, to make the final access to the

database using the own Database Management

System (DBMS ), because it will execute the query

in a more efficient way and will already return the

query results in XML. This step is known as “query

evaluation system”

We can conclude that the architecture of the

proposed system will be made up of two

independent components. The first one, translates

the structured data model of the database to a special

XMLSchema, it is the adaptation database system.

The second component, the query evaluation system,

receives a query in a XML language over the

database, which should have already been adapted to

the system with the preceding component, producing

query results in XML. Figure 1. shows this

architecture.

We are going to analyze first the new languages

we have created to make queries in our XBD

environment and later, we will describe the tasks and

functions of the two main components of this

system, that is, how do the adaptation database and

query evaluation systems work.

Figure 1: XBD System Architecture

ADAPTATION

ystem

QUERY System

Relational DB

XML results

XML Query

DBXML

Schema

AN APPLICATION TO INTEGRATE RELATIONAL AND XML DATA SOURCES

315

4 XBD QUERY LANGUAGES

If we want our system to have a XML appearance,

we should select a language from this environment.

On the other hand, we could have decided to create a

new language from the beginning, or use a language

that already exists. We believe it is better the second

solution because it is easier for the user to make the

query if he already knows the language.

The two main languages belonging to the group

of XML languages are XSL (W3C, 2004d) and

XQuery (W3C, 2004e). XSL (Extensible Stylesheet

Language) is XML fully defined, widely

implemented, and nowadays an industry de facto

standard. Actually, it is not a query language, but a

presentation language, although by its final results

could also be considered like a query language.

XQuery is not XML defined, but will be sure the

future query language for XML information. So, we

have decided our query language was based in these

languages and we will have to study how to adapt

the two languages to the database query.

At the end we have adapted both languages to be

used in our system and we have created two new

languages derived from them called Adapted XSL

and Adapted XQuery. It will be possible to use any

of these two languages to query databases.

We have added new characteristics and/or

modified others over their standard versions, to

adapt these languages to querying relational

databases. In every moment we have tried to keep

the similarity between the meaning of the standard

language constructions of these languages and the

equivalent SELECT clause in SQL, since at the end

the query in Adapted XSL or Adapted XQuery, will

have to be translated to SQL.

In both new languages, every query document is

translated to a single SELECT clause in SQL

language, although there could be other SELECT

clauses inside one (nested SELECT). The SELECT

clause obtained after the translation process will be

executed over the database.

4.1 Adapted XSL Language

To adapt the standard XSL language to XBD system

we only need to use some of the standard XSL

constructions:

stylesheet, apply-

templates, template, value-of, if, for-

each, when and short

We are going to explain the mining of these

constructions in relation with the database query

equivalent in SQL:

xsl_adapt:stylesheet: shows the file

where is the Database XML Schema obtained in the

adaptation process. In this document we find the

information about how to connect with the database

that we are going to query. The name of the

Database XML Schema document will appear in a

new attribute of this construction, called

“schema_db”.

xsl_adapt:apply-

templates/xsl:templates

: every “template” is

translated to a single SELECT sentence in SQL.

The value of the match/select attributes of

these constructions show the main table of the query.

This table will appear in the FROM clause in the

equivalent SQL SELECT sentence. If other

constructions in the query, value-of, if, …

reference fields from other tables in the database,

these tables will also be added to the SELECT

sentence.

xsl_adapt:value-of: shows the database

fields queried. These fields will appear in the

SELECT clause when the query was translated to

SQL.

xsl_adapt:if: adds a condition to the query.

This construction will be translated to a WHERE

clause of the SELECT sentence in SQL.

xsl_adapt:for-each: allows grouping the

query. In SQL this construction is translated to the

GROUP BY clause of the SELECT sentence.

xsl_adapt:when: adds a condition to a

GROUP BY clause in SQL, the “HAVING” part of

the GROUP BY in SQL.

xsl_adapt:sort: allows to sort the query. It

is equivalent in SQL to the ORDER BY clause.

All these constructions have attributes (

select,

match, test, …)

where you can use path

expression. These path expressions refer to database

tables and fields in the query. To express these path

values the XPath language (W3C, 2004b) syntax is

used, where the symbol “/” separates the names of

tables and fields of the database referenced in the

query.

Besides, it is also possible to nest SELECT

sentences to permit the “joins” in the queries. Since

a “template” and the corresponding “apply-

template” are translated to a single SELECT

sentence, if inside a “template” appears an “apply-

template” construction, which will correspond to

other SELECT sentence, it means that this second

SELECT will be nested inside the SELECT of the

first “template”, and in the same way, inside of the

“template” associated to the “apply-template” could

be other apply-template equivalent to other nested

SELECT, and so on.

For example, the following select sentence,

which query the

“name_prod” field from a table

“Product”: SELECT name_prod FROM

Product

, in Adapted XSL language would be

equivalent to:

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

316

<?xml versión=”1.”>

<!DOCTYPE xsl_adapt:stylesheet system

“xsl_adapt.dtd”>

<xsl_adapt:stylesheet

version = “1.0”

schema_db= “schema_db_produc.xml”>

<xsl_adapt:template match=/”>

<xsl_adapt:apply_template

select=”Product”>

</xsl_adapt:template>

<xsl_adapt:template

match=//Product”>

<xsl_adapt:value_of

select=”name_prod”>

</xsl_adapt:template>

</xsl:stylesheet>

In the “schema_db” attribute of the stylesheet

construction appears the name of the XML

document that contains the Database XML Schema.

4.2 Adapted XQuery language

To adapt XQuery language to database query we

only need to use the FROM-LET-WHERE RETURN

(FLWR) XQuery expression, because it is the most

similar to the SELECT clause in SQL. The mapping

to obtain the equivalent SQL clause would be:

FROM, RETURN WHERE: show the tables of the

query. This tables will appear in the FROM clause

of the equivalent SELECT sentence.

RETURN: shows the fields of the query. These

fields will be the database fields of the SELECT

clause in the SQL sentence.

WHERE: allows the addition of a condition to the

query. It is translated to a WHERE clause in the

SELECT sentence of SQL.

LET: allows grouping the result. It will be the

GROUP BY of the SELECT sentence in SQL.

SORTBY: this sentence appears inside a FROM

clause and allows the result to be sorted. It is

equivalent to the ORDER-BY clause in the

translation to SQL.

The path expressions which appear in the FLWR

sentences show the database fields and tables in the

query. These path expressions use the XPath syntax.

In the same FLWR expression it is also possible

to reference different tables and later, in the

RETURN clause, join their results. In this way it

will be possible to make nested SELECT when the

query is translated to SQL.

For example, the same query as in the last

section

(SELECT nom_prod FROM products)

and being “schema_db_produc.xml” the XML

document with the Database XML Schema of the

queried database, which contains database structure

information once it has been adapted to XBD

system, in Adapted XQuery, would be:

FOR $p IN

document(“schema_db_produc.xml”)

RETURN Product/name_prod

5 XBD SYSTEM COMPONENTS

XBD system has two main functions, implemented

in a new software tool, that are described in the next

sections. The first is used to adapt any relational

database so that it could be queried in XBD and the

second, once the database has been adapted to our

system, it allows it may be queried in our Adapted

XSL or Adapted XQuery languages.

5.1 Adaptation Database System

This system allows any relational database to be

queried in XBD. To do this it is necessary to obtain

a special XML document called Database XML

Schema which will have all the necessary

information about the database structure: tables,

relations and fields and will be used as input for the

next query component. The appearance of this

document will be very similar to a XML Schema

document (W3C, 2004c). Besides, we can obtain

two types of Database XML Schema documents,

one with the appearance of a XSD schema document

of the W3C and another one with the XDR schema

of Microsoft, since these are the two types of

schemas used to validate XML documents.

The elements of these documents depend on the

format used,

element and ElementType in XDR

schema and

SympleType, ComplexType,

sequence

and element in XSD. These elements

will contain all the information about the database:

tables, their relationships with other tables and

cardinality, fields of every table with their data types

and information on whether they are a key in this

table or not.

In this way, if we use a Database XML Schema

in XSD format, the “SympleType” element will

describe every database field or column, and the

“name” and “type” attributes of this element, will

specify the name and data type of the field. To

describe every database table it will have to be used

the “ComplexType” element. Nested with every

“ComplexType”, the “sequence” and “element”

elements will describe all the fields and linked tables

to the table of the “ComplexType”. For every

relationship the cardinality is showed with the

“minoccurs” and “maxoccurs” attributes. For every

field it is specified if the column is or not a key of

the table and the type of key, primary or foreign key

(pk or fk).

AN APPLICATION TO INTEGRATE RELATIONAL AND XML DATA SOURCES

317

Using the XDR schema format, we make a

parallelism to represent the database structure, but

now using “element” to define the name and type

(table or field) of every component of the database,

and “ElementType” to describe the content of every

table, similar to “Complextype” in the XSD Schema.

For example, if we have a database where we

have information about products and orders:

PRODUCTS (cod_prod, stock), ORDERS

(cod_ord, date_ord, cod_prod, cant_ord)

and we know a product can appear in many orders,

the representation of the PRODUCTS table in the

Database XML schema in XSD format could be the

following.

<SympleType name=”cod_prod”

type=”NUMBER”>

<SympleType name=”name_prod”

type=”VARCHAR2”>

<sequence minOccurs=”1”

maxoccurs=”1”>

<element type= ”cod_prod”

pk=”true”>

</sequence>

</sequence>

</ComplexType>

We have added to our both types of Database

XML Schema documents a new element called

conexion, which contains the necessary

information to connect the database queried. In this

element, the values of the “owner” and “cad_conex”

attributes, specify the necessary information to make

the connection to the database (driver, user and

password), although the details of this string depend

of the DBMS system of the database, Oracle in our

example:

<conexion type="basedatos" owner="pp"

cad_conex="jdbc:oracle:thin:pp/pword@

srvdes.upsa.es:1521:bd"/>

5.2 Query Evaluation System

This component allows querying a relational

database, adapted with the previous component, in

our XML languages. In practice our software tool

only implements queries in Adapted XSL language,

but the steps would be similar if we use our Adapted

XQuery language.

Thanks to the interface of the software

component which implements this query function,

the end user always believes he is querying a XML

document; he makes a query in a XML language and

obtains the results in a XML format too.

Query evaluation system allows, first to edit or

modify a query in Adapted XSL language, then to

test it, and finally to execute it, so, it has three

components.

The editor component allows us to edit or

modify a database query in Adapted XSL language.

To help the user to edit the query document, the

database structure is shown as if it were an XML

document, in a tree structure. The nodes and

branches of this tree will be the tables and fields of

the database.

Every table is represented in a node and

expanding the branch associated, you can find the

fields of this table and the tables in relation with it.

In this way, the user thinks he is accessing to a XML

document, the appearance is the same. Besides, this

component also provides editing on line facilities to

write the Adapted XSL constructions in the query. In

the figure 2 we can see the appearance of the editor

component.

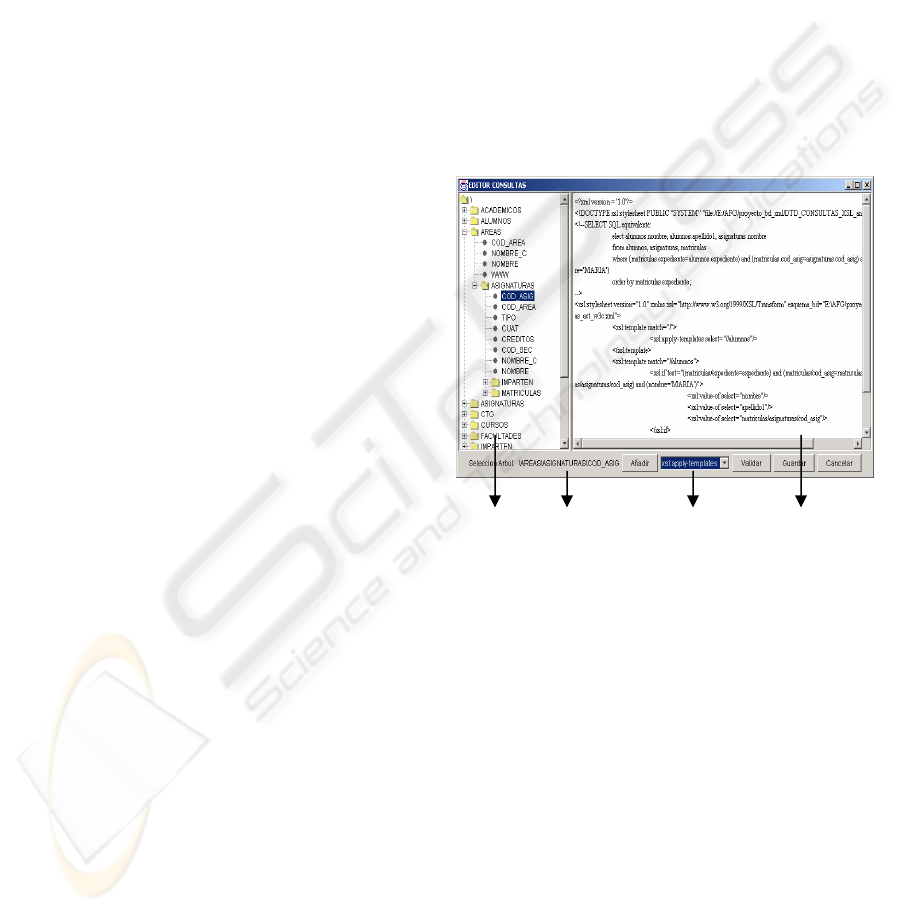

Figure 2: XBD Query editor interface

The tester component allows us to test if the

query is or not correct in two senses. It tests if the

query syntax is correct applying the Adapted XSL

rules, and it also tests if all the elements referenced

in the query with the path attribute values, belong to

the database structure components, tables, fields and

relations.

Once the user has proved the query is correct, he

can execute it over the database with the evaluator

query component. This component executes the

query over database and returns the query results in

XML format. To execute it, first the component

translates the Adapted XSL query to the equivalent

SELECT clause in SQL, applying the rules of the

4.1 section. After that, the DBMS will execute this

SQL query, and thanks to the new DBMS tools, will

return the result in XML.

DB tree

structure

Path

selection

On line edit

facilities

Query edit

screen

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

318

6 CONCLUSIONS

In this paper we have studied the need of a system

for querying relational databases in a web

environment using a XML appearance. XML is the

most useful standard to data exchange and

integration on the web and as such, can serve like a

link between heterogeneous data sources that have to

work together on the web, like structured databases

and XML documents.

Our new XBD system gives user the possibility

to query a relational database like if it was a XML

document. This makes easy the possibility to

integrate XML and relational data in a transparent

way for the user, that always thinks he is queried

XML data.

We have described the main characteristics of

the XBD system. These features, as we can see in

the next paragraphs, show that it is efficient and

transparent for the user, and this fulfils our aims.

We have also defined the language that will be

used for querying. Finally, we explain the main

components of this system that permit the adaptation

to any relational database and then to query it.

To show the efficiency of our system, we can see

that to adapt the database, we do not have to

translate the database data or records to any format,

XML or others, and this implies saving storage

space and that the queried data will always be

updated. Besides, with this adaptation process, user

can query any side of the database, because there

isn’t any initial query or XML view that restricts the

rest of queries.

Second, we get the query execution were very

fast because it is executed by the self DBMS where

the database is located, we have only added the

translation process from Adapted XSL to SQL, and

this extra time is minimum compared to the

complete query execution time. Finally, the whole

environment has an XML appearance, in this way

the user believes he is querying a XML document,

not a database, and this is very important when we

want to work in a web environment managing

different data sources, XML and databases, but in a

transparent way for the user.

In addition to all this advantages and to prove

them again, our XBD system has been satisfactory

tested in real production environments. For example,

it is being used with success in an application where

university students query the marks of their courses

in the web. XBD allows query the database where

teachers introduce the student data and shows the

query results in a XML format on the web. Besides,

if it is necessary, these results could be merged later

with other XML data, for example with other XML

information about the students that we have obtained

from other university databases.

REFERENCES

Fermoso, A., Berjón, R., 2004. Acceso a datos

relacionales en entornos Web. Un caso práctico.

Publicaciones Universidad Pontificia de Salamanca

Fernández, M., Kadiyska, Y., Morishima, A., Suciu, D.,

Tan., W.C., 2002. SilkRoute: a framework for

publishing relational data in XML. ACM Transactions

on Database Systems (TODS), Vol. 27, Nª 4,

December, pp. 438-493.

Funderburk, J. E., Kiernan, G., Shanmugasundaram, J. ,

Shekita, E., Wei, C., 2002. XTABLES: Bridging

relational technology and XML. IBM Systems

Journal, Vol. 41 , Nª 4.

IBM, 2002. IBM DB2 Universal Database. XML Extender

Administration and Programming. Version 8. IBM

Corporation.

Microsoft, SQL Server 2000. XML and Internet Support.

Microsoft Corp.

Oracle, 2002. Oracle 9i Release 2. Database Concepts.

Oracle Corp., March.

Oracle, 2002. Oracle 9i Release 2. XML Database

Developers's Guide-Oracle XML DB. Oracle Corp.,

October.

World Wide Web Consortium (W3C), 2004. Extensible

Markup Languaje (XML). http://www.w3c.org/xml.

World Wide Web Consortium (W3C), 2004. XML Path

Language (XPath). http://www.w3c.org/TR/xpath.

World Wide Web Consortium (W3C), 2004. XML

Schema. http://www.w3c.org/2001/XMLSchema.

World Wide Web Consortium (W3C), 2004. Extensible

Style Language (XSL).

http://www.w3c.org/Style/XSL.

World Wide Web Consortium (W3C), 2004. XQuery: A

Query Language for XML.

http://www.w3c.org/TR/xquery.

AN APPLICATION TO INTEGRATE RELATIONAL AND XML DATA SOURCES

319
