ONTOLOGY BASED EXTRACTION AND INTEGRATION OF

INFORMATION FROM UNSTRUCTURED DOCUMENTS

Naychi Lai Lai Thein, Khin Haymar Saw Hla, Ni Lar Thein

University of Computer Studies (Yangon)

Keywords: Semantic Web, Shared Ontology, Information Extraction, Shared Terminology, Web Ontology Language,

Source Ontology, Local Ontology, Semantic Mapping.

Abstract: The Semantic Web is an extension of the current Web in which information is given well-defined meaning,

better enabling computers and people to work in cooperation. One of the basic problems in the development

of Semantic Web is information integration. Indeed, the web is composed of a variety of information

sources, and in order to integrate information from such sources, their semantic integration and reconciliation

is required. Also, web pages are formatted with HTML which is only a human readable format and the

agents cannot understand their meaning. In this paper, we present an approach to extract information from

unstructured documents (e.g. HTML) and are converted to standard format (XML) by using source ontology.

Then, we translate XML output to local ontology. This paper also describes a key technology for mapping

between ontologies to compute similarity measures to express complex relationships among concepts. In

order to address this problem, we apply machine learning approach for semantic interoperability in the real,

commercial and governmental world.

1 INTRODUCTION

Most of today’s web content is easily understood by

humans but difficult to understand by computers. A

significant portion of the data on the web is in the

form of HTML pages. Since content, navigational

information and formatting have no clear separation

in HTML, the conventional information retrieval

systems have the additional task of dealing with

noisy data when providing full text search.

However, the number of different information

urces is growing significantly and therefore; the

problem of managing heterogeneity is increasing.

Heterogeneity can be classified into four categories:

structure, syntax, system and semantic. These

problems that have to be faced are due to the lack of

common ontology, causing semantic differences

between information sources.

2 RELATED WORK AND

PROBLEM ISSUES

Integrating information from web sources starts by

extracting the data from the web pages exported by

the data sources. Although XML is supposed to

reduce the need for this extraction, relatively few

sources are currently available in XML, and legacy

HTML sources will be around for years to come.

Because of the semantic heterogeneity among

sou

rces, merely extracting the data from web pages

is often insufficient to support integration. The

problem is that information might be organized in

different ways with different vocabularies. A

solution to the problem of semantic heterogeneity is

to formally specify the meaning of the terminology

of each system and define a translation between each

system terminology and the shared terminology.

Once a system can extract in

formation from the

various sources and has a semantic description of

these sources, the next challenge is to relate the data

in the sources. So, to integrate data across sources,

an integration system must be able to accurately

determine which data in two different sources refer

to the same entities. This method uses the mapping

between the relations and attribute names among the

schemas of the individual data sources to help

determine the object mappings. In order to address

the problem of semantic information integration, we

apply the idea of ontologies as a tool for data

integration.

457

Lai Lai Thein N., Haymar Saw Hla K. and Lar Thein N. (2005).

ONTOLOGY BASED EXTRACTION AND INTEGRATION OF INFORMATION FROM UNSTRUCTURED DOCUMENTS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 457-460

DOI: 10.5220/0002555504570460

 SciTePress

3 FRAMEWORK FOR SEMANTIC

INFORMATION INTEGRATION

The integration method is based on a three-step

approach. As described in Figure 1, the first aspect

is tackled by wrappers that lift selected content of

individual information sources to a common data

model. The latter part is done by mediators that

provide the glue. Ontologies simplify the job of

mediators by defining an integrated semantic model

that gives an explicit representation of the semantics

of information components. So, ontology can be

used as a common model for our purpose. Our

intended use of ontology is to describe a data model

and to give semantics to data stored in web pages,

rather than knowledge (Staab, 2002).

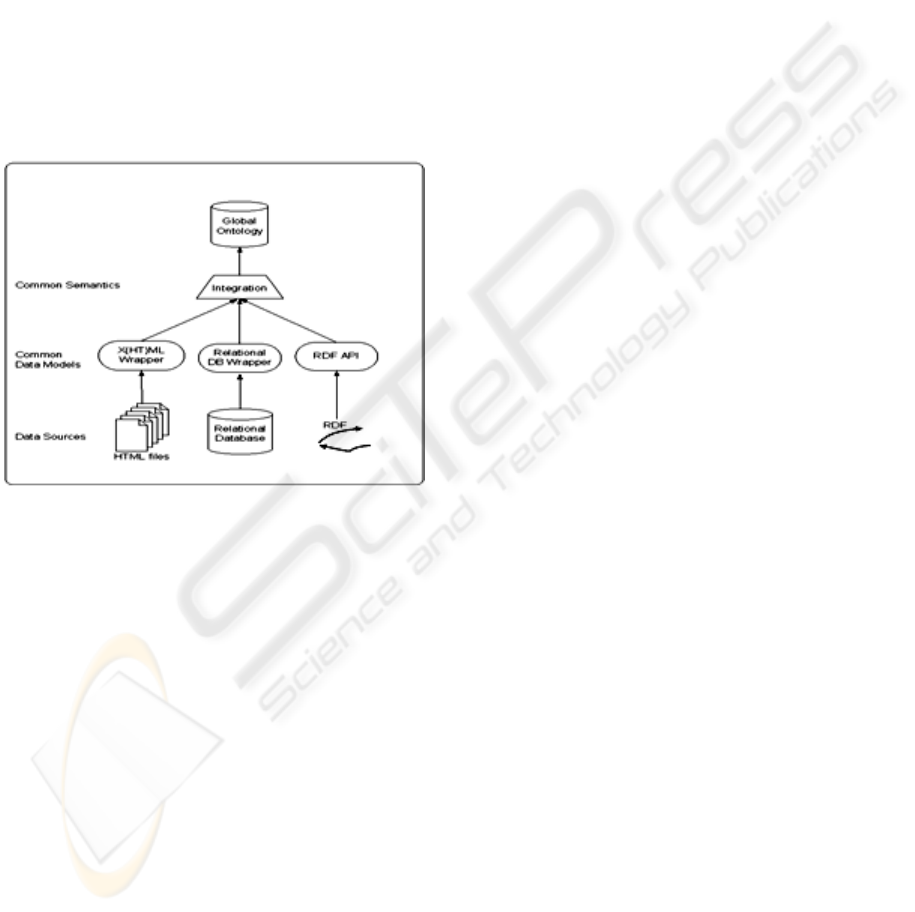

Figure 1: Conceptual Flow of Information Integration

Our hypothesis is that many web sites do not

often change their organization of information. New

information is published with a rather steady

structure. Then, if we can recognize how

information is organized, a precise data extraction

can take place (

Maedche, 2002).

4 UNSTRUCTURED DOCUMENTS

TO STANDARD USABLE

FORMAT

There is a tremendous amount of information

available on the web but much of this information is

not in a form that can be easily used by other

application. So, we have developed the technology

for rapidly building wrappers for accurately and

reliably extracting data from unstructured sources.

Documents in HTML do not allow for direct

querying. Therefore, we first convert the HTML

document into XML by following their hierarchical

structure. Possible errors are corrected using HTML

TIDY. Here, we present an approach to extract

information from unstructured documents based on a

source ontology that describes a domain of interest.

Starting with such ontology, we formulate rules to

extract constants and context keywords from

unstructured documents. Once a web page is

transformed into XML using source ontology,

portions of data can be easily used to create local

ontology. We use OWL (Web Ontology Language)

to build ontology (

Embley, 1998).

As case studies to test these ideas for this paper,

we consider the history of Myanmar Pagodas to

extract information. This case is data rich and

narrow in ontological breadth. This also includes

information about name, year, features, enshrined

things and location.

4.1 Data Extraction and Structuring

from Unstructured Documents

In this section, we present the framework to extract

and structure the data in an unstructured document.

As shown in Figure 2, there are three processes in

this framework: an ontology parser, a

constant/keyword recognizer and a structured text

generator. The input is source ontology and a set of

unstructured documents. The output is XML

structured format filtered with respect to the source

ontology and local ontology which is converted from

XML output. In this paper, the only step that

requires significant human intervention is the initial

creation of source ontology for pagoda. However,

once such an ontology is written, it can be applied to

unstructured documents from a wide variety of

sources, as long as these documents correspond to

the given source domain (

Embley, 1998).

In order to extract information from the HTML

code, we need to understand how the data is

presented within the HTML code and analyzes the

page’s tag structure. Given the inputs, parser

module (PM) starts by fetching HTML code of the

web page to be parsed. Then, it analyzes the tag

structure and tries to determine how the data is

presented in this code.

After determining the tag structure of the page,

PM finds the starting point of data and proceeds to

divide the data into fields and records using the pre-

defined record separator tags. After invoking the

parser, the constant/keyword recognizer uses the

source ontology to recognize each regular

expression. The structured text generator uses the

object/relationship/constraints lists to generate XML

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

458

format. The ontology generator uses this XML

output to transform local ontology using each

regular expression.

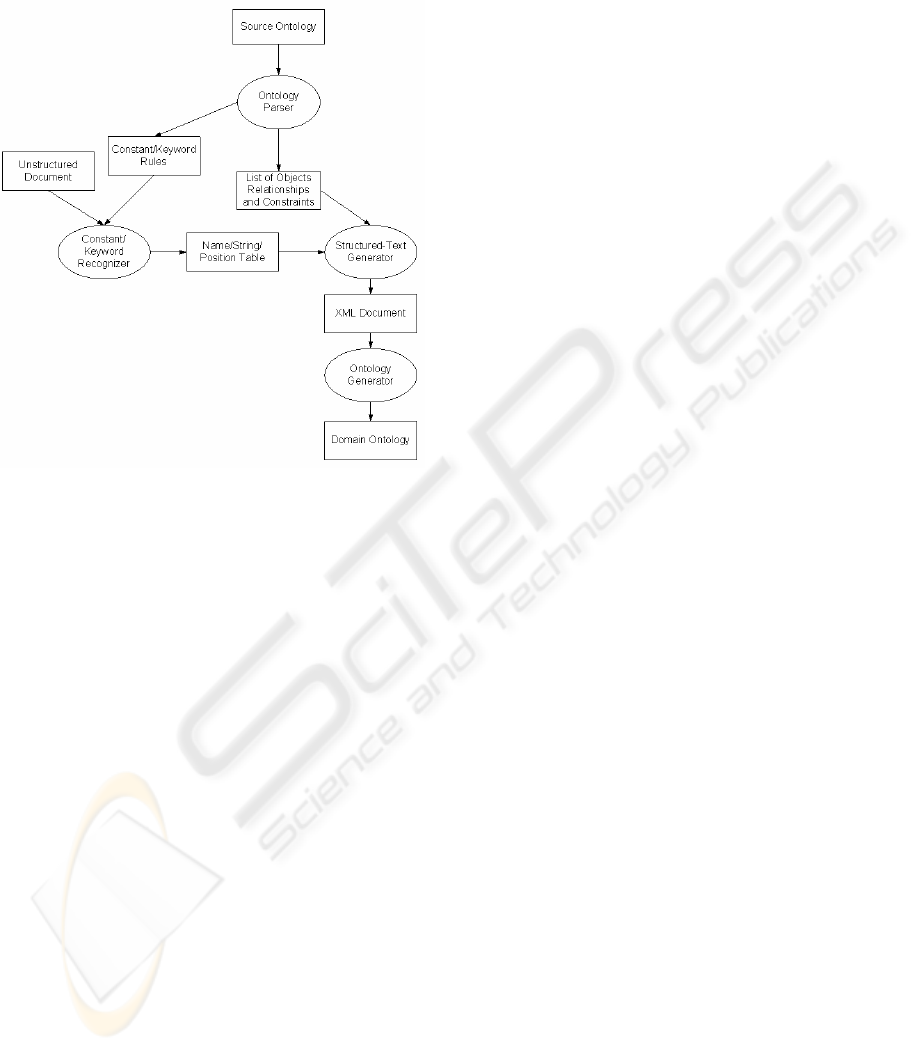

Figure 2: Framework for Ontology Based Information

Extraction and Structuring

<owl:Class rdf:ID="Pagoda">

<owl:Restriction>

<owl: onProperty

rdf:resource=”#hasName”/>

<owl:allValuesFrom

rdf:resource=”#Name”/>

</owl:Restriction>

<owl:Restriction>

<owl: onProperty

rdf:resource="#hasKing"/>

<owl:allValuesFrom

rdf:resource="#King"/>

</rdfs:subClassOf>

</owl:Class>

Figure 3: OWL Source Ontology for Pagoda

While this approach provides a solution for the

problem of extracting information from weakly

structured resources, the problem of integrating

information from different sources remains largely

unsolved (

Cui, 2001).

<Name>Shwezigon</Name>

<StartKing>Anawrahta </StartKing>

<FinishKing>Kyansittha</FinishKing>

<City>Bagan</City>

<Division>Mandalay</Division>

</Pagoda>

Figure 5: Resulting Sample XML File.

<owl:Class rdf:ID="Shwezigon">

<rdfs:subClassOf

rdf:resource="#Pagoda"/>

<hasStartKing rdf:

resource="Anawrahta"/>

<hasFinishKing rdf:

resource="Kyansittha"/>

</owl:Class>

Figure 6: Sample Output Local Ontology

5 ONTOLOGY BASED SEMANTIC

INFORMATION INTEGRATION

Information integration is concerned with unifying

data sharing some common semantics but is

originated from unrelated sources. There are a lot of

advantages in the use of ontologies for information

integration. In general, three different directions can

be identified: single ontology approach, multiple

ontologies approach and hybrid approach.

As our approach is based on the hybrid ontology, it

has two main advantages:

(1) New information sources can be added without

the need of modification.

(2) Shared vocabulary and the mappings among the

local ontologies make them be comparables.

In this system, shared ontologies provide a

vocabulary in order to specify the semantics of

information in different sources. Formally, we

define a shared terminology as a set of words and a

partial function over pairs of words [

Stuckenschmidt,

2002

5.1 Ontologies Alignment Using

Shared Terminology

It has been argued that semantic heterogeneity can

be resolved by transforming information from one

context into another.

ONTOLOGY BASED EXTRACTION AND INTEGRATION OF INFORMATION FROM UNSTRUCTURED

DOCUMENTS

459

A conceptual model of the context of each

information source builds a basis for integration on

the semantic level. In this process, we take the

information about the context of the source

providing a new context description for that entity

within the new information source. Here, we focus

on context transformation by classification [8].

5.2 Mapping between Ontologies

In this system, we apply machine learning

techniques to semi-automatically create semantic

mappings. Since taxonomies are central components

of ontologies, we focus on finding correspondences

among the taxonomies of two given ontologies: for

each concept node in one taxonomy, find the most

similar concept node in the other taxonomy. The

first issue we address is the meaning of similarity

between two concepts. In our approach similarity

measure is based on the joint probability

distribution.

To match concepts between two taxonomies, we

need a measure of similarity. First, we would like

the similarity measures to be well-defined. Second,

we want the similarity measures to correspond to our

intuitive notions of similarity.

Many practical similarity measures can be

defined based on the joint distribution of the

concepts involved. A possible definition for the

exact similarity measure is

),(),(),(

)(/)(

),(

BAPBAPBAP

BAPBAP

BAsimJaccard

=−

his similarity measure is known as the Jaccard

coefficient. It takes the lowest value 0 when A and B

are disjoint, and the highest value 1 when A and B

are the same concept [

Doan, 2002].

6 CONCLUSIONS

In this paper, we dealt with the problem of

information integration from different sources.

Integrating information from web sources starts by

extracting the data from the Web pages exported by

the data sources. So, we have proposed a

framework for extracting reliable data and to convert

standard form.

By using shared ontology, we also address

terminological semantic heterogeneity in semantic

integration. With the proliferation of data sharing

applications that involve multiple ontologies, the

development of automated techniques for ontology

matching will be crucial to their success.

REFERENCES

Bayrak C., Kolukısaoğlu H., 2003. Data Extraction from

Repositories on the Web: A Semi-automatic

Approach, Computer Science Department, University

of Arkansas at Little Rock, Little Rock, AR, U.S.A. ,

SEPTEMBER, Vol. 7, No. 4, pp. 13-23.

Cui Z., Jones D., Brien P. O, 2001. Issues in Ontology-

based Information Integration, Intelligent Business

Systems Research Group Intelligent Systems Lab.

Doan A., Madhavan J., Domingos P., Halevy A., 2002.

Learning to Map between Ontologies on the Semantic

Web. In Proceedings of the World-Wide Web

Conference (WWW-2002), pages 662-673, ACM

Press.

Embley D. W., Campbell D. M., Smith R. D., and Liddle

S. W., 1998. Ontology-based extraction and

structuring of information from data-rich unstructured

documents. In International Conference on

Information and Knowledge Management (CIKM).

Gruber T.R., 2003. A Translation Approach to Portable

Ontology Specification, Knowledge Acquisition, 199–

220.

Hendler J., Lee T.B., Miller E., 2002. Integrating

Application on the Semantic Web, Journal of the

Institute of Electrical Engineers of Japan, Vol. 122

(10).

Maedche A., 2002. Tying Up Information Integration and

Web Site Management by Ontologies, IEEE Data

Engineering Bulletin.

Stuckenschmidt H., 2002.

Information Sharing on the

Semantic Web, AI Department, Vrije University,

Amsterdam, De Boelelaan 1081a, 1081HV

Amsterdam, The Netherlands.

Soderland S., 1998. Learning information extraction rules

for semi-structured and free text,

www.cs.washington.edu/homes/soderlan/ WHISK.

Staab S., Maedche A., 2001. Comparing Ontologies

Similarity Measures and a Comparison Study, Internal

Report No. 408.

Staab S., 2002. The Semantic Web-New Ways to Present

and Integrate Information, Institute of Applied

Informatics and Formal Description Methods (AIFB),

University of Darlsruhe.

Wache H., Vögele T., Visser U., Stuckenschmidt H.,

Schuster G., Neumann H., Hübner S., 2001.

Ontology-Based Integration of Information: A Survey

of Existing Approaches.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

460
