Enhancing Message Privacy in WEP
Darshan Purandare and Ratan Guha
School of Computer Science,
University of Central Florida, Orlando, FL 32816
USA
Abstract. The
Wired Equivalent Privacy (WEP) protocol for networks based
on 802.11 standards has been shown to have several security flaws. In this
paper we have proposed a modification to the existing WEP protocol to make it
more secure. We also develop an IV avoidance algorithm that eliminates
Initialization Vector (IV) collision problem by assigning unique pattern of IV
bits to each node. We achieve Message Privacy by ensuring that the encryption
is not breached. The idea is to update the shared secret key frequently based on
factors like network traffic and number of transmitted frames. We show that
frequent rekeying thwarts all kinds of cryptanalytic attacks on the WEP.
1 Introduction
Last few years have seen the advent of wireless technologies and IEEE 802.11
standards for wireless LAN [3] is one among them. The 802.11 standard defines the
Wired Equivalent Privacy (WEP) and encapsulation of data frames. It is intended to
provide data privacy to the level of a wired network. Wireless cards for laptops,
wireless routers (access points) are in use everywhere ranging from large scale
infrastructures to home networks. However, with this added convenience and luxury,
it suffered threat of attacks from hackers owing to certain security shortcomings in the
WEP protocol. Lately, many new protocols like WiFi Protected Access (WPA),
WPA2, Robust Secure Network (RSN) and 802.11i have come into being, yet their
implementation is fairly limited. Despite its shortcomings one cannot undermine the
importance of WEP and we chose to address certain security issues and propose some
modifications to make it more secure.
WEP failed to achieve its goals in almost all the areas including authentication,
access control, replay preve
ntion, message modification detection, message privacy
and key protection [6]. Serious security flaws like presence of relatively short
Initialization vectors (IVs) [4], keys that remain static, subtle vulnerability in RC4
algorithm’s [2] usage in the WEP has made it relatively weak. We have focused
mainly on the issue of message privacy because this is the most important security
mechanism in the WEP. An attacker cannot accomplish much if the encryption
method stays strong and unbroken. However, if an intruder gets the keys then he is
into the system as a legitimate user and can perform all the malicious activities
without getting noticed. Message Privacy thus becomes the most critical issue among
all the security mechanisms of WEP. If we can ensure that the transmitted data in the
air cannot be decrypted by the attacker in its meaningful time we achieve the notion
Purandare D. and Guha R. (2005).
Enhancing Message Privacy in WEP.
In Proceedings of the 4th International Workshop on Wireless Information Systems, pages 23-32
DOI: 10.5220/0002570700230032
Copyright
c
SciTePress
of Message Privacy. We propose a modification to the existing WEP protocol and
also develop an IV avoidance algorithm to make WEP more secure and achieve
Message Privacy. Section 2 is devoted to the description of the WEP protocol. Section
3 identifies the security flaws in the WEP protocol. Section 4 talks about our proposed
idea to modify the WEP protocol. It includes an IV avoidance algorithm and an access
point key management system. We analyze and enumerate the features of our protocol
in Section 5. Subsequently, we have our conclusion and references.
2 The WEP Protocol
The IEEE 802.11 standards have been described in detail in [3]. In this section we
review the key points of the WEP protocol followed by a comprehensive description
of the WEP. IEEE 802.11 defines a mechanism for encrypting the contents of 802.11
data frames.
2.1 The WEP mechanism
In the first and foremost stage each member of the Basic Service Set (BSS) is
initialized with a shared secret key K, (the details of initialization are not known. It
could be either end user contacting the network administrator for the shared key or
network administrator distributing the keys to the legitimate user). Before sending the
frame the sender calculates the Cyclic Redundancy Check (CRC) of the frame
payload and appends it to the frame, which now becomes the plaintext.
Encryption: The frame is encrypted using RC4 algorithm [7]. A new Initialization
Vector (IV) is chosen and is appended to the shared key K to form a “per-packet” key.
This is now used to generate a RC4 key schedule. The sender uses RC4 to generate a
key stream equal to the length of the plaintext. The sender XORs the generated key
stream against the plaintext. This now becomes the cipher text. The sender also sends
the value of the IV in the unencrypted portion of the frame and sends a Key ID #
which enables the user to identify which shared key he has to use to decrypt the
frame. An appropriate bit is set in the frame header to indicate that it is WEP
encrypted packet.
Decryption: The decryption process works fairly the same as encryption but the
reverse way. The receiver checks the encrypted bit in the WEP frame. If it is enabled
he takes out the IV and uses with his shared key to generate an RC4 key schedule.
RC4 is applied to the key schedule to generate a key stream equal to the length of the
encrypted payload from the frame. The receiver then XORs this key stream with the
encrypted payload to get the plaintext. Finally, the receiver checks the CRC of the
obtained plaintext to verify that the frame data was correctly sent.
24
3 Security Flaws in WEP
WEP has considerable flaws in mechanisms including authentication, replay
prevention, message modification detection, and most importantly key protection and
message privacy [1, 6]. We enumerate the flaws of the WEP.
IV Reuse Attack: In section 2.1 we describe the WEP protocol mechanism. In this
section we delve into the intricacies about how IV is used in the WEP. Instead of
using fixed secret key WEP appends the secret key to the 24-bit IV value. The
combined IV and secret key is used as an encryption key. Effectively we have a
different key for every transmitted frame. There can be 2
24
different IVs and we don’t
intend to reuse the IV with the same shared secret key because that would help an
attacker break the key [1, 4]. If we choose IVs randomly there is a good chance of
reusing the same IV with the same-shared key due to the “Birthday Attack” [9].
Another way in which different IVs can be derived is to start the value of IV from 0
and increment it by 1 till we reach (2
24
-1). A single access point BSS running at
11Mbps with a typical packet distribution can exhaust the derived key space in just a
couple of hours. Therefore, we always run a risk of exhausting our IVs [4]. The
consequence of this is enough samples of duplicated IVs that can help the attacker
guess good amount of portions of the key stream making the decoding relatively
easier [6].
RC4 Weak Keys: Fluhrer et al. [2] states that the way WEP uses RC4 creates subtle
weaknesses. They have proved that for certain “weak” keys a disproportionate
number of bits in the first few bytes of the key stream (pseudorandom bytes) are
determined by a few bits in the key itself [2]. In the WEP first few bytes are the LLC
headers that always start with the same hexadecimal value of “AA”. So if you know
the plaintext, you can derive the key stream and start attacking the key. These flaws
have become an area of major concern.
4 The Modified WEP
4.1 Our Proposed method for WEP
In order to overcome the above-mentioned flaws we propose a modification in the
current WEP protocol. The idea is to update the shared secret key between the access
point and the wireless nodes. The update procedure depends on the following
parameters.
1. Network Traffic
2. Number of transmitted frames.
From Borisov et al [1] we always run a risk of repeating IVs after 5000 frames due
to birthday paradox [9]. To ensure IV is not reused we use these parameters namely
network traffic and number of transmitted frames to change our shared secret key. For
example, we can have a WEP system where after every 5000 frames shared secret key
is changed. Network traffic determines the number of transmitted WEP frames and
that is why these two parameters are important in determining when to change the
25
shared secret key. Our aim is to minimize the information that an attacker can retrieve
from the transmitted frames and minimize time available to him to launch an attack.
Access point creates the key mapping for the clients; it can use the MAC addresses
of the client to generate the new-shared secret key. The structure of the new WEP
frame is as shown in Figure 1,
Encrypted
CRC
IV
Payload New Shared
Ke
y
Key
ID
13 Bytes
3 Bytes 1 Byte
13 Bytes
Fig.1. Proposed WEP Frame Structure
In the conventional WEP frame Key ID field signifies which key out of the four
possible keys is used to decrypt the current frame. Key IDs are from 0 to 3. In our
case whenever the value of the Key ID field is greater than 3, one needs to subtract 4
from that key ID value to get the correct key to decrypt the current frame. It would
indicate that the data payload is carrying the new-shared key for future encryptions.
For example, if the Key ID is 6 it would mean that the receiver has to use the original
Key ID = (6 – 4) = 2 for decrypting the current frame. Out of the four keys this new-
shared secret key will replace the first one. On subsequent updates it will replace the
second key, third key and so on. At a given point of time we have 4-shared keys and
new shared keys arrive at regular intervals and replace the old ones. Data Payload will
be as usual except that it makes provision for extra 104 bits when the new shared
secret key is being sent. When the receiver decrypts the frame it takes out the last 104
bits in the data payload and uses them as the shared secret key for future encryptions.
There are two different approaches to using keys under WEP; these are default
keys and key mapping keys [6]. In the default keys all the wireless nodes and access
points have the same set of shared secret keys while in the case of key mapping keys
every individual wireless node has different set of shared secret keys. Default keys
are easier to use and are widely used. The key mapping keys are more secure but are
difficult for access points to handle. If there are large numbers of wireless nodes
connected through an access point, it is difficult for an access point to keep track of
the secret keys of all the wireless nodes. In the following section we have discussed
updating mechanism of shared secret keys for both the cases.
A Default Key: If the system is using default keys, then access point will transmit
the new-shared secret key for the future encryptions in the data payload. Since in the
case of default keys all wireless nodes are using the same set of shared keys, we will
need to update our shared secret keys more often. We use parameters like network
traffic or number of frames transmitted for changing our shared secret key so that we
do not reuse the IV for the same shared key. If a node is idle it will receive the
updated shared secret key from the access point in the usual WEP frame but it won’t
transmit any other data in it. Key ID field can be used to signify that this frame is
carrying a new-shared key for the future encryptions.
26
B Key Mapping Key: In this type of system the access point will send the new-
shared secret key only to the concerned individual node. Having more shared secret
keys would help the system stay with the shared keys for longer as it takes more time
to exhaust the IVs. The access point can generate the keys for individual nodes using
the MAC addresses of the client cards.
4.2 IV Avoidance Algorithm
The WEP protocol suffered from several limitations like the IV reuse and weak RC4
keystream reuse attack as discussed in previous section. We tried to eliminate the IV
reuse problem by updating the shared key as an enhancement to the existing WEP
protocol. But there is always a chance of an IV reuse due to Birthday Paradox. Thus,
the IV collision still remains a critical issue and cannot be ignored.
In the following section we propose an IV Collision Avoidance Algorithm that
further strengthens our proposed new protocol and makes it foolproof.
1. The key idea in avoiding IV collision is to assign a unique pattern of bits to
every wireless node in the system. The AP partitions the IV by choosing
specific bits out of the 24 bits in the IV. AP chooses specific bits in order to
avoid a predictable pattern. For e.g. consider an IV of 6 bits. The AP
partitions the IV using a specific bit pattern say (1 and 3). The remaining
bits (2, 4, 5 and 6) form the other partition and can assume all possible 2
4
=
16 values. The (1 and 3) pattern is unique to all the nodes. Howsoever, the
values corresponding to these bit numbers vary in all possible 2
2
= 4 nodes.
These variations ensure that even if other partition bits assume the same
values the possibility of collision is completely eliminated.
2. The above mentioned pattern will remain intact for a session and will be
unique to each node to avoid IV reuse.
3. The AP communicates to each individual node by sending bits equal to
(length of IV+ length of the partition number of bits). For e.g. in our case
(24+N) bits following the data payload in the WEP frame structure where N
is length of partition number of bits. The bits enabled in the first 24 bits will
denote that they are partition bits and the remaining N bits will denote the
values for that corresponding partition. For e.g. In an IV of 6 bits if the
partition is (1, 3) and the corresponding value at these bit positions is (0 and
1) the AP will send a frame of (6+2) = 8 bit (101000, 01).
4. This pattern is transferred only once when the wireless node joins the access
point. The pattern holds no good after the wireless node is disconnected from
the network. Upon re-association a new pattern is provided by the access
point.
The AP by ensuring that no bits at its pre determined pattern are repeated
guarantees a complete security.
For example, if the IV length is of 4 bits and we partition it by using 2 bits. Upon
joining a network the access point sends the wireless node a pattern of following
sequence numbers (0101, 01). This pattern is randomly chosen by the access point
and is unique to every node. This would mean that that out of the 4 bits in the IV, bit
numbers 2 and 4 are the partition bits since they are enabled and their values are 0 and
27
1 respectively which is shown by the two rightmost bits in the pattern as shown in the
figure. Thus, we take care of IV collision by generating a pattern of sequence
numbers unique to each node.
4.3 Access Point Key Management System
Our proposed method relies on updating the shared secret key. Thus it necessitates an
efficient key management system on the part of the access point. In this section we
suggest a framework for the access point key management system to further enhance
the efficiency of the proposed protocol.
At an arbitrary time T in the system the Access Point distributes the new updated
keys to all the nodes. Nodes upon receiving the keys respond by acknowledging the
receipt of the key. The primary function of the access point is to keep track of the
nodes that have received the new keys by monitoring the acknowledged frames. The
access point distributes a pattern of sequence number to every node in the system. It
ensures this pattern is unique to each node which helps eliminate IV reuse. Thus, the
access point management system is pivotal to the efficiency of our proposed protocol.
5 Analysis of the Proposed WEP
5.1 Security Analysis
Our proposed technique proves to be better than the existing methods as it withstands
the IV reuse attacks efficiently. Since shared keys are changed after every few
thousand frames the chance of reusing the same IV is minimal. Even if an attacker
finds a shared key using same IVs, which is highly improbable, by the time he detects
it and launches an attack there will be a new-shared secret key in the system. In our
case since we are updating secret key so often the probability of an IV being reused
with the same secret key is (1/ 2
128
). This makes the IV reuse attack extremely
difficult for an attacker.
The WEP IV space is far too small; to give reader an idea J.R.Walker [2] has
mentioned that we exceed a 50% chance of colliding IVs only after transmitting 4823
frames owing to the Birthday Paradox. For example if we perform some calculations
we see that a busy access point sending 1500 byte packets and achieving an average 5
Mbps bandwidth will transmit 3500 frames per second.
Number of Frames transmitted / sec
= (5 Mbps/1500 bytes)
= 3495 (3500 approx.)
If we adhere to change of IV after every 5000 frames in order to avoid IV reuse
with the same shared key, the time required between the key changes is 1.42 seconds.
Table 1 below shows the frequency with which we change our keys depending upon
the bandwidth and number of frames transmitted.
28
Table 1. Time Evaluation between key changes [Varying Bandwidth]
Average
Bandwidth
# of Frames
transmitted
in one second
Time
between the
key changes
Time
£
available to
attacker
1 Mbps 700 7.14 sec
6.66 hrs
2 Mbps 1400 3.57 sec
3.33 hrs
3 Mbps 2100 2.38 sec
2.21 hrs
5 Mbps 3500 1.42 sec
1.33 hrs
7 Mbps 4900 1.02 sec
0.95 hrs
11 Mbps 7700 0.65 sec
0.60 hrs
Table 1 highlights the comparison between the times available to an attacker in the
conventional WEP as against our proposed method. For this evaluation we have
varying bandwidths with a utilization factor of 1.0. For e.g.
Let T = Time available to a attacker,
N = Number of Frames = 3500
Consider in the conventional WEP the shared secret key changes only after
exhausting all possible 2
24
IVs then,
T = 2
24
/ N = 16777216 / 3500 sec = 1.33 hours
In our method we calculate time T by changing the shared secret key after 5000
frames.
T = 5000/3500 sec = 1.42 sec.
Time Evaluation with varying bandwidth
-1
0
1
2
3
4
5
1 Mbps
2 Mb
ps
3 Mb
ps
5 Mbps
7 Mb
ps
1
1
M
bps
Av
g
. Bandwidth used in
Mbps
Tim
e
Proposed WEP
Conventional
WEP

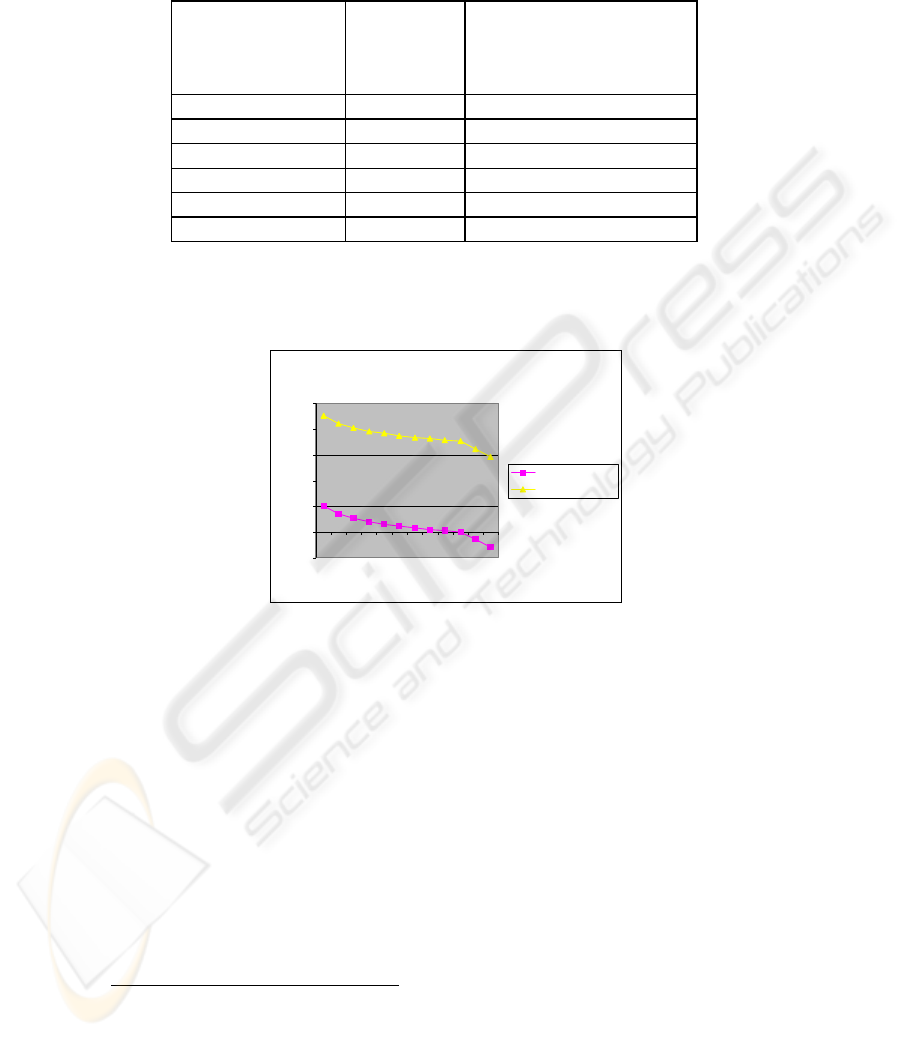

Fig. 2. Log of Time in sec v/s Avg Bandwidth
Time available to an attacker in Proposed WEP
£
Time available to an attacker in Conventional WEP
29
Table 2. Time Evaluation between key changes [Varying Network Load]
# of Frames
transmitted per
second
Time
between
the key
changes
Time
£
available to
attacker
500 10.0 sec 9.32 hrs
1000 5.0 sec 4.66 hrs
2000 2.5 sec 2.33 hrs
5000 1.00 sec 0.93 hrs
10000 0.5 sec 0.466 hrs
20000 0.25 sec 0.233 hrs
Table 2 shows time evaluation considering constant bandwidth (say 54 Mbps) and
varying loads on the network (frames/sec). The bandwidth utilization factor is
considered to be varying and less than 1. Computations are similar to those in Table 1.
Time evaluation with varying Network Loads
-1
0
1
2
3
4
5
500
1500
2500
3500
4500
1000
0
Frames per sec
Time
Proposed WEP
Conventional WEP

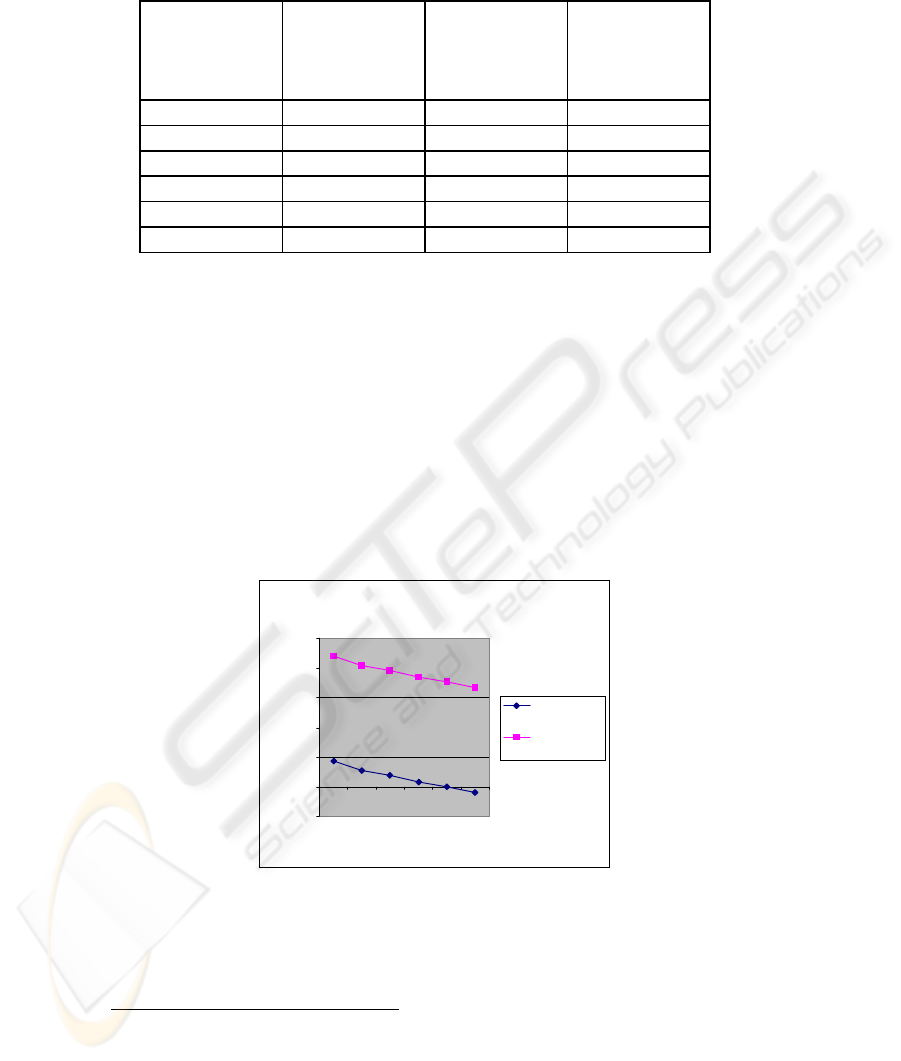

Fig. 3. Log of Time in sec v/s Network Load
It is evident from Figure 2 and Figure 3 that in our proposed method the time
available to an attacker is negligible and proves to be more efficient than the
conventional WEP.
5.2 IV Collision Analysis
By using our proposed algorithm we successfully eliminate the IV collision problem
that persisted in the conventional WEP. We change our shared secret keys after 5000
frames but using our IV avoidance algorithm we ensure that no IV is being reused in
these 5000 frames thereby eliminating the security threat associated with the IV reuse.
Out of the possible 24 bits in the IVs we can have K bits for the pattern and
remaining (24-K) bits varying thereby generating 2
(24-K)
different IVs by each node.
For example if K =8 then we have can have 8 bits for the pattern thereby meaning that
Time available to an attacker in Proposed WEP
£
Time available to an attacker in Conventional WEP
30
we can have 2
8
= 256 nodes active at one point of time without collision. By
incrementing the value of K we can increase the number of active wireless nodes in
the network without IV collision. Similarly if K = 9, we can generate 2
15
different
combination of IVs.
We eliminate the IV reuse problem completely by following the IV avoidance
algorithm. Thus, our IV avoidance algorithm in addition to the proposed WEP
protocol together lays a framework for a strong and secure WEP protocol.
5.3 Overhead Analysis
Shared keys at most take 40 bits (5 bytes) or 104 bits (13 bytes). The size of the WEP
frames varies from 10 bytes to 1500 bytes. The shared secret keys are exchanged at
time intervals depending on various parameters previously mentioned.
Let the length of the data Payload be L, shared key length be S and K be the
number of frames after which we change our shared key. That means, we use S bits
out of (K*L) bits for transmitting the new shared key.
Overhead incurred = (100*S) / (K*L) %
As mentioned in J.R.Walker [4] and Borisov et al. [1], there is 50% chance of an
IV reuse after transmitting 5000 WEP frames.
£
To avoid the IV reuse we take K=
5000 in the following table.
Table 3: Overhead Incurred by shared keys
L
Overhead for
S = 5 bytes
Overhead for
S = 13 bytes
10 0.01 % 0.026 %
50 0.002 % 0.0052 %
100 0.001 % 0.0026 %
200 0.0005 % 0.0013 %
500 0.0002 % 0.00052 %
1000 0.0001 % 0.00026 %
1500 6.67E-05 % 0.00017333 %
In Table 3 we have assumed the shared key size of 104 bits (13 bytes) and 40 bits (5
bytes). The overhead in the 13 byte case is obviously higher than 5 bytes because
shared key occupies more space. These results show that the overhead associated with
transmitting the shared key is very less and without loss of generality we can say that
it has the same performance in terms of space occupied as the original WEP.
5.4 Analysis of hardware upgrade
The vendors can implement the above-mentioned changes in the protocol and a
firmware upgrade is required to make complaint to our protocol. No additional
hardware changes are needed unlike new systems such as 802.11i [10]. It’s still
31
sometime before appropriate hardware is available for 802.11i and till then we can
continue to use our existing systems efficiently and in a much more secured way.
6 Conclusions
Existing WEP protocol has been shown to be vulnerable to different kinds of
cryptanalytic attacks [6]. These stem from inappropriate usage of cryptography and
not because of the key size.
The possible drawback one can identify with our method is the computational
overhead associated with generating, and transmitting the session keys at the access
point.
In this paper we have shown that our proposed modification to the existing WEP
protocol makes it more secure and robust in terms of Message Privacy. The fact that
we frequently change the shared secret keys through the WEP mechanism makes any
kind of cryptanalytic attack futile. The IV collision problem has been successfully
resolved by our proposed IV avoidance algorithm that further enhanced the security
of WEP. IEEE 802.11i standards have explicitly talked about key management which
is must for its security but comes with the overhead of upgrading the hardware. Our
proposed solution is a very efficient alternative till actual hardware is available and
deployed for 802.11i. Our proposed system works well with the existing hardware
and gives an edge over the present WEP protocol.
References
1. N.Borisov, I. Goldberg, and D.Wagner. Intercepting mobile communications: The
insecurity of 802.11. In MOBICOM 2001, Rome, Italy, July 2001.
2. S.Fluhrer, I.Mantin, and A.Shamir. Weaknesses in the key-scheduling algorithm of RC4.
In Eighth Annual Workshop on Selected Areas in Cryptography, Toronto, Canada, Aug.
2001.
3. L.M.S.C of the IEEE Computer Society. Wireless LAN medium access control (MAC)
and physical layer specifications. IEEE Standard 802.11, 1999 Edition, 1999.
4. J.R.Walker. Unsafe at any key size; an analysis of the WEP encapsulation. IEEE
Document 802.11-00/362, Oct 2000.
5. W.A.Arbaugh, N.Shankar, and Y.J Wan. Your 802.11 wireless network has no clothes. In
IEEE International Conference on Wireless LANs and Home Networks.
6. J.Edney and W.A.Arabaugh, “Real 802.11 Security Wi-Fi Protected Access and 802.11i”,
2004, Pearsons Education Inc.
7. William Stallings, Cryptography and Network Security, Principles and Practices”, 3
rd
Edition, 2003, Pearsons Educations.
8. A.Stubblefield, J.Ioannaidis, and A.D.Rubin. ACM Transactions on Information and
Security Security, Vol. 7, No. 2, May 2004, Pages 319-332.
9. http://en.wikipedia.org/wiki/Birthday_attack
10. http://csrc.nist.gov/wireless/S10_802.11i%20Overview-jw1.pdf
32
