Charged Location Aware Services

Krzysztof Piotrowski

, Peter Langend

orfer

, Michael Maaser

, Gregor Spichal

and

Peter Schwander

IHP, Im Technologiepark 25,

15236 Frankfurt (Oder), Germany

Lesswire, Im Technologiepark 25,

15236 Frankfurt (Oder), Germany

Abstract. Location aware services have been envisioned as the killer application

for the wireless Internet. But they did not gain sufﬁcient attention. We are con-

vinced that one of the major pitfalls is that there is up to now no way to charge for

this kind of services. In this paper we present an architecture which provides the

basic mechanisms needed to realize charged location based services. The three

major components are: a location aware middleware platform, an information

server and a micro payment system. We provide performance data that clearly

indicates that such a system can be deployed without exhausting the resources of

mobile devices or infrastructure servers.

1 Introduction

The convergence of mobile communication and Internet allows to realize new kind of

services, business models, as well as the possibility to integrate company employees

which are working remote. The amount of mobile devices in everyday use increases

rapidly creating a big market for potential applications. One of the most interesting

services classes are location aware services. Location aware services are the next step

in the evolution of information access methods. These services are very interesting and

their importance in commercial applications grows.

Imagine a service that informs a customer about current price cuts just when she

reaches the shopping center. Or a service in a gallery that shows the information about

the painting the visitor is just looking at. The number of such applications is limited

only by the imagination of service providers. Of course location awareness is strongly

connected with mobility, thus usually mobile device such as PDAs and cellphones will

be used. But they have very limited resources with respect to computational and battery

power.

We are convinced that location aware services will be widely deployed only if there

is a suitable means to charge for their usage. With our approach presented here we show

that it is feasible to charge a client for a location based service without exhausting its

resources.

Our architecture consists of an information server, a location aware platform and

a micro payment scheme. This combination provides the expected functionality of the

Piotrowski K., Langendörfer P., Maaser M., Spichal G. and Schwander P. (2005).

Charged Location Aware Services.

In Proceedings of the 4th International Workshop on Wireless Information Systems, pages 33-41

DOI: 10.5220/0002579700330041

 SciTePress

whole system. Thus, our solution allows to provide the client with location dependent

information that she wishes to get. But what is important and interesting, the service

provider gets money for this information. This makes our solution more practical from

the commercial point of view. In addition our approach shows very good performance

parameters, e.g. HP IPAQ 5550 (400 MHz) needs 0.1 milliseconds per e-cash token to

execute the most computational expensive part of the payment procedure.

The work on e-cash schemes started in the late eighties [3]. Since then many elec-

tronic cash schemes were proposed, e.g. [1], [2], [9], but they were not optimized for

mobile devices. The design of location aware middleware platforms has recently at-

tracted a lot of attention, e.g. NEXUS [4], [5], CATIS [8], Alipes [11], PLASMA [7],

FAME2 [13]. But those platforms do not provide means to charge a user for services

running on top of the platform.

In the following section we shortly describe the main features of each building

block. We provide the details that are necessary to explain the interactions between

components and to explain the functionality of the proposed system in whole. Section

3 describes our system, the idea behind and an exemplary scenario. After that we pro-

vide an estimate of the performance of the system. The paper concludes with a short

summary and an outlook on next research steps.

2 Underlying components

This section describes the components we used to build up our system. The speciﬁca-

tion provided refers only to the main features of each component and speciﬁc details

necessary to understand the idea of our approach.

2.1 Location aware platform — PLASMA

This section presents our platform called PLASMA (PLAtform Supporting Mobile Ap-

plications) [7]. The description focuses on the components for location handling that

are needed to realize the sample scenario. But PLASMA consists of event and proﬁle

handling components as well. The application of these components would open the

opportunity to set up more sophisticated services.

Infrastructure. PLASMA may be deployed in a hierarchical structure and it allows

replicating the infrastructure servers. The tree structure allows to split geographical

regions with high density of mobile devices into several new geographical regions, so

that the load per infrastructure node is reduced. The servers of the lowest hierarchy level

that directly communicate with mobile clients are called leaf servers. Figure 1 depicts

the structure of all platform components (engines) inside a platform server.

In the following paragraphs we focus on the engines on the infrastructure side that

are involved in the sighting process, i.e., receiving, collecting and delivering the location

data.

The communication engine handles target references, which are used for the com-

munication between clients and platform servers and for platform-internal communica-

tion. In fact, a target reference is made up of the machine’s IP address and the number of

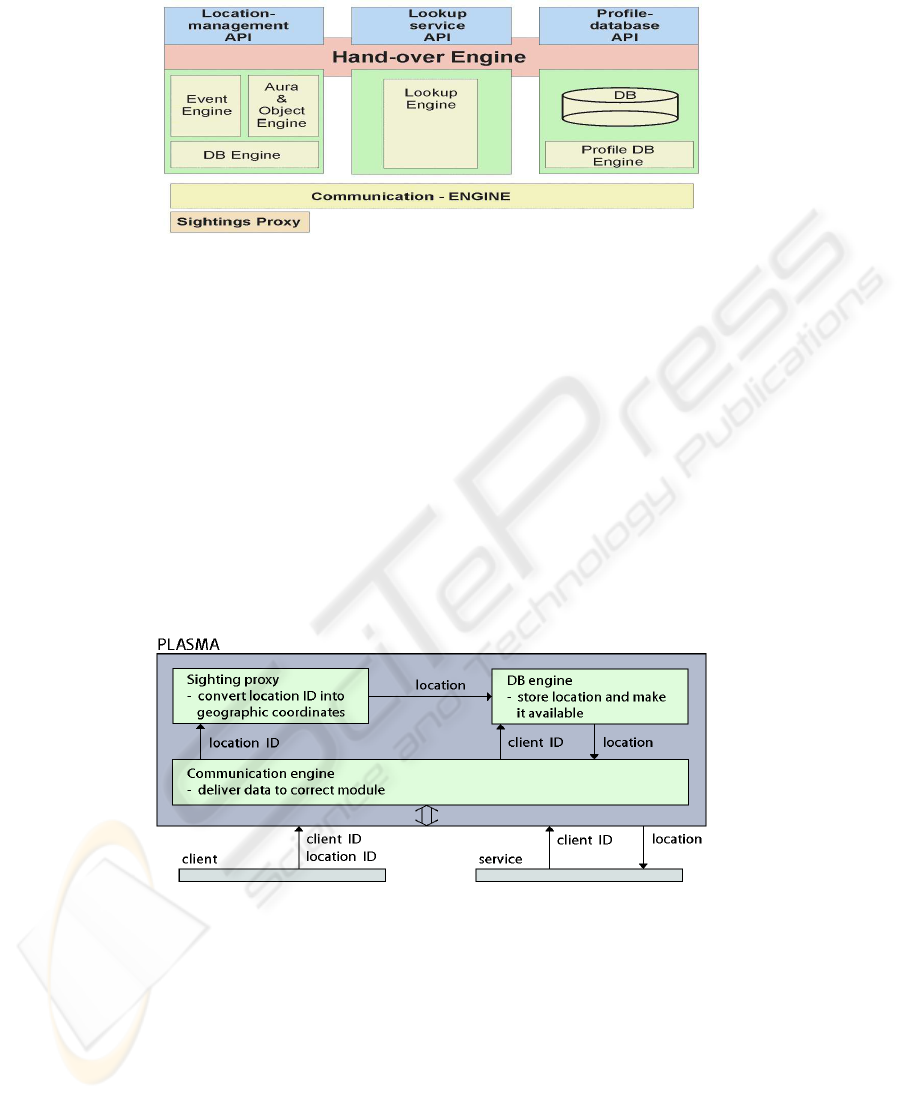

Fig.1. PLASMA components and their structure inside a platform server

the port used by PLASMA. The communication engine is also responsible for an initial

communication establishment for newly appearing device, e.g. when it is powered on.

The sighting proxy resides only on leaf servers, since only these servers commu-

nicate with mobile clients. The sighting proxy receives the position information from

registered clients. It converts the position information provided by the positioning sys-

tem into geographical coordinates that are required by the platform. Then the location

information is forwarded to the database engine (DB).

The database engine stores the location information and provides it to other platform

components and to applications upon request.

Figure 2 shows the engines involved in the sighting process and the ﬂow of the

location data.

Fig.2. PLASMA components that are involved in the sighting process and the ﬂow of the location

data. Service represents the party that asks about the location of the client

PLASMA is based on Java. Thus, in order to enlarge the number of clients that

are able to use the platform it was necessary to introduce a gateway module between

the Java and non-Java world — the Mediator (see ﬁg. 3). It uses the SOAP protocol to

communicate with non-Java clients. SOAP can be used to do remote procedure calls be-

tween any two programming languages. Therefore, we need only one kind of mediator

for all non-Java clients.

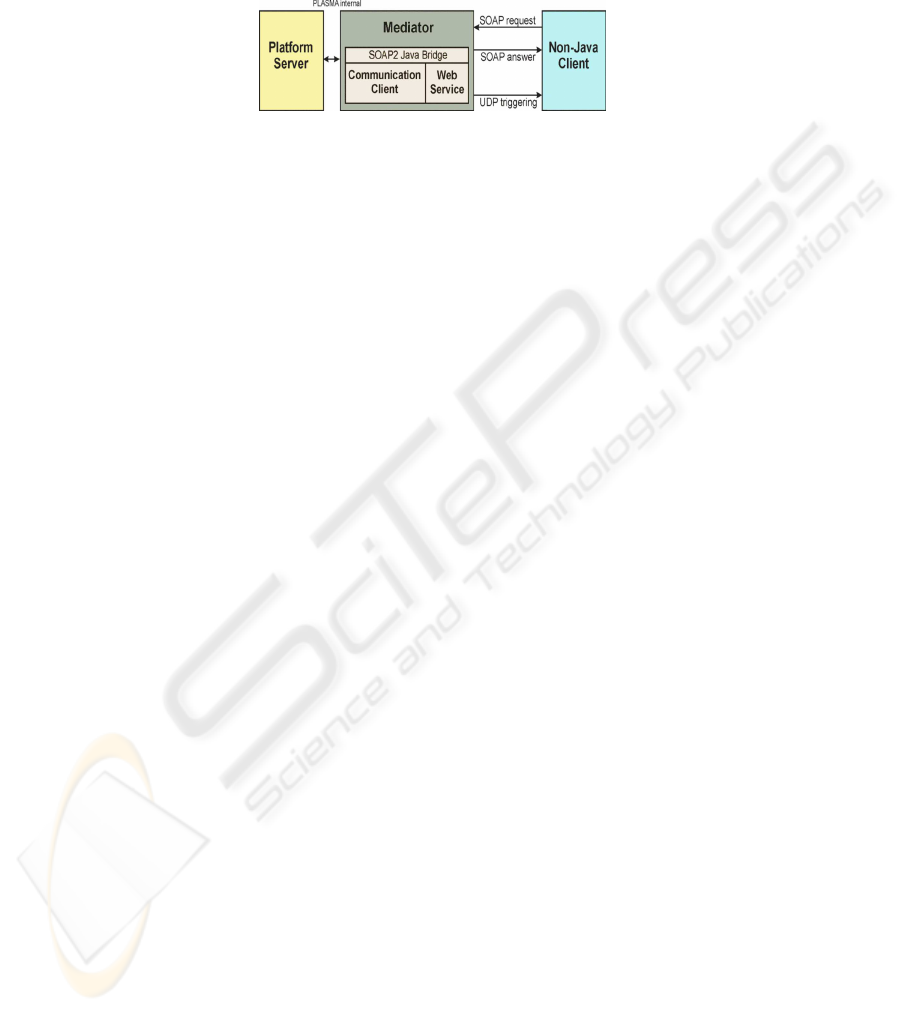

Fig.3. For the support of non-Java clients, the mediator translates SOAP calls into the protocol

for the platform communication and vice versa

Client. Both client types (Java and non-Java) are active with respect to the sighting

system by reporting their current position to the positioning proxy. The position infor-

mation may be delivered by any positioning system e.g. by GPS in outdoor scenarios

or by IR beacons in indoor scenarios.

2.2 Micro payment — MONETA

This section presents MONETA — our off-line micro payment system [10]. It was

designed to ﬁt today’s need for a multi-purpose cash scheme that allows a user to pay

small amount of money without high costs.

MONETA provides all features that are required for an e-cash scheme to be consid-

ered as secure, i.e., it provides non repudiation, is framing proof and unforgeable.

Our cash scheme is optimized for mobile devices. It uses an asymmetric security

architecture that reduces power and memory consumption [6]. Elliptic Curve Cryptog-

raphy private key is used on the client side, and the RSA private key on the infrastructure

side.

MONETA provides anonymity to its clients while also being secure against theft

and double spending of money. To secure it against theft, we introduced a trusted third

party — the MONETA Certiﬁcate Authority, that issues certiﬁcates for pseudonyms.

These pseudonyms are linked to the e-cash tokens. To reveal the identity of the user in

case of double spending we applied a mechanism based on the one proposed in [1].

There is only one value of the e-cash token (coin), which should be the smallest,

indivisible amount of money (e.g. 1 Euro cent). This assumption makes the money

handling easier, because there is no need to give the change and it is the easiest way

to form different amounts of money. This also leads to a straight ﬂow of money (see

ﬁg. 4).

Client, bank and service provider (service) are involved in the money ﬂow. As

shown on ﬁgure 4 there are three steps on the money ﬂow path.

withdrawal - the client gets the coins from the bank. The coins are stored in a database

(wallet) on the client device. The corresponding amount of real money is removed

from the client’s bank account,

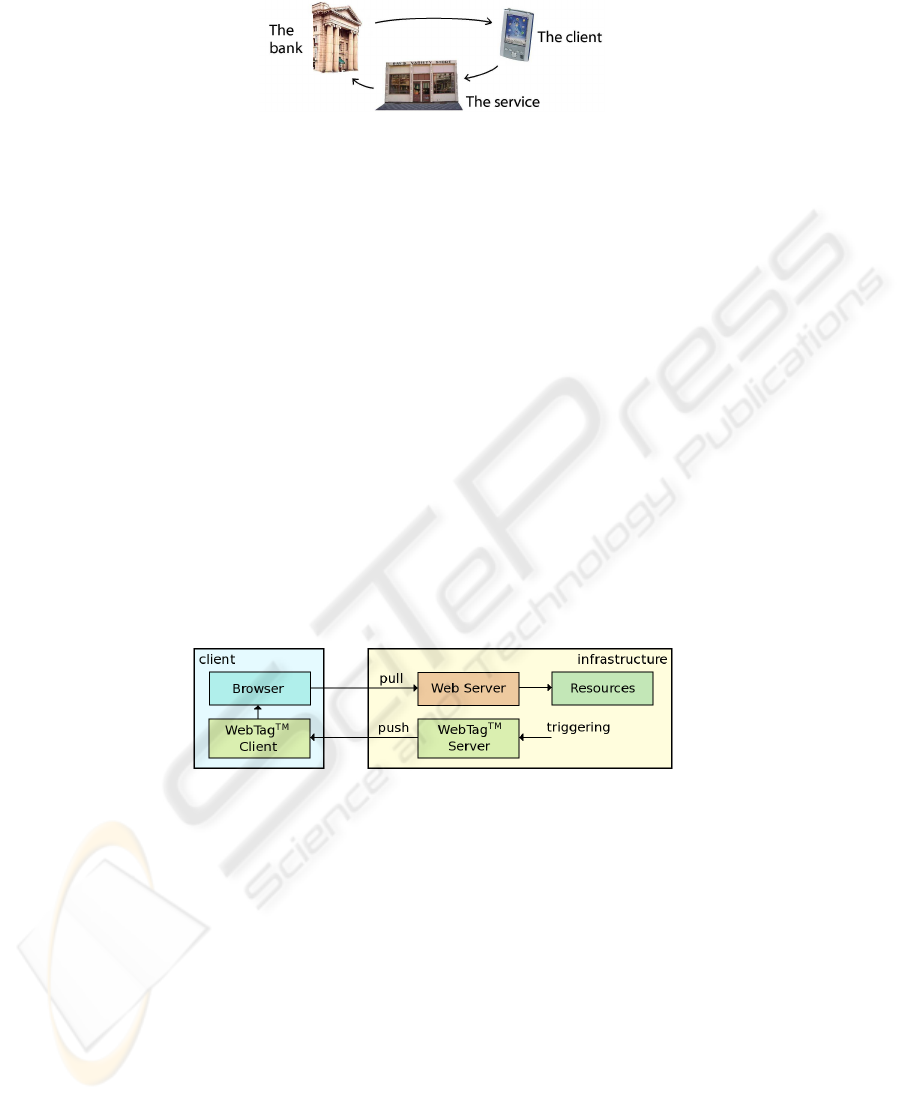

Fig.4. The usual money ﬂow in the MONETA micro payment scheme

payment - the service receives the coins from the client in return of goods or services

it provides. The client removes the coins she spent,

refund - the service sends the coins back to the bank and its account is refunded.

2.3 Information server — WebTag

T M

system

This section presents our information server. The information packet it delivers is called

WebTag

T M

. This packet binds (tags) the resources URL with a location of a client and

a group of recipients. The clients are allowed to deﬁne their own WebTags

T M

The WebTag

T M

system consists of the server and the client part. The client part

has similar functionality to an e-mail client. In order to receive WebTags

T M

the client

has to be registered and logged in. The WebTag

T M

server manages the databases

of WebTags

T M

, places (positions) and users. It is triggered by external information

about the location of a certain client. According to this information the server pushes a

WebTag

T M

to clients that are currently logged in and are on the list of recipients (see

ﬁg. 5).

Fig.5. According to the location information the WebTag

T M

server pushes the WebTag

T M

the client, who can then access the resources from the web server via pull operation

3 Location aware service with micro payment charging

In order to make this section more illustrative, we start deﬁning a scenario, which we

then use to explain the overall architecture as well as the message ﬂow. Any other

scenario will follow the same lines.

First we have to specify the parties and the environment. There are two clients in

this scenario: the visitor and the host. The visitor changes her position and the host pays

to receive notiﬁcations according to the position of the visitor. This scenario requires a

positioning system that provides the visitor with her current location to be available.

Imagine that our clients are going to have a business meeting. The visitor travels

to reach the meeting place. The host is interested in the location of the visitor, but

not in a sense of continuously updated coordinates. The host wants to know that the

visitor reached a particular place on the way, e.g. that she just arrived to a city or to

an airport. To get this information the host subscribes to WebTags

T M

that bind these

places with the visitor, and sets herself as the recipient of these WebTags

T M

. Thus, the

host receives the information according to the location of the visitor. The host is charged

for this information just before it arrives to her device.

In our example scenario we have divided the functionality of the client into two

parts, i.e., the host and the visitor. In other scenarios the client can act as the host and

the visitor at the same time, i.e., the client gets information depending on her own

location.

Figure 6 shows the structure of our system and sketches the data ﬂow. It provides

information about the parties of the system and about components used by each party

as well.

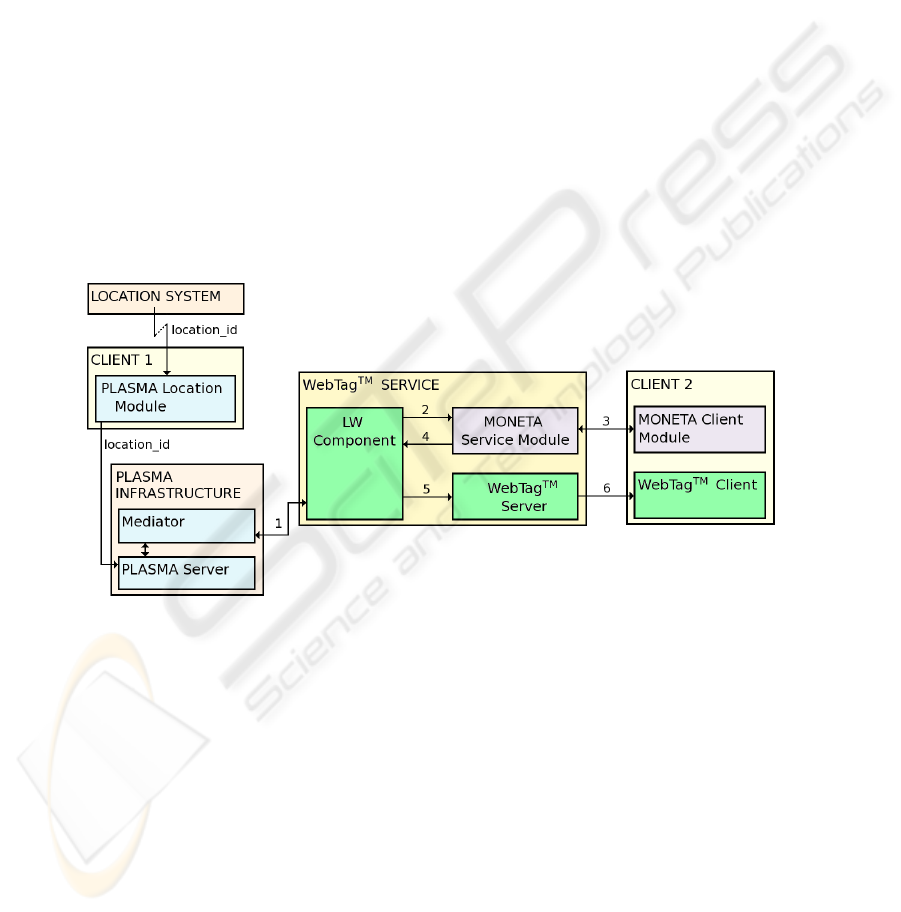

Fig.6. The client 1 represents the traveling party (visitor). Respectively, the client 2 refers to

the client (host) that gets the information depending on the location of the traveling party. The

infrastructure parties are the WebTag

T M

service and the PLASMA infrastructure. We omitted

the MONETA bank and the Web server to make the ﬁgure more clear

The components mentioned in the previous section use different communication

protocols, but each is built on top of TCP/IP. To make all parts of the system work to-

gether we had to provide an additional module — the LessWire (LW) component. On

one hand this component is a kind of extension to the WebTag

T M

server, since it man-

ages the user identiﬁcation and accesses the WebTag

T M

server’s databases. But it also

provides a kind of business logic, i.e., it gets the location information from PLASMA

and triggers the pushing of the WebTag

T M

only if the visitor is in the speciﬁed location

and the procedure of charging the host completed successfully.

The data ﬂow is divided into two parts. The ﬁrst one is collecting location data done

by the PLASMA server. The second is the main procedure of charging and delivering

the location dependent information.

Depending on the kind of positioning system the location information (location

id)

is delivered to the visitor once a speciﬁed time period or every time she changes the

location. The location

id identiﬁes a location with the accuracy depending on the gran-

ularity of the positioning system. The visitor forwards the location information to the

PLASMA server. After converting the location

id to a common location format — geo-

graphic coordinates, the PLASMA server stores the location together with the visitor’s

identity in its database. This procedure is independent (asynchronous) from the remain-

ing data ﬂow.

The charging and delivering procedure forms a sequence of six steps. The order of

these steps is shown in ﬁgure 6 as a number next to the arrow representing each data

exchange. As mentioned before the communication is based on TCP/IP.

step 1. Once a speciﬁed period of time the LW component asks the PLASMA server

about the current position of the visitor. Since the LW component is not a Java

PLASMA client it uses the Mediator to get the information. the LW component

accesses the database of WebTags

T M

to check if there is a WebTag

T M

deﬁned for

the visitor and the obtained location. If this is the case then the LW component gets

the list of IP addresses of recipients, i.e., clients that were set to receive information

depending on the position of the visitor. In our scenario only the host is on this list.

step 2. The LW component sends an request to the MONETA service module asking

to charge the host.

step 3. The third step is the payment procedure. MONETA client and service mod-

ules communicate in order to transfer coins from the host’s device to the service’s

machine.

step 4. The LW component receives the result of the payment procedure.

step 5. If the payment procedure was successful then the LW component triggers the

WebTag

T M

server to push the WebTag

T M

that contains the URL to the speciﬁed

resource, e.g. an information ,,The visitor has just arrived to Berlin”.

step 6. The delivery of the WebTag

T M

is the sixth and last step of the sequence. Now

the host accesses the resources described by the received WebTag

T M

4 Performance evaluation

To estimate the performance of the whole system we estimate the computation load of

each component.

The client

uses a mobile device with limited computation power. That is why the

operations done on the client side have to be as lightweight as possible. During the for-

warding of location

id and the reception of WebTag

T M

the client does almost nothing

in sense of computing power and data transmission. The payment procedure requires

From now on we refer to the client as to the merged functionality of the host and the visitor.

the client to calculate two arithmetic multiplications per coin using big integer numbers

(up to 233-bit long), but these operations are also not extremely expensive. They take

0.1 ms per coin on HP IPAQ 5550 with 400 MHz XScale processor.

The size of one coin is 280 bytes. Thus, the price of the WebTag

T M

, i.e., the amount

of coins used in the payment procedure inﬂuences the amount of transferred data as

well.

The PLASMA server’s functionality is limited to database operations and conver-

sion of the location information. One PLASMA leaf server can handle up to 16000

position updates per second. The WebTag

T M

server together with the LW component

are doing simple operations and transfers of small amount of data. The most expensive

operations are done by the MONETA service component. During the payment proce-

dure it has to perform four elliptic curve scalar point multiplications per coin in order

to verify it. The time needed by this operation depends on the ECC library used. Our

ﬁrst version of pure Java ECC implementation allows to calculate one scalar point mul-

tiplication in about 50 ms using a standard PC (2 GHz). This result was achieved for

the P-224 elliptic curve recommended by NIST [12].

Table 1 presents our measurement results more precisely. The location query is a

bidirectional operation, thus the result speciﬁes the time period between sending the

query and receiving the answer. It includes the delay caused by the network connection.

Since the location forwarding is one-way operation we provide the time needed by the

PLASMA server to process and to store the location data without the network delay.

For the payment procedure we measured the amount of time needed by the client and

the service to process each coin. We do not have exact measurement results for the

WebTag

T M

creation operation, but it should be comparable with the result for location

forwarding.

Table 1. Amount of time needed by each party to perform the operations

Operation Client PLASMA Service

Location forwarding 0,0625 ms —

Location query — 45 ms

Payment 0,1 ms / coin — 200 ms / coin

5 Summary and Outlook

In this paper we have investigated an architecture which provides all means to imple-

ment location aware services and to charge for their use. The system consists of three

major components: a location handling middleware platform, a micro payment system

and an information server. All these components have a very good performance, e.g. the

location handling platform can manage up to 16000 position updates per second, and

the most expensive operation on the mobile device, i.e., the payment procedure requires

only 0.1 milliseconds per coin.

Despite the system shows already a good performance ﬁgures we will optimize the

overall performance in our next research steps. Currently the information server poll

the location database in order to get the current position of all users. In a next step we

will replace this by an event based mechanisms which is provided by the middleware

platform used. In addition we will tune the implementation of the cryptographic op-

erations. This includes the integration of C and assembler programming parts as well

as the integration of hardware accelerators for elliptic curve cryptography. We are also

going to investigate the privacy issues.

References

1. Baumgart, M., Neumann, H., Schweitzer, N.: Optimistische Faire Transaktionen mittels

zeitlich beschr

ankter M

unzen. Verl

assliche IT-Systeme - VIS 2001. Vieweg-Verlag (2001).

2. Brands, S.: Untraceable Off-line Cash in Wallets with Observers. In: Proc. Of Crypto ’93,

Lecture Notes in Computer Science 773. Springer-Verlag.

3. Chaum, D., Fiat, A., Naor, M.: Untraceable Electronic Cash. In: Shaﬁ Goldwasser (Ed.):

Advances in Cryptology CRYPTO ’88. Springer-Verlag (1988).

4. Hohl, F., Kubach, U., Leonhardi, A., Schwehm, M., Rothermel, K.: Nexus: An open global

infrastructure for spatial-aware applications. In: Proc. of the ﬁfth International conference on

Mobile Computing and Networking (MobiCom 99). ACM Press (1999).

5. Leonhardi, A., Kubach, A.: An architecture for a distributed universal location service. In:

Proc. of the European Wireless 99 Conference. VDE Verlag (1999).

6. Langend

orfer, P., Dyka, Z., Maye, O., Kraemer, R.: Power Security Architecture for Mobile

Commerce. In: 5th IEEE CAS Workshop on Wireless Communications and Networking.

IEEE Society Press (2002).

7. Langend

orfer, P., Maye, O., Dyka, Z., Sorge, R., Winkler, R., Kraemer, R.: Middleware for

Location-based Services: Design and Implementation Issues. In: Q. Mahmoud (ed): Middle-

ware for Communication. Wiley (2004).

8. Pashtan, A., Blattler, A., Heusser, A., Scheuermann, P.: CATIS: A Context-Aware Tourist

information System. In: Poceedings of the 4th International Workshop of Mobile Computing.

Rostock (Germany), June 17-18, 2003.

9. Petersen, H., Poupard, G.: Efﬁcient scalable fair cash with off-line extortion prevention.

Technical Report LIENS–97–07. May 1997. 33 pages.

10. Piotrowski, K., Langend

orfer, P., Kulikowski, D.: Moneta: An Anonymity Providing Light-

weight Payment System for Mobile Devices. Reviewed Paper. IFIP/GI Workshop on Virtual

Goods. Ilmenau (Germany), May 28-29, 2004.

http://virtualgoods.tu-ilmenau.de/2004/MONETA.pdf (last viewed: January 31, 2005).

11. Synnes, K., Nord, J., Parnes, P.: Location Privacy in the Alipes platform. In: Proceedings of

the Hawaii International Conference on System Sciences (HICSS-36). Big Island, Hawaii,

USA, January 2003.

12. U.S. Department of Commerce / National Institute of Standards and Technology

(NIST): Digital Signature Standard. FIPS PUB 186-2. Federal Information Process-

ing Standards Publication (2000). http://csrc.nist.gov/publications/ﬁps/ﬁps186-2/ﬁps186-2-

change1.pdf (last viewed: January 31, 2005).

13. Wuest, B., Dr

ogehorn, O., David, K.: FAME2: Software Architecture for B3G and 4G Net-

works. In: IST Summit on Mobile and Wireless Communication. Aveiro, Portugal, 2003,

p.837-841
