BAYESIAN INFERENCE IN A DISTRIBUTED ASSOCIATIVE

NEURAL NETWORK FOR ADAPTIVE SIGNAL PROCESSING

Qianglong Zeng

Bellevue High School,10416 Wolverine Way, Bellevue, WA USA

Ganwen Zeng

Data I/O Corporation, Department of Advanced Technolog,10525 Willows Rd. NE,Redmond, WA USA

Keywords: Bayesian inference, neural network, Adaptive signal processing

Abstract: The primary advantages of high performance associative memory model are its ability to learn fast, store

correctly, retrieve information similar to the human “content addressable” memory and it can approximate a

wide variety of non-linear functions. Based on a distributed associative neural network, a Bayesian

inference probabilistic neural network is designed implementing the learning algorithm and the underlying

basic mathematical idea for the adaptive noise cancellation. Simulation results using speech corrupted with

low signal to noise ratio in telecommunication environment shows great signal enhancement. A system

based on the described method can store words and phrases spoken by the user in a communication channel

and subsequently recognize them when they are pronounced as connected words in a noisy environment.

The method guarantees system robustness in respect to noise, regardless of its origin and level. New words,

pronunciations, and languages can be introduced to the system in an incremental, adaptive mode.

1 INTRODUCTION

Associative neural networks show great potential for

modeling nonlinear systems where it is difficult to

come up with a robust model from classical

techniques. There have been a number of associative

memory structures proposed over the years (Palm

1980; Willshaw and Graham 1995; Palm,

Schwenker et al. 1997), but, as far as the authors

know, there have been no fully functional

commercial products based on best-match

association. In this paper we present what we feel

are the first few steps to creating such a structure in

Bayesian inference. Bayesian inference learning

based associative neural networks can be trained to

implement non-linear functional memory mappings.

This best-match associative network can be viewed

as two outside layers of neurons and multiple inside

hidden layers of neurons, and hence, its operation

can be decomposed into two separate mappings

outside. The input vector is transformed to a vector

of binary values, which in turn produces the sum of

weights that link itself to the corresponding input

vector of value one. As with any training of

perceptron, given an input vector, the desired output

at the output layer can be approximated by

modifying these connection weights through the use

of Bayesian inference learning (Zeng and Dan,

2002). In the output, a match

is defined as a bit for

bit, or exact match (though “don't care” positions

are generally allowed), OR the best match

if there is

no exact match by approximation. Best-match

association then finds the “closest” match according

to some metric distance between the data we

provide and the data in the memory. A number of

metrics are possible. A simple and often used metric

is Hamming distance (number of bits which are

different). However, more complex vector metrics

can be used. A common example of best match

processing is Vector quantization, where the metric

is usually Euclidean distance in a high dimensional

vector space.

There are a number of interesting technical

problems involved in creating a functioning

best-match associative memory system. An

important part of this process that is essential in

many of the potential applications is to be able to

177

Zeng Q. and Zeng G. (2006).

BAYESIAN INFERENCE IN A DISTRIBUTED ASSOCIATIVE NEURAL NETWORK FOR ADAPTIVE SIGNAL PROCESSING.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 177-181

DOI: 10.5220/0001202101770181

Copyright

c

SciTePress

formally describe the operation of this memory.

Bayesian Networks and Decision Graphs have been

proposed techniques for modeling intelligent

processes. And there are a number of “intelligent”

applications that are based on Bayesian Networks.

In this paper we propose that Bayesian inference

is an appropriate model for best-match associative

processing. The designed neural network adaptive

learning system is applied to improve the

intelligibility of the speech signal for automatically

adjusting the parameters of the adaptive filter in

order to improve the corrupted speech signal and to

optimize the output signal of the system. The input

signals are stochastic and the information obtained

from the inputs used by the adaptive algorithm is to

adjust the weights and to achieve parameter

adjustments close to optimum. Most of the

conventional work towards canceling noise to

improve the corrupted speech signal uses the Least

Mean Squared (LMS) algorithm, or Recursive Least

Square (RLS) algorithm to cancel of the unwanted

noise under the assumption that a reasonably good

model of the actual unwanted signal is available.

The noise estimate, or sometimes referred to, as the

reference signal, could not be correlated to the

speech signal to be recovered, as this will cancel the

actual speech as well.

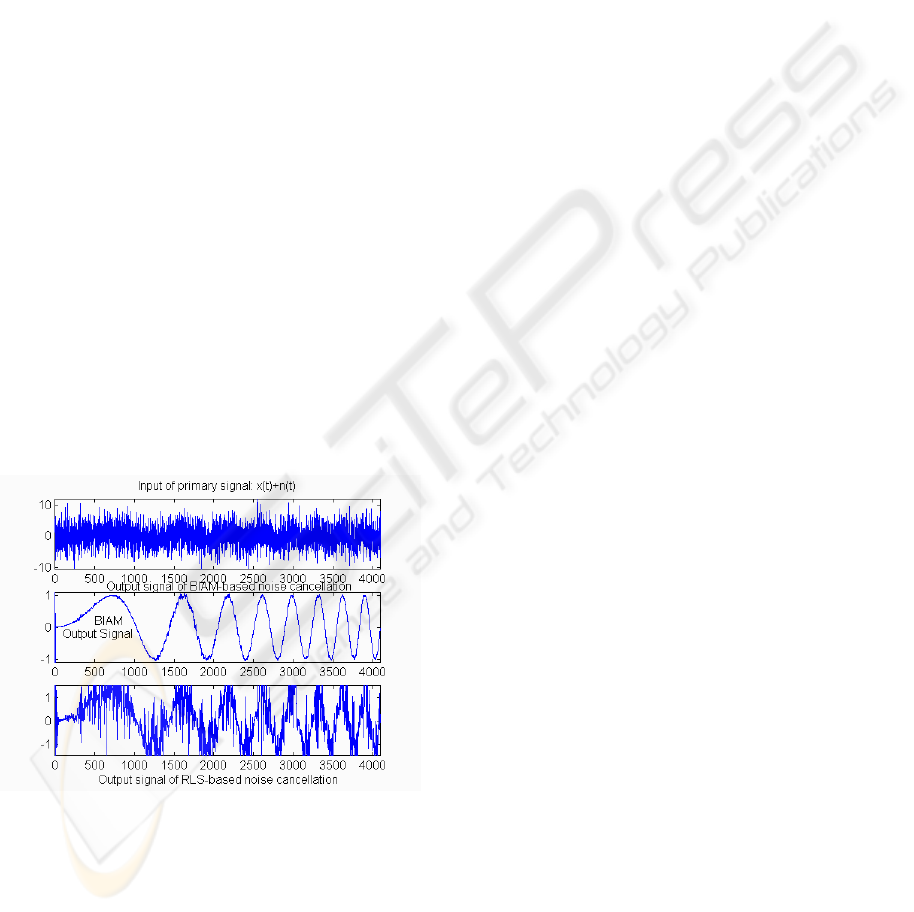

The simulation results show an increased

performance of the Bayesian Networks compared to

the conventional RLS adaptive algorithm.

2 NEURAL NETWORK FOR

NOISE CANCELLATION

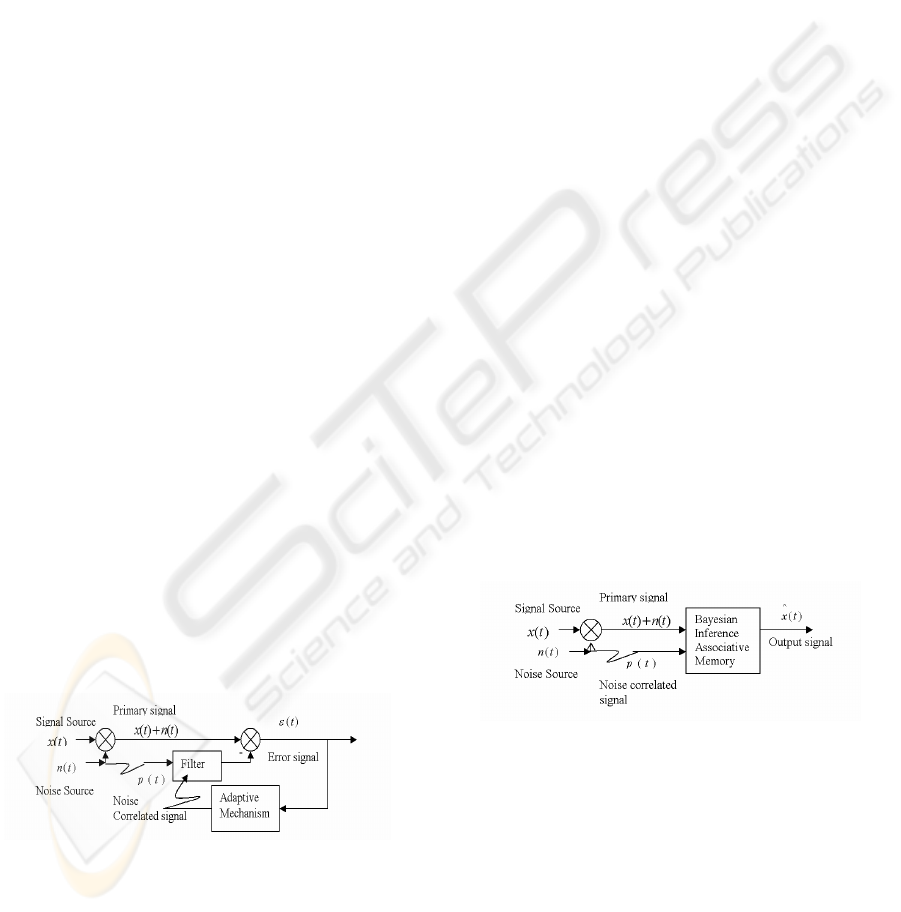

Figure 1 shows a conventional adaptive noise

cancellation scheme where

)(tx

represents a

noiseless signal and

)(tn

a superimposed noise.

Figure 1: LMS/RLS Based Adaptive Noise Cancellation.

An adaptive filter in the feedback loop tailors a

noise-correlated input

)(tp

and outputs the estimate

)(tm

of the noise

)(tn

. The error function is then

given by

)()()()( tmtntxt −+=

ε

With a mean-square deviation

))()()((2))()(()()(

222

tmtntxtmtntxt −+−+=

ε

That yields the expectation function

))

]

()()((2[]))()([()]([)]([

222

tmtntxEtmtnEtxEtE −+−+=

ε

If

)()( tntx

⊥

,

)()( tmtx

⊥

, one has

]))()([()]([)]([

222

tmtnEtxEtE −+=

ε

Since

)]([

2

txE

isn’t affected by the adaptive

mechanism itself,

]))()([(

2

tmtnE −

can be

minimized for a given

)(tp

by the Least Mean

Squared (LMS) algorithm, or Recursive Least

Square (RLS) algorithm; i.e.,

0]))()([(

2

≈− tmtnE

so we will have

)]([)]([

22

txEtE ≈

ε

, then

)()( txt ≈

ε

.

The proposed neural network noise cancellation

is a Bayesian inference based distributed associative

neural network (shown in Figure 2 where the

output

)()(

^

txty =

,

)(

^

tx

is the signal estimate). It

constructs a Bayesian inference associative memory

(BIAM) neural network to suppress noise and to

output the signal estimate. The BIAM neural

network consists of multiple clusters of

self-organizing feature maps. The weights in the

BIAM neural network are effectively the

coordinates of the locations of the neurons in the

map. The output of the winning neuron can be

directly obtained from the weight of a particular

output neuron. Instead of storing the signal estimate,

BIAM memory only stores the weight, which

represents the functions of the outputs of the

estimate signal and the estimate noise spectra in the

association engine.

Figure 2: BIAM Neural Network Noise Suppression.

3 PALM ASSOCIATION

For the first association engine, we want an

algorithm that is reasonably well understood and

performs robust best-match association

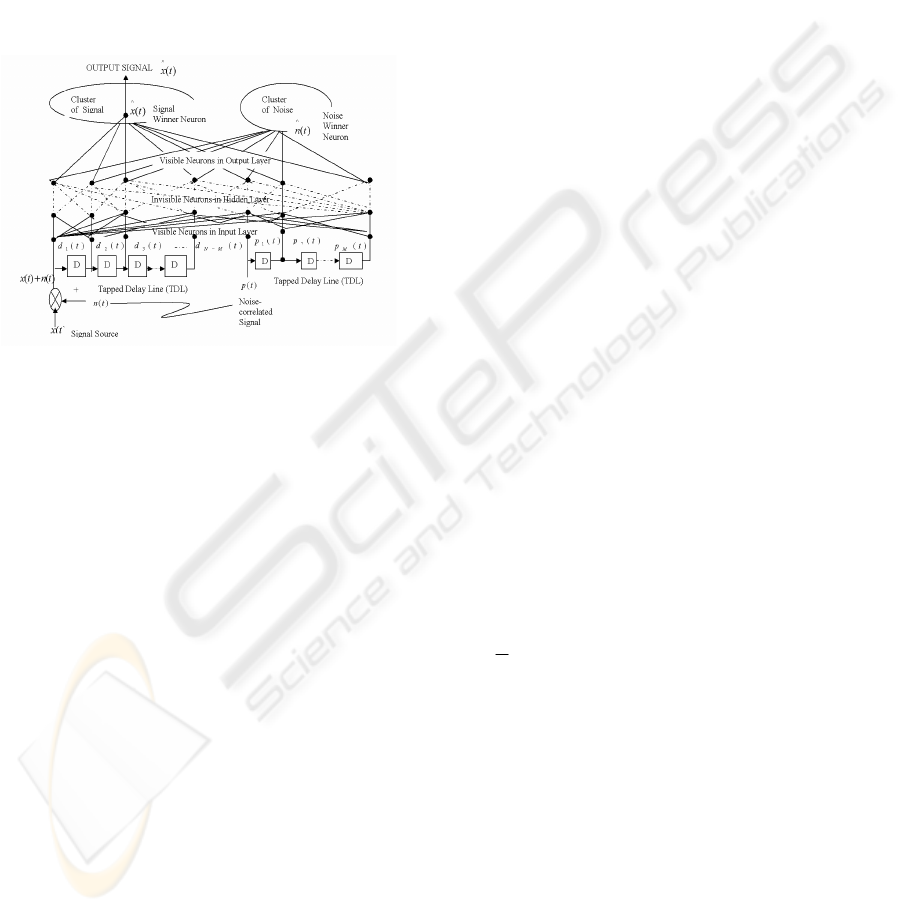

computation. Figure 3 shows the architecture of

BIAM for noise cancellation.

In Figure 3, TDL is a tapped delay line. The

input signal such as the primary

ICINCO 2006 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

178

signal

)()( tntx +

and the noise-correlated input

)(tp

enters into a TDL, and passes through N-1

delays for the primary signal and M-1 delays for the

noise-correlated input. The output of the tapped

delay line (TDL) is an (N+M)-dimensional vector,

made up of the input signal at the current time, the

previous input signal, etc. MIAM competitive

learning will output the signal winner neuron

through the weights of the cluster of neurons. It

separates the noise winner neuron in the noise

cluster. The learning only occurs in the output

neurons.

Figure 3: Architecture of BIAM for Noise Cancellation.

As a first pass, we have chosen to use the simple

associative networks of Günther Palm (Palm, 1997

#82). Part of the purpose of using Palm is as a driver

for the design methodology. We have no intention

of limiting ourselves to that model and feel that

many more interesting and powerful models will be

available for us.

The algorithm stores mappings of specific input

representations

i

x

to specific output

representations

i

y

, such that

ii

x

y→ . The network

is constructed via the input-output training

set

(, )

ii

x

y , where ()

ii

Fx y

=

. The mapping F is

approximative or interpolative in the sense that

()

ii

Fx y

ε

δ

+=+, where

i

x

ε

+ is an input

pattern that is close to input

x

μ

being stored in the

network, and

ii

xy =

with

0))()((

^

→−= tntn

ε

and

0→

δ

. This definition also requires that a

metric exists over both the input and output spaces.

We are using a simplified auto-association

version of Palm’s generic model, where the input

and output are the same. Furthermore, all vectors

and weights are binary valued (0 or 1) and have

dimension N. There is also a binary valued n by n

matrix that contains the weights. Output

computation is a two step process. First an

intermediate sum is computed for each node (there

are also n nodes).

[, ]'[]

N

j

k

s

wjkxk=

∑

In the notation, a vector x’ is input, an inner

product is computed between the elements, k, of the

input vector and each row, j, of the weight matrix.

For auto-association the weight matrix is square and

symmetric.

The node outputs then are computed

ˆ

()

j

jj

xfs

θ

=

−

The function, f, is a non-linear function such as a

sigmoid. We are currently assuming a simple

threshold function whose output

ˆ

j

x

then is 1 or 0

depending on the value of the node’s threshold

j

θ

.

The setting of the threshold is complex and will be

discussed in more detail below. Initially we shall

assume that there is one global threshold, but we

will relax that requirement as we move to modular,

localized network structures.

The next important aspect of these networks is

that they are “trained” on a number of training

vectors. In the case of auto-association, these

represent the association targets. In the Hopfield

energy spin model case, these are energy minima.

There are M training or memory patterns. In the

auto-associative memories discussed here the output

is fed back to the input so that X=Y.

The weights are set according to a “Hebbian”

like rule. That is, a weight matrix is computed by

taking the outer product of each training vector with

itself, and then doing a bit-wise OR of each training

vector’s Hebbian matrix.

1

()

M

ij i j

wxy

μ

μ

μ

=

=

∪

The final important characteristic is that only a

fixed number of nodes are active for any vector. The

number of active nodes is set so that it is a relatively

small number compared to the dimensions of the

vector itself – Palm suggests

(log( ))aO N= . It is

worth noting that the LMS algorithm operates in

O(N) operations per iteration, where N is the

number of tap weights in the filter, whereas RLS

uses O(N^2) operations per iteration. Although

reducing theoretical capacity somewhat, small

values of a lead to very sparsely activated networks

and connectivity. It also creates a more effective

computing structure. Training vectors are generated

with only nodes active (though in random

BAYESIAN INFERENCE IN A DISTRIBUTED ASSOCIATIVE NEURAL NETWORK FOR ADAPTIVE SIGNAL

PROCESSING

179

positions). Likewise, we have assumed that test

vectors, which are randomly perturbed versions of

training vectors, are passed through a saturation

filter that activates only a node. This is also true of

network output, where the global threshold value

(which is the same for all nodes),

θ

, is adjusted to

ensure that only the K nodes with the largest sums

are above threshold— this is known as K

winners-take-all (K-WTA). Palm has shown that in

order to have maximum memory capacity, the

number of 1s and 0s in the weight matrix should be

balanced, that is p

1

= p

0

= 0.5, that is

0

ln ln 2Mpq p=− ≤ . In order for this relationship to

hold, the training vectors need to be sparsely coded

with log n bits set to 1, then the optimal capacity

69.02ln =

is reached.

3.1 Palm Association as Bayesian

Inference

Message x

i

is transmitted, message

)()()(

'

tntxtx +=

is received, and all vectors are

N bits in length, so the Noisy Channel only creates

substitution errors. The Hamming Distance between

these two bit vectors is HD(x

i

, x

j

). We are assuming

throughout the rest of this paper that the Noisy

Channel is binary symmetric with the probability of

a single bit error being ε, and the probability that a

bit is transmitted intact is (1-ε). The error

probabilities are independent and identically

distributed and ε < 0.5.

We can now prove the following result:

Theorem 1: The messages, x

i

, are transmitted

over a Binary Symmetric Channel and message x’ is

received. For all messages, x

i

, being equally likely,

the training vector with the smallest Hamming

Distance from the received vector is the most-likely

that was sent in a Bayesian sense,

,min (,')

ii

ist HDx x∀ and

,max(|')

ij

jst px x∀ , i=j

Proof: This is a straightforward derivation from

Bayes rule

1

['| ][ ]

[|']

['| ][ ]

ii

i

N

j

j

j

px x px

px x

px x px

=

=

∑

Since the denominator is equal for all inputs, it

can be ignored. And since the x

i

are all equally

likely the p[x

i

] in the numerator can be ignored. Let

x

i

(h) be a vector that has a single bit error from x

i

,

that is HD(x

i

(h), x

i

)=h. The probability, p(x(1)) of a

single error is (1-ε)

n-1

ε. Note, this is not the

probability of all possible 1-bit errors only the

probability of a single error occurring that

transforms x

i

into x’. The probability of h errors

occurring is, p(x(h)) = (1-ε)

n-h

ε

h

. It is easy to see that

for ε<0.5 then p(x(1)) > p(x(2)) > … > p(x(h)). And

by definition HD(x(1)) < HD(x(2)) < … <

HD(x(h)). By choosing the training vector with the

smallest Hamming Distance from x’, we maximize

['| ]

i

p

xx and thus maximize [|']

i

p

xx

Theorem 2: When presented with a vector x’,

the Palm association memory returns the training

vector with the smallest Hamming Distance, if the

memory output is that vector x

i

, then we have

min ( , ')

ii

HD x x

The proof is not given here, but this is a

fundamental property of the Palm network as shown

by Palm (Palm 1980).

Going back to Bayes’s rule, using the fact that

the probability of h errors is p(x(h)) = (1-ε)

n-h

ε

h

, and

taking the logarithm we get:

ln [ ( | ')] ln [(1 ) ] ln[ ( )]

( , ')(ln ln (1 )) ln ( )

Nh h

i i

ii

px x px

HD x x p x

εε

εε

−

=− +

=−−+

Setting

(ln ln(1 ))

α

εε

=

−−and dividing, we

get

( , ') ( , ') ( )

iii

f

xx HDxx fx

=

+

Where f is the log of the probability, divided by

α.

We can then create a modified Palm network

‘with priors’ where there is a new input for each

vector. This input adds to the accumulating inner

product.

The weights in this modified Palm network are

calculated according to a “Hebbian” like rule and

the knowledge of prior probabilities. That is, a

weight matrix is computed by taking the outer

product of each training vector with itself, and then

doing a bit-wise OR of each training vector’s

Hebbian matrix; and plus an inference-based

learning item. η is a learning rate.

Theorem 3: The message x

i

is transmitted over a

Binary Symmetric Channel and message x’ is

received. For all messages, x

i

, with probability of

occurrence p(x

i

), the training vector with the

smallest Weighted Hamming Distance from the

received vector, x’, is the most likely message sent

in a Bayesian sense,

,max(,')

ii

ist f x x

∀

and

,max(|')

ij

ist px x

∀

, i=j.

Proof: The proof is similar to Theorem 1

ICINCO 2006 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

180

Based on the given prior probabilities of the

training messages, the weights are learned by

inference of the closest stored pattern. It minimizes

the objective function HD(x

i

, x’); this gives to

This means the Palm reference associative

memory can most likely recall the store x

i

from

noised message input x’. It makes the message x

i

be

recalled independently to its noise signal.

4 CONCLUSION

In our implementation of the BIAM algorithm for

noise cancellation we modeled the additive noise as

a random white Gaussian process. We model the

unknown acoustical system as a randomly generated

FIR filter. We used sine chirps and a voice

recording for our input signals. The simulation in

Figure 4 observed with our experiments, BIAM has

significantly faster convergence behavior than the

conventional LMS/RLS. In general, it seems to

converge within log (N) iterations, where N is the

number of tap weights having a better steady state

approximation of tap weights. This significantly

improves the final noise removal performance.

These results demonstrate that the Palm memory is

operating as a Bayesian classifier.

Figure 4: Simulation Result.

REFERENCES

Zeng, G., and Dan, H., Distributed Associative Neural

Network Model Approximates Bayesian Inference,

Proceedings of the Artificial Neural Networks in

Engineering Conference (ANNIE 2002), pages 97-103,

St. Louis, Missouri, Nov 2002.

Jensen, F., The book Bayesian Networks and Decision

Diagrams, Springer. 2001.

valueaxfxxf

ii

min)(),(

'

⇒−

BAYESIAN INFERENCE IN A DISTRIBUTED ASSOCIATIVE NEURAL NETWORK FOR ADAPTIVE SIGNAL

PROCESSING

181
