FUZZY CLASSIFICATION BY MULTI-LAYER AVERAGING

An Application in Speech Recognition

Milad Alemzadeh, Saeed Bagheri Shouraki, Ramin Halavati

Computer Engineering Department, Sharif University of Technology, Tehran, Iran

Keywords: Speech Recognition, Fuzzy Number, Multi-Layer Averaging.

Abstract: This paper intends to introduce a simple fast space-efficient linear method for a general pattern recognition

problem. The presented algorithm can find the closest match for a given sample within a number of samples

which has already been introduced to the system. The fact of using averaging and fuzzy numbers in this

method encourages that it may be a noise resistant recognition process. As a test bed, a problem of

recognition of spoken words has been set forth to this algorithm. Test data contain clean and noisy samples

and results have been compared to that of a widely used speech recognition method, HMM.

1 INTRODUCTION

Pattern recognition is one of the oldest challenges of

researchers in different areas such as artificial

intelligence, interactive graphic computers and

computer aided design. Different kinds of

recognition can also be generalized as a pattern

recognition problem. A pattern is an arrangement of

descriptors. Therefore a wide range of problems can

easily be seen as a pattern recognition problem.

Considering this general view, this paper tries to

demonstrate a time and space efficient yet simple

approach for a pattern matching problem.

The presented algorithm can compare a given

sample to a number of samples in its database and

specify the closeness of each sample of database to

the given one. This comparison can be served to find

the closest match which can be interpreted as a

recognition process. The samples used in this

algorithm are generally N-dimensional arrays, but

since 2D arrays are mostly the case (images,

spectrograms and etc.) in pattern recognition

processes, the algorithm has been developed based

on such structure. The details about this issue have

been discussed in next section.

For displaying the effectiveness of presented

method and also for demonstrating its ability to

solve practical problems, this algorithm has been

applied to a speech recognition problem and tested

and compared with one of the best methods of this

category, Hidden Markov Model. The flexibility of

this method to noise which is one the most important

concepts of speech recognition has also been tested.

The next section explains the details of the

problem in hand and how the discussed general

domain has been mapped to a speech recognition

issue. In section 3, the steps of recognition process is

explored in which the idea of Multi-Layer Averaging

(MLA) combined with fuzzy classification is

described. The complexity of the algorithm is then

calculated and shown in section 4 which shows its

time and space efficiency. Finally, the results and

comparisons are presented in section 5.

2 PROBLEM SPACE

As it was mentioned, a pattern recognition problem

can be a general concept. This section tries to limit

the definition of the problem although it can easily

be extended to more complex forms. First, a general

view is established to display how this method can

be applied to different areas. Then an application of

this definition in recognition of a spoken word signal

will be presented.

122

Alemzadeh M., Bagheri Shouraki S. and Halavati R. (2006).

FUZZY CLASSIFICATION BY MULTI-LAYER AVERAGING - An Application in Speech Recognition.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 122-126

DOI: 10.5220/0001206001220126

Copyright

c

SciTePress

2.1 General View

The idea of MLA can be applied on any arrangement

of numeric data with subtle adaptations. The

structure used in this paper is a 2-Dimentional

matrix of integer numbers. The goal is to find a

match for a given sample among a number of

samples which has already been introduced and

analyzed by the system.

Definition: A Sample is a matrix of size (m × n)

of integer numbers.

Different samples do not necessary have the

same size. However it is needed for further steps of

algorithm to reduce sample data to a specified size

for all samples. This reduction is done by

quantization process.

Quantization process is a process which takes

raw data from input source and converts these data

to integer values in the form of a matrix with a

predefined size. First part of quantization is

converting the numbers to integer values. This can

be done by a function to map the input range to a

desired range so that a proper distribution of

numbers is achieved.

In second part, to resize the dimensions of input

data, a grid of specific size is assumed upon current

data and the numbers of each block of the grid are

averaged and the result will represent the value of

that block. The above view has been applied to a

specified case of speech recognition which is

described in the following sub-section.

2.2 Word Recognition Problem

Speech recognition can be divided to smaller

problems. The range of these problems can differ

from recognition of phoneme to a word then a

sentence and ultimately continuous speech. The

number of speakers is also an important factor. This

paper deals with the recognition of spoken words of

a single speaker. The goal is to get a new sample (a

spoken word in this case) from a speaker and

classify it within a number of existing samples

which are already acquired from the same speaker.

There are two technical assumptions considered

in implementation of this algorithm. First

assumption is that words are pronounced normally

i.e. the relative lengths of phonemes of a word are

almost equal for different pronunciations of the same

word. Second assumption is that each sample is

properly clipped i.e. there are no blank or irrelevant

data in the beginning and end of a sample.

Before the recognition process can be applied, it

is needed for both train and test data to be converted

to the format discussed in previous sub-section. To

do so, spectrogram of each sample is calculated.

Spectrogram is simply amplitudes of a range of

frequencies in small time slices over speech signal

time period.

After acquiring spectrograms of each sample, a

normalization algorithm makes sure that data are

converted to integer and uniformly distributed over

the range of [0, 255]. The result is a matrix of

integer numbers which its sizes are dependant of

both length of time of the word and the size of FFT

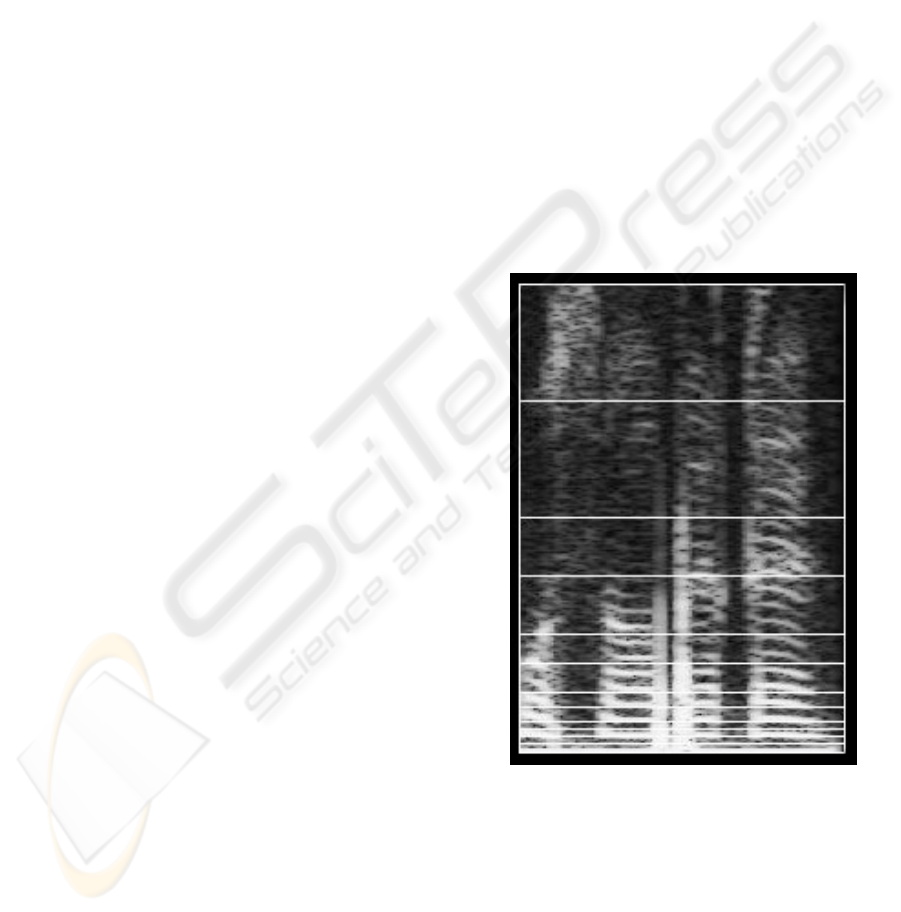

algorithm (256, 512, etc). Figure 1 shows a

spectrogram of a spoken word. The horizontal axis is

time and the vertical axis is frequency.

Figure 1: Spectrogram of a word.

The last step of this preprocess is averaging data

of spectrograms so that all samples have equal sizes.

For this reason, the spectrogram is divided to 12

frequency bands and 32 time bands. It is notable that

the number of time bands should be in form of a

power of 2. The reason will be explained in next

section. The lengths of all time bands are equal.

However the length of frequency bands differs.

FUZZY CLASSIFICATION BY MULTI-LAYER AVERAGING - An Application in Speech Recognition

123

Because lower frequencies contain more information

than higher ones, the length of bands increases for

higher frequencies. The horizontal lines displayed in

figure 1 separate frequency bands.

Intersection of a frequency band and a time band

creates a block. After averaging the data of each

block, a matrix of (32 × 12) is achieved for each

sample. These matrices are fit to be dealt by

recognition process. The idea of averaging is used

for correcting probable noises and displacements. In

the next section, the MLA algorithm is used to

recognize test samples which are also converted to

matrices of above size and format.

3 RECOGNITION PROCESS

The main idea of MLA for matching a sample within

a group is to eventually eliminate non-similar

samples by giving them a penalty so that the best

match which is the most similar sample remains

with least penalty. In order to accomplish this goal,

the following fact is used: if two series of numbers

are almost similar their averages are also similar. In

other words, if averages of two series of numbers are

not similar, those series are not similar either

(however the reverse is not true). Therefore this

dissimilarity can be used to eliminate samples.

3.1 Multi-Layer Averaging

Using the idea introduced above, MLA tries to

iteratively give penalty points to samples by

comparing their averages. The comparison is done in

different layers. The following steps explain the

algorithms. The sample to be recognized is called

"Test Sample" and the sample from database of

system upon which test sample is checked is called

"Matching Sample"

Step 1: Choose a matching sample from

database. Set its penalty point to zero.

Step 2: Set the number of averages (N

a

) in first

layer to 1. Each of two samples should have C

members which should be a power of 2.

Step 3: Define variable M as C / N

a

. Average

every M members of both test and matching samples

which results in N

a

numbers for each samples. Call

them A

i

and B

i

for which

a

Ni ≤

≤

1 .

Step 4: Compare each average of test sample (A

i

)

to its corresponding average in matching sample

(B

i

). Add a penalty point to the points of matching

sample according to comparison method.

Step 5: Multiply N

a

by 2 for next layer. If N

a

is

not larger than C go to step 3.

Step 6: If there are any remaining sample in

database go to step 1. Otherwise, sort matching

samples ascending based on their penalty points.

Return first sample in the list as answer.

The penalty point in step 4 can be defined

differently to achieve better results. It can simply be

average of all of differences of each A

i

and B

i

:

() ()

∑

=

=

−=−=

a

a

N

i

ii

a

ii

N

i

BA

N

BAPenalty

Avg

1

1

1

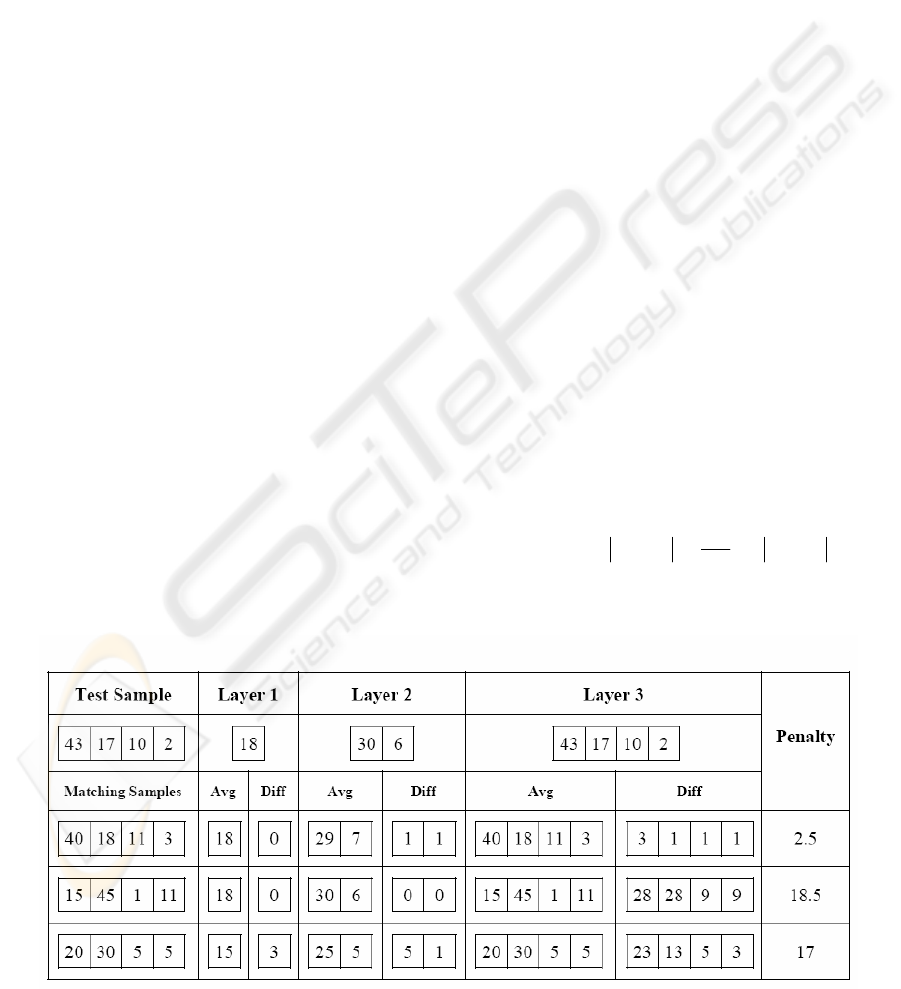

Figure 2: MLA algorithm using simple differential penalty point strategy.

ICINCO 2006 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

124

Figure 2 shows an illustration of above algorithm

with such penalty point strategy for a test sample

and 3 matching samples having 4 members which in

fact is the number of time bands for speech

recognition problem. Only 1 frequency band is

considered just for the ease of understanding. This

means that our samples in this example are matrices

of (4 × 1).

First matching sample in figure 2 is most similar

one and gets the least penalty. Although second

matching sample gets no penalty in first two layers

but it gets largest penalty in last level. It should be

mentioned again that differences of each layer are

averaged and sum of these averages will be the

penalty point. For better understanding, let us review

how the penalty of third matching sample is

calculated.

In first layer, the average of all members (20, 30,

5, and 5) is 15 and the difference of this value with

its correspondence in test sample (18) is equal to 3

which is added to penalty points of this matching

sample (P = 3). Then in second layer, average of

first two members (20 and 30) is 25 and average of

second two members (5 and 5) is 5. The differences

of these averages with their correspondence (30 and

6) are respectively 5 and 1. The penalty point of this

layer is then average of 5 and 1 which is 3 and adds

to overall penalty (P = 3+3 = 6). In last layer, each

member acts as an average and therefore the

differences with the corresponding values of test

sample are 23, 13, 5 and 3. The penalty point of this

layer is average of these values which equals to 11.

Finally the overall penalty is P = 6 + 11 = 17. All of

these calculations were based on differential penalty

point strategy. A fuzzy penalty point strategy is

presented in next sub-section.

3.2 Fuzzy Classification

The chosen penalty point strategy in above

algorithm is the strategy to eliminate non-similar

samples so that the best match gets the least penalty.

Therefore, it can be considered as a classifier. One

simple method has been introduced in previous sub-

section. Another strategy is used in this project

which is based on fuzzy numbers.

Instead of calculating the difference between A

i

and B

i

, the averages of test sample (A

i

) are

considered fuzzy numbers. These fuzzy numbers are

defined by a symmetrical trapezoidal membership

function (the size of this trapezoid depends on the

nature of the problem and will be specified mostly

by trail and error to achieve best results). Then,

membership values of the corresponding averages of

matching sample (B

i

) are calculated. The overall

penalty for all pairs of averages is calculated by:

(

)

(

)

()

∑

=

=

−=

×−=

a

i

i

a

N

i

i

A

a

i

A

N

i

B

N

BPenalty

Avg

1

~

~

1

)(1

100

100)(1

μ

μ

If each two averages are close enough, the

membership value would be 1 and then the penalty

is 0. Otherwise it gets a linear penalty up to 100.

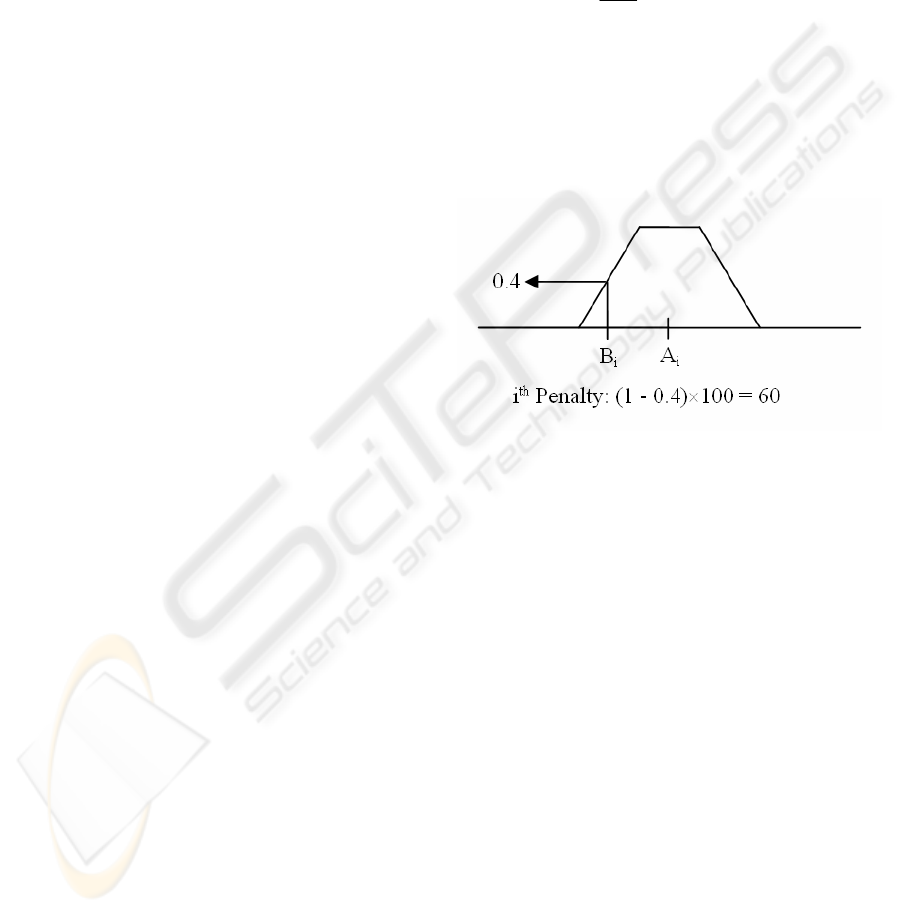

Figure 3 shows a fuzzy number (A

i

) and how a

penalty is given to a corresponding average (B

i

).

Figure 3: Fuzzy number and penalty calculation.

In order to apply the MLA algorithm to the

presented problem in previous section, a sample is

treated like 12 sub-samples for every frequency band

and each of these 12 sub-samples are given to the

algorithm and a penalty point is gathered for each

band and these penalty points are added up to one

penalty point for the whole sample.

4 COMPLEXITY OF

ALGORITHM

It is very easy to show that both space and time

complexity of MLA algorithm is Ω(n) in which n is

the number of trained samples. The samples which

are introduced to the system are usually called

trained samples. However it should be considered

that there is no training stage in this algorithm.

Adding new samples only involves calculating

spectrogram with FFT algorithm which can be done

very fast, normalizing which is applying a function

to each value of spectrogram and finally averaging

FUZZY CLASSIFICATION BY MULTI-LAYER AVERAGING - An Application in Speech Recognition

125

spectrogram to acquire a matrix of (32 × 12) and

saving this matrix for further use.

The memory space needed for this algorithm is

32×12 integer numbers for each sample. Considering

the range of these integers [0, 255], only 1 byte is

needed for each number. Therefore each sample

takes 384 bytes and the growth of space is 384×n

hence Ω(n).

Time complexity for this algorithm can be

calculated by considering the comparisons for each

sample. The number of layers is always constant (6

layers in this case: 2

0

to 2

5

). In presented problem

there are 12 frequency bands which are also

constant. Therefore number of comparisons for each

sample is constant and same for all samples. This

shows that the complexity is again Ω(n). However,

the sorting step takes about O(n Log n). This causes

the time complexity to be O(n Log n) in overall

which is still acceptable as a fast algorithm.

The small size of memory needed for each

sample and the speed of recognition of a word make

this algorithm very suitable for voice commands in

mobile devices such as cell phones, PDAs and etc.

Since there are only one or two words for each

command and considering the results in next section,

this simple algorithm seems very efficient and useful

for the purpose of voice command.

5 RESULTS

The presented algorithm has been implemented and

tested for a single speaker with 100 words. The

results have been compared to that of a widely used

method in speech recognition, HMM. In order to

measure flexibility of this algorithm to noise,

different kinds of noises are applied to test data.

Table 1 shows these results.

For this purpose, a database of samples is

generated which contains about 8 different

pronunciations of a same word, for 100 words which

add up to 800 samples. All samples were introduced

to system except one for each word. Then these

unused samples were tested by system and asked for

recognition. The entry called "Clean" in table 1

refers to these results.

Afterwards, different amounts of two kinds of

noises, White Noise and Babble Noise, are added to

test data and asked again to be recognized. Other

entries of table 1 show these results. Also, "First

Answer" means first recognized answer is the

correct answer and "Third Answer" means one of the

first three answers is the correct answer. The same

data has been tested with HMM approach and its

results are also included for comparison.

Table 1: Experimental results.

HMM

First

Answer

Third

Answer

Clean 100 % 98 % 99 %

20 db 99 % 91 % 96 %

10 db 74 % 90 % 96 %

White

Noise

0 db 4 % 84 % 91 %

20 db 98 % 98 % 99 %

10 db 92 % 92 % 95 %

Babble

Noise

0 db 39 % 44 % 72 %

Table 1 shows that while the efficiency of HMM

algorithm drops down sharply with noisy data, the

presented algorithm keeps its efficiency even with

intensive noise. Also, it can be noted that because of

the smoothing property of averaging, this algorithm

has a good resistance to white noise and this can be

concluded from above results. However, because the

babble noise destroys the information of lower

frequencies, it can affect the efficiency of this

algorithm. Therefore, the first 3 lower frequency

bands of spectrograms have been ignored to achieve

better results in table 1.

REFERENCES

Zimmermann, H.J., 1996. Fuzzy set theory and its

applications, Kluwer Academic Publishers.

Boston/Dordrecht/London, 3

rd

edition.

Gonzalez, R., Woods, R., 2001. Digital image Processing,

Prentice Hall. New Jersey, 2

nd

edition.

Halavati, R., Bagheri, S., Sameti, H., Babaali, B., 2005. A

novel noise immune fuzzy approach to speech

recognition. In International Fuzzy Systems

Association 11th World Congress. Beijing, China.

Babaali, B., Sameti, H., 2004. The sharif speaker-

independent large vocabulary speech recognition

system. In The 2nd Workshop on Information

Technology & Its Disciplines (WITID 2004). Kish

Island, Iran.

Duchateau, J., Demuynck, K., Compernolle, D.V., 1998.

Fast and Accurate Acoustic Modelling with Semi-

Continuous HMMs. In Speech Communication,

volume 24, No. 1, pages 5--17.

Ohkawa, Y., Yoshida, A., Suzuki, M., Ito, A., Makino, S.,

2003. An optimized multi-duration HMM for

spontaneous speech recognition. In EUROSPEECH-

2003. 485-488.

ICINCO 2006 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

126
