TOWARDS A RAD FRAMEWORK FOR E-COMMERCE SYSTEMS
Ernest Cachia
University of Malta
Msida, Malta
Mark Micallef
University of Malta
Msida, Malta
Keywords:
E-Commerce, Rapid Application Development, Software Metrication, Software Quality Assurance, Software
Development Life Cycles.
Abstract:
Given the ever-increasing revenues being generated from e-commerce systems (Emarketer.com, 2005), the
quality of such systems is becoming ever more important. Industry studies carried out by the authors of this
paper show that customers want higher quality systems built in ever-shorter timespans. This paper establishes
the need for the creation of a Rapid Application Development (RAD) based framework specifically tailored
towards e-commerce systems. A skeletal version of such a framework is also proposed.
1 INTRODUCTION
Year after year, statistics constantly indicate that
revenues from online shopping are steadily in-
creasing throughout the world (Emarketer.com,
2005)(J.H.Y. Yeung, 2003)(News, 2005). As cus-
tomers get more comfortable with shopping online,
it has almost become a natural step for business to
offer their goods and services online. To many, this
may seem like a simple issue involving the setting up
an online catalogue and an online payment facility.
However, in reality, things are more complex. For
example, existing business processes need to be
replicated online or changed accordingly to reflect
the online aspect of the business (E. Lawrence,
2000). Also, the ways in which customer difficulties
are dealt with take on a new dimension in the online
world due to the potentially enormous customer base.
The authors of this paper carried out two studies
in the course of their research. The first was a study
amongst 350 online shoppers which examined vari-
ous aspects of online shopping and consumer behav-
iour (E. Cachia, 2004). The second study was car-
ried out amongst 10 software development companies
who specialise in the development of e-commerce
systems. The latter focused mainly on each com-
pany’s business environment (types of clients, types
of systems, etc) and their approach to requirements
definition, quality assurance, software engineering
processes and so on. Results from these studies will
also be used to substantiate various arguments made
throughout this paper.
2 WHY RAD AND
E-COMMERCE?
It has often been observed that by the time a com-
puterised business solution is delivered, it no longer
satisfies the requirements of the client who ordered it.
This is because in the months (and sometimes years)
it takes for a system to be specified, designed, built,
tested and deployed, the client’s requirements tend to
change (Howard, 2002). The nature of modern mar-
kets also has a hand in the dynamic nature of system
requirements (Small, 2000). In 1991, James Mar-
tins proposed the concept of Rapid Application De-
velopment (RAD) (Martine, 1991). RAD is basically
a “high speed” adaptation of the linear sequential
model in which rapid development is achieved by us-
ing component-based construction (Pressman, 2000).
The main idea is to reduce the time between determin-
ing requirements and implementing them, thus reduc-
ing the likelihood that they would change in the in-
terim (Howard, 2002). This is achieved by a lean de-
velopment cycle and a number of principles of tech-
niques such as Joint Application Development (JAD),
Time Boxin, Prototyping and Clean Rooms.
234
Cachia E. and Micallef M. (2006).
TOWARDS A RAD FRAMEWORK FOR E-COMMERCE SYSTEMS.
In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web
Interface and Applications, pages 234-241
DOI: 10.5220/0001242102340241
Copyright
c
SciTePress
There are a substantial number of indicators that
seem to show that e-commerce systems development
would benefit from a RAD approach. These are
discussed below.
Primarily, by their very nature, e-commerce
systems are business-oriented software systems.
They support a number of business processes which,
as indicated by Martins (Martine, 1991), tend to be
dynamic. Clearly, decreasing the timespan in such
projects would reduce the likelihood that clients’
requirements will change in the time it takes for a
system to be developed. Participants in our industry
survey unanimously agreed that customers’ require-
ments are highly flexible and are likely to change
quite often. Cases in which a client sticks to initial
requirements without making changes are rare.
Our industry interviews show that most e-
commerce systems are developed within six
months. 60% of participants claim that their systems
take no longer than three months to develop. Kerr
(J. Kerr, 1994) points out that if a business application
can be modularized in a way that enables each major
function to be completed in less than three months, it
is a candidate for RAD.
E-Commerce users can be very unforgiving. For
example, in our study of 350 online shoppers, it
was discovered that only 18.4% of shoppers would
remain unconditionally loyal to their site if it suffered
performance problems. High quality and reliability
is therefore important in e-commerce systems. The
RAD approach promotes reuse of components as
these would have already been tested. Also, new
components must be tested and all interfaces must be
fully exercised (Pressman, 2000).
In the course of our research, we also delved
into cases where RAD is likely to fail and analysed
whether e-commerce systems would also be vulnera-
ble in this area. This is discussed below.
Butler (Butler, 1994) lists four potential points of
failure for RAD. Two of them are technical whilst
the other two are more to do with human nature and
commitment issues. Firstly, Butler stresses that not
all types of applications are appropriate for RAD.
In order for a system to be compatible with RAD, it
needs to be modularisable. This does not pose a prob-
lem with e-commerce systems because by nature,
they are modularised into high-level components
such as online catalogues, shopping carts, customer
support mechanisms, and so on (E. Cachia, 2005).
A second potential technical point of failure is the
level of technical risk within a project. If technical
risks are high, RAD would not be the appropriate
life-cycle (Butler, 1994). Our industry interviews
reveal that most e-commerce systems make use of
standard technologies and do not carry high technical
risks.
The non-technical two potential points of failure
mentioned by Butler are as follows. Firstly, RAD
developers and customers need to be committed to
the rapid-fire activities necessary to get a system
complete in a much abbreviated timeframe (Butler,
1994). This is dependant on the people involved in
individual projects and cannot really be characterised
on the basis of the type of system being developed.
Therefore, e-commerce systems suceptibility to this
point is on the same level as any other type of system.
Finally, Butler points out that RAD requires sufficient
human resources to create the right number of RAD
teams. Although this too depends on particular
circumstances, there is some evidence to show
that small and medium enterprises (SMEs) tend to
dedicate more human resources to existing traditional
business, even when developing new e-commerce
systems because that is what currently earns them
money (J.H.Y. Yeung, 2003). This suggests that
development of systems for SMEs may not always
be appropriate for RAD integration. However, this
depends on individual situations and a customer’s
commitment to the e-commerce project.
The arguments presented in this section clearly in-
dicate that e-commerce systems are likely to be highly
suitable candidates for rapid application development.
3 THE NEED FOR A SPECIFIC
FRAMEWORK FOR
E-COMMERCE SYSTEMS
In the section 2, we showed that e-commerce systems
are well suited for rapid application development.
However, it is also being argued that RAD does not
do a good enough job for e-commerce systems as it
stands. One might suggest that development teams
should simply utilise the existing RAD methodology
as-is, as opposed to creating an RAD-based frame-
work specifically tailored for e-commerce systems.
However, in 2004, Cachia (E. Cachia, 2004) showed
that e-commerce systems differ significantly from
other types of systems. The characteristics that
separate e-commerce systems from other types of
systems are as follows.
Firstly, e-commerce systems tend to be content
driven. Most, if not all, e-commerce systems would
need to be connect to a data source from which the
resulting web pages would be constructed. A typical
TOWARDS A RAD FRAMEWORK FOR E-COMMERCE SYSTEMS
235
scenario would be an online catalogue being gen-
erated from a product database. This characteristic
is important because when building such a system,
developers need to come up with the best possible
ways to present the information to the user. How will
the user access the information? Which information
will be given priority? How will it be organised? And
so on.
Another important identifying characteristic of
e-commerce systems is the fact that they are exposed
to security risks. The open nature of the internet
makes such systems susceptible to security risks.
Hacking attempts are frequent and high profile cases
persist. Only recently, CNN reported that a database
with details of 40 million credit cards had been
compromised (CNN, 2005).
Unlike other systems, online stores are mainly
accessed through WWW browsers. This is an
important difference because browsers adhere to
the HTTP protocol which does not really provide
rich event-driven programming which most of us
are used to in other systems. Attempts have been
made to fix this by means of scripting technologies
but then again, such technologies are not uniformly
interpreted by all browsers (K. Chandra, 2003).
Most businessman’s ambitions when deploying
an e-commerce system would be to cultivate an
enormous user base. Few systems can boast the
same potentially enormous user-base inherent in
e-commerce systems. Although business-wise, this is
a good prospect, it does raise a number of technical
issues which a development team would need to
consider. For example, is the system stable enough
to take a hundred concurrent users? A thousand
users? A million? More often than not, dealing with
increased popularity is not simply a matter of scaling
up hardware but it is also a matter of algorithmic
efficiency (D. Menasc, 2001).
Finally, e-commerce systems are likely to change
quite often. Most online stores will change fre-
quently. Changes may be as simple as changing the
price of particular items. However, customer require-
ments and a dynamic environments can require the
system to change radically in order to maintain a
competitive edge.
Based on these differences and a survey carried
out amongst 350 online shoppers, Cachia (E. Cachia,
2004) identified five important quality attributes in
e-commerce systems as being security, reliability,
navigability, performance and portability. This
indicates that when drawing up specifications and
designing and e-commerce system, it is not only
core system functionality that should be specified. In
addition to what the system must do, there should
be specifications such as the level of security to be
employed, the browsers which the system should be
compatible with, the number of concurrent users it
can handle, the type of navigation schemes it should
employ, and so on. Participants in our industry
interviews were asked whether they specify such
requirements in advance. The replies were varied
with most companies specifying security and then
one or two of the others quality attributes. However,
most agreed that it is important to specify these
attributes explicitly early on in the development
process.
Considering the fact that Cachia (E. Cachia, 2004)
showed considerably uniqueness in e-commerce sys-
tems, it is the opinion of the authors that having a
RAD-based framework specifically tailored for the
development of e-commerce systems would be ben-
eficial. Such a framework would take the particular
characteristics of such systems into account thus en-
abling faster development of higher quality systems.
It would also give developers who utilise it a sense of
security that all important aspects of the system have
been catered for when they follow the framework.
4 FRAMEWORK
REQUIREMENTS
Prior to proposing a framework, it would be desir-
able to set out a list of requirements and criteria which
should be present in such a framework.
4.1 Rapid Application Development
Basis
As discussed in section 2, e-commerce systems are
ideal candidates for RAD development. The frame-
work should take this into account and adapt tools and
techniques from Martin’s (Martine, 1991) work with-
out, so to say, “reinventing the wheel”.
4.2 Explicitly Cater for E-Commerce
Systems Characteristics
The proposed framework should cater for particular
e-commerce systems characteristics as described in
section 3. That is to say, issues pertinent to such sys-
tems should be explicitly addressed in mechanisms
and tools provided by the framework. For example, if
the framework is to include a number of metrics, then
instead of (or in addition to) generic metrics which
WEBIST 2006 - INTERNET TECHNOLOGY
236
apply to all systems, there should be metrics for at-
tributes such as security, portability, navigability, and
so on. Such “features” in the framework would in-
crease stakeholder confidence in the fact that impor-
tant aspects will be automatically taken care of if they
use the proposed framework.
4.3 Emphasis on Quality Assurance
Studies have shown that online shoppers are not very
loyal (E. Cachia, 2004). If a site is too slow when
loading, crashes at some point, or if navigation is too
complex, users can simply move to another site of-
fering the same service. Therefore it is of the utmost
importance that the framework include a number of
quality assurance measures in order to minimize ma-
jor errors after deployment.
4.4 Provide Measurability
It is important that stakeholders be able to track the
level of a number of criteria during the develop-
ment process. This can vary from say a “percentage-
complete” measure for a particular project or module
to, for example, the security level built into the sys-
tem. Having a numerical view of a number of aspects
of the system will enable stake holders to make in-
formed decisions.
4.5 Flexibility and Configurability
Different businesses will have different circum-
stances, environments, budgets, perceived client base,
and so on (J.H.Y. Yeung, 2003). The proposed frame-
work should therefore not be rigid, as this could be
counter-productive in some cases. It would be ideal
if developers who are using the framework could
set certain parameters such as various levels of im-
portance of certain criteria before starting. So if
for example, a particular company is developing an
e-commerce system where portability is not impor-
tant (maybe because target users use one particular
browser), the framework will automatically reduce or
eliminate all checks and procedures related to porta-
bility.
4.6 Software Tool Support
Some of the criteria we are setting such as Emphasis
on Quality Assurance (section 4.3) may seem to con-
flict with the rapid-development aspect of the frame-
work. Although this is not necessarily true, users
of the framework would consider software tools that
automate parts (or all) of the framework to be very
useful. Hence, the framework should provide some
form of plugability for software tools whereby any-
one wanting to automate part of the process could do
so with ease.
5 PROPOSING A SKELETAL
FRAMEWORK
Having argued for the need for a RAD-based frame-
work for the development of e-commerce systems, we
now propose a skeletal version of such a framework.
It is a skeletal version in the sense that although we
have identified individual components and how they
may work together, most components are defined at
an abstract level. This means that further research is
required to concretise it.

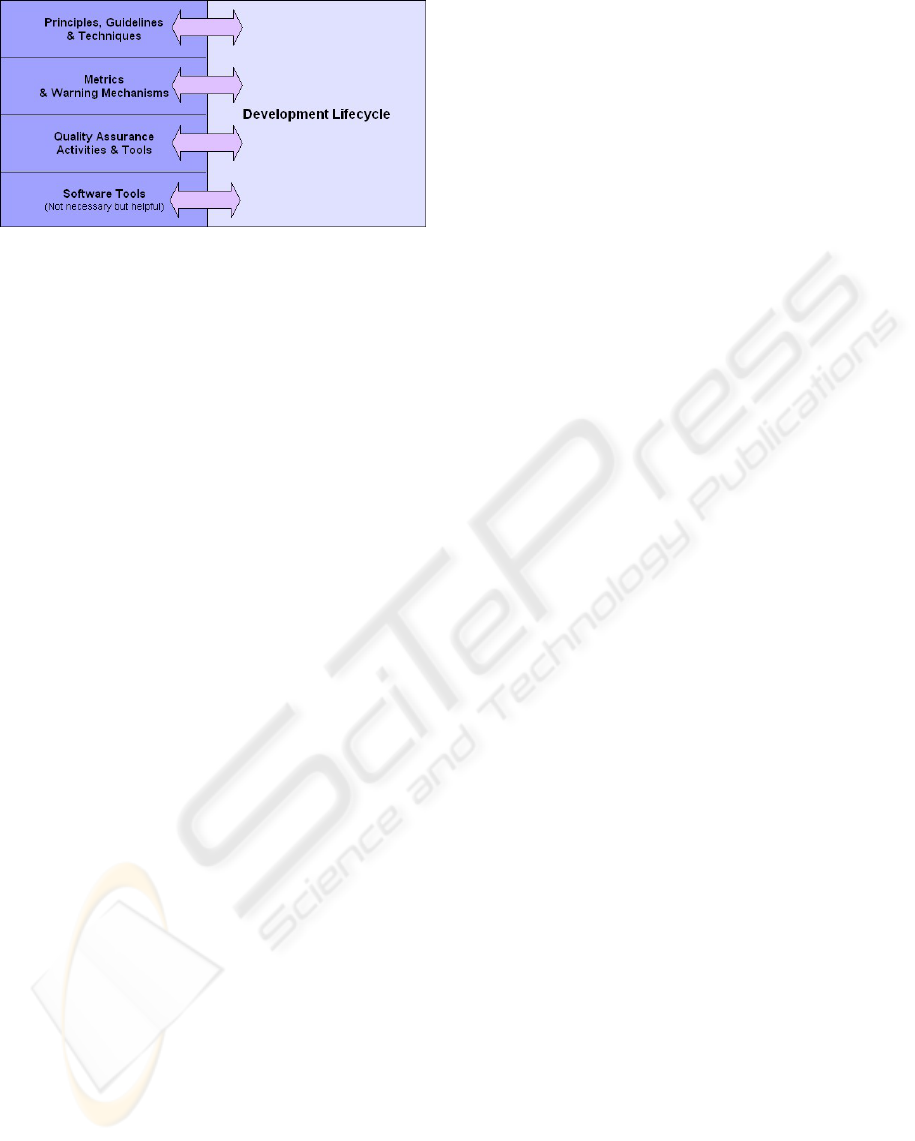

5.1 Elements of the Framework
The proposed framework will consist of the following
elements:
Principles, Guidelines and Techniques to provide
users of the framework with the fundemtal knowl-
edge and techniques for rapidly developing high
quality e-commerce systems. These principles,
guidelines and techniques will be utilised in con-
junction with other elements throughout the frame-
work.
Development Lifecycle which engineers can follow
when developing an e-commerce system.
Metrics and Warning Mechanisms to provide a
numerical view of systems under development
and also to provide a means of warning stake-
holders when recommended metrics thresholds are
surpassed.
Quality Assurance Activities and Tools to ensure
that systems developed with the framework are of
high quality.
Software Support Tools which would be able to
help stakeholders automated parts of the frame-
work so as to speed things up.
A description of these elements and their integra-
tion is given below.
5.2 Principles, Guidelines and
Techniques
The principles, guidelines and techniques provided by
the framework would be very similar to those pro-
posed by Martins (Martine, 1991) for RAD. That is to
say there would be a principles and techniques such
as Function Prioritisation, Risk Analysis, Joint Appli-
cation Development (JAD), Time Boxing, Prototyping
TOWARDS A RAD FRAMEWORK FOR E-COMMERCE SYSTEMS
237

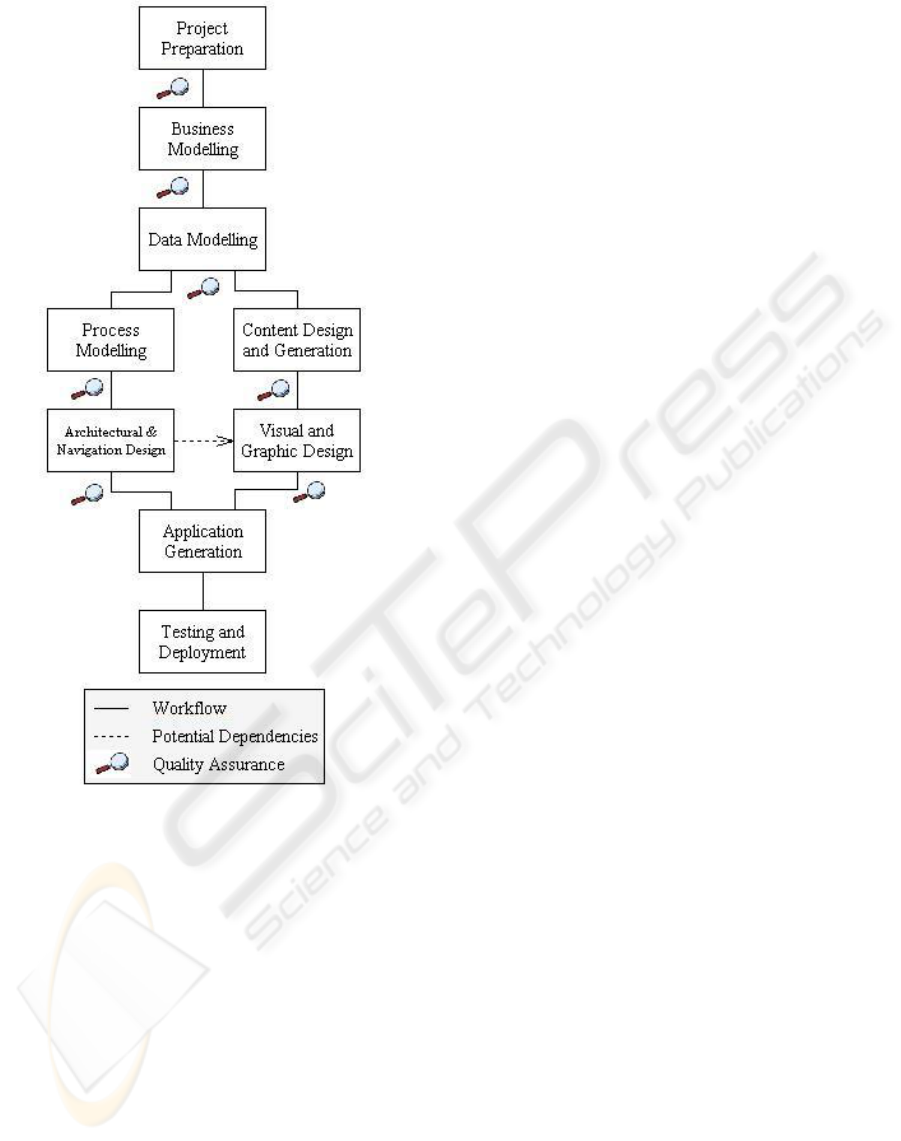

Figure 1: The proposed lifecycle.
and Clean Rooms. A heavy emphasis will also be
placed on reuse of components which have already
been utilised in other systems beforehand.
5.3 The Development Lifecycle
The development life-cycle is proposed to consist of
nine stages, and is mostly sequential but having two
parallel tracks at one point as depicted in figure 1.
In accordance with RAD (Martine, 1991), this life-
cycle is intended to be used simultaneously by mul-
tiple teams on different modules of a system. The
stages are as follows:
Project Preparation - Involves the setting up of
project scope, parameters, target users and so on.
This stage is important in order for the framework
to be able to be adjusted for the current project as
specified in section 4.5. A typical preparation ac-
tivity would be to define the level importance of
various quality attributes for this particular project.
Business Modelling - Very similar to the business
modelling stage in Martin’s (Martine, 1991) RAD.
Involves th modelling of information flow in a
way that answers questions like: What information
drives the business process? What information is
generated? Who generates it? Where dose it go?
Who processes it? (Pressman, 2000).
Data Modelling - Conctretises the information from
the previous Business Modelling stage into data ob-
jects. The attributes of each object and the re-
lationships between different objects are also de-
fined. Again, this is adapted from the original RAD
process (Martine, 1991).
Process Modelling - Another important adaptation
from Martin’s (Martine, 1991) work, process mod-
elling will define operations on the data objects cre-
ated in the Data Modelling stage. This is done
so as to to achieve the information flow necessary
for implementing one or more business functions.
This stage is very important because according to
Cachia, 35% of abandoned e-commerce transac-
tions are due to the processes involved being too
long and cumbersome (E. Cachia, 2004).
Architectural and Navigation Design - This stage
focuses on how the data and processes will be
structurally represented and linked in website used
by potential customers. Questions such as the fol-
lowing need to be answered: How will information
be organised? How will the user navigate through
it? Will there be multiple navigation schemes?
How will pages within the system be linked to-
gether? This stage is deemed to be critical because
Cachia’s study of 350 online shoppers (E. Cachia,
2004) found that users who are not happy with the
navigational aspect of a site are very likely to sim-
ply move to another site.
Content Design and Generation - This stage would
involve content experts designing, generating and
assimilating content. This may include content
such as product descriptions, company mission
statement, frequently asked questions, and so on.
This stage follows the Data Modelling Stage and
can carried out in parallel to Process Modelling and
Architectural & Navigation Design.
Visual and Graphic Design - Whether or not a site
is visually pleasing has a profound effect on
whether a potential client stays to browse or not, al-
though online shoppers tend to give navigability a
higher level of importance (E. Cachia, 2004). Dur-
ing this stage, a graphic designer is responsible for
creating the look and feel of the site. This design
WEBIST 2006 - INTERNET TECHNOLOGY
238
will later be incorporated into the actual applica-
tion.
Application Generation - As soon as deliverables
from the Architectural & Navigation Design stage
are available, application generation can com-
mence. At some point it will need to be merged
with the deliverables from the Visual and Graphic
Design stage although deliverables from the latter
are not strictly necessary for application generation
to begin.
Testing and Deployment - Involves utilising a vari-
ety of testing techniques (black box, white box, in-
tegration, regresion, etc) prior to release. Reused
components need not be tested thoroughly but all
new components must be tested and all interfaces
fully exercised (Pressman, 2000).
5.4 Metrics and Warning
Mechanisms
The framework should incorporate of a number of
metrics for measuring various aspects of a system.
Warning mechanisms can then be implemented by
monitoring these metrics and warning if certain
thresholds are breeched at any point.
One of the main issues in metrication is concerned
with how one can compare values of the same
metric across different systems. For this reason,
the authors have created and published a metric to
measure the functionality offered by an e-commerce
system (E. Cachia, 2005). Each system is assigned
a number of points, similar to function points (Al-
brecht, 1979)(Arthur, 1985) and any other metric
readings across systems can be normalised with the
functionality reading as a base. For example errors
per point, cost per point and so on.
A number of metrics should be included in the
framework and used by developers according to the
particular circumstances of the project. Metrics can
be categorised into internal product metrics, external
product metrics and process metrics. The individual
metrics to be used will be specified at a later stage
when this framework is refined and concretised as dis-
cussed in the beginning of this section.
5.4.1 Internal Product Metrics
These metrics will be measure the internal quality at-
tributes of the system. That is to say attributes which
are not visible to the user but could have an influence
on the visible quality aspects (i.e. external attributes)
of the system (Kan, 2003). Such metrics would mea-
sure attributes such as:
Security
Testability
Efficiency
Maintainability
These metrics are not to be taken as the recom-
mended list of internal attributes to be measured by
the framework. Rather, they are examples of what
might be recommended in future and such a list will
be available once further work in this area has been
carried out.
5.4.2 External Product Metrics
Metrics in this category will measure quality at-
tributes which may be observed by the users of a sys-
tem. Although numerous external metrics have been
created throughout the years, very little work has been
done on e-commerce related external metrics. The
framework should provide a mix of generic and e-
commerce related metrics so as to cater for attributes
which are soley present in e-commerce systems while
not abandoning generic attributes which also apply
to e-commerce systems. Typical measured attributes
would include:
Reliability
Performance and Scalability
Usability and Navigability
Portability
As in section 5.4.1, this list of attributes are not to
be considered as the recommended list of attributes to
be measured by the framework as further work still
needs to be done before such a list is made available.
5.4.3 Process Metrics
Process metrics will be a tool for stakeholders to be
able to keep track of how system development is go-
ing. They will help provide answers to questions such
as “Are we on schedule?”, “Is the project within bud-
get?”, and so on.
5.5 Quality Assurance Activities and
Tools
Upon observing the development lifecycle proposed
in section 5.3 and depicted in figure 1, one notices
that there are quality assurance activities involved at
ever stage of the lifecycle. At first, this may be seen to
be contradictory to a rapid development cycle because
quality assurance activities have the reputation of be-
ing time consuming and tedious. However, system
quality has been shown to be of high importance in e-
commerce systems (E. Cachia, 2004) and the frame-
work should include a number of quality assurance
TOWARDS A RAD FRAMEWORK FOR E-COMMERCE SYSTEMS
239
Figure 2: An overall view of the framework.
activities at each stage that adhere to the following
criteria:
Customisable - Depending on the parameters de-
cided on in the Project Preparation stage of the
life-cycle (refer to section 5.3), the proposed frame-
work will dynamically create a mix of quality
assurance activities that are ideal for the current
project.
Non-Intrusive - Extensive and complicated proce-
dures should be avoided as much as possible. The
QA activities would ideally be limited to activities
such as going through checklists, checking whether
metric readings are within the required thresholds
and so on.
Automated or Semi-Automated - In order to speed
things up, the QA activities associated with the
framework should be as automated as possible. Use
of metrics and techniques such as Code Smells
(M. Fowler, 2000) would speed up the development
process without compromising system quality.
5.6 Software Support Tools
As discussed in section 4.6, heavy software tool sup-
port is required in order to maintain a high-quality
product output in a RAD setting. The nature of these
tools will become apparent at a later stage when more
work is carried out to concretise this skeletal frame-
work. However one may already venture to propose
tools such as automated metric collection tools, pro-
jcet management tools, checklist management tools,
and so on.
5.7 An Overall View
Figure 2 depicts how elements of the framework will
integrate together to produce the required result. It
can be observed that the key element is the soft-
ware development lifecycle which makes use of all
of the other elements as needed throughout the whole
project timespan.
6 CONCLUSION AND FUTURE
WORK
It is believed that this paper has showed a need for
a RAD-based framework for e-commerce systems.
Initial steps have also been taking towards such a
framework by the definition of a number of stated
requirements which should be met by the framework
and a proposal for a skeletal version of such a
framework.
Future work will focus on implementing all aspects
of the framework proposed in this paper followed by
the carrying out of case-studies whereby the frame-
work could be observed in action so as to hopefuly
verify its effectiveness.
REFERENCES
Albrecht, A. (1979). Measuring application development
productivity. In Proceeding of the IBM Application
Development Symposium. IBM.
Arthur, L. (1985). Measuring programmer productivity and
software quality. Wiley-Interscience.
Butler, J. (1994). Rapid application development in action.
In Applied Computer Research.
CNN (2005). 40 million credit cards exposed. In
http://www.cnn.com/2005/BUSINESS/06/18/
us.credit.ap/index.html. CNN.com.
D. Menasc, A. V. (2001). Capacity planning for web ser-
vices - metrics, models, and methods. Prentica Hall
PTR.
E. Cachia, M. M. (2004). Towards appraising online stores.
In Proceedings of the Software Engineering Knowl-
edge Engineering Conference. Knowledge Systems
Institute.
E. Cachia, M. M. (2005). Measuring the functionality of
online stores. In Proceedings of the IEEE Computer
Applications Software Applications Conference 2005.
IEEE.
E. Lawrence, e. a. (2000). Internet commerce - digital
modes for business. WILEY.
Emarketer.com (2005). Online re-
tail update: Latest q4 quote. In
http://www.emarketer.com/news/article.php?1002631.
Emarketer.com.
Howard, A. (2002). Rapid application development: Rough
and dirty or value for money engineering? In Com-
munications of the ACM. ACM.
J. Kerr, R. H. (1994). Inside rad. McGraw-Hill.
J.H.Y. Yeung, e. a. (2003). Current progress of e-commerce
adoption: Small and medium enterprises in hong
kong. In Communications of the ACM, September
2003. ACM.
WEBIST 2006 - INTERNET TECHNOLOGY
240
K. Chandra, S. S. C. (2003). A comparison vbscript,
javascript and jscript. In Journal of Computing in
Small Colleges.
Kan, S. (2003). Metrics and models in software quality as-
surance. Addisson Wesley.
M. Fowler, K. B. (2000). Refactoring: Improving the design
of existing code. Addison-Wesley.
Martine, J. (1991). Rapid application development. Mcmil-
lan.
News, S. (2005). Net spending goes up. In
http://www.sky.com/skynews/article/0,,31500-
13381218,00.html.
Pressman, R. (2000). Software engineering - a practitioner’s
approach. McGraw-Hill.
Small, P. (2000). The entrepreneurial web. Pearson Educa-
tion.
TOWARDS A RAD FRAMEWORK FOR E-COMMERCE SYSTEMS
241
