S. Santhosh Baboo
Department of Computer Science, D.G Vaishnav College, Arumbakkam, Chennai 106. India
P. Subashini
Department of Computer Science, Avinashilingam Deemed University, Coimbatore, India
K. S. Easwarakumar
Department of Computer Science & Engineering, Anna University, Chennai 25, India
Keywords: Astronomical Images, Colour coherence vector, Histogram, MCCV, Feature vectors.
Abstract: Content based image retrieval in astronomy, a technique that uses visual contents to search astronomical
images from a large scale image databases according to the users interests, has been an active and fast
advancing research area. Early techniques were not generally based on visual features but the textual
annotation of images. In other words, images were first annotated with text and then searched using a text-
based approach from traditional database management systems. Comprehensive surveys of early text-based
image retrieval methods can be found. Text-based image retrieval uses traditional database techniques to
manage images. Through text descriptions, images can be organized by topical or semantic hierarchies to
facilitate easy navigation and browsing based on standard Boolean queries. The aim of this paper is to
review the current state of the art in content-based image retrieval in astronomical images, a technique for
retrieving astronomical images on the basis of color distributions. The paper highlights the various retrieval
methods like color histogram, color coherence vector and multi scale color coherence vector. The findings
are based on both review of the relevant literature and discussions with researchers and practitioners in this
A database is a repository of data that traditionally
contains text, numeric values, Boolean values and
dates, known as ‘printable’ objects (Golshani F and
Dimitrova N, 1998). A multimedia database
additionally contains graphical images; video clips
and sound files, known as ‘presentable’ objects.
Users may retrieve information from a database
without having any knowledge of how or where that
data is stored.
The information stored within a database must be
structured in such a way that the information
required can be readily retrieved. A complex
multimedia data object, such as a video, was treated
as a single data item (Paul Lewis et al., 2002). In
terms of data management this object would be
treated in exactly the same way as other data items.
Queries were usually based on identifying an object
from its associated attributes. The deficiencies of
this approach for multimedia data objects quickly
became apparent and researchers are now
developing ways of retrieving multimedia data
objects based on their content. In order to handle the
enormous volume of data, not only of the big
number of images but also the size of each image
file, it is necessary to summarize the information.
From this perspective, we propose an approach to
perform image retrieval that initially generates a
representation that is independent of scale and
orientation, and then generates a more compact
representation, amenable to exhaustive search, using
principal component analysis.
Santhosh Baboo S., Subashini P. and S. Easwarakumar K. (2006).
In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web
Interface and Applications, pages 477-480
DOI: 10.5220/0001248504770480
The method developed for image retrieval of
galaxies is divided in three modules : the Vision
module, the feature vector analysis module, and the
Retrieval module (engine). The method works as
follows: it takes as input the galaxy images, then the
Vision module rotates, centers, and crops them; the
FVA module finds the feature vectors, and the
projection of the images onto the principal
components will be the input parameters for the
Retrieval module. At the end, the user can supply a
query image and the Retrieval module, after
processing in the same way the image, compares it
against those in the collection, producing as a
response the images found that are similar to the
query image.
The MCCV algorithm allows retrieval of similar
images based on the general colour distribution of
the image and sub-images, with discrimination
between colors in images, which are homogenous to
some sizable area (Mohammed F.A. et al., 2002).
The detail finder finds sub-images (Stephen
Chan et al., 2001) by dividing the query and the
database image into a number of tiles over a number
of resolutions, for each tile a CCV is created and
stored, so that the final feature vector is a set of
CCV feature vectors, one for each tile.
The multiscale ccv allows sub-image finding
based on the general colour distribution of tiles
within the images. This is a very basic match, which
allows detection of a query image within a database
image at any scale.
The highest resolution image is converted into
64x64 tiles, overlapping by 32 pixels in each
dimension. The image resolution is halved and,
again, divided into 64x64 tiles (of which there will
be 4 times less). The lowest resolution is of 64x64
pixels and 1 single tile. For each tile a RGB
histogram is created and stored, so that the final
feature vector is a set of RGB histogram feature
vectors, one for each tile.
Both the query image and the database image are
converted into a pyramid structure, and then each of
the tiles in the query image are compared against
each of the features for the tiles in the database
image using the RGB histogram matching algorithm
(Mike Westmacott et al., 2002).
The query is converted to a pyramid to facilitate
the database image being a sub-image (Mohammed
F.A. et al., 2002) of the query image (double sub-
image detection). An alternative is to assume the
query is a sub-image of the database image only, and
perform a RGB histogram match of the whole query
image against each of the tiles in the database image
(Fazly. S. Abas and Kirk Martinez, 2002). To
achieve a speed up in the matching, the features for
each of the tiles are compressed by an index (David
Dupplaw et al., 1999)
Rather than storing every single bin in each
histogram, only those bins that are populated are
stored. This can reduce the storage requirements
considerably. However, it introduces a matching
problem, because the populated bins may vary
between features, disallowing direct comparison. It
would be possible to ‘unpack’ the compressed
features and then compare those features, however,
it is possible using an algorithm developed by
Stephen Chan, to compare the compressed features
while they are still compressed. A histogram’s
populated bins would be stored as
{bin_number:frequency}; for example, {0:10, 3:4,
6:12} would represent a histogram with 3 populated
bins. A second histogram has a compressed feature
{0:1, 2:6, 8:4}. The matching algorithm steps

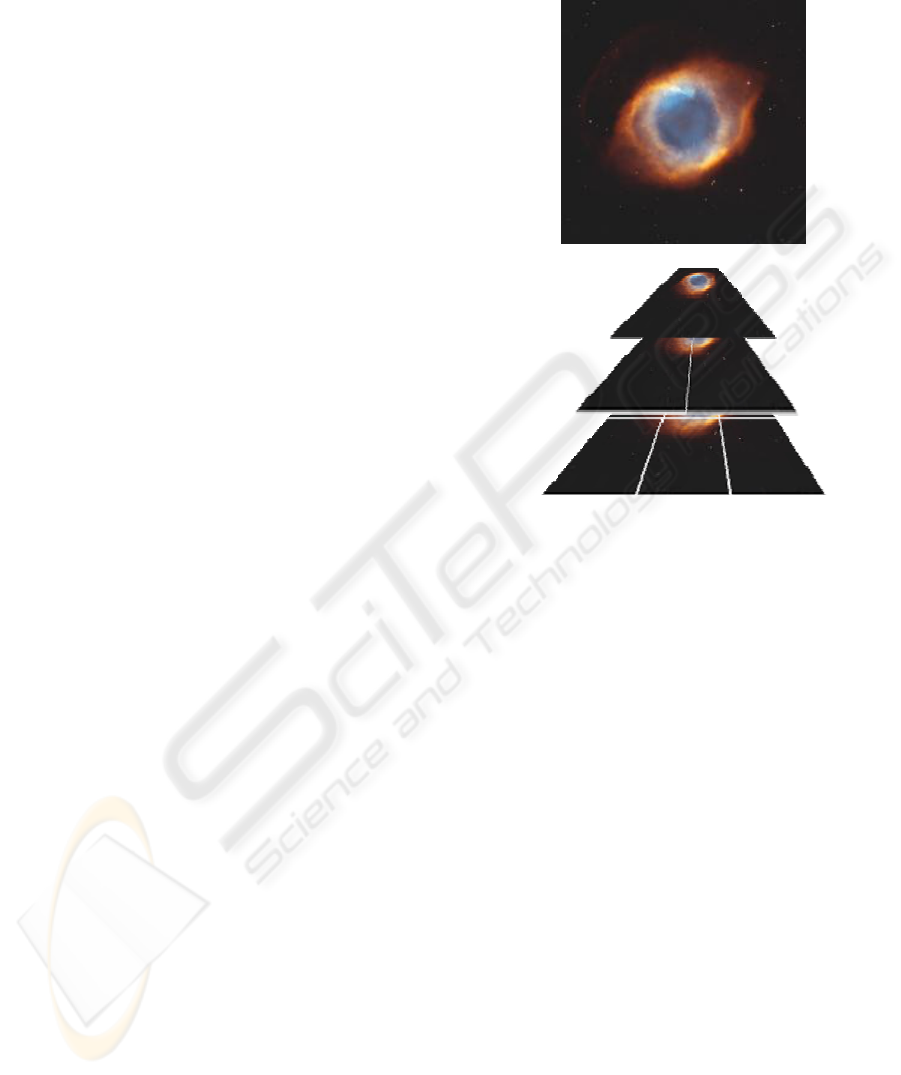

Figure 1: Multiscale pyramid structure of an image.
through these features accumulating a score as
though the feature was uncompressed. These two
histograms would be matched as follows:
Compare first two values: {0:10}, {0:1}.
o Indexes match, so score becomes
sum of absolute difference:
score += abs (10-1) = 9
Compare second values: {3:4}, {2:6}
o Increment score by value of
smaller index:
score += 6
Compare next value with the same unused
value: {3:4}, {8:4}
o Increment score by value of
smaller index:
score += 4
Compare next value with the same unused
value: {6:12}, {8:4}
o Increment score by value of
smaller index:
score += 12
No value pairs left, so we add the left over
value on:
o Increment score by value of final
score += 4
Final score is: 35.
An example of the mutliscale matching is shown.
The image on the left is the query image which is a
sub-image of an image within the database.
We tested the system using a data set that consisted
images of galaxies. It was taken from the NAOA
catalog on the web page of the Astronomical images
( We processed
the images. Figure 3 shows examples of images
from the original data set and the resulting images
output by the vision module.
In order to assess the effectiveness of the
approach, we used leave-one-out cross validation,
testing the output of the system with one image, and
training with the rest, and repeating the process,
until all images have been used once as test image.
Using this approach, the system output as best match
a galaxy belonging to the same class as the query
image 89% of the time. This error rate is smaller to
those reported in the literature using automated
means for image-based galaxy classification (M.C.
Storrie-Lombardi et al., 1992) and (A.Adams and
A.Woolley, 1994). The best results were obtained
when using an elliptical galaxy as query image, very
likely because they present the most regular
structure, while the worst results were obtained for
irregular galaxies, which have very little discernible
We tested the images for noise and blur also.
We noticed that the luminosity of the image before

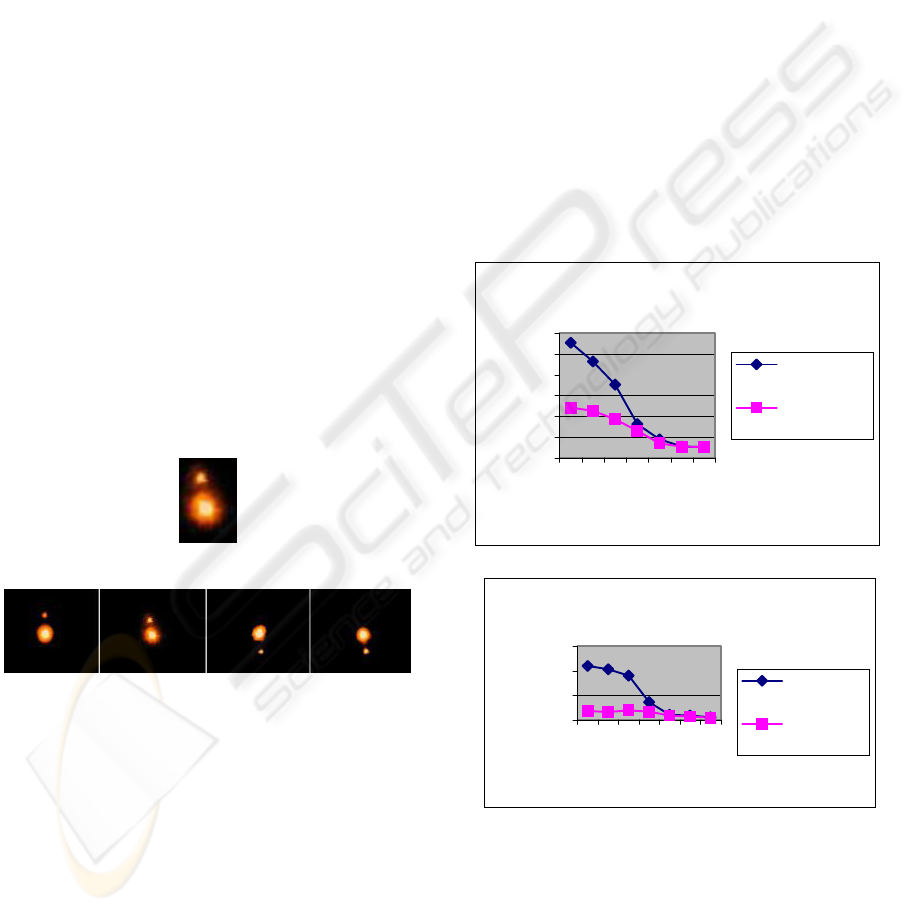

and after processing is doing well. Chart 1 says the
blur test and chart 2 says the noise test.
Chart one shows that the luminosity count for
processed image is less than that of the unprocessed
image when we applied blurring over it, which
indicates that processed image is resistive to the
Chart two shows that the luminosity count for
processed image is less than that of the unprocessed
image when we applied noise over it, which
Figure 2: An example multiscalar match.
Noise Test
Luminosity Count
ed image
Blur Test
Luminosity Count
d image
indicates that processed image is resistive to the

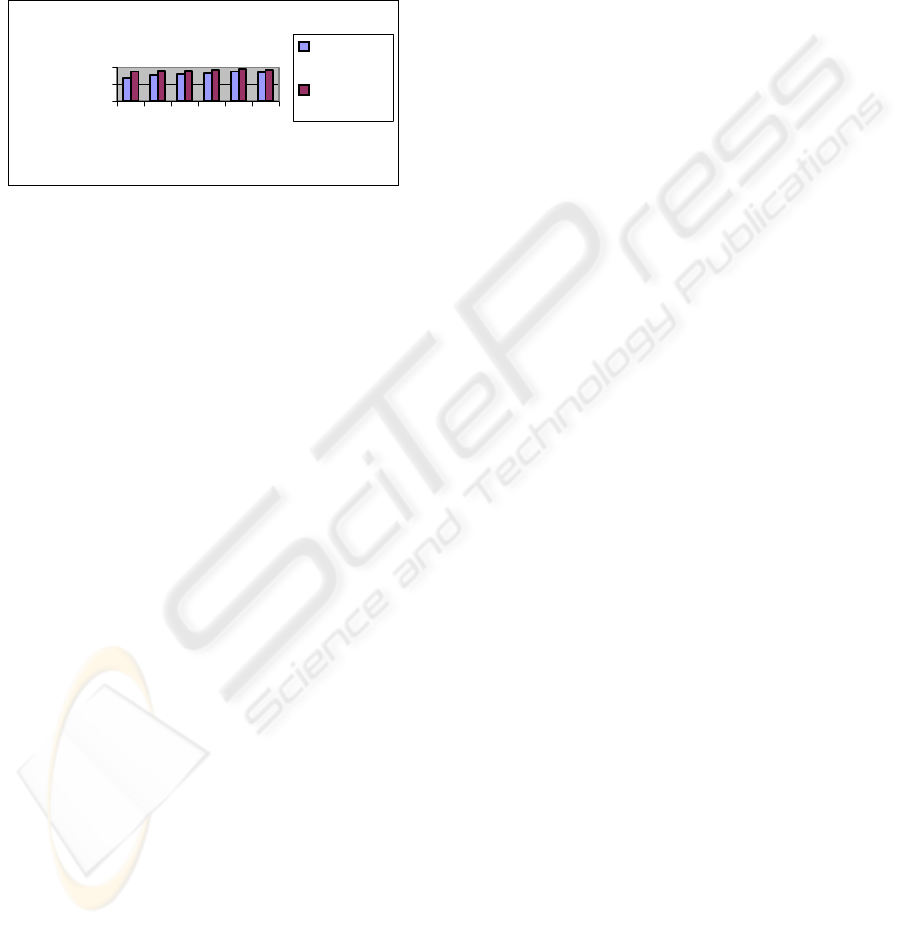

We tested the efficiency of the algorithm given
over the images which we applied our processing
and tested. The accuracy of both the retrievals is
depicted in the chart. We checked with 200
processed and tested images. When compared with
the histogram, MCCV gives more accurate retrieval.
We have presented a system that performs content-
based retrieval of astronomical images. The system
executes the following steps to perform image
retrieval: 1. Use computer vision techniques to find
the location, orientation and size of the galaxy in the
image. 2. Rotate, crop and resize the images so that
in all the images are the same size, the galaxy is at
the center of the image, has horizontal orientation
and covers the whole image. 3. Find the feature
vectors of the images and project the images. Given
a query image, process it as in steps 1 and 2, project
it and retrieve the n images with the smallest
distance. Quantitative results show that almost 90%
of the time the image deemed by the system as most
similar to query belongs to the same class, and
qualitative results show that the set of images
retrieved by the system are visually similar to the
query image. Some directions of future work
Extending the experiments to a larger
database of galactic images
Efficient search methods using R-trees
(Guttman S, 1984)
Building classifiers for other types of
astronomical objects, such as nebulas and
Extending the system to deal with wide-
field images, containing multiple objects.
This will be done by means of a
preprocessing stage to segment the objects
in the images, and then processing them
In summary, the global CCV is superior to the
basic colour histogram in most of the tests.
However, the histogram has the advantage of rapid
generation and comparison. Although processing
power is less of an issue the memory requirements
for generating CCVs can sometimes be a limiting
factor when compared to histograms.
This global CCV and histogram results translates
well to the Multiscale versions of the algorithms.
MCCV generally fared better than MHistogram. The
monochrome histogram provides good retrieval rate
in both single, and multi scale versions. However, it
is rather sensitive to noise.
Golshani F and Dimitrova N A Language for content
based Video Retrieval, Multimedia tools and
applications 6, 1998 pp 289-312.
NOAO: Image Gallery on the web page of
M.C. Storrie-Lombardi, O. Lahav, L. Sodre and L.J.
Storrie-Lombardi, Morphological Classification of
Galaxies by Artificial Neural Networks, Monthly
Notices of the Royal Astronomical Society 259, 1992.
A.Adams and A.Woolley, Hubble Classification of
Galaxies Using Neural Networks, Vistas in Astronomy
38, 1994.
David Dupplaw, Paul Lewis, Mark Dobie, Spatial Colour
Matching for Content Based Retrieval and Navigation,
The Challenge of Image Retrieval, February 1999,
Newcastle, UK.
Guttman S (1984) In: Proceedings of the SIGMOD
Conference, ACM, pp. 47–57.
Stephen Chan and Kirk Martinez and Paul Lewis and
C.Lahanier and J.Stevenson, Handling Sub-Image
Queries in Content-Based Retrieval of High
Resolution Art Images, International Cultural Heritage
Informatics Meeting (ICHIM01),pp. 157-163 (2001).
Paul Lewis, David Dupplaw and Kirk Martinez, Content-
Based Multimedia Information Handling: Should we
Stick to Metadata?, Cultivate Interactive Issue 6,
February 2002,
Mike Westmacott, Paul Lewis and Kirk Martinez, Using
Colour Pair Patches for Image Retrieval, Proceedings
of the First European Conference on Colour in
Graphics, Imaging and Vision, 245-248, June 2002.
Fazly. S. Abas, and Kirk Martinez, Craquelure Analysis
for Content-Based Retrieval, Proceedings, of the 14th
International Conference on Digital Signal Processing,
July 2002.
Mohammed F.A. Fauzi and Paul Lewis, Query by Fax for
Content-Based Image Retrieval, Proceedings of
International Conference CIVR 2002, London, July
2002, pages 91-99.
Accuracy of the Retrieval
% of
