AUGMENTED REALITY ENVIRONMENT USING A WEB
BROWSER
Content Presentation with a Two-Layer Display
Kikuo Asai
National Institute of Multimedia Education, 2-12 Wakaba, Mihama-ku, Chiba, Japan
Hideaki Kobayashi
The Graduate University for Advanced Studies, Shonan Village, Hayama, Kanagawa, Japan
Keywords: Augmented reality, Web browser, two-layer display, content presentation, and character recognition.
Abstract: We developed a prototype system to make an augmented reality (AR) environment using a Web browser.
Although AR technology has the potential to be used in various applications, authoring/editing AR contents
is a problem on the wide spread. Graphics expertise and knowledge of computer programming are necessary
for creating contents for AR applications. We used a Web browser as a presentation tool so that users who
had experience in creating Web contents could reuse the multimedia data as AR contents and modify the
AR contents by themselves. A two-layer display was used in the system in order to superimpose virtual
objects onto a real scene for creating an AR environment. Another problem is about identifying objects in
the real scene. An open-source library, ARToolkit, is often used as an image-processing tool for detecting
the position and orientation of markers as well as identifying them. However, the markers must be
registered in the system in advance, and the registration becomes tedious work when many markers are used
such as Japanese kanji characters. The optical character reader (OCR) middleware was implemented as a
character-recognition function for Japanese character markers. This paper describes the system design and
software architecture for constructing an AR environment using a Web browser display and the
demonstration of the prototype system.
1 INTRODUCTION
Augmented reality (AR) technology enables us to
enhance recognition of the real world by
superimposing virtual objects onto a real scene. AR
has the potential of creating a new environment that
seamlessly connects a virtual space to the real world.
The AR environment has great advantages such as
spatial awareness (Biocca et al., 2003( over the real
world and tangible interaction (Poupyrev et al.,
2002( over a virtual space.
Various applications have been developed based
on AR’s potential. However, authoring/editing AR
contents currently requires computer graphics
expertise and knowledge of computer programming,
which is one of the reasons that AR has not
generated the killer application. Some toolkits for
authoring/editing AR contents have been developed
such as AMIRE (Grimm et al., 2002( and DART
(MacIntyre et al., 2004( that allow the user to edit
the contents without being familiarized with
computer graphics and programming.
Unfortunately, these toolkits are not well suited
for creating simple AR contents because using the
toolkits involves several complicated tasks in the
production process and additional tools for which
users must learn the basic skills. Our idea involves
using a Web browser as a presentation tool. The
browser supports various data formats that enable us
to reuse multimedia data. A Web browser may be
obtained for free, and the users who create AR
contents probably have some experience with a
markup language such as HTML, VRML, or XML.
In addition to the data formats it supports,
another advantage of using a Web browser is that
plug-in software can be installed for additional
functions for extended data formats. However, using
a Web browser causes a problem when
481
Asai K. and Kobayashi H. (2006).
AUGMENTED REALITY ENVIRONMENT USING A WEB BROWSER - Content Presentation with a Two-Layer Display.
In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web
Interface and Applications, pages 481-486
DOI: 10.5220/0001250604810486
Copyright
c
SciTePress
superimposing virtual objects onto a real scene, so
we used a two-layer display for presenting virtual
objects over images in the real scene.
In marker-based tracking, the markers that are
used for identifying an object and detecting its
position and orientation in the scene have to be
registered in advance. Registering many markers
would be tedious work, especially when using
language characters as markers. We used an optical
character reader (OCR) middleware for recognizing
Japanese character markers.
Our goals are to develop a simple method for
superimposing virtual objects over the real scenes
and to enable users to create AR contents composed
of multimedia data of various formats. This paper
describes the design and architecture of a prototype
that uses a two-layer display for making an AR
environment with a Web browser.
2 RELATED WORK
ARToolkit (Kato et al., 2000( is a set of C/C++
open-source libraries, which has widely been used
for coding programs for AR applications. The
primary advantage of ARToolkit is to work with a
single camera operating under visible lighting
conditions. Programming skills are required for
coding the programs but are not required for using
the runtime samples for attaching VRML models to
markers. ARToolkit is distributed with sample
programs that show users how to attach VRML
models to markers.
AMIRE is a set of graphical authoring/editing
tools, which has a component-based framework
focused on specific AR domains. Although AMIRE
does not involve coding programs directly, a visual
language interface has to be treated for integrating
components in an object-oriented structure. DART is
also an authoring/editing tool built on Macromedia
Director. Director is an object-oriented environment
for creating 2-D and 3-D animations. A basic
knowledge of using Director is required for using
DART for developing AR applications.
These authoring/editing tools are not necessary
for creating simple applications, and the runtime
samples of ARToolkit would be enough for
superimposing virtual objects over a real scene.
However, the ARToolkit samples are not compatible
with various multimedia data formats and
registrations of many character markers. In our
system, a Web browser enables us to reuse
multimedia data of various formats, and OCR may
solve the registration problem.
Multi-layer displays that were originally
developed for CAD simultaneously display drafts
and 3-D structures on the same monitor. While NTT
Cyber Space Laboratories used a multi-layer display
for developing a stereoscopic display, depth-fused 3-
D (DFD) (Suyama et al., 2001(, and the display is
currently on the market. We used a two-layer display
for constructing an AR environment.
3 SYSTEM

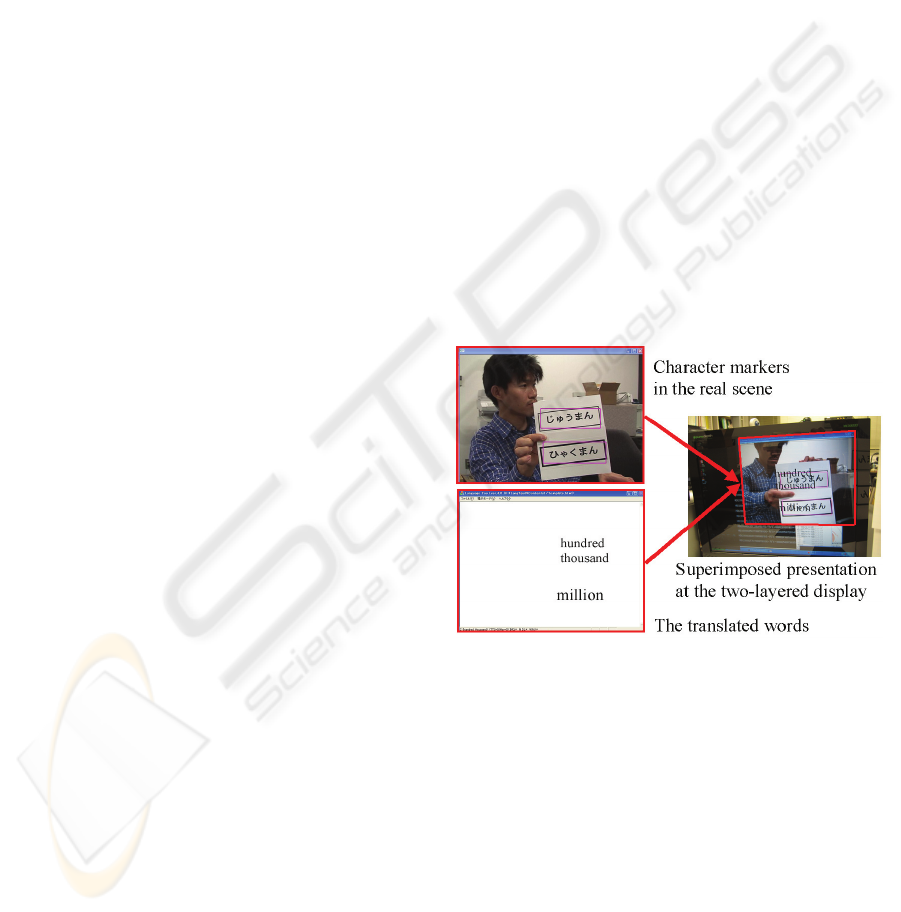

Figure 1 shows an example of a superimposed
presentation on a two-layer display. The English
words are superimposed over the Japanese
characters. The user holds the two character markers,
and the two translated words are presented in the
different windows. The recognized hiragana markers
are enclosed by the pink rectangles in the camera-
image window, and the two English words are set at
the corresponding locations in the presentation
window. When the user moves the markers, the
English words track the markers with the position
and orientation.
Figure 1: An example of superimposed presentation on
two-layer display.
3.1 Design
We here describe the design and functions of our
prototype system for making an AR environment.
The system detects square frames in a video image
and checks whether the characters in the square
frames correspond to the words that were registered
in advance. Based on the character markers, the
functions display texts, images, and 3-D models and
play sound, or generate a synthesized voice.
A design that incorporates a Web browser, a
two-layer display, and an OCR makes our system
unique.
WEBIST 2006 - WEB INTERFACES AND APPLICATIONS
482
1) Web browser—A Web browser was used in
the prototype as a presentation tool. Using a Web
browser has some distinct advantages. Web
browsers can support various multimedia data
formats and plug-in tools. Users have had problems
using AR technology for authoring/editing contents
because programmers and graphic experts usually
develop AR applications. Using a Web browser
improves the flexibility of authoring/editing and
reusing the existing contents, which makes creating
simple AR applications possible for novice users.
Moreover, the Web browser supports plug-in tools
and extended data formats.
2) Two-layer display—Some people might claim
that using a Web browser is not an AR-based system
because the virtual objects may not be spatially
registered on the real scene. However, the system
was designed as follows in order to keep the AR
features. The first is detecting the position and
orientation of the identified markers and reflecting
them in the presentation on the browser window.
The other is implementing a two-layer display in the
system that enables us to present virtual objects that
are superimposed on the real scene. Although spatial
registration is not actually achieved, the virtual
objects track the markers at the approximate
positions of the markers in the real scene.
3) Character recognition using OCR—Most AR
applications use markers for identifying objects and
detecting their position and orientation in real scenes.
However, users have to register each marker in the
system in advance, and this causes difficulties if
more than 100 markers are involved. OCR is thus
useful for recognizing letters and characters and for
detecting words as character markers. Although a
specific version of the OCR software needs to be
installed in order to allow for appropriate character
recognition (because OCR depends on the language
being used), using OCR greatly expands the number
of words that can be used in AR systems.
3.2 Configuration

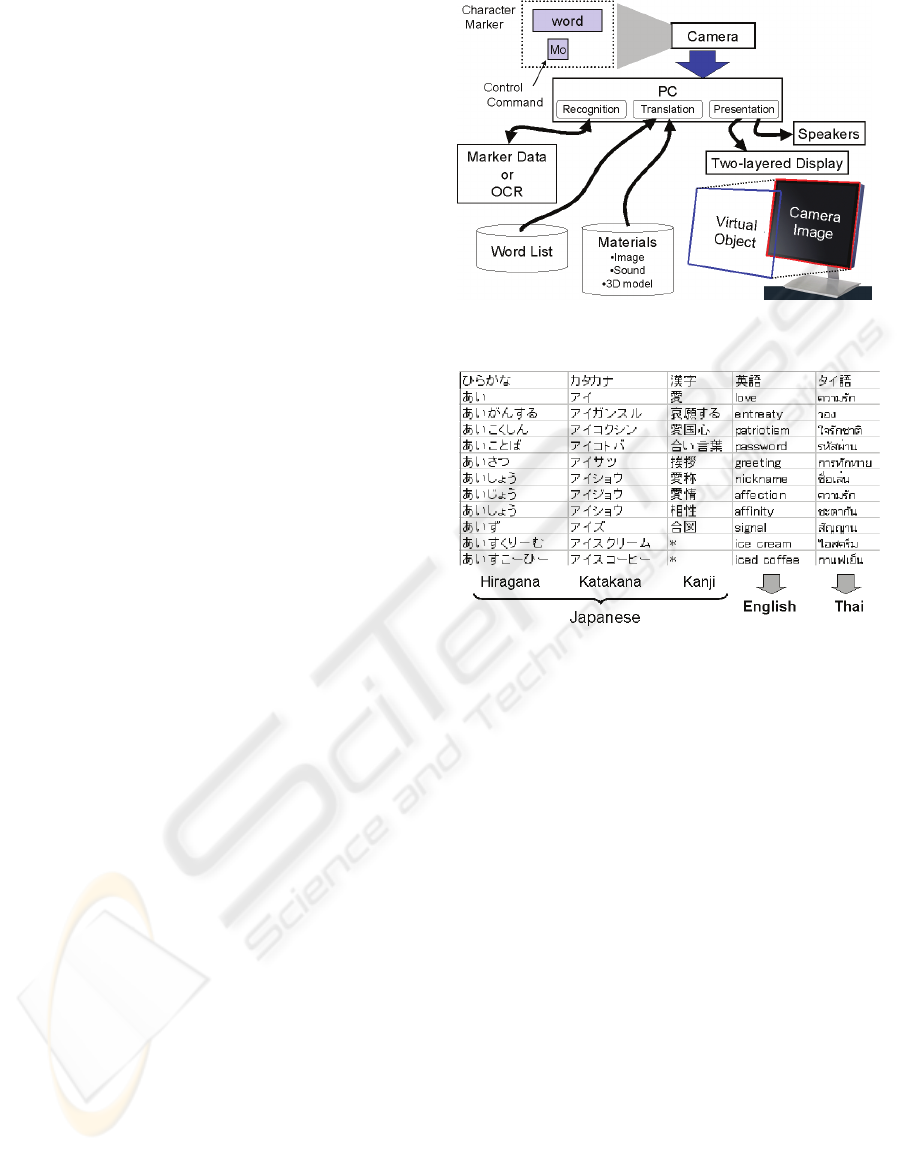

Figure 2 shows the configuration of the prototype
system. The arrow indicates direction of the flow of
the processing data. A camera captures video images
including the character markers held by the user, and
the video is fed into a PC.
First, the recognition function of the PC detects
the markers and the characters by matching them to
the marker data or by finding words with the OCR.
We created specific character markers for a
command in order to control the presentation. For
example, the user can change the format of the
presentation from text to image or the size of the text
font, by presenting the control command marker.
F
Figure 2: Configuration of prototype system.
Table 1: Beginning of word list.
The words that were recognized with the OCR
are then counted as possible matches to the word
shown by the user, and are looked up in the word list.
If the word matches a word in the word list, it is
translated into the designated format such as the text
of the other language, an image, a 3-D model, or
sound, which has been prepared for the presentation
in advance. Table 1 lists a sample from the word list.
The user views two windows that are
superimposed at the two-layer display. One window
contains the camera image and the other the contents.
The camera-image window shows the input video-
image including the character markers. The content
window presents information such as the translation
texts, images, and 3-D models that are related to the
recognized words.
The prototype system does not have a video
transmission function. When the system is used in
telecommunication, video images have to be
transmitted to remote sites separately through some
network such as the Internet or satellite
communications. A two-layer display is capable of
superimposing the camera image and the contents,
and presents them simultaneously. The virtual
objects are spatially registered to the camera images
of the real scene based on the positions and
AUGMENTED REALITY ENVIRONMENT USING A WEB BROWSER - Content Presentation with a Two-Layer
Display
483
orientations of the character markers. Instead of
texts, images, or 3-D graphics, sounds are played
using the sound files in the word list. When the user
selects the voice mode, a voice synthesizer reads out
loud for the recognized word.
3.3 Software Architecture
Figure 3 shows the software architecture of the
prototype system. The software is mainly composed
of image processing and presentation parts. The two
parts have a server-client relationship, and they
exchange data using socket communications. We
used UDP/IP to support multiple clients that transmit
and receive control signals with a server on the
network. The multiple clients can share the
information based on the recognized word at the
server. This software architecture allows users to
apply the system to support for telecommunication.
For example, a presenter makes a speech using
keywords while the video images are processed at
the server. The processed information is then
multicast to remote sites where the audiences see the
video with the keywords translated to their mother
tongues.
Figure 3: Software architecture.
Character Recognition
The way an image is processed depends on the
number of characters on the character marker. First,
the OCR tries to recognize some characters in order
to detect words in the character marker. If nothing or
only one character is found, the process is passed to
ARToolkit. If the character matches another one in
the pre-registered marker data, that character is then
used as a control command. Otherwise, the message
“no word” appears on the display. If the OCR
detects some words, they are checked as possible
matches against the words in the word list.
We used ARToolkit for identifying a control
command because the number of control commands
is currently around 30, and registering the markers is
not tedious work. The ARToolkit was also used for
detecting square frames—determining their position
and orientation.
We used the OCR middleware tool “Yonde!!
KoKo” (A.I. Soft) for the Japanese character
recognition. OCR is well suited for extracting the
characters of specific languages even though it does
not recognize the script or special symbols in minor
languages. The OCR tool recognizes the JIS first-
level kanji and hiragana, katakana, the English
alphabet, and Roman numerals. These characters do
not have to be registered in advance.
Word Detection
An original word list was created for conducting
the language translation because using a word list is
efficient on word detection. We did not use a
commercial translator. The translation is done by
referring to the compact word list from a specific
field of interest to the user. In the prototype system,
Hiragana, Katakana, and Kanji were designated as
the source characters, and everyday English or Thai
words were the destination words.
The word detection has not been perfect, and
incorrect results were sometimes obtained. The main
reason for this was that the characters derived from
the OCR were not always correct, depending on the
lighting condition and the movements of the
character marker. We observed that a statistically
significant number of characters were recognized
incorrectly. For example, the small characters of
Japanese Hiragana were often mistaken for the
normal-size Hiragana characters.
The word detection was thus conducted using the
following correction process. The characters that
were recognized by the OCR were first looked up in
the word list. If the group of characters did not
match any words in the word list, one character at a
time in the group was substituted with a candidate
character, and the corrected group was then checked
against the word list. This process was repeated until
a match was found.
Reducing the number of times the page is refreshed
The contents were presented in a layout that was
based on the position of the markers held by the user.
An HTML file was created to place the text, images,
or 3-D models at the marker positions in the real
scene. A page is renewed by recreating and
reloading the new file. However, refreshing the page
frequently destabilizes the presentation, and should
thus be kept to a minimum.
The change in position of the virtual objects was
controlled smoothly without renewing the page by
WEBIST 2006 - WEB INTERFACES AND APPLICATIONS
484
using a JavaScript function—a new file was created
and reloaded in the Web browser when the layout of
the virtual objects changed with the rotation and
zoom of the markers.
This method of control also helps reduce traffic
of signals multicasting between the server and the
clients. We set three levels of signal transmission.
Traffic was not generated when the detected words
were identical to the previous ones with the same
layout. Only the layout information was transferred
when the detected words were identical to the
previous ones but had a different layout. When the
detected words and their layout changed, their
detected words and the layout information were
multicast.
3.4 Implementation
Figure 4 demonstrates snapshots of each
presentation with (a) text, (b) an image, and (c) a 3-
D model. The system can control the presentation
format of text, images, and 3-D models by inserting
a control command marker. When the control
marker, “Im” or “Mo,” reaches the character marker,
the corresponding image or the 3-D model is
presented at the marker’s location. Only text appears
when there is no control marker. We used a VRML
plug-in tool, Cortona (Cortona(, for viewing the 3-D
models in the Web browser.
The HTML format is advantageous for creating
AR contents thus making authoring/editing the
contents and reusing the multimedia data easier.
Using a Web browser as a presentation tool also
enables us to install plug-in software, even though
the system does not offer much control flexibility of
the plug-in software. Figure 5 demonstrates a
snapshot of presenting protein data from the Protein
Data Bank, in which a plug-in tool, Chime (Chime(,
was implemented. The snapshot represents the 3-D
structure of a virus related to avian influenza. The
plug-in software increases the number of
presentation formats beyond that which is normally
supported by default in the Web browser. Although
sounds cannot be demonstrated in this paper, when
the user selects the sound files as the destination,
they are played based on the sort of the markers.
The prototype system was implemented on two
desktop PCs, each with a 2.4-GHz Pentium IV
processor for the image processing, and a 1-GHz
Pentium III processor for the presentation. A DV
camera (DCR-HC1000, SONY) was connected to
the image-processing PC through an IEEE 1394
cable. The PureDepth MLD
TM
3000 that was used as
a two-layer display had specifications of a 17”-
diagonal size monitor and 1280x1024x2 resolution.
Although the frame rate was roughly 20 frames
per second, a delay of around one second was
observed between the time that the character marker
appeared and the time the text displayed. When the
markers were quickly shifted in the camera image,
unstable recognition was observed with the OCR.
We also checked accuracy of the word
identification, measuring a recognition rate of the
character markers under a static condition. 8 markers
of the Japanese Hiragana and Kanji characters were
prepared as samples for the evaluation test. The
simple camera (Qcam Pro 4000, Logicool) with 640
x 480 pixels was used for capturing images.
(a) Text (Japanese to Thai).
(b) Image.
(c) 3-D model.

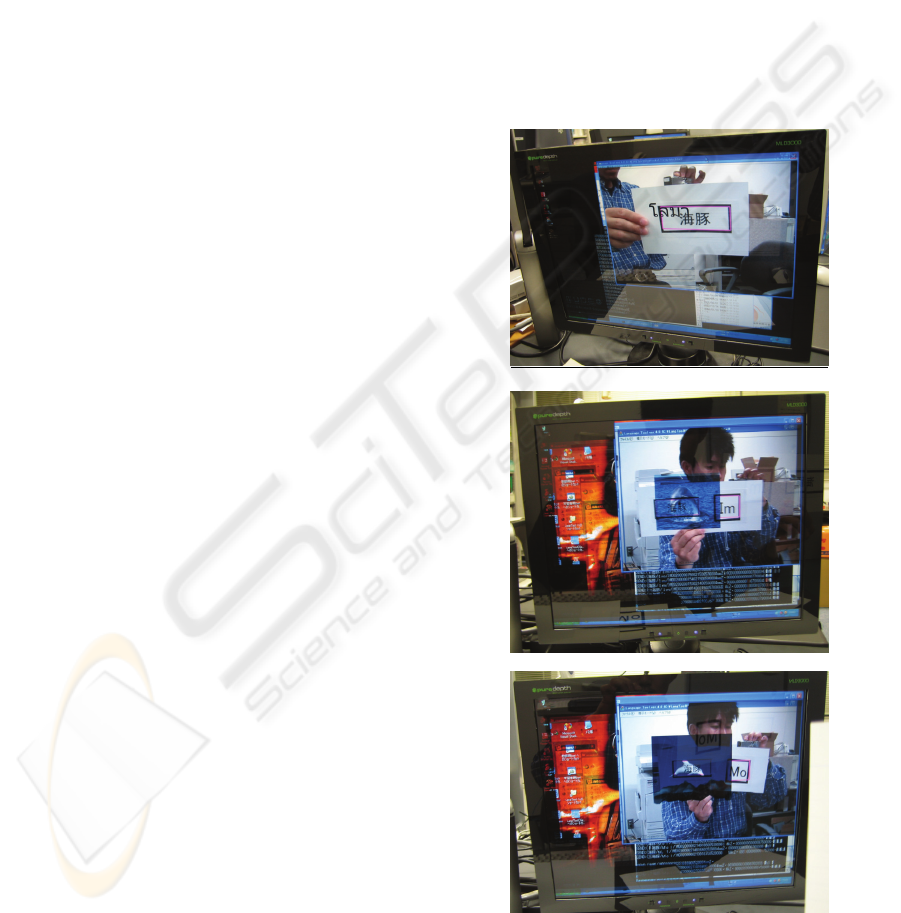

Figure 4: Snapshots of content presentations with (a) text,
(b) an image, and (c) a 3-D model.
AUGMENTED REALITY ENVIRONMENT USING A WEB BROWSER - Content Presentation with a Two-Layer
Display
485

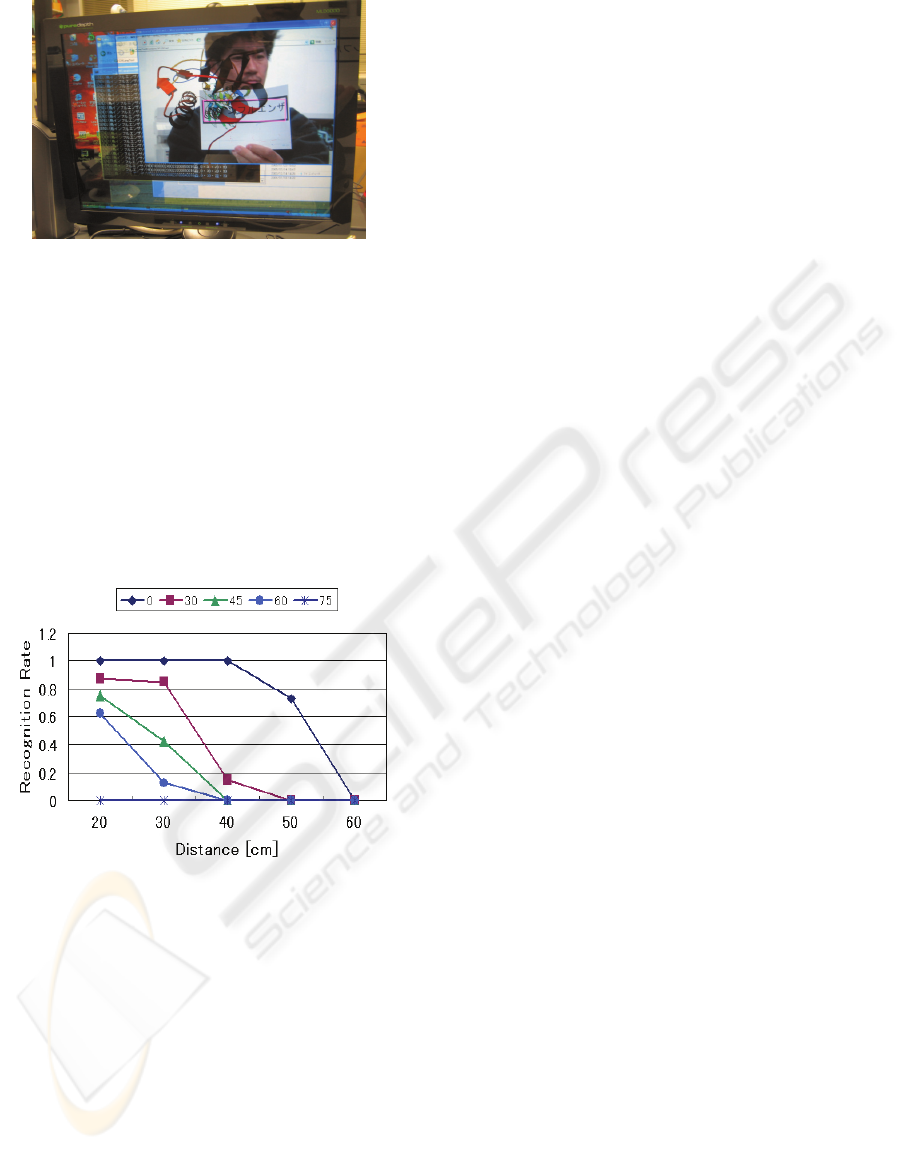

Figure 5: Presentation using a plug-in tool for the Protein
Database.
Figure 6 shows the average rate of the correct
recognition for the sample characters. The sort of
marks corresponds to difference of the slant for the
character markers. “30” means that the character
marker was set at direction of 30 deg. from the line
of sight of the camera. The recognition rate
decreases with distance of the character markers
from the camera and slant of the markers from the
line of sight. When markers are presented vertically
onto the camera, the stable recognition is obtained at
a distance from 20 to 40 cm.
Figure 6: Average rate of the correct recognition.
4 SUMMARY
We developed a prototype system that presents
contents with a two-layer display in order to make
an AR environment using a Web browser. Using a
Web browser as a presentation tool may improve the
authoring/editing of AR contents and the reusability
of multimedia data. The system can be used for
supporting telecommunications by presenting
additional information related to text during a
videoconference.
We used a word list to identify the words shown
by the user. For some words, however, the system
performance decreased due to the time required to
search the words. An acceleration function is
required for improving the efficiency of retrieving
information in the system. Our future plans include
improving the accuracy of the character recognition
using the OCR.
ACKNOWLEDGMENTS
This research was partially supported by a grant-in-
aid for scientific research (17300283) from the JSPS.
“Yonde!! KoKo” is a trademark of the A. I. Soft Co.,
Ltd. Yoshihiko Masui provided the Thai words in
the word list.
REFERENCES
Biocca, F., Rolland, J., Plantegenest, G., Reddy, C., Harms,
C., et. al. Approaches to the design and measurement
of social and information awareness in augmented
reality systems. Proc. Human-Computer Interaction
International: Theory and Practice, pp.844-848, 2003.
Chime, a PDB plug-in tool for a Web browser,
http://www.mdli.com/index.jsp
Cortona, a VRML plug-in tool for a Web browser,
http://www.parallelgraphics.com/products/cortona/
Grimm, P., Haller, M., Paelke, V., Reinhold, S., Reinmann,
C., and Zauner, J. AMIRE – authoring mixed reality.
Proc. IEEE International Augmented Reality Toolkit
Workshop, 2002.
Kato, H., Billinghurst, M., Poupyrev, I., Imamoto, K., and
Tachibana, K. Virtual object manipulation on a table-
top AR environment. Proc International Symposium
on Augmented Reality, pp.111-119, 2000.
MacIntyre, B., Gandy, M., Dow, S., Bolter, J. D. DART: a
toolkit for rapid design exploration of augmented
reality experiences. Proc. International Conference on
User Interface Software and Technology, 2004.
Poupyrev, I., Tan, D. S., Billinghurst, M., Kato, H.,
Regenbrecht, H., and Tetsutani, N. Developing a
generic augmented reality interface. Computer, vol.35,
pp.44-50, 2002.
Suyama, S., Takada, H., Uehara, K., Sakai, S., and
Ohtsuka, S. A new method for protruding apparent 3D
images in the DFD (Depth-Fused 3D) display. SID 01
Digest, vol.54.1, pp.1300-1303, 2001.
WEBIST 2006 - WEB INTERFACES AND APPLICATIONS
486
