ANIMATING ALGORITHMS OVER THE WEB

Chittaranjan Mandal

Dept of Computer Sc & Engg

IIT Kharagpur, WB 721302, India

Chris Reade

Kingston Business School

Kingston University, KT2 7LB UK

Keywords:

Algorithm, animation, web, CGI.

Abstract:

We discuss a novel technique for animating algorithms over the web. Although there are several existing

software environments for the animation of algorithms, some of which are web-enabled, ours is designed

speciﬁcally to simplify the process of adapting an algorithm for animation and delivering the animation over

the web with a simple web interface. This provides a ﬁrst stage for more advanced development of web-

based interactions to support animation. Our goal is to provide general web-based support to enable much

more widespread use of animation in teaching. In particular we want to address the active participation of the

observer in using algorithm animation technology. We describe the current implementation of the animation

engine which is based on a simple co-processing method with CGI implementation on a web-server, along with

plans to use this as a base to include emerging technologies (web-services with XML to markup examples and

asynchronous interaction). We also illustrate the current web interface with some examples.

1 INTRODUCTION

An important aid in teaching early courses in algo-

rithms and many other process-related subjects is to

animate the particular process that is being described.

This is a challenging task that has been addressed

many times before but solutions are still not sufﬁ-

ciently simple for widescale use. Regular class room

teaching without computer aids can address the prob-

lem only partially, by illustrating the steps for a spe-

ciﬁc example (usually) on slides. However, such il-

lustrations are limited when it comes to demonstrat-

ing a process with different sets of inputs. Even lead-

ing edge animation techniques usually provide a high

quality rendering of only a speciﬁc problem instance.

As recently noted in (Naps, 2005), the real beneﬁts

of animation for effective teaching come from ac-

tive participation of the learner in using the animation

rather than from high quality graphics. In this paper

we describe a simple animation technique that pro-

vides a general solution within a limited context. It

works over the web for maximum ﬂexibility and does

not require the student to have anything more than a

web browser to get started. We have applied this tech-

nique to teach an initial course on ’C’ programming

to a class of nearly 700 students.

The target users were learners with minimum un-

derstanding of tools and techniques of the learning

target of programming. Some of the objectives of this

work were as follows:

• avoid reliance on tools that the user may not have

or may have difﬁculty with using at the early stages

• make it a web-based technique so that it is usable

just via a web browser

• it should be interactive

• it should be able to work with user supplied data

sets

• it should be possible for the instructor to create tu-

toring examples with relative ease

Initial learners usually have a problem with grasp-

ing the basic paradigm of programming. A good

way to get them started is to walk them through sim-

ple programs. That way they can understand how

the execution of a program progresses through vari-

ous statements. They get to see the working of var-

ious control ﬂow constructs and also how variables

get updated. Hard-to-grasp concepts such as param-

eter passing and function calls can be graphically il-

lustrated. All of these can make the learning a lot

easier. These aids are already available, but not eas-

ily reachable by the novice or early programmer be-

403

Mandal C. and Reade C. (2006).

ANIMATING ALGORITHMS OVER THE WEB.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Society, e-Business and

e-Government / e-Learning, pages 403-407

DOI: 10.5220/0001251404030407

 SciTePress

cause the use of these aids often require some initial

knowledge of programming. The other option is to

provide personal assistance, an increasingly scarce re-

source. This web-based technique was developed to

make these aids available over the web, especially to

the early programmer. These techniques also work

well beyond the initial steps of programming as the

student proceeds to learn basic techniques such as

sorting, searching and so on.

The rest of the paper is organized as follows. In

section 2 an outline of the technique is given. In sec-

tion 3 some examples are given to illustrate the tech-

nique. The underlying protocol used for the anima-

tion is described in section 4. This is followed by the

conclusions and references.

2 OUTLINE OF TECHNIQUE

The technique essentially relies on running a pro-

gram, which is to be demonstrated, at the server. If the

program should require some data, that is collected

from the user’s browser and fed to the program. The

trace of the program, as it executes, and any outputs

that are produced are returned to the user’s browser.

The program proceeds from one chosen point to some

other chosen point within the program. In addition

to the start and the end points, numerous additional

points may be chosen from within the program. If

necessary, a point can be placed between every ad-

jacent pair of statements. The points should be cho-

sen carefully so that the exhibited trace is neither too

monotonous nor too macroscopic. It is expected that

the program being demonstrated has been rigorously

tested in advance so that it does not throw up unex-

pected bugs or exceptions.

The basic program is augmented with additional

statements to do the following as it reaches a chosen

point in the program:

• return display matter to the user’s browser, as ap-

propriate. The display matter will include informa-

tion regarding the:

– outputs generated by the program

– values stored in variables that need to be dis-

played

– run-time data structures indicating currently ac-

tive function calls

• collect inputs that may be required by the program

• proceed to the next point once the user is ready or

after some period of time.

To make the overall scheme more practical, it

should operate in user space rather than a superuser

space. That way, an instructor can setup such ani-

mations without demanding special system privileges.

Only a regular web server is required.

It may be noted that the user’s browser does not

interact with the program directly. Instead it interacts

with the web server on the server – this the normal

modus operandi for browser interaction. This system

relies on the CGI programming interface and there are

supporting methods for the following:

• start the program that is to be demonstrated

• collect display matter generated by the program

and return that to the user’s web browser

• collect inputs required by the demonstration pro-

gram from the user and feed them to it

• close the interaction session once the demonstra-

tion program terminates

2.1 Algorithm Encoding

The algorithm that is being animated needs to be

coded in a special way so that the animation is made

possible. Presently, the animation is done using Perl.

In the future, ‘C’ programs will be animated directly

in ‘C’. This avoids the complications of trying to em-

ulate one language with another.

The text of the algorithm is placed in an array

(the Perl array @program in this case). The pro-

gram starts with a call to initInteraction()

to make necessary initializations. Thereafter, the

program continues in mini-sessions which involves

opening the session, doing the required processing

which may involve some combination of collect-

ing inputs, executing and generating outputs, and ﬁ-

nally closing the session. Once the mini-session is

closed everything generated in the current session

is returned to the client’s bowser where the simu-

lation is being viewed. A mini-session is opened

by a call to openInteraction. Helper functions

such as retrieve, htmlStart, displayProg,

htmlFinish, etc. assist the input/output opera-

tions. A call to closeInteraction in conjunc-

tion with htmlFinish helps to close the interaction

mini session. The encoding procedure is highly me-

chanical in nature and may be easily automated.

As a next step we plan to use XML to encode ex-

ample programs and animation markup. This will al-

low us to develop an interaction to support the exam-

ple developer in the generation of the animation with

as much automation as possible. This could then be-

come a web service with an option to add the result

to the animation server. To enrich the interaction, we

plan to use (AJAX-style) technology to allow the end-

user more control over the layout of the animation.

This is particularly important when more complex ex-

amples need to be displayed, so the user has control

of the focus.

WEBIST 2006 - E-LEARNING

404

3 ANIMATION EXAMPLES

3.1 Comparing Two Numbers

First, a simple example is presented to illustrate the

working of the system in ﬁgure 1. This example com-

pares two numbers n1 and n2. Only the opening

screen and an intermediate stepand an intermediate

step have been shown. The following features of the

system are illustrated via this example.

• interactive abilities; user inputs can be accepted,

outputs are displayed

• ability to display values of selected variables

• program tracing; the statement being executed is

shown in red

• buttons for stepping and running through

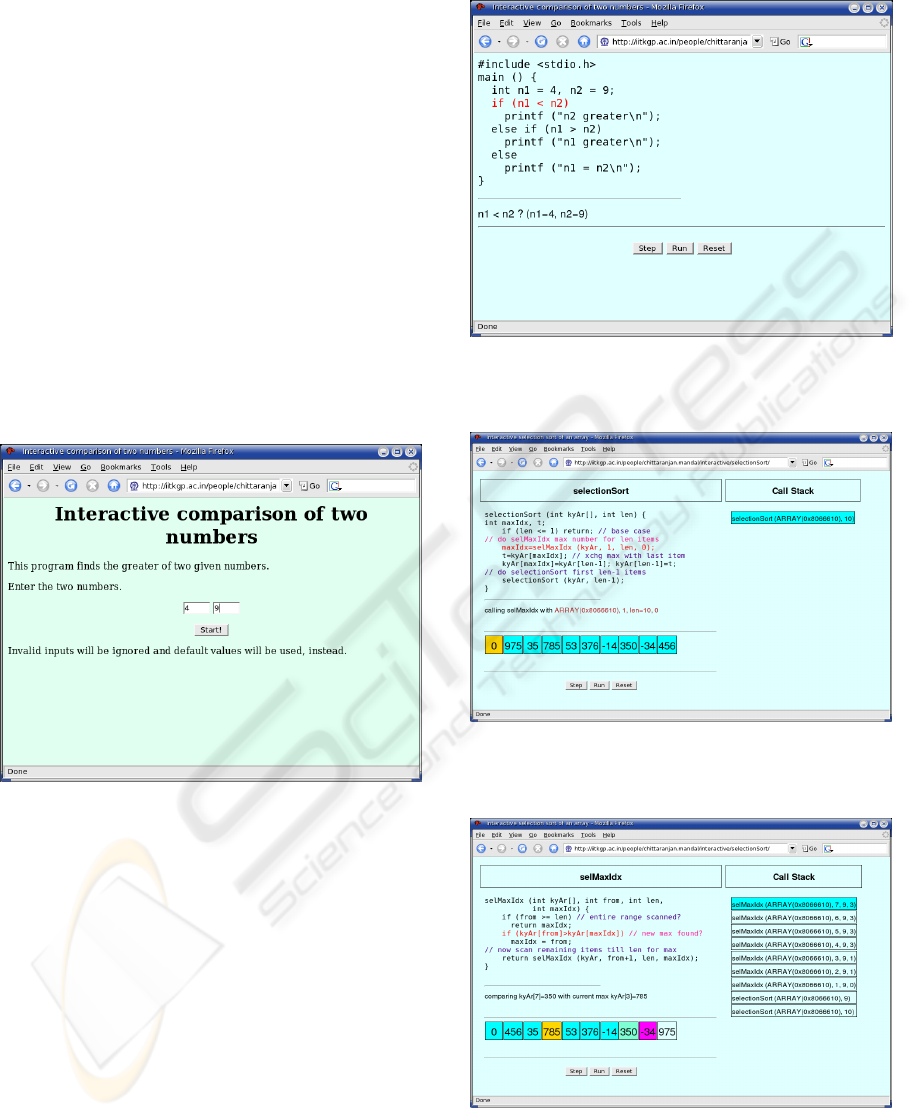

Figure 1: Screen shot - 1 of an example to compare two

numbers.

3.2 Selection Sort

Next, a few screen shots are shown for a more com-

plex example of selection sort in ﬁgure 3. This exam-

ple illustrates additional features, such as

• function calls

• highlighting a set of statements

• distinctive highlighting of comments and program

statements

• call parameters of activation records to illustrate

function calls

• more complex graphics; at present all graphics are

implemented by means of html constructs; this is

not essential

Figure 2: Screen shot - 2 of an example to compare two

numbers.

Figure 3: Screen shot - 1 of selection sort.

Figure 4: Screen shot - 2 of selection sort.

ANIMATING ALGORITHMS OVER THE WEB

405

It may be noted that arrays in the activation record

are denoted in a peculiar way. That is because the

‘C’ programs are emulated in Perl. The array address

representation used in Perl has not been hidden.

4 PROTOCOL FOR ANIMATION

signal

sleep

collect inputs

dump inputs

do processing

dump outputs

signal

sleep

collect outputs

print to stdout

terminate

mini−session

reopen standard fd’s

of Program

fork()

startNew()

startup

carryOn

persistent process

carryOn()

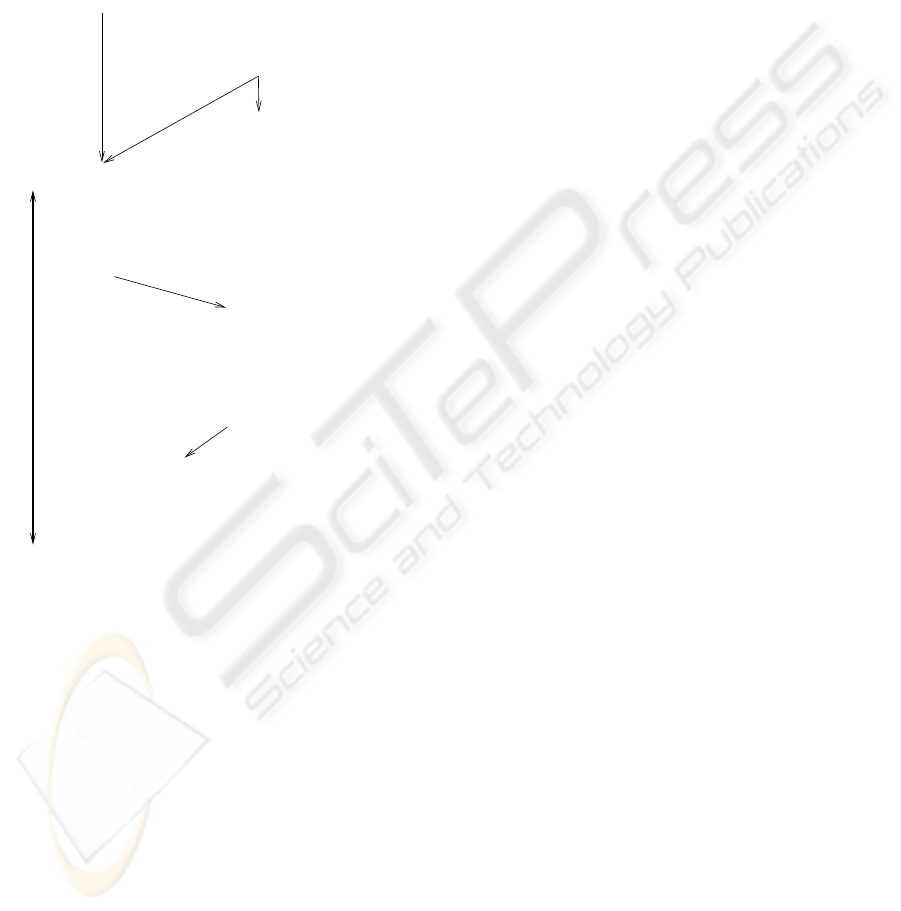

Figure 5: Animation protocol.

The protocol is illustrated in ﬁgure 5. The anima-

tion is initiated and continued over the web using the

CGI(Robinson, 1996) gateway. Each CGI request is

received by the HTTP server in a stateless manner.

The protocol works by storing enough state informa-

tion to be able to execute the program being demon-

strated, receiving inputs from the user and return-

ing appropriate output. The user supplies inputs via

HTML FORMs.

There are two form actions, startup for initiating

the animation and carryOn to continue with the ani-

mation until it ends. The startup receives a path to the

executable and the necessary inputs. A call is made

to a function called startNew which essentially forks

to create a process for the program to be animated,

and itself continues to form the ﬁrst mini session. Af-

ter a process is spawned for animation, its ﬁrst job

is to reopen its standard ﬁle descriptors of stdin,

stdout and stderr. Thereafter it goes to sleep.

If it is not awakened within a certain (reasonably long)

interval it assumes that the user has abandoned the an-

imation and it terminates.

The process participating in a mini session, contin-

ues with carryOn, whose job is to collect inputs sent

by the user via the form and dump them into a ﬁle

and then signal the sleeping animation process, and

itself go to sleep. The process for the animation, on

waking up, collects the inputs, does necessary pro-

cessing, dumps necessary outputs into a ﬁle and then

signals the sleeping co-process of the mini-session,

and readies itself for the next mini-session by going

to sleep. The co-process, on waking up, collects the

output dumped by the animation process from the ﬁle,

prints it to its stdout and terminates.

All subsequent mini-sessions are initiated by a sep-

arate script called carryOn. The form is submitted

when the user clicks on the step button. The button

click is performed automatically after a certain period

of time if Run is enabled. This is achieved by a short

piece of Javascript, which internally generates the ef-

fect of clicking the step button. This directly enters

the mini-session, as shown in the diagram of ﬁgure 5

and as explained above. When the animation comes

to an end, the last mini-session generates plain HTML

output without the form. The animation process ter-

minates once the animation comes to an end.

This system is based on the forward execution of

a program and so replay of earlier steps, if desired,

may only be achieved indirectly, with the help of the

browser. This would, therefore, depend on the capa-

bilities of the browser. Most modern browsers have

“back” and “forward” buttons, using which, a few ear-

lier frames may be revisited. If this browser feature is

used, then the replay should be enacted only with the

“forward” button and not via the “Step” or “Run” but-

tons. Their use in this context would be invalid.

Invalid use of the scripts is detected on the server

side. The primary source of invalid use would be to

continue with a ﬁctitious trace of a process (as exem-

pliﬁed above). On the server side new keys are gener-

ated for every mini-session. A copy of the key is em-

bedded in the form and another copy is retained for

checking. If the check fails, the animation is aborted.

5 DISCUSSION AND RELATED

WORK

Our goal is to provide general web-based support to

enable much more widespread use of animation in

teaching and to support more interactive use of ani-

mations in the learning process. The implementation

technique described here provides support for simple

adaptation of an algorithm so that an animation can

WEBIST 2006 - E-LEARNING

406

be delivered over the web for viewing and controlling

via a web browser. The advantages of this approach

are two-fold. Firstly, the development of an anima-

tion does not require expertise in using complex ani-

mation software and is thus a much lower hurdle for

teachers wishing to produce examples. Secondly, the

delivery and viewing of animations requires a mini-

mal, platform-independent capability to be available

to the end user (i.e. just a web-browser) so that the

potential audience is maximised.

At the moment, only examples in the ’C’ program-

ming language are being considered, and we do not

provide full automation for the process of creating an-

imations from example ’C’ programs. In future work

we plan to maximise the automation using XML to

markup programs and a web-service to upload exam-

ples and provide ﬁne tuning control of the animation

generation through a web interface. We also recog-

nise the need to support more graphical displays of

complex data and objects for more widespread use

of the animation tool. The preferred approach would

be to develop document object models to update the

client and keep issues of presentation separate from

data as much as possible. This approach maximises

ﬂexibility and platform independence with modern

standards-compliant browsers. However, we feel that

a higher priority is to develop support for more inter-

action from the end user in running, controlling and

changing animated algorithms. We believe that our

simple approach to algorithm generation will enable

more ﬂexible and adaptable interactions than has been

practical with traditional approaches.

Since the early days of algorithm animation, there

has been an emphasis on the use of advanced graph-

ics and support from large animation development en-

vironments (such as Zeus (Brown, 1991)). More re-

cently the emphasis has returned to effective use in the

learning process. With studies such as those discussed

in (Hansen et al., 2000) and (Hundhausen et al., 2002)

the importance of interaction rather than simple ob-

servation has been recognised. This new direction

was also discussed in (Naps, 2005) where Jhav

e was

also described. Jhav

e is a Java based animation tool

which has been designed to take plugins for new an-

imation techniques, and thus can act as a controlling

shell for animations. This is relatively platform in-

dependent through the use of Java and can support

an extensible set of interaction and animation styles.

Another Java speciﬁc animation tool is Jeliot 3 (Suti-

nen et al., 2003) which has evolved from Jeliot 2000

and uses self-animating data types and is designed to

allow easy uploading of examples by end-users. In

(Bednarik et al., 2005) it is argued that smarter tools

are needed to cater for and to adapt to the different

abilities of users, referring to studies of taxonomies

of software visualisation tools.

Our tool presently used mostly HTML and just a

few lines of JavaScript on the client side. It is, never-

theless, a light weight and yet capable animation tool.

We have coded over thirty six animation examples

(manually) and used these to teach a ﬁrst-level pro-

gramming course. One important advantage of our

approach is that the client CPU is not signiﬁcantly

loaded.

REFERENCES

Bednarik, R., Moreno, A., Myller, N., and Sutinen, E.

(2005). Smart program visualization technologies:

Planning a next step. Proceedings of the 5th IEEE In-

ternational Conference on Advanced Learning Tech-

nologies (ICALT 2005), pages 717–721.

Brown, M. H. (1991). Zeus: A system for algorithm anima-

tion and multi-view editing. IEEE Workshop on Visual

Languages, pages 4–9.

Hansen, S., Narayanan, H., and Schrimpsher, D. (2000).

Helping learners visualize and comprehend al-

gorithms. Interactive Multimedia Electronic J

Computer-Enhanced Learning, 2.

Hundhausen, C., Douglas, S., and Stasko, J. (2002). A

meta-study of algorithm visualization effectiveness. J.

Visual Languages and Computing, 13(3):259–290.

Naps, T. L. (2005). Jhav

e: Supporting algorithm visual-

ization. IEEE Computer Graphics and Applications,

25(5):49–55.

Robinson, D. (1996). The www common gateway interface

version 1.1. In http://weeble.lut.ac.uk/System-

docs/Internet-drafts/draft-robinson-www-

interface-01.txt and http://www.w3.org/

pub/WWW/CGI/Overview.html. IETF.

Sutinen, E ., Tarhio, J., and Terasvirta, T. (2003). Easy al-

gorithm animation on the web. Multimedia Tools and

Applications, 19(2):179–194.

ANIMATING ALGORITHMS OVER THE WEB

407
