SEMANTIC WEB TECHNOLOGIES FOR CONTENT

REUTILIZATION STRATEGIES IN PUBLISHING COMPANIES

Andreas Andreakis

, Adrian Paschke

, Alexander Benlian

, Martin Bichler

, Thomas Hess

Technische Universität München, Boltzmannstr. 3, 85748 Garching, Germany

Ludwig Maximilians University Munich, Ludwigstr. 28, 80539 Munich, Germany

Keywords: Content reutilization, Semantic Web, multi-channel strategies, semantic annotation.

Abstract: In recent times content reutilization in different media channels (such as in Cross Media Publishing or

Windowing) is a much discussed concept in the media industry. It promises decreasing production and

coordination costs by exploiting and leveraging synergy effects. First theoretical investigations emphasized

the importance of efficient metadata-enriched linking and modularity techniques for a successful

implementation of this multi-usage concept. However, nearly all recent approaches stop at the level of

theoretical suggestions and do not include novel technological potentials provided by Semantic Web

languages and tools. On the basis of previous works, this paper attempts to fill these research gaps by

presenting a “proof of concept” implementation and by highlighting the possibilities and the potential of

Semantic Web technologies in the context of media content reutilization.

1 INTRODUCTION

The progress in product and process digitization as

well as the ever-growing bulk of media content are

prompting print publishing firms to organize their

most valuable resource in a way that it can be

allocated efficiently to production and bundling

processes. Effective and efficient content

reutilization practices do not only promise a

decrease of production and transaction costs by

reducing search and coordination costs of editors

(Schulze, 2005), but also an enrichment of media

content portfolios due to higher exploitation rate of

marketable content products (Anding , 2004).

Publishing companies (i.e., book, newspaper and

magazine publishers) are traditionally organised in

loosely-coupled, topic-specific departments with a

strong trend to decentralized structures in order to

cover a broad range of different issues (e.g.

international, national news, business, technology,

science, sports, etc.) (Schumann, 2002). This

product orientation has also been reflected in the

data or content architectures of publishers. Media

content has most often been located in separate

repositories spread over separate editorial units

without any logical, semantic linkages (Stamer,

2002). However, such semantic relationships

become more and more important in particular in the

context of emerging multi-channel content

reutilization strategies in publishing companies.

Existing Content Management Systems (CMS) such

as Cofax, OpenCMS, CoreMedia, already support

editorial offices with XML-based content

workflows, which can automatically serve different

media channels (Stamer, 2002). Only in some cases,

semantic annotations of the contents were applied in

form of metadata (e.g. Dublin Core, IPTC) and

predominantly in the form of simple XML-based

"name-value" pairs. Large-scale semantic networks

with lots of cross-references between content

modules can hardly be found (Schek, 2005). As a

consequence, editors are often forced to “reinvent

the wheel” by producing and bundling pictures,

graphics, and texts several times, again and again.

This leads to a lot of redundant work and potential

coordination conflicts between editorial units.

In this paper, we address this research gap by

examining the question whether Semantic Web

technologies can be used to implement a distributed

multi-media content management system capable of

efficient metadata-based search and sophisticated

491

Andreakis A., Paschke A., Benlian A., Bichler M. and Hess T. (2006).

SEMANTIC WEB TECHNOLOGIES FOR CONTENT REUTILIZATION STRATEGIES IN PUBLISHING COMPANIES.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 491-494

DOI: 10.5220/0001252604910494

 SciTePress

content reutilization in editorial production and

bundling processes. The objective of this study is to

present a "proof of concept", which should spur

further research efforts. The paper is structured as

follows. Section 2 discusses related work. Section 3

describes the basic concept of a RDFS-bade media

content management systems and discusses further

extensions with respect to distributed ontology

management and query optimization. Section 4

evaluates the presented approach and section 5 gives

a summary of our contribution.

2 RELATED WORK

Use cases for the classification of media content are

manifold in the research field of the Semantic Web.

Examples for the organisation of media content in

the Internet are RSS (Rich Site Summary) for

exchanging news articles; the MPEG classification

and Adobe's XMP (Extensible Metadata Platform)

framework, which is integrated into the "network

publishing" approach.

Furthermore, various research projects deal with the

employment of Semantic Web technologies in the

media industry. The OntoMedia Ontology

(Lawrence, 2005) describes a specification for the

visualization of semantically annotated media

content in heterogeneous media environments based

on OWL and is therefore comparable to current

standards such as PRISM. Schreiber et al.

(Schreiber, 2001) describes an approach for

ontology based annotation of photos using RDFS

and a Prolog-based inference machine.

Compared to these approaches the work

described in this paper addresses practical aspects

regarding the efficient search and multiple use of

media contents in a Semantic Web-enabled multi-

user environment

3 RDFS-BASED MEDIA

CONTENT MANAGEMENT

Semantic Web Ontology languages such as RDFS

and OWL are a promising approach to develop

expressive meta data languages with comprehensive

cross-linkages and taxonomic sub- and super-class

relationships. They enable a compact representation

of hierarchical meta data concepts and provide rich

inference features for effective and precise query

answering. Under real conditions with myriads of

taxonomic cross-references between ever-growing

bulks of media content modules and topic

hierarchies RDF Schema (RDFS) which provides

basic constructs for describing RDF vocabularies

and taxonomic structures is more suitable as a

representation language than OWL. According to

our studies and theoretical complexity results actual

Semantic Web (description logic) interference

machines such as Jena (OWL Lite), Racer, Pellet

(OWL DL) lead to a relatively insufficient

performance and scalability for large OWL models

with low performance for query answering and high

memory consumption. Using RDFS adequate meta

data languages for media content annotation and

categorization within large taxonomies comprising a

multitude of categories and topics can be represented

and efficiently queried.

In our implementation (based on RDFS and

Jena) sub-class relationships (subClassOf) organise

individual topic categories (classes) into hierarchical

structures (T-box model ~ taxonomy), in which the

meta data properties of a parent class are inherited

via RDFS inferences to the subclasses. The media

contents are assigned as instances via type relations

(type) to one or more topic categories and are

annotated with the inherited properties from all

superordinated categories reaching from domain

independent meta data such as “author”, “creation

date” to domain dependent meta data, i.e. properties

of particular topic categories. Via multi-typing a

particular instance can be assigned to the several

topic categories within the taxonomies as well as to

arbitrary other RDFS-based categorization schemes.

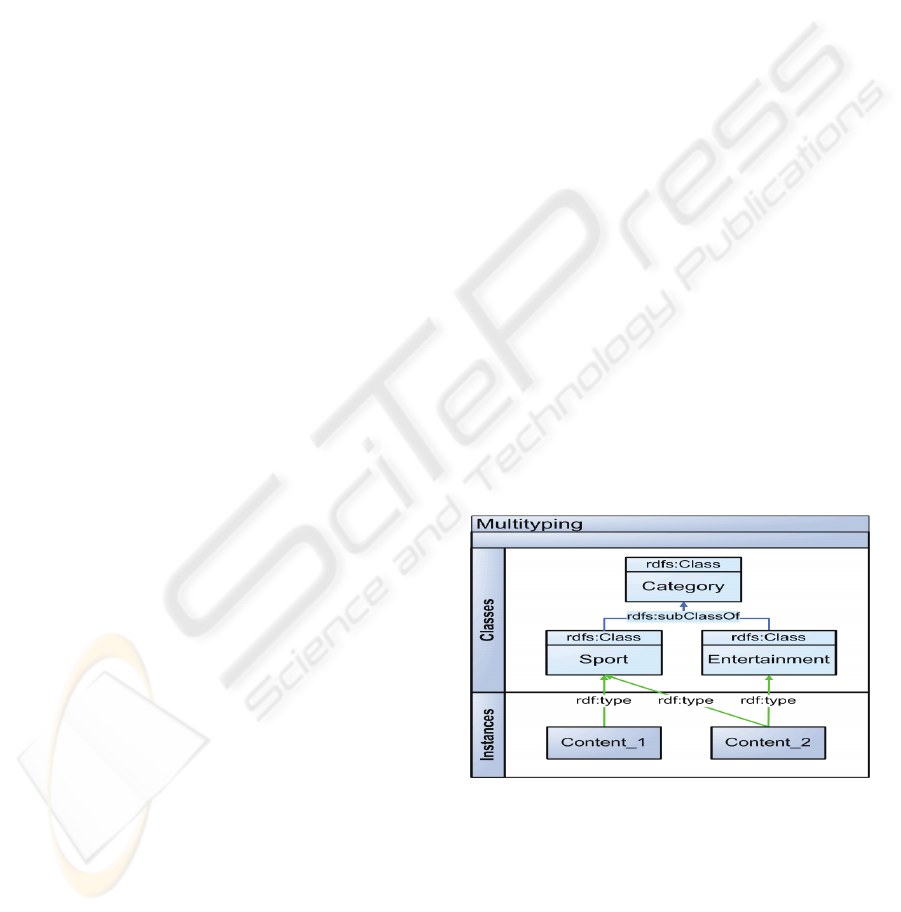

Figure 1: Multiple typing of media contents (instances)

with topics (classes).

Beside the topic-related taxonomy an additional

classification into data types (text, image, video and

audio) has been implemented to enable

categorization of media content according to their

type, e.g. „text“. Standard Semantic Web inference

engines such as Jena capable of RDFS reasoning can

be used to search for media contents whereas the

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

492

defined categories and meta data properties are used

to refine and constrain the queries, e.g.:

“Get all contents (instances) of category “Sport” and

category “Entertainment” of data type “text” not older

than date “31.1.2006” and with the author „John Doe“?”

The multiple-categorization and the extensive

meta-data annotation of media content facilitates

precise content search and leads to high recall which

enables efficient content reutilization due to a

meaningful reuse of existing media content modules

simultaneously or subsequently in different output

channels. Further extensions are needed in order to

support collaborations of loosely-coupled, topic-

specific departments which have their own

heterogeneous ontologies and in order to optimize

query answering in view of large taxonomies and a

huge number of media contents. In the next two

sections we will further elaborate these issues.

3.1 Distributed Ontology Management

Departments or companies can interact and reuse

media contents with each other based on a shared

taxonomy which unifies their heterogeneous

decentralized ontologies. In order to achieve this, a

common basis, i.e. a centralized ontology, can be

used which might be dynamically extended at

runtime. Therefore, we have defined a base ontology

with one predefined root class “Category”:

<rdfs:Class rdf:about=“http://ns #Category“ />

Via the “owl:imports” construct (e.g. Jena supports

this import statement) other ontologies which define

further category classes, category properties and

associated media instances are linked into the base

ontology at runtime whereas they extend the

“Category” root class. Figure 2 illustrated the

integration process of two ontologies into the base

ontology.

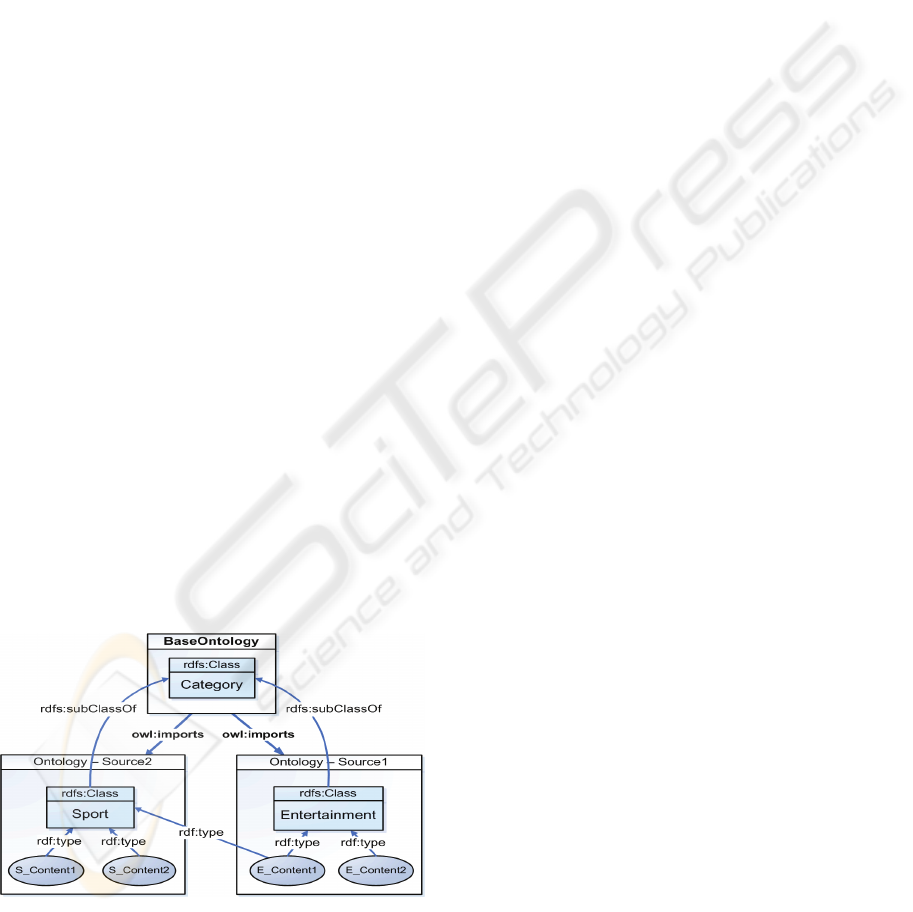

Figure 2: Integration of distributed ontologies.

Media contents might be assigned to multiple

categories even between locally distributed sub-

ontologies. The base ontology appears as a

centralized virtual repository. All updates and

extension take place in the local sub-ontolgies and

are merged within the virtual base ontology. In the

example the media content “E_Content1” is of type

“Sport” and also of type “Entertainment”.

From a user perspective, i.e. an editor, this multiple

classification process of media contents takes place

as follows:

1. The editor classifies any new produced media

content, e.g. a new article, within its local

ontology and associates it to one or more

categories within the local taxonomy.

2. Then the editor searches the base ontology for

further fitting categories from other ontologies

and additionally assigns the content to these

external categories.

3. In case that there is no adequate category neither

in the local ontology nor in the unified base

ontology or in case that a better suited category

is needed, the editor adds this new category to

her local ontology which is automatically

imported by the base ontology.

3.2 Optimization of Content Search

Beside the expressiveness of a meta data language

which influences precision and recall of queries, the

efficiency of the content search is crucial. The high

number of media content and the possibly large

“base ontology” consisting of many local sub-

ontologies necessitates additional query

optimizations. We have implemented two basic

approaches, namely search space reduction via

ontology splitting and caching.

The idea behind the ontology splitting is to

reduce the search space of queries via splitting an

ontology into smaller models which can be

consequently inferenced much faster. For example,

to query and traverse the topic taxonomy only the T-

box model is needed and the A-box model can be

neglected. Accordingly a meaningful split might be

to break down the ontology into a T-box model with

the taxonomy data and an A-box model with all

instance data. This can be further extended, e.g. by

additionally separating all properties which describe

domain-dependent meta data. As a result an

ontology consists of three models an T-box category

model, a property meta data model and an A-box

content model. Specialized queries such as plain

“subsumption” or “classification” queries without

further meta data restrictions can be answered using

one of these smaller models, whereas more complex

queries are solved based on the virtual unification

(implemented via “owl:imports”) of these partial

models, i.e. based on the complete (virtual) model.

SEMANTIC WEB TECHNOLOGIES FOR CONTENT REUTILIZATION STRATEGIES IN PUBLISHING

COMPANIES

493

A client-sided cache can be used to further

optimize the content search. The cache is

temporarily populated with indexes on frequently

used topic categories. These references are reused to

directly access the local ontologies and not the large

base ontology for recurrently queries. The caching

approach is related to the splitting approach, but is

implemented on the client-side, where-as the

splitting is done on the server side.

In a nutshell, these optimizations significantly

boost the query speed (see section 4) and

demonstrate the feasibility and scalability of the

Semantic Web based media content management

approach in case of large ontologies and many

contents.

4 EVALUATION OF PROTOTYPE

Within the scope of the presented proof-of-concept

implementation, the quality of the suggested concept

was evaluated with respect to the applicability and

usability of current Semantic Web technologies for

meta-data enhanced content reutilization. Although

the implemented system just represents a prototype,

data concerning the performance and scalability of

the system have been collected. Furthermore, a

qualitative benchmarking to search technologies in

conventional content management systems that are

based on key word search or simple name-value-

metadata was carried out. The measurement results

collected during these assessment cycles are very

promising with high levels of precision and recall.

Based on an ontology with a T-box model of 15

classes each having at least 6 properties and an A-

box model with 3.000 instances the optimization

approaches as described in section 3.2 have been

benchmarked based on the number of meaningful

results and query performance. Table 1 shows the

results.

Table 1: Query optimization benchmark.

Number of results Plain Jena With Optimization

400 0,8 sec. 0.2 sec.

1500 1,2 sec. 0,6 sec.

2500 1,6 sec. 0,9 sec.

5 SUMMARY

The objective of the paper on hand was to show that

current Semantic Web technologies can be

efficiently applied in the context of content

reutilization in print publishing companies. Semantic

Web related ontology languages were evaluated with

respect to their capability of supporting content

management in print publishing firms which are

challenged to handle masses of media content in

heterogeneous category structures on a daily basis.

Here, RDFS qualified as an adequate representation

language and the subsequently evolved RDFS

ontology-based proof-of-concept implementation

verifies the technical feasibility not only in case of a

stand-alone, but also of a distributed multi-user

application system. Although this paper could only

treat some aspects of content reutilization, crucial

points have been addressed by focusing on the

search of content modules in different contexts for

the production and bundling of different media

products. The findings about the application of

ontologies in the media industry give enough reason

to make a relevant contribution and simultaneously

motivate further research in this field. In a nutshell,

it can be recapitulated that semantic web

technologies and tools can be fruitfully applied in

media content management systems supporting the

processes of searching and bundling media content

in print publishing firms.

REFERENCES

Anding, M., Hess, T., 2004. Modularization, Individuali-

zation and the First-Copy-Cost-Effect – Shedding

new light on the Production and Distribution of Media

Content. Working Paper 1/2004, Institut für

Wirtschaftsinformatik und Neue Medien der Ludwig-

Maximilians-Universität, München.

Lawrence, K. F., Tuffield, M. M., Jewell, M. O., Prugel-

Bennett, A., Millard, D. E., Nixon, M. S., Schraefel,

M. C., Shadbolt, N. R., 2005. OntoMedia - Creating an

Ontology for Marking Up the Contents of Heteroge-

neous Media. Proceedings of Multimedia Information

Retrieval Workshop (in press), Brazil

Schek, M., 2005. Automatische Klassifizierung und

Visualisierung im Archiv der Süddeutschen Zeitung.

Medienwirtschaft, Vol. 2, 1 20-24

Schreiber, G., Dubbeldam, B., Wielemaker, J., Wielinga,

B., 2001. Ontology-based photo annotation. IEEE In-

telligent Systems, Vol. 16, 6 66-74

Schulze, B., 2005. Mehrfachnutzung von Medieninhalten:

Entwicklung, Anwendung und Bewertung eines

Managementkonzepts für die Medienindustrie, Josef

Eul Verlag, Lohmar

Schumann, M., Hess, T., 2002. Grundfragen der

Medienwirtschaft. Springer-Verlag, Berlin,

Heidelberg, New York

Stamer, S., 2002. Technologie als Enabler für effizientes

Cross-Media Publishing. In: Müller-Kalthoff, B.

(Hrsg.): Cross-Media Management. Content-

Strategien erfolgreich umsetzen. Springer-Verlag, Ber-

lin, Heidelberg, New York 89-124.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

494
