INTEGRATING ONTOLOGIES AND USER INTERFACES

The XGC Approach

Vicente R. Tomás López

, J. Javier Samper

Juan José Martínez.

University Jaume I, Spain,

Robotics Institute. University of Valencia, Spain

Keywords: User Interfaces, Graphics, Intelligent transport Systems.

Abstract: In domains where several and different systems are working jointly, the integration of them via graphic

interfaces is necessary to improve their employ and the user acceptance degree. In the transportation domain

the interfaces are basically based on object control that allows to the road operator to manage the different

traffic elements. The most usual interfaces are proprietary and they use different vocabularies to work with

the same concepts. In this paper traffic ontology is presented. It is used to develop a Generic interface: the

eXtensible Graphic Container-XGC. This user interface allows to create a standard interface able to integrate

different systems. The system presents several good features: 1) traffic ontology is used to develop the object

systems and to provide semantic knowledge; 2) the container is developed in Java which allows to use it in

different platforms; 3) open source approach.

1 INTRODUCTION

In domains where object control is needed, a

graphic user interface is the most common type of

interface used at the moment. The modern

window-based systems with standardized screens,

buttons, etc. provide a small learning curve and a

high user acceptance. Unfortunately the

development of a user interface is not standardized

and between operating systems (MS-Windows,

Linux etc.) there are big differences in appearance.

So in a heterogeneous computing environment, an

operator still needs to learn different interfaces.

Especially in the transportation domain there

are big differences in supplier provided equipment.

In Traffic Control Centres a real hotchpotch of

operator terminals are used. Usually exits a

terminal per application. This is caused because all

systems are proprietary systems and there is a big

lack of openness. One of the main causes of this

situation is the lack of a requirement for

“functional layers” or “open interfaces” in a

procurement process.

Important issues like maintainability and

extensibility are poorly defined and the real

meaning of such an approach is often noted too

late; a new monolith is added to the infrastructure.

Maintaining and extending such systems is not

only complex, but often very expensive. Most

developments depend on expensive proprietary

libraries or even worse: recurring license fees.

A possible solution could be the definition and

implementation of a fully open and free

infrastructure for the development of control

applications. However such a project would be too

complex and first usable results would take too

long. For this reason a smaller step was undertaken

by us, with as prime objective the definition and

implementation of an open-source “extensible

graphic container” in short XGC. The project

focuses mainly on the presentation layer and partly

on the business layer of a system and provides the

necessary libraries to develop specific dedicated

systems

On the other hand, it is clear that XML has

been recognized as an important technology and

that first steps have been made for the

transportation domain. However XML is only a

basic framework for the definition of other XML

languages. DTD’s and XML-Schemas are a way to

express data elements, their data type and in XML

Schema also has basic functionality to describe

data constraints. Replacing the actual exchange of

data in an XML-based language has certainly

many advantages, but the current developments in

the XML-world show that it is also necessary to

define the meaning or semantics of the exchanged

elements. As far as we could find in our literature

study, there are no serious attempts to define

specific semantic web based ontology for

transportation applications. A “common

vocabulary” based on XML enables seamless

422

R. Tomás López V., Javier Samper J. and José Martínez. J. (2006).

INTEGRATING ONTOLOGIES AND USER INTERFACES - The XGC Approach.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 422-427

DOI: 10.5220/0001253204220427

 SciTePress

integration of transportation systems and provides

a solid foundation for future extensions.

This paper presents the work that we are

currently developing to create a generic graphic

container for transportation systems. The paper is

organized as follow: Next section exposes the state

of the art of road traffic vocabularies. Section 3

offers a first approach of a common vocabulary

(ontology) for traffic systems. Section 4 gives the

background information how we got here. Section

5 describes the XGC model and its functionality

and finally the conclusions and next steps are

exposed.

2 STATE OF THE ART

2.1 Existing Vocabularies

From several years ago, the use of mark-up

languages has been established as a need to allow a

reliable data exchange, emphasizing the use of

standards like HTML first and XML afterwards.

But nowadays we know that these architectures

can be inefficient if the objective is more than a

simple data exchange. However, it must be stated

that the use of XML is still one of the most

important tools in the information distribution area

in Internet, since it has been used to define most of

all the new languages that are used for data

exchange in the Web.

There are currently vocabularies or languages

that describe concepts and structures of data

related to traffic, but they are only syntactic

descriptions, lacking semantics. Therefore

although there are many works and developments

that use XML mark-up languages (information

diffusion, data exchange, traffic modelling), no

semantic specifications like the ones proposed in

this paper are known.

For example, regarding road information

diffusion by a management centre, there are some

initiatives that make use of mark-up languages for

information diffusion like CARS (Condition

Acquisition and Reporting System) (Hamwi B and

Choudhry O., 2005) in the United States, where

XML and TMDD (Traffic Management Data

Dictionary) are used as well as the project of the

Research and Development Department of the

Hokkaido Development Bureau within the

ITS/Win Research programme where they propose

a language that uses XML technology called

RWML (Road Web Mark-up Language) in order to

manage traffic information. This language consists

of the description of a vocabulary that allows the

information related to roads, weather forecasts,

natural disasters, geographical regions, etc. to be

represented. (Kajiya Y. et al., 2004).

For experiences of mark-up languages for road

information using XML we underline: Traffic Data

Mark-up Language (TDML), where XML Schema

Data is defined and used instead of DTDs, and also

in Europe TPEG (Transport Protocol Experts

Group) with Road Traffic Message Application

ML (Tpeg-rtml v0.4 ).

On the other hand, several specifications. have

been developed about traffic modelling in the

Transportation Research Center of the University

of Florida: TMML (Traffic Model Markup

Language). This markup language facilitates

sharing data among the different software products

for traffic modelling. They propose a specification

that will cover all the data commonly used by a

group of software products that manage

information related to signalled intersections and

roads. The use of TSDD (Traffic Software Data

Dictionary) is good as a reference for the used

vocabulary and labels used for identifying classes

and attributes.

Other researches focus their interest on the

development of specific vocabularies for accidents

like CRML (Crash Records Mark-up Language),

transport and logistics like or travel information

like the one developed by Mitretek where the

Society of Automotive Engineers (SAE) has

developed an XML vocabulary for ATIS called

Traveller Information Mark-up Language, based

on the SAE ATIS data dictionary and the groups of

standard messages (J2353 y J2354) defined using

ASN. 1. The final result is a Standard mark-up

language documented by XML Schema.

2.2 Why are Traffic Ontologies

Necessary?

All the above mentioned demonstrates that the

current computer traffic information processing is

quite limited and can be improved from different

points of view. These ideas are precisely the ones

that have been taken as a starting point for this

research.

The representation schema will have the

following aspects:

• It will have to be interpreted by the computer

and be easily exchangeable among applications.

• It will have to join the existing information

representation standards in their syntactic aspects

As examples of possible applications based on

the chosen representation schema, the following

can be mentioned:

• An intelligent consultation and search system

of traffic information.

• A tool for the visualization of the structured

information.

INTEGRATING ONTOLOGIES AND USER INTERFACES - The XGC Approach

423

If a user or an operator of the system needs to

know specific information about the accidents

occurred in a certain road, he will probably wants

to know details about the vehicles involved, types

of roads, etc, and therefore this type of question

will not only involve one knowledge source but

several. That is why the use of ontologies is so

important, thanks to some of their characteristics

like the distribution and the possibility of inferring

non explicit knowledge beforehand.

As a particular case let us take an accident

occurred in a particular toll motorway like “AP-7”.

If we use the terminological specifications of these

types of roads and considering the attributes

(number of toll sections, origin, destination,

alternative roads, name) we could establish some

questions that would immediately be solved by our

inference system:

What number of toll sections are there in all the

A-7 motorway? 4

What is the origin and destination for each one

of these sections? Section 0: La Jonquera-Puzol,

Section 1 Silla-Alicante.

3 OUR ROAD TRAFFIC DOMAIN

The transportation systems are composed by

common objects such as roads, vehicles, etc. But

the way of this objects are modeled is different

depending on the systems (Van den Berg L., 2002).

Therefore, the development of a generic user

interface must contain a common representation of

these objects.

This approach implies the definition and use a

common ontology around the road traffic domain.

This ontology is composed by several sub domains.

Next, the traffic ontology is presented.

The road domain is also divided in several

subdomains. The first describes topological

features of the roads, and the second establishes a

classification for the different types of them.

The topological subdomain is composed of the

following objects:

• Roads: They represent a way between an

origin and a destination. It is composed by a set of

segments and links that belongs to the same road.

• Itineraries: They represent a way between

an origin and a destination. It is composed by

segments and links that belong to different roads.

• Segments: They represent one way road

sections with the same number of lanes (i.e., a two

way road section is represented as two one way

road sections)

• Links: They represent the road network

areas where two, or more, adjacent segments are

connected.

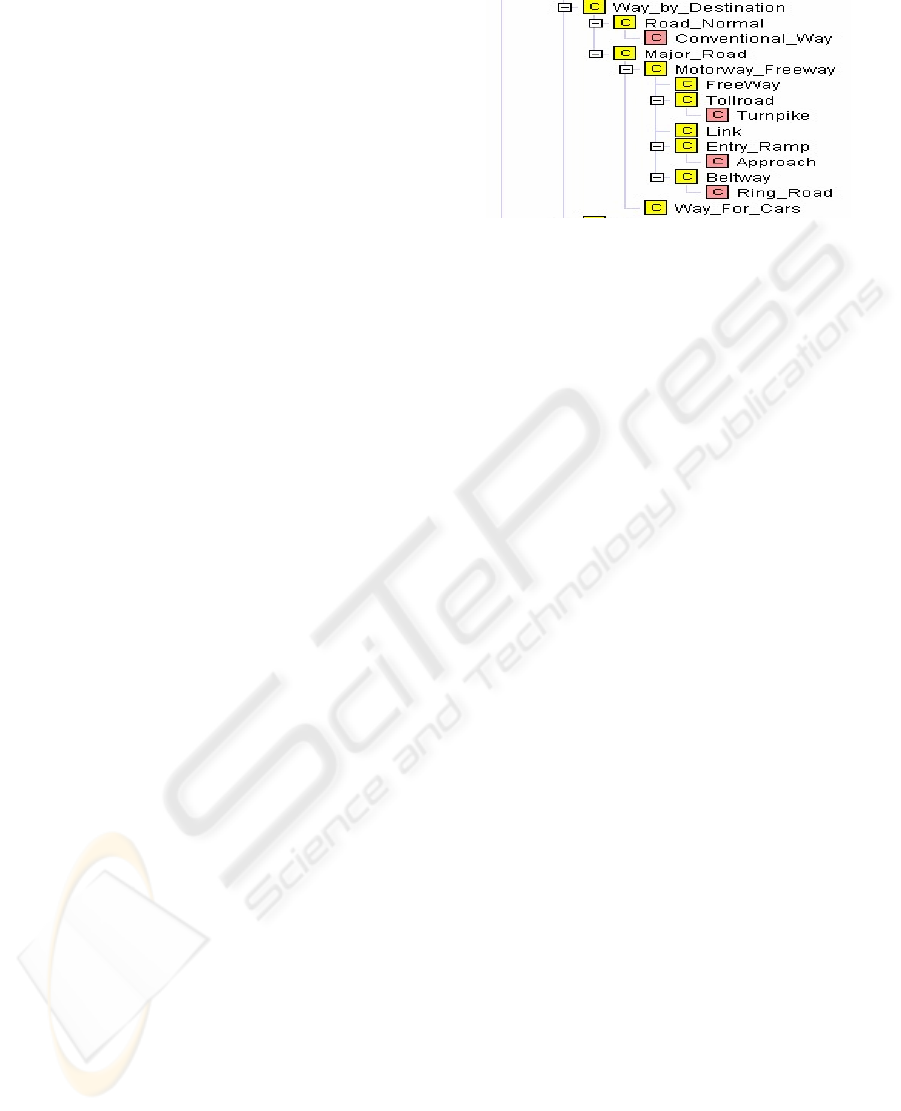

In figure 1 we can see a partial view of the

hierarchy of classes elaborated for the subdomain

road classification

Figure 1: Partial view of the hierarchy of classes for the

subdomain “Road Classification”.

In this subdomain are identified different roads

taking mainly into the count different criteria as

roads by destination, and localization. By example

we can classify the term “Street” under the criteria

“Localization” with the following meaning: “They

are the routes that are located within of a town,

which means the space that includes buildings and

in whose routes of entrance and exit they are

placed, respectively, the signals of entrance and

exit.” The restrictions on the properties like

“domain Public”, “locatedIn Town” etc. will help

in the automatic classification.

Next subdomain is devoted to the available

equipment along the non urban network. The basic

equipments that had been identified in this

subdomain are:

• Data capture stations: These equipments are

in charge of the transmission of road information.

It can be subclassified in

o Traffic data capture station: It

provides data about the traffic

behavior (flow, speed, density)

o Meteorological station: It provides

information about weather

parameters.

• CCTV cameras: provides road images in

real time that can be used to survey traffic status in

concrete places.

• Emergency phones: These phones are

directly connected to traffic control centers. They

allow drivers to communicate directly with road

operator.

• Variable Signals: A Variable Signal is a

signal with the purpose of displaying messages

that may be changed or switched on or off as it will

be required.

The last subdomain presented of this traffic

ontology defines the traffic behavior model. This

subdomain describes the traffic behavior and its

related parameters and it allow to share traffic

information between systems. It is subclassified in

two main groups: traffic parameters and weather

parameters.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

424

The traffic parameters are:

• Volume: the total number of vehicles on a

section or lane during a given time interval (annual,

daily or hourly periods).

• Flow rate (intensity): the rate at which

vehicles pass on a section or a lane during a given

time interval smaller than 1 hour (usually 15 m).

• Speed: It is a rate of motion expressed as

distance per time unit.

• Density: the number of vehicles on a given

length of a section or a lane in a particular instant

• Level of service (LOS): It defines the

manoeuvre freedom of drivers in the traffic

streams (Transportation Research Board, 2000). It

is influenced by traffic and weather parameters.

•

The weather parameters affecting traffic

behavior are:

• Visibility: It determines the recommended

security distance between vehicles and the

maximum speed drivers can drive.

• Road surface: the state of the surface defines

the road vehicles adhesion

• Precipitations: Both, rain and snow have

impacts on visibility and road surface status.

• Wind: Strong gusts can modify the

trajectory of vehicles.

4 USER INTERFACE

BACKGROUND

The constant increase of the technology and the

need of more advanced systems to manage and

control traffic imply the installation of more and

more systems in the Traffic Control Centres.

Currently, these systems are not integrated. Thus,

the road operator has several interfaces, one for

each system, to work with them.

To solve this problem the Transport Research

Centre of the Dutch Ministry of Transport funded a

research project “Paradigma” (Van den Berg L.

and Klijnhout J., 2001) which main objective was

to define and implement a generic infrastructure

for traffic management applications.

Some recommendations from that project were:

• A modern traffic management system

should be developed as a multi-tiered system with

a clear separation between the persistency, the

application and presentation layers.

• A loosely coupled asynchronous message

interface is the preferred way of linking layers

together. Such an interface, with the popular name

Postman Pat can be build using the Java Message

Service.

• The high value of eXtensible Markup

Language (XML) for transportation was

recognized (Tomás, Vicente R. et al., 2003).

Besides the core-functionality in the basic

XML-framework new “dialects” such as Resource

Description Framework (for the semantics of

traffic objects) and Scalable Vector Graphics (for

the visual representation of traffic objects) were

identified as important for the transportation

domain;

• Scalable Vector Graphics (SVG) is a core

technology for a generic user interface, because of

its openness and the availability of a multitude of

tools through different vendors.

Besides a multilayer approach, the use of XML

and Java Message System JMS (Hunter J., 2001),

the most important step in the development of the

prototype was adding support for the processing of

vector based graphics in the SVG format.

To enable SVG-support in the prototype an

additional set of functions was added for viewing

and manipulating SVG-documents. All specific

2D graphic support was replaced by SVG-support

and functionality to interact with external systems

was added in the beginning of 2004 the prototype

was converted to its first official release and

named “eXtensible Graphic Container” or XGC.

5 THE XGC ARCHITECTURE

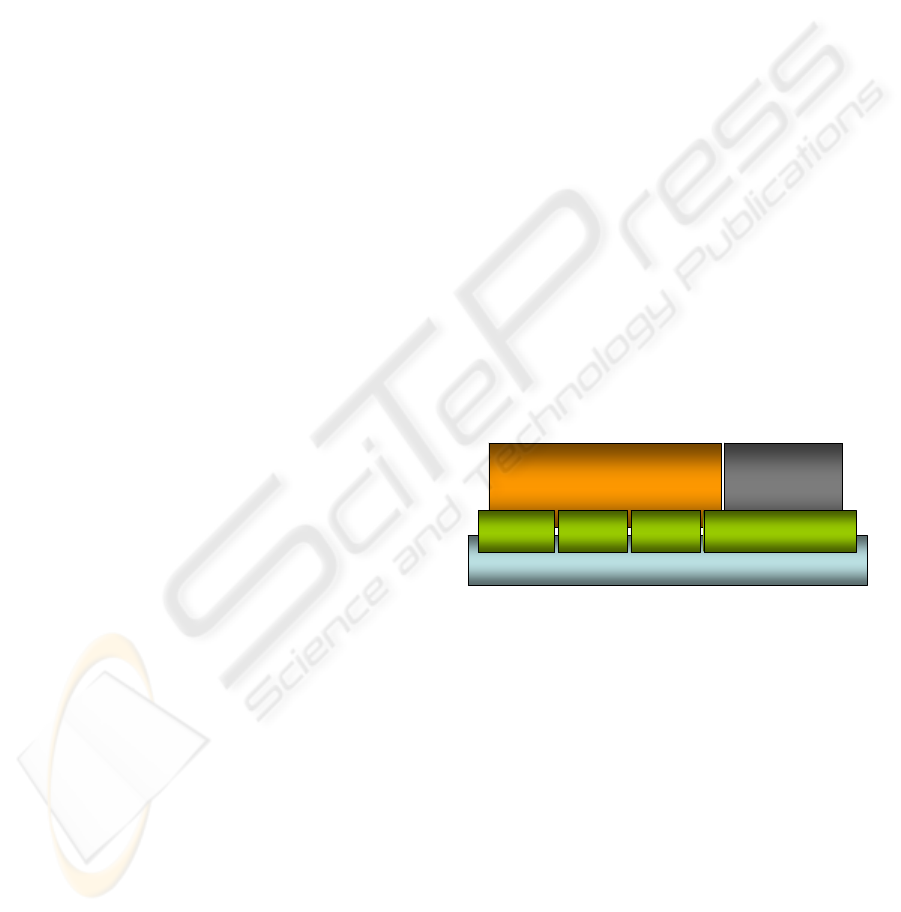

The architecture of the present version of XGC is

showed in figure 2

Business Logic

Java VM

XGC

Apache

BATIK

Apache

XALAN

J2EE

Application Server

Apache

Web ser ver

Figure 2: Architecture of XGC.

The XGC-library only works with Java version

1.4. Two additional libraries are a basic

requirement for XGC to function: The Batik

(

http://xml.apache.org/batik/) and Xalan-J

(

http://xml.apache.org/xalan-j/) libraries from Apache.

To interact with its environment a Java

Enterprise edition J2EE (Kay M., 2004) compliant

application server is needed. The application

server takes care of the message-based interaction

with the “business logic” residing in the

application server. It is the responsibility of the

system developer to define, design and implement

business logic in the application server.

In large scale applications where numerous

maps and objects are used, the basic requirements

are sufficient memory and a fast platform for the

INTEGRATING ONTOLOGIES AND USER INTERFACES - The XGC Approach

425

Java Virtual Machine. A Pentium IV, PC-platform

running at 2.5Ghz with a 512Mbyte memory can

be defined as a minimum platform. The present

version is tested on Linux and Windows. No

difficulties are expected for other platforms.

5.1 XGC: How it Works

The architecture shows the two different part of

XGC; the presentation and the interaction with the

“business logic” through a message interface. We

will focus first on the presentation.

To be able to show objects in their environment

XGC can use “road maps” as a background. SVG

is used to create these backgrounds, which can

take the shape of a geographical correct map or a

schematic view of the road network. Thanks to the

support of bitmap formats, the background can

also consist of a single bitmap file or a

combination of a bitmap and vector graphics. The

objects that compose “road maps” are defined in

the topological road ontology described in Section

The visual objects representing the actual

traffic objects, such as emergency phones, variable

message signs etc. are placed as a second layer on

top of the background. These visual objects are

identified in the equipment ontology. They are

defined as re-usable SVG-symbols. As stated for

the background, a bitmap image can also be

declared as a reusable symbol.

The combination of a background map and the

visual objects are declared in a SVG-file using the

standardized XML-format. In principle this

SVG-file can be created with standard

SVG-editors. However, thanks to its XML-origin,

the file can be dynamically created using

Extensible Stylesheet Language (XSL) (Kajiya Y.

et al., 2004).

At present the available version supports

dynamic generation of the SVG-content.

For this process, two files need to be provided:

An XML file containing the configuration and an

XSL-file containing the transformation

instructions. For the transformation process an

Apache product, the Xalan-Java2 library is used.

Xalan-Java 2 is an XSLT processor for

transforming XML documents into HTML, text, or

other XML document types. It implements XSLT

Version 1.0 and XML XPath Version 1.0.

To create the XML and XSL-document it is

recommended to use a commercial off-the-shelf

XML-editor. XGC doesn’t and will not include

functionality to create the configuration files.

To visualize the SVG-document a software

library is needed to place each element and

possible attributes in a Document Object Model

Tree and to render it on screen. This functionality

is provided by means of another Apache product,

the Batik library, which provides functions for

loading, rendering and manipulating

SVG-documents. XGC depends heavily on Batik,

meaning all functional additions to Batik will also

be available in XGC. At the moment XGC

includes version 1.5.1 of Batik.

Thanks to Batik’s use of the SVG-standard the

elements of the SVG-Document can be altered

programmatically by adding scripts to the

documents or through its programming interface.

In the case of XGC only the latter is used, dynamic

scripting is not allowed.

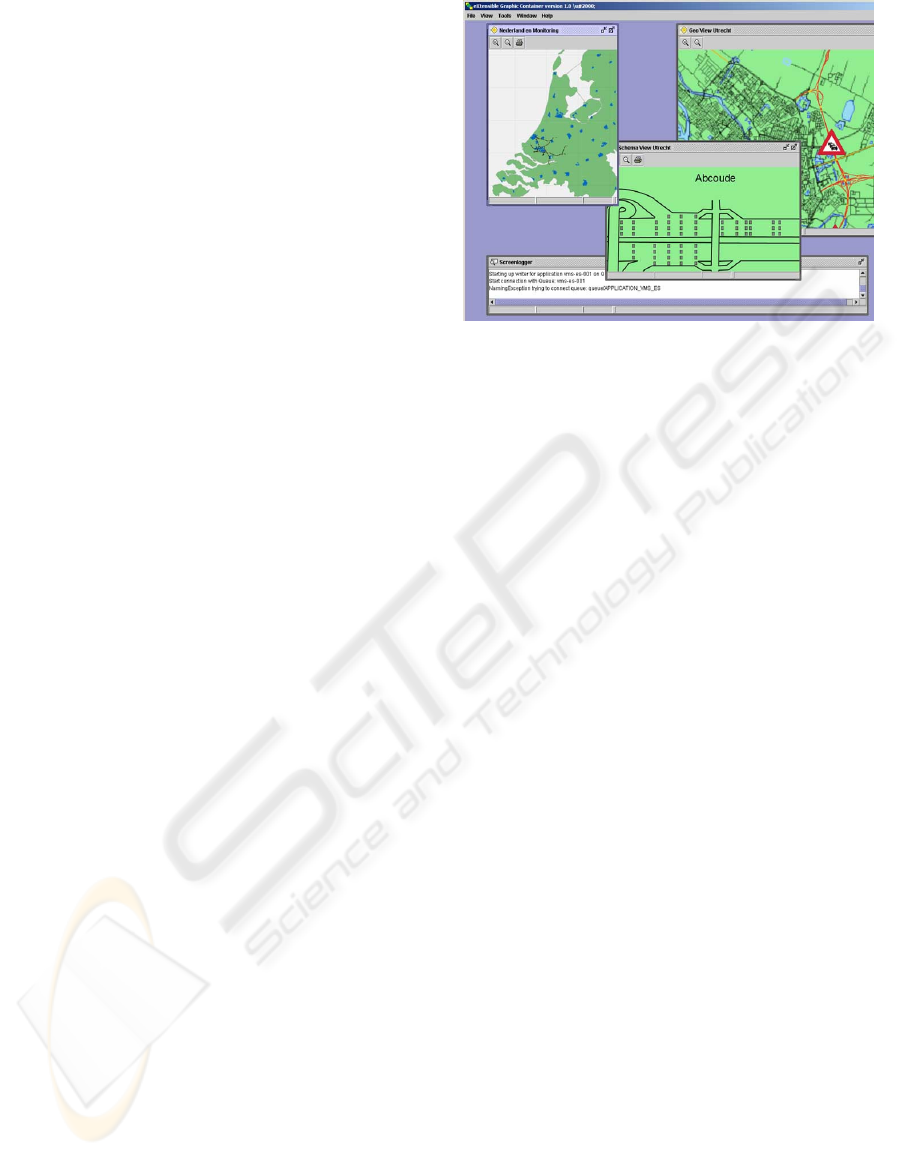

However XGC is not a single Screen container;

it runs as a Desktop application containing

multiple internal frames. Each frame can be a

Screen, which means that XGC is able to support

multiple user screens at once. Although XGC is

intended for SVG-based graphic rendering, other

types of frames can be added. At the moment XGC

supports screens for alarm- and plain text logging,

HTML3.2 rendering (for instance for on-line help)

and XML-viewing.

The configuration of the Desktop is placed in a

single XML-file containing the application

specific elements such as security issues, as well as

the individual Screen elements and their attributes.

Each Screen-element has attributes used to

configure the Screen automatically at start up.

The configuration file is handled and managed

by the applications’ Configuration Handler, which

reads the configuration file at start-up and places

the configuration items in public variables,

accessible to all classes in the application.

Each object can be made dynamic, meaning it

can interact with the environment outside the

platform it is running in. The simplest example is

interaction with the operator. XGC supports

standard “tool tips”, meaning hovering over the

object, a text can be shown. This is the default

behavior included in SVG. On the other hand XGC

contains support for clicking on the object and

triggering object specific behavior.

As already mentioned, for this to happen, the

“semantics” of the object has been identified.

Clicking on the object results in reading the

objects’ semantic attribute, and based on its

contents a context specific pop-up menu is

activated.

Each menu item is defined in XGC’s

configuration file and it can contain text as well as

graphic content. Each menu item trigger creates a

command object, containing the identification of

the selected visual object and the requested

behavior.

This command object is send in serialized form

via the message service to the application server

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

426

where the requested behavior is activated

Using this loosely coupled asynchronous

message mechanism in stead of a standard closely

coupled synchronous mechanism has different

advantages:

• A request can take numerous sub-actions

which takes a certain number of times. It is not

desirable to have an operator wait until the system

comes back with a response

• Message based interaction improves the

systems’ availability. Even when the application

server is out-of-order, the message stays queued

until the application server has regained service

and is able to handle the request. The reply from

the application server is also send via the message

mechanism. This adds other important advantages

to the ones already mentioned:

• It supports the “separation of concerns”

paradigm. The business logic doesn’t concern how

the response will be rendered on screen

• By completely separating the layers by

means of a message mechanism, the systems’

scalability is improved substantially. It is really

easy to add another listener to the response topic.

6 CONCLUSIONS

The developing of new systems, or upgrading

others, can present problems if they have to work

jointly and with the same objects but they do not

share information. In these situations the

definitions of commons vocabulary are a good

option to share information and knowledge.

In this paper, the need to have a common

vocabulary in the transportation has been

identified and this road traffic ontology has been

developed to develop traffic systems. This

ontology has been used as a knowledge base to

implement a generic user interface.

The generic interface presented has several

good features: 1) based on a traffic ontology to

develop the object systems and to provide

semantic knowledge; 2) the container is developed

in Java which allows to use it in different

platforms; 3) open source approach.

The system has been tested in a real Dutch

network. (figure 3). The traffic data flows have

been simulated using data files containing real

traffic information.

Currently the system is being used to develop

the user interface of a new traffic system based on

a Multiagent architecture and able to work with

Traffic management plans.

Figure 3: Dutch road network with XGC interface.

ACKNOWLEDGEMENTS

We would like to thank to Spanish Ministry of

Science and Technology. This research has been

supported by the CICYT project with reference

TRA2004-06276 (“Development of a system

using a conceptual infrastructure based on

ontologies, to exchange good information between

trucks and external entities “)

REFERENCES

Transportation Research Board “Highway Capacity

Manual” 2000.

http://xml.apache.org/batik/

http://xml.apache.org/xalan-j/

Tomás, Vicente R. et al. New technologies to work with

traffic management plans. p.

36-39. Traffic Technology

International.. 2003

Hunter J. Java Servlet programming. 2

edition. 2001

Van den Berg L. and Klijnhout J. Paradigma, From Open

Systems Architecture to Open Systems. IX ITS World

Congress Chicago 2001

Kay M. XPath 2.0. Programmers Reference. 2004

Van den Berg L. A basic need for effective traffic

management. A universal operator interface. X ITS

World Congress. Madrid 2002

http://www.w3.org/Style/XSL/

Hamwi B, Choudhry O. Condition Acquisition and

Reporting System (CARS). ITS Canada Conference.

2005

Kajiya Y, Yamagiwa Y, Kudo Y, Road Web Markup

Language-XML for Road-related Information

Distribution. Transportation Research Board-Annual

Meeting. 2004

INTEGRATING ONTOLOGIES AND USER INTERFACES - The XGC Approach

427
