OPEN AND DYNAMIC SCHEMA EVOLUTION

IN CONTENT-INTENSIVE WEB APPLICATIONS

Sebastian Bossung, Hans-Werner Sehring, Patrick Hupe and Joachim W. Schmidt

Hamburg University of Technology

Hamburg, Germany

Keywords:

Web information systems, module-based architecture, schema evolution, software generation, case study.

Abstract:

Modern information systems development is a complex task for it must fulﬁll a large variety of application-

and architecture-oriented requirements. Furthermore, such requirements often are a moving target for the

developer, not only because the system has to stay open to a constantly changing application domain, but

also because new requirements are added during the extremely long lifetime of such information systems. To

make things worse, modern information systems are operated in a 24x7-modus which generates the pressure

of highly dynamic, almost online system evolution.

A main source of problems such development projects struggle with originates from the lack of a systematic

subdivision of large software systems into manageable modules. As a consequence developers are traditionally

involved in a complex patchwork of manual efforts to keep the various parts of the system in sync with each

other and with the system’s requirements.

In this paper we outline our approach to information system development which is based on a model for Con-

ceptual Content Management (CCM). Our CCM approach proﬁts from the dynamic, model-driven generation

of smaller modules, which can be combined automatically into the full system. The generation process uses

a CCM model of the application domain(s) from which our compiler framework dynamically generates the

schema-dependent parts of the system. Due to the dynamic nature of this generation process, we are able to

provide adequate support for both schema evolution and personalization of such a system. We have success-

fully employed the CCM approach to the development of complex web information systems. We give a brief

account of CCM development and present an application example.

1 INTRODUCTION

Since a large number of heterogeneous requirements

have to be met by today’s information systems, such

systems tend to become very complex and hard to

manage. As a result software adaptations become

increasingly difﬁcult to handle as the systems age.

However, change—speciﬁcally change in the appli-

cation’s schema space—is a fact that developers have

to live with. Unfortunately, each evolution of the

schema usually impacts almost all parts of the sys-

tem, resulting in time-consuming and error-prone ad-

justments.

This paper outlines a generative approach to sys-

tem development that helps to manage model evolu-

tion as well as system adaptation through three kinds

of contributions:

• Content schemata are raised to the more abstract

level of a conceptual model for the application.

• Systems are composed of carefully designed

smaller modules, which can be combined freely by

means of a uniform API.

• System modules are dynamically generated from

conceptual domain models enabling the system to

react quickly to schema evolution by recombining

modules without manual intervention.

In fact, the system can react to such changes au-

tomatically and almost in real-time, allowing users

to change the schema according to their needs (see

section 3 for more details on schema evolution).

Such schema changes—or schema personalisations—

would not be possible in a manually implemented sys-

tem. We call such systems Conceptual Content Man-

agement Systems (CCMSs) and the approach Con-

ceptual Content Management (CCM).

In the CCM approach entities are modelled in an

object-oriented way by so-called Assets which deﬁne

the (multimedia) content of the entity together with

109

Bossung S., Sehring H., Hupe P. and W. Schmidt J. (2006).

OPEN AND DYNAMIC SCHEMA EVOLUTION IN CONTENT-INTENSIVE WEB APPLICATIONS.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 109-116

DOI: 10.5220/0001255501090116

 SciTePress

its characterising attributes (primitive values and rela-

tionships) as well as its constraints. An Asset Deﬁni-

tion Language (please refer to (Schmidt and Sehring,

2003) for details) is applied to deﬁne the conceptual

schema of the application domain. The conceptual

Asset schema is then used to generate modules from

which the application is composed. These modules

have a uniform interface and provide—amongst other

things—for a separation of concerns. As a conse-

quence, modules can be arranged freely enough to

enable the systems to support open and dynamic asset

schema evolution. Note that it is important that con-

tent remains accessible across schema changes, even

if these are just personal ones for an individual user.

Extensive practical experience with the CCM ap-

proach has proven quite successful, as we were able

to deliver running systems rather quickly. These sys-

tems can keep up with schema evolution, a necessary

demand despite an extensive and careful phase of ap-

plication analysis.

The remainder of this paper is organised as follows:

We ﬁrst give a motivation for our work along with a

more detailed description of the problem space. This

is followed by a brief overview of schema evolution,

before we outline in section 4 how CCMSs are imple-

mented. We critically discuss the CCM approach and

future research directions in section 5 and conclude

with a summary in section 6.

2 MOTIVATION

Web applications are typical representatives of sys-

tems which are built according to a layered architec-

ture. The domain model on which they are grounded

determines the peculiarities on each layer: on the data

layer one needs to be able to store all information re-

quired to enable all tasks of the application and pre-

sentation layers. Information includes content and

characterising attributes of domain entities as well as

management information.

On the presentation layer such information is rep-

resented based on the data, and user input is accepted

to navigate through the data, as well as to create, ma-

nipulate, or delete data.

The application layer mediates between data stor-

age and presentation tasks. In web-based systems it

typically performs only few computations, if any.

All layers of web applications are highly dependent

on a conceptual model describing the application do-

main. Furthermore, the layers are highly interrelated.

Despite the layering, changes applied to one layer of-

ten impact the whole system, making its lifecycle dif-

ﬁcult to handle. Though some argue that web-based

systems do not really evolve, we aim to support dy-

namic schema evolution and personalisation, which

also raise the lifecycle issue. Our CCM approach

to evolving, personalisable systems (see section 4) is

based on the generation of all the layers from a rich

conceptual model.

In the following subsections we discuss the genera-

tion of the layers of a web-based information system.

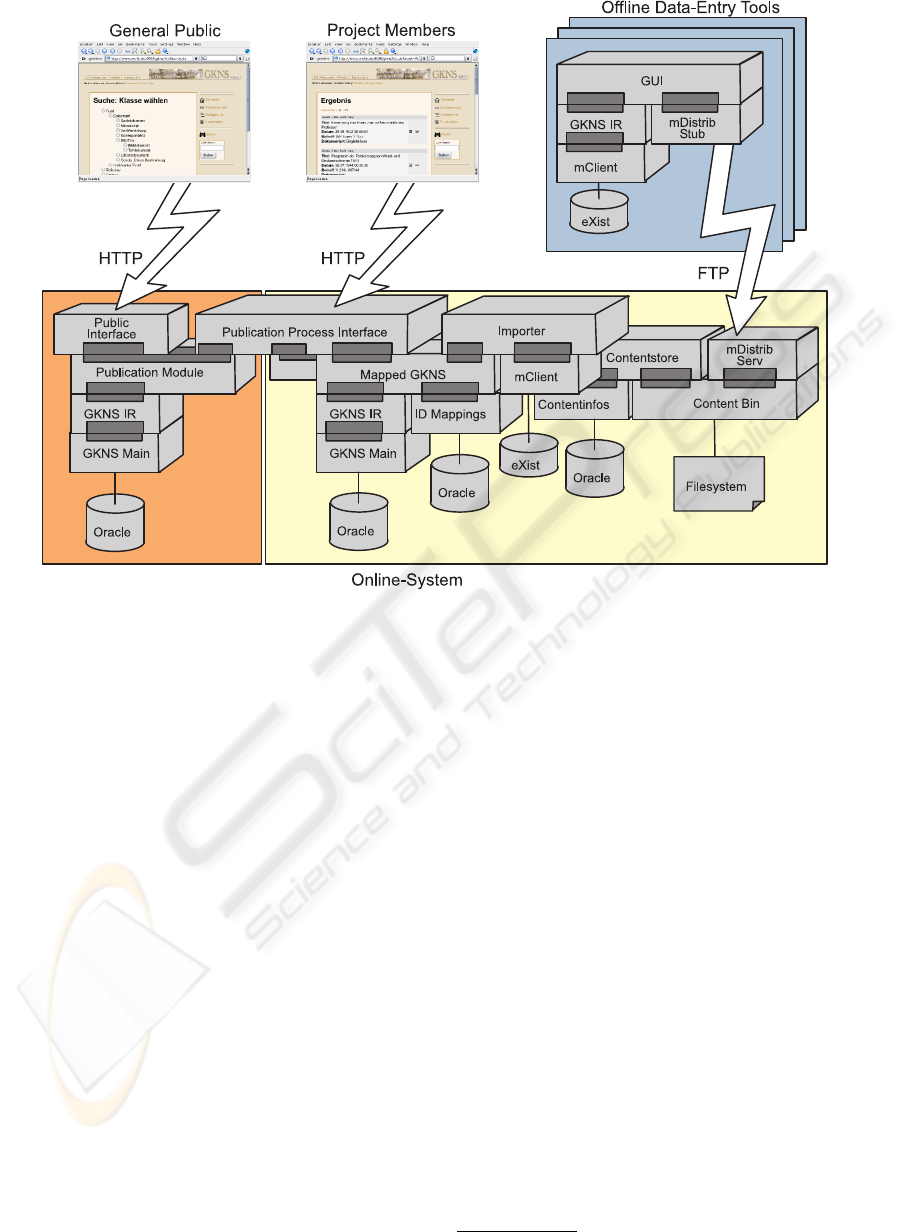

In section 5.2 we report on a particular project

which raised additional requirements. The usage sce-

nario demanded for ofﬂine data input through rich

clients with later synchronisation with the main data

pool. A diverse publication process needed to guar-

antee data quality and the enforcement of domain-

speciﬁc data protection. The latter has two aspects:

on the one hand, the nature of the data requires means

to protect personal rights which might be infringed

by the uncontrolled publication of data. On the other

hand, contributing researchers demand for a con-

trolled publication of their intellectual property, es-

pecially carefully choosing the point in time at which

their data should become available to others.

2.1 Data Storage

To fulﬁl the requirement of providing fast access to

large amounts of content, well established databases

are used on the data layer. Still, the data model has

to be distinguished from the conceptual model which

lead to its creation. Usually, many commitments have

to be made to express a model in a data deﬁnition lan-

guage, depending on the paradigm a database is fol-

lowing. Nevertheless, input and output language of

a web-based system are the domain-speciﬁc language

meaningful to the users.

If the application domain is conceptually modelled

in a language that is more expressive than a data def-

inition language, the database schema can be fully

generated to match this conceptual model.

Support for personalisation calls for the ability to

perform schema evolution. Schema evolution is well

understood at the data level, see section 3. Therefore,

the generation of the data layer of a web application

does not lead to severe problems.

Another aspect associated with the data layer is the

formulation of application-level constraints. Though

these go hand in hand with the application layer and

thus are often implemented there, good reasons ex-

ist to handle them in the lowest possible layer (Date,

2000). Therefore, constraints formulated by users in a

conceptual model need to be translated to constraints

on the data model.

2.2 Web Presentation

Presentation is an indistinguishable part of web appli-

cations. The user interface needs to reﬂect the current

set of data with respect to the domain model.

WEBIST 2006 - INTERNET TECHNOLOGY

110

Web pages generated to represent information and

to interact with the user exhibit all the problems of

user interface design. Therefore, they require the con-

sideration of more than just the conceptual model,

namely issues of usability. Additional requirements

of generated web pages are localisation (language,

output format of dates, character encodings, etc.),

context dependencies (the role of the user viewing a

web page, etc.) and many more.

Still, our experiments have shown that due to

the well-understood, highly uniform presentation

paradigms of the web, and users who are accustomed

to these, most of a web application can be generated

automatically: tabular representations of data, form-

based input and manipulation of data, etc.

Generated templates for web pages appear to be ac-

ceptable, though not everything is most efﬁcient (in

terms of the user experience). Therefore, the genera-

tion of web pages is directed by generation hints.

2.3 Application Logic

The application layer of web-based information sys-

tems usually comes down to a mapping between the

users’ conceptual perspective and the data model, ac-

companied by some checks performed on data input

and simple data transformations. Since checks can be

expressed as constraints on the data layer, the appli-

cation layer of a web-based information system ba-

sically plays the role of a controller according to the

model-view-controller pattern (Collins, 1995).

To this end, application logic can be generated from

a conceptual model and its constraints since it merely

makes generic use of the data layer that has been gen-

erated accordingly.

The mapping task of the application layer becomes

a bit more complex if there is more than one subsys-

tem on the data layer. More complex systems will use

more than one database, e.g. one for structured data

and another for multimedia content, or one for appli-

cation data and another for management data. Special

web applications like portals or brokers even use com-

plete third-party systems as their data sources.

In such cases, more than the knowledge of the re-

spective models is needed. When providing uniform

access to different subsystems, the protocols for their

use have to be considered. Since theses protocols usu-

ally differ to a large degree, some application-speciﬁc

wrapping code might have to be supplied. Such spe-

cialties are recognised by the architecture of the sys-

tems we generate (see section 4.3).

2.4 Complex User Interfaces

More complex user interfaces than those supplied by

web pages can be found outside the layers forming the

architecture of a web application. Especially, client

software with a rich user interface often supports tasks

performed by users in special roles which differ from

that of the occasional web user.

Examples are content editors of content manage-

ment systems, catalogue software, etc. In our case, an

ofﬂine client, which allows content entry even when

not connected to the internet, was needed.

Such clients are typically fat clients which contain

application logic of their own. Their application logic

provides support for specialised roles and exceeds the

behaviour of the application layer of a web-based in-

formation system.

Therefore, there is no uniform way of generating

application logic from the conceptual model alone. It

needs to be amended by a speciﬁcation of the task

the client software must support. Still, parts can be

generated the same way as the layers of a web appli-

cation. The arbitrarily complex functionality of the

whole client software has to be deﬁned by means of

programming which can be based of these parts.

A fat client might also contain a data store on its

own, as is the case for the client for ofﬂine data input.

Such a data store is again generated from the concep-

tual model, possibly adding a different set of manage-

ment data. At this point we had the chance to reuse

modules. Furthermore, employing a common concep-

tual model made it possible to distinguish between ap-

plication data and management data, thus clarifying

the synchronisation task between ofﬂine clients and

the web application.

3 SCHEMA EVOLUTION

As pointed out above, many applications live in a

world of constant change. This applies particularly

to the underlying schema, as it needs to be adapted

to ever changing requirements. Traditional informa-

tion systems employ the same schema for all users,

such that all data need to be lifted to the new schema.

Problems and possibilities of such actions are well un-

derstood on the database level, as witnessed by ex-

tensive literature on the subject, see e.g., (Roddick,

1992), (Lerner and Habermann, 1990). Severe prob-

lems arise when data need not only be lifted to the new

schema, but a backwards path is also required, com-

pare for example literature on updatable views (Kuno

and Rundensteiner, 1995; Abiteboul et al., 1998).

In the case of CCMSs, evolution of the general ap-

plication schema is one concern. Such evolution is

necessary—as in other types of systems—if the model

of the domain needs to be changed. Examples in-

clude modelling errors, where the domain was only

fully understood during the course of the project, and

extension of the scope of the system, when new data

OPEN AND DYNAMIC SCHEMA EVOLUTION IN CONTENT-INTENSIVE WEB APPLICATIONS

111

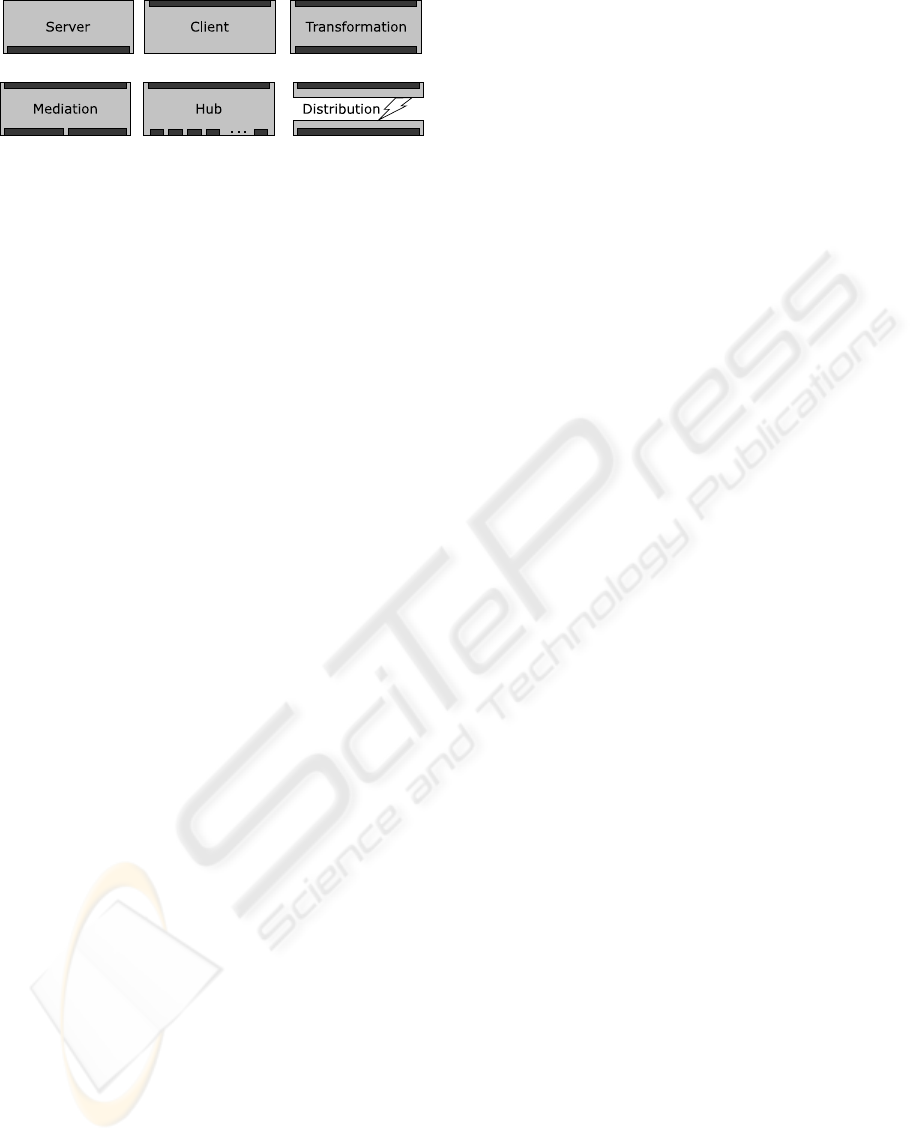

Figure 1: Six kinds of modules.

need to be recorded. In addition CCMSs acknowl-

edge that the user community might not agree on the

appropriate schema for the domain. Therefore, each

user (or group of users) is permitted to modify the

schema according to their personal opinion. We call

this (schema) personalisation. As many such person-

alisations might occur in parallel, the system gener-

ally has to cope with many coexistent schemata.

Note that an important difference between schema

evolution and personalisation lies in the fact that per-

sonalisation will always require a backward path for

the data. While users might wish to personalise their

schema, they still want to collaborate with fellow

users which involves the need to exchange data. How-

ever, these fellow users might work with different

schemata. In many cases of schema evolution one can

make do without such a backward path (e.g., disal-

lowing write access for users of the “legacy” schema

is often feasible).

Additionally, collaboration in the presence of

schema personalisation might also require schema

mapping (see, e.g., (Rahm and Bernstein, 2001)),

where data have to be converted between schemata

which were developed independently of each other.

4 REALIZATION

In this section we give details on our generative ap-

proach to system implementation.

4.1 Modules

CCMSs are composed of modules, which have a uni-

form interface and can thus be freely combined. We

have identiﬁed six kinds of modules, which are de-

picted in ﬁgure 1. The six kinds of modules are:

(1) server modules, which provide external services,

(2) client modules, which lift underlying systems

(e.g., databases) to the module API, (3) mediation

modules, which combine two modules—where the

two possibly have different roles, (4) hub modules,

which do so for many modules, but all modules have

the same role, (5) transformation modules, which

transform from a base to a target schema, and (6) dis-

tribution modules, which provide for cross-system

communication. Each module builds on several other

modules (base modules) and provides the uniform

module API (indicated by dark bars in ﬁgure 1) to its

super modules. See (Schmidt and Sehring, 2003) for

further details.

The module interface provides standard operations,

such as creation, modiﬁcation and deletion of in-

stances, as well as their retrieval. Further details are

available in (Sehring and Schmidt, 2004).

Modules are combined into components using the

mediator architecture as proposed by (Wiederhold,

1992). Modules are stacked in layers, such that the

module conﬁguration is a directed, acyclic graph.

Components provide a number of services to their

modules, including identiﬁer resolution. The require-

ments of the application are implemented by combi-

nation of modules, see section 4.4 for some combina-

tion patterns.

4.2 Compiler Framework

In our approach, the diversity of modules is reﬂected

by generators. There are individual generators for

all variations of a module kind. Knowledge about

database management systems is for example im-

plemented in a generator that creates client modules

which are based on a relational database.

Writing generators is a complex task, mainly be-

cause setting up an infrastructure for them (Smarag-

dakis and Batory, 1996) is difﬁcult. Therefore, our

model compiler for CCM is designed as a frame-

work with generators as extension points. In conjunc-

tion with a facility for code generation it constitutes

a domain-independent meta-programming infrastruc-

ture (Smaragdakis et al., 2004).

A complete CCMS is generated by an instance

of the compiler framework, using an appropriate set

of generators. The framework controls the overall

compilation process following the typical structure of

compilers consisting of frontend and backend compo-

nents, where generators form the backend.

The execution of generators is scheduled based on

their interdependencies, which are computed by the

framework based on an extended notion of symbol

tables. Theses symbol tables are also used for com-

munication between the generators. A client mod-

ule for access to a, for example, relational database

needs both the database schema, which is produced

by a separate generator, and the uniform module API,

which is created from the conceptual domain model

by a central API generator. Both schema and API def-

initions are provided by means of symbol tables.

4.3 Implementing Specialties

Most applications will have a few requirements which

cannot be realised by generators. This may for ex-

ample be the case when a new type of requirement

WEBIST 2006 - INTERNET TECHNOLOGY

112

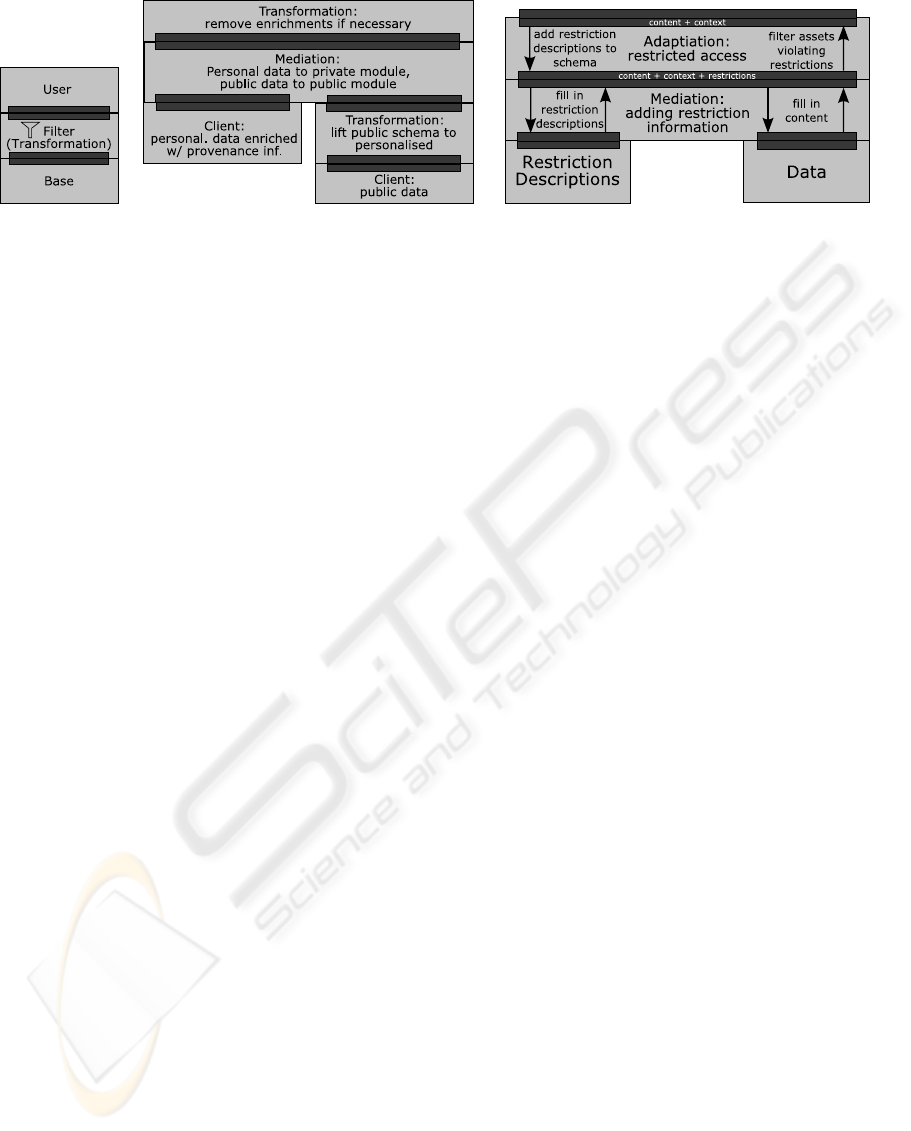

(a) Filter (b) Schema evolution (c) Restricted access

Figure 2: Module patterns.

comes up for the ﬁrst time. One could then imple-

ment this requirement on top of the generated system.

If the hand-written code has anything to do with the

schema, this renders personalisation impossible. A

better approach is to work on generators to include

the requirement and be able to reuse the generator in

future implementations. We have identiﬁed three op-

tions to realise new requirements in a CCMS:

1. Writing a new generator. This usually makes

sense if one is dealing with totally new require-

ments, e.g., a new technology is to be incorporated

into the CCMS. In unusual situations one might

choose to implement a custom generator just to en-

able personalisation for this particular application.

This can be worth the effort if heavy use of person-

alisation is expected.

2. Subclassing an existing generator. This is possi-

ble in special cases, most prominently if the new

requirement is an extension of requirements han-

dled by an existing generator. It does not seem to

be a good idea to implement orthogonal require-

ments this way as is this would require hook points

as proposed by (Aßmann, 2003) for components.

3. Achieving the desired effect through module

combination. Of course, not all of the required

modules will be available, but it might be possi-

ble to write small generators that create the miss-

ing modules. Using modules of the new kind, one

can then combine existing and new modules into a

system that meets all requirements. For an example

see the blocking module in section 5.2.

4.4 Module Patterns

During system development we have identiﬁed sev-

eral patterns of module combination. These help to

structure complex systems that can be built from a

high number of individual modules (see, e.g., ﬁg-

ure 3). We present four of them in this section, the

ﬁrst three are depicted in ﬁgure 2.

Filter: This pattern is a basic building block found

in most systems. Instances from a Base module are

ﬁltered according to certain criteria and only those

passing the ﬁlter are visible to the User module. Fil-

ter criteria can be manifold (e.g., offering only recent

instances in news applications).

Schema Evolution: Many of our systems require

schema evolution or personalisation (section 3). In

ﬁgure 2(b) modules are combined such that users of

the top-most transformation module have uniform ac-

cess to instances according to their personal schema.

This is achieved by ﬁrst transforming from public to

private schema, then combining instances (the me-

diation module also keeps track of personalised in-

stances), and ﬁnally projecting away provenance in-

formation that is necessary for personalisation.

Restricted Access: In this pattern, two pools of data

are kept in separate client modules: application Data

and Restriction Descriptions. They are combined

by a mediation module. Users of the Adaptation

module can pose queries also containing information

that is necessary for restriction enforcement (e.g., user

or group information). Based on this information, the

appropriate descriptions for restricted access as well

as application data are retrieved. The adaptation mod-

ule ﬁnally ﬁlters the retrieved application data accord-

ing to the provided restriction descriptions. Optimisa-

tions include not posing a query on application data, if

it can be determined from the restriction descriptions

that none of the retrieved instances will be accessi-

ble (e.g., if a user does not have read permissions for

instances of a certain class).

Fat/Thin Client: By placing modules on different

components, fat or thin clients can be modeled (not

shown in ﬁgure 2, see (Bossung et al., 2005)).

5 DISCUSSION

In this section we discuss some general beneﬁts of

the CCM approach in the context of our application

projects. We also consider open issues and future re-

search directions.

OPEN AND DYNAMIC SCHEMA EVOLUTION IN CONTENT-INTENSIVE WEB APPLICATIONS

113

Figure 3: A system composed of modules. Some of the modules (e.g., the “Importer” or the “Publication Process Interface”)

are actually marcos which represent whole patterns of modules (see section 4.4).

5.1 General Beneﬁts

The CCM approach of combining conceptual mod-

elling with system generation results in the following

speciﬁc beneﬁts:

Schema evolution: The CCMS architecture sup-

ports schema evolution on a per-user or per-group ba-

sis. Traditional schema evolution is a special case

where the schema for the entire application evolves.

Separation of concerns: Each module addresses a

speciﬁc system functionality and can only use its di-

rect base modules. This way, the distribution of func-

tionality in the application as well as dependencies

between modules are made explicit. As a result it is

easy to subdivide the system along these interfaces to

insert new functionality (e.g., a module which encap-

sulates full-text search).

Reuse: There are two cases of reuse in CCMSs:

(1) Generated modules can be used in multiple places,

and (2) implementation knowledge is reused by gen-

erators. The ﬁrst case is made feasible by the uni-

form module API which enables module combination

in a variety of ways. The second helps to avoid errors

which are frequently made when implementing mod-

ules manually. Generating modules instead of coding

them also means that they are implemented with the

expertise of the generator author which can usually be

assumed to be above average.

Development speed-up: Once the appropriate gen-

erators are written, implementing new systems or

reimplementing existing ones (to meet new require-

ments) is much quicker. In our experience develop-

ment of generators soon paid off. We do not have ex-

act ﬁgures but our estimate is that the implementation

of the generator is about 2 to 10 times as costly as a

manual implementation of the corresponding module

and, therefore, provides a positive return on invest-

ment after about half a dozen module generations.

5.2 Project Experience

The application described here is a complex, multi-

user application

, as depicted in ﬁgure 3. Its key pur-

poses are the storage of (scans of paper-) documents,

the collection of information about these documents

and their interrelationships. Documents are obtained

from archives, where direct internet access is usually

not provided. The application system, therefore, was

divided into two parts: a central system, which inte-

grates all content that has been entered through the

See http://www.welib.de/gknsapp

WEBIST 2006 - INTERNET TECHNOLOGY

114

ofﬂine tool and uploaded into the central system. As

the uploads can be quite high in volume, the central

system imports them asynchronously.

The central system is subdivided into two parts: An

editorial system where uploads are double-checked

and a public system where quality-assured data is

made available to registered users.

The entire system is composed of modules, most of

which are generated; some are schema independent

and only a few are implemented manually. Data is

stored in client modules which are backed by either

a light-weight XML database in the ofﬂine tool or a

standard relational database.

Through the use of modules we were able to reuse

large parts of the system in several places. The client

module for the XML database is used in the content

entry tool as well as in the central system for import-

ing data from the ﬁlesystem; both modules are identi-

cal. Another module used in both parts of the system

is the full text search module GKNS IR. The central

system uses the client module ID Mappings to keep

track of imported data.

As pointed out in section 2.1, full generation of

client modules is usually possible and indeed all client

modules in this application are fully generated. As

pointed out in section 2, generation of user interfaces

is more difﬁcult. The content entry tool contains a

few optimised workﬂows which were largely written

manually, albeit still personalisable. The personalis-

able web interface of the editorial system is simpler

and could therefore be generated to a large degree.

The client module which provides XML database

persistence was ﬁrst implemented manually, because

an appropriate generator did not exist and quick deliv-

ery of the content entry tool was crucial to the project

schedule. Later, a generator for this module was writ-

ten to support schema evolution. The implementation

of the generator took about twice as long as the man-

ual implementation of the client module for a schema

of small complexity (ca. 20 classes).

The entire system uses all of the patterns discussed

in section 4.4. Not all are, however, shown in ﬁgure 3.

There is for example one special requirement in the

project that made the use of a ﬁlter module in both

the public and the editorial web interfaces necessary.

Since some application content is quite sensitive, pub-

lic access has to be restricted on a per-instance basis

for a conﬁgurable time span. We have, therefore, in-

serted a ﬁlter module, which implements this restric-

tion by essentially enriching each query with an ad-

ditional constraint, which in turn checks whether re-

strictions apply.

5.3 Open Issues

At the current state of development CCM still has a

number of open issues. These do not limit the power

of the approach in general, but cause practical prob-

lems in mainly two areas:

User interfaces: User interfaces contain numerous

special cases (such as custom layout, naming or er-

ror handling) which require some manual extension

of the generated skeleton.

Managing personalisation: While users should be

able to personalise the schema according to their

needs, they should also be able to work together col-

laboratively, as this is one of the key purposes of

information systems (Goldin and Thalheim, 2000).

However, when applying personalisation, users can

make schema changes which effectively cut them off

from other users. To be “cut off” means having

to modify each personalised data instance manually

when it needs to be shared with others. Cases of this

include eliding mandatory attributes or modifying at-

tributes with functions that do not have inverses.

5.4 Outlook

We will focus future work in three areas: Generat-

ing user interfaces, formalising personalisation, and

identifying further module patterns relevant to infor-

mation systems.

As pointed out, user interface developement often

deals with numerous special cases. We expect that

user interfaces due to their irregularity will always

require some manual work. We have identiﬁed four

possibilities to inﬂuence the generation of user inter-

faces:

• Changing the conceptual model of the domain;

• Conﬁguring the generator (e.g, with a domain spe-

ciﬁc language for user interfaces);

• Passing parameters to the component of the gener-

ated system;

• Hand-coding parts of the user interface on top of

the generated code. However, the hand-coded parts

must be invariant to the schema, otherwise one

loses personalisation.

Our current generator for web applications combines

all four cases but its conﬁguration language is still

weak. There exist modelling paradigms for rapid pro-

totyping of user interfaces (e.g., SiteLang proposed

in (Thalheim and D

usterh

oft, 2001)) and for con-

structing navigational models such as (Valderas et al.,

2005). Combining such approaches with system gen-

eration will enable a high degree of customisation

while still fully supporting schema personalisation.

Furthermore, schema personalisation should not

prevent users from cooperating (i.e., exchanging their

content) with others. Thus, in personalisable systems

changes have to be tracked to warn users of situations

in which their schema personalisation steps discon-

nect them from their community. State-based typing

OPEN AND DYNAMIC SCHEMA EVOLUTION IN CONTENT-INTENSIVE WEB APPLICATIONS

115

of domain entities (e.g., (Strom and Yemini, 1986)

and (Bierhoff and Aldrich, 2005)) can help to build

models for personalisation.

In addition, it will be interesting to identify further

module patterns. As more applications are developed

using CCM, the understanding and support of com-

mon application issues will improve. We plan to build

a library of such patterns.

6 SUMMARY

In this paper we have presented our Conceptual Con-

tent Management approach to compose complex in-

formation systems from smaller, generated modules.

The generation is based on a CCM model used as

input to the compiler framework. CCM has a num-

ber of beneﬁts: Due to the highly structured nature

of such systems and the possibility of dynamically

generating new modules, systems are able to substan-

tially support schema personalisation and evolution.

CCM facilitates reuse of code as modules are freely

combinable. Knowledge about system implementa-

tion is codiﬁed in the generators and can be reused

in different project instances and phases. Larger

real-world projects have shown that the proposed ap-

proach works well in practice. Even though problems

remain—mainly in generating user interfaces and in

integrating of manually written system code—system

generation has enabled us to deliver quickly complex

information systems in the context of changing and

evolving domain models.

ACKNOWLEDGEMENTS

We would like to thank our colleagues of the art his-

tory departments in Berlin, Bonn, Hamburg, and Mu-

nich for providing us with many insights in the ap-

plication projects. Furthermore, we would like to

thank Deutsche Forschungs Gemeinschaft (DFG) for

its grant on the WEL-GKNS project.

REFERENCES

Abiteboul, S., McHugh, J., Rys, M., Vassalos, V., and

Wiener, J. L. (1998). Incremental maintenance for ma-

terialized views over semistructured data. In Gupta,

A., Shmueli, O., and Widom, J., editors, VLDB’98,

pages 38–49. Morgan Kaufmann.

Aßmann, U. (2003). Invasive Software Composition.

Springer-Verlag.

Bierhoff, K. and Aldrich, J. (2005). Lightweight object

speciﬁcation with typestates. In ACM SIGSOFT Sym-

posium on the Foundations of Software Engineering,

pages 217–226.

Bossung, S., Sehring, H.-W., and Schmidt, J. W. (2005).

Conceptual content management for enterprise web

services. In Perspectives in Conceptual Modeling: ER

2005 Workshops, volume 3770 of LCNS, pages 343–

353. Springer-Verlag.

Collins, D. (1995). Designing Object-Oriented User Inter-

faces. Benjamin/Cummings Publishing.

Date, C. (2000). What Not How – The Business Rules Ap-

proach to Application Development. Addison-Wesley.

Goldin, D. Q. and Thalheim, S. S. B. (2000). IS = DBS

+ Interaction: Towards Principles of Information Sys-

tem Design. In Proc. ER 2000, 19th Int. Conf., volume

1920 of LNCS, pages 140–153. Springer-Verlag.

Kuno, H. A. and Rundensteiner, E. A. (1995). Materialized

object-oriented views in multiview. In RIDE-DOM,

pages 78–85.

Lerner, B. S. and Habermann, A. N. (1990). Beyond

schema evolution to database reorganization. In OOP-

SLA/ECOOP ’90, pages 67–76, New York, NY, USA.

ACM Press.

Rahm, E. and Bernstein, P. A. (2001). A Survey of Ap-

proaches to Automatic Schema Mapping. The VLDB

Journal, 10:334–350.

Roddick, J. F. (1992). Schema evolution in database sys-

tems: an annotated bibliography. SIGMOD Rec.,

21(4):35–40.

Schmidt, J. W. and Sehring, H.-W. (2003). Conceptual Con-

tent Modeling and Management. In Proc. Perspectives

of System Informatics, volume 2890 of LNCS, pages

469–493. Springer-Verlag.

Sehring, H.-W. and Schmidt, J. W. (2004). Beyond

Databases: An Asset Language for Conceptual Con-

tent Management. In Proc. 8th East European Conf.

ADBIS 2004.

Smaragdakis, Y. and Batory, D. (1996). Scoping Constructs

for Program Generators. Technical Report CS-TR-96-

37, Austin, Texas, USA.

Smaragdakis, Y., Huang, S. S., and Zook, D. (2004). Pro-

gram generators and the tools to make them. In

PEPM ’04: Proceedings of the 2004 ACM SIGPLAN

Symposium on Partial Evaluation and Semantics-

based Program Manipulation, pages 92–100. ACM

Press.

Strom, R. E. and Yemini, S. (1986). Typestate: A program-

ming language concept for enhancing software relia-

bility. IEEE Trans. Softw. Eng., 12(1):157–171.

Thalheim, B. and D

usterh

oft, A. (2001). Sitelang: Concep-

tual modeling of internet sites. In Proc ER01, volume

2224 of LNCS, pages 179–192. Springer Verlag.

Valderas, P., Fons, J., and Pelechano, V. (2005). Transform-

ing Web Requirements into Navigational Models: An

MDA Based Approach. In Proc. ER05, volume 3716

of LNCS, pages 320–336. Springer Verlag.

Wiederhold, G. (1992). Mediators in the Architecture of

Future Information Systems. IEEE Comp., 25:38–49.

WEBIST 2006 - INTERNET TECHNOLOGY

116
