CFA DEMOSAICKING BY ADAPTIVE ORDER OF

APPROXIMATION

J.S. Jimmy Li and Sharmil Randhawa

School of Informatics and Engineering, Flinders University, GPO Box 2100, Adelaide SA 5001, Australia

Keywords: CFA demosaicking, adaptive order, approximation, colour smoothness.

Abstract: Colour filter array (CFA) demosaicking refers to determining the missing colour values at each pixel when a

single-sensor digital camera is used for colour image capture. It has recently been shown that missing

colour values can be interpolated or extrapolated using Taylor series. The accuracy of approximation

depends on the number of high order derivative terms included in the Taylor series. For a smooth region of

an image, the higher the order, the higher the accuracy in the approximation of the missing colour values.

However, the estimation of high order derivative terms requires pixel values from a wider area of

neighbourhood. When an image contains features closely spaced together, extrapolation using pixels from a

smaller region of neighbourhood is preferred and a low order of approximation should be applied. In order

to achieve more accurate results, we propose an algorithm using an adaptive order of approximation

depending on the colour smoothness of the image. It has been shown that our algorithm outperforms other

techniques for various images, and in particular for images with the above mentioned characteristics.

1 INTRODUCTION

Colour filter array (CFA) demosaicking is the

determination of missing colour values at each pixel

when using a single-sensor digital camera for colour

image capture. In this paper, we introduce an

algorithm using an adaptive order of approximation

to recover missing colour information which

depends on the colour smoothness of an image. Our

method is divided into two stages. In the first stage,

we use the local colour smoothness of the image to

adaptively determine the appropriate order of

extrapolation for the green plane. This will be

applied independently to produce one estimate for

each of the four possible directions, namely up,

down, left and right.

The second stage determines the best estimate

out of the possible four directional estimates, using a

classifier instead of a linear combiner. Other

demosaicking methods (Kimmel 1999, Lu&Tan

2003) determine the missing colour values by

combining weighted estimates from corresponding

directions. Inaccurate estimation of weightings will

produce artifacts which manifest themselves in the

demosaicked output.

The remainder of the paper is organized as

follows. Section 2 details the extrapolation method

of various orders. Section 3 presents the

experimental results, and compares this method with

other existing methods, with the conclusion given in

Section 4.

2 ADAPTIVE ORDER OF

APPROXIMATION

The most common colour filter array used is the

Bayer CFA (Bayer 1976). Figure 1 shows an 8 x 8

window of a Bayer array neighbourhood, where the

index (i,j) denotes the row and column of each

colour pixel. For the Bayer pattern, the green colour

is sampled at twice the rate of the red and blue

values. This is due to the peak sensitivity of the

human visual system which lies in the green

spectrum (Bayer 1976).

To estimate the green value at position x (G

x

) at

which only the blue value (B

x

) is known, consider

the one-dimensional case with an edge boundary on

the left-hand side of B

x

, as shown in Figure 2.

5

S. Jimmy Li J. and Randhawa S. (2006).

CFA DEMOSAICKING BY ADAPTIVE ORDER OF APPROXIMATION.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 5-10

DOI: 10.5220/0001366800050010

Copyright

c

SciTePress

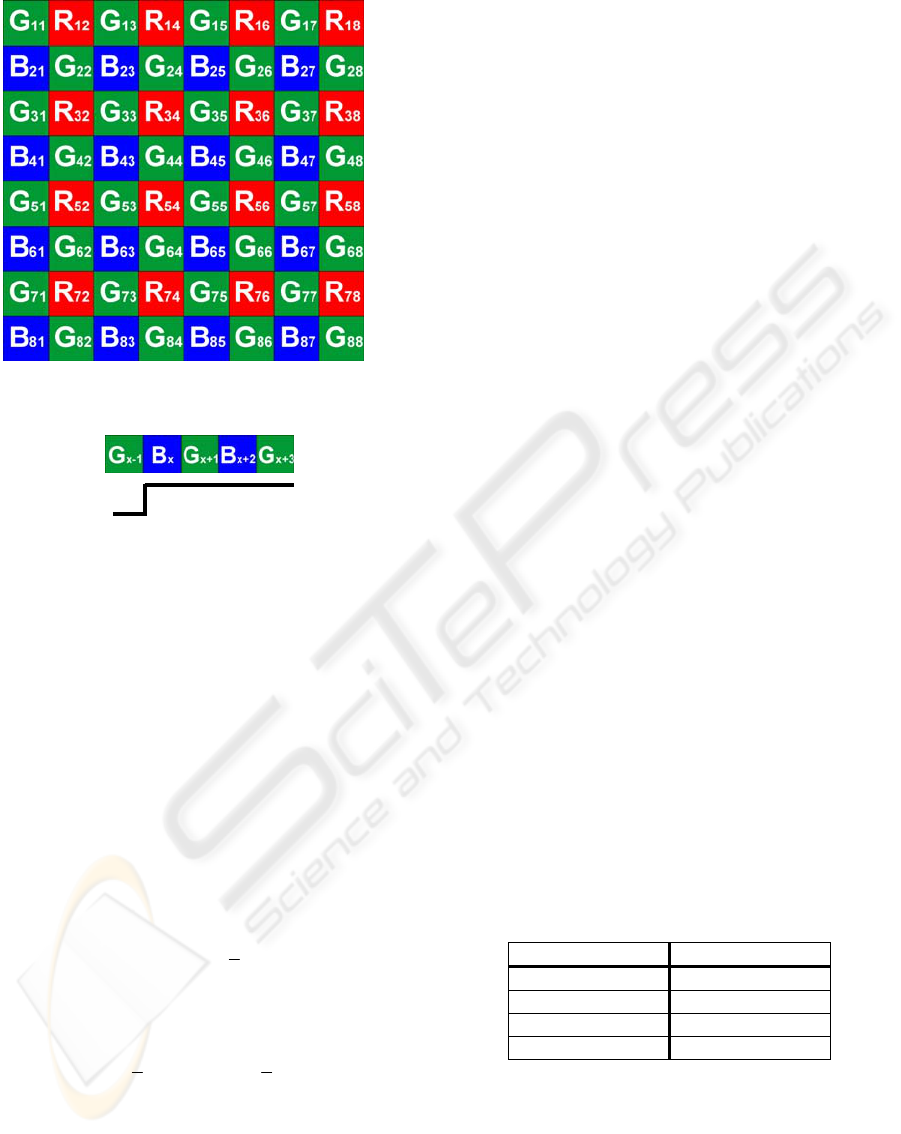

Figure 1: 8x8 Bayer pattern.

Figure 2: 1D Bayer Pattern and Edge Boundary on the

left-hand-side of B

X

.

(1), (2) and (3) are the zero, first and second

order extrapolation equations for the determination

of the missing green colour

x

G

ˆ

respectively

(Li&Randhawa 2005a). From these equations the

higher the order of approximation, the more higher

order correction terms are included to improve the

accuracy. However this implies that more samples

from an extended area of neighbourhood are

required for the approximation.

Zero Order:

1xx

GG

ˆ

+

= (1)

First Order:

)BB(GG

ˆ

2xx

2

1

1xx ++

−+=

(2)

Second Order:

)GG()BB(GG

ˆ

3x1x

4

1

2xx

4

3

1xx ++++

−−−+= (3)

Zero order approximation uses the nearest

neighbour to estimate the missing colour value in the

direction of the extrapolation. It gives satisfactory

results for regions containing features closely spaced

together. In this case, the zero order avoids using

pixels from other nearby non-related features in the

estimation.

For regions with little colour variation, the

general assumptions for demosaicking will hold

(Lu&Tan 2003), and the second order will give the

best accuracy. For regions with moderate colour

variation, the first order will be applied.

The second order will provide adequate

accuracies for most applications, and third or higher

orders of approximation are not required

(Li&Randhawa 2005a).

For the red/blue missing colour values, it has

been shown that first order extrapolation will give

satisfactory results for most images ((Li&Randhawa

2005b).

2.1 Ideal Selector

To confirm that different orders of approximation

will perform better in different regions of an image,

we apply an ideal selector to determine which order

is the best choice for each missing pixel in the green

plane.

To illustrate the above mentioned concept, we

use the pixels in the original image to select one of

the twelve estimates (four directional estimates from

each order) based on the minimum mean square

error criterion. Figures 3 and 4 show the original

and the ideal selector output of the popular

Lighthouse image. These two images are visually

indistinguishable from each other (MSE = 0.0122)

and this indicates clearly that the selected output is a

very good approximation of the original. This

confirms the presence of a highly accurate estimate

within the twelve extrapolated choices. Table 1

gives the proportion for each order as the best choice

for Figure 3. (The undecided proportion in Table 1

represents those pixels that have identical values for

different orders and hence no unique order can be

decided.)

Table 1: Best choices for each order.

Order Best Choice

Zero 30 %

First 24 %

Second 30 %

Undecided 16 %

In general, different images will have different

proportions for different orders but will normally

have some proportion for each order. Hence we

propose an adaptive algorithm to select one of the

three orders according to the colour smoothness of

the image to achieve better results.

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

6

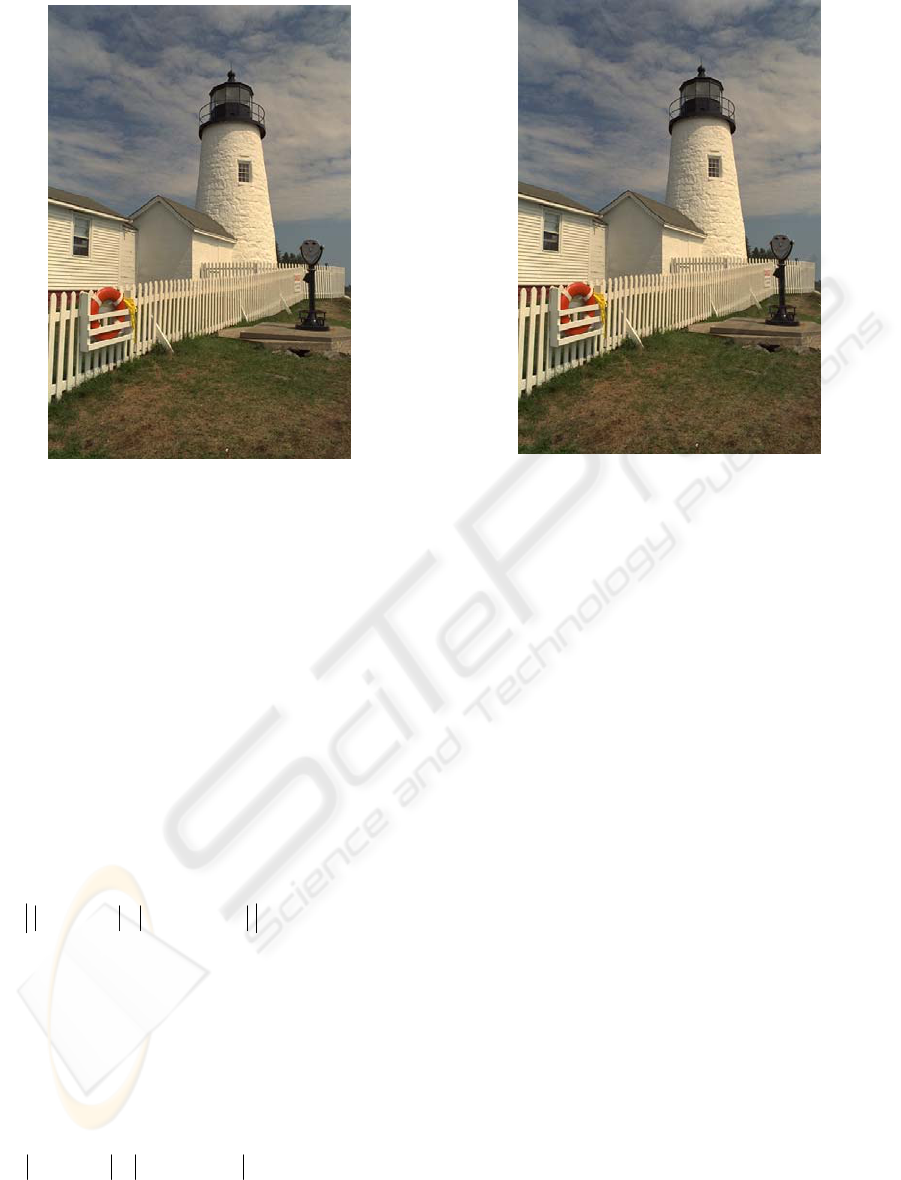

Figure 3: Original Lighthouse image.

2.2 Adaptive Algorithm

An indicator to determine the colour smoothness is

proposed as follows. Based on the idea of the hue

assumption (Cok 1987), we define that the colour is

smooth when (4) is satisfied when estimating a

missing green value at a blue pixel location. A

similar equation applies for the estimation of a

missing green value at a red pixel location. In this

case, when the difference between the variations in

blue and green is small, the hue assumption is valid,

and hence we can apply the highest (second) order

of extrapolation to obtain the best results.

Experimentally, a normalised value of 0.7 for

ε will

give satisfactory results for most images.

ε≤−−−

+++

GGBB

3X1X2XX

(4)

Otherwise, if the variation in blue (or red) is

greater than the variation in green (5), this may

indicate a colour edge in blue (or red) and so the hue

assumption does not apply. Hence the zero order is

preferred. In this case the application of the invalid

hue assumption in the estimation of the missing

colour pixel can be avoided.

3X1X2XX

GGBB

+++

−>−

(5)

Figure 4: Ideal selector output.

However, if the variation in green is greater than

the variation in blue, the first order is chosen

because this indicates that there is no colour edge in

blue, and so half of the small variation in blue will

be included to improve the accuracy in the

estimation of the green value as shown in (2).

Similarly, one estimate for each of the four

directions, namely up, down, left and right, can be

found by (1) to (5). The next step is to use a

classifier to select the best choice out of the four

candidates. Since a linear combiner, as used in other

methods (Kimmel 1999, Lu&Tan 2003) will blur an

edge, a median-based classifier (Li&Randhawa

2005a) which will preserve sharp edges is used

instead.

In the classifier stage, an orientation matrix for

every pixel is produced using the CFA image input.

This is used to indicate the possible orientation of an

edge for that pixel. The underlying assumption

made is that the neighbourhood orientation must be

aligned in a direction along an edge (Li&Randhawa

2005b).

The orientation matrix (Li&Randhawa 2005a) is

used to reject one sample before we apply median

filtering. This is because an odd window width for

the median filtering is preferred in order to avoid

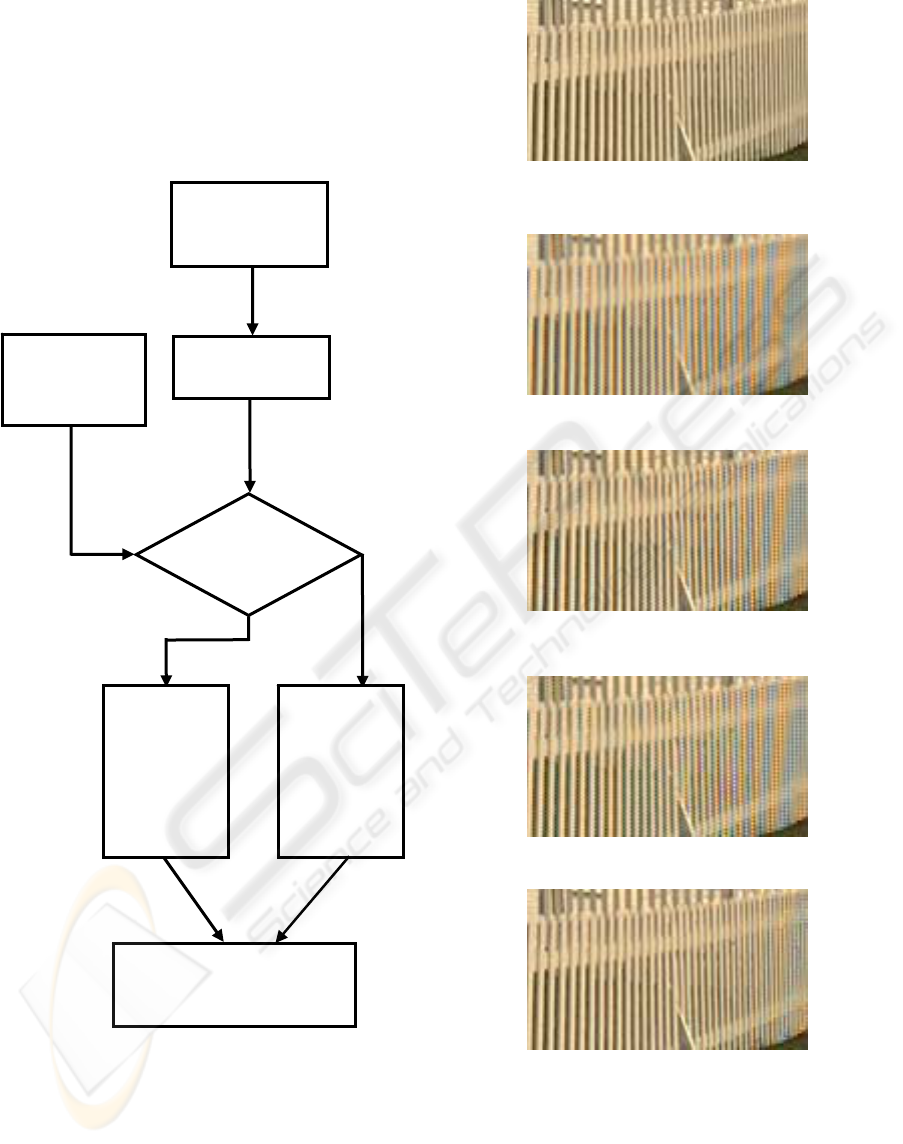

blurring an edge. The classifier algorithm is

depicted as a flowchart in Figure 5. If it is a ‘1’ in

the orientation matrix, a possible vertical edge exists

and hence one of the two estimates in the horizontal

direction will be rejected. Similarly for a ‘0’ in the

orientation matrix, we reject an estimate in the

CFA DEMOSAICKING BY ADAPTIVE ORDER OF APPROXIMATION

7

vertical direction. The one out of the two to be

rejected has the greatest difference in magnitude

from the median of the four extrapolated estimates.

3 RESULTS

To evaluate the performance of our method against

other demosaicking methods, the picket-fence region

of the Lighthouse image in Figure 3 was used. This

area represents a challenge for many demosaicking

methods due to the presence of many edges close

together. The image quality performance measures,

using normalized color difference (NCD)

(Plataniotis 2000) and mean squared difference

(MSE), of the various demosaicking methods:

Freeman (1988), Kimmel (1999), Hamilton (1997),

Plataniotis (2004), Lu&Tan (2003), and Gunturk

(2002), are tabulated as shown in Table 2. Our

proposed method, with

ε = 0.7, has the smallest error

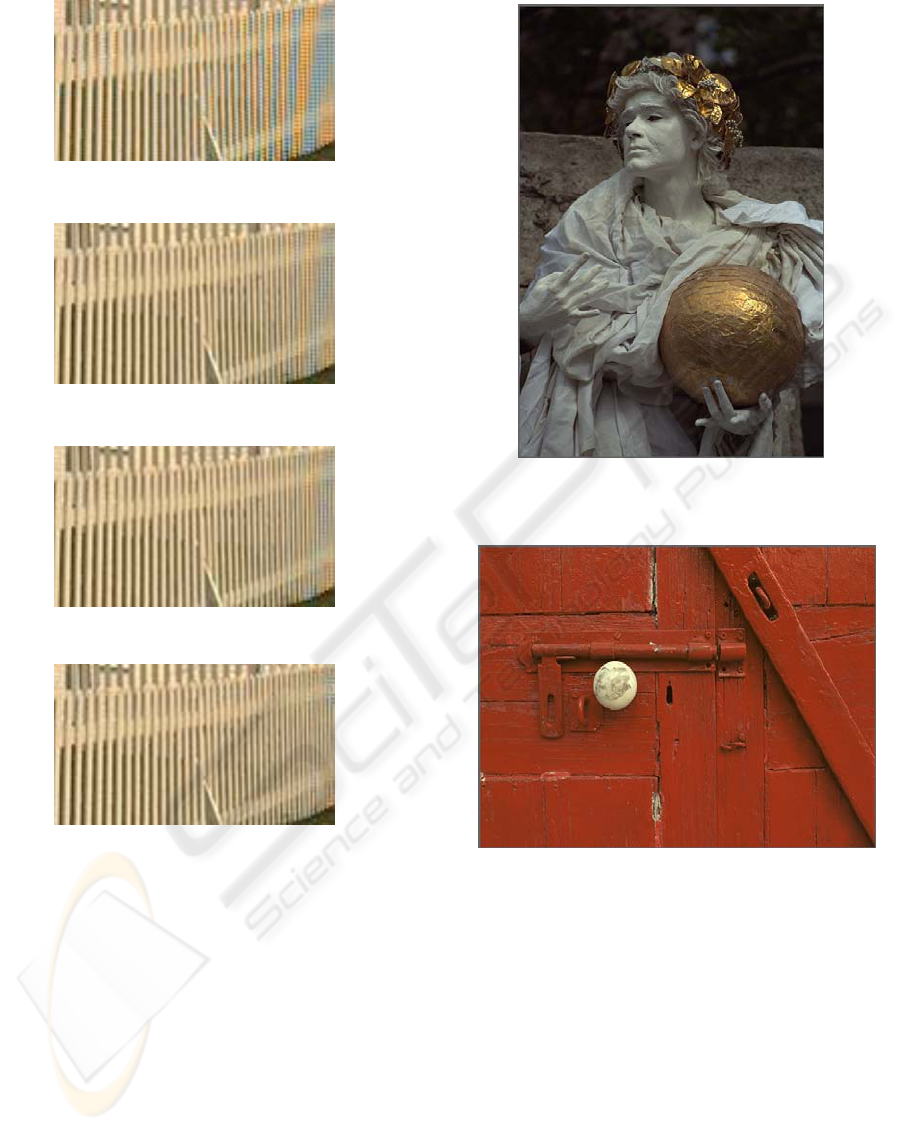

value among all the methods. Figures 6 to 14 show

the sample demosaicked results from our proposed

method and other methods under comparison. This

supports our quantitative measures and illustrates

that our method is also visually superior to other

demosaicking methods as it has the least false

colours in the high-frequency picket-fence region.

Table 2: Image Quality Performance Measure.

Method NCD MSE

Bilinear 0.1036 24.65

Freeman 0.0587 14.75

Kimmel 0.0687 17.35

Hamilton 0.0268 8.85

Plataniotis 0.0637 16.25

Lu&Tan 0.0163 5.05

Gunturk 0.0153 4.01

Our Proposed

Method

0.0115 3.77

We also applied other types of images for the

evaluation of our proposed method as shown in

Figures 15 and 16. The results are tabulated in

Table 3, and they confirm that our method is

superior to other techniques.

4 CONCLUSION

An adaptive order of approximation algorithm has

been proposed for colour filter array demosaicking.

This method uses the colour smoothness of an image

to determine a suitable order of approximation. It

has been shown that our method outperforms other

techniques visually and quantitatively. Research on

its implementation for real-time processing is

underway.

Table 3: NCD results for the demosaicking methods.

NCD

Method Statue Image

Red Door


Bilinear 9.9222E-03 5.4689E-03

Freeman 5.9773E-03 4.1314E-03

Kimmel 7.2663E-03 5.8250E-03

Hamilton 6.9636E-03 4.0047E-03

Plataniotis 371.35E-03 530.98E-03

Lu&Tan 5.5855E-03 4.6519E-03

Gunturk 5.3888E-03 4.7444E-03

Our Proposed

Method

5.1359E-03 3.9169E-03

REFERENCES

Bayer, B.E. (1976): Color Imaging Array. US Patent 3

971 065.

Cok, D.R. (1987): Signal Processing Method and

Apparatus for Producing Interpolated Chrominance

Values in a Sampled Color Image Signal. US Patent 4

642 678.

Freeman, W. T. (1988): Median Filter for Reconstructing

Missing Colour Samples. US Patent 4 724 395.

Gunturk, B. K., Altunbasak, Y. and Mersereau, R. M.

(2002): Colour Plane Interpolation Using Alternation

Projections. IEEE Transactions on Image Processing,

11:997-1013.

Hamilton Jr., J. F. and Adams Jr., J. E. (1997): Adaptive

Colour Plan Interpolation in Single Sensor Colour

Electronic Camera. US Patent 5 629 734.

Kimmel, R. (1999): Demosaicing: Image Reconstruction

from Colour CCD Samples. IEEE Transactions on

Image Processing, 8:1221-1228.

Li, J.S.J. and Randhawa, S. (2005a): High Order

Extrapolation using Taylor Series for Color Filter

Array Demosaicing. Lecture Notes in Computer

Science, M. Kamel and A. Campilho, Eds., Springer-

Verlag, 2005, 3656:703-711.

Li, J.S.J. and Randhawa, S. (2005b): Improved Accuracy

for Colour Filter Array Demosaicking using High

Order Extrapolation. Proceedings of ISSPA 2005,

Sydney, 331-334.

Lu, W. and Tan, Y.-P. (2003): Colour Filter Array

Demosaicking: New Method and Performance

Measures. IEEE Transactions on Image Processing,

12:1194-1210.

Plataniotis, K. N. and Venetsanopoulos, A. N. (2000):

Colour Image Processing and Applications, Springer

Verlag.

Plataniotis, K. N. and Lukac, R. (2004): An Efficient

Demosaicing Approach with a Global Control of

Correction Steps. IEEE International Conference on

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

8

Acoustics, Speech, and Signal Processing

Proceedings, pp. III 469-472.

Randhawa, S. and Li, J.S.J. (2005): CFA Demosaicking

with Improved Colour Edge Preservation. Proceedings

of IEEE Tencon’05, 21-24 November 2005,

Melbourne Australia.

Figure 5: Flowchart of Classifier.

Figure 6: Original picket-fence from Lighthouse image.

Figure 7: Bilinear Output.

Figure 8: Freeman Output.

Figure 9: Kimmel Output.

Figure 10: Hamilton Output.

no

Orientation

= 1?

y

es

Classifer output =

Median{remaining 3

Extrapolated Estimates

}

Orientation

matrix of

CFA image

Proposed

Adaptive

Al

g

orith

m

4 Extrapolated

Estimates

Reject one

vertical

estimate

which is

furthest

from the

median

Reject one

horizontal

estimate

which is

furthest

from the

median

CFA DEMOSAICKING BY ADAPTIVE ORDER OF APPROXIMATION

9

Figure 11: Plataniotis Output.

Figure 12: Lu&Tan output.

Figure 13: Gunturk output.

Figure 14: Our proposed method.

Figure 15: Statue Image.

Figure 16: Red Door Image.

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

10
