ROBUST HUMAN SKIN DETECTION IN COMPLEX

ENVIRONMENTS

Ehsan Fazl Ersi, John Zelek

Dept. Of System Design Engineering, University of Waterloo, N2L 3G1 Waterloo, ON, Canada

Keywords: skin detection, image brightness levels, neighborhood information, local entropy thresholding.

Abstract: Skin detection has application in people retrieval, face detection/tracking, hand detection/tracking and more

recently on face recognition. However, most of the currently available methods are not robust enough for

dealing with some real-world conditions, such as illumination variation and background noises. This paper

describes a novel technique for skin detection that is capable of achieving high performance in complex

environments with real-world conditions. Three main contributions of our work are: (i) processing each

pixel in different brightness levels for handling the problem of illumination variation, (ii) proposing a fast

and simple method for incorporating the neighborhood information in processing each pixel, and (iii)

presenting a comparative study on thresholding the skin likelihood map, and employing a local entropy

technique for binarizing our skin likelihood map. Experiments on a set of real-world images and the

comparison with some state-of-the-art methods validate the robustness of our method.

1 INTRODUCTION

In recent years, skin detection has been considered

as an active research topic, due to its important role

in several applications such as human body part

detection and tracking, especially faces (Ming-

Hsuan, 2002) and hands (Xiaojin, 2000), human

motion analysis (Aggarwal, 1997), and more

recently face recognition

. Skin Pixels are usually

detected using the color information, because (i) it is

The identix company claimed that by incorporating skin

surface analysis, the accuracy of their facial

recognition system, Faceit, improved by at least 20-

25%. See: http://www.identix.com/trends/skin.html

computationally not expensive, (ii) it is invariant

against geometrical transformations (e.g., rotation,

scaling and shape changes), and (iii) it can provide a

reasonable degree of separability between skin and

non-skin classes.

However, color information suffers from

sensitivity to illumination variation and besides;

pixel-wise color processing does not provide enough

information for distinguishing between human skin

pixels and background object pixels with skin-like

colors. This problem can limit the application of

color information in skin detection systems which

are used in complex environments.

In this paper we propose an algorithm for

accurate detection of human skin, under real-world

conditions such as illumination variation and skin-

like background colors. There are three main

contributions of our skin detection method. We will

introduce each of these ideas briefly below and then

describe them in details in the subsequent sections.

Processing each pixel in different brightness

levels is the first contribution; thus, handling the

problem of illumination variation. Each brightness

level is generated by increasing or decreasing the

color intensities of the original image. Once the

brightness levels are generated, the skin likelihood

Fazl Ersi E. and Zelek J. (2006).

ROBUST HUMAN SKIN DETECTION IN COMPLEX ENVIRONMENTS.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 27-34

DOI: 10.5220/0001376300270034

 SciTePress

of each pixel is computed by summing the skin

probability

of the colors of that pixel in different

brightness levels.

The second contribution is a simple and very fast

method for incorporating the neighborhood

information in processing each pixel. We increase

the skin likelihood of each pixel by the average of

the likelihood of its direct neighbors. Therefore, the

likelihood of a pixel with skin-like neighbors will be

increased much more than the likelihood of a pixel

with non-skin-like neighbors, although, the skin

likelihood of both pixels might be the same. This

helps to ignore the small skin like background

objects and disregard the small holes in skin regions.

The third major contribution is an evaluation and

comparison of the state-of-the-art thresholding

methods for binarizing the skin likelihood map.

Most of the recently proposed methods for skin

detection have used either a constant threshold or

some simple histogram-based adaptive thresholding

strategy for binarizing their skin likelihood map.

However, experimentally we show that the selection

of different thresholding strategies can significantly

affect the performance of a skin detection method.

Using the results of our comparative study, we

selected the local entropy thresholding method,

which is described in details in sub-section 5.2.

Our skin detection system has been trained and

tested on the db-skin dataset

which contains 102

real-world images with changing lighting conditions

and/or complex backgrounds (surfaces and objects

with skin-like colors). Our method achieved an

accuracy rate of 92.1% for a false positive rate of

17.2%, which was superior to the results of other

evaluated state-of-the-art methods.

The probability distributions in skin and non-skin classes

are obtained from the color histograms of a set of

representative images in RGB color space, with skin

and non-skin pixels labeled manually.

http://skin.li2.uchile.cl/db1

The remainder of the paper has been organized

as follow: Section 2 presents a brief overview on the

existing skin detection algorithms; sections 3, 4 and

5 describe different parts of our proposed skin

detection method; our experimental results and

comparison with other algorithms are illustrated in

section 6; and finally, in section 7 some conclusions

are given.

2 LITERATURE REVIEW

Based on Martinkauppi’s comparative study

(Martinkauppi, 2003), the currently available skin

detection strategies can be divided into two groups:

(i) algorithms which classify a pixel as skin color, if

its color is inside some defined region in color space

(Dai, 2002) (

Hsu, 2002); and (ii) algorithms which

classify a pixel as skin color, if its color has a higher

than a selected threshold probability. The methods in

the second group can be non-parametric like

histograms (Jones, 2002), semi-parametric like self

organizing maps (Piirainen, 2000) or neural

networks (Son, 2001), or parametric assuming a

certain distribution, like Gaussian or Gaussian

mixtures (Comaniciu, 2000).

The solutions proposed by these approaches for

handling the real-world conditions, especially

illumination variation, are limited to three: (i) color

correctness (e.g., (

Hsu, 2002)), (ii) illumination

component dropping (e.g., (Stern, 2002)), and (iii)

using neighborhood information (e.g., (Ruiz-del-

Solar, 2004)). However, color correctness and

illumination component dropping have been shown

to be not effective in all situations. Funt et al. (Funt,

1998) have shown that the current color correction

methods do not necessarily provide better results.

Also, it has been shown by Jayaram et al. (Jayaram,

2004) that in most situations, the skin detection

performance is significantly better with the presence

of an illumination component. Using neighborhood

information and region growing, as a more robust

solution, improves the performance of pixel-wise

approaches in complex environments. However,

they can not segment isolated skin regions which are

present in bad lighting conditions.

3 PROBABILITY DISTRIBUTION

OF SKIN COLORS

The skin and non-skin color models used in our

method are built from a set of real-world images in

VISAPP 2006 - IMAGE UNDERSTANDING

RGB color space, using a histogram learning

technique. We used two 32

bin histograms to model

skin and non-skin colors. Given skin and non-skin

histograms, we can compute the probability that a

given color rgb belongs to the skin and non-skin

classes:

rgbn

skinrgbP

rgbs

skinrgbp

][

)|(,

][

)|( =¬=

(1)

where s[rgb] is the pixel count contained in bin rgb of the

skin histogram, n[rgb] is the pixel count contained in bin

rgb of the non-skin histogram, and T

and T

are the total

counts contained in the skin and non-skin histograms

respectively. Having

)|( skinrgbp

and

)|( skinrgbp

we calculate

)|( rgbskinp

for each color rgb using Bayes

rule:

)()|()()|(

)()|(

)|(

skinpskinrgbpskinpskinrgbp

skinpskinrgbp

rgbskinp

¬¬+

(2)

)|( rgbskinp

indicates the probability of observing skin,

given a color rgb. The prior probabilities

)(skinp

and

)( skinp ¬

are estimated from the overall number of skin

and non-skin samples in the training sets

(Jones, 2002).

4 GENERATING THE SKIN

LIKELIHOOD MAP

The skin likelihood map is a gray-scale image whose

gray values represents the likelihood of the pixel

belonging to the skin class. In this section we

describe our technique for generating the skin

likelihood map.

4.1 Processing Different Brightness

Levels for Handling Illumination

Variation

In our system, we handle the problem of

illumination variation by generating a set of different

brightness levels of the image, and assigning skin

likelihood to each pixel by processing its colors in

different brightness levels. Each brightness level can

be generated by raising the color component

intensities to the power of γ, where γ is:

)1(1

≤

⎩

⎨

⎧

−

(3)

The modified image is darker if β is between 0 and

1, and is brighter if β is between -1 and 0.

Once the brightness levels are computed, the skin

likelihood of each pixel is obtained by performing

the following equation,

∑

rgbskinpyxsl )|(),(

(4)

where

rgb

is the color of pixel (x,y) in n

brightness level.

The number of required brightness levels can be

automatically determined for each image by

analyzing its color histogram. However, for the sake

of simplicity and fast performance, we only process

two brightness levels besides the original image: (i)

a darker level with β=-0.5 and (ii) a brighter level

with β=+0.5. (see Figure1.a)

4.2 Incorporating Neighborhood

Information

Besides the color information, which exhibits a

reasonable degree of separability between skin and

non-skin classes, there is another source of

information that can be used in skin detection: skin

regions have low texture and a homogeneous local

color distribution. There have been some reports in

the literature that incorporate this property in their

detection process. However, most of them were

either computationally expensive or applicable to

only some particular situations (Alibiol, 2001)

(Martinkauppi, 2002).

In this paper, we employ a very simple and fast

technique for considering the neighborhood

information in classifying a pixel into skin or non-

skin classes. Assuming a wxw window centered at a

given pixel (x,y), the skin likelihood of pixel (x,y) is

increased using the following equation:

⎣⎦

∑∑

−=−=

+++=

),(

),(),(

jyixsl

yxslyxsl

(5)

w can be any odd number between 3 and min(W,H),

where W and H are the width and the heights of the

image, respectively.

Although equation 5 is nothing but a set of

addition and a division operations, for w>5 its

computational cost can be considerable. Therefore

we employ an intermediate representation for sl,

called the integral image (Viola, 2001), which

provides a very fast scheme for computing sl*.

ROBUST HUMAN SKIN DETECTION IN COMPLEX ENVIRONMENTS

(a)

(b) (c)

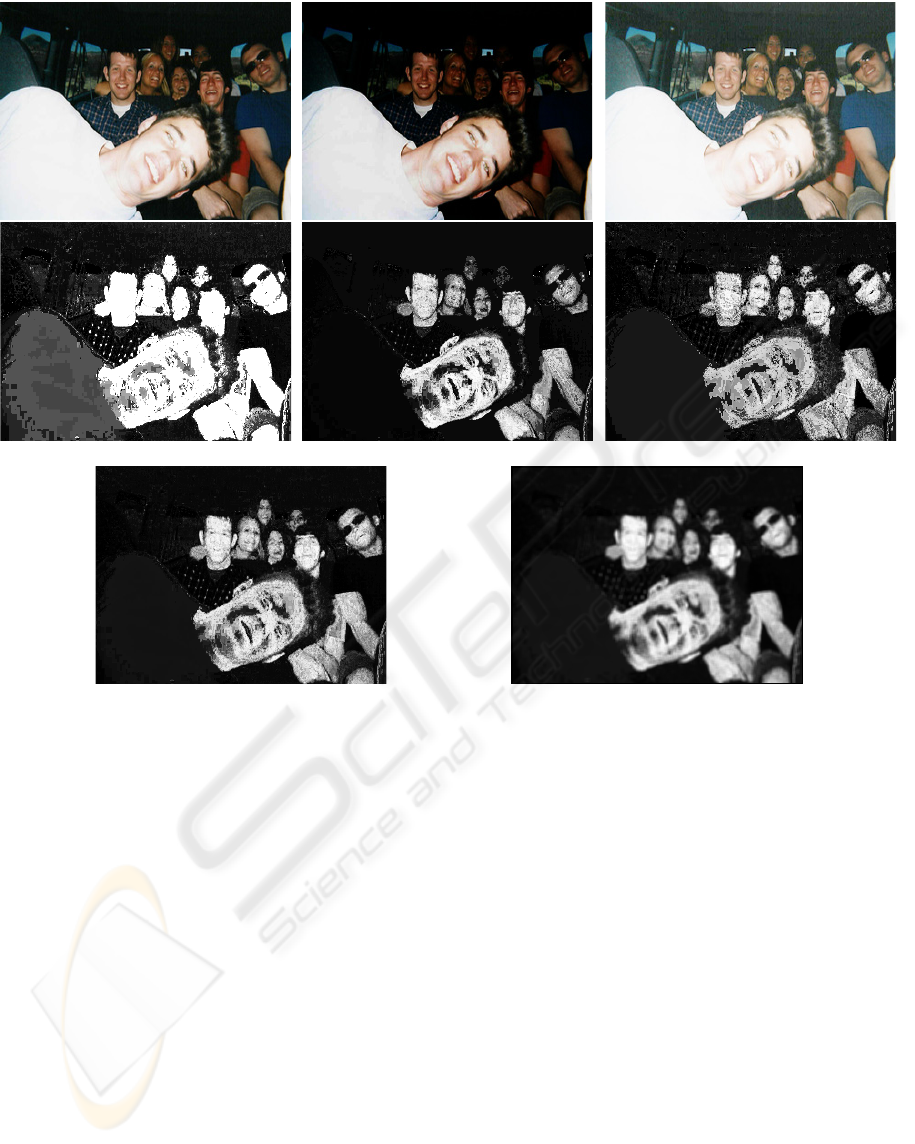

Figure1: (a) Shows three brightness levels of a sample image, as well as the skin probability of the color of each pixel in

different brightness levels, for β=0, β=-0.5, and β=+0.5, from left to right. (b) Shows the skin likelihood, sl, obtained by

using Eq.4, and (c) shows sl*, our final skin likelihood map. As can be seen, sl*, appears qualitatively more accurate than sl

and any of the skin probability maps generated in different brightness levels.

The integral image at location (x,y) contains the

sum of the pixels above and to the left of (x,y).

Using the integral image any rectangular sum can be

computed in four array references with four simple

addition and subtraction operations. (for details on

generating the integral image, see (Viola, 2001)).

Figure1.c shows sl* for the skin likelihood

(figure 1.b) of a sample image. As can be seen, the

likelihood of a pixel with skin-like neighbors will be

increased much more than the likelihood of a pixel

with non-skin-like neighbors, although the skin

likelihood of both pixels might be the same. This

helps to ignore the small skin like background

objects and disregard the small holes in skin regions.

After incorporating neighborhood information,

we scale the skin likelihood map to 256 gray levels,

after which, thresholding is applied.

5 THRESHOLDING THE SKIN

LIKELIHOOD MAP

5.1 Thresholding Strategies

In order to segment the skin regions from a skin

likelihood map, a thresholding process should be

used. Most of the currently available skin detection

strategies have not paid sufficient attention to the

thresholding process and simply select a fixed value,

obtained by analyzing the receiver operating

characteristic (ROC) curve. However, we believe

that different images of different people with

different skins cannot be binarized using a unique

fixed threshold value. In this section we compare

VISAPP 2006 - IMAGE UNDERSTANDING

several state-of-the-art thresholding methods, as well

as a number of constant thresholds, to examine if

applying an adaptive thresholding strategy can

improve the detection performance.

Five methods are used in the skin likelihood

thresholding for comparison: Otsu’s method (Otsu,

1979), Pal & Pal’s local entropy (LE), global

entropy (GE), and joint entropy (JE) methods (Pal

and Pal, 1989), and Jones’s constant thresholding

(Jones, 2002). The skin likelihood maps of 27

randomly selected images from the db-skin dataset

were used for the experiments. Table1 shows the

performance of the five adaptive thresholding

strategies as well as the performance of three fixed

threshold values. Also the performance of three

adaptive techniques as well as Jones fixed strategy

on a difficult sample image is illustrated in figure 2.

Table1: The performance of different thresholding

strategies.

Methods False Negative False Positive

Otsu 6.9% 20.7%

Pal & Pal (GE) 8.4% 17.6%

Pal & Pal (LE) 9.9% 16.0%

Pal & Pal (JE) 8.2% 18.8%

Jones: 128 9.9% 17.7%

Fixed: 110 7.0% 22.2%

Fixed: 150 17.0% 11.4%

Fixed: 200 20.1% 10.2%

Based on our experimental results, we selected

Pal & Pal’s local entropy technique for thresholding

our skin likelihood maps, due to its trade-off

between false positive and false negative rates.

5.2 Local Entropy Thresholding

Method

Entropy is the measure of the information content in

a probability distribution. To provide the probability

distribution needed for the entropy measures, a co-

occurrence matrix is generated from the input image.

It is a mapping of the pixel to pixel grey scale

transitions in the image between the neighboring

pixel to the right and the pixel below each pixel in

the image. From the co-occurrence matrix comes the

distribution of grey scale transitions. The candidate

threshold divides the co-occurrence matrix into four

regions representing within object, within

background, object to background, and background

to object class transitions (see figure2). Then, the

second-order local entropy is computed by using the

local entropies of backgrounds and objects:

),()()(

)2()2()2(

tHtHtH

CAlocal

(6)

log

∑∑

−=

titj

255

log

∑∑

+=+=

−

In the above equation

)2(

H and

)2(

H are the local

entropies of background and objects, respectively.

The optimal threshold is found by maximizing the

)(

)2(

local

. For more details about the algorithm see

(Pal and Pal, 1989).

255

A B

D C

Figure2: Quadrants of a co-occurance matrix. A and C are

background and object respectively

5.3 Post-processing

Once the thresholding process has been done, we

perform a simple region growing technique,

iteratively, in order to add those pixels which are (i)

very close to a skin region, and (ii) have skin

likelihoods just under the applied threshold. This

helps to cover the skin edges which might be

removed during the incorporation of neighborhood

information.

6 EXPERIMENTS

Our experiments have been done on the db-skin

dataset, which contains 102 images under real-world

conditions, obtained from Internet and from

digitized news videos.

The majority of the images are difficult to

segment, due to either bad lighting conditions or

complex backgrounds containing surface and objects

with skin like colors.

ROBUST HUMAN SKIN DETECTION IN COMPLEX ENVIRONMENTS

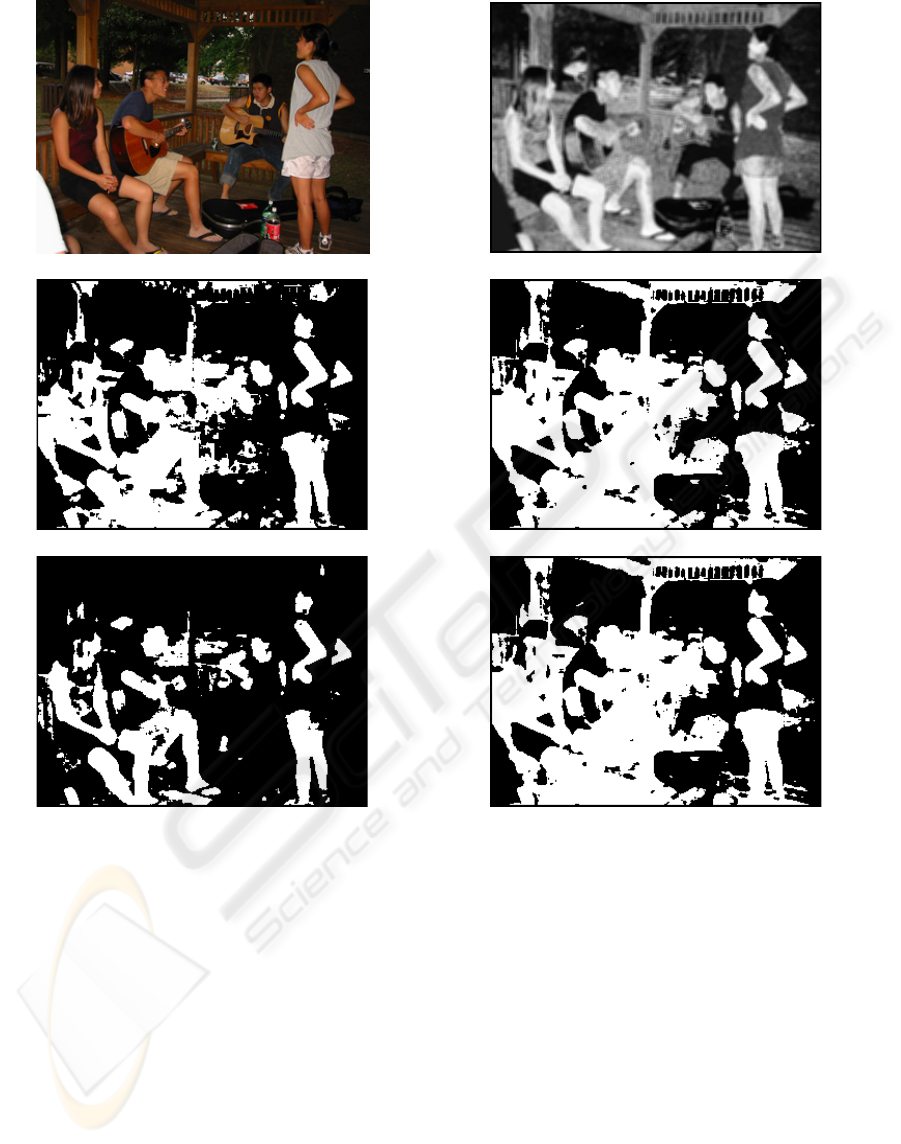

Original image Skin likelihood map

Jones performance Otsu performance

Local entropy performance Global entropy

Figure2: The performances of different thresholding strategies on a sample image with a great amount of skin-like

background colors.

The result of applying some state-of-the-art

algorithms on a set of 27 selected images from the

db-skin dataset are reported in (Ruiz-del-Solar,

2004, FGR) and (

Ruiz-Del-Solar, 2004, ICIP). The

evaluated methods were: Jones1, which corresponds

to the MoG classifier proposed in (Jones, 2002)

using skin color model and a fixed threshold;

Jones2, the same as Jones1 but with employing non-

skin color model as well; SkinDiff, which

corresponds to the skin detection method proposed

in (

Ruiz-Del-Solar, 2004, ICIP) (RGB, MoG, and

diffusion algorithm); and HSU, which corresponds

to the skin detection algorithm proposed in (

Hsu,

2002) but without the use of whitening

compensation.

In order to compare our results with the

evaluated methods, we randomly selected 27 images

for testing and the rest for training. Since we did not

know which images had been used by Solar et al.

(Ruiz-del-Solar, 2004, FGR) (

Ruiz-Del-Solar, 2004,

ICIP) in their experiments, we performed our

experiments three times and for each time with

different sets of training and testing images. Then

we averaged the results. Table2 shows the

performance of or skin detection method, in

comparison with four previously evaluated methods.

VISAPP 2006 - IMAGE UNDERSTANDING

Table2:

The performance of our skin detection algorithm

in comparison with four state-of-the-art methods at a false

positive rate of ~0.17. Our results are the average of three

performances in different sets of randomly selected

images.

Methods Detection rate False positive

HSU 73.0% 17%

Jones1 85.0% 17%

Jones2 86.5% 17%

SkinDiff 88.1% 17%

Our method 92.1% 17.2%

Even though a considerable amount of

processing is employed for implementing our

method, a reasonable high processing speed is

achieved. It is worth to mention that the cost of

processing different brightness levels implemented

by LUT (look-up table), or incorporating

neighborhood information implemented using

integral image representation, was even less than the

transformation of the RGB color space to some other

color spaces like CIELAB or HIS, which have been

used by various researchers. However, the cost of

employing an adaptive thresholding strategy,

especially the entropic ones, is remarkable. The

computational time of our method for processing a

320x240 image is approximately 1.1s on a 3.06 GHz

CPU. However, this time is decreased to 0.28s by

employing a fixed value threshold.

7 CONCLUSION AND FUTURE

WORK

In this paper a novel skin detection algorithm was

proposed for handling the real-world situations, such

as bad lighting conditions or skin-like background

colors. Three contributions of our work are: (i)

processing each pixel in different brightness levels

for handling the problem of illumination variation;

(ii) presenting a fast and simple method for

incorporating the neighborhood information in

processing each pixel; and (iii) presenting a

comparative study on thresholding the skin

likelihood map, and employing local entropy

technique for binarizing our skin likelihood map.

The details of our method are described and the

detection performance is compared with some state-

of-the-art methods using a set of real-world images,

obtaining better results.

One of the directions that we are considering for

future work is to incorporate texture and shape into

our skin detection method. Furthermore, we intend

to apply our skin detection strategy to additional

applications such as nudity detection and adult

image filtering.

ACKNOWLEDGMENTS

The authors would like to acknowledge the

Communication and Information Technology

Ontario (CITO) for partially supporting this work.

REFERENCES

Aggarwal, J.K.; Cai, Q., 1997. Human motion analysis: a

review. In Nonrigid and Articulated Motion Workshop

1997, IEEE Proceedings.

Alibiol, A. and Torres, L., 2001. Unsupervised color

image segmentation algorithm for face detection

applications. In Proc. 3rd IEEE International

Conference on Image Processing.

Comaniciu, D. and Ramesh, V., 2000. Robust detection

and tracking of human faces with an active camera. In

Proc. 3rd IEEE International Workshop on Visual

Surveillance.

Dai, Y. and Nakano, Y., 2002. Face-texture model-based

on SGLD and its application in face detection in a

color scene. Pattern Recognition, 29(6).

Funt, B. and Barnard, K., 1998. Is machine color

constancy good enough?. In Proc. 5th European

Conference on Computer Vision

Hsu, R. L., Abdel-Mottaleb, M. and Jain AK., A. K.,2002.

Face detection in color images. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 24(5).

Jayaram, S.; Schmugge, S.; Shin, M.C.; Tsap, L.V., 2004.

Effect of colorspace transformation, the illuminance

component, and color modeling on skin detection.

In CVPR 2004, Proceedings of the 2004 IEEE

Computer Society Conference Volume 2.

Jones, M.J. and Rehg, J.M., 2002. Statistical color models

with application to skin detection. International

Journal of Computer Vision, 46(1).

Pal, N. and Pal, S., 1989. Entropic thresholding. In Sygnal

Process.

Piirainen, T., Silv´en, O. and Tuulos, V., 2000. Layered

selforganizing maps based video content

classification. Workshop on Real-time Image

Sequence Analysis.

Martinkauppi, B., 2002. Face color under varying

illumination – analysis and applications. Ph.D. thesis,

University of Oulu.

Martinkauppi, B.; Soriano, M.; Pietikainen, M., 2003.

Detection of skin color under changing illumination: a

comparative study.

In Image Analysis and Processing, 2003.Proceedings.

12th International Conference.

Ming-Hsuan, Y.; Kriegman, D.J.; Ahuja, N., 2002.

Detecting faces in images: a survey.

ROBUST HUMAN SKIN DETECTION IN COMPLEX ENVIRONMENTS

In Pattern Analysis and Machine Intelligence, IEEE

Transactions, vol 24.

Otsu, N., 1979. A threshold selection method from gray-

level histograms. In IEEE Trans. Syst. Man Cybern.

Ruiz-Del-Solar, J. and Verschae, R., 2004. Robust skin

segmentation using neighborhood information. In.

Proc.IEEE International Conference on Image

Processing (ICIP).

Ruiz-del-Solar, J. and Verschae, R., 2004. Skin detection

using neighborhood information.

In Automatic Face and Gesture Recognition, 2004

(FGR). Proceedings. Sixth IEEE International

Conference.

Son, L.M., Chai, D. and Bouzerdoum, A., 2001. A

universal and robust human skin color model using

neural networks. Proc. IJCNN ’01 International Joint

Conference on Neural Networks, vol. 4.

Stern, H; Efros, B., 2002. Adaptive color space switching

for face tracking in multi-colored lighting

environments. In Automatic Face and Gesture

Recognition, 2002. Proceedings. Fifth IEEE

International Conference.

Viola, P. and Jones, M., 2001. Rapid object detection

using a boosted cascade of simple features. In Proc.

IEEE CVPR.

Xiaojin, Z.; Jie Y.; Waibel, A., 2000. Segmenting hands of

arbitrary color. In Automatic Face and Gesture

Recognition Proceedings. Fourth IEEE International

Conference.

VISAPP 2006 - IMAGE UNDERSTANDING
