MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS
TRAFFIC CONTROL SCHEME
Modeling Asynchronous Message Queuing Communication on MPLS VPN
Hiroshi Yamada
NTT Service Integration Laboratories, Communication Traffic Project,
3-9-11, Midori-Cho, Musashino-Shi, Tokyo, Japan
Akira Kawaguchi
NTT Advanced Technology Corporation, Core Networks Business Headquarters,
1-19-3, Nakacho, Musashino-Shi, Tokyo, Japan,
Keywords: Message queuing, Distributed application, SOA (Service Oriented Architecture), RFID (Radio frequency
identification), Sensor network, MPLS VPN (Multiprotocol label switching virtual private network), Traffic
controlInternet services, Dial-up networking.
Abstract: Message oriented middleware is being used as an advanced enterprise application integration tool. It can
establish reliable asynchronous communication sessions between distributed application objects. In such
enterprise communications, guaranteed message delivery is critical. In this paper, we consider message
queuing communication on an MPLS VPN. In client VPN sites, a large amount of data is generated by
computers and it is stored in the local message queue. Then data is processed, filtered, and sent to the
remote message queue in the server VPN site. In the server VPN site, stored messages are dequeued and
sent to the business application or database servers in the server VPN site. The data generating processes in
the local VPN sites may be different. Data may be generated explosively during a short period in some
local VPN sites. It is necessary to utilize the message queue resources in the whole VPN efficiently in order
to avoid an overflow of messages and to guarantee the message delivery during such a bursty period. This
paper describes a traffic control scheme that can adaptively change the rate at which data is sent from the
local message queue in the VPN site to the remote message queue in the server VPN site. We created a
OPNET simulation model that can precisely simulate the above control scheme on an MPLS VPN and
showed its effectiveness through simulation studies.
1 INTRODUCTION
Many enterprises are introducing the service
oriented architecture (SOA) concepts (Chappell,
2004) and distributed computing technologies to
visualize the flow of information and money.
Although enterprise application integration (EAI)
tools have been introduced, the hub and spoke
architecture that old EAI tools need is not scalable,
so several expansions are needed to enable us to
efficiently communicate among several distributed
application objects. As an advanced infrastructure
that provides such distributed application integration,
message oriented middleware (MOM) is being
introduced. It can establish reliable asynchronous
communication sessions between distributed
application objects.
Radio frequency identification (RFID)
technologies enable direct machine-to-machine or
device-to-device communications within distributed
computer networks. RFID is being applied to
enterprise applications (Clauberg, 2004), (Sikander);
for example, supply chain management (SCM),
baggage handling in airports, sensor networks for
environmental monitoring, and condition-based
maintenance systems. Compared with the data flow
of Web access, where a large amount of data flows
from a central web server to clients, such machine-
to-machine or device-to-device communication
traffic flows from devices to a few central servers.
In addition, this traffic needs high transactional
guarantees. If data transportation is disrupted, the
system is required to perform rollback recovery to
46
Yamada H. and Kawaguchi A. (2006).
MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous Message Queuing Communication
on MPLS VPN.
In Proceedings of the International Conference on e-Business, pages 46-54
DOI: 10.5220/0001424700460054
Copyright
c
SciTePress
maintain consistent integrity of the data. Guaranteed
message delivery is critical in many systems like
SCM. This is the reason that message queuing is
adopted as the communication scheme. Message
queuing communication can be divided into
communication between the device and the server
using the message queue. For example, let us
consider that the data that is obtained by the RFID
reader is processed in the remote application server.
If the synchronous communication scheme is
adopted, then when the remote application is busy,
the application will be locked up and a lot of data
will be lost. RFID cannot process other jobs while it
is waiting for the acknowledgement from the remote
application server. If asynchronous communication
like message queuing communication is adopted,
then even if the remote application is busy, the
generated message is stored in the local message
queue, sent to the remote message queue, and then
sent to the remote application server. The message
queue communication can achieve the guaranteed
message delivery.
For enterprises that want to create an SCM
system with other partners like suppliers, deliverers,
and retailers, the virtual private network (VPN)
service is a cost-effective solution. The MPLS VPN
(multiprotocol label switching virtual private
network) service can provide secure and any-to-any
connectivity to subscribers (Pepelnjak et al., 2003).
Therefore, most enterprises use a VPN service to
connect to remote applications. The MPLS VPN is
provided on a wide-area public network by the
network provider. In the MPLS VPN, any node can
belong to several VPNs if the policy of the import
and export of the routing distinguisher is suitably
configured. So, if the enterprises want to gather and
process the data obtained from several enterprise
VPNs, the network provider can provide the node as
the root message queue, which can communicate
with the enterprise client message queue nodes.
Using the MPLS fast rerouting technology, when a
failure occurs in nodes or links in the middle of the
LSP (label switched path) in the MPLS network, the
local protection mechanism for the LSP starts
immediately and becomes effective in a short time.
Compared with the enterprise network built by the
enterprise itself, it is generally more cost-effective
for users to create a message queue application
overlay network on the MPLS VPN that is provided
by the network provider.
In this paper, we consider message queuing
communication on an MPLS VPN from the
viewpoint of a network service provider. In some
VPN sites, a large amount of data is generated and
stored in the local message queue at once. The
remote message queue is in the server VPN site.
The database or application servers are in this server
VPN site. The data stored in the local message
queue in local VPN sites is sent to the remote
message queue in the server VPN site according to
the message queuing transport protocol. To keep the
integrity of the data, the local message queue makes
a copy of the original message and stores it when the
local message queue sends the original message.
The local message queue can discard the stored copy
message only when an acknowledgement from the
remote message queue has been received. The data
generating processes in the local VPN sites may be
different. Messages may be generated explosively
during a short period in some local VPN sites.
Because there is a limit on the length of the local
message queue, an overflow can occur. In this paper,
we propose a traffic control scheme. To avoid an
overflow in such a case, it is necessary to utilize the
message queue resources in the whole VPN
efficiently. In this control scheme, the rate at which
data from the local message queue in local VPN
sites is sent to the remote server message queue is
adaptively controlled according to a control rule and
the volume of messages in all local message queues
in the VPN. To confirm the effectiveness of such a
traffic control scheme in message queuing
communication, we created precise simulation
models by OPNET (OPNET) and analyzed its
effectiveness for these simulation models.
This paper is organized as follows. The
architecture of an RFID application using the
message queuing scheme is explained as an example
in section 2 and an overview of the MPLS VPN is
shown. The traffic control scheme and OPNET
modeling are explained in section 3. In section 4,
the effectiveness of the proposed traffic control
scheme is examined through simulation studies.
Section 5 summarizes the control scheme and
mentions further studies.
Figure 1: Software architecture.
Applications
(e.g., SAP, database, …)
Message queues
(e.g., MSMQ, MQ Series, JMS, …)
\Device manager/OS
(e.g., RFID, UNIX, Windows, ...)
Business processes
(e.g.,. Supply chain management)
MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous
Message Queuing Communication on MPLS VPN
47
2 REFERENCE ARCHITECTURE
2.1 Software Architecture
(Chappell, 2004), (Sikander), (Strauss), and (BEA)
showed software architecture models for MOM
systems or RFID application. They all considered
the following four layers, as shown in Figure 1:
device manager layer, message queuing
communication layer, application layer, and business
process layer. In the message queuing layer, the
commercial message queuing products are used, for
example, MSMQ (Microsoft message queue) and
JMS (Java messaging service). The message
queuing communication scheme is explained in
detail in Section 3
.
2.2 MPLS VPN
VPN is a network over the public service provider
network. MPLS VPN is a networked-VPN that can
provide any-to-any connectivity among several VPN
sites. An MPLS LSP is established between the PE
(provider edge) routers. The PE routers have the
routing instance, VRF (VPN routing and
forwarding) table. For each VPN, VRF is
configured. Information about routes in the VPN
sites is exchanged using the MP-iBGP
(multiprotocol interior border gateway protocol)
among all PE routers. Two labels, VPN label and
LSP label, are attached to the arriving packet at the
ingress PE router. In the provider network, a packet
is forwarded according to the LSP labels instead of
the destination address of the packet. At the egress
PE routers, the VPN label is popped and forwarding
to the appropriate VPN sites according to the VRF.
To reduce the operation expenditure and capital
expenditure, most enterprises use the provider VPN
service instead of building their own network.
Therefore, the message queuing communication
traffic among the distributed message queues in

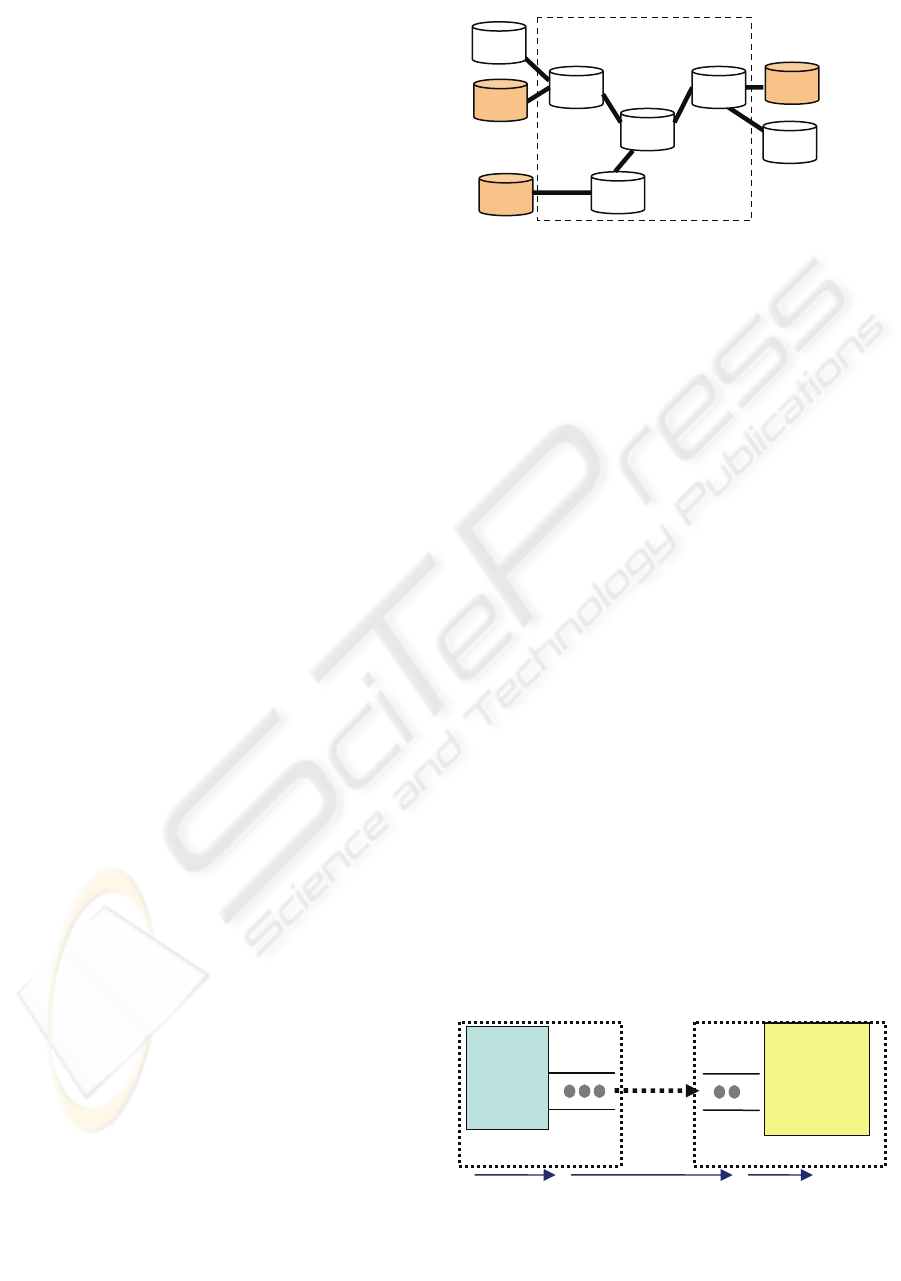

several VPN sites may flow in the VPN. Figure 2
shows the MQ service on the MPLS VPN. In this
figure, the MQ node works as the CE router and the
message queuing (MQ) server
.
3 MESSAGE QUEUING
COMMUNICATION ON MPLS
VPN VARIABLES
3.1 Overview
We explain how message queuing middleware can
certainly deliver the messages using the example in
Figure 3. In this figure, the sender application tries
to send a message to the receiver application. The
message queuing communication is asynchronous.
Therefore, this communication is treated as three
transactions: (1) the sender application puts the
message in the local message queue, (2) the local
message queue moves the message to the remote
message queue, (3) the receiver application gets
message from the remote message queue. Because
the above transactions are completely separate,
recovery is possible in the event of a failure. In
transaction (1), the first transaction is completed
when the local message queue stores a message. In
transaction (2), the second transaction is completed
when the message is moved and surely stored in the
remote message queue. Finally, in transaction (3),
the third transaction is completed when the
application gets the message. The remote
application is ignorant of the states of the local
application and message queues. Message queuing
communications mainly corresponds to transaction
(2) in the above example. The message stored in the
sender message queue is not removed until an
acknowledgement of its reception by the receiver
message queue is received in the sender message
queue
.
Here, we remark on the features of traffic in
RFID or sensor networks. One is the direction of the
MQ: Message queue
CE: Customer edge router
PE: Provider edge router
P: Provider router
Figure 2: MQ service on VPN.
Sender
AP
Network
Receiver
AP
MQ 1
MQ 2
Remote
Put
Get
Trans. (1)
Trans. (2)
Trans.
(
3
)
Local
Trans.(i) : Transaction (i)
Figure 3: MQ communication.
PE
P
PE
MQ
MQ
MQ
CE
MPLS VPN Domain
Client MQ
Client MQ
Root MQ
CE
PE
ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS
48
traffic flow. In such networks, the direction of
traffic flow is from multiple local sites to a few
central server sites. Second, the message delivery is
strongly required to be guaranteed. In the case of
failures in a node or a link in the network, a rollback
scheme is required to maintain the consistency of the
data. Even if the messages are explosively
generated in the local VPN sites, their delivery
should be guaranteed. If synchronous
communication like ftp or Web access is adopted,
the local server must wait for the acknowledgement
from the remote server. When the network is
congested, the acknowledgement is delayed and the
local server may lose some messages generated
during this delay. Because the transactions are
independently separate in the message queuing
middleware in figure 3, these messages are stored in
the message queue and never lost if we configure the
queue size well
.
3.2 Modeling of Message Queuing
Communication
In order to simulate the message queuing
communication on MPLS VPN that explained in the
previous subsection, we developed a simulation
model using OPNET. Here, we briefly explain the

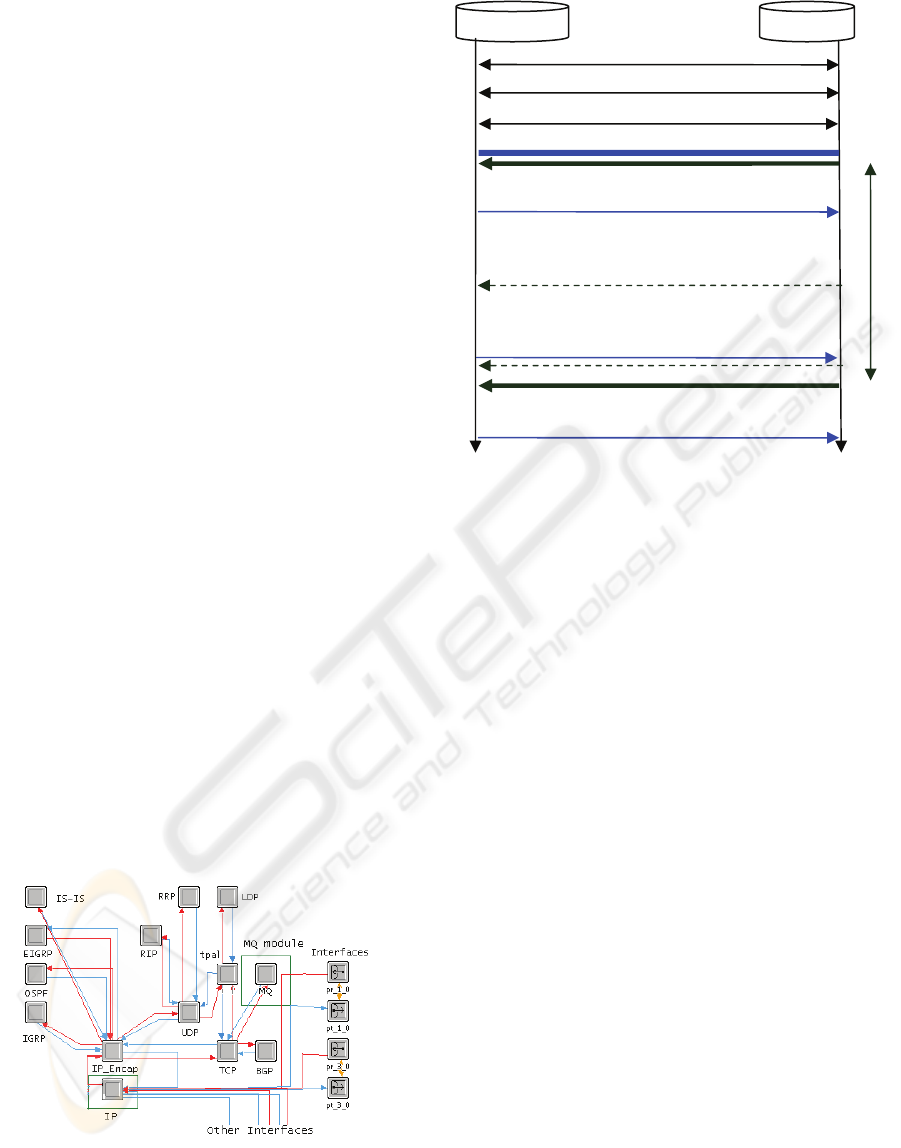

modeling. The OPNET node model of the message
queuing node is shown in figure 4. This message
queuing (MQ) node model consists of several
protocol modules (for example, IP, TCP, UDP, and
several routing protocols) and receiver and
transmitter interfaces. Because the developed MQ
node establishes a TCP connection between the
other MQ nodes, the MQ module is connected to the
TCP protocol module. The MQ module deals with
the message queue communication protocol. Other
routing and IP modules deal with the routing process
as the CE router. Here we consider two types of MQ
node, the client MQ node and root MQ node.
In the client MQ node, the message generating
module is connected to the MQ module. In this
simulation model, the messages are generated in the
client MQ node. Generally, the client MQ node
receives messages from many RFID devices or PCs
by wireless or wired communication and stores
them. Here, for the sake of simplicity, we do not
model the above communications between client
MQ nodes and other devices including the
application server. Instead of modeling the above
wireless or wired communication, we add a traffic
generator module in the client MQ node model to
generate messages, which are sent to the MQ
module, which stores them in the message queue. In
the root MQ node, the messages stored in the
message queue are removed at the rate they are
transferred to the application server in the server
sites.
It is necessary to establish a secure connection
between client MQ and root MQ nodes. The
procedure for establishing the connection is shown
in figure 5. It is similar to that of BGP (border
gateway protocol). In our model, neighbour
information is configured in each message queuing
node. This information provides the IP address and
network mask of the remote MQ node and the
update source that is the source interface of the MQ
connection. First, each MQ node establishes a TCP
connection. After that, they exchange MQ_OPEN
and MQ_KEEPALIVE messages. When they both
receive a KEEPALIVE message, the MQ connection
is established. The messages in the client MQ node
are dequeued and sent to the remote root MQ node
This is a snapshot of the OPNET node model in the root
MQ node. In the client MQ node model, the traffic
generator module is added and this module is connected
to the MQ module.
Figure 4: Node model.
Client MQ
Root MQ
TCP connection is established.
MQ_OPEN messages are exchanged.
MQ_KEEPALIVE messages are exchanged.
MQ session is established.
The initial rate for sending data is reported
using the control message
Data messages are sent. Weight value that
indicates the current MQ size in the client MQ
is also reported using the data message.
The calculated rate for sending data is reported
using the control message.
……
T
Acknowledgement is sent. When the Client
MQ receives it, the copy message in the MQ is
discarded.
Figure 5: Procedure for establishing MQ connection.
MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous
Message Queuing Communication on MPLS VPN
49
through the established MQ connection. In order to
guarantee secure delivery, a copy message is created
when the original message is dequeued. If the client
MQ node receives the acknowledgement of
receiving the message from the root MQ node, then
the copy is removed and the MQ transaction is
completed. If the acknowledgement does not arrive
at the client MQ node, the copy is not be removed.
The control information is sent from the root MQ
node to the client MQ node through the established
MQ session. The management scheme of the MQ
session is the same as that of the BGP session
.
3.3 Control Scheme to Deal with
Messages Generated Explosively
During a Short Period
Congestion control has been an active research area
for Internet protocols. These schemes are for best-
effort delivery and assume that all receivers get the
same set of messages. In contrast, as mentioned in
(Pietzuch et al., 2003), compared with an Internet
router, in a message queue, the ratio of maximum
queue size to the message processing throughput is
larger. The large queue can handle the burstiness
due to the application-level scheduling. In message
queuing communication, the messages may be
filtered or processed in the intermediate message
queue server. Because messaging communication is
sensitive to loss rather than to delay, the rate at
which messages are sent from the client MQ node to
the root MQ node is determined not by the end-to-
end delay but by the queue sizes of all client MQ
nodes
.
(Pietzuch et al., 2003) proposed the congestion
control scheme in the context of a publish/subscribe
messaging model. In their model, a feedback loop
control scheme is implemented between a publisher-
hosting broker and all subscriber-hosting brokers,
which is used to adjust the rate of publishing new
messages. Messaging middleware is deployed as an
overlay network of application-level routers
.
The basic idea of our congestion control scheme
is similar to that of (Pietzuch et al., 2003). In our
model, the feedback protocol explained in the
previous section is implemented between the client
MQ and root MQ nodes. The rate at which data is
sent from the local message queue in the VPN site to
the remote message queue in the server VPN site is
determined by the message size in each client MQ in
order to utilize the message queue resources in the
whole VPN efficiently. In this paper, we consider
that the MPLS VPN network is used to make the
application overlay network. We consider that the
network service provider provides a customer edge
node that has a large message queue and the function
of the message queuing communication.
The processes of generating messages in the
client MQ node are different and messages may be
generated explosively during a short period in some
client MQ nodes. Because there is a limit on the
size of the message queue, an overflow will occur in
this situation. In order to avoid overflows, it is
necessary to utilize the MQ resources in the whole
VPN efficiently.
In this paper, the following traffic control scheme
is considered. In this control scheme, the rate at
which data is sent from the client MQ node in VPN
sites to the root MQ node in the VPN server sites is
adaptively controlled according to the control rule
and the volume of messages in all client MQ nodes.
For simplicity, we explain it using the following
example. We considered three client MQ nodes and
one root MQ node in this simulation experiment.
The stored messages in the root MQ node are sent to
the server applications in the server site at the
maximum R bps. An index like MQi (i = 1, 2, 3) is
assigned. In the initialization, the root MQ sends a
control packet to the i_th client MQi
node to report
the initial rate R
i
(i = 1, 2, 3). The initial value, R
i,
is
equal to R/3. The client MQi node always measures
the total volume of stored messages in the MQ node.
Multiple threshold values and weights for the stored

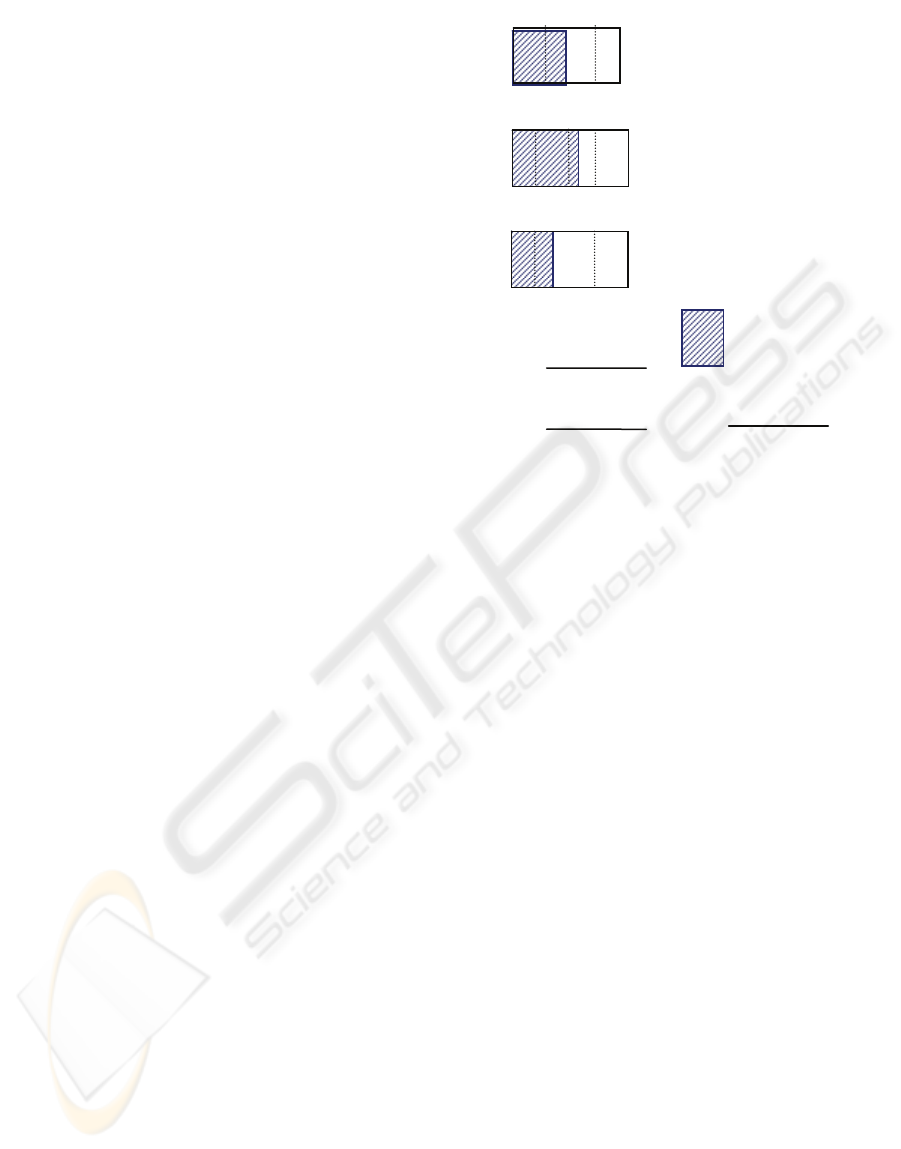

message size are configured, as shown in figure 6.
When the client MQ node sends the message to the
root MQ node, the current weight value is measured
and this value is set in the field of the MQ packet.
For example, the current message queue size in
MQ1 in figure 6 is larger than T
11
but less than T
12
,
w
1
w
3
0
T
11
T
12
T
13
w
4
w
5
w
6
w
7
w
i
: i th weight.
T
ij
: i th value of the
threshold of queue of
MQi.
R
i:
rate for sending
message from client MQi
to root MQ.
Values of weight and
threshold are defined in
eac
h M
Q
i
.
0
T
21
T
22
T
2
T
24
MQ1
w
8
w
9
w
10
0
T
31
T
32
T
33
MQ3
R
1
=
R
w
2
+ w
6
+ w
9
w
2
R
2
=
R
w
2
+ w
6
+ w
9
w
6
R
3
=
R
w
2
+ w
6
+ w
9
w
9
w
2
This indicates
the current
queue size.
MQ2
Figure 6: Calculation of the transmitting rate.
ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS
50
so, the current weight is w
2
. In the same way, the
current weights of MQ2 and MQ3 are w
6
and w
9,
respectively. The MQ packet has some fields. The
original message is stored in the message field. The
current weight value of the client MQ node is set in
the weight field. In figure 6, MQ1 reports the
current weight, w
2
, to the root MQ. MQ2 and MQ3
report the current weights, w
6
and w
9
, respectively.
The root MQ node maintains the table of the
current weights of all client MQ nodes and the
elapsed time after the last expired time. The timeout
value is determined in the root MQ node. When the
root MQ node receives the MQ packet, it updates
this table. When the elapsed time exceeds the
timeout value, the root MQ node calculates the new
rate R
i
according to the equations shown in figure 6.
The new rate R
i
is calculated as R multiplied by the
ratio of the latest MQi node’s weight to the
summation of the latest total weights of all client
MQ nodes. The calculated new rate value, R
i,
is
reported by sending a control packet to each client
MQ node. The timer in the root MQ node is reset
and restarted again.
When the client MQ node receives this control
packet, it changes the rate at which message data is
sent to the root MQ node. As a result, when the
number of messages in the client message queue
increases because of an explosive generation of
messages during a short period, more messages in
the client MQ node are sent to the root MQ node
than before. In this way, we can avoid an overflow
in this client MQ node.
4 CASE STUDIES
4.1 MPLS VPN Configuration
In the case study, we considered the MPLS VPN
shown in figure 7. The network model consisted of
five P routers, four PE routers, four CE routers, six
client MQ nodes, and 2 root MQ nodes. The OSPF
(open shortest path first) protocol was running as the
baseline IP routing protocol. MPLS (multiprotocol
label switching) and LDP (label distribution
protocol) were configured in the provider network,
which consisted of P and PE routers. The LSPs
were fully meshed among all PE routers. The VRF,
router target, and route distinguisher were
configured in the PE routers for each VPN. The
static routing was configured between the PE and
CE routers. In order to advertise the prefixes
belonging to VPN sites, MP-iBGP was configured.
MP-iBGP sessions were established among all PE
routers in full mesh fashion. The static routing from
PE router to CE router was redistributed in the MP-
iBGP. In the VPN sites, RIP (routing information
protocol) was configured. In our simulation model,
when a packet from VPN sites arrived at the ingress
PE router, two labels were assigned: a VPN label
and an LSP label. In the provider network, label
packets were forwarded according to the label
forwarding table. When the packet arrived at the
egress PE routers, the VPN label was popped and
the packet was forwarded to the appropriate CE
routers or MQ nodes according to the VRF table
.
4.2 MQ Node Configuration
The message queue sizes were set to 4 Mbytes for
the root MQ node and 1 Mbytes for the client MQ
node. The stored messages in the root MQ node
were transmitted to the application server at 1 Mbps
(R). In this simulation model, a block consisting of
25 messages was removed from the root MQ node
every 1 second. The message size was fixed at 5k
bytes. Therefore, the client MQ node could store a
maximum of 200 messages. The interval of
calculating the rate (T in figure 5) was set to 2 s in
the root MQ node. In the client MQ node, the
weight values and threshold values in the client MQ
node were configured. When the current utilization
of the client MQ node was equal to or greater than X
* 10% and less than 10 * (X + 1)%, the weight value
(w
i
) was set to X (X = 0, 1, …, 9). The neighbour
information about the client MQ node was similar to
that of the BGP neighbour configuration. The IP
address of the remote MQ node was set to that of the
root MQ node in the client MQ node. The update
source was set to the loopback interface. In the root
MQ node, the number of neighbour client MQ nodes
was three. The IP address of the remote MQ was set
to that of the client MQ node. The update source
was set to the loopback interface
.

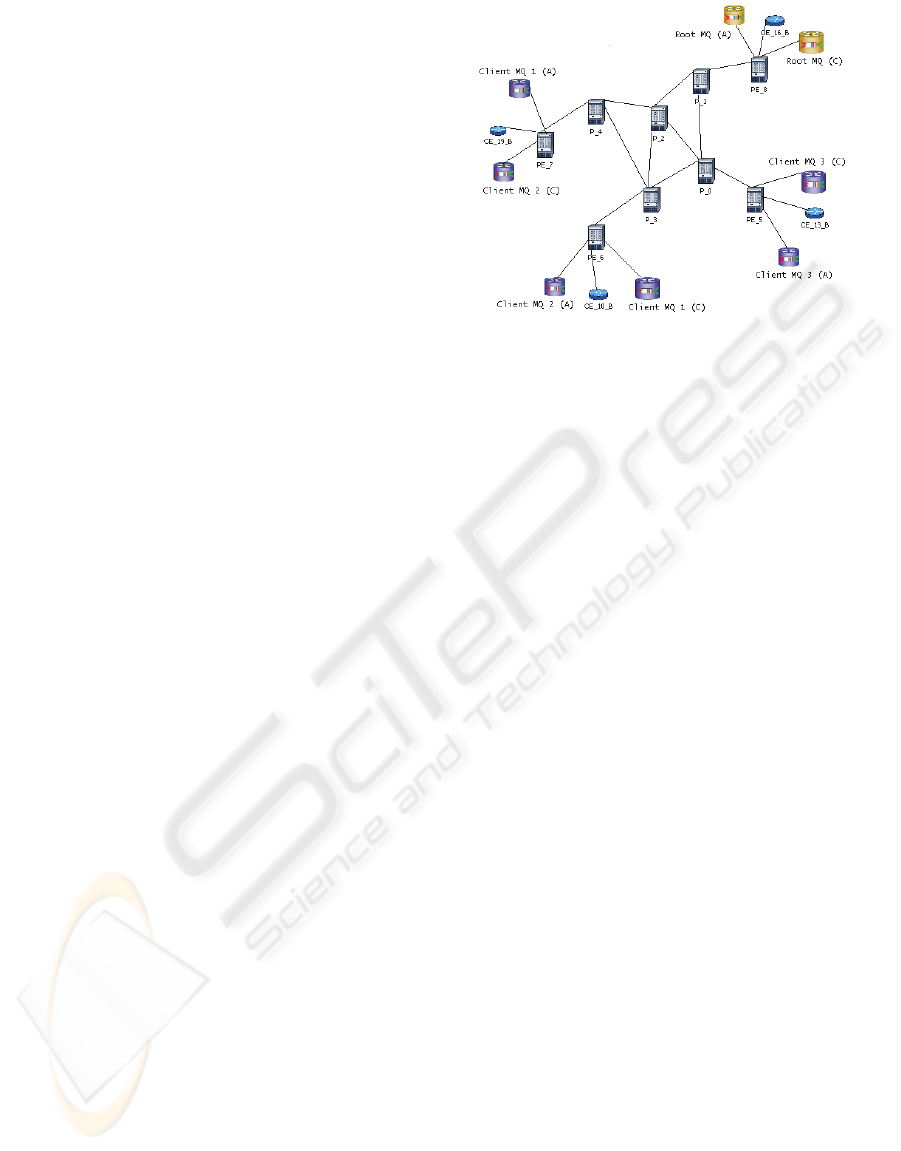

Figure 7: Network model (snapshot of the OPNET
N
etwork Editor).
MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous
Message Queuing Communication on MPLS VPN
51
4.3 Processes of Generating
Messages
We considered the following three patterns for the
process of generating messages in the VPN site. As
mention before, in the simulation model, the
generator module in the client MQ node generated
messages. The average message generation rate for
each pattern during the simulation is shown in figure
8. The average rates for patterns 1 and 3 were fixed
during the simulation. The intervals of
consecutively generated messages followed the
exponential distribution with means of 0.24 s and
0.2 s for the patterns, 1 and 3, respectively. The
message size was fixed at 5k bytes. Therefore, the
average rate for pattern 1 was 167 kbps and that for
pattern 3 is 200 kbps. In pattern 2, the rate was
explosively increased between 2400 and 4200
during the simulation (we called this the bursty
period). Outside such bursty periods, the intervals
of consecutively generated messages followed the
exponential distribution with mean of 0.24 s.
During the bursty period, the intervals of
consecutively generated messages followed the
exponential distribution with mean 0.075 of s. The
average message generation rate during the bursty
period was about 534 kbps, which was about three
times that during the non-bursty period. In this
simulation, the message generation pattern in the
client MQi node was pattern i (i = 1, 2, 3)
.
4.4 Effectiveness of the Traffic
Control Scheme
In order to verify the effectiveness, we considered
the number of overflow messages and message
queue size as performance measures. In the scenario
in which the control scheme was not implemented,
the rate at which data was sent from the client MQ
node to the root MQ node was fixed at the initial rate
(R/3). In this simulation, R was set to 1 Mbps.
When the control scheme was not implemented, the
load in the MQ2 node during the non-bursty period
was 0.5 (((5 kbytes *8)/0.24)/(R/3)) and that during
the bursty period was 1.6 (((5 kbytes
*8)/0.075)/(R/3)). Thus, there was an overload
during the bursty period and we think that overflow
occurred when the traffic control scheme was not
implemented.
When the control scheme was not implemented,
we could see that an overflow occurred in the MQ 2
node, as shown in figure 9. The size of the message
queue in the client MQ2 node is shown in figure 10.
When the control scheme was implemented, no
overflow occurred during the bursty period. When
we examined the size of the message queue in the
client MQ 2 node, we found that the queue was
smaller with the traffic control scheme than that
without it. The size of the message queue in the
client MQ 2 node without the traffic control scheme
was equal to the total message queue size and some
messages overflowed during the bursty period.
When the adaptive traffic control scheme was
implemented, the rate at which messages were sent
from the client MQ 2 node to the root MQ node was
changed as shown in figure 11. More messages in
MQ 2 node sent to the root MQ node during the
bursty period than during the non-bursty period.
The moving average size of the message queue in
the root MQ node is shown in figure 12. The
moving average means the continuous average of the
ordinate value over intervals of a specified width
(60). The size of the message queue in the root MQ
node increased when the adaptive traffic control was
implemented. These results show that the messages
were efficiently stored in all message queues in the
whole network and this control scheme could avoid
overflows and guarantee message delivery when the
adaptive traffic control was implemented
.
5 CONCLUSION
In this paper, we considered the message queuing
communication on an MPLS VPN. The application
overlay network is made on the MPLS VPN
network. It is possible to configure the message
queue node that belongs to several enterprise MPLS
VPNs. The use of fast rerouting mechanisms of the
MPLS network is expected to make the application
overlay network more reliable. In order to
efficiently utilize the message queue resources in the
whole network and to avoid an overflow in the local
message queue when a lot of messages are suddenly
and explosively generated during a short period, we
proposed the adaptive traffic control scheme. In this
scheme, the client MQ nodes and the root MQ node
can communicate with each other. The client MQ
node notifies the root MQ node about the current
Pattern 1
(167 kbps)
Pattern 2
(167 kbps, but 534
kbps during the bursty
period)
Pattern 3
(200 kbps)
Time
bps
0
300
2400 4200
Bursty period

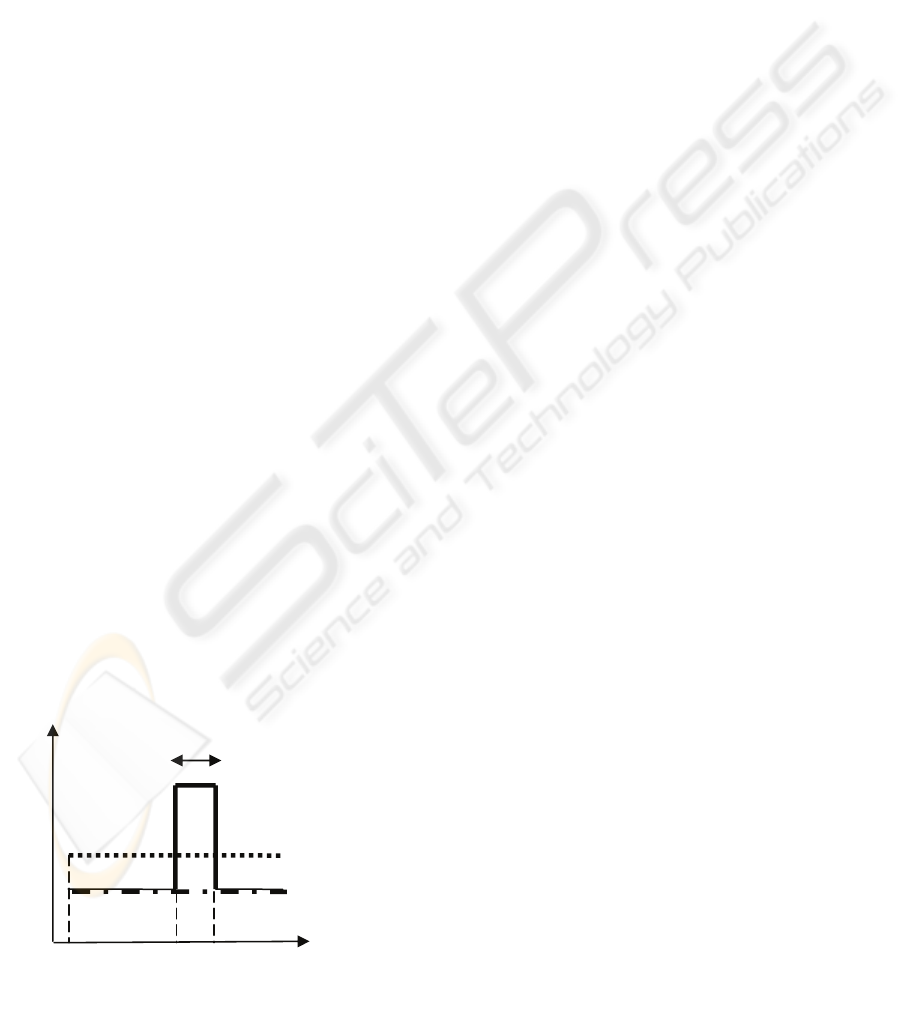

Figure 8: Traffic generating processes.
ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS
52
weight, which indicates the current size of the
message queue in the client MQ node. The root MQ
node calculates the rate for sending messages from
the client MQ node to the root MQ node and notifies
the client MQ node about the calculated value for
each client MQ node. This control scheme can
adjust the rate for sending messages from client MQ
node to root MQ node. We showed its effectiveness
through simulation studies. The described model is a
centralized solution. The backup solution of the root
MQ node should be used at the same time
.
The method of adjusting the rate of sending
messages from the client MQ node to the root MQ
node in this paper was simple. Developing more
sophisticated methods for adjusting the rate is
further study. We considered that the occurrence
probability of the case in which messages may be
suddenly and explosively generated at the same time
in all the client MQ nodes, to be very small. In such
a case, our current control scheme cannot avoid
overflows, so we need to add another control scheme
to deal with this situation. This is also for further
study
.
REFERENCES
David A. Chappell, Enterprise Service Bus, O’Reilly,
2004.
Rolf Clauberg, RFID and Sensor Networks – From
Sensor/Actuator to Business Application, RFID
workshop, University of St. Gallen, Switzerland, Sept.
27, 2004,
http://www.zurich.ibm.com/pdf/sys/RFID_and_Sensor
_Networks.pdf.
Peter R. Pietzuch and Sumeer Bhola, Congestion Control
in a Reliable Scalable Message-Oriented Middleware,
MIDDLEWARE2003, pp.202-221, 2003.
Javed Sikander, RFID Enabled Retail Supply Chain,
http://msdn.microsoft.com/library/default/asp?url=/libr
ary/en-us/dnbda/html/RFIDRetSupChn.asp
Dipl.-Ing. Heinz Strauss, Towards A Ubiquitous Future
Limited Only By Our Imagination…,
http://www.itu.int/osg/spu/ni/ubiquitous/Presentations/
13_strauss_future.pdf
Chris Britton, IT Architectures and Middleware: Strategies
for Building Large, Integrated Systems, Pearson
Education, 2001.
Ivan PepeInjak, Jim Guichard, and Jeff Apcar, MPLS and
VPN Architectures I, II, Cisco Press, 2003.
Chris Loosely and Frank Douglas, High-Performance
Client/Server – A Guide to building and managing
robust distributed systems, John Wiley & Sins, Inc.,
1988.
BEA, BEA RFID Technical Challenges and Reference
Architecture,
http://www.bea.com/content/news_evenets/
white_papers/BEA_RFID_ref_arch_wp.pdf
OPNET Technologies, http://www.opnet.com.

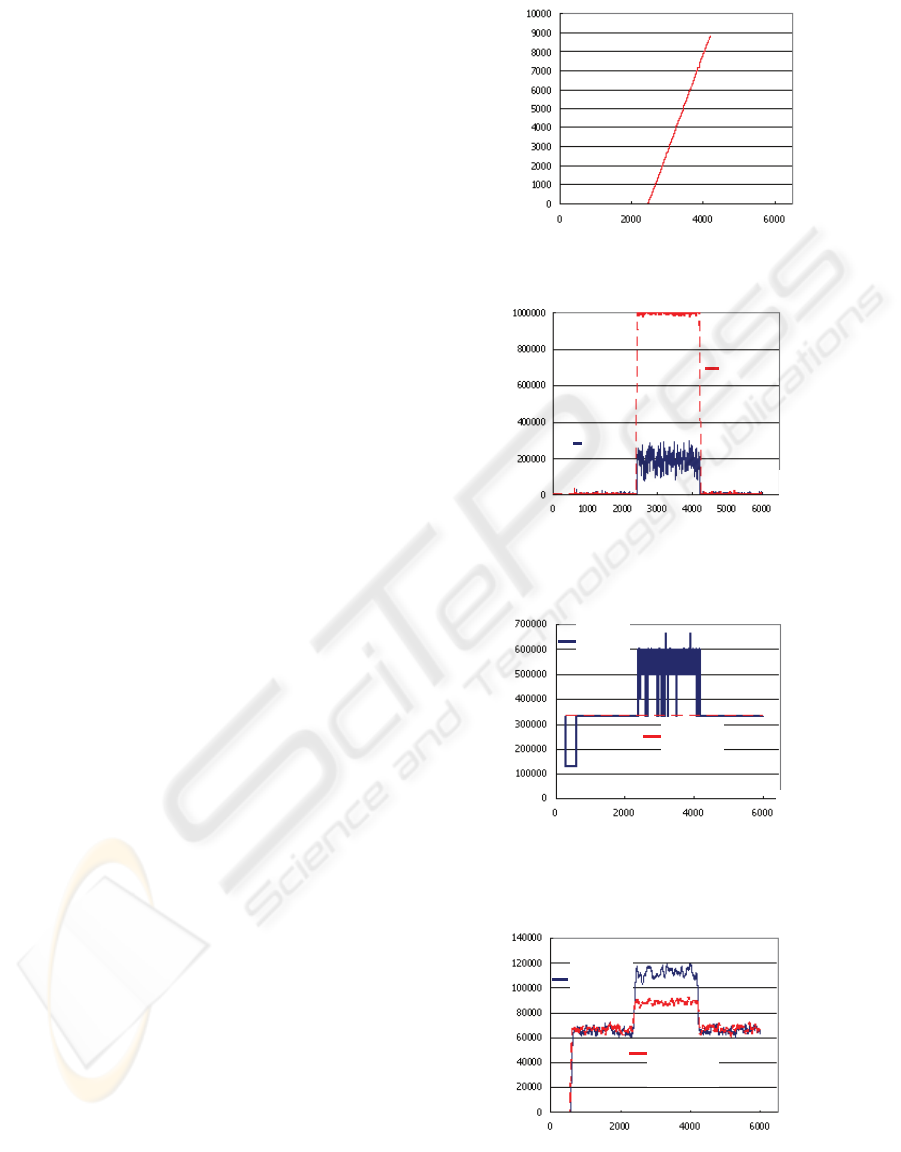

Figure 9: Cumulative overflowed messages.
Figure 10: Size (bytes) of the message queue in the client
MQ 2.
Figure 11: Rate (bps) for sending messages in the client
MQ 2, when the adaptive traffic control was implemented.
Figure 12: Moving average size (bytes) of the message
queue in the root MQ.
elapsed time
message
elapsed
time
bytes
Without
control
With
control
bps
elapsed
time
Without
control
With
control
bytes
elapsed
time
Without
control
With
control
MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous
Message Queuing Communication on MPLS VPN
53
