INTERPROM – A COLLABORATIVE FRAMEWORK

DRIVEN BY BUSINESS NEEDS

Service Oriented Inter-Organisational Support for Business Processes in

Collaborative Environments

Carsten Huth, Norbert Völker

Department of Computer Science, University of Essex, Colchester CO4 3SQ, United Kingdom

Olaf Hahnl, Björn Reinhold

PAVONE AG, Paderborn, Germany

Keywords: Collaborative environments, service oriented architectures, process management, workflow management,

project management.

Abstract: There is an increasing demand to support business cooperation between small to medium sized enterprises

(SMEs) and major companies. The InterPROM system aims to address this need by providing a service-

oriented, J2EE based collaborative platform. The system is build on top of a custom enterprise services bus

(ESB) which can be connected across different organisations. InterPROM characteristics include

decentralised replication and locking services, organisation directories divided into private and public

sections, an elaborate security system and an application manager for the life cycle management of

application instances. A unique feature is its integrated approach to project and workflow management.

The InterPROM framework is being developed by a consortium of nine partners and co-founded by

the European Union. The commercial lead of the project is with PAVONE AG, a medium sized software

vendor specialising in the field of collaborative software environments, knowledge management and CRM

solutions. Academic participants are the Universities of Essex (UK), Paderborn (Germany), and Varna

(Bulgaria). The European Aeronautic Defence and Space Comp. (EADS) France acts as a pilot user for the

project. This paper focuses on architecture and system design aspects of the InterPROM framework. It

includes references to underlying technologies such as service oriented architecture (SOA) and J2EE

(Java 2 Enterprise Edition) web applications.

1 MOTIVATION AND CONTEXT

Knowledge intensive services are often intangible,

highly specific and difficult to standardise.

Moreover they tend to be required quickly and need

to be tailored to the specific requirements of each

application. Because of these characteristics,

knowledge intensive services are often outsourced to

specialised suppliers. This can lead to complex

demand and supply configurations such as the

following:

− Construction projects which require the

coordination of architects, environmental

advisors, building and maintenance companies, as

well as auxiliary service suppliers

− Mergers and acquisitions projects, for which

buyers and sellers, investment banks, lawyers,

chartered accountants, and advising companies

have to work together.

− Marketing campaigns that are facilitated by

market researchers, as well as advertisement and

PR agencies.

− Research and development projects, business

development projects, etc.

In addition to the collaboration within projects,

SMEs also cooperate with large companies by

supplying goods. Driven by the need to customise

products quickly in response to customer wishes,

Huth C., Völker N., Hahnl O. and Reinhold B. (2006).

INTERPROM – A COLLABORATIVE FRAMEWORK DRIVEN BY BUSINESS NEEDS - Service Oriented Inter-Organisational Support for Business

Processes in Collaborative Environments.

In Proceedings of the International Conference on e-Business, pages 13-21

DOI: 10.5220/0001428500130021

 SciTePress

new forms of supply chains are emerging where

procurers and suppliers form collaborative networks.

While such cooperation between SMEs and large

companies makes good business sense, it can pose

difficult management problems. This is due to the

heterogeneity of the partners and their IT

infrastructure, the application specific interactions,

and the requirement to share resources and to

coordinate activities while at the same time taking

the autonomy of partners into account.

This paper describes a collaborative IT platform

aimed at facilitating business processes in inter-

organisational networks. The system is developed

within the InterPROM research project co-funded by

the European Union. The project consortium

consists of nine partners. The partners responsible

for the major parts of the software development

activities are the Universities of Essex (UK),

Paderborn (Germany), and Varna (Bulgaria) as well

as the PAVONE AG in Paderborn, Germany. The

European Aeronautic Defence and Space Comp.

(EADS) France is the pilot user in the project.

2 SERVICE ORIENTATION

The Service Oriented Architecture (SOA)

(Bieberstein et al, 2005) is a recent approach to the

design of distributed systems. Its defining feature is

the provision of well defined, independent IT

services offered by service providers. Service

consumers access and use these services.

A major motivation behind the SOA approach is

the prospect for service reuse. The vision is to

enable “programming in the large” whereby services

can be assembled dynamically (“service

orchestration”, “service choreography”) with

languages such as WSBPEL (Web Services

Business Process Execution Language) (OASIS

2006). The independence of services also aids

incremental development and the integration of

legacy systems by the use of adaptors. In contrast to

earlier approaches like CORBA, SOA relies on

loosely coupled and standardized but open protocols

independent from particular programming

languages. In practice, the invocation of services

takes mostly the form of XML based standardized

web services.

Direct point-to-point connections between

service providers and service consumers makes it

difficult to enforce binding rules concerning

security, Quality of Service (QoS), or the logging

and billing of services. Additionally, many

applications set further requirements for the IT

infrastructure such as support of transactions,

asynchronous communication (messaging) and the

dynamic detection of services. Such requirements

lead to the introduction of an Enterprise Service Bus

(ESB, or short service bus) which meets the above

mentioned requirements by providing a standardized

medium to which services can be bound in order to

be located and executed. The core of an ESB is a

messaging system which mediates between the

service providers and service consumers. In

addition, an ESB often also offers supporting

services like the transformation of data formats and

the controlling and auditing of the network traffic.

The flexible integration of heterogeneous

components is the main reason for choosing a SOA

for the InterPROM system. Based on an analysis of

typical InterPROM applications, the decision was

made to develop an ESB that uses XML web

services and J2EE. This service bus implementation

largely follows the guidelines of the Java Business

Integration (JBI) (JSR 208) standard (Ten-Hove,

Walker 2005). The InterPROM ESB offers

additional extensions that are indispensable for the

intended application domain:

− ESB instances which are in use in different

companies (or different departments of one large-

scale company) can be connected to each other.

Thus, applications of one company (or

department) that only have access to their own

ESB can transparently use services of another

company.

− The visibility of services beyond the border of the

ESB of one company can be limited if necessary.

Services can be offered locally (within the

domain of only the originating company itself),

globally, or within a selected number of other

companies who take part in collaborative activity.

− The ESB incorporates security mechanisms

which perform authentication and authorisation

of service requests as well as the encryption of

messages.

3 AN ARCHITECTURE FOR THE

SUPPORT OF PARTNER

NETWORKS

The InterPROM system aims to support the

collaboration of partners across organisational

boundaries. In the following, we will refer to the

group of cooperating partners as a partner network.

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

Business Context and Key Requirements

At the start of the project, PAVONE AG carried out

market research including a survey among its

customers. Several key points emerged which have a

bearing on the InterPROM architecture:

– It has to be easy to set up partner networks and

integrate new partners in an existing partner

network.

– The dependencies between partners should be

kept as low as possible. Only information

relevant for the joint business activities should

be shared. It should not be necessary for partners

to disclose sensitive information beyond the

scope of the cooperation.

– The integration of existing applications at the

various partners must be facilitated. In this way,

the existence and operation of redundant parallel

systems can be avoided.

– In particular, large companies often use

enterprise level documents management systems

(DMS) or enterprise resource planning (ERP). It

would be unfeasible for SMEs to run such

systems. Therefore connectors are required

which enable the collaboration within a project.

In this way, the IT requirements of each partner

can be kept to a minimum.

The priorities attached to these requirements

varied between different kinds of companies. For

SMEs, the protection of autonomy and control of

data was very important. This was less of an issue

for the larger companies who typically viewed

themselves as hosting and controlling the data. On

the other hand, it was especially larger companies

who emphasised the need for an easy set-up and

management of the system, as they regarded

themselves as the initiators and to some extent

maintainers of the partner networks.

Companies of all sizes viewed the integration

with existing applications and legacy systems as a

compulsory prerequisite for the introduction of a

new collaborative environment. There should be no

redundant or parallel processing of tasks and data on

existing and new systems. One of the top

requirements for the InterPROM platform is

therefore the seamless integration with existing

systems.

Outline of Architecture

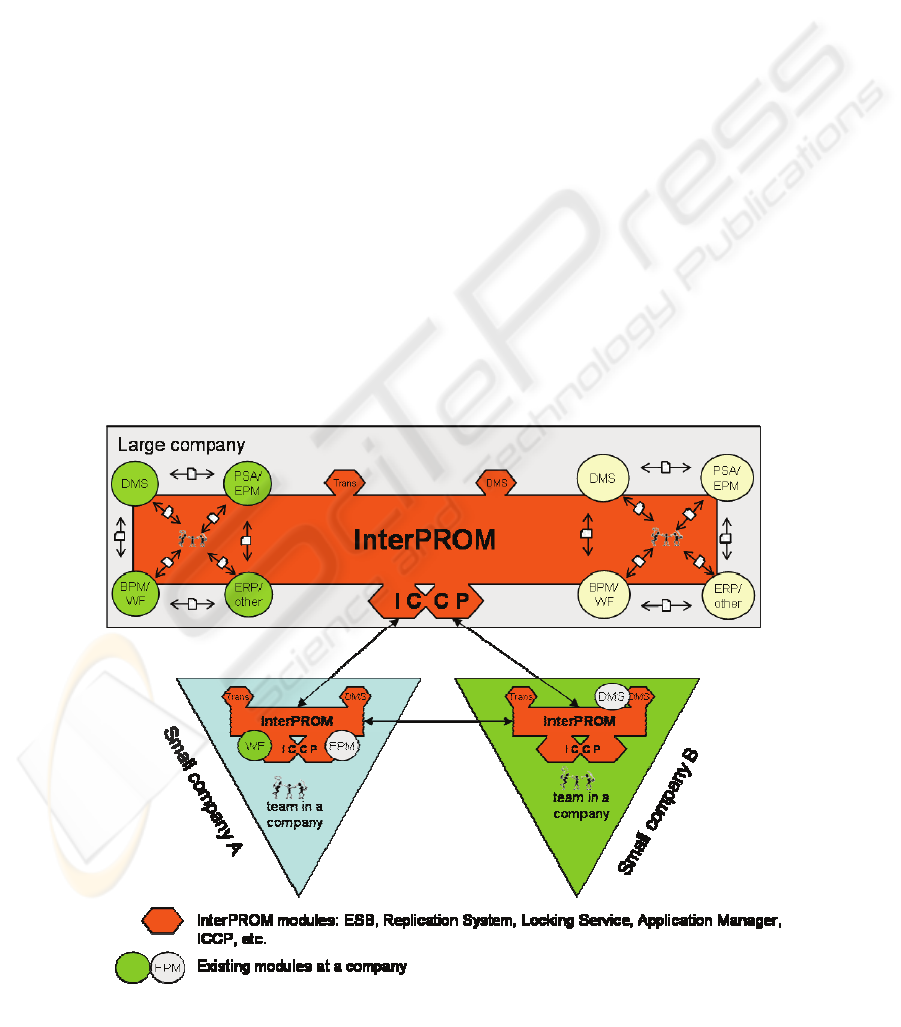

The overall architecture of the InterPROM platform

is depicted in Figure 1. As already mentioned in

Section 2, the system makes use of a custom ESB

that provides the SOA infrastructure. The ESB is

also used to plug in connectors to legacy systems,

Figure 1: Distributed architecture of the InterPROM system.

INTERPROM – A COLLABORATIVE FRAMEWORK DRIVEN BY BUSINESS NEEDS - Service Oriented

Inter-Organisational Support for Business Processes in Collaborative Environments

thus making them available within the InterPROM

system.

Replication services allow the synchronisation of

data at the different partners. When modifying

shared data, write conflicts can be avoided with the

help of locking services.

A distributed Organisation Directory provides

the basis for the security system.

The Application Manager facilitates the easy set

up and maintenance of applications and manages the

distribution of applications on the partner network.

The ICCP (InterPROM Collaboration Centric

Processes) engine forms an integrated execution

environment for projects and predefined workflows.

The InterPROM system provides a web-based

user interface for administration of the system as

well as for InterPROM applications. All

management functions are accessible through a

portal environment that makes use of Portlet

Specification JSR 168. Assuming end user

applications conform to the rules of the Struts

framework, they can be converted into portlets with

the help of the Apache Struts Bridge (Apache 2005).

By combining different portlets into a portal, it

becomes easy to construct web interfaces that are

tailored to the needs of particular user groups.

The basic paradigm of the InterPROM

architecture is decentralisation. A partner network

does not contain central servers without which it

would break down. Instead, each partner in a

network can run his own InterPROM system. The

InterPROM instance at a particular partner can be

added or removed without effecting the operation of

the rest of the partner network.

The local availability of the InterPROM

infrastructure at each partner together with the

service orientation facilitates the integration of third

party and legacy applications. Typically, such

additional applications will be locally integrated.

Data exchanges between the applications can take

place by sending messages across the ESB or by

sharing data, for example with the help of the

InterPROM replication services.

Replication and Locking Services

The InterPROM platform does not make any

assumptions about the structure or the internal

workings of applications deployed on a partner

network. In particular, there are no binding

conventions with respect to the way applications

store or retrieve data. Therefore it is impossible to

offer a fully automated replication system as it is for

example provided in Lotus Notes/Domino (cf.

Kawell et al. 1992) or in relational database systems.

For this reason, the lock mechanism and the

replication functionality are offered as services

which can be used by applications deployed on the

InterPROM framework.

In the literature, several approaches to

decentralised data storage can be found, cf. (Buretta

1997). For the first version of the InterPROM

system, it was decided to employ synchronous

replication. With this technique, shared data which is

modified at one of the partners is immediately

replicated via the ESB to all the other partners

within the partner network.

The advantage of synchronous replication is that

is guarantees the consistency of data. However, this

technique also has significant disadvantages. In

particular, it requires high availability rates of

servers within the partner network. In addition, high

performance data connections might be required if

there is a large volume of synchronisation messages.

It would be unrealistic to expect a commitment to

such high qualities of service for all partner

networks. Hence it is planned to provide additional

synchronisation strategies in later versions of the

InterPROM system.

The locking service offers the possibility to lock

data items across servers, and thus allows the

exclusive modification of a certain data item. The

locking service uses abstract entities, so called

“items”. These are represented by universal unique

identifiers (UUIDs) that are application independent.

It has to be stressed that it is up to the

applications deployed in the partner network

whether or not to make use of the replication and

locking services on offer. Furthermore, while the

InterPROM platform provides the infrastructure, it is

the applications which are responsible for the

sending and the handling of replication and locking

messages.

Security System

The two main aspects of the InterPROM security

system are authentication and authorisation.

An InterPROM application authenticates a user

by calling the login module. This then consults the

InterPROM organizational directory or any other

LDAP compatible directory in order to verify the

user’s credentials. The organisational directory uses

the JAAS security model (Lai et al, 1999).

Because of the particular demands of security

control in collaborative environments, the

InterPROM platform offers its own, fine-grained

authorisation. This system is inspired by the Lotus

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

Notes approach to authorisation (cf. Nielsen et al.

1999). It provides services and functionality to

secure access to both applications and their

resources. It is up to the applications to utilise these

facilities.

Access control makes use of six predefined

access levels namely: Manager, Editor, Author,

Reader, Depositor, and No Access, see Table 1.

Each access level defines a set of privileges. It is not

possible to add new types of access levels, but

existing ones can be customised within limits, see

the “Opt” privileges in Table 1. The limitation of

customization is done intentionally in order to

preserve the meaning of the various access levels.

Each application instance (see Section 5)

possesses an access control list (ACL). This ACL

associates entities from the organizational directory

(such as person, group, organizational unit, etc.)

with access levels. In this way, it determines the

access rights of users to the application and its

resources. Only a user with the access level Manager

can modify the application ACL. The application

instance ACL is also the place where a

customisation of access levels for a particular

instance can be performed.

The predefined access levels reduce the effort to

specify application instance level access

considerably. By associating an organization

directory entity with an access level, a well defined

value for each of the privileges (i.e. create items,

delete items, etc) is ensured.

In addition to the access control on the

application instance scope, the access to an entity

can be further restricted at the scope of items. An

item can for example be a document or a collection

of database records. Each item is identified by a

unique ID. Similar to an application ACL, an item

ACL describes an entity’s access to a particular item

by assigning/revoking privileges. Forbidding access

to a resource at the application instance scope

overrides item scope permission for that entity.

Traverse privilege on the application instance scope

can be granted for the unusual case that exceptions

to this rule are required.

4 ORGANISATION

MANAGEMENT IN

COOPERATIVE NETWORKS

The organisation directory (OD) plays a major role

in the management of partner networks. Since the

InterPROM system aims to be completely

distributed without any central component, an

instance of the organisation directory resides at each

of the partners running the InterPROM system. Each

instance is divided into a public and a private

section, where public means that the information is

to be shared within a particular partner network.

The private section of the OD, which is hidden

from all other partners, contains the structural

organisation of the company to which this

InterPROM server belongs. This section has to list

all persons, resources, etc. that will be take part in

one ore more of the partner networks in which this

company is involved. Connection facilities are

provided to import organisation information from

existing directories and keep them automatically

synchronised. The private section of the organisation

directory also contains specifications of the partner

connections between the organisation and its

partners within all the different partner networks it is

involved in. A partner connection entity comprises

information like name, password and network

address of a partner server.

The public section of the OD forms the basis for

the management of InterPROM applications in a

Table 1: Access Levels and Privileges at Application Instance Scope.

Privileges/

Access

Level

Create

Items

Delete

Items

Read

Items

Write

Items

Copy

Items

Execute

Items

Modify

App

ACL

Read

public

Items

Write

public

Items

Modify

Item

ACL

Tra-

verse

Manager Y Opt/Y Y Y Opt/Y Y Y Y Y Y Opt/N

Editor Y Opt/Y Y Y Opt/Y Opt/Y N Y Y Opt/Y Opt/N

Author Opt/Y Opt/N* Y Y* Opt/Y Opt/Y N Y Opt/N* Opt/Y* Opt/N

Reader N N Y N Opt/N Opt/Y N Y Opt/N Opt/N Opt/N

Depositor Y N N N Opt/N N N Opt/N Opt/N N Opt/N

No access N N N N N N N Opt/N Opt/N N Opt/N

*: There are special rules in place for the access level “Author”.

Optional privileges have a default, i.e. “Opt/N” means that the default is “No”.

INTERPROM – A COLLABORATIVE FRAMEWORK DRIVEN BY BUSINESS NEEDS - Service Oriented

Inter-Organisational Support for Business Processes in Collaborative Environments

partner network. As such, it needs to specify the

employees, resources, roles, etc. that are involved in

the collaboration. This is typically done by a list of

UUIDs which refer to entities in the private sections

of the ODs belonging to the various members within

the partner network. It is also possible to create new

entities which only exist within the context of a

particular partner network, such as network specific

groups and roles.

The first step in the construction of a partner

network is the creation of a partner network

specification. Subsequently members can be added

to the network. Before doing so, each new member

has to be associated with a partner connection. By

adding or removing members from a partner

network, the scope of that network can be adapted.

The partner network specification, the

membership information as well as the public

section of the organisation directory are

synchronised among all the members of a partner

network.

5 THE APPLICATION MANAGER

In addition to the requirements stated above, the

creation and management of applications themselves

is of substantial significance for collaborative

environments: Companies are typically involved in a

number of different projects in which the use of

computer supported collaborative environments

would be beneficial. However, non-disclosure

agreements and information restriction requirements

within these projects make it necessary to keep the

information pools of different collaborative projects

disjoint.

In today’s web based application environments

this leads to the repeated installation of collaborative

applications for each project. All of these set-ups

have to be maintained by specifically skilled

technical personnel, i.e. system administrators.

Tasks like installing updates, maintenance releases

and bug fixes have to be carried out several times for

each separate installation of a particular application.

This means that the installation and maintenance of

applications requires a substantial amount of time

and hence operational expenditure, and the set-up of

applications is inherently inflexible.

Therefore the InterPROM project pursues a

distinctive approach to handle applications: an

application is only installed once on each server by

the system administrator. In order to make use of the

application, a so called application instance is

created. Each application instance forms a self-

contained space to use the application and comes

with an access control list (ACL). As explained in

Section 3, this ACL associates organisation directory

entities with access levels and thus defines the

privileges of users and roles for this particular

application instance. By applying this concept,

several instances of an application can be created

without the need of installing and setting up the

application over and over again. In addition, the

creation of an application instance becomes

relatively easy, and can be accomplished by

experienced business users rather than system

Figure 2: The Application-Manager in a scenario of distributed InterPROM servers.

InterPROM

Server X

Application

Manager

InterPROM

Server Y

Application

Manager

InterPROM

Server Z

App. Dir.

App. A Inst. 2

A B

Application

Manager

App. B Inst. 2

Applications

Partner network I

App. A Inst. 3

App. Dir.

App. A Inst. 2

App. B Inst. 1

App. Dir.

App. A Inst. 3

App. A Inst. 4

App. B Inst. 1

Partner network II

App. C Inst. 1

App. A Inst. 1

Application Instances on

server Z

InterPROM

Server X

Application

Manager

InterPROM

Server Y

Application

Manager

InterPROM

Server Z

App. Dir.

App. A Inst. 2

A B

Application

Manager

App. B Inst. 2

Applications

Partner network I

App. A Inst. 3

App. Dir.

App. A Inst. 2

App. B Inst. 1

App. Dir.

App. A Inst. 3

App. A Inst. 4

App. B Inst. 1

Partner network II

App. C Inst. 1

App. A Inst. 1

Application Instances on

server Z

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

administrators, because it does not include the

technical process of setting up an application on an

application server.

The definition of application instances leads to

the introduction of the application manager as a

separate component of the InterPROM system.

Apart from controlling the life cycle of application

instances, the application manager also determines

the distribution of applications on the partner

network. The application manager uses an

application directory to store the necessary

information about applications and application

instances.

InterPROM applications are generally J2EE

compliant applications. In addition, an InterPROM

application has to implement a specific interface

which contains the functions required by the

application manager to control its life cycle, i.e.

instance creation, publication, or the deletion of an

instance from the partner network. Furthermore, the

application manager controls the replica copies of

the application instances which reside on different

servers of the partner network.

As the InterPROM system is truly distributed

and therefore has no central components, the

application manager and application directory need

to reside on every InterPROM server. In order to

maintain an up-to-date application directory, the

application manager component of each InterPROM

server communicates via the ESB to synchronise the

application directories.

6 SYNTHESIS OF PROJECT AND

WORKFLOW MANAGEMENT

Traditionally, there is a strict distinction between

project and workflow management activities.

However, the empirical research that was conducted

at the start of the InterPROM project has shown that

especially for SMEs, such a strict separation is not

always justified. Companies requested combined

tools with process support tailored to their individual

requirements rather than adhering to the, from their

perspective, sometimes artificial separation between

project and workflow management. There are

similar requests for more flexible process support of

agile project management (Augustine et al. 2005).

One of the key objectives of the InterPROM

project is therefore to combine the strengths of both

kinds of management systems into a new generation

of business process support systems. In line with the

aims of the InterPROM project, the focus will be on

processes as they occur in collaborative workflow

management systems. Highly repetitive, automated

production workflow processes will be disregarded

here.

The section below describes this integrated

approach. The development of corresponding tools

is currently in progress. It is based on existing, well

established project management and workflow

management systems (WFMS) at PAVONE AG.

An integrated XML format has been defined that

supports the conversion and integration of processes

represented as XML documents.

A) Intertwining of Projects and Workflows

A pure workflow-based approach to business

process management still fails frequently because of

the need to predefine the structure of the whole

processes at an unnecessarily detailed level, thus

leading to excessively rigid models (Aversano and

Canfora 2002). In practice, business processes

involve both highly structured parts which follow a

workflow pattern as well as less structured parts that

are more suited to project management.

For instance, a marketing campaign might start

with a creative phase, and once an agreement on an

idea is achieved and a first draft of the marketing

material has been created, the process might follow

the structure of an established workflow including

steps like revision and finally printing, distribution

etc.

On the other hand, a process which generally

follows the pattern of a highly structured workflow

instance might contain parts that are more of a

project nature. As an example, consider the

processing of software problem reports by a

software provider. While a majority of such

problem can be answered and solved in a structured

way, i.e. as a workflow instance, some of them

might require a more thorough investigation in order

to be solved or responded to. Therefore the initiation

of a project would be an appropriate action to take at

such a point.

In the InterPROM approach, two kinds of

intertwining of projects and workflow instances will

be supported. Type A represents a workflow

instance or a project forming a sub-structure of the

respective other type, i.e. a workflow instance is

executed as a sub structure of a project task or vice

versa. Type B represents the case where a process

changes it type permanently, i.e. a project turns at

some point into a workflow instance, or a process

that starts off as a workflow is turned into a project

and completed as such. This intertwining of

INTERPROM – A COLLABORATIVE FRAMEWORK DRIVEN BY BUSINESS NEEDS - Service Oriented

Inter-Organisational Support for Business Processes in Collaborative Environments

workflow instances and projects requires an

integrated user interface for both process types and a

certain integration of the underlying workflow

engines and project management tools

B) Guided Process Type Conversions

Normally it is assumed that projects are unique and

only executed once. In fact, this is one of the

characteristics that distinguish projects from

workflows. In spite of this, sometimes new

workflows in organisations emerge from project

executions. A process that starts as a project in its

first execution may become a successful reference

example for the future. Especially for knowledge

based services, best practises developed in a project

might become more established. Hence, as a next

step, it might be useful to formalize and automate

that same process in form of a workflow.

In the InterPROM approach, this conversion will

be supported by tools that transform a project model

into a rudimentary workflow definition. While it is

expected that there will be less business need for a

conversion in the other direction, it is also planned

to provide tools that transform a workflow protocol,

i.e. the sequence of steps in a particular workflow

instance, into a project template.

Despite the tool support, the result of the

conversion can in both cases only serve as a draft for

the new process type. For example in the case of the

project-to-workflow conversion, the user will have

to abstract concrete persons or resources into roles

or resource types. Furthermore, it is the user’s job to

endow the project tasks with conditionals and other

control structures. The conversion in the opposite

direction requires the opposite of these steps, i.e.

instantiations of roles and resource types and a

linearization of workflow control structures.

Additionally, task completion times and costs have

to be allocated.

C) Extensions of Integrated Process Support

Craven and Mahling (1995) suggest building a new

type of process management system integrating

project and workflow management around a

comprehensive shared task notion that combines

aspects of workflow and project tasks. The

InterPROM approach keeps the distinction between

workflow instances and projects. However, the

functionality of the corresponding management

systems is extended in two ways.

Firstly, the management of resource utilisation is

to be added to the WFMS. Facilities for the

posterior analysis of workflow instance resource

utilisation, costs and duration will be provided.

Averaging these values for a particular workflow

type can help predicting the values for future

executions of that type.

Secondly, a function for the prediction of project

completion time and expenditure will be added to

the project management component. For this

purpose, project tasks can be assigned with

conditions that have to be met for their completion,

and expected probabilities for the failure of these

conditions. A continuously updated prediction of the

project completion time can then be made based on

these probabilities, which then allows the calculation

of delay times of tasks in conjunction with resource

utilisation ratios. This prediction can be used to take

corrective action in a timely manner, e.g. assign

further resources or change the project plan. The

corrective actions again lead to updated project

completion time calculations.

By utilizing the extended functionality outlined

above, it is expected that a seamless and more

comprehensive resource planning support can be

provided, including a better utilisation of human

resources employed in workflows and projects (cf.

Bahrami 2005).

Overall, the better integration of project and

workflow management described in this section

should help to extend the applicability domain of

business process support systems for collaborative

environments.

7 CONCLUSIONS

The InterPROM system provides a J2EE based

collaborative platform for the support of inter-

organisational networks. The decentralised, service-

oriented architecture makes it easy to integrate third-

party applications and to add or remove partners in a

partner network. The security model allows fine-

grained access control for applications and

resources. An application manager facilitates the life

cycle management and distribution of application

instances.

A unique feature of InterPROM is a more

integrated approach to project and workflow

management. Projects and workflow instances can

be intertwined and there are conversion tools for

turning a project model into a rudimentary workflow

as well as turning a workflow instance into a project

template. Projects tasks can be labelled with

conditions in order to express the dependency of

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

task completion on various factors. Together with

the statistical analysis of workflow instance data,

this should help to better predict process duration,

costs and resource utilisation.

The system will be evaluated in a pilot study at

EADS as well as in other end-user projects. The first

concrete applications, which are currently being

developed on top of the InterPROM platform, are

project, risk and supply chain management

solutions. The results from these case studies will

inform future work such as the implementation of

further replication services, or enhanced support for

service orchestration and choreography

(Zimmermann et al. 2005).

REFERENCES

Apache Software Foundation 2005: Apache Portals

Project. See http://portals.apache.org

Augustine, S.; Payne, B.; Sencindiver, F.; Woodcock, S.

2005: Agile project management: steering from the

edges, Communications of the ACM, Volume 48

Issue 12 , ACM Press

Aversano, L.; Canfora, G. 2002: Process and Workflow

Management: Introducing eServices in Business

Process Models, Proceedings of the 14th International

Conference on Software Engineering and Knowledge

Engineering SEKE '02, ACM Press

Bahrami, A. 2005: Integrated Process Management: From

Planning to Work Execution, Proceedings of the IEEE

EEE05 International Workshop on Business Services

Networks BSN '05, IEEE Press

Bieberstein, N.; Shah, R; Bose, S.; Fiammante, M.; Jones,

K. 2005: Service-Oriented Architecture Compass:

Business Value, Planning, and Enterprise Roadmap,

ISBN: 0-13187-002-5

Bullinger, H.-J.; Murmann, H. 1999: Dienstleistungen -

der dynamische Sektor; Universum Verlag,

Wiesbaden, 1. Auflage.

Buretta, M. 1997: Data Replication: Tools and Techniques

for Managing Distributed Information, Wiley & Sons

Inc., New York.

Cramer, J. 2004: Management wissensintensiver Dienst-

leistungen; in Hermann, Sibylle (eds.): Ressourcen

strategisch nutzen; Fraunhofer Irb Verlag, Stuttgart, 1.

Auflage, pp. 180-206.

Craven, N.; Mahling D. 1995: Goals and Processes: A

Task Basis for Projects and Workflows, Proceedings

of Conference on Organizational Computing Systems,

ACM Press

Nielsen, S. P.; Dahm, F.; Lüscher, M.; Yamamoto, H.;

Collins, F.; Denholm, B.; Kumar, S.; Softley, J. 1999:

Lotus Notes and Domino R5.0 Security Infrastructure

Revealed, IBM International Technical Support

Organization. See http://www.redbooks.ibm.com

Kawell, L.; Beckhardt, S.; Halvorsen, T.; Ozzie, R.; Greif,

I. 1992: Replicated Document Management in a Group

Communication System, in: Marca, D.; Bock, G.

(eds.): Groupware: Software for Computer Supported

Cooperative Work, IEEE Computer Society Press, pp.

226-235.

Lai, C.; Gong, L.; Koved, L.; Nadalin, A,; Schemers, R.

1999: User Authentication and Authorization in the

Java™ platform. Proceedings of the 15th Annual

Computer Security Applications Conference, Phoenix,

AZ, 1999. See also http://java.sun.com/security/jaas

OASIS (Organization for the Advancement of Structured

Information Standards) 2006: Web Services Business

Process Execution Language (WSBPEL). See

http://www.oasis-open.org

Ten-Hove, R.; Walker, P.; (eds), 2005: JSR-208 Java

Business Integration Evaluation. See http://ww.jcp.org

Voigt, K.-I.; Thiell, M. 2003: Beschaffung wissens-

intensiver Dienstleistungen - Net Sourcing als

alternative Bezugsform; in Bruhn, M.; Stauss, B.

(Ed.): Dienstleistungsmanagement Jahrbuch 2003 -

Dienstleistungsnetzwerke; Gabler Verlag, Wiesbaden,

1. Auflage, pp. 287-318

Zimmermann, O.; Doubrovski, V.; Grundler, J.; Hogg, K.

2005: Service-Oriented Architecture and Business

Process Choreography in an Order Management

Scenario: Rationale, Concepts, Lessons Learned.

OOPSLA’05, Companion, pp. 301-312

ISBN:1-59593-193-7

INTERPROM – A COLLABORATIVE FRAMEWORK DRIVEN BY BUSINESS NEEDS - Service Oriented

Inter-Organisational Support for Business Processes in Collaborative Environments
