A SIMPLE AND COMUTATIONALLY EFFICIENT ALGORITHM
FOR REAL-TIME BLIND SOURCE SEPARATION OF SPEECH
MIXTURES
Tarig Ballal, Nedelko Grbic and Abbas Mohammed
Department of Signal Processing, Blekinge Institute of Technology, 372 25 Ronneby, Sweden
Keywords: BSS, blind source separation, speech enhancement, speech analysis, speech synthesis.
Abstract: In this paper we exploit the amplitude diversity provided by two sensors to achieve blind separation of two
speech sources. We propose a simple and highly computationally efficient method for separating sources
that are W-disjoint orthogonal (W-DO), that are sources whose time-frequency representations are disjoint
sets. The Degenerate Unmixing and Estimation Technique (DUET), a powerful and efficient method that
exploits the W-disjoint orthogonality property, requires extensive computations for maximum likehood pa-
rameter learning. Our proposed method avoids all the computations required for parameters estimation by
assuming that the sources are "cross high-low diverse (CH-LD)", an assumption that is explained later and
that can be satisfied exploiting the sensors settings/directions. With this assumption and the W-disjoint or-
thogonality property, two binary time-frequency masks that can extract the original sources from one of the
two mixtures, can be constructed directly from the amplitude ratios of the time-frequency points of the two
mixtures. The method works very well when tested with both artificial and real mixtures. Its performance is
comparable to DUET, and it requires only 2% of the computations required by the DUET method. More-
over, it is free of convergence problems that lead to poor SIR ratios in the first parts of the signals. As with
all binary masking approaches, the method suffers from artifacts that appear in the output signals.
1 GENERAL INFORMATION
Blind source separation (BSS) consists of recovering
unobserved signals or “sources” from several ob-
served mixtures (Cardoso, 1998). Several algorithms
based on different source assumptions have been pro-
posed. Some common assumptions are that the
sources are statistically independent (Bell et al.,
1995), are statistically orthogonal (Weinstein et al.,
1993), are non-stationary (Parra et al., 2000), or can
be generated by finite dimensional model spaces
(Broman et al., 1999).
The Degenerate Unmixing and Estimation Tech-
nique (DUET) algorithm (Jourjine et al., 2000)
(Rickard et al., 2001) (Yilmaz, et al., 2004) and other
proposed methods (Bofill et al., 2000) exploit the
approximate W-disjoint orthogonality property of
speech signals to perform source separation. Two
signals are said to be W-disjoint orthogonal (W-DO)
when their time-frequency representations, are dis-
joint sets (Jourjine et al., 2000) (Rickard et al., 2001).
DUET uses an online algorithm to perform gradient
search for the mixing parameters, and simultaneously
construct binary time-frequency masks that are used
to partition one of the mixtures to recover the original
source signals. DUET was proved to be powerful in
speech source separation. Additionally, it is proved to
be more computationally efficient as compared to
other existing methods (Rickard et al., 2001). How-
ever, the idea that separation of W-DO sources re-
quires only classifying the time-frequency points of
mixtures has motivated us to look for a simpler ap-
proach. In other words, for W-DO sources the source
separation problem is as simple as classifying the
time-frequency points of a mixtures as belonging to
one source or another.
In this paper we propose a simple and highly com-
putationally efficient approach to achieve the above-
mentioned classification. For this purpose we have
introduced an additional assumption, that is the
sources are "cross high-low diverse (CH-LD)". In a
system with two sensors, two sources are said to be
CH-LD, if the two sources are not both close to the
same sensor. A source is close to a sensor, if its energy
105
Ballal T., Grbic N. and Mohammed A. (2006).
A SIMPLE AND COMUTATIONALLY EFFICIENT ALGORITHM FOR REAL-TIME BLIND SOURCE SEPARATION OF SPEECH MIXTURES.
In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 105-109
DOI: 10.5220/0001571901050109
Copyright
c
SciTePress
at that sensor is higher than its energy at the other
sensor.
Obviously, such diversity can be obtained from the
spatial domain. To provide such diversity, sensors
settings/directions can be exploited. A real case that
supports our assumption is the case of two micro-
phones with two speakers each associated with one of
the microphones. If the distance between the micro-
phones is relatively large as compared to that between
the speakers and the microphones, we will get two
mixtures of two sources (near speaker and interfer-
ence from far speaker) that exactly satisfy the re-
quired assumption.
With this new assumption and the W-disjoint or-
thogonality property, two binary time-frequency
masks that can extract the original sources from any
of the two mixtures, can be constructed directly from
the amplitude ratios of the time-frequency points of
the two mixtures. The organization of this paper is as
follows. In section 2 we define the source assump-
tions. In section 3 we derive a simple signal model
based on the source assumptions. In section 4 the pro-
posed algorithm is presented. In section 5, we discuss
the results obtained from practical tests. Finally, a
summary of this paper is given in section 6.
2 SOURCE ASSUMPTIONS
There are two basic assumptions required by our pro-
posed approach:
First: the sources should be W-
disjoint orthogonal (W-DO).
Second: the sources should be cross
high-low diverse (CH-LD).
The first assumption requires that the time-
frequency representations of the source signals con-
tained in a mixture should be disjoint (or non-
overlapping). This condition generated a concept,
which is referred to as the W-disjoint orthogonality
(Jourjine et al., 2000) (Rickard et al., 2001). For W-
disjoint orthogonal (W-DO) sources, only one source
should be active in each time-frequency point of the
time-frequency representation of the sources.
Given a windowing function
)(tW , two signals
)(ts
i
and )(ts
j
are said to be W-disjoint orthogonal
(W-DO) if the supports of the short-time Fourier
transforms (STFTs) of
)(ts
i
and )(ts
j
are disjoint
(Jourjine et al., 2000) (Rickard et al., 2001).
The STFT of
)(ts
j
is defined as (Allen et al., 1977)
dtetwtsS
ti
jj
ω
ττω
=
)()(),(
(1)
The support of
),(
τ
ω
j
S is denoted as the set of the
),(
τ
ω
pairs for which
0),(
τ
ω
j
S
.
Since the W-disjoint orthogonality assumption is
not exactly satisfied for many categories of signals,
the concept of approximate W-disjoint orthogonality
introduced in (Rickard et al., 2001) provides a practi-
cal version for the basic assumption. Approximate W-
disjoint orthogonality assumes that at each point of
the time-frequency representation of a mixture, the
power of, at most, one source signal will be dominant.
In other words, the assumption that a non-active
source contributes zero energy is replaced by assum-
ing that it contributes relatively low energy as com-
pared to the dominant source. Additionally, if the
source signals have sparse representations in the time-
frequency domain, the W-disjoint orthogonality can
be sufficiently satisfied as for speech signals (Araki et
al., 2004).
The second assumption requires that at least one of
the two sources has two different (one high and one
relatively low) amplitudes in the two mixtures, and
the two sources are not both high (or both low) in the
same mixture. To illustrate this assumption, let us
assume a simple instantaneous mixing model with
two mixtures of two sources:
2211111
sasax
+
=
(2)
2221122
sasax
+
=
(3)
Taking the STFT for both (2) and (3) yields
),(),(),(
2211111
τ
ω
τ
ω
τ
ω
SaSaX +
=
(4)
),(),(),(
2221122
τ
ω
τ
ω
τ
ω
SaSaX +
=
(5)
The CH-LD is fully satisfied when one of the two
following statements is fulfilled:
1
),(
),(
1
),(
),(
222
221
112
111
>
τω
τω
τω
τω
Sa
Sa
and
Sa
Sa
(6)
or
1
),(
),(
1
),(
),(
112
111
222
221
>
τω
τω
τω
τω
Sa
Sa
and
Sa
Sa
(7)
Simplifying (6) and (7), the CH-LD can be fully
satisfied by satisfying either
SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA
APPLICATIONS
106
11
22
21
12
11
>
a
a
and
a
a
(8)
or
11
12
11
22
21
>
a
a
and
a
a
(9)
From (8) and (9), we deduce that the CH-LD de-
pends mainly on the sensor setting and not on the
source signals. For a typical interference cancellation
problem (8) and (9) are normally satisfied. For gen-
eral source separation problems a variety of sensor
settings that satisfies (8) and (9) do exist.
3 SIGNAL MODEL
Let's start with the mixing model described by (2),
(3), (4) and (5), respectively. First we try to introduce
the W-disjoint orthogonality assumption into the
model. Assuming that source
}2,1{, ks
k
, is the
active source at time-frequency point
),(
τ
ω
, (4) and
(5) become
),(),(
11
τ
ω
τ
ω
kk
SaX = (10)
),(),(
22
τ
ω
τ
ω
kk
SaX = (11)
From (10), (11) and in order to separate the
sources, we need to determine which source is active
at each time-frequency point. In other words, we need
to determine the values of
k
that satisfy (10) and (11)
at each time-frequency point.
4 PROPOSED ALGORITHM
Our proposed algorithm constructs two binary time-
frequency masks,
}2,1{),,( =Φ i
i
τ
ω
, by testing
the ratio
),(
),(
2
1
τω
τω
X
X
for all time-frequency points.
The masks are constructed simply using
otherwise
i
X
X
if
i
0
}2,1{,1
),(
),(
1),(
2
1
>=Φ
τω
τω
τω
(12)
ijj
ij
Φ=Φ },2,1{,),(1),(
τ
ω
τ
ω
(13)
(12) and (13) stem directly from (6), (7), (10) and
(11).
The time-frequency representation of the original
sources can be obtained using
}2,1{),,(),(),(
1
=
jXS
jj
τ
ω
τ
ω
τ
ω
(14)
),(
2
τ
ω
X
can be used instead of
),(
1
τ
ω
X
in
(14) and will yield a scaled and phase shifted version
of
),(
τ
ω
j
S providing a spatial diversity the can
further be exploited to improve the outputs. Finally,
the inverse transform is used to obtain the original
sources.
It is noticed that for instantaneous mixing, a simi-
lar algorithm can be derived without the CH-LD as-
sumption be satisfied. For an instantaneous mixing
model, the attenuations parameters are fixed leading
to ratios of absolute values in (6), (7), (8) and (9) that
are equal to constants (e.g.
j
c , }2,1{=j ). In this
case a mask can be constructed according to
otherwise
ic
X
X
if
ii
0
}2,1{,
),(
),(
1),(
2
1
==Φ
τω
τω
τω
(15)
For real mixing models with reverberations, the
ratios of absolute values in (6), (7), (8) and (9) will
take random values that cluster around some two val-
ues constituting two clusters corresponding to the two
sources. To be able to demix the sources, these clus-
ters should be separate and no intersection should
occur between them. If no inter-cluster intersection
takes place, two clusters corresponding to the two
CH-LD sources will be separated by a surface (imag-
ine a 3-D plot of the ratios over the
),(
τ
ω
plane) for
which the ratio equals unity. If the sources are not
CH-LD demixing the sources is still possible if we
find the separating surface, which is beyond the scope
of this paper. Finally, if reverberations cause inter-
cluster intersection, separating the sources using the
proposed method will not be possible in this case. But
generally, practical tests with real echoic mixtures
have proved the separation of sources even when re-
verberation is present.
5 RESULTS
The algorithm was implemented and tested using both
artificial mixtures and real mixtures. Up to 22 dB SIR
(signal to interference ratio) gain has been achieved
with instantaneous artificial mixtures, up to 5 dB with
echoic (i.e., containing reverberations in addition to
the main signals) real mixtures. The interference here
is the energy contribution from the other (undesired)
source that should ideally be completely masked. For
A SIMPLE AND COMUTATIONALLY EFFICIENT ALGORITHM FOR REAL-TIME BLIND SOURCE
SEPARATION OF SPEECH MIXTURES
107
the same mixtures the DUET showed approximately
the same performance. Block size and block overlap
were respectively 512 and 384 for the STFT. Fig. 1
shows two speech sources Separated from two echoic
real mixtures using our proposed method, and using
DUET. The mixtures are from an office room re-
cording done by Te-Won Lee
(http://inc2.ucsd.edu/~tewon/). Two Speakers have
been recorded speaking simultaneously. Speaker 1
says the digits from one to ten in English and speaker
2 counts at the same time the digits in Spanish (uno
dos, etc.). The recording was done in a normal office
room. The distance between the speakers and the mi-
crophones was about 60cm in a square ordering. The
figure illustrates the efficiency of our proposed
method.
Since the proposed algorithm does not require any
parameter learning, convergence problems are
avoided. This explains the improved SIR in the first
few milliseconds as compared to that of our imple-
mentation of the DUET method and as reflected in
Fig. 1.
We noticed that, when white noise is present, the
DUET normally fails. Our proposed algorithm was
seen to withstand white noise. The algorithm has been
verified to work even with low input signal to noise
ratios, but still the noise remains in the outputs. Ad-
dressing this problem and generalizing the method for
cases with more than two sources are two important
future research goals.
As with all binary masking approaches, an impor-
tant drawback that should also be addressed by future
research is the presence of artifacts in the form of
distortions. Using continuous masks instead of binary
masks is supposed to solve the problem. Araki et al.
(Araki et al., 2004) has addressed the artifacts prob-
lem associated with the DUET method and were able
to reduce the artifacts by combing DUET with ICA
(Independent Component Analysis). Combining our
method with ICA in a similar way can be proposed as
a solution to the associated artifacts problem.
6 CONCLUSIONS
In this paper we proposed a new method for blind
source separation of W-disjoint orthogonal sources
using time-frequency masks. Our focus was on sepa-
rating two sources from two mixtures. We also intro-
duced the cross high-low diversity assumption, an
assumption that can be satisfied exploiting the sensors
setting/directions. The method uses the amplitude
ratios of the time-frequency representations of two
mixtures to directly construct binary time-frequency
masks to separate the sources. The method has shown
performance that is comparable to that of the DUET
method despite using only 2% of the computations
required by DUET. Moreover, it is free of conver-
gence problems. As with all binary masking ap-
proaches, the method suffers from artifacts that appear
in the output signals.
(a)
(b)

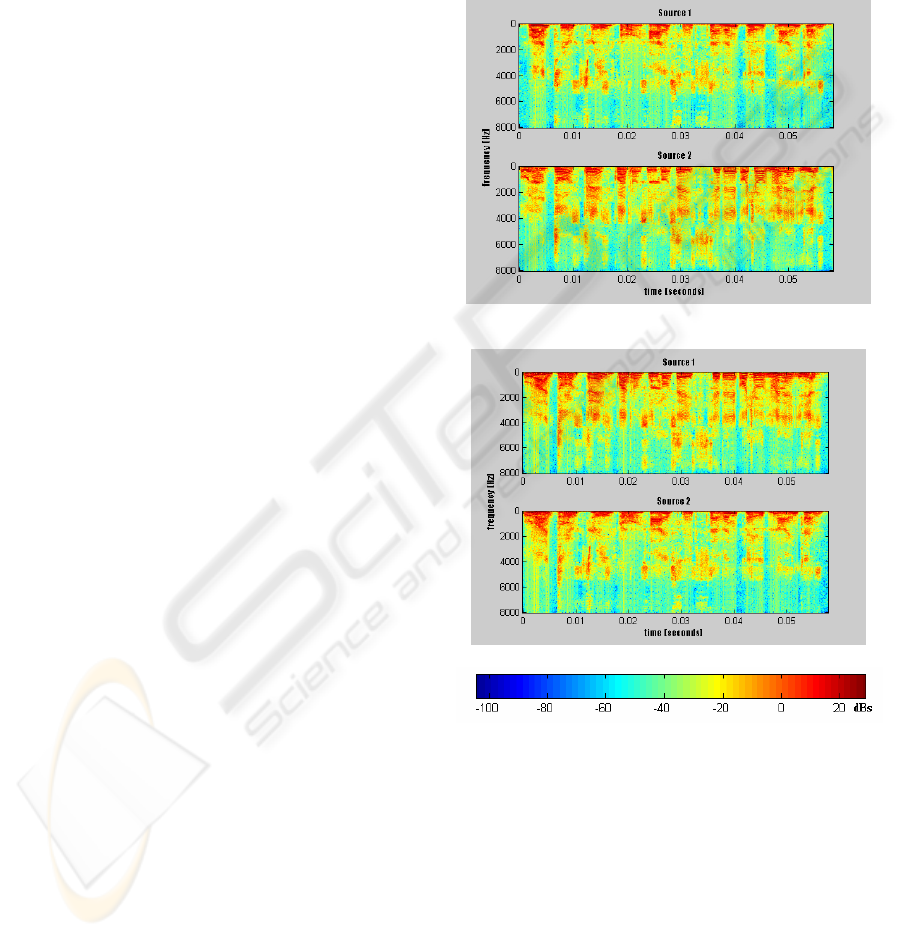

Figure 1: Separation of two speech sources from two echoic
real mixtures. The figure shows the spectrograms of the
separated sources: a) using our proposed method and b)
using DUET. Sources have different permutation in each
case. While DUET does not have a specific assumption
about source permutation, our proposed method assumes
that source 1 is the one that has its higher energy at sensor 1,
and source 2 is the one that has its higher energy at sensor 2.
As appears, there are no significant differences between the
separated sources in fig. (a) and those in fig. (b). This illus-
trates the major advantage of our proposed method; that is
despite using only 2% of the computations required by
DUET, it can achieve results that are comparable to those
achieved by DUET.
SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA
APPLICATIONS
108
REFERENCES
Cardoso, J.-F., 1998. Blind Signal Separation: Statistical
Principles. In Proceedings of the IEEE, vol. 86, no. 10,
pp. 2009–2025.
Bell, A.J. and Sejnowski, T.J., 1995. An Information
Maximization Approach to Blind Separation and Blind
Deconvolution. Neural Computation, pp. 1129-1 159.
Weinstein, E., Feder, M. and Oppenheim, A., 1993 Mul-
tichannel Signal Separation by Decorrelation. IEEE
Transaction on Speech and Audio Processing, vol. 1,
no. 4, pp. 405-413.
Parra, L. and Spence, C., 2000. Convolutive Blind Source
Separation Based On Multiple Decorrelations. IEEE
Transactions on Speech and Audio Processing, March
2000.
Broman, H., Lindgren, U., Sahlin, H and Stoica, P, 1999.
Source Separation: A TITO System Identification Ap-
proach. Signal Processing, vol. 73, pp. 169-183.
Jourjine, A., Rickard, S. and Yilmaz, O., 2000. Blind Sepa-
ration of Disjoint Orthogonal Signals: Demixing N
Sources from 2 Mixtures. Proceedings of the 2000
IEEE International Conference on Acoustics, Speech,
and Signal Processing, Istanbul, Turkey.
Rickard, S., Balan, R. and Rosca, J., 2001. Real- Time
Time-Frequency Based Blind Source Separation. Pro-
ceedings of the International Workshop of Independent
Component Analysis and Blind Source Separation, San
Diego, CA.
Yilmaz, O Rickard, S, July 2004. Blind Separation of
Speech Mixtures via Time-Frequency Masking. IEEE
Transactions on Signal Processing, Vol. 52.
Bofill, P. and Zibulevsky, M., 2000. Blind Separation of
More Sources than Mixtures Using Sparsity of Their
Short-time Fourier Transform. International Workshop
on Independent Component Analysis and Blind Signal
Separation, Helsinki, Finland.
Allen, Jont B., June1977. Short Term Spectral Analysis,
Synthesis and Modification by Discrete Fourier Trans-
form. IEEE Transactions on Acoustics, Speech, and
Signal Processing, vol. 25.
Araki, S., Makino, S., Sawada H. and Mukai, R., Sept.
2004. Underdetermined Blind Separation of Convolut-
ive Mixtures of Speech with Directivity Pattern Based
Mask and ICA. ICA2004 (Fifth International Confer-
ence on Independent Component Analysis and Blind
Signal Separation), pp. 898-905.
http://inc2.ucsd.edu/~tewon/
A SIMPLE AND COMUTATIONALLY EFFICIENT ALGORITHM FOR REAL-TIME BLIND SOURCE
SEPARATION OF SPEECH MIXTURES
109
