A COMPONENT-BASED SOFTWARE ARCHITECTURE FOR

REALTIME AUDIO PROCESSING SYSTEMS

Jarmo Hiipakka

Nokia Research Center, Multimedia Technologies Laboratory,

P.O. Box 407, 00045 Nokia Group, Finland

Keywords: Audio processing, Software architecture, Realtime systems.

Abstract: This paper describes a new software architecture for audio signal processing. The architecture was

specifically designed low-latency, low-delay realtime applications in mind. Additionally, the frequently

used paradigm of dividing the functionality into components all sharing the same interface, was adopted.

The paper presents a systematic approach into structuring the processing inside the components by dividing

the functionality into two groups of functions: realtime and control functions. The implementation options

are also outlined with short descriptions of two existing implementations of the architecture. An algorithm

example highlighting the benefits of the architecture concludes the paper.

1 INTRODUCTION

Recent years have significantly increased the role of

software in the field of audio processing. While

dedicated hardware solutions still dominate certain

applications, more and more processing is moving to

general purpose processors or programmable digital

signal processors (DSPs). Software systems for

audio processing have been widely, though not very

systematically, described in the literature. Naturally,

software implementations in the context of specific

algorithms have been presented, but more generic

architectures are seldom described in public.

Many of the software frameworks available for

audio processing, are based on dividing the

processing tasks into components that all share the

same interface towards the rest of the system. The

component paradigm encourages fewer

dependencies between different audio processing

algorithms. This enables separating also the

development work into more easily manageable

entities.

Audio processing software often needs to run in

real time, and with low interaction latency and audio

delay. This sets strict requirements to the

implementation. Additionally, for best performance,

the system parameters such as the audio processing

block length need to be carefully tuned, finding an

optimal compromise between computational

efficiency and latency and delay behaviour.

This paper presents an audio processing software

architecture that can be used, when the processing

platforms efficiently supports multiple simultaneous

processing contexts or threads. The system described

here is beneficial both when running and audio

processing system on a general-purpose operating

system and when, e.g., using a dedicated DSP to

accelerate the processing. The architecture separates

audio delay optimization from the interaction

latency optimization, and allows an optimal

processing load distribution by separating the

realtime and control parts of the processing inside

logically integrated components.

The rest of the paper is organized as follows:

section 2 presents the motivation and background for

component based processing architecture. Section 3

describes how the current architecture has been

adapted for realtime usage. Section 4 details a few

implementation alternatives, and section 5 describes

a use case and an algorithm example that highlights

the advantages of the architecture design. Finally,

section 6 concludes the paper.

289

Hiipakka J. (2006).

A COMPONENT-BASED SOFTWARE ARCHITECTURE FOR REALTIME AUDIO PROCESSING SYSTEMS.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 289-294

DOI: 10.5220/0001573002890294

 SciTePress

2 COMPONENT

ARCHITECTURE

There are several audio processing software

solutions, where at least part of the processing is

split into units that conform to a unified interface,

irrespective of the nature of the processing. These

building blocks for the software system framework

are called components in this paper. Component is

defined as a logically unitary audio processing

entity.

2.1 Existing Component Designs for

Audio Processing

In the desktop computing environments, many audio

application vendors have their proprietary

mechanisms of including new audio processing

algorithms into processing chains as plugins.

Examples of such applications include Steinberg’s

Cubase (www.steinberg.de), Nullsoft’s Winamp

(www.winamp.com), and Microsoft’s Media Player

(www.microsoft.com/windows/windowsmedia/).

However, some of these plugin interfaces have

become popular outside their original applications,

and some have originally been designed to be used

by multiple different applications. Currently, popular

audio plugin formats include VST by Steinberg

(2006) and LADSPA (Furse, 2006; Phillips, 2001)

by the Linux audio community, among others.

In addition to the audio plugin interfaces, there

are more complete component based multimedia

frameworks. Examples include the DirectShow

media streaming architecture by Microsoft (2006),

and the open source GStreamer (2006) framework.

Both of these systems include media encoders,

decoders, and processing components as plugins that

can be connected together for complete multimedia

applications.

Component based audio software architectures

are also fairly common in more restricted, embedded

environments. In the system described by Datta et al.

(1999) all post processing audio effects applied to a

decoded multi-channel audio stream share a

common interface. On a more generic level, the

XDAIS algorithm interface specification developed

by Texas Instruments (2002) provides a unified way

for integrating signal processing algorithms into

their specific operating system (OS) environment.

A system that falls between the desktop

environment and dedicated systems has been

described by Lohan and Defée (2001) for a media

terminal architecture. Their system is technically a

PC, but developed with a dedicated use case in

mind, and equipped with a dedicated user interface.

An interesting emerging standard in the field of

component based multimedia is the OpenMAX

standard, defined by the Khronos Group (2005).

Specifically, the OpenMAX Integration Layer (IL)

API provides applications or OS multimedia

frameworks a standard interface to commonly used

multimedia components such as encoders, decoders,

and various effect processing algorithms.

2.2 Component Characteristics

A component typically implements an audio

processing feature, such as a mixer, a sample rate

converter, or an audio effect such as reverberation.

One component encapsulates an algorithm that may

contain several basic signal processing blocks such

as delays and filters. From software design point of

view, components are implemented using a single

logical building block of the environment, for

example using a C++ class linked as a dynamically

loadable library.

Components have a number of data inputs and

outputs—often called ports—that can be used to

connect components together. In audio software

systems, any audio data representation format can be

used for the connections. Very often a linear PCM

data format is used. When all the inputs and outputs

have the same representation, it is possible to freely

route audio data from one component to another.

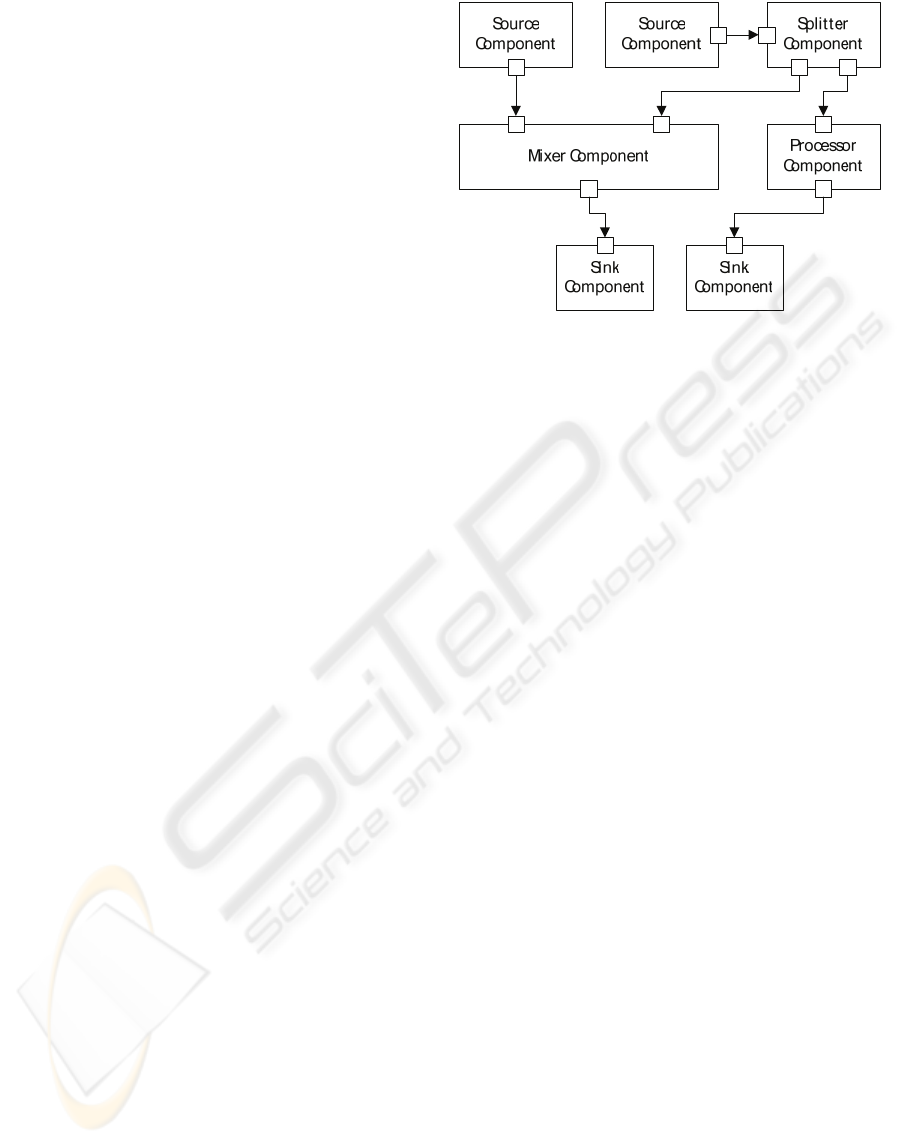

Figure 1 depicts a component system with several

different component types and connections between

the components.

Components can be either statically built, i.e.,

defined and integrated at system development time,

Figure 1: A component system with connections between

components’ input and output ports.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

290

or they can be dynamically loadable plugins that can

be connected to a previously compiled and linked

(i.e., executable) software.

2.3 Filter Graphs

An audio processing engine can connect components

together to form processing networks or filter

graphs. Within the graph, components are run

sequentially in the order defined by the needs of

audio processing functionality. It should be noted

that there can also be special components that

contain several individual components in a

hierarchical manner for grouping, e.g., according to

the audio sample rate.

When a software package is used as a complete

audio mixing and effects engine in a multitasking

OS, it is desirable to be able to add new audio

applications, streams, and effects while keeping the

current ones running. Adding a new audio feature

should happen without causing any problems to the

currently playing streams. This calls for the ability to

modify the filter graph while the system is running.

If the graph is modified one component at a time, it

may easily become invalid during a transition from

one larger configuration to another. Therefore, it is

important that related changes to the configuration

are all taken into use simultaneously.

Simultaneous update is easy to achieve, when the

graph configuration is kept separate from the

components themselves. Furthermore, at least two

graphs are always stored at a time: one is active

(used in processing), the other one can be modified.

When all modifications to the graph configuration

have been made, the filter graphs are swapped

atomically so that the one that was modified will

become the active graph. This mechanism is similar

to the double buffering scheme used in computer

graphics for avoiding flickering effects caused by

modifying an image that is currently been drawn on

the screen.

Many existing component frameworks distribute

the connections between the components to the

nodes of the filter graph. This may be beneficial for

optimizing the connections, but updating the graph

becomes problematic, especially if the changes

should happen without drop-outs in the audio signal.

2.3 Framework Functionality

An important benefit in a component based

architecture is the possibility of delegating common

functionality to the framework around the

components. This can considerably reduce the effort

when implementing individual components.

Additionally, the total executable binary size of the

audio subsystem is smaller, when functionality is

implemented only once.

In the our architecture, the framework takes care

of scheduling the signal processing, providing

memory buffers for component inputs and outputs,

scheduling the control events for processing, and

providing processing functions temporary memory

buffers that can be shared between components (so

called scratch memory).

3 REALTIME SYSTEM DESIGN

Audio processing is very time-critical by nature. A

realtime audio subsystem typically produces a block

of audio samples while simultaneously playing out

the previous block. If the processing or generation of

one block takes more time than is the duration of

one block, a gap (“drop-out”) will result. Naturally,

it is possible to queue up more than one block for

playback in memory, but this will add to the audio

signal delay through the system and lead to added

interaction latency between user input and the

corresponding change in the output audio.

Interactive audio applications typically require

low interaction latency. This can be achieved with

short audio blocks. On the other hand, interaction

events can happen at any time during the lifetime of

the application and they often require additional

processing. This may result in a rather uneven

processing load distribution as a function of time,

depending on the amount of the additional

processing. Therefore, there can be a significant

difference in the average and worst-case processing

times. It then becomes a difficult task to find the

smallest possible buffer size that allows low latency

but never produces audible gaps in different usage

situations.

3.1 Splitting the Components

A unique feature in the architecture described in this

paper is splitting the methods or functions in each

component into two groups: realtime and control

methods (see Figure 2). Realtime or DSP methods

take care of the actual audio processing and run

continuously. Control methods are executed only

when needed, i.e., when there are interaction or

other parameter change events pending.

In this architecture, the control methods take

parameter change events from upper layers of the

software system. They process the parameters to a

A COMPONENT-BASED SOFTWARE ARCHITECTURE FOR REALTIME AUDIO PROCESSING SYSTEMS

291

format that, subsequently, can be easily taken into

use in the signal processing methods. For example,

calculating a linear gain value from a level value in

decibels could be done on the control side of an

audio mixer. The control methods may also be used

for parameter processing in the opposite direction:

for events that need to be transmitted from the

processing to the control side, the control methods

can convert DSP parameters into values more useful

at the higher software layers.

The realtime methods implement the actual audio

signal processing tasks. They also take the

precalculated parameter values into use. Because the

complex parameter processing tasks can be

delegated to the control methods, the signal

processing can more easily be implemented so that

the computational load from these methods is

substantially constant or at least strictly bounded.

3.2 Separate Execution Threads

The split between realtime and control methods is

necessary but not enough to achieve the best

performance. Additionally, the realtime and control

methods need to be run in different threads of

execution, the realtime thread needs to run on a

higher execution priority, and the communication

between the threads needs to be carefully

considered.

The realtime signal processing thread can be run

at a constant processing load independent of the

control thread, provided that the realtime methods

are written in a way that really takes a constant

amount of processing power per each block of audio

samples. It is also required that the realtime thread is

never blocked for anything else than data transfer

either between components or between software and

audio hardware. When these requirements are

satisfied, the signal processing thread can always run

when it has data to process, and can always produce

its output in a timely manner.

The control thread performs a varying amount of

processing depending on the user interaction and

application controls. The control code is executed in

a lower priority context than the realtime methods.

This ensures that the realtime thread can always

interrupt control processing, but not vice versa.

The communication between the control and

DSP parts of a component are organized by

providing event queues either in a component

template or base class, or in the overall processing

framework. This makes implementing components

with the desired split of functionality easy, and

makes the consideration for the best realtime

performance a standard part of algorithm

development. The event queues need to be

implemented using lock-free data structures to

ensure that the realtime thread is never blocked

because the control part is writing to the queue.

Running the control and realtime methods in

separate threads effectively separates the

optimization of the signal delay from the

optimization of the interaction latency. The audio

buffering parameters, such as block length and

buffer count, can now be selected according to the

constant computational load from the realtime

thread. Generally, the block size can be set to a

lower value than would be possible if all parameter

processing happened inside the processing thread.

The interaction latency, on the other hand, can be

different from an algorithm to another and is subject

to optimization in the context of other interaction

events in the system.

The earlier systems provide limited support for

this sort of a functionality split. For example, the

LADSPA plugin API (Furse, 2006) accesses the

control parameter values through pointers to floating

point values. Therefore, it is impossible to know, if a

control has changed its value without comparing the

current value to the previous value. Additionally, the

call to the processing function should use the

parameter values as they are when the call occurs.

Therefore, the only practical thing to do with these

plugins is to run the control calculations within the

signal processing thread.

Component Control

Component DSP

Ou t p u t

Ev e n t

Queue(s)

Input

Ev e n t

Queue(s)

Audio DSP

Input

Audio

Dat a

Output

Aud i o

Da t a

Input

Parameter

Pr o ce ssi n g

Ou t p u t

Parameter

Pr o ce ssi n g

Input Parameters

Output Parameters

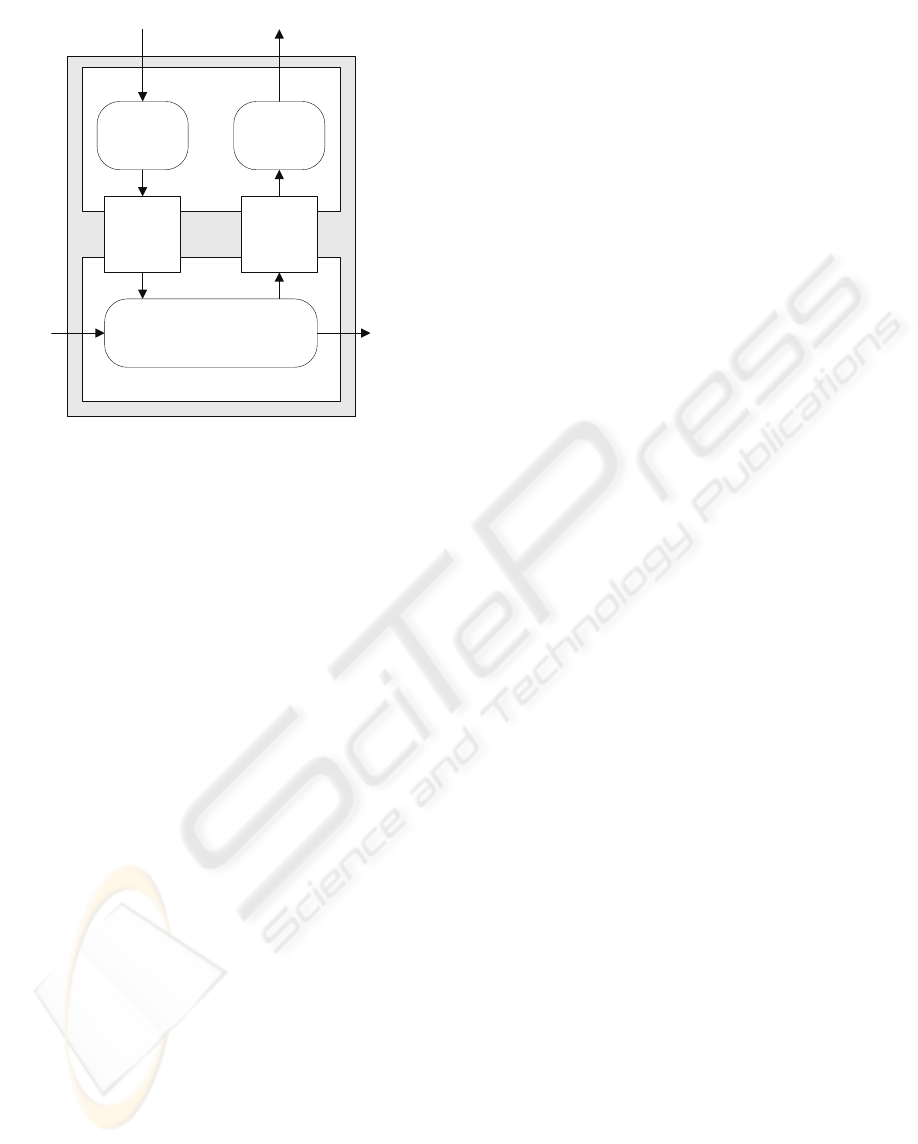

Figure 2: An audio processing component structure with

separate control and signal processing parts.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

292

While not a component based audio system

itself, the Structured Audio part of the MPEG-4

standard (ISO, 1999) can also be used as an example

of how previous systems have dealt with control

events and their processing. The Structured Audio

Orchestra Language (SAOL) divides its variables

into three classes, initialization (i-rate), control (k-

rate, and audio (a-rate) variables. The control rate

variables are processed at a predefined rate that is

typically significantly lower than the audio sampling

rate of the algorithm. All processing still occurs

synchronously from one thread. The control events

that are described using the accompanying

Structured Audio Score Language (SASL) are just

used to change the values of parameters exposed by

the sound synthesis or processing algorithm.

If control events are sent to the component using

a specific function call, as is the case with the

OpenMAX IL standard (Khronos, 2005), it is easier

to implement the algorithm according to the

architecture presented in this paper. But, as the event

queues are not part of the standard, each component

provider has to develop their own implementation

for the queues.

3.3 Time-stamped Control Events

An important feature in the current architecture is

time-stamping of the events in the event queues. All

events can be time-stamped sample accurately when

they enter the parameter processing. This is a

convenient way of controlling the control event

timing accuracy and jitter under normal usage

conditions.

Control event time-stamping is highly useful in

this architecture that is based on running control and

realtime code in separate threads. If the control

events are properly time-stamped and delivered to

the parameter processing early enough, the fact that

parameters are pre-processed by the control methods

has no effect on interaction latency. Also, two events

requiring different amounts of processing can easily

have the same latency, if desired.

Generally, control event time-stamping cannot

necessarily guarantee event timing, when the control

methods are run in a separate thread of execution.

However, under normal conditions the behaviour is

easy to control and optimize, and even when a

control event deadline is missed, it does not

introduce a drop-out in the audio output signal.

4 IMPLEMENTATION

We have implemented the architecture described in

this report on two different platforms. The first

version runs on a single processor system (or a

symmetric multi-processor system) in several

threads. Control methods are run in one or more

threads and the realtime methods in their own high-

priority thread. The second runs on a heterogeneous

two-core processor system.

The first version can be run on a general purpose

OS, such as the typical PC operating systems or the

Symbian OS for smartphones. In this

implementation, all components inherit a common

C++ base class that defines the component interface,

separates control methods from signal processing

methods, and implements the event queues described

in section 3.2. The framework has been implemented

such that the events in the event queues are

automatically dispatched in the signal processing

thread. This means that sample accurate timing is

easily achieved with all components.

The second implementation has been designed

for an embedded system using a processor chip that

contains both a general purpose ARM processor core

and a separate DSP core. Both processors run their

own operating systems with a vendor-specific

communication interface between the processor

cores. The signal processing functionality is run on

the DSP processor, and the control methods of each

algorithm are executed on the ARM. In this

implementation, the control and signal processing

parts of an algorithm are, naturally, more separate

than in the first implementation. Still an important

feature prevails: each DSP side algorithm is

accompanied by an ARM side control processing

instance, and the details of the messages sent

between the control and the signal processing parts

are considered internal to the algorithm.

Both of the implementations described above

have been successfully used for applications

requiring low delay and latency with several

different audio processing components, such as

mixers, sampling rate conversions, and audio effects.

The constant load from the processing methods has

been found a significant benefit, when optimizing a

complete system for reliable low-latency operation.

Especially, the second version can now fully utilize

the potential of the separate DSP core, as the varying

processing from the control calculations is delegated

to the general purpose ARM processor core.

A COMPONENT-BASED SOFTWARE ARCHITECTURE FOR REALTIME AUDIO PROCESSING SYSTEMS

293

5 ALGORITHM EXAMPLE

Consider an algorithm, where an FIR digital filter is

used for filtering according to a frequency domain

specification given while the processing is running.

For example, a user controlled audio equalization

algorithm could be implemented so that the user

controls are first converted to a frequency domain

target response. Then, a time domain impulse

response can be calculated using the inverse discrete

Fourier transform (IDFT). This time domain

response will then be used for actually filtering the

audio signal going through the equalizer.

This algorithm is characterized by the significant

amount of processing needed for transforming the

user controls to the response that can be used in

filtering. The target response typically needs

smoothing before the IDFT is calculated. After

moving to time domain, the response needs

windowing and truncation before it is ready to be

used as an FIR filter. On the other hand, FIR

filtering is an operation that is very efficiently

implemented on modern processors, especially on

dedicated signal processors. All this combined

means that the filter design phase easily takes

roughly the same number of processor cycles as

processing a short block of audio samples.

When this algorithm is implemented according to

the current architecture, the audio signal delay

through the system can be kept very low. There is no

need to queue up more audio buffers, even if it takes

a considerable amount of time to process the

parameter changes. Instead, the efficiency of the

standard FIR filtering can be leveraged fully, when

the parameter processing happens in an execution

thread separate from and parallel to the signal

processing thread. On the other hand, the interaction

latency is still determined by the time it takes to

transform the user controls to the FIR coefficients;

this time cannot be considerably shortened.

6 CONCLUSION

A component based audio software architecture for

an efficient realtime audio system was described in

this paper. The key feature that differentiates this

architecture from previous work is the systematic

division of the component functionality into two

groups of functions or methods. The benefit that this

division brings is that the processing load of the

realtime part can be kept substantially constant

regardless of the amount of interaction.

Constant processing load is a significant

improvement for DSP resource management,

because earlier systems have had to prepare for the

worst-case estimates (or take the risk for drop-outs).

The worst cases happen relatively seldom, thus

leading to the situation in which the best potential is

wasted.

In addition to the basic architecture, this paper

shortly described two different concrete

implementations. A digital filtering component with

a sophisticated on-line filter design algorithm was

also used to highlight the benefits of the architecture.

REFERENCES

Datta, J., Karley, B., Chen, T., Longley, L., Baudendistel,

K., and Dulanski, T., 1999. “Architecting a Versatile

Multi-Channel Multi-Decoder System on a DSP,”

Presented at the AES 106th Convention, Munich,

Germany, May 8-11, 1999.

Furse, R., 2006. “Linux Audio Developer's Simple Plugin

API (LADSPA),” available at <http://www.ladspa.

org/>, referenced June-12, 2006.

GStreamer, 2006. “GStreamer: open source multimedia

framework,” available at <http://www.gstreamer.org/>

referenced June-12, 2006.

ISO, 1999. Coding of multimedia objects (MPEG-4).

International Standard ISO/IEC 14496:1999, Geneva,

ISO.

Khronos Group, 2005. “OpenMAX Integration Layer

Application Programming Interface Specification,”

Version 1.0. available at <http://www.khronos.org/

openmax/>.

Lohan, F. and Defée, I., 2001. “Modularity in Open Media

Terminal System Architecture,” In Proc. 2001 IEEE

Int. Conf. on Multimedia and Expo, Tokyo, Japan,

August 22–25, 2001. pp. 708-711.

Microsoft, 2006. “DirectShow,” available at <http://msdn.

microsoft.com/library/default.asp?url=/library/en-us/

directshow/htm/directshow.asp>, referenced June-12,

2006.

Phillips, D., 2001. “Linux Audio Plug-Ins: A Look Into

LADSPA,” available at <http://www.linuxdevcenter.

com/pub/a/linux/2001/02/02/ladspa.html>, referenced

June-12, 2006.

Steinberg Media Technologies GmbH, 2006. “Our

technologies,” available at <http://www.steinberg.de/

325_1.html>, referenced June-12, 2006.

Texas Instruments, 2002. “TMS320 DSP Algorithm

Standard API Reference,” TI Literature Number

SPRU360C, 2002, available at <http://focus.ti.com/lit/

ug/spru360c/spru360c.pdf>, referenced June-12, 2006.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

294
