DEVELOPMENT OF VOICE-BASED MULTIMODAL USER

INTERFACES

Claudia Pinto P. Sena

Universidade do Estado da Bahia, Salvador, 41.150-000, Bahia, Brasil

Celso A. S. Santos

Universidade do Salvador, Salvador, 41.950-275, Bahia, Brasil

Keywords: HCI, multimodality, voice recognition.

Abstract: In the last decades, the interface evolution made the visual interfaces popular as standard and the keyboard

and mouse as input device most used to the human-computer interaction. The integration of voice as an

input style to visual-only interfaces could overcome many of the limitations and problems of current human-

computer interaction. One of the major issues that remain is how to integrate voice input into a graphical

interface application. In this paper, we introduce a development method of multimodal interfaces combining

voice and visual input/output. In order to evaluate the proposed approach, a video application multimodal

interface was implemented and analysed.

1 INTRODUCTION

According to Raskin (2000), the user’s interface

establishes the devices in which the user must

interact with a computing system and the way that

this system invites and answers user’s interaction.

This definition brings two important concepts to be

analyzed: the interface devices and the styles of

interaction available to the user.

The interface devices are parts of the computing

system in which the user has physical, perceptive

and conceptual contact. The interface involves a set

of necessary software and hardware to allow and

facilitate the communication and interaction

processes between the user and the application

(Carneiro, 2003). Interaction is a process that

involves user’s actions and interpretations about the

answers revealed by this interface (De Souza,1999).

Interaction styles involve the ways used by the

users to communicate or interact with an application

(Preece et al.,1994; Shneiderman, 1998). Natural

language, command languages, menus, WIMP

(Windows, icons, menus and pointers), form filling

in and direct manipulation are well-known examples

of user´s interaction styles (Shneiderman, 1998). In

general, as in a Graphical User Interface (GUI),

different styles can be supported by an application

interface.

The integration of voice as an input style to

visual-only interfaces could overcome many of the

limitations and problems of current user application

interaction. The problems related with the voice

interaction can be approached as a part of the natural

language processing style type, once they involve

the possibility of the computer and its applications to

understand and to respond to the actions using the

user’s language itself (Carvalho, 1994 e Siqueira,

2001). In this case, the natural language applications

are supposed to have a dictionary of words and

meanings restricted to the domain, requiring the

establishment of precise dialogs and restricting the

possibilities of the user’s pronunciation (Siqueira,

2001).

Another approach is to develop applications that

support the use of natural language with few

restrictions. In this case, the problems in natural

language processing, as vague and ambiguous

constructions with grammar mistakes need to be

solved. Finally, regardless of voice interaction is

treated, the speech must be considered as a possible

interaction style between the user and the computer,

that allows him to accomplish his tasks with more

efficiency and less effort.

310

Pinto P. Sena C. and A. S. Santos C. (2006).

DEVELOPMENT OF VOICE-BASED MULTIMODAL USER INTERFACES.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 310-316

DOI: 10.5220/0001573103100316

 SciTePress

Due to the overwhelming number of inputs and

outputs objects in direct manipulation interfaces,

users have simply many things to see or to do. Voice

inputs and outputs are a natural channel, available

and systematically under-utilized to improve the

communication between the user and the computer.

For these users, such interfaces added to the current

visual ones increase the feeling of direct

manipulation and enhance user’s understanding

(Mountford, 1990).

We consider “mode or modality” as an input

and output mechanism with the user’s interface

(Nunes and Akabane, 2004). Thus, multimodality is

defined as the combination of two or more input

modalities (such as speech, touch, gestures, head

movements and mouse) in a coordinate way with

different available outputs in a multimedia system

(Ovviat, 2002). Different from the multi-channel

access which makes possible to access data and

applications from different channels (such as

laptops, PDAs or cellular phones), multimodal

access allows the combination of multiple ways in

the same interaction or section (Srivasta, 2002).

According to Maybury (2001), machines

supporting multimodal inputs and generating

coordinated multimedia output can bring benefits,

including: more efficient interaction (less effort for

the task execution), more effective interaction (tasks

and dialogs regarded to the user’s context) and more

natural interaction (support to the combination of

speaking, writing and gestures as in the man-man

communication).

Within this context, this paper aims to present a

process for the development of multimodal user

interfaces with emphasis in the voice modality. The

focus here is to present an approach towards

integration of voice commands into traditional

mouse based interfaces.

This article is organized as follows: Section 2

reviews paradigms of graphical interfaces

interaction. Section 3 discusses voice features as an

input modality. Section 4 gives the reader details of

the voice interaction of the GUI and presents the

GRMMI environment. Section 5 introduces the

application of the proposed approach to the

development of a video manipulation interface. The

last section analyses the results and presents

conclusions.

2 INTERACTION PARADIGMS

The term paradigm is generally used to mean a

model of how something operates. An interaction

paradigm specifies a model of how an interface

operates (reacts) when the user executes an action on

it. It also indicates the order that elements are are

selected or activated by the user when he executes a

task. These paradigms can be grouped in two basic

styles (De Souza, 1999):

a) action + object interactions – the user

selects the action to be done, and then the

object on which it must interact.

b) object + action interactions – the user first

selects the object and then the operation

that wishes to do over it.

In a direct manipulation interface, the user

hopes the system to offer representations of objects

those interact like real objects themselves. These

objects must have associated tasks with meanings

like those of the real world. Because of this it is

common to imagine that the user’s interface use the

interaction “object + action” paradigm. However, as

depicted in Figure 1, even in well-known interface

standards this paradigm is not always kept. In the

first level of the interface menu structure there are

elements that give us the idea of object

manipulation, as File and Tools, as well as the

elements which are related to the actions as Edit,

View and Help. Thus, one can say that menus apply

a paradigm modeled sometimes by the “action +

object”, sometimes by the “object + action”.

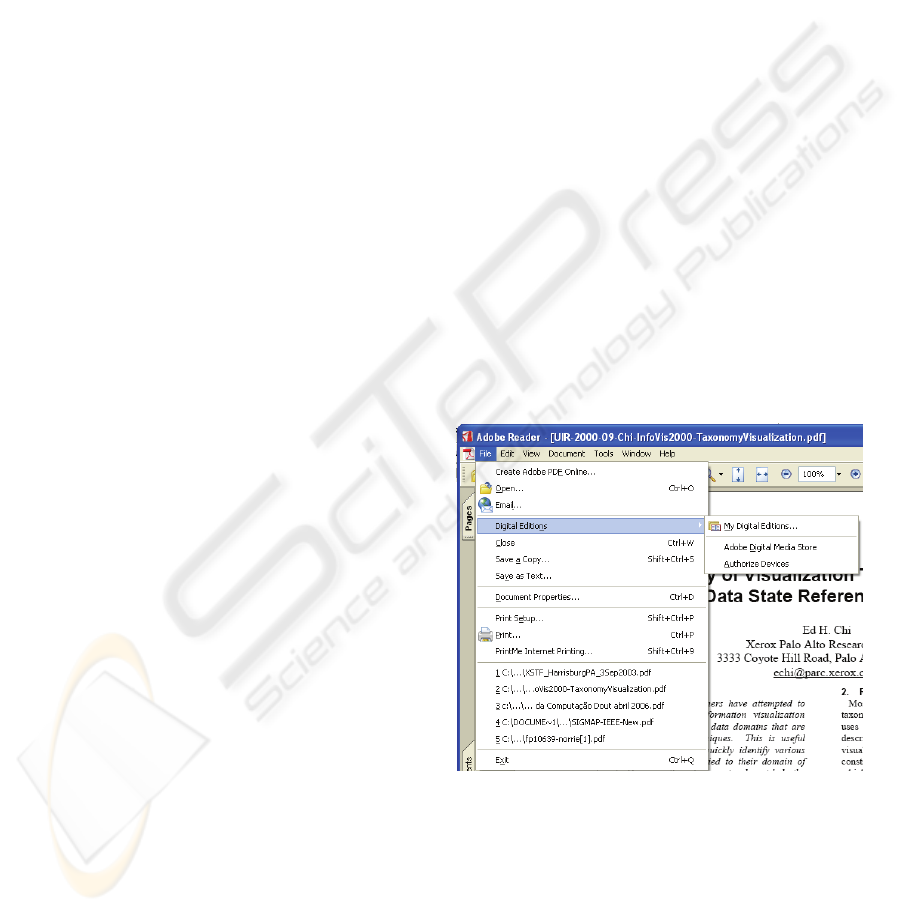

Figure 1: Adobe Reader main screen: an example of menu

interaction.

Another important point is that, it doesn’t matter

what interaction paradigm is adopted, the user

usually wait for a reaction of the system through the

graphical interface. In the example of Figure 1, after

some interactions, the different levels of the menu

are detached and presented.

DEVELOPMENT OF VOICE-BASED MULTIMODAL USER INTERFACES

311

From the previous observations, one can say

that some important problems must be solved to

allow the integration of the voice commands to the

GUI:

1. How to model the multimodality integration in a

graphical environment that applies different

interaction paradigms?

2. Which interface objects to which the natural

interaction must be done with the voice?

3. How do the graphical interfaces must react to

the user’s voice commands even when different

interaction paradigms are used?

3 THE VOICE AS AN INPUT

MODALITY

Each interaction modality has its own characteristic

that many times determinate its utilization. In

general, the tasks made by the users on the interface

are associated to the following actions (Damper,

1993):

− Selection: choose the items as in a menu.

− String: composition of a text characters

sequence.

− Quantification: numeric value specification as

in the case of the number of a text edition line.

− Orientation: angular quantification, as in the

case of a line segment orientation.

− Position: point specification in a bi-dimensional

space.

− Path: position and orientation sequence

resulting in a curve in the application space.

For each action there are more or less indicated

modalities. The speaking recognition (identification

of the spoken words and transcription to the written

text) is generally indicated to selecting and text

composition tasks (string) for it proportions a more

natural interaction between the user and the

application. On one hand, the selection of an action

through simple voice commands instead of a

considerable number of keys or clicks reduce the

time interaction between the user and the system. On

other hand, the quantification, positioning and

orientation actions become complicated, imprecise

and more vulnerable to mistakes if the voice

modality is used as input. Thus, these actions are

more appropriated to the use of devices such as

keyboard and mouse (Damper, 1993).

The input modality choice must consider some

circumstances and conditions to the application use

(Sun Microsystems, 1998: Hix, 1993). One can say

the voice input modality is indicated in the cases

where:

− The person who uses the application has the

hands or eyes occupied.

− Mobility is required.

− It is not possible to use the keyboard.

− Objects or actions within a great amount of

options or through a repetitive way must be

selected.

− The required commands are built in within a

great menu structure.

− The users have some physical deficiency,

especially visual problems.

Voice-based and direct manipulation interfaces have

complementary characteristics. This fact

collaborates and justify the use of many modalities

in a same interface (Grasso, 1996). Table 1 describes

these features.

Table 1: Complementary characteristics of the voice and

direct manipulation.

Direct Manipulation Voice Recognition

Direct use Operations without the use

of hands and/ or eyes

Simple and intuitive

actions

Possibility of complexes

actions

Consistent

appearance and

behavior

Reference independent of

the location

No ambiguity in the

reference

Multiple ways of relating

to entities

In IBM (2003) some considerations related to

the voice use associated to the graphical interface

are also presented. Some visual elements that need

the user’s input or action can be activated with the

voice. Buttons, text fields, links, list box and

checkbox are typical examples of this possibility,

while, graphics, tables and diagrams are better

presented and manipulated via graphic interface.

4 THE PROCESS OF INCLUDING

VOICE IN GRAPHICAL

INTERFACES

Starting from a naïve approach, the voice integration

to a graphical interface could be solved with the

simple association of voice commands to the objects

that compose such interface. However, that this is

not the most adequate way to deal with the problem.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

312

Some tasks (e.g. a region or image marking) or

situations (e.g. noisy places) voice make difficult to

use as interface input modality.

It must be also observed that the use of some

input modalities integrated in a complementary or

simultaneous manner should be an imposed to a

specific task execution.

The voice integration to the graphical interface

can not just follow the graphical interface interaction

paradigm because they do not have a standard:

sometimes the paradigm is “action + object”,

sometimes it is “object + action”. In general, for

voice commands (e.g., “edit this Figure”), it is more

natural for the user to mention the action first and

complementing it with the object afterwards.

The problem of the interface feedback to the

user’s input action through the voice commands also

must be treated. In other words, it is necessary that

the interface allows the user to verify if the

command was effectively recognized and executed.

Then, the implemented solution must allow a narrow

link between the voice commands and the graphical

interface objects that execute similar actions. These

graphic objects will give the user a feedback through

reactions in the graphical interface. In Figure 1, for

instance, the user could start up an action directly in

the lowest Menu level (“Save As”) without being

necessary to pronounce the command that refer to

the highest level (“File”), in an “action + object”

style. However, the interface reaction would show

the user that the command was recognized with the

same resulting visual representation of an action

with the mouse according to the Menu hierarchy.

Thus, different input interactions (voice, mouse and

keyboard) to the same task performance (a Menu

option choice) must generate identical interface

responses.

The process of including voice in graphical

interfaces proposed here, are beyond the simple

voice rules association of the interface graphical

elements. This process intends to solve the problems

listed in section 2 and is based on the following

steps:

1. To indentify the use case associated to the

graphical interface as a whole or a part of it (i.e.

a module, a component etc.);

2. For each use case identified, to define the

interface actions and components that are part

of it;

3. To define the grammar rules that associate voice

commands to graphical components;

4. To create a file (XML) that defines the

pronunciation hierarchy from defined grammar

commands, if necessary;

5. To define the parameters associated to the voice

commands, if necessary;

6. To identify the situations of the activation and

deactivation of the grammar rules for each use

case;

7. To implement a method that produce the visual

feedback associated to the execution of the

voice commands in the interface.

The use cases from phase 1 allows the

identification of tasks to be executed with the

interface and the adequate functions to the voice

interaction. The action definition and the grammar

associated with voice interaction can be done in a

general way to any interface component and

independent of the adopted interaction paradigm.

The grammar rules define, consequently, the words

or sentences (tokens) that should be accepted by the

recognizer.

Another important point is the specification of a

precedence hierarchy between the voice commands.

This hierarchy avoid the user from pronouncing any

voice rule defined in a grammar in any order. This

approach has direct impact in the recognition system

performance. Furthermore, the hierarchy relates in a

clear way “what is possible to say now” (voice

interface) at the moment and “what is possible to do

now” (graphical interface), keeping the user

informed on the result of his/her interactions through

a visual interface feedback. It means that enabling

(disabling) a graphical component related to it and

vice-versa.

Once there is any treatment related to the

complementary and simultaneous multimodal

commands to the grammar rules (e.g. voice and

mouse use to zoom part of a digital image), it is

suggested to these commands to be identified and

modeled to the following way: L (location) – A

(action) – O (object) – P (parameters). The

“location” is given by the mouse position in this

case; “action” corresponds to the action of zooming;

“object” corresponds to the image and the

“parameters” to the complementary information

necessary to the action (how much the image must

be enlarged).

The steps 3, 4 and 5 are executed with help of a

environment called GRMMI (Grammar Rules for

MultiModal Interfaces). This environment supports

both voice grammars and hierarchies specification

and the execution of the multimodal application that

applies the specified grammars. The part of

environment related to the integration between what

was pronounced and the interface reactions is called

GRMMI engine. Hence, it is an intermediator

DEVELOPMENT OF VOICE-BASED MULTIMODAL USER INTERFACES

313

between voice and visual interfaces modes. GRMMI

engine is in charge of identifying the grammar rule

associated to the token (accepted word) pronounced

(uses the grammar rules), verifying if there is a

foreseeing precedence hierarchy for such token (it

uses the hierarchy file – XML) and then enable and

unable according to this hierarchy the adequate

grammar rules, as well as in maintaining the

harmony with the graphical objects. This means that

once enabled or disabled, the voice command, the

graphical object associated to it will also be enabled

or disabled, giving a visual response to the

application user.

The GRMMI engine offers many available

functions which can be used in applications with

graphical interfaces, as long they are created to the

grammar and XML files necessary to the definition

of the voice interface in steps 3 to 5 of the proposed

approach.

5 CASE STUDY

As an illustration of the proposed process, consider

the example of the interface from one of the

components of an interface for the annotation of

digital videos (player component) (Santos et. al.,

2004).

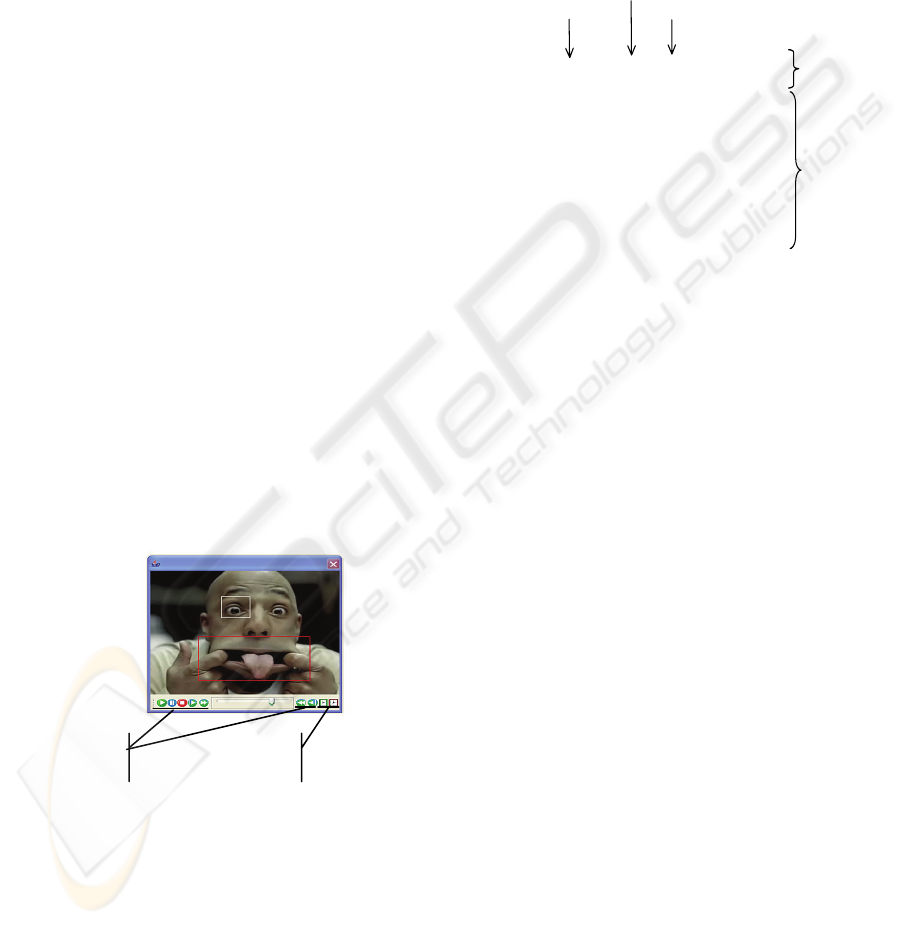

Two use cases are associated to this interface

component, as depicted in Figure 2:

(i) “watching video”

(ii) “describing video segment”.

Annotation

Controls

VCR

Controls

Figure 2: Player component interface.

The related actions to these use cases are

described bellow: for the use case “watching video”,

the associated actions are the typical controls from a

VCR. The associated actions to the use case

“describing video segment” allows the splitting up

of the video at a time (begin and start) and the

description of the created segment (add region, add

annotation).

1. To watch video: play, pause, stop, next,

forward, rewind and previous.

2. To describe video segment: start segment,

end segment, add region, add annotation.

Figure 3 illustrates the rules grammar for the

previous player component.

rammar player;

public <watch> = watch{watch};

public <describe> = describe{describe};

public <play> = play{play};

public <stop> = stop{stop};

public <pause> = pause {pause};

public <forward> = forward {forward};

public <rewind> = rewind {rewind};

public <next> = next {next};

public <previous> = previous {previous};

public <zoom> = zoom {zoom};

public <begin> = start segment {begin};

public <end> = end segment{end};

public <comment> = add annotation {comment}

public <region> = add region {region};

associated XML tag

recognized word / command

rule name

use

cases

actions

(tasks)

Figure 3: Player component grammar.

The following step is the creation of the

commands hierarchy. This hierarchy allows the

establishment of which interface components

(commands) must be enabled (disabled) when the

user performs a voice commands sequence.

Figure 4 illustrates an example of hierarchy for the

commands of the player component. In this

hierarchy, if the user pronounces the word “watch”

(use case “watch”), just the player VCR buttons will

be enabled. If the “play” command is pronounced,

all the buttons, except “stop” and “pause” will be

disabled (for the application of video annotation,

was defined that after the beginning of the video

presentation, the sole available actions for the user

would be the “pause” action or the “stop” action to

interrupt the presentation through a voice

command).

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

314

<?Xml version="1.0" encoding="ISO-8859-1"?>

WordList>

<UseCase tag="watch">watch

<FatherNode root="false" tag="play">play

<Child tag="pause">pause</Child>

</FatherNode>

<FatherNode root="true" tag="next">next

...

</FatherNode>

<FatherNode root="true" tag="forward">forward

...

</FatherNode>

...

<FatherNode root="false" tag="stop">stop

<Child tag="forward">forward</Child>

</FatherNode>

</UseCase>

<UseCase tag="describe">describe

<FatherNode root="true" tag="begin">start segment

<Child tag="end">end segment</Child>

<Child tag="region">add region</Child>

<Child tag="comment">add annotation</Child>

</FatherNode>

...

</UseCase>

WordList>

Figure 4: Extract from the hierarchy of commands.

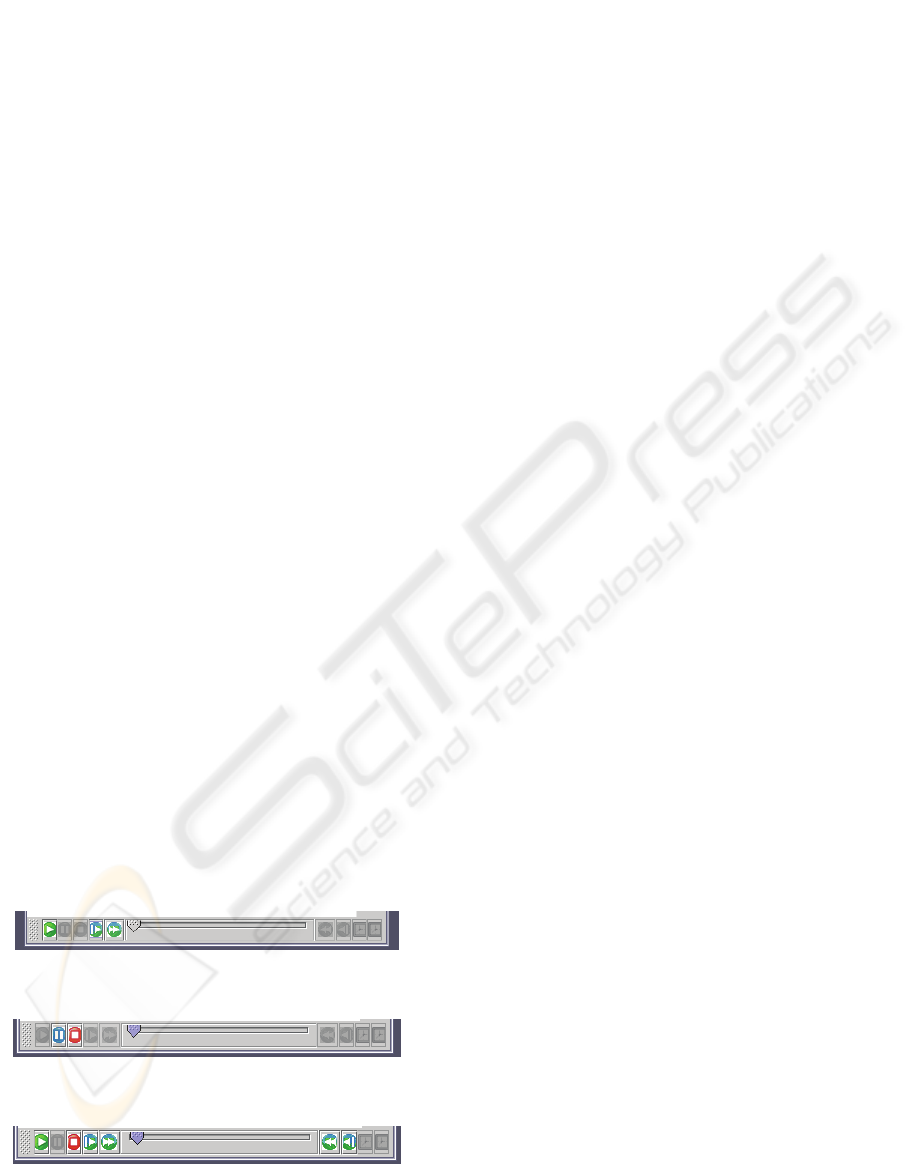

One example of interface visual response to the

voice command sequence is illustrated on Figure 5.

After the initial stage linked to the “watch” case use

(Figure 5 (a)), the user pronounces the “play”

command and just the “pause” and “stop” buttons

get enabled. (Figure 5 (b)). In the sequence after the

“pause” command is pronounced, all the buttons,

except the “pause” one itself, get enabled. (Figure 5

(c)). Notice that the enabled (disabled) components

sequence follows exactly the grammar rules from

Figure 4. Observe as well that the graphical objects

associated to another use case (describes video

segment) also remain disabled. The use cases are

mutually exclusive, meaning that the manipulation

of one of them disables the others.

(a) Player interface: initial state.

(b) Player interface: after “play” command.

Figure 5: Interface reactions for some voice commands.

6 CONCLUSION AND FUTURE

WORKS

The paper has proposed a new approach to

multimodal interface development with emphasis in

the use of voice. This implies in evaluate the

graphical interface in which voice will be integrated

and, beyond this, knowing the voice characteristics

while input modality. The major contributions of the

work are:

1. Proposal of a process that suggest which

activities must be followed to the voice

inclusion in a GUI;

2. Proposal of hierarchy problem solving of voice

command precedence through the use of XML

files associated to rules grammar;

3. XML file model as the result of the hierarchy

generation of voice commands precedence;

4. Proposal of a model parametrized multimode

commands treatment;

5. The GRMMI environment implementation, that

provides the solution and treatment for

pronounce maintenance problems among the

commands, as well as of a visual response to the

application user of what can be said or done.

The GRMMI environment, beyond making the

proposed inclusion process of the voice modality in

a graphical interface valid, facilitates the

implementation made by developers that wish to use

voice in their applications, since it makes available a

set of functions proper to input manipulation and

treatment by voice and grammar and hierarchy

automatic generation. The effort of development

becomes less if compared to this work’s. Using

GRMMI, it is only necessary for application

developers to identify the use cases, associated tasks

and then use the generation module and the GRMMI

engine in their applications (these are the steps of the

proposed method).

The search for more simple, natural and

intuitive human-computer interfaces has increased,

mainly with the intention to reduce the user’s

problems and anxiety when using the system. The

voice interface, once it is more natural to ht e human

being, minimizes a little these initial problems and

can facilitate and make the application learning

process rich, as well as make its use flexible, in the

meaning of allowing the access without using hands

and/or eyes, access in small devices, generating a

productivity gain. Besides, if the speech is

associated to other modality, as clicking or drawing

in digital images, the process can be a lot more

DEVELOPMENT OF VOICE-BASED MULTIMODAL USER INTERFACES

315

interesting, since one of the modalities become more

appropriated to tasks, often complementary.

From these considerations and obtained results,

one can suggest as future activities that will continue

this work: (i) submission to the multimode interface

proposal to the evaluation by the users in order to

measure the real gain relating to its use; (ii)

possibility of choosing the recognizer language, that

is currently only Portuguese; (iii) implementation of

a multimodal output, allowing audio, text and image

modalities integration; (iv) restriction of the possible

words from the dictate dictionary, making it more in

a context (e.g. if it is a medical application, a

dictionary with medical expressions makes the

recognition more precise and faster); (v) use of

another recognition system that does not depend on

training and (vi) implementation of treatment of the

parametrized multimode commands.

REFERENCES

Carneiro, M. 2003. Interfaces Assistidas para Deficientes

Visuais utilizando Dispositivos Reativos e

Transformadas de Distância. Rio de Janeiro. 162p.

Phd Thesis, Pontifícia Universidade Católica do Rio

de Janeiro, Brazil.

Carvalho, J.O.F. 1994. Referenciais para Projetistas e

Usuários de Interfaces de Computadores Destinadas

aos Deficientes Visuais. MSc. Thesis, Univ. of

Campinas, Brazil.

Damper, R. I., 1993. Speech as an interface medium: how

can it best be used?, in Baber, C. and Noyes, J. M.,

Eds. Interactive Speech Technology: Human Factors

Issues in the Application of Speech Input/Output to

Computers, pages pp. 59-71. Taylor and Francis. UK.

DE Souza, C.S.; Leite, J.C.; Prates, R.O.; Barbosa, S.D.J.,

1999. Projeto de Interfaces de Usuário: perspectivas

cognitivas e semióticas. Jornada de Atualização em

Informática, Brazilian Symposium of Computing, Rio

de Janeiro, Brazil.

Gavaldà, M., 2000. La Investigación em Tecnologías de

La Lengua. Quark Ciencia, Medicina, Comunicación y

Cultura. N. 19, Jul-Dec. 2000, p. 20-25.

Grasso, M. A., 1996. Speech Input in Multimodal

Environments: A proposal to Study the Effects of

Reference Visibility, Reference Number, and Task

Integration. Technical Report TR CS-96-09, University

of Maryland, Baltimore Campus.

Hix, D.; Hartson, H. R., 1993. Developing User

Interfaces: Ensuring Usability Through Product &

Process. Caps 1, 2 e 3. John Wiley & Sons, Inc.

IBM, 2003. Multimodal Application Design Issues. (URL:

ftp://ftp.software.ibm.com/software/pervasive/info/mu

ltimodal/multimodal_apps_design_issus.pdf, access on

03/07/2005)

Maybury, M., 2001. Coordination and Fusion in

Multimodal Interaction.

(URL:http://www.mitre.org/work/tech_papers/tech_pa

pers_01/maybury_coordination/maybury_coordination

.pdf).

Mountford, S. J.; Gaver, W. W., 1990. Talking and

listening to computers. In Laurel, B. (Ed.), The art of

human-computer interface design, 319-334. Reading,

MA: Addison-Wesley.

Nunes, L. C.; Akabane, G. K., 2004. A Convergência

Digital e seus Impactos nas Novas Formas de

Interação Humana. In Anais XI SIMPEP - Bauru, SP,

Brasil.

Oviatt, S., 2002. Multimodal Interfaces. Handbook of

Human-Computer Interaction, Lawrence Erlbaum:

New Jersey.

Preece, J. et al., 1994. Human-computer interaction. Great

Britain: Addison-Wesley Publishing Company, Inc.

Raskin, J., 2000. The Humane Interface: New Directions

for Designing Interactive Systems. ACM Press.

Santos, C.A.S.; Rehem Neto, A. N; Tavares, Tatiana

Aires. 2004. Um Ambiente para Anotação em Vídeos

Digitais com Aplicação em Telemedicina. In:

Webmedia & LA Web 2004, Ribeirão Preto, Brazil.

Shneiderman, B., 1998. Designing the User Interface

Strategies for Effective Human-Computer-Interaction.

3rd Ed. Addison-Wesley.

Siqueira, E. G., 2001. Estratégias e padrões para a

modelagem da interface humano-computador de

sistemas baseados na arquitetura softboard. São José

dos Campos: INPE.

SUN MICROSYSTEMS., 1998. Java Speech API

Programmer´s Guide. October, 26, 1998. 156 p.

(URL: http://java.sun.com/products/java-media/

speech/forDevelopers/jsapi- guide.pdf)

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

316
