COLLABORATION SECURITY FOR MODERN INFORMATION

SYSTEMS

Richard Whittaker

Florida International University

11200 S.W. 8th Street, Miami, FL 33199

Gonzalo Argote-Garcia, Peter J. Clarke, Raimund K. Ege

Florida International University

11200 S.W. 8th Street, Miami, FL 33199

Keywords:

Security Architecture, Personal Data Protection, Agent Security, Mediation System.

Abstract:

One of the main approaches to accessing heterogeneous data is via the use of a mediation framework. The

current problem with mediation systems is that they are viewed as black boxes from the perspective of their

clients. As clients enter their data, they are unable to control the access to their data from entities within the

mediation system. In this paper we present a solution in the form of a security framework, named Collaboration

Security Framework that addresses the needs of all entities, i.e. external clients, mediators or data sources,

to have autonomy in applying security policies during collaboration. As a result all entities participating in

a collaboration have control over the access to their data by applying local, global and collaboration channel

security rules, which can be changed at runtime and that are security model independent.

1 INTRODUCTION

As Information Systems change the landscape of in-

formation delivery, even with their current advance-

ments, most Information Systems still fall short on

taking an active role in supplying data and knowl-

edge to their clients (Wiederhold, 1992). An archi-

tecture for Information Systems that shows promise

is the Three-Layer Mediation Architecture (Ege et al.,

2004). When compared to Federated Systems (Sheth

and Larson, 1990), Mediation Systems are better

suited for environments, which tend to scale and

where their information sources are dynamic (Park

and Ram, 2004). Through the use of mediators within

a Mediation System, the system can package and de-

liver information to the client in a way that makes the

complexity of information processing transparent to

the client.

However, current Mediation Systems are limited in

addressing issues of enterprise environments that are

concerned with security to their stakeholders during

utilization of these systems (Bhatti et al., 2005). For

these Mediation Systems to progress in these environ-

ments, new methods of providing security must be

developed. One key requirement that must be met

is that all entities collaborating within a Mediation

System must have autonomy over their security. Cur-

rently this is not the case since Mediation Systems are

viewed as black boxes from the perspective of their

clients. As clients enter their data, they are unable to

control the access to their data from entities within the

mediation system. This places the clients in a vulner-

able position since they have no knowledge of how,

why or what part of their data is being processed dur-

ing the collaboration with the Mediation System.

This lack of knowledge and control can be

catastrophic in areas dealing with data sensitive trans-

actions. In this paper we present the solution in the

form of a security framework, named Collaboration

Security Framework (CSF), that addresses the needs

of all entities, i.e. external clients, mediators or data

sources, to have autonomy in applying security poli-

cies during collaboration with each other. This secu-

rity framework would provide the clients with a secu-

rity wrapper that encapsulates their data. Our security

framework is also independent of any particular secu-

rity model e.g. BPL (Bell and Padula, 1975), Chinese

Wall (Brewer and Nash, 1989), RBAC (Sandhu et al.,

1996).

Note, our security framework is only a ﬁrst line of

defense. We do not address the problem of valid enti-

ties, who have the proper clearance to access the data,

for passing information to non-valid third parties. If

this happens, the client would only know a list of can-

didates that can be held accountable.

The contributions of this paper can be summarized

363

Whittaker R., Argote-Garcia G., J. Clarke P. and K. Ege R. (2006).

COLLABORATION SECURITY FOR MODERN INFORMATION SYSTEMS.

In Proceedings of the International Conference on Security and Cryptography, pages 363-370

DOI: 10.5220/0002095803630370

 SciTePress

as follows, we present a security framework that:

• Makes it possible for all entities involved in a col-

laboration to utilize a standard security mechanism

that would provide each entity control over access

to their data.

• Provides a security infrastructure that can apply se-

curity policies at a local and global level.

• Is security model independent.

• Can provide entities the ability to change their se-

curity policies at runtime.

Due to space limitations, we do not provide a proof

of completeness, veriﬁcation mechanism, protocols

or security polices reconciliation of the CSF. These

topics will be presented in our future work.

This paper is organized as follows: in the next

section, we provide a brief overview of mediators

and mobile agents. In Section 3 we look at security

scopes, which are being applied during collaboration.

Section 4, we present cross-domain collaboration and

a key security violation that can arise during a cross-

domain collaboration. We cover the components of

the CSF in Section 5. An example applying the CSF

to mediation and related work will be presented in

Sections 6 and 7, respectively. We give the conclu-

sion of the paper in Section 8.

2 PRELIMINARIES

In developing our security framework, we assumed

that there is an architecture in place that can deal with

the semantic and syntactic interoperability of hetero-

geneous data sources and also that there is an under-

lying distributed mobile agent environment.

Architectures that provide interoperability can

be classiﬁed as follows: Mapping-Based, Query-

Oriented and Intermediary Approach. Due to the

drawbacks of federated schemas and the necessity

for clients to have comprehensive understanding of

the domain structure and data that are present in

Mapping-Based and Query Oriented Approach (Park

and Ram, 2004) respectively, we focus our security

framework on Information Systems based on the in-

termediary approach utilizing mediation mechanisms.

Mediation Systems SAW (Dawson et al., 2000),

TIHI (Wiederhold et al., 1996) and CHAOS (Liu

et al., 2000) all provide semantic and syntactic in-

teroperability of heterogeneous data sources through

the use of mediators.“These mediators are intelli-

gent middleware that sit between information sys-

tem clients and sources. They perform functions

such as integrating domain-speciﬁc data from multi-

ple sources, reducing data to an appropriate level and

restructuring the results into object-oriented struc-

tures” (Wiederhold and Genesereth, 1997).

A key requirement for our security framework is

for an entity involved in a collaboration to move from

host to host within a mediation system during the col-

laboration. Mobile agents are designed for this pur-

pose. Mobile agents can transport their state and ex-

ecute code within a distributed network. Therefore,

mobile agents allow us to create a distributed exe-

cution environment, which provide seven key ben-

eﬁts: reduce network load, overcome network la-

tency, encapsulate protocols, execute asynchronously

and autonomously, adapt dynamically, are heteroge-

neous and robust and fault-tolerant (Lange and Os-

hima, 1999).

For mobile agents to achieve these seven beneﬁts,

they need an environment that provides them with

necessary infrastructure. Mobile agent environments

KOaS (Bradshaw et al., 1995) and Cougaar (Thome

et al., 2004) are two examples that provide this in-

frastructure. By utilizing mobile agents we are able to

collaborate in a distributed manner instead of a cen-

tralized manner. This makes it possible to send rep-

resentatives with the needed instructions to conduct a

collaboration e.g. security rules and data, to a certain

location within the mediation system to represent an

entity that needs to collaborate with other entities.

We merge mediation and mobile agent technolo-

gies within our Collaborative Security Framework

(CSF), which enables entities participating in a medi-

ation transaction to control the access to their data by

applying local, global and collaboration channel se-

curity rules, which can be changed at runtime. These

security rules are applied to protect the internal data

of mobile agents.

3 SECURITY SCOPE

As entities collaborate within a mediation system,

which utilizes our CSF framework, these entities must

adhere to two types of security scopes: global and

local scopes. Global security scopes governed se-

curity policies that are applied to a group of enti-

ties. Whereas, local security scopes governed poli-

cies that individual entities apply during their collab-

oration with other entities. To set the stage for proper

analysis, we give the following deﬁnitions:

• Root Entity: is an entity that is not representing

another entity within the collaboration.

• Representative Agent: is an entity the represents a

root entity within a collaboration.

• Local Security Policy: is a set of security policies

that govern the access to an entity. These polices

are controlled by the entity.

• Global Security Policy: is a security policy that is

applied to every representative agent with a partic-

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

364

ular representative domain and is controlled by the

collaboration root entity.

• Representative Domain: is the set of representa-

tive agents and their local collaboration channels

that represent a root entity in a particular collabo-

ration.

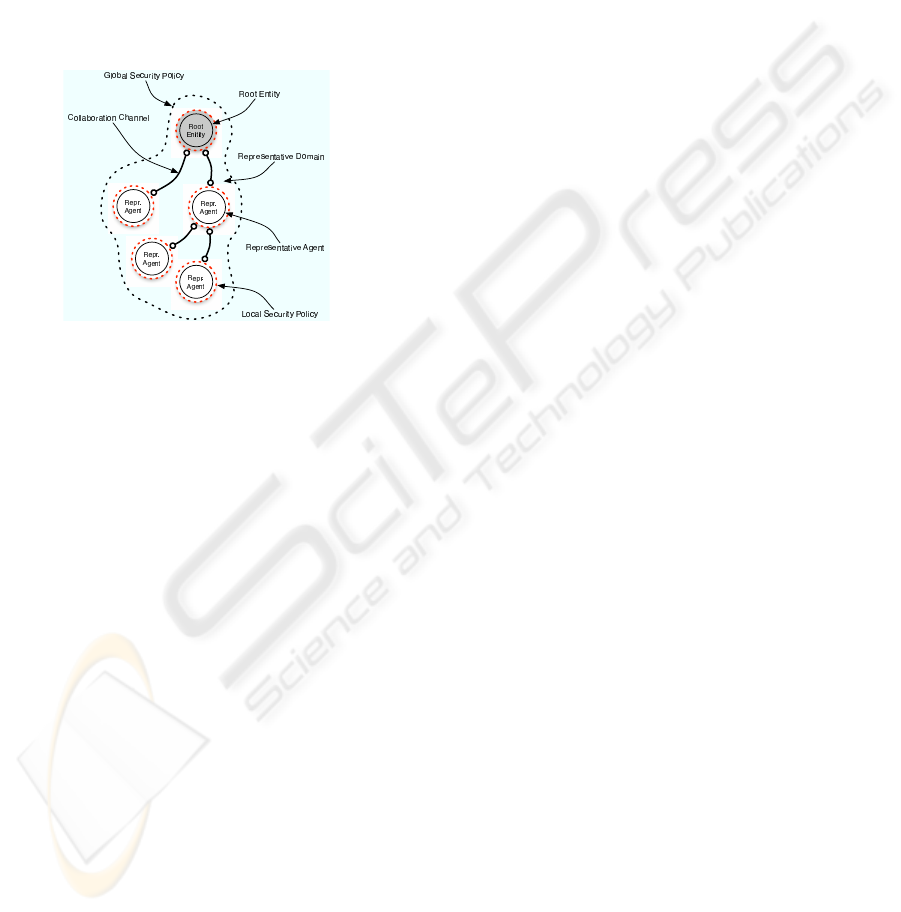

These deﬁnitions are illustrated in Figure 1. It can

be seen from the ﬁgure that each entity within the rep-

resentative domain has its own local security policy

that governs the entity. Therefore, for representative

agents to communicate with each other they must ad-

here to each other’s local security policy.

Figure 1: Representative Domain.

All communications between entities within a rep-

resentative domain is done through a collaboration

channel that we deﬁne as:

• Collaboration Channel: is a bi-directional com-

munication link between two entities that has a se-

curity policy that both entities agreed upon to es-

tablish a secure communication between them.

A collaboration channel is established within a rep-

resentative domain during the initialization of a rep-

resentative agent, which is made possible by the ser-

vices provided by the mobile agent environment. Dur-

ing this initialization, a representative agent is cre-

ated to represent the parent who is creating the agent.

Since the parent entity initializes the representative

agent it will establish the security protocol between

the parent and newly created representative agent.

Since representative agents have their security poli-

cies set by their parent during initialization, there may

be times where these representative agents need to

change their security policies. This can arise due to

the environment that a representative agent is collab-

orating in, we will address this issue in Section 4. For

a representative agent to change its security policy,

it must request permission from its parent since an

agent represents its parent. This request cycle is re-

cursive and therefore, all requests will reach the root

entity since it is the parent of all representative agents.

Hence, the root entity is in control of all security poli-

cies within the representative domain.

As stated above the collaboration channel is bi-

directional, therefore it is possible for a parent of

a representative agent to request the representation

agent to change its security policies and data. This

may be necessary due to a runtime security policy ad-

justment.

To set the desired behavior and structure within

a representation domain we establish the following

properties:

• Root Entity Cardinality: There is only one root en-

tity within a representative domain.

• Root Entity Collaboration Channels: A root entity

can only have collaboration channels linking it to

representation agents who are in the same repre-

sentative domain.

• Representative Agent Cardinality: A parent entity

may have zero or more representative agents repre-

senting it within the representative domain.

• Parent Cardinality: A representative agent has

only one parent entity.

• Collaboration Channel Signature: Every collab-

oration channel has a unique transmission signa-

ture.

We assume all entities, i.e. root entity and repre-

sentation agents within a representative domain, are

working together to protect the root entity in collabo-

rating with other representative agents that are located

in different representative domains. Autonomy comes

into play when entities within a particular representa-

tive domain collaborate with other entities within an-

other representative domain. This cross-domain col-

laboration and its security issues will be addressed in

the following section.

4 CROSS-DOMAIN

COLLABORATION

During collaboration it is possible to have entities

from different representative domains collaborate.

This cross-domain collaboration is an area that cur-

rent mediation systems are not addressing adequately.

SAW (Dawson et al., 2000), TIHI (Wiederhold et al.,

1996) and CHAOS (Liu et al., 2000) do not pro-

vide any cross-domain security mechanism for their

clients. Security policies are geared to apply data ﬁl-

tering to the output data from the mediation system to

the client. These systems do not provide any security

mechanism for the clients to apply cross-domain se-

curity polices. Hence, contributing to the black box

scenario from the perspective of the clients.

Current work by (Shehab et al., 2005) started to ad-

dress the issue of cross domain security by enabling

entities roles based on RBAC (Sandhu et al., 1996)

COLLABORATION SECURITY FOR MODERN INFORMATION SYSTEMS

365

to cross into another domain with the possibility of

changing the role of the entity within the new domain.

This may affect the security policies of an entity since

the newly assigned role may have a new set of security

policies that pertain to this role. There is a drawback

and an assumption about the collaboration environ-

ment that is not present within our environment. The

drawback to their security framework is that the mi-

grating entity has no control over the role that will be

assigned to it in the new domain. Also, there is an

assumption that a speciﬁc security model can be ap-

plied across all domains. This is not the case within

our environment and in the real world. Our environ-

ment, models a more real world environment, where

different organizations have different security models

governing their security policies.‘

For these organizations to collaborate there must be

a path that enables data to ﬂow across domain bound-

aries. How data ﬂows across these domains is gov-

erned by the security policies and transmission in-

frastructure. We assume that the underlying trans-

mission infrastructure is in place, mainly TCP/IP. The

issue of interest is how to establish a cross-domain

communication path between entities in different do-

mains that adheres to each entity’s security. To estab-

lish cross-domain communication, we utilize our se-

curity framework’s collaboration channel that acts as

a bridge between the collaborating representative do-

mains. This is possible due to the services provided

by the collaborative channel. Note, that this commu-

nication channel may have a different set of security

policies than that of the collaborating entities. One

can think of the collaboration channel, as the land

buffer between two countries at a border that is not

owned by either countries but has a policy governing

the buffer that both countries agree on.

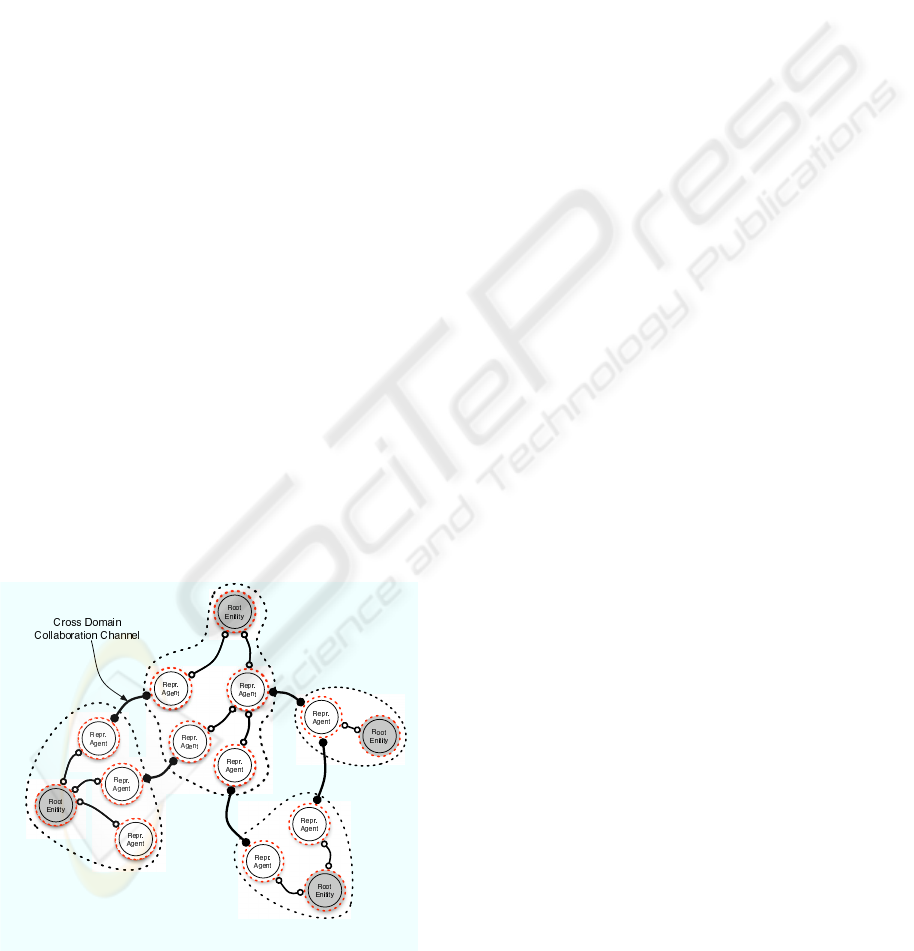

Figure 2: Collaborative Domain.

Figure 2 illustrates the collaborations between rep-

resentative agents of different representative domains.

Note that, the collaboration channels that are es-

tablished between representative agents in these do-

mains link representative domains. To initiate a cross-

domain collaboration channel the representative agent

must ﬁnd a linking partner. This is possible through

the use of directory services (Barker, 1995).

Once a cross-domain collaboration channel is es-

tablished the two linked representative agents can

start collaborating (request - response cycle). During

their collaboration, they will only transmit their own

local data, whose access is governed by their secu-

rity policies. Therefore, even though there is a com-

mon consensus between the collaborating representa-

tive agents on their collaboration channel, each agent

can still control the access to its data locally. It must

be stated that our framework does not provide the

interpolation of the security policies, but instead the

CSF provides the topology for establishing the col-

laboration. Research of (Wallace, 1996), (Bistarelli

et al., 1997) and (Bistarelli, 2004) have focused on se-

curity interpolation utilizing constraint programming

and semirings.

4.1 Collaborative Security

Having established cross-domain collaborations we

focus on the concept of security on these collabora-

tions. What exactly is a secure collaboration and what

is the scope of the security policies that govern this se-

cure collaboration? We deﬁne a secure collaboration

as follows:

• Secure Collaboration: A cross-domain collabora-

tion is secure if for every representative domain

that has a collaboration channel to other repre-

sentative domains all collaboration chains that one

can use to traverse from a root entity to another

root entity is secure.

Therefore, secure collaborations are not controlled

by a single governing body. Instead segmented parti-

tions of security policies are governed by the global

security policies of each representative domain and

the local security polices of each representative agent.

Each representative agent has its own autonomy over

its local security policy. This gives the representa-

tive agent control over who is accessing their data and

how. Hence, removing the black box scenario.

4.2 Collaborative Security Violation

Having established secure collaboration we must be

aware of the security violations that can arise dur-

ing a cross-domain collaboration. Figure 3 illustrates

the classic transitive access leakage, where an entity

was given access within a representative domain and

it uses its access right to gain access to an unautho-

rized entity during utilizing improper path traversals.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

366

Figure 3: Transitive Security Violation.

It has been shown that, to check if a system based

on an access right security mechanism is secure, i.e.

that no entity gains unauthorized access during run-

time, is undecidable (Harrison et al., 1976). Based

on prior research (Gong and Qian, 1994) it has been

proven that a cross-domain collaboration is secure is

also undecidable. In special cases an optimal solution

in polynomial time, Simpliﬁed Maximum-Access Se-

cure Interoperation (Gong and Qian, 1996) can be

used to check if there exists a violation during a cross-

domain collaboration.

Therefore, if the security rules have the proper re-

striction set on them, a system based on the CSF

framework may be checked to see if the system is se-

cure in polynomial time. Note, the CSF is not de-

signed around a speciﬁc security model. The CSF

provides services to apply security during a cross-

domain collaboration. Hence, mediation systems that

incorporate the CSF into their architecture may use

the Simpliﬁed Maximum-Access Secure Interopera-

tion (Gong and Qian, 1996) to check if the system is

secure. This is possible, since the CSF does not pro-

vide any service to modify any security rule within

the mediation system.

5 COLLABORATION SECURITY

FRAMEWORK

In this section we present key components of the Col-

laboration Security Framework (CSF) that provides

the underlying structure for all entities involved in

a collaboration to utilize a standard security mecha-

nism that gives each entity control over accessing its

data. To make this possible the CSF provides the abil-

ity for root entities and representative agents to ap-

ply security policies at local and global views that are

security model independent and also can be change-

able at runtime. One may ﬁnd similarities between

CSF and Kerberos (Steiner et al., 1988) where clients

trust the identity judgement of entities within the CSF

and Kerberos. A key different between CSF and Ker-

beros, is that in Kerberos a client requesting a service

must identity itself through its credentials. Whereas,

in CSF, a service is provided if there is a proper se-

curity interpolation between different Representative

Domains.

Figure 4: Collaborative Security Framework.

An overview of the CSF is illustrated in Figure 4,

which is composed of four main components: Secu-

rity Repository, Root Entity, Directory Services and

Representative Agent. The CSF is a simple frame-

work that achieves its underlying objective. In the

following sub-sections we brieﬂy overview each com-

ponent and its modules, helping in understanding how

the CSF achieves its goals in the deployment example

given in the next section.

Security Repository

The Security Repository holds all the security models

and rules that will be utilized by all entities within the

representative domains.

• Security Rules: This module is responsible for pro-

viding the security rules that are used by root enti-

ties and representative agents to build their security

policies.

Root Entity

The Root Entity is the entity that has control on how

its data is being accessed during a collaboration. The

root entity utilizes representative agents as delegates

to achieve this task.

• Security Rules: This holds the root entity security

rules that are global and that proceed over the root

entity’s representative domain.

• Representative Agent Controller: This module is

used to control the representative agent that repre-

sents the root entity within a representative domain.

COLLABORATION SECURITY FOR MODERN INFORMATION SYSTEMS

367

• Data Processor: Processes the internal data in-

coming and out-going.

Directory Service

The directory service component is used by root en-

tities and representative agents to locate entities that

can allow the collaboration to proceed.

• Locator: Locates entities within the mediation sys-

tem. Entities can query the locator to ﬁnd an en-

tity from other representative domains that can ad-

vance the collaboration.

Representative Agent

The representative agent represents the root entity

within its representative domain. It collaborates on

behalf of the root entity with other representative

agents that may or may not be in its representative

domain.

• Global Security Rules: The security rules of the

representative agent’s root entity. They are the

global security rules of the representative domain.

• Local Security Rules: The security rules that are

unique to the representative agent, which may be

requested to be changed by the representative agent

or by the representative agent’s parent.

• Collaboration Channel Security Rules: The secu-

rity rules that govern the incoming and out-going

transmission data of the representative agent.

• Collaboration Channel Controller: This module

establishes the creation and termination of collab-

oration channels.

• Data Processor: Processes the internal data, in-

coming and out-going.

6 APPLYING CSF TO

MEDIATION

In this section we present a deployment example of

a mediation system based on the CSF framework and

show how the mediation system gives each entity ac-

cess control over its data and security policies at a

local and global view that are security model inde-

pendent and can be changed at runtime.

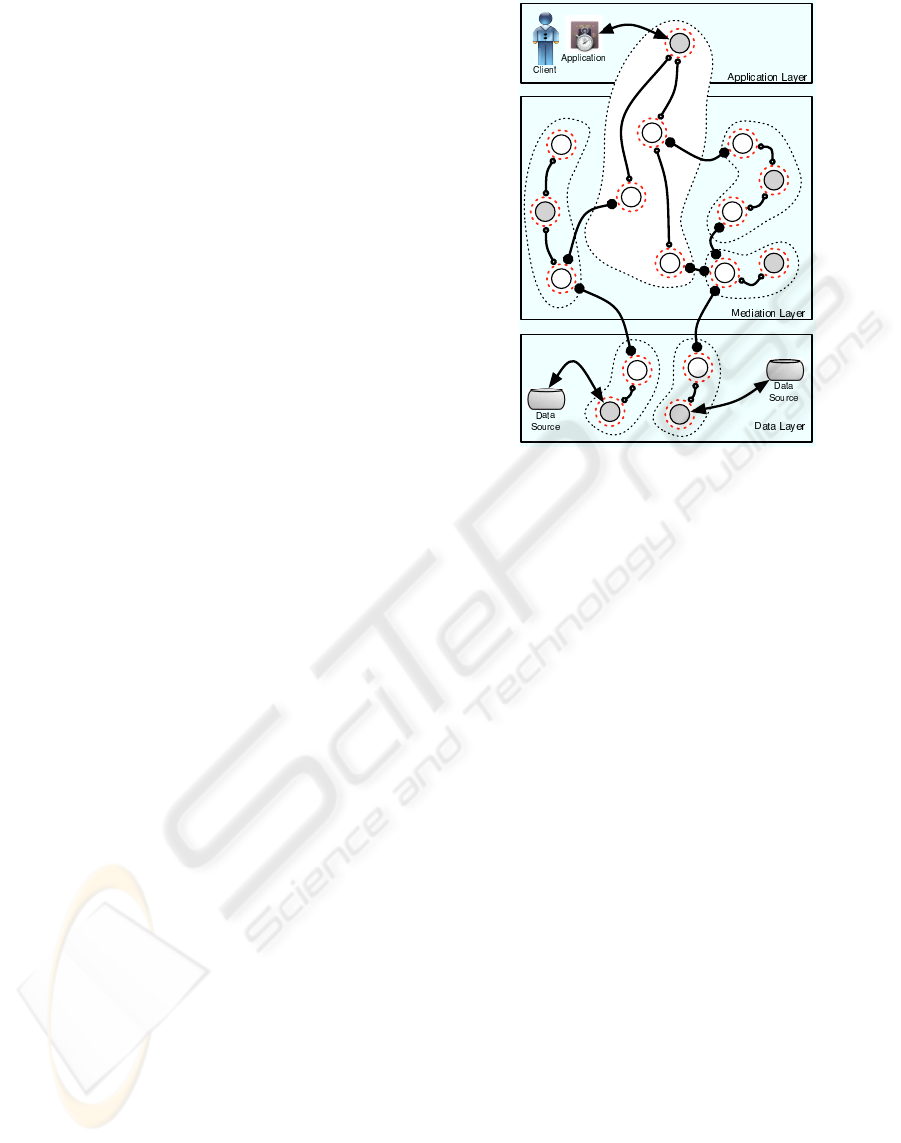

Figure 5 illustrates a runtime snap shot of the me-

diation system. As shown, there are six representa-

tive domains with their corresponding root entities in

gray. One in the Application Layer whose represen-

tative domain spans from the Application Layer into

the Mediation Layer. This is a key difference from

other mediation systems, which is made possible by

the underlying agent environment. Within the Media-

tion Layer there are three representative domains that

Figure 5: Applying CSF to Mediation.

are responsible for the semantic and syntactic map-

ping and two representative domains within the Data

Layer that provide a wrapper for the two data sources.

As a client interacts with the mediation system, the

client’s application within the Application Layer uti-

lizes the functionalities provided by the CSF to ini-

tialize a root entity to protect the data that the client’s

application enters into the mediation system. During

the initialization the client’s application speciﬁes the

communication TCP/IP port and the security policies

of the root entity. To establish the security polices

the root entity requests the needed security rules from

the CSF’s Security Repository. Thereafter, the client’s

application and root entity are in constant communi-

cation.

To advance the client’s request the root entity needs

to locate other representative agents within different

representative domains that can advance the underly-

ing request. The root entity can ﬁnd these representa-

tive agents by querying the CSF’s Directory Service.

During this task the root entity also retrieves the secu-

rity requirements that are needed to establish collabo-

ration channels with these representative agents. Hav-

ing the needed security requirements, the root entity

makes requests to the advancing representative agents

to establish collaboration channels with the root en-

tity’s own representative agents. Note, during these

requests there are possible negotiations on the secu-

rity policies that govern the collaboration channels. If

a negotiation fails, there will be no further communi-

cation between this representative agent and the root

entity. In this case, the root entity may request another

representative agent from the CSF’s Directory Ser-

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

368

vice. If there is an agreement between the root entity

and the advancing representative agent, the root en-

tity will initialize one of its own representative agents

with the global, local, and collaboration security rule,

and the data that is needed to advance the root’s entity

request i.e. the client’s request.

Upon establishing a collaboration channel the root

entity’s representative agent and the advancing repre-

sentative agent are collaborating with the possibility

of having their security policies based on different se-

curity models i.e. one representative domain security

polices based on RBAC (Sandhu et al., 1996) and the

other on BPL (Bell and Padula, 1975).

As the mediation system provides semantic and

syntactic interoperability to simplify the client’s re-

quest, the client’s representative agent will create a

nested web of collaboration channels to other repre-

sentative agents until the request is simpliﬁed to a

point where it can be processed by a data source. This

is illustrated in Figure 5.

As shown in Figure 5, at each point of a cross-

domain collaboration the client’s data is protected by

a representative agent making it possible for the client

to control the access to his or her data. The client may

request the root entity to change the global and local

security polices of some or all representative agents

during runtime by sending the request through the es-

tablished collaboration channels between these enti-

ties. Note, all entities within the mediation system i.e.

clients application, mediations or data source utilize

the CSF, making it possible to simplify the mediation

system security architecture. Therefore, CSF can pro-

vide each entity within the mediation system, access

control over its data and security policies at a local

and global view that are security model independent

and can be changed at runtime.

7 RELATED WORK

The problem of semantic and syntactic interoper-

ability of heterogeneous data sources have been ad-

dressed by TIHI(Wiederhold et al., 1996), CHAOS

(Liu et al., 2000), and (Yang et al., 2004). These me-

diation systems each utilize a different security mech-

anism to establish secure collaboration between dif-

ferent entities.

TIHI security mechanism is comprised of a secu-

rity mediator, which is an intelligent gateway that ap-

plies pre-processing and post-processing ﬁlter of data

requested by a client. The security mediator ﬁlters in-

coming and out-going data from TIHI’s data sources.

There can be situations where the security mediator

cannot handle all data ﬁltering. In these situations,

TIHI’s security ofﬁcer processes the data. Note, the

security mediator is under the control of the security

ofﬁcer and therefore, the security ofﬁcer may override

any data ﬁltering that was applied by the security me-

diator. Through the use of security rules, which the

security ofﬁcer loads into the security mediator, TIHI

establishes its security throughout the entire media-

tion system.

In CHAOS, security of the mediation system is

based on active objects that are dynamically loaded

into mediators. These active objects ﬁlter the data

that is being presented to the client. CHAOS does not

need to rely on a set of primitive security rules. To es-

tablish security policies CHAOS provides an API to

set the security polices with an active object. Before

the data within an active object is sent to a client, the

active object’s execute method is called by the medi-

ator containing the active object. Calling the execute

method on an active object causes the internal data of

the active object to be ﬁltered, therefore the client will

review a subset of the active object’s data that depends

on the access rights of the client.

(Yang et al., 2004) based their security mechanism

on RBAC (Sandhu et al., 1996) by utilizing the me-

diation system’s Access Control and View Expander

components and the mediation spec database. Their

mediation system applies security rules that ﬁlters

data being sent to the client. The Access Control com-

ponent extracts the policy information to enforce the

authorization constraints on the client. To access the

proper views of the data source that is in compliance

with client’s access rights, the mediation system uti-

lizes the View Expander that relies on the mediation

spec database to set the proper view access.

These security mechanisms approaches have their

limitations in the situation where a client data needs to

be protected during processing. This is due to the fact

that these security mechanisms do not provide any

services that make it possible for a client to control

the access to its data during the mediation process.

8 CONCLUSION

In this paper, we have presented the Collaborative

Security Framework (CSF), which allows all entities

participating in a cross-domain collaboration to con-

trol the access to their data by applying local, global

and collaboration channel security rules, which can

be changed at runtime. These security rules have dif-

ferent scopes, where local security rules are applied

to protect the internal data of a representative agent,

global security rules make up a representative domain

security policy that every entity within a representa-

tive domain must adhere to and collaboration channel

security rules that govern the collaboration between

entities.

The primary abstraction of the CSF is the represen-

COLLABORATION SECURITY FOR MODERN INFORMATION SYSTEMS

369

tative domain, which represents a client during col-

laboration. This is made possible through the use of

root entities and representative agents. The root en-

tity is the controller of a representative domain and

is the only entity within a representative domain that

communicates directly with the client. Whereas, rep-

resentative agents represent the root entity during a

cross-domain collaboration, this makes it possible to

have decentralize collaborations, where only neces-

sary data needs to be given to a representative agent

by its root entity.

Furthermore, the CSF provides an infrastructure so

that collaboration across different domains are secu-

rity model independent, since each representative do-

main can base its security rules on different security

models. This was a key design feature of the CSF,

since this reﬂects more real world situations.

Due to space limitations, we do not provide a proof

of completeness, veriﬁcation mechanism, protocols

or security polices reconciliation of the CSF. These

topics will be presented in our future work.

REFERENCES

Barker, P. (1995). An analysis of user input to an x.500

white pages directory service. IEEE/ACM Trans.

Netw., 3(2):112–125.

Bell, D. and Padula, L. L. (1975). Secure computer systems:

Uniﬁed exposition and multics interpretation. Techni-

cal Report ESD-TR-75-306, MITRE MTR-2997.

Bhatti, R., Ghafoor, A., Bertino, E., and Joshi, J. B. D.

(2005). X-gtrbac: an xml-based policy speciﬁcation

framework and architecture for enterprise-wide access

control. ACM Trans. Inf. Syst. Secur., 8(2):187–227.

Bistarelli, S. (2004). Semirings for Soft Constraint Solving

and Programming, volume 2962 of Lecture Notes in

Computer Science. Springer.

Bistarelli, S., Montanari, U., and Rossi, F. (1997).

Semiring-based constraint satisfaction and optimiza-

tion. J. ACM, 44(2):201–236.

Bradshaw, J. M., Dutﬁeld, S., Carpenter, B., Jeffers, R., and

Robinson, T. (1995). KAoS: A Generic Agent Ar-

chitecture for Aerospace Applications. In Finin, T.

and Mayﬁeld, J., editors, Proceedings of the CIKM

’95 Workshop on Intelligent Information Agents, Bal-

timore, Maryland.

Brewer, D. F. C. and Nash, M. J. (1989). The chinese wall

security policy. In IEEE Symposium on Security and

Privacy, pages 206–214.

Dawson, S., Samarati, P., di Vimercati, S. D. C., Lincoln,

P., Wiederhold, G., Bilello, M., and Akella, J. (2000).

Secure access wrapper: Mediating security between

heterogeneous databases. In Proc. of the Darpa Infor-

mation Survivability Conference & Exposition, Hilton

Head, South Carolina.

Ege, R. K., Yang, L., Kharma, Q., and Ni, X. (2004). Three-

layered mediator architecture based on dht. In ISPAN,

pages 313–318.

Gong, L. and Qian, X. (1994). The complexity and com-

posability of secure interoperation. pages 190–200.

Gong, L. and Qian, X. (1996). Computational issues in se-

cure interoperation. Software Engineering, 22(1):43–

52.

Harrison, M. A., Ruzzo, W. L., and Ullman, J. D. (1976).

Protection in operating systems. Commun. ACM,

19(8):461–471.

Lange, D. B. and Oshima, M. (1999). Seven good rea-

sons for mobile agents. Communications of the ACM,

42(3):88–89.

Liu, D., Law, K., and Wiederhold, G. (2000). Chaos: An ac-

tive security mediation system. In Conference on Ad-

vanced Information Systems Engineering, pages 232–

246.

Park, J. and Ram, S. (2004). Information systems interop-

erability: What lies beneath? ACM Trans. Inf. Syst.,

22(4):595–632.

Sandhu, R. S., Coyne, E. J., Feinstein, H. L., and Youman,

C. E. (1996). Role-based access control models. IEEE

Computer, 29(2):38–47.

Shehab, M., Bertino, E., and Ghafoor, A. (2005). Se-

cure collaboration in mediator-free environments. In

CCS ’05: Proceedings of the 12th ACM conference on

Computer and communications security, pages 58–67,

New York, NY, USA. ACM Press.

Sheth, A. P. and Larson, J. A. (1990). Federated data-

base systems for managing distributed, heteroge-

neous, and autonomous databases. ACM Comput.

Surv., 22(3):183–236.

Steiner, J. G., Neuman, B. C., and Schiller, J. I. (1988).

Kerberos: An authentication service for open network

systems. In Proceedings of the USENIX Winter 1988

Technical Conference, pages 191–202, Berkeley, CA.

USENIX Association.

Thome, M., Helsinger, A., and Wright, T. (2004). Cougaar:

a scalable, distributed multi-agent architecture. In

SMC (2), pages 1910–1917.

Wallace, M. (1996). Practical applications of constraint pro-

gramming. Constraints, 1(1/2):139–168.

Wiederhold, G. (1992). Mediators in the architecture of fu-

ture information systems. IEEE Computer, 25(3):38–

49.

Wiederhold, G., Bilello, M., Sarathy, V., and Qian, X.

(1996). A security mediator for health care informa-

tion.

Wiederhold, G. and Genesereth, M. R. (1997). The con-

ceptual basis for mediation services. IEEE Expert,

12(5):38–47.

Yang, L., Ege, R. K., Ezenwoye, O., and Kharma, Q.

(2004). A role-based access control model for infor-

mation mediation. In IRI, pages 277–282.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

370
