DESIGN AND IMPLEMENTATION OF A PRACTICAL SECURE
DISTRIBUTED HEALTHCARE APPLICATION
Zaobin Gan
Huazhong University of Science and Technology
Wuhan 430074,PR China
Vijay Varadharajan
Department of Computing, Macquarie University
Sydney, NSW 2109, Australia
Keywords:
Distributed application, security management tool, authorization, authentication.
Abstract:
Security plays a vital role in the design and practical deployment of distributed applications. All companies
have to repeatedly spend considerable time, capital and effort on the implementation of the security mecha-
nism for their applications, and the result is also unsatisfactory. Nowadays, more and more integrated security
management tools are emerging. If we can properly use these tools in our practical applications, the develop-
ment schedule of applications will be greatly cut down, the cost will be reduced considerably as well as the
security of the applications can be guaranteed. In this paper, we investigate an integrated security management
tool - ManageSecure, present a formal description of the healthcare system requirements. and then describe
how to implement the healthcare system security objectives by means of ManageSecure. The result shows that
the use of the integrated security management tool in the practice application is economical and feasible.
1 INTRODUCTION
Today, Internet has become the forum for intra- and
inter-organizational interactions. Most distributed ap-
plications are developed in the Internet environment.
Securing access to such systems via Internet is vital
and has become increasingly challenging. Therefore,
security plays a vital role in the design and practi-
cal deployment of the distributed applications, and
all companies have to repeatedly spend considerable
time, capital and effort on the implementation of the
security mechanism for their applications. On the one
hand, the securing web-based distributed application
could be complicated, time-consuming and costly. It
could involve a whole host of security components
and practices, such as managing user authorizations,
implementing single sign-on, creating a web portal,
and managing security resources in the security in-
frastructure. On the other hand, many organizations
lack the resources or the expertise to integrate a com-
plete security solution into their specialized products
and often fail to recognize that they address only a
subset of the overall web security challenge. Obvi-
ously, it is not economical and necessary for every
company to design a specified security mechanism
for each application. Nowadays, more and more in-
tegrated security management tools are emerging. If
we can properly use these tools in our practical ap-
plications, the development schedule of applications
will be greatly cut down, the cost will be reduced con-
siderably and the security of the applications can be
guaranteed. In this paper, we present our attempt to
secure the healthcare system using an integrated secu-
rity management tool- ManageSecure (Kailar, 2005).
The remainder of the paper is organized as follows.
Section 2 presents a brief overview about ManageSe-
cure. The access control requirements for a medi-
cal practice and hospital environment are described
in Section 3. Section 4 discusses the implementation
of the access control using ManageSecure. In Sec-
tion 5, the discussion and the concluding remarks are
presented.
2 MANAGESECURE OVERVIEW
ManageSecure, developed by Business Networks In-
ternational, is an integrated suite of security tools to
implement a strong security perimeter around web-
based applications (Kailar, 2005). This includes the
following integrated functions managing system se-
curity resources, managing a public key infrastruc-
ture, implementing single sign-on to web-applications
enterprise-wide, controlling access to web applica-
431
Gan Z. and Varadharajan V. (2006).
DESIGN AND IMPLEMENTATION OF A PRACTICAL SECURE DISTRIBUTED HEALTHCARE APPLICATION.
In Proceedings of the International Conference on Security and Cryptography, pages 431-436
DOI: 10.5220/0002096104310436
Copyright
c
SciTePress
tions and monitoring web services and web servers
for security.
Because of single sign-on and role-based access
control used in our practical application, we briefly
describe them first in the following sections.
2.1 Single Sign-On
Single sign-on to web applications improves user ex-
perience, since the user does not need to remember
and present multiple security credentials to different
web servers and applications. When properly imple-
mented, it can also enhance security, since a uniform
security policy can be centrally defined and enforced
across the enterprise. Standards such as Security As-
sertion Markup Language (SAML) are designed to
support federated identities (Cantor et al., 2005), such
that users can traverse multiple access control do-
mains without re-authenticating.
When a user logs onto a web-server that has a Man-
ageSecure access control component (plug-in), this
access control component communicates with a back-
end access control server, authenticates the user and
installs a SAML artifact on the browser session. Once
a SAML artifact is installed as part of the browser ses-
sion, subsequent accesses within the same session to
other web-servers will use this artifact to retrieve au-
thorization assertions from the original access control
server that created the user session. Hence, the user
will not need to authenticate multiple times to access
multiple web-servers on the corporate network.
2.2 Role-base Access Control
Studies by the National Institute of Standards and
Technology (NIST) show that Role Based Access
Control (RBAC) represents a cost-benefit ratio of
109:1. As per NIST, RBAC maps to organizational-
specific structures in a way that reduces direct and in-
direct administrative cost and improves security (Gal-
laher et al., 2002). The RBAC model supports defi-
nition of user roles and mapping roles to privileges in
the system. Object access is defined in terms of priv-
ileges. This provides maximum flexibility in manag-
ing users and resources, and changes to user roles or
object sensitivity can be handled easily compared to
purely identity based access control.
ManageSecure supports two levels of attribute
mapping. Each user can be mapped to a set of roles
within various administrative domains. Each role and
domain attribute combination can in turn be mapped
to a set of privileges.
When a user attempts access to a resource, her/his
privileges are determined as follows - her/his identity
is first mapped to roles in various domains, and these
roles and domains combinations are then mapped to
her/his corresponding privileges. Each privilege is
essentially a fine-grained security policy definition,
specifying the web resource (URL), the authentica-
tion level required to access this resource, the client
IP addresses allowed, and the time ranges that are per-
mitted for accessing this web resource.
3 ACCESS CONTROL
REQUIREMENTS FOR THE
HEALTHCARE SYSTEM
In this section, by means of a first order language
(Bai and Varadharajan, 1997), we introduce a formal
description of the access control requirements for a
medical practice and a hospital setting given by the
specification in the reference (Sim, 2002).
3.1 The Language
Let L be a sorted first order language with equality,
with disjoint sorts for role, privilege, and object re-
spectively. Assume L has the following vocabulary:
Sort role: with role set R, and role variables
r
1
,r
2
,....
Sort privilege: with privilege set P , and privilege
variables p
1
,p
2
,....
Sort object: with object set O, and object variables
o
1
,o
2
,....
A ternary predicate symbol s holds which takes
arguments as role, privilege and object respec-
tively.
A binary predicate symbol which takes argu-
ments as a variable and a set.
A binary predicate symbol whose both argu-
ments are sets.
Logical connectives and punctuation: as usual, in-
cluding equality.
For instance, a fact that a role r has a privilege p
for object o is represented using a ground atom s
hold(r, p, o). The set membership is represented as
follows: for example, a role r
1
is a member of the
role set R is represented using the formula r
1
R.
In addition, we can represent constraints among
roles authorizations. For example, the rule stating that
for any role and object, if the role is the owner of this
object, then the role should have read and write privi-
leges for that object. This constraint can be defined as
follows:
r, o, s holds(r, Own, o) s
holds(r, Read, o) s holds(r, W rite, o)
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
432
3.2 Access Control Requirements for
a Medical Practice
A medical practice is one where a few GPs (with
the aid of nurses, pathology collectors and reception-
ists) work under the same roof and they all share a
common intranet with access to a back-end patients’
database. Such a medical practice may also have a
specialist section, where specialists like gynaecolo-
gists and cardiologists may come in and see patients
referred by these GPs at certain times of the week. In
a medical practice, the roles are Patients, Reception-
ists cum cashiers, Pathology collectors, Nurses, Doc-
tors, Practice manager and Medical director. These
roles constitute a comprehensive list of roles present
in a real-world medical practice. Each of these roles
has a specific set of privileges on access to an elec-
tronic patient record.
Here, to provide a comprehensive list of access
control requirements for all these roles, the electronic
patient record is split into four components: Personal
and contact details (Essential), Personal and contact
essential (Not that essential), Personal details (clinic
details), health details (Sim, 2002). The way to read
each of these component Sets is: each entry is called
a field within a component, the entries after - are sub-
fields within this field and these are the sub-fields
where data are entered into for this field. Here, we
will not introduce these sub-fields due to the length
constraint of the paper. More formally, we give defi-
nitions in the light of ManageSecure.
All Roles in a medical practice can be defined as a
set R:
R ={ Patients, Receptionists cum Cashiers,
Pathology Collectors, Nurses, Doctors, Practice
Manager, Medical Director }.
ALL Privileges on access to an patient record can
be described as a set P :
P = { Create, Read, Write, Modify }.
The fields of the first component Personal and con-
tact details (Essential) can be defined as a set E
1
:
E
1
={ Name, Address, Date of Birth, Phone Num-
ber, Payment Method, Data and Time of this Visit}.
Similarly, the second component, the third compo-
nent and the fourth component can respectively be de-
fined as a set E
2
, E
3
, E
4
.
E
2
= { Title, Alias or preferred name, Separate
Postal Address, Email address, Fax number, Occu-
pation, Gender, Marital, Ethnicity, Country of birth,
Next of kin, Employer, Family members}.
E
3
={ Status, Provider, Location of Provider, Pro-
cedures/treatment code, Pathology results (in/out),
Radiology results (in/out), Visit history, Next appoint-
ment}.
In addition, in order to describe the access control
policies conveniently, we also define the two subsets
of E
3
as follows:
E
31
= { Status, Provider, Location of Provider,
Pathology results (in/out), Radiology results
(in/out), Next appointment}.
E
32
= { Status, Next appointment}.
E
4
= { Date and time of this consultation, Rea-
sons for consultation, Consultation, History, Ob-
servations, Allergies and sensitivities, Immunisation
record, Medication, Personal medical history, Pathol-
ogy results, Radiology results}.
In terms of the access control requirements from
the real-world medical practice, we only define a few
main access control policies here:
Policy 1: r R r = r
2
s
holds(r, Create, E
1
)s holds(r, write, E
1
)s
holds(r, M odify, E
1
).
It shows that a receptionist can Create an empty
patient record and have W rite, M odify access to all
fields of E
1
.
Policy 2: r R r = r
2
s
holds(r, Read, E
2
) s holds(r, write, E
2
) s
holds(r, M odify, E
2
).
Policy 3: r R r = r
2
s
holds(r, Read, E
3
) s holds(r, W rite, E
31
) s
holds(r, M odify, E
32
).
Policy 4: r R r = r
3
s
holds(r, Read, E
1
) s holds(r, Read, E
2
).
Policy 5: r R r = r
5
s
holds(r, Read, E
1
) s holds(r, Read, E
2
) s
holds(r, Read, E
4
) s holds(r, W rite, E
4
) s
holds(r, M odify, E
4
).
3.3 Access Control Requirements for
a Hospital Setting
Next, in a hospital, the roles that have direct con-
tact with patients’ records are Patients, Administra-
tion officer, Administration head, Finance officer, Fi-
nance head, Registered nurse, Specialist nurse, Head
nurse, Registrars, Senior Registrars, Consultants and
Head of department. In this case, because a medical
practice resembles a mini hospital setting, the patient
record defined for a medical practice is almost suf-
ficient to be the patient record for a hospital, only 3
more fields in the patient record will be added. Here,
we define them into the Personal details (hospital re-
lated) component.
All Roles in a hospital setting can be defined as a
set R
:
R
= { Patients, Administration officer, Administra-
tion head, Finance officer, Finance head, Registered
nurse, Specialist nurse, Head nurse, Registrars, Se-
nior Registrars, Consultants, Head of department}.
The fields of the personal details (hospital related)
component can be defined as a set E
5
:
DESIGN AND IMPLEMENTATION OF A PRACTICAL SECURE DISTRIBUTED HEALTHCARE APPLICATION
433
E
5
= { Status, Provider, Location of Provider,
date of admission, date of discharge, Ward and bed
number, Pathology results (in/out), Radiology results
(in/out), Visit history, Next appointment}.
Here, we also define the two main access control
policies for a hospital setting as follows:
Policy 6: r R
r = r
2
s
holds(r, Read, E
1
) s holds(r, W rite, E
1
) s
holds(r, M odify, E
1
).
r R
r = r
2
s holds(r, Read, E
2
) s
holds(r, W rite, E
2
) s holds(r, M odify, E
2
).
Policy 7: r R
r = r
9
s
holds(r, Read, E
1
) s holds(r, Read, E
2
) s
holds(r, Read, E
5
).
4 IMPLEMENTATION ASPECTS
We created the practical distributed healthcare system
as a Web application, and mapped those roles into
specific system users. We specified role, session, and
user constraints and also a set of role-based access
control policies using ManageSecure in our system.
In this section, we outline the high-level architecture
overview of our implementation, as shown in Figure
1, the access control server consults policy reposito-
ries to make centralized access control decisions in
the practical distributed healthcare system. Access
control node (ACN), installed on an IIS web server
as a pluggable module, acts as a proxy to the practi-
cal distributed healthcare system. The ManageSecure
plugin intercepts user access, communicates with the
access control server, and handles the user identifi-
cation and authentication. Once the user is logged
in, a portal page is displayed. One of the links on
this portal page is the practical distributed health-
care system. When the user clicks on this link, the
ManageSecure connector interacts with the practical
distributed healthcare system. A ManageSecure plu-
gin (Java class) is used from within the practical dis-
tributed healthcare system, to act as a call-back into
the single sign-on layer, to validate the user session
against the user identity (this is to prevent spoofing
attacks at the portal). ManageSecure comes with a
ready to use connector and the callback Java plugin
for the practical distributed healthcare system.
4.1 ManageSecure Configuration
In ManageSecure, there is a super Administrator
(admin). This role is specific to ManageSecure ad-
ministration, such as definition of administrative do-
mains, domain administrators, and configuring server
component properties. So we first log on Manager
Console of ManageSecure as admin. Two domains
Healthcare
System
IIS/Apache
ACN
Plugin
(3)
(2)
(8)
(7)
(1)
Access
Control
Server
Database
ManageSecure
Access Control Server
(5)
(6)
(4)
Electronic Patient
Record Storage
Database
Client
Browser
Access
Policies
Client
Web Server

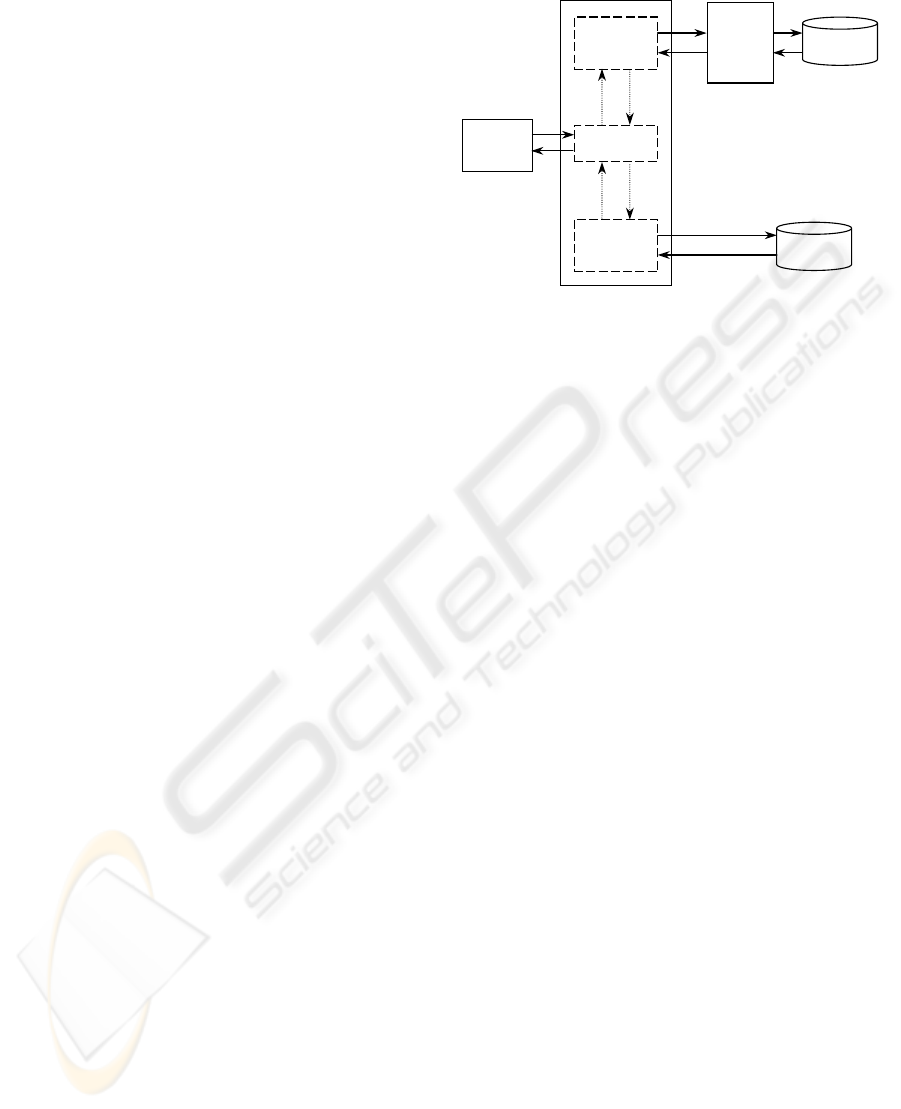

Figure 1: An Architecture for a healthcare system with
ManageSecure.
(Domain-M and Domain-H) can be defined in the
practical distributed healthcare system.
Definition 1 Medical Practice Domain (Domain-M)
The Medical Practice Domain can be regarded as
a virtual organization related to a real-world medical
practice. It has four administrative roles that can per-
form specific administration functions. This allows
fine-grained separation of responsibilities.
In the Medical Practice Domain, we define four ad-
ministration roles: MCertAdmin, MRegAdmin, MAu-
thAdmin and MSysAdmin. MCertAdmin is certificate
authority and manages and revokes user certificates.
MRegAdmin is web user registration authority and can
add a new web user record into the system. MAu-
thAdmin is Web user authorization authority and au-
thorizes web users to access applications. MSysAd-
min is a system administrator and performs security
administration functions that are not handled by the
other roles, such as setting up server, scanning jobs.
Definition 2 Hospital Setting Domain (Domain-H)
The Hospital Setting Domain can be regarded as
a virtual organization related to a real-world hospi-
tal setting. It also has four administrative roles that
can perform specific administration functions. This
allows fine-grained separation of responsibilities.
In the Hospital Setting Domain, we also define
four administration roles: HAuthAdmin,HRegAdmin,
HSysAdmin and HCertAdmin. They have the same
functions as the four administration roles in the Med-
ical Practice Domain
Next, we log on the Manager Console of Man-
ageSecure as MAuthAdmin. And Web Roles, Web
Servers and Web Privilege can be configured, web
users’ authorization requests are approved, denied or
reassigned as well, as shown in Figure 2. Here, we
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
434
outline several configuration examples for the Medi-
cal practice Domain:

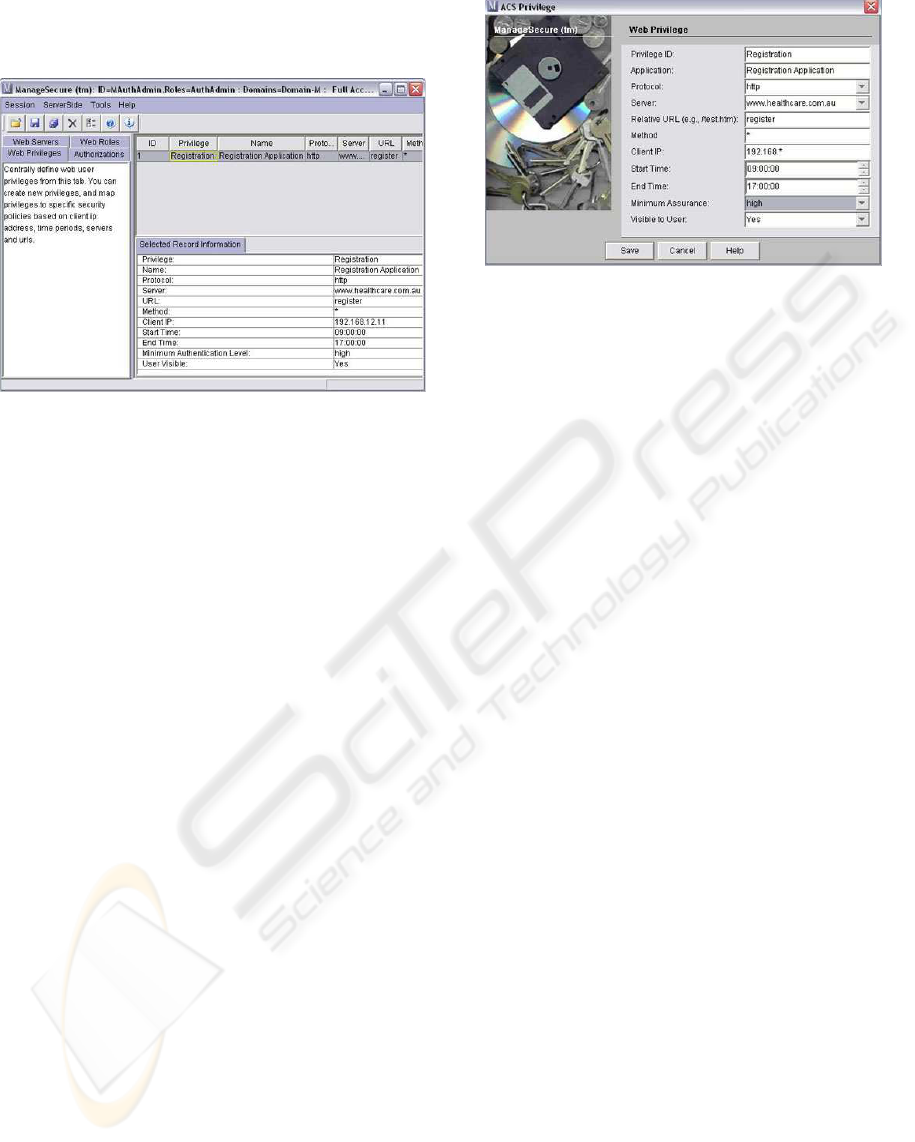

Figure 2: Web Roles, Web Servers. and Web Privilege Defi-
nition.
(1)Web Servers
Web Servers that are protected using ManageSe-
cure Access Control Nodes can be added to the policy
database. In the configure of Web Servers, the Do-
main Name of the web application server is defined
in detail, e.g. www.healthcare.com.au.
(2)Web Privileges
Web Privileges are actually policy definitions, as
shown in Figure 3. Web Privileges to access various
web resources can be defined based on the following
criteria:
1) Server: To designate the web server’s address.
2) Relative URL: To designate the application’s
URL. It may be a web page file, or a directory.
3) Client IP Address or Sub-net: To limit access
from a specific IP address, we can specify the entire
IP address. To limit access to a specific subnet, we
can specify partial IP address. To allow access from
any IP address, we can specify this as just *.
4) Access times: By default, if we do not modify
the values, then access time constraints are not en-
forced. However, if a start and end time is defined,
then the resource is protected by this privilege, access
to the resource is only permitted within the designated
period.
5) Minimum Assurance: Minimum login assur-
ance level required to access this resource has 6 levels
(highest, higher, high, medium, low, none).
6) Visible to User: If Yes, this resource needs to
be explicitly displayed to the user as part of the users
welcome page. Otherwise, the resource is invisible to
the user.
(3)Web Roles
Web Roles are actually organizational roles, and
roles are in-turn mapped to privileges. So, a user can
Figure 3: Web Privilege Configuration.
be mapped to an organizational role. The user will
receive access to operations based on the privileges
mapped by all her/his role. we can create a new role,
for example, receptionist, and then redefine the privi-
leges associated with the role. In addition, a role can
be mapped to more than one privilege.
(4) Authorizations
When users submit self-registration requests
through the web browser, the user registration records
are submitted to the access control database, where it
is available for view by the domains registration au-
thority (MAuthAdmin). Once MAuthAdmin approves
the users, they can start using the web resources us-
ing their registered identity. In the meantime, MAu-
thAdmin can deny or reassign users’ authorizations
in terms of the organizational requirements as well.
In addition, MAuthAdmin can directly authorize for a
designated user.
Then, we can log on the Manager Console of Man-
ageSecure as MRegAdmin, add Web user, disable and
enable web user. Log on the Manager Console of
ManageSecure as MSysAdmin, we centrally define
server names and authentication types, view an enter-
prise web access event logs, and also generate reports
from these logs, and so on.
4.2 The Application Customization
After the ManageSecure configuration is successfully
finished, we customize the healthcare system using
ManageSecure. Here, we define 4 steps in the follow-
ing:
(1) Define users for the healthcare system.
On the one hand, we can log on the Manager Con-
sole of ManageSecure as MRegAdmin, and add users,
e.g., zgan. On the other hand, end-users can register
themselves as web users using User SelfRegistration
Component of ManageSecure.
(2) In terms of the access control policies depicted
in Section 3, we customize all web pages correspond-
ing to the policies.
DESIGN AND IMPLEMENTATION OF A PRACTICAL SECURE DISTRIBUTED HEALTHCARE APPLICATION
435
For example, the policy 1 in Section 3.2, reception-
ists have Create,Write,Modify access to all fields of
E
1
in the medical practice, we design Registation ap-
plication (register.html).
(3) Define Privilege.
according to the configuration method in Section
4.1, we define Privilege ID as Registration, Appli-
cation as Registation application, Relative URL as
/web/register, as shown in Figure 2 and Figure 3. Ac-
cesses are only allowed from the Client IP address
192.168.12.11. Access to this resource is only per-
mitted when the receptionist is on duty between 9am
and 5pm, and he/she must use the computer whose IP
address is 192.168.12.11.
(4) Authorization.
Once the user zgan successfully logs on
www.healthcare.com.au from a client, he can
request authorization (access to Registration Ap-
plication) from the domain’s registration authority.
After MAuthAdmin approve his request, he can gain
access to the application. Otherwise, he can not
see the application hypelink, that is, his access the
RegistrationApplication is denied.
5 DISCUSSION AND
CONCLUSION
Typical web applications use login/password based
authentication and RBAC (Park et al., 2001)(Ferraiolo
et al., 1999). Relying on applications to perform au-
thentication and authorization leads to networks with
multiple disparate authentication and authorization
policy enforcements based on application implemen-
tation. Also, when there are large number of appli-
cations, users have to remember and manage multi-
ple accounts and passwords, and these applications
do not provide the enterprise a central point of control
over authentication policies and authorization mecha-
nisms, for example, when an employee is terminated,
her/his access should be cancelled to all applications
on the Intranet. These lead to many inconvenience
for them and threaten the security of these systems,
for example, if a password is stolen or forgotten. A
dismissed employee can still use certain applications.
However, ManageSecure has a common, consis-
tent, standard-based security layer between the user
and enterprise applications, wich allows us to cen-
trally control and monitor the access, and reduces the
security burden on the end-user. A user is authenti-
cated once to the network and can accesses all appli-
cations without repeated authentications.
In addition, Passords are vulnerable to guessing,
sniffing, keystroke loggin, and social engineering at-
tacks. Hence, for some sensitive information, Man-
ageSecure can also provide the two-factor authenti-
cation function implemented using a combination of
client certificate and users passwords. The solution
can greatly simplify implementation and strengthen
security.
Because the security control function is separated
from the development of application systems, the de-
sign of application systems has to adapt to the ac-
cess control requirements and ManageSecure. Here,
the number of web application pages is dependent on
the access control policies. Having more access con-
trol polices means there will be more web application
pages. However, the result in our practical application
shows that the use of the integrated security manage-
ment tool (ManageSecure) in the practice application
is economical and feasible.
ACKNOWLEDGEMENTS
The work was sponsored by China Scholarship Fund.
We thank Dr. Raja Kailar and technical support en-
gineers of Business Networks International for their
valuable help in implementing the practical applica-
tion. In particular, we also thank the anonymous ref-
erees for their valuable comments and suggestions to
improve the quality of this paper.
REFERENCES
Bai, Y. and Varadharajan, V. (1997). A logic for state trans-
formations in authorization policies. In Proceedings
of the 10th Computer Security Foundations Workshop,
pages 173–182, Rockpor, USA. IEEE CS Press.
Cantor, S., Kemp, J., and Philpott, R. (2005). Security as-
sertion markup language saml 20. Technical report,
thr.
Ferraiolo, D. F., Barkley, J. F., and Kuhn, D. R. (1999). A
role-based access control model and reference imple-
mentation within a corporate intranet. ACM Transac-
tions on Information and System Security, 2(1):34–64.
Gallaher, M. P., OConnor, A. C., and Kropp, B. (2002). The
economic impact of role-based access control. Techni-
cal report, U.S Department of Commerce Technology
Administration.
Kailar, R. (2005). Managesecure c an integrated enterprise
web security system. Technical report, Business Net-
works International Inc.
Park, J. S., Sandhu, R., and Ahn, G.-J. (2001). Role-based
access control on the web. ACM Transactions on In-
formation and System Security, 4(1):37–71.
Sim, P. (2002). Access control requirements for a medical
practice and hospital environment and a secure access
control architecture. Master’s thesis, Macquarie Uni-
versity.
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
436
