ON THE DESIGN OF A LOW-RATE DOS ATTACK AGAINST
ITERATIVE SERVERS
Gabriel Maci
´
a-Fern
´
andez, Jes
´
us E. D
´
ıaz-Verdejo, Pedro Garc
´
ıa-Teodoro
Dep. of Signal Theory, Telematics and Communications - University of Granada
c/ Daniel Saucedo Aranda, s/n - 18071 - Granada (Spain)
Keywords:
network security, denial of service, attack modelling, low-rate attack.
Abstract:
Recent research exposes the vulnerability of current networked applications to a family of low-rate DoS attacks
based on timing mechanisms. A kind of those attacks is targeted against iterative servers and employs an
ON/OFF scheme to send attack packets during the chosen critical periods. The overall behaviour of the attack
is well known and its effectiveness has been demonstrated in previous works. Nevertheless, it is possible to
achieve a trade off between the performance of the attack and its detectability. This can be done by tuning
some parameters of the attack waveform according to the needs of the attacker and the deployed detection
mechanisms. In this paper, a mathematical model for the relationship among those parameters and their impact
in the performance of the attack is evaluated. The main goal of the model is to provide a better understanding
of the dynamics of the attack, which is explored through simulation. The results obtained point out the model
as accurate, thus providing a framework feasible to be used to tune the attack.
1 INTRODUCTION
Nowadays, networked systems represent a vital in-
frastructure involved in a lot of everyday activities. As
the dependence on those systems increases, the risks
of compromising the network itself or the services
provided become more threatening. In this context,
one of the most devastating menaces are the so called
Denial of Service (DoS) attacks (CERT Coordination
Center, 2003). Recent incidents involving companies
with big presence in Internet (Williams, 2000) guar-
antee the existence of this threat while, at the same
time, demonstrate its potential impact.
The vulnerabilities and mechanisms enabling DoS
attacks are of diverse nature (Axelsson, 2000), al-
though two main families of attacks can be estab-
lished. The first one is composed by software or hard-
ware vulnerabilities that can be exploited by a suit-
able piece of software causing the stopage of the tar-
geted system, service or network facility. This kind of
DoS attacks is very similar to many other attacks (e.g.
virus-based attacks) and so are the defence mecha-
nisms. The second kind is based on saturating some
necessary resource at the target by means of flood-
ing. Due to the high number of requests usually
needed to flood the resource, these kind of attacks
are commonly called brute-force attacks (Douligeris,
2004). Anyway, recent research (Kuzmanovic, 2003)
(Maci
´
a-Fern
´
andez et al., 2006b) points out the exis-
tence of a more subtle kind of DoS attacks charac-
terized by the use of a relatively low-rate of request
packets to achieve the flood of the resource. The
present paper is focused on exploring one of these
attacks, specifically (Maci
´
a-Fern
´
andez et al., 2006b),
which will be called MF06 from now on.
On the other hand, the development and deploy-
ment of countermeasures does not completely elim-
inate the threat. The main defence mechanisms are
solely based on preventive measures such as ingress
filtering (Ferguson, 2001), egress filtering (SANS In-
stitute, 2000), or disabling unused services (Geng,
2000), just to mention some of them. Some works
propose to use honeypots (Weiler, 2002) and intru-
sion detection systems (IDS) (Axelsson, 2000) to han-
dle an in-progress attack. In this sense, IDS’ have
proven to be a useful tool to detect brute-force attacks
through the assessment of the volume of traffic. Any-
way, this is an area of active research. Furthermore,
the defence mechanisms against the above mentioned
low-rate attacks are also under research. Thus, some
solutions have been proposed for the TCP attack (Sun
et al., 2004), (Shevtekar et al., 2005), although they
149
Maciá-Fernández G., E. Díaz-Verdejo J. and García-Teodoro P. (2006).
ON THE DESIGN OF A LOW-RATE DOS ATTACK AGAINST ITERATIVE SERVERS.
In Proceedings of the International Conference on Security and Cryptography, pages 149-156
DOI: 10.5220/0002103301490156
Copyright
c
SciTePress
are specific for this kind of attack. More research
should be made in order to capture the behavior of the
attack in MF06 to develop protection mechanisms.
Before a deeper insight into MF06 is made in
the following sections, some comments concerning
the two above mentioned low-rate attacks should be
pointed out. First, both attacks are founded on a pre-
dictable temporary behavior enabling an intelligent
selection for the timings of the attack packets. There-
fore, an ON/OFF attack waveform is used in both
cases, which reduces the rate of packets needed to
carry out the attack. But there ends the similarities.
The temporary mechanisms exploited are clearly dif-
ferent in both cases: while (Kuzmanovic, 2003) ex-
ploits the TCP congestion control mechanism, MF06
exploits some knowledge concerning the inter-output
time between responses in a service. This way, even
the attacked resources are different: the links’ capac-
ity in the network and the incoming requests queue,
respectively. Moreover, the levels at which the at-
tack is carried out are different: transport/application
layer, and so are their impacts: global to the targeted
network or local to the targeted service.
One of the most interesting characteristics of the
MF06 attack is related to its versatility. By adjusting
some attack parameters that will be described later,
it is possible to achieve a compromise between the
effectiveness of the attack, in the sense of the level
of denial of service achieved, and the rate of traffic
generated by the attack. This property would allow
a potential intruder to select the optimum parameters
in order not to be detected by an IDS system based
on some rate threshold mechanism. The purpose of
this work is to study how these adjustments affect the
behavior of the attack and, therefore, how to optimize
the design the attack. This knowledge can lead to the
development of new defence mechanisms. For this
purpose, the authors propose to use and evaluate a re-
cently developed mathematical model for the cited at-
tack.
The rest of the article is structured as follows. A
brief description of the low-rate DoS attack is re-
viewed in Section 2. Section 3 presents an overview
of the mathematical model that supports the design
of the attack. Some conclusions extracted from the
model and concerning the behavior of the attack are
compiled in Section 4, while Section 5 describes the
simulations made to validate the model. Finally, Sec-
tion 6 presents the conclusions of this work.
2 LOW-RATE DOS ATTACK
The low-rate DoS attack under consideration is tar-
geted against an iterative server and uses certain a pri-
ori knowledge concerning the time between responses
from the server. From the statistics of the so called
inter-output time and the observation of the responses
from the server it is possible to infer when the next
output is likely to be generated. Therefore, the aim of
the attack, when in a stationary stage with the server
at plenty of its capacity, will be to replace the request
being served, either legitimate or malicious, with a
new malicious request from the intruder by timing
it appropriately. Some details about the operation of
the attack and the targeted scenario will be described
next.
Let us consider an standard iterative server in
which, as usual, requests are queued up in a finite
length queue while awaiting for its processing in a
FIFO discipline. Similarly, let us suppose a request
arriving at the server at a given time, t. The behaviour
of the service, relatedto that petition, can be described
as follows. First, if there exists at least one free po-
sition in the input queue, the request is queued. Oth-
erwise, the request is not accepted. Whether a reject
message is sent back to the requester or not is irrele-
vant to our study. Next, after some queuing time, t
q
,
the request will be the first in the queue and, there-
fore, will be processed by the server during a service
time, t
s
. Finally, at t + t
q
+ t
s
, a response is provided
and sent back to the requester.
Up to now, just the standard behavior of an itera-
tive server has been depicted. But, although both the
service time and the queue time are random variables,
some predictable timing can be expected under con-
trolled circumstances. Thus, if an intruder manages
to always request the same resource at the server, it
it expectable for the service time, t
s
, to be always
identical. On the other hand, the time between two
consecutive outputs, under the single condition of the
existence of at least one pending request in the in-
put queue, is directly the service time. Therefore, the
inter-output time, τ
int
, for the server is predictable
and always has the same value. Nevertheless, even in
this scenario, some variability in the inter-output time
appears due to several reasons related to the function-
ing of the server and the machine it is running on (e.g.
multithread operation, random access times and so
on). To account for this variability, the intruder should
determine an statistical characterization for the inter-
output by sending some requests and observing the
behavior of the system. This can be easily done in a
non-intrusive way.
In this environment, the attack consists of the iter-
ation of a basic period composed by a period of inac-
tivity, called offtime followed by a period of activity,
called ontime (Fig. 1). During ontime, the attacker
iteratively sends the same request in the hope that at
least one of them acquire a free position in the input
queue. The task of the intruder is to forecast the in-
stant at which a free position is going to be generated,
which is, when an output is to be emitted, and to syn-
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
150

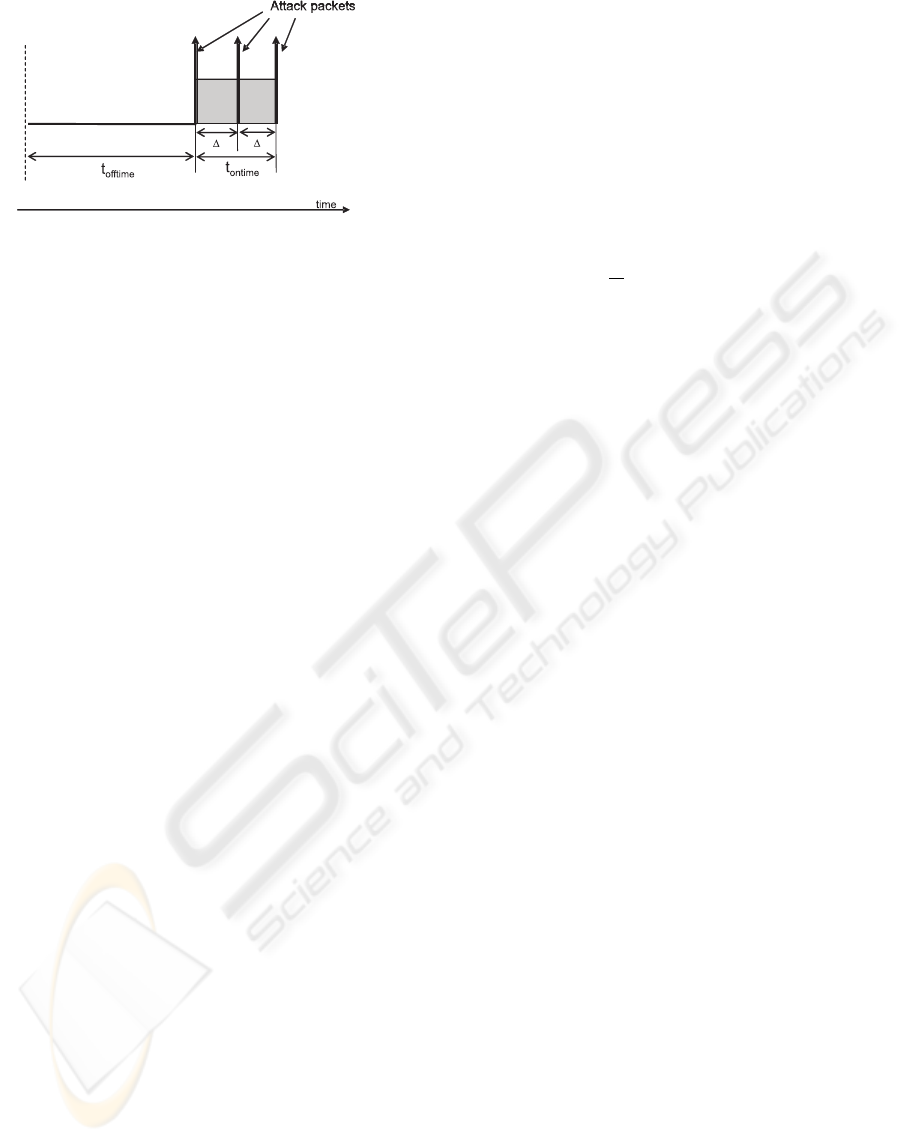

Figure 1: Attack waveform as generated by the intruder.
chronize the attack in such a way that an attack packet
reaches the server in the minimum possible time af-
ter the output occurs. In an optimal situation, just a
single attack packet per ontime period is necessary.
Nevertheless, the above mentioned variability in the
inter-output time makes advisable to use more attack
packets per period. The low-rate nature of the attack
relies in the fact that only a small number of attack
packets are sent during each ontime period. Although
not mentioned, the round trip time between the server
and the intruder plays and additional role in this at-
tack. The details are shown in MF06 and exceeds the
scope of this paper.
2.1 Attack Parameters
The attack can be characterized by the following pa-
rameters (Fig. 1:
Ontime interval (t
ontime
): activity interval during
which an attempt to seizure a free position in the
service queue is made by emitting request packets.
Offtime interval (t
offtime
): inactivity interval pre-
vious to ontime in the period of attack, during
which no attack packets are transmitted.
Interval (): the time elapsed between the sending
of two consecutive packets during ontime.
2.2 Performance Indicators
The performance of the attack can be measured in re-
lation to the level of denial of service achieved, which
is the direct objective of the attack, and the number of
attack packets that have to be send in order to get the
free positions in the queue as they become available.
Both aspects can be established through the following
indicators:
Effort (E): ratio between the traffic rate generated
by the intruder and the maximum traffic rate ac-
cepted by the server (server capacity).
User perceived performance (UPP): ratio between
the number of legitimate users requests processed
by the server, and the total number of requests sent
by them.
Although UPP can be measured in a controlled en-
vironment, it is difficult to estimate it in a real one.
Nevertheless, it is possible to derive UPP from a para-
meter that can be defined in an ideal situation and that
gives an estimate of the time during which the service
is vulnerable. This parameter, called mean idle time
can be defined as follows:
Mean idle time (
T
idle
): the percentage of time dur-
ing which the system has free positions in the ser-
vice queue, related to the total duration of the attack
when legitimate users send no traffic.
From the very definition, it is almost obvious that
the higher the value of the mean idle time, the higher
should be the UPP, as the service is available during
more time for the use by a legitimate user. Therefore,
the objective of the attack should be to reduce as much
as possible the value of the mean idle time but with as
lowest effort as possible.
3 ATTACK MODELLING
As indicated above, there is a need to find a relation
between the specific settings of the parameters that
define the attack (see Section 2), and the values for
the indicators that these configurations produce. To
address this problem, a mathematical framework pro-
posed by the authors (Maci
´
a-Fern
´
andez et al., 2006a)
is briefly described. It allows to estimate, for a given
server and attack characteristics, the effort and the ef-
ficiency of the attack.
The model is described as a set of functions that
provide the values for the mean idle time, the user
perceived performance, and the effort of the attack
from a set of input values. These inputs come from
two sources: the statistics for the behaviour of the
server/network, and the parameters of the attack. The
first category accounts for the probability function of
the occurrence of an output in the server and the mean
round trip time. The second consider the ontime pe-
riod, t
ontime
, the offtime period, t
offtime
, and the in-
terval, .
The first step in developing the mathematical
model is the evaluation of the mean idle time. Once a
function for this parameter is deducted, it is possible
to derive some expressions for the user perceived per-
formance and the effort of the attack by making some
assumptions about the behaviour of the server and the
attack.
ON THE DESIGN OF A LOW-RATE DOS ATTACK AGAINST ITERATIVE SERVERS
151
0
0,002
0,004
0,006
0,008
0,01
0,012
0,014
0,016
0,018
0,02
time
Probability of ocurrence of an
output in the server
t
offtime
t
ontime
D D
RTT
a
0
a
1
a
2
a
3
-¥
+¥
Attack packets
Figure 2: Diagram of occurrence for an output: probability
function and associated calculation points. In this example,
only three attack packets are considered and a normal dis-
tribution is assumed.
3.1 Model for the Idle Time
As indicated in Section 2, the strategy of the intruder
is based on synchronizing the arrival of the ontime
interval at the server with the occurrence of an out-
put, event that generates a free position in the service
queue. Doing this, the time during which this posi-
tion is available for legitimate users (
T
idle
) is reduced
and, therefore, the denial of the service (measured by
UP P ) would be more annoying.
The intruder carries out a period of attack every
estimated inter-output time, τ
int
. The time between
two consecutive outputs is considered as an stochas-
tic process that can be modelled by a distribution. As
the mean idle time is defined as a percentage of time
during which at least a free position is available, for
the purpose of developing a mathematical model that
evaluates this indicator, an observation period should
be defined. A period of an attack, that is, an offtime
interval followed by an activity interval (ontime) will
be the observation period. Moreover, it is considered
that the service queue is full of requests at the begin-
ning of this period.
Let us consider one attack period and relate it with
the probability of generation of an output at the server.
From the attack design, it is expected that the maxi-
mum probability of generation will occur at the same
time that the central attack packet arrives at the server
(Fig. 2). In the figure, the instants for the arrival of
attack packets (during the ontime interval) are repre-
sented by vertical arrows. These arrivals occur at the
instants labeled a
i
(i 1).
On the other hand, and according to the definition,
the idle time for this period will be the time elapsed
between the actual generation of the output and the
reception of the next incoming attack packet. To eval-
uate the mean idle time it is necessary to average this
value over the whole period, taking into account both
the probability of generation of an output and the pe-
riod till the next incoming packet. For this purpose,
a set of so called calculation points, A, is defined.
The calculation points delimit a set of intervals that
will be used to calculate the instantaneous values of
the idle time, T
i
. This set is composed by the in-
stants at which an attack packet arrives at the server,
a
i
, 1 i n, n = ceil[t
ontime
/∆], and a special
point, a
0
, which is situated a time
RT T before the
reception of the first attack packet in the observation
period, that is,
a
0
= a
1
RT T (1)
If an output is generated at an instant t, and assum-
ing that
= a
i
a
i1
RT T (2)
the associated idle time is
T
i
(t) =
RT T if t < a
0
or t a
n
a
i
t otherwise, 0 i n
(3)
The reasoning for Eq. 3 is as follows. If an output is
generated before a
0
of after a
n
, the time during which
a queue position is available, in absence of user traf-
fic, will be
RT T , as an attack packet will (automat-
ically) be emitted by the intruder upon the reception
of the output. Thus, the timeline will be as follows.
At time t, the output is generated at the server, at time
t +
RT T /2, this output is received by the intruder,
which sends a new attack packet as response, at time
t + RT T the attack packet is received at the server,
and the idle time ends. It is important to note that we
are assuming the RTT to be always its mean value.
This is appropriate as the final objective is to evalu-
ate the mean idle time. On the other hand, if an out-
put is generated by the server at any other instant, the
next scheduled attack packet will be received by the
server before the automatically generated response if
and only if the round trip time is lower than the in-
terval. In this case, the instantaneous idle time is the
time till the next scheduled attack packet. Otherwise,
the idle time is again
RT T . Nevertheless, this case
is not relevant in most situations as will be explained
later.
Thus, for the case in which
RT T , the mean
idle time in a period of attack can be obtained through
integration as:
T
idle
=
1
T
p
·
Z
a
0
−∞
RT T · f (t)dt
+
Z
a
1
a
0
(a
1
t) · f(t)dt
+ . . . +
Z
a
n
a
n1
(a
n
t) · f(t)dt
+
Z
a
n
RT T · f (t)dt
(4)
where f (t) is the probability function for the genera-
tion of an output at the instant t and T
p
is the duration
of a period of the attack, that is, T
p
= t
offtime
+
t
ontime
.
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
152
The assumed distribution for f(t) will affect to the
values obtained from the model, although the model
itself is independent of the proposed distribution.
Eq. (4) have been deducted under the condition that
the value of should be low enough to accomplish
the condition in Eq. (2). However, the model could
be easily adapted to the opposite condition, that is,
>
RT T . Nevertheless, this case is out of the scope
of this work due to the fact that a good attack design
should preserve the case in Eq. (2). If this condition
is not meet, the attack would mainly become an al-
most naive attack in which a request is made every
time a response from the server is received. This way,
the ON/OFF behavior of the attack waveform will be-
come useless and an important increase in the number
of total attack packets will appear.
3.2 Model for the User Perceived
Performance
The user perceived performance (UP P ) is an indica-
tor defined for a system where both legitimate users
and the attacker are simultaneously trying to access to
the target system. According to MF06, the packet ar-
rivals from the legitimate user are modeled by a Pois-
son distribution. This implies that the probability of
packet reception from a legitimate user during a pe-
riod of time T is given by the exponential distribution
function:
F (T ) = 1 e
λT
(5)
where λ is the arrival rate of packets from the legiti-
mate users.
The UP P can be evaluated by estimating the prob-
ability for a legitimate user to queue its request dur-
ing a period of the attack, P
k
u
. This probability can
be obtained through the mean idle time, that is, the
more time a position is free the more probability of a
capture by the user. According to the proposed distri-
bution, the probability of an user capture in the k-th
interval (Fig. 2), that is (a
k1
, a
k
), denoted as P
k
u
, is
given by the expression:
P
k
u
= 1 e
λT
k
idle
(6)
where T
k
idle
represents the generated idle time during
the k-th interval, that is:
T
k
idle
=
1
a
k
a
k1
Z
a
k
a
k1
T
(a
k1
,a
k
)
i
f(t)dt (7)
By summing up the probability of capture for all
the intervals, the total probability for a legitimate user
to seize a position in the service queue for a complete
period of the attack, P
u
, is
P
u
=
n+1
X
k=0
1 e
λT
k
idle
(8)
where n is the index of the last calculation point.
The Eq. (7) does not consider the presence of traf-
fic coming from legitimate users. Some approxima-
tions have to be made in order to take into account
users’ traffic. The details and justification for them
exceeds the purposes of this paper and can be found in
(Maci
´
a-Fern
´
andez et al., 2006a). On the other hand,
the experimental results shown in Section 5 confirm
the goodness of these approximations. Anyway, a set
of equations relating P
u
and the mean idle time can
be derived from those reasonings, yielding
T
i
(t) =
RT T · (1 P
u
)
+ min
1
λ
,
t
s
t
ontime
· P
u
(9)
The calculation of the expressions for T
k
idle
and P
u
should be made recursively, due to the fact that there
is a cross-dependency between them.
Once a stable value for P
u
is obtained, the final
expression for the U P P , for an attack of duration T ,
with C seizures, is given by:
UP P =
P
u
· C
T
(10)
3.3 Effort of the Attack
The effort of the attack, E, corresponds to the num-
ber of packets sent to the server by the intruder during
the attack. Two sources of attack packets exists: the
activity period, ontime, during which packets are gen-
erated at a rate 1/; and the packet sent as a response
to the reception of an output by the intruder.
For the calculation of the effort an assumption will
be made: the intruder will receive the answers from
the server after sending all the packets corresponding
to the ontime interval. This is similar to suppose that
the attack period is not going to be restarted during
ontime, being the number of packets generated equal
to ceil(t
ontime
/∆). On the other hand, not all the
outputs are received at the intruder side. Therefore,
no attack packet is sent in this case. The percentage
of attack periods at which an output is not received
from the server is given by UP P .
All these considerations lead to:
E = ceil
t
ontime
+ (1 UP P ) (11)
ON THE DESIGN OF A LOW-RATE DOS ATTACK AGAINST ITERATIVE SERVERS
153
4 MODEL DISCUSSION
In summary, the described model allows to obtain the
expected value of the mean idle time for any specific
setting of the attack and server/network characteris-
tics. Both aspects are considered in the model as:
Server characteristics: they are considered in the
f(t) term, which is univocally defined by the mean
value and the variance of the inter-output time ob-
served by the intruder.
Network characteristics: as discussed above, the
main network factor that affects the attack is the
round trip time. As it can be seen from the final
expressions of the model, it is clear the affection of
this parameter. Both the mean value (RT T ) and its
variance, var[RT T ], through the distribution f(t),
affects the value obtained for T
idle
.
Setting of the attack: the configuration of the attack
is reflected on the calculation points of the expres-
sion. In effect, their position depends on the para-
meters of the attack, that is, t
offtime
, t
ontime
, and
the considered value for the interval .
Some conclusions concerning the behaviour of the
attack can be deducted from this model:
As the value of
RT T increases, a lower efficiency
is obtained.
Lower values of T
i
are obtained when the output
is generated during the reception of the ontime in-
terval, if the design of the attack complies the con-
dition RT T. Moreover, in this case, as the
value of interval is lower, a lower value for
T
idle
is also expected. Outputs generated out of the on-
time interval imply a higher value for the mean idle
time.
Variations in the mean service time does not affect
the behavior of the attack period. This implies that,
for an attack period, the total time during which a
free position is available will be the same. As the
mean idle time is defined as a percentage, lower
values are expected when
t
s
increases.
On the other hand, the model also provides the ex-
pected values for the user perceived performance and
the effort, which determine the performance of the at-
tack.
For the UP P, two conclusions can be drawn from
Eqs. (10) and (8). First, the tendencies of the values
for UP P and
T
idle
are similar, that is, an increase
in the value of UP P is expectable when the mean
idle time becomes higher. Second, there is no linear
dependency between the traffic rate of the legitimate
users and the value obtained for U P P , as it can be
seen from expressions (4), and (8).
Finally, it is clear from Eq. (11), that the effort
is mainly affected by the duration of ontime and the
setting of the interval value.
5 EXPERIMENTAL VALIDATION
OF THE MODEL
The main purpose of this paper is to validate the the-
oretical framework presented in the above Sections.
This objective has been accomplished through experi-
mental results obtained from simulations made within
Network Simulator 2 (NS2) (Fall, 2006).
In a first step, the results from the simulations are
going to be compared with those from the proposed
mathematical models to check its validity. Thereafter,
the conclusions derived from the model concerning
the expected behavior when some attack parameters
are changed are tested.
5.1 Attack Performance Indicators
The first step in validating the models is, as previ-
ously stated, to check whether the expected values
for the performance indicators are in accordance with
those obtained by simulation. For this purpose, we
have evaluated the behavior in a set of scenarios with
different configurations for both the attack and server
parameters. The results from these experiments have
been compared to the values derived from the mathe-
matical model, obtaining a very good approximation
between them.
First, we examine the mean idle time, as the other
measurements are deducted from it. Fig. 3.a) shows
a comparison between expected and simulated values
for this parameter in 13 different scenarios from the
test set. The maximum variation given by the model
is 3.77%, with a mean value of 1.71%, what means a
very good approximation.
Next, the remaining parameters are tested. Fig.
3.b) shows a comparison for 13 different scenarios,
where the user perceived performance is evaluated.
The results are shown both in absolute and relative
values. As can be seen, the obtained values from the
model approximate well to the simulated ones, with a
mean variation of 0.4% and a maximum of 1.46%.
Finally, Fig. 3.c) depicts the comparison for the ef-
fort between both the simulation and the model val-
ues, for 13 different scenarios. It can be observed
that the model approximates well the simulated val-
ues, with a mean variation of 1.42% and a maximum
of 4.02%.
As a conclusion, the approximations made in
the mathematical model can be considered accurate
enough, providing validity to the model as a tool to
evaluate the potential effect of an attack starting from
the knowledge of its design parameters.
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
154
0%
10%
20%
30%
40%
50%
60%
70%
1 2 3 4 5 6 7 8 9 10 11 12 13
model
simulation
Mean idle time
a)
0,00%
2,00%
4,00%
6,00%
8,00%
10,00%
12,00%
14,00%
1 2 3 4 5 6 7 8 9 10 11 12 13
Model
Simulation
UPP
b)
0%
100%
200%
300%
400%
500%
600%
1 2 3 4 5 6 7 8 9 10 11 12 13
Model
Simulation
Effort
c)
Figure 3: Comparison between the values obtained from
simulation and from the mathematical model for 13 differ-
ent scenarios: a) mean idle time; b) user perceived perfor-
mance; and c) effort.
5.2 Attack Dynamics
To check the different conclusions extracted from the
mathematical models about the behavior of the attack
(attack dynamics), some simulations have been made.
The purpose is to study the variations of the proposed
indicators that measure the efficiency and the rate of
the attack, as the parameters of the attack are adjusted.
In a first approach, these parameters are supposed to
be independent on each other. Therefore, only one of
them is modified on each set of experiments.
The results obtained are shown in Fig. 4. It shows
the effectiveness of the attack, in terms of UP P and
T
idle
, and also the effort for those attacks.
Some conclusions can be extracted from these ex-
periments:
The tendencies in the behavior of UP P and
T
idle
are similar. That is, an increase in the value of
UP P also involves a higher value for
T
idle
-see
Fig. 4-.
As the ontime period becomes longer or the
interval takes a shorter value, both UP P and
T
idle
are reduced, and a higher effort is obtained
– see Figs. 4.a), b), c) and d)–.
An increase in the value of RT T affects only to the
efficiency and not to the rate –Figs. 4.e) and f)–.
This implies that a higher value of UP P and T
idle
is obtained when the
RT T increases.
The increase of the var[τ
int
] implies a lower effi-
ciency –Figs. 4.g) and h)–. This is because more
outputs are generated out of the boundaries of the
ontime interval. Moreover, when an output arrives
to the intruder before the ontime interval is sent, the
attack period is restarted. Due to this fact, the effort
decreases when the variance is higher.
The value of the efficiency decreases as soon as the
mean value for the service time (
t
s
) is higher –Figs.
4.i) and j)–. The reason is that the mean idle time
represents a percentage of the time during which
the service queue has a free position and this time
is equal independently of the mean service time.
Moreover, the effort is not affected by this kind of
variations in the setting of the attack.
There is no linear dependency between variations
in the rate of the legitimate users traffic and the ef-
ficiency –see Figs. 4.k) and l)–, as expected from
expression (10).
All these conclusions are coherent with those ob-
tained from the mathematical models in Section 4,
which allow us to conclude that these models are valid
for an approximated analytical study of the behavior
of the attack.
6 CONCLUSIONS
Low-rate DoS attack against iterative server (Maci
´
a-
Fern
´
andez et al., 2006b) has appeared as a threatening
way of attacking simple applications. In this paper,
the fundamentals of the design for these kind of at-
tacks are presented.
A framework for evaluating the behaviour of the
attack is contributed. Leaning on it, a mathematical
model that let us to adjust the design parameters to get
an specific efficiency and rate is proposed. Finally, by
means of simulation, all the design rules proposed are
contrasted.
As a future work, the comprehensive understanding
of the behaviour of this kind of attacks will lead to the
development of response and detection mechanisms.
We are now working in this field, obtaining promising
results.
ON THE DESIGN OF A LOW-RATE DOS ATTACK AGAINST ITERATIVE SERVERS
155
ACKNOWLEDGEMENTS
This work has been partially supported by the Span-
ish Government through MYCT (Project TSI2005-
08145-C02-02, FEDER funds 70%)
REFERENCES
Axelsson, S. (2000). Intrusion detection systems: A survey
and taxonomy. Technical Report 99-15, Department
of Computer Engineering, Chalmers Univ., Goteborg.
Douligeris, Christos; Mitrokotsa, A. (2004). DDoS attacks
and defense mechanisms: classification and state-of-
the-art. Computer Networks, 44(5):643–666.
Fall, Kevin; Varadhan, K. (2006). The ns manual. Retrieved
from http://www.isi.edu/nsnam/ns/.
Ferguson, P.; Senie, D. (2001). Network ingress filtering:
defeating denial of service attacks which employ ip
source address spoofing. RFC 2827.
Geng, X.; Whinston, A. (2000). Defeating distributed de-
nial of service attacks. IEEE IT Professional, 2(4):36–
42.
Kuzmanovic, A.; Knightly, E. (2003). Low rate TCP-
targeted denial of service attacks (The shrew vs. the
mice and elephants). In Proc. ACM SIGCOMM’03,
pages 75–86.
Maci
´
a-Fern
´
andez, G., D
´
ıaz-Verdejo, J., and Garc
´
ıa-
Teodoro, P. (2006a). Evaluation of a low-rate dos at-
tack against iterative servers. Submitted to Computer
Networks.
Maci
´
a-Fern
´
andez, G., D
´
ıaz-Verdejo, J., and Garc
´
ıa-
Teodoro, P. (2006b). Low rate dos attack to mono-
process servers. Lecture Notes in Computer Science,
3934:43–47.
CERT Coordination Center (2003). De-
nial of Service attacks. Retrieved from
http://www.cert.org/tech
tips/denial of service.
SANS Institute (2000). Special notice - egress filtering.
global incident analysis center.
Shevtekar, A., Anantharam, K., and Ansari, N. (2005).
Low rate tcp denial-of-service attack detection at edge
routers. IEEE Communications Letters, 9(4):363–
365.
Sun, H., Lui, J., and Yau, D. (2004). Defending against low-
rate tcp attacks: Dynamic detection and protection. In
Proc. of the IEEE Conference on Network Protocols
(ICNP2004), pages 196–205.
Weiler, N. (2002). Honeypots for distributed denial of ser-
vice. In Proc. of the Eleventh IEEE International
Workshops Enabling Technologies: Infrastructure for
Collaborative Enterprises 2002, pages 109–114.
Williams, M. (2000). Ebay, Amazon, Buy.com
hit by attacks, 02/09/00. Retrieved from
http://www.nwfusion.com/news/2000/0209attack.html.
a) b)
c) d)
e) f)
g) h)
i) j)
k) l)
Figure 4: Attack dynamics. Variations on the indicators of
the attack for different settings of the parameters: a) & b)
ontime interval, c) & d) interval , e) & f) mean round trip
time, g) & h) variance of the inter-output time perceived by
the intruder, i) & j) mean service time, and k) & l) legitimate
users traffic rate.
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
156
