MEDIS – A WEB BASED HEALTH INFORMATION SYSTEM

Implementing Integrated Secure Electronic Health Record

Snezana Sucurovic

Institut Mihailo Pupin, Volgina 15, Belgrade,Serbia and Montenegro

Keywords: Electronic Health Record (EHCR), Security, Privacy.

Abstract: In many countries there are initiatives for building an integrated patient-centric electronic health record.

There are also initiatives for transnational integrations. These growing demands for integration result from

the fact that it can provide improving healthcare treatments and reducing the cost of healthcare services.

While in European highly developed countries computerisation in healthcare sector begun in the 70’s and

reached a high level, some developing countries, and Serbia and Montenegro among them, have started

computerisation recently. This is why MEDIS (MEDical Information System) is aimed at integration itself

from the very beginning instead of integration of heterogeneous information systems on a middle layer or

using HL7 protocol. MEDIS has been implemented as a federated system where the central server hosts

basic EHCR information about a patient, and clinical servers contain their own part of patients’ EHCR.

Clinical servers are connected to a central server through the Internet and the system can be accessed

through a browser from a place that has an Internet connection. A user also has to have a public key

certificate to be able to login. As health data are highly sensible, MEDIS implements solutions from recent

years, such as Public Key Infrastructure and Privilege Management Infrastructure, SSL and Web Service

security as well as pluggable, XML based access control policies.

1 INTRODUCTION

MEDIS is based on European Committee for

Standardisation standards ENV 13606 (CEN, 2002)

and ENV 13729 (CEN, 2002), where the former

defines architecture of EHCR, and the latter secure

authentication. Applying these standards provides

interoperatibility and their component-oriented

architecture is suitable for distributed systems such

as MEDIS. CEN ENV 13606 standard named

“EHCR Communication” is a high level template

which provides a set of design decisions which can

be used by system vendors to develop specific

implementations for their customers. The main item

in CEN architecture standard is an Architectural

Component. The Architectural Components are

organised in a hierarchical structure. For a patient,

there is a Root Architectural Component which

represents a folder of patient record in the system

and contains the basic information about a patient.

On the other hand, there is a Record Component

established by original component complexes

(OCCs), selected component complexes (SCC), data

items (DI) and link items (LI). An OCC comprises

(according to data homogeneity) four basic

components: folders, compositions, headed sections

and clusters. A SCC contains a collection of data

representing an aggregation of other record

components that is not determined by the time or

situation in which they were originally added to the

EHCR. It may contain a reference to a set of search

criteria, a procedure or some other query device

whereby its members are generated dynamically

(actually a distributed query, for example “current

medication”). A Link Item is a component that

provides a means of associating two other instances

of architectural component and specifying the

relationship between them (“caused by”, for

example). A Data Item is a Record Component that

represents the smallest structural unit into which the

content of the EHCR can be broken down without

losing its meaning. A component is in a lower

position in hierarchy if it contains more homogenous

data. An example: Emergency Admission (Folder 1)

> Assessment (Composition 1) >Accident Details

(Section 1)> Causes of accident (Section 2) >

Accident cause, as text (Data Item 1).

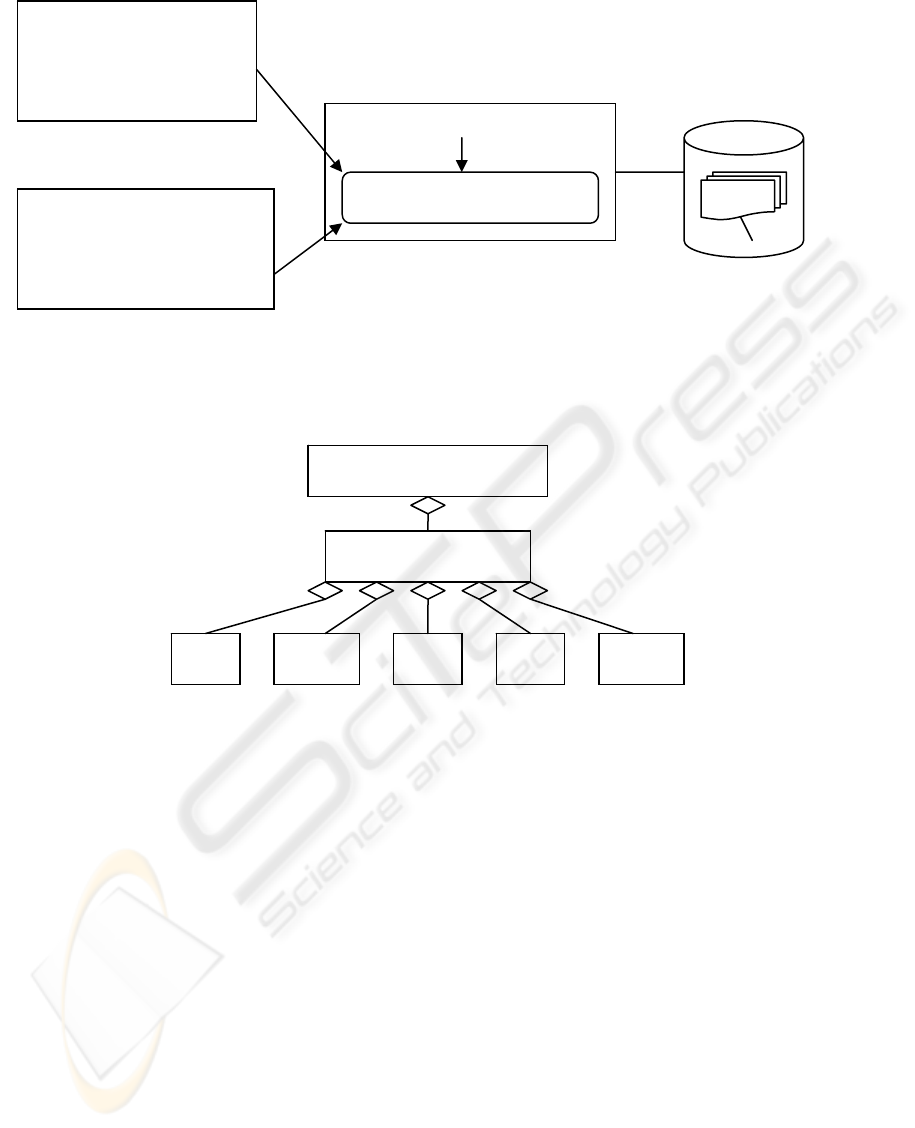

Each Architectural Component has reference to

access control policy for that component defined as

a Distribution Rule (Fig. 4). The Distribution Rule

160

Sucurovic S. (2006).

MEDIS – A WEB BASED HEALTH INFORMATION SYSTEM - Implementing Integrated Secure Electronic Health Record.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 160-164

DOI: 10.5220/0002444001600164

 SciTePress

comprises classes Who, Where, When, Why and

How which define who, where, when, why and how

is allowed to access the component (Table 1).

Table 1: Distribution Rule objects.

Classes Attributes Type

Who Profession

Specialization

Engaged in care

Healthcare agent

String

Boolean

Class

Where Country

Legal requirement

String

Boolean

When Episode of care

Episode reference

Boolean

String

Why Healthcare process code

Healthcare process text

Sensitivity class

Purpose of use

Healthcare party role

String

Class

How Access method (read,

modify)

Consent required

Signed

Encrypted

Operating system

security rating

Physical security rating

Software security rating

String

Class

Boolean

String

2 THE MEDIS ARCHITECTURE

MEDIS has been implemented as a federated

system. Architectural Components are created in

compliance with CEN ENV 13606 and stored there

where they are created – at hospitals and clinics and

are accessed via a central server which contains a

Root component and the addresses of the clinical

and hospital servers. Architectural components that

are hosted on the clinical and hospital servers have

pointers to supercomponents and linked components

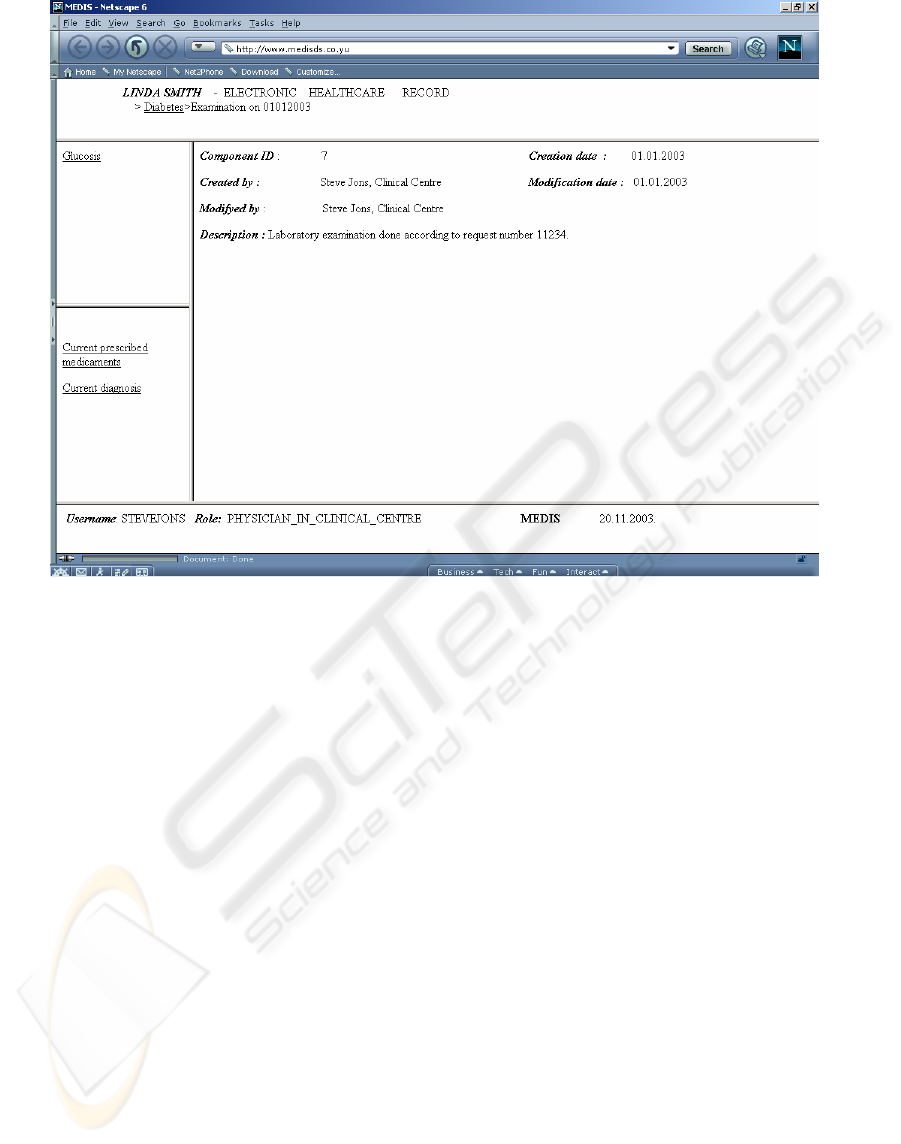

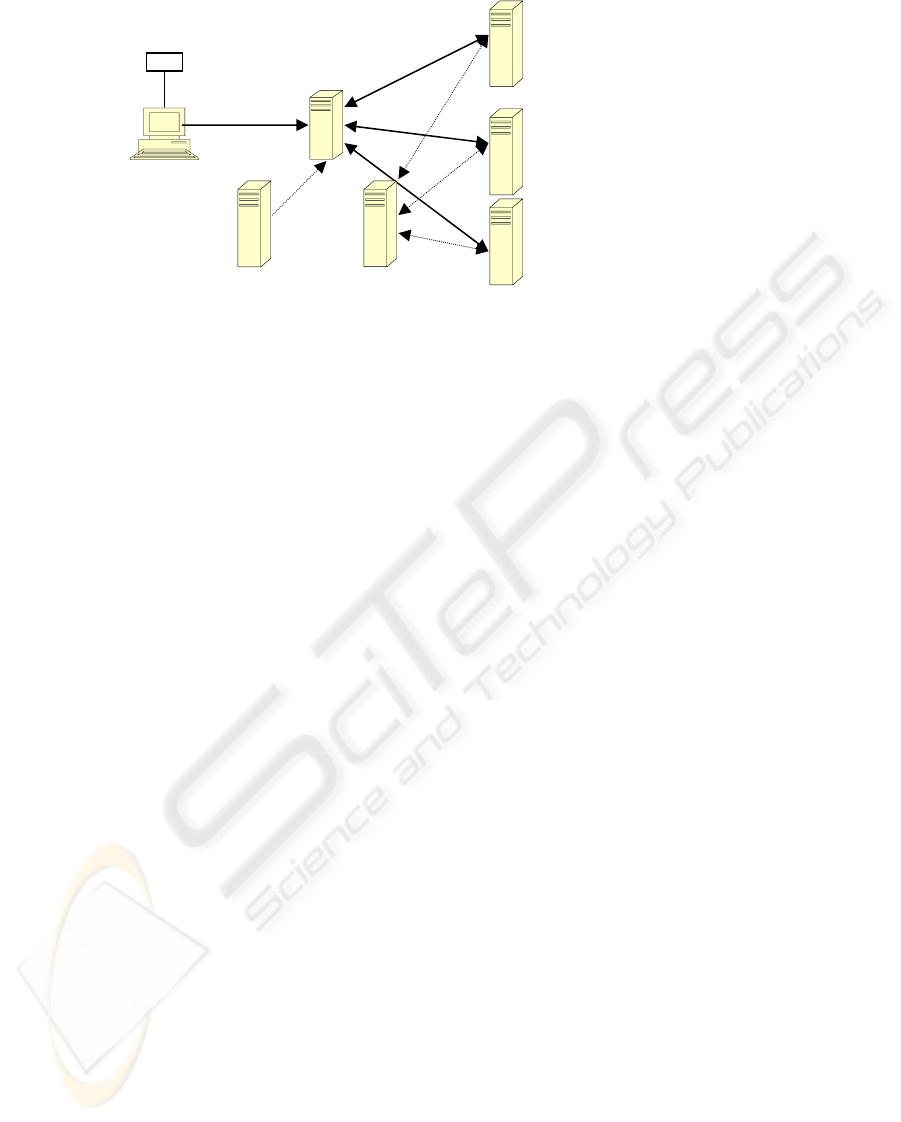

(Fig. 1.). HTML pages are created on the central

server and contain five frames: the required

Architectural Component (AC) in the right frame,

links to subcomponents and linked components in

the left upper frame, links to Selected Component

Complex (actually distributed queries) in the left

lower frame, the AC position in the hierarchical

structure of EHCR in the upper frame and

information about a user in the lower frame. (Fig. 2).

A physician can define the position in EHCR (and

therefore HTML page) which will appear when he

requests EHCR for a patient.

In the MEDIS prototype there is an

authentication applet (Sucurovic, 2005) which is

processed in a browser and, after successful

authentication, a HTML page has been generated

using JSPs on the central server. The Clinical

Servers tier has been implemented in Java Web

Services technology using Apache Axis Web

Service server and Tomcat Web Server. Business

logic has been implemented in reusable components

– Java Beans.

3 IMPLEMENTING SECURITY

IN MEDIS

As health data are highly sensitive, security has been

the main item in MEDIS. We’ve implemented

authentication, access control and encryption and, in

that way, we’ve met requirements for privacy and

confidentiality. MEDIS implements solutions from

recent years, such as Public Key Infrastructure and

Privilege Management Infrastructure, SSL and Web

Service security as well as pluggable, XML based

access control policies.

3.1 Authentication

Using a password as a means of verification of

claimed identity has many disadvantages in

distributed systems. Therefore, MEDIS implements

CEN ENV 13 729 (CEN ENV, 2002) which defines

authentication as a challenge-response procedure

using X.509 public key certificates (Sucurovic,

2005). However, MEDIS implements not only

public key certificates management, but also

attribute certificates management (Blobel, 2003),

(Sucurovic, 2006). Originally, X.509 certificates

were meant to provide nonforgeable evidence of a

person’s identity. Consequently, X.509 certificates

contain information about certificate owners, such as

their name and public key, signed by a Certificate

Authority (CA). However, it quickly became evident

that in many situations, information about a person’s

privileges or attributes can be much more important

than that of their identity. Therefore, in the fourth

edition of the X.509 Standard (2000), the definition

of an attribute certificate was introduced to

distinguish it from public-key certificates from

previous versions of the X.509 Standard.

In the MEDIS project X.509 PKCs are supposed

to be generated by public Certificate Authority,

while ACs are supposed to be generated by MEDIS

Attribute Authority. The public key certificates are

transferred to users and stored in a browser. The

attribute certificates are stored on LDAP server,

because they are supposed to be under control of

MEDIS access control administrator. In the MEDIS

approach attribute certificates contain user’s

MEDIS – A WEB BASED HEALTH INFORMATION SYSTEM - Implementing Integrated Secure Electronic Health

Record

161

attributes as XML text. There are two types of

public key and attribute certificates: the Clinicians’

and Patients’ as distribution rules contain a flag

which denotes if the Architectural Component is

allowed to be read from a patient.

3.2 Access Control

In a complex distributed system, such as MEDIS,

access control is consequently very complex and has

to satisfy both fine grained access control and

administrative simplicity. This can be realised using

plugable, component based authorisation policies

(Beznosov, 2004). An authorisation policy is the

complex of legal, ethical, social, organisational,

psychological, functional and technical implications

for trustworthiness of health information system .

One common way to express policy definition is

XML schemadata. These schemes should be

standardised for inter-operatibility purposes (Blobel,

2004). The MEDIS project aims at developing the

authorisation policy definitions, using XML scheme,

which are based on CEN ENV 13 606 Distribution

Rules (CEN 2002).

The MEDIS project has adopted XML as the

language for developing constrained hierarchical

Role Based Access Control and, at the same time,

has focus on decomposing policy engines into

components (Beznosov, 2004), (Zhou, 2004),

(Blobel, 2004), (Chadwick, 2003), (Joshi, 2004).

The MEDIS project authorisation policy has several

components (MEDIS Technical Report, 2005).

First, there is an XML schema of user attributes that

corresponds to the attribute certificate attributes.

User attributes are transfered in SOAP Headers.

Secondly, there are Distribution Rules attached to

each Architectural Component (Fig. 3). Third, there

is an Authorisation Policy on the clinical server. It

defines hierarchies of How, When, Where, Why and

Who attributes (hierarchy of Roles, Professions,

Regions etc). In that way, a hierarchical RBAC can

be implemented, with constraints defined by security

attributes (software security, physical security rating

etc.) and non-security attributes (profession,

specialisation etc.). There are, also, two master

Authorisation Policies. The Master Authorisation

Policy for Hierarchy defines which combination of,

for example, role hierarchy and profession hierarchy

is valid. There is another master Authorisation

Policy – the Master Authorisation Policy for DRs: it

defines which combinations of attributes in a

Distribution Rule are allowed in general and for an

archetype. There is an enable/disable flag, which

defines if the given combination of hierarchies is

enabled or disabled (for the first master

Authorisation Policy) and if the given combination

of attributes in a Distribution Rule has been allowed

or forbidden (for the second master Authorisation

Policy). There are in fact, two administrators: one on

the clinical server and another on the central LDAP

server. In that way, this approach provides flexibility

and administrative simplicity.

As in (Joshi, 2004) grouping information content

into concept clusters reduces complexity of the

specification process and security administration. In

the MEDIS project there is a content based access

control specification on three levels: conceptual,

archetype and instance, i.e. master authorisation

policies can be defined on the conceptual and

archetype level while there are Distribution Rules

related to the Architectural Component, as access

control specification on instance level.

Smart Card

Clinical Server I

Clinical Server II

Clinical Server N

Central

Server

LDAP

Attribute

Certificate

LDAP

Master Authorisation Policy

Figure 1: MEDIS architecture.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

162

Figure 2: CEN ENV 13606 Composition Component example.

3.3 Encryption

The MEDIS project implements Web Service

security between the clinical and central server and

SSL between the central server and a client

(Microsoft, IBM, 2004). We use Apache's

implementation of the OASIS Web Services

Security (WS-Security) specification – Web Service

Security for Java (WSS4J) (W3C Recommendation,

2002). WSS4J can secure Web services deployed in

most Java Web services environments; however, it

has specific support for the Axis Web services

framework. WSS4J provides the encryption and

digital signing of SOAP messages as well as the

transfer of SAML attributes in SOAP Header. In our

application Attribute Certificate’s attributes are

transferred in SOAP Header. The RSA algorithm

has been chosen for signing and the TripleDES for

encryption. Communication between the browser

and Web Server has been encrypted using SSL.

Currently, Netscape 6 browser and Tomcat 5.0 Web

Server are used and the agreed chiper suite between

them is SSL_RSA_WITH_RC4_128_MD5.

4 CONCLUSION

The aim of MEDIS project is the development of a

prototype of secure national healthcare information

system in which communication is based on the

Internet. Compared to other existing Web based

EHCR the originallity of the MEDIS is CEN ENV

13606 based architecture where Root Component is

hosted on a central server and other components in

hierachy are placed on clinical servers. As health

data are highly sensitive MEDIS implements

solutions from recent years, such as Public Key

Infrastructure and Privilege Management

Infrastructure, SSL and Web Service security as well

as pluggable, XML based access control policies.

The MEDIS project aims at giving contribution to

standardisation of access control policies based on

CEN ENV 13606 Distribution Rules definition. The

MEDIS project aims at contributing to initiatives for

building integrated national and global healthcare

information systems.

MEDIS – A WEB BASED HEALTH INFORMATION SYSTEM - Implementing Integrated Secure Electronic Health

Record

163

REFERENCES

Beznosov K., 2004, On the Benefits of Decomposing

Policy Engines into Components, In. 3

Workshop on

adaptive and Reflect Middleware, Toronto

Blobel B. et. al., 2003, Using a privilege management

infrastructure for secure Web-based e-health

applications, Computer Communications, Elsevier

Blobel B., 2004, Authorisation and access control for

electronic health record system, Intern. Journal of

Medical Informatics, Elsevier, No.73, pp. 251-257,

Chadwick D. et. al., Role based access control with X.509

Attribute Certificates, IEEE Internet Computing,

March/April 2003, pp. 62 – 69

Commite Europen de Normalisation ENV 13606

Standard, 2002, Extended Architecture

Commite Europen de Normalisation ENV 13729

Standard, 2002, Secure user identification

Joshi J. et. al., Access Control Language for Multidomain

Environments, IEEE Internet Computing,

November/December 2004, pp. 40-50.

MEDIS Technical Report, Retrieved September 28,2005

from

http://www.imp.bg.ac.yu/dokumenti/MEDISTechnical

Report.doc

Microsoft and IBM White Paper, Security in Web service

world: A Proposed Architecture and Roadmap,

Retrieved September 28,2005 from http://www-

128.ibm.com/developerworks/webservices/library/ws-

secmap

Sucurovic S., Jovanovic Z., February 2005, Java

Cryptography & X.509 Authentication, Dr. Dobb’s

Journal, San Francisco

Sucurovic S., Jovanovic Z., 2006, Java Cryptography &

Attribute Certificate Management, Dr. Dobb’s Journal,

San Francisco

XML Encryption Syntax and Processing, W3C

Recommendation, 2002

XML Signature Syntax and Processing, W3C

Recommendation, 2002

Wei Z. et. al., 2004, Implement role based access control

with attribute certificates, ICACT 2004, International

Conference on Advanced Communication Technology,

Korea

Architectural Component

Distribution Rule

Who When Why How Where

0..1

0..*

0..* 0..*

ure 4: Distribution Rule

(

CEN ENV 13606 Part 3

)

0..*

DRs

Attribute Certificate’s

attributes

Clinical Server

Authorisation Policy

ACs

Master Hierarchy

Authorisation Policy

Master DR

Authorisation Policy

LDAP Serve

SOAP Message Header

Access Decision Function

Figure 3: MEDIS access control components.

1..*

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

164
