COMBINING BUSINESS ACTIVITY MONITORING WITH THE

DATA WAREHOUSE FOR EVENT-CONTEXT CORRELATION

Examining the Practical Applicability of this BAM Approach

Gabriel Cavalheiro, Ajantha Dahanayake

Faculty of Technology, Policy and Management, Delft University of Technology, Jaffalaan 5, Delft, The Netherlands

Richard Welke

Center for Process Innovation, Georgia State University, Atlanta, GA, USA

Keywords: Business Activity Monitoring, Data Warehouse, Real-Time Event, Historical Data, Push-Based,

Performance-Indicators.

Abstract: Business Activity Monitoring (BAM) is a term introduced by Gartner, Inc to define systems that serve to

provide real-time access to critical business performance indicators to improve speed and effectiveness of

business operations. Despite the emphasis of BAM on the provision of low latency views on enterprise

performance, literature on BAM also indicates the technical feasibility of a BAM approach, which adds

context from historical information stored in a data warehouse to real-time events detected by a BAM

system so as to help enterprises improving understanding of current monitoring scenarios. However, at this

point, there is a lack of studies that discuss the use of this approach to tackle real-world business problems.

To improve practical understanding of the potential applicability of this BAM approach, this paper will

present a synthesis of existing research on BAM and data warehouse to provide an objective basis for

proposing feasible business scenarios for applying the combination of both technologies. This study reveals

that the noted BAM approach empowers operational managers to respond in a more precise manner to the

occurrence of events by enabling a better understanding of the nature of the detected event.

1 INTRODUCTION

Enterprises are currently exposed to rapidly

changing market conditions and increasingly

competitive business environments (Luckham,

2002). To ensure competitiveness, enterprises need

to be able to maximize revenue generation and cost

savings when it comes to the execution of their

business processes. Since the occurrence of

exception events of interest in the transactional

systems, such as unusual large orders, delays,

situations of high risk, or unavailability of resources,

have a significant economic impact on the

performance of business processes, enterprises need

to respond adequately to such events as they occur.

However, this requires the availability of an

infrastructure that provides real-time visibility into

the business operations of enterprises.

To enable enterprises minimizing response times

to events, software vendors started developing a new

set of functions. Gartner, Inc introduced the term

Business Activity Monitoring (BAM) to define this

new set of functions (Cavalheiro, 2005).

Fundamentally, BAM systems are push-based

systems that translate input events into real-time

analysis that is pushed on recipients for immediate

reaction upon the occurrence of events (Govekar et

al, 2002). The provision of real-time access to

business performance indicators requires gathering

and analysing business events from multiple and

heterogeneous data sources to detect exception

conditions and generate low latency alerts to enable

business managers responsible for business

processes to make well-informed decisions quickly

(DeFee and Harmon, 2004).

Although the concept behind BAM systems

emphasizes the provision of real-time operational

insights, some studies acknowledge that the

combination of real-time events with historical data

can help enterprises diagnose problems in current

monitoring scenarios (McCoy, 2002). Nonetheless,

at present time, there is a lack of studies addressing

the practical applicability of this business

monitoring approach. The purpose of this paper is

thus to contribute to fill this gap in the literature by

263

Cavalheiro G., Dahanayake A. and Welke R. (2006).

COMBINING BUSINESS ACTIVITY MONITORING WITH THE DATA WAREHOUSE FOR EVENT-CONTEXT CORRELATION - Examining the Practical

Applicability of this BAM Approach.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 263-268

DOI: 10.5220/0002449202630268

 SciTePress

presenting a synthesis of existing research on BAM

and data warehouse to provide an objective basis for

proposing the application of this approach to address

real-world business scenarios. This is accomplished

by examining technical characteristics of both

concepts and by proposing practical combinations

BAM and data warehouse functions.

This paper utilizes the insights obtained by

conducting a graduation project, which involved

collaboration between the faculty of Technology,

Policy and Management at Delft University of

Technology, Delft, The Netherlands, and the Centre

for Process Innovation (CEPRIN) at Georgia State

University, Atlanta, USA.

2 TECHNICAL

CONSIDERATIONS ABOUT

BAM

Essentially, BAM systems analyse real-time events

to identify problems, diagnose them, and generate

alerts to recommend managerial action. BAM

systems can be incorporated into the IT

infrastructure of enterprises as an event analytics

layer at the top of existing middleware infrastructure

(Govekar et al, 2002). In practice, BAM systems can

be deemed as rule-based systems that detect

significant real-time events. These real-time events

can be characterized as instantaneous state changes

in a condition from one value to another occurring in

transactional systems (Delgado et al, 2004). BAM

systems serve as a platform upon which event-driven

applications can be developed by defining patterns

to represent events with significant economic impact

on business processes. To support the development

of event-driven applications, BAM systems are

likely to include event-modelling functions to define

and validate event patterns of interest (Gassman,

2004). This makes BAM systems highly adaptable,

as new event-driven applications can be developed

rapidly to address new or changing business

problems.

The investment committed by enterprises on the

adoption of middleware technologies makes it

possible that, in BAM systems, events come from

multiple and heterogeneous data sources, which

include both internal sources as well as external

sources such as the Internet (McCoy et al, 2001).

Essentially, BAM performs multi-application event

analysis by correlating events originating from

multiple and independent sources (McCoy, 2004).

To represent BAM systems, Gartner, Inc has

proposed a three-layer model, which is comprised of

an Event Absorption Layer, an Event Processing and

Filtering Layer, and an Event Delivery and Display

Layer (Govekar et al, 2002). In this model, the

border of a BAM system is the interface with the

recipients of BAM alerts. Figure 1 provides an

illustration of each layer and the recipient. In the

following we briefly describe each layer.

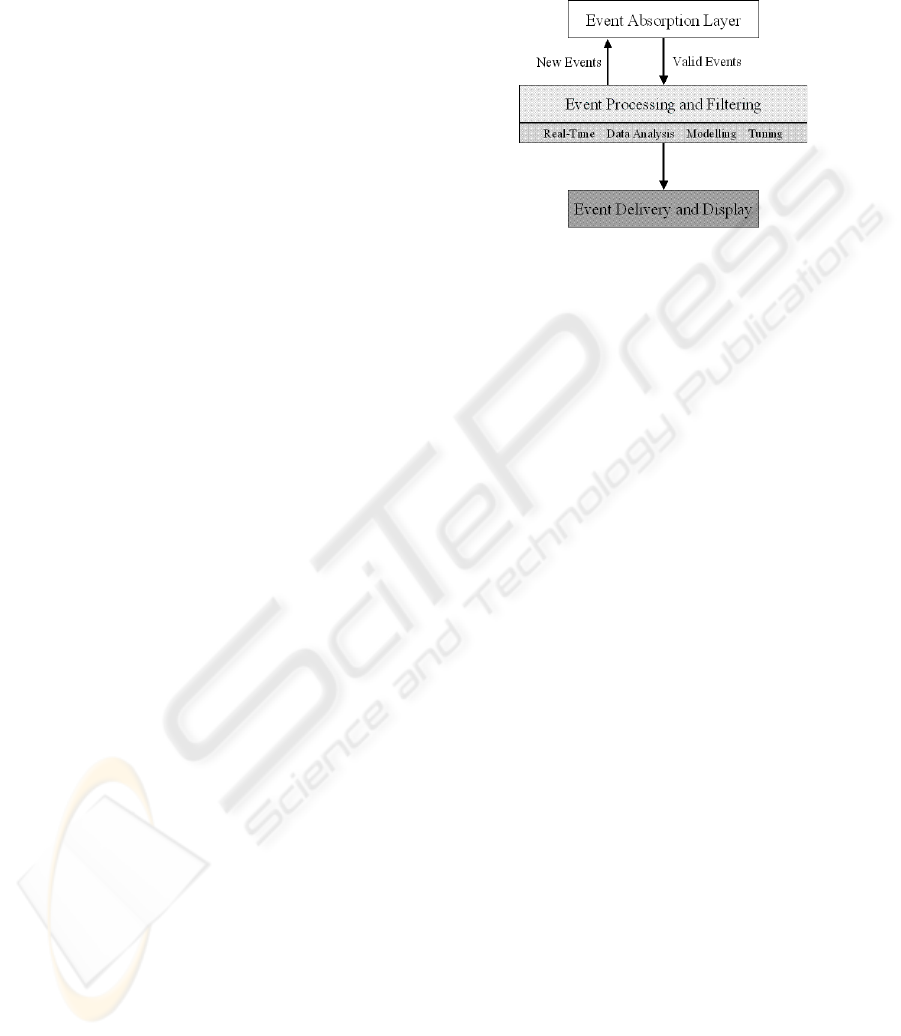

Figure 1: Layers of a BAM system.

2.1 Event Absorption Layer

Events are fed into the event absorption layer by an

event acquisition tool. The source of event messages

for BAM will most often be business or process-

related, however, technical events that occur during

the operations of the IT infrastructure may also be

collected (Gassman, 2004). BAM systems rely on

event gathering mechanisms to gather event

information, in real-time, directly from transactional

systems. A BAM system should have a mechanism

in place to gather events occurring concurrently in

different transactional systems. This is enabled by

the middleware layer that has been placed over the

last decade to support interoperability among

disparate transactional systems.

2.2 Event Processing and Filtering

Basically, after gathering real-time events, BAM

systems must be able to process and correlate

multiple sources of independent data (McCoy,

2004). To this end, a filtering system must be in

place to draw data from a wide range of sources and

then compare those real-time events against rules

that when met generate alerts (DeFee and Harmon,

2001). These alerts should contain information about

nature of the problem associated with the occurrence

of the event in order to empower the recipient of the

alert, the BAM recipient, to initiate an immediate

and appropriate response (Hellinger and Fingerhut,

2002).

2.3 Event Delivery and Display

The alerts issued by a BAM system can be sent to

diverse parties that have real-time decision support

needs. The alerts that are raised can populate a

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

264

display or trigger an action (Gassman, 2004). In this

way, alerts that are used to populate a display, are

often delivered via graphical displays

(“Dashboards”) that are customized for use in

different parts of the enterprise and for different

audiences (McCoy et al, 2001). Another option is to

forward the alerts to BAM recipients through other

existing mechanisms such as batch office staff,

emails, pagers, PDAs, and other systems to ensure

that someone or something can react (McCoy,

2003).

The alert can also be used to trigger an action

executed by a Business Process Management (BPM)

system. In this respect, controlling the reaction cycle

will probably be the role of BPM tools (McCoy,

2003). Here, BAM can be part of a BPM, where it

generates an input for the BPM system that triggers

a workflow corresponding to a predefined sequence

of events (Gassman, 2004). The BPM tool can react

to the BAM alert by running a chain of tasks that

alter a running business process (McCoy, 2004).

2.4 BAM Recipients

The alerts issued by a BAM system can be sent to

diverse BAM recipients (Govekar et al, 2002). The

alerts that are delivered by a BAM system can

populate a graphical display or trigger an action

(Gassman, 2004). In this way, the alerts that are used

to populate a display are often delivered via

“Dashboards” that are customized for use in

different parts of the enterprise and for different

audience (McCoy et al, 2001). Another option is to

forward the alerts to BAM recipients through other

existing mechanisms such as batch office staff,

emails, pagers, PDAs, and other systems such that

someone or something can react (McCoy, 2003).

Additionally, the alert can also be used to trigger

an action executed by a BPM system. In this respect,

controlling the reaction cycle will probably be a role

of BPM tools (McCoy, 2003). Here, BAM can be

part of a BPM, where it generates an input for the

BPM system that triggers a workflow corresponding

to a predefined sequence of events (Gassman, 2004).

As such, the BPM tool can react to the BAM alert by

running a selected set of processes that alter a

running business process (McCoy, 2004).

3 APPLICATIONS OF BAM

BAM systems are applicable to monitoring

situations that require very low latency operational

insights on the execution of business processes.

Essentially, in BAM systems, the emphasis is on

responding to events within short time-windows of

opportunity (Chandy and McGoveran, 2004).

Consequently, BAM systems must generate alerts in

real-time, otherwise the value of the system is lost

(McCoy, 2003). DeFee and Harmon (2004) define

effective BAM systems as those systems that

provide managers with sufficient operational

insights close to real-time so managers can take

decisions in time to affect the ongoing performance

of the process flow. A number of examples of the

need for real-time operational insights is provided by

literature. Table 1 shows a set of representative

examples of such needs.

Table 1: Examples of the need for real-time Operational

Insights.

Real-Time Operational Insights Source

A retailer that needs to monitor

hourly sales levels

(Hackthorn,

2004)

A financial system BAM tool issued

an alert on a stock volume increase

or decrease beyond a threshold level

(McCoy, 2003)

Provide a real-time view on supply

chain metrics

(McCoy et al,

2001)

Monitor service level agreements

(SLAs)

(Luckham,

2002)

4 TECHNICAL

CONSIDERATIONS ABOUT

THE DATA WAREHOUSE

In practice, the data warehouse can be deemed as a

workflow that involves periodically gathering

disparate data and cleansing, transforming, and

integrating that data according to business rules store

in metadata repository. Then, the data is loaded into

persistent data structures where it can be analyzed

(Inmon et al, 2001).

The data stored in a data warehouse represents

historical data in the sense that it represents events

now passed (Inmon et al, 2001). The data warehouse

is designed to store fact for each time period,

thereby creating a historical perspective on

performance (Tanler, 1997). It can create a single

subject-oriented collection of information by

assembling the data from heterogeneous databases

(Thuraisingham, 1999). This allows business

analysts to query only a single point consisting of a

repository from multiple sources. In order to provide

a single version of the enterprise operational data,

the data warehouse need to integrate data from

multiple operational systems of the enterprise and,

as data warehouse environments mature, it brings in

data from an ever-expanding set of sources (Inmon

et al, 1999). To do this, the data warehouse typically

relies on a software to carry out the extract,

COMBINING BUSINESS ACTIVITY MONITORING WITH THE DATA WAREHOUSE FOR EVENT-CONTEXT

CORRELATION - Examining the Practical Applicability of this BAM Approach

265

transform, and load (ETL) process. New or changed

transactions (fact records) are moved and

dimensions are captured as point-in-time snapshots

for each load (Kimball and Caserta, 2004). In fact, a

new snapshot is created whenever a change needs to

be reflected in the data warehouse (Inmon et al,

2001). A fundamental consideration about the ETL

process, though, is that it depends on the availability

of windows of acceptable downtime for the

transactional systems, because it places an additional

load on the transactional systems during the loading

process. In this way, the latency associated with the

data warehouse makes it unsuitable to provide real-

time operational insights.

The snapshots captured by the ETL software are,

then, sent to the operational data store (ODS). The

ODS was originally defined as a place where data

was integrated and fed to a downstream data

warehouse (Kimball and Caserta, 2004). The ODS

environment has a time period identical to that of the

application. The difference between the ODS and

the application is that the ODS contains integrated

corporate data, and the applications do not (Inmon et

al, 2001).

A data mart is a collection of data that is

adequate to fulfil the decision support needs of a

particular department. It is a subset of a data

warehouse that that is generally customized to fit the

needs of a department (Inmon et al, 2001). Data

Marts can be a subset of the enterprise data

warehouse (Brown and Hill, 2000). The data marts

that house data for various departments contain

different combination and selections of the same

detailed data found at the data warehouse (Sousa,

1999). They provide detailed information focused on

a single area, such as marketing, sales, production,

or finance (Brown and Hill, 2000). From the data

warehouse, atomic data flows to various departments

for their customized usage. These departmental

databases are called data marts. A data mart is a

body of data for a department that has an

architectural foundation of a data warehouse (Sousa,

1999).

5 APPLICATIONS OF THE DATA

WAREHOUSE

Typically, the main purpose of the data warehouse is

to supply business analysts, such as managers and

decision-makers, with information they need, so as

not to disturb transactional systems processing

transactions rapidly and reliably (Abramowicz et al,

2002). Specifically, data warehouses are generally

highly adequate to fulfil decision support needs

when there is a clear need for long-term trend

reports. A data warehouse is designed to support

exploratory analysis through adhoc data analysis,

inquiry and reporting by end users. The integrated,

detailed data and the robust amount of history found

at the data warehouse are ideal for this

comprehensive business and data analysis (Inmon et

al, 2001).

A great number of examples of the exploratory

analyzes based on data warehouse is presented by

scientific literature. Table 2 lists some of the most

interesting applications of the data warehouse.

Table 2: Examples of exploratory analyzes supported by

the data warehouse

Example of Analyzes Based on a

Data Warehouse

Source

Managers need to view sales by

product and region and make

correlations with advertising

campaigns and marketing promotion.

(Brown and

Hill, 2000)

Answering questions such as,

• What type of customer is the

most profitable for our

business?

• Over the years, how has

transaction activity changed?

• Where has sales activity

been highest in the

springtime for the past three

years?

• When we change prices, how

much elasticity is there in the

market place?

(Inmon et al,

2001)

The most frequent use of a data

warehouse is to analyze historical data,

discover trends and correlations and

project events forward into the future.

(Meltzer,

1999)

Use data warehouse to analyze

business data historically by focusing

on planning such as trends in daily

sales levels as compared with previous

months.

(Hackathorn,

2004)

6 LINKING BAM AND THE DATA

WAREHOUSE: EVENT-

CONTEXT CORRELATION

Besides analyzing real-time operational information,

BAM systems can also support event-context

correlation. This is an important aspect of BAM

systems because the addition of contextual

information to an event provides additional

information about the nature of the situation that is

being monitored. For example, the definition of a

certain filtering criteria to detect exceptional events

can be seen as a basic form of adding context to

BAM alerts, which are defined by Gassman (2004)

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

266

as events with context. So, by specifying a threshold

for a certain performance-indicator, which is

represented by an event property, the value of the

threshold can be regarded as contextual information.

However, more sophisticated ways of adding context

to events are usually required. Since the decision

support need of the BAM recipient may require the

diagnose of problems to respond to events with high

accuracy or event forecast data to guide anticipated

response to future problems, just raising alerts

indicating the occurrence of exceptional situations

can be, in many monitoring situations, insufficient to

ensure a proper response.

Data warehouses can be employed to add context

from a historical store for business activity to a real-

time alert. This can be done by building models that

correlate patterns of real-time events with previous

occurrences of similar events representing both

operational problems and opportunities. For

example, an hourly trend of expected order volume

may be updated nightly by a data warehouse and

used as a reference against real-time orders to detect

exceptional variations in order volumes (Gassman,

2004). Additionally, BAM systems can improve

long-term analysis by adding the context of real-time

feeds into an Operational Data Store (ODS)

(Hackthorn, 2004). This enables a more complete

understanding of trends, because it supports an

analysis of trends by providing understanding of

current states.

7 APPLICATION OF THE

PROPOSED BAM APPROACH

After understanding differences and similarities

between BAM systems and data warehouse, we

highlight a set of generic monitoring situations that

can be addressed through the combination of real-

time events with historical data. These monitoring

situations were identified in the course of a

graduation project. Table 3 illustrates the problems

and analyses of historical data and real-time event

information.

Table 3: Monitoring situations that can be addressed by the proposed BAM approach.

Brief Problem Description Data Warehouse BAM

Benefit from opportunities in Customer Relationship

Management (CRM) systems by selecting customers for

preferred treatment based on purchase records of

customers and provide a higher level of service to the

type of customer that is most profitable for the business.

Identify what type of

customer is the most

profitable for the business.

Generate alert to notify the

need to provide service

privileges to the selected type

of customer.

Health surveillance and disease control can be

empowered to detect early signs of emerging epidemics.

In this way, patient care decisions can be adjusted when

patterns of previous epidemics are detected.

Identify patterns of patient

admissions in previous

epidemics

Integrate patient admission

data from several hospitals

and searching for pattern that

matches a historical pattern of

previous epidemics.

Refine sales forecast models by adjusting forecasts

taking exception events into account.

Extrapolate sales levels

from historical data.

Produce new forecast when an

exceptional high order is

placed that affects the forecast.

Support investor’s trade decisions to buy and sell shares

in companies.

Calculate historical prices

of shares.

Generate alerts when prices

are above or below historical

levels to indicate the need to

buy or sell. Include news and

forecast in analysis.

Optimize purchase of products in a supply chain. Calculate historical market

prices of products.

Generate alerts when current

prices approximate historical

limits.

Support retailer’s inventory management.

Calculate historical

averages for demand for

products and services

Identify peaks in demand for

products or sales from

historical data.

COMBINING BUSINESS ACTIVITY MONITORING WITH THE DATA WAREHOUSE FOR EVENT-CONTEXT

CORRELATION - Examining the Practical Applicability of this BAM Approach

267

8 CONCLUSIONS AND FUTURE

WORK

We have presented an assessment of the practical

applicability of a BAM systems and data warehouse.

This paper provides substantial evidence that the

combination of real-time events with historical data

can help improving understanding of the nature of

the current problems, which leads to a better support

for rapid and adequate response. Additionally, we

could identify opportunities for further research. We

believe that a very important direction is the need for

a thorough search for industry specific problems that

are likely to require the noted BAM approach.

Another area that requires further research concerns

the quantitative measurement of the benefits

generated by this BAM approach. Although the

benefits that can be obtained through this BAM

approach may seem evident, it is necessary to

generate grounds for conducting cost benefit

analyses.

REFERENCES

Abramowicz, W., Kalczynski, P., and Wecel, K., 2002.

Filtering the Web to Feed Data Warehouses, Springer,

London.

Brown, J., and Hill, P., 2000. Data Marts; Key to Reviving

the Enterprise Data Warehouse. In SCN Education,

2001. Data Warehousing: The Ultimate Guide to

Building Corporate Business Intelligence, SCN

Education, Venendaal.

Cavalheiro, G.M.C., 2005. Defining Business Activity

Monitoring: Understanding a Real-Time Event-Driven

Infrastructure, MSc Thesis, Delft University of

Technology.

Chandy, M., and McGoveran, D., 2004. The Role of

BAM. Business Integration Journal, Retrieved

Septembre 03, 2005 from:

http,//www.bijonline.com/PDF/chandy%20role%20of%20

bam%20april.pdf

Defee, J.M. and Harmon, P., 2004. Business Activity

Monitoring and Simulation, Business Process Trends,

White paper.

Delgado, N., Gates, A.Q., and Roach, S, 2004. A

Taxonomy and Catalog of Runtime Software Fault

Monitoring Tools. IEEE Transactions on Software

Engineering, Volume 30, Issue 12.

Gassman, B., 2004. How the Pieces in a BAM

Architecture Work, Gartner Document, TU-22-3754.

Govekar, M., McCoy, D., Dresner, H., and Correia, J.,

2002. Turning the Theory of BAM into a Working

Reality, Gartner Document, COM-14-9785.

Hackathorn, R.D., 2004. The BI Watch: Who’s on First.

Issue of the DM Review. Retrieved July 12, 2005

from: http://www.bolder.com/pubs/DMR200403-

Who%20is%20on%20First.pdf

Hellinger, M., and Fingerhut, S., 2002. Business Activity

Monitoring: EAI Meets Data Warehousing. Business

Integration Journal. Retrived August 06, 2005 from:

http://www.bijonline.com/pdf/BAMFingerhut.pdf

Inmon, W.H., Imhoff, C., and Sousa, R., 2001. Corporate

Information Factory, Wiley, New York, 2

edition.

Inmon, W.H., Rudin, K., Buss, C.K., Sousa, R., 1999.

Data Warehouse Performance, Wiley, New York.

Kimball, R., and Caserta, J., 2004. The Data Warehouse

ETL Toolkit: Practical Techniques for Extracting,

Cleaning, Conforming and Delivering Data, Wiley,

New York.

Luckham, D., 2002. The Power of Events: An Introduction

to Complex Event Processing and Distributed

Enterprise Systems, Addison Wesley, San Francisco.

McCoy, D., 2003. Blending Business Process

Management and Business Activity Monitoring,

Gartner- Strategic Planning, RU.

McCoy, D., 2002. Business Activity Monitoring: Calm

Before the Storm. Gartner, LE-IS-9724.

McCoy, D., 2002. Business Activity Monitoring; The

Merchant’s Tale, Gartner- Case Studies, CS-16-1780.

McCoy, D., 2004. The Convergence of BPM and BAM,

Gartner, SPA-20-6074.

McCoy, D., 2003. Blending Business Process

Management and Business Activity Monitoring,

Gartner- Strategic Planning, RU.

McCoy, D., Schulte, R., Buytendijk, F., Rayner, N., and

Tiedricht, A. 2001. Business Activity Monitoring: The

Promise and Reality, Gartner, COM-13-9992.

Meltzer, M., 1999. Getting Started; Building the Scalable

Warehouse the Right Way. In SCN Education, 2001.

Data Warehousing: The Ultimate Guide to Building

Corporate Business Intelligence, SCN Education,

Venendaal.

Sousa, R., 1999. Data Warehouse Performance, Wiley,

New York.

Tanler, R., 1997. The Intranet Data Warehouse: Tools and

Techniques for Building an Intranet Enabled Data

Warehouse, Wiley, New York.

Thuraisingham, B., 1999. Data Mining; Technologies,

Tools and Trends, CRC Press, New York.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

268
