METHOD FOR USER ORIENTED MODELLING OF
DATA WAREHOUSE SYSTEMS
Lars Burmester
Institute of Management Information Systems, Philipps-University of Marburg, 35032 Marburg, Germany
Matthias Goeken
Dep. of Management Information Systems, HfB – Business School of Finance and Management, 60314 Frankfurt, Germany
Keywords: Data Warehouse, Multidimensional Modelling, Process Model, Modelling Framework.
Abstract: The paper describes a method for data warehouse development. One critical success factor of data ware-
house development is determining information requirements. Hence, the method focuses on gathering of re-
quirements and information needs of the users first. An extended data warehouse architecture and a tech-
nique for decomposition of the system serve as a developing framework. On the one hand this framework is
used to define releases (builds) of the system, which is indispensable for an incremental development proc-
ess. On the other hand it defines intermediate and final work products (artifacts) that are produced and used
during further development stages. Starting with information requirements elicitation, each increment is re-
alized through a series of data models which successively are transformed from conceptual to logical level.
These logical data models are then used for implementation as well as for the modelling of ETL processes.
1 INTRODUCTION
During the past years, data warehousing has been an
object of intense research. As one result, quite a few
development methodologies were introduced, which
roughly could be categorized as data-driven, goal-
driven and user-driven (List et al., 2002). At data-
driven approaches, the corporate data model or at
least the data models of OLTP-systems are the start-
ing point of the development process. ETL-
processes, data staging and OLAP-cubes are built on
top of that data models. User requirements are con-
sidered last, if considered at all (Golfarelli et al.,
1998; Golfarelli and Rizzi, 1998). Goal-driven ap-
proaches derive the information requirements to be
satisfied by the data warehouse from business-
processes (Kimball and Ross, 2002) or overall com-
pany goals (Prakash and Gosain, 2003). In user-
driven approaches the information requirements are
gathered directly from the user, while the develop-
ment of data models and ETL-processes follows.
Data- and goal-driven approaches bear the latent
risk of not meeting the user requirements, leading to
a lack of system-acceptance and in worst case to a
complete failure of the developing project. Therefore
user-driven developing approaches seem most prom-
ising for successful completion of data warehouse
projects.
Following the described user-driven approaches,
the elicitation of the information requirements from
users regularly turns out to be a key problem (Hol-
ten, 1999). These problems are issued by Valusek
and Fryback, who categorize them as “obstacles…
within an individual user, among users, and between
the user and those responsible for system develop-
ment” (Valusek and Fryback, 1985; Browne and
Rogich, 2001). Between-obstacles result from the
fact that system developers and users speak different
languages. This “user-developer cultural gap” leads
to a “linguistic gap” which has to be bridged by ap-
plying suitable methods and techniques during re-
quirements elicitation (Ortner, 1995). In addition,
users often cannot explicit their requirements, which
is because they are not instantly aware of them
(within-obstacle) and requirements are still unstable
during the development process due to business dy-
namics.
Despite the described challenges, the central
technical challenge in data warehousing consists in
building up an enterprise-wide integrated and con-
sistent database, which turns out to be a complex,
time consuming and expensive effort (Hackney,
1998). To tackle these problems, it is often recom-
366
Burmester L. and Goeken M. (2006).
METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS.
In Proceedings of the Eighth International Conference on Enterpr ise Information Systems - ISAS, pages 366-374
DOI: 10.5220/0002456303660374
Copyright
c
SciTePress
mended to start with the construction of data marts
(e.g. for small organizational units like departments
or regional units) and incrementally improve them
towards the final data warehouse system (“think big,
start small”). Though, support for comprehensive
planning and development of enterprise-wide data
warehouse systems is seldom found (see Hackney,
1998 and Ong, 1999 for older approaches of evolv-
ing data warehouse architecture).
Taking a look at existing user-driven method-
ologies reveals that some promising approaches ex-
ist, which tackle the described problems of require-
ments elicitation, especially the within and between
obstacles (Bonifati et al, 2001; Winter and Strauch,
2003). Though, there are some deficits, regarding
support of comprehensive system planning and
modelling. Strauch clearly states the need for repre-
sentation and verification of requirements, using
multidimensional modelling languages, but gives no
instructions how this should be accomplished. Boni-
fati et al. use idealised star schemas to represent
user-requirements, consisting of basic multidimen-
sional modelling elements, but lack constructs for
dimension hierarchies, which in particular are cru-
cial for OLAP cubes (see section 3.2.2 for details).
While Strauch completely neglects implementation
aspects, Bonifati et al. consider the reconciliation of
user requirements and information supply as a trial
and error process, finding the best match between
the ideal star schemas and candidate star schemas
derived from operative data schemas.
In the following parts of the paper a develop-
ment method is introduced which considers the
above mentioned challenges. Section 2 introduces an
advanced data warehouse architecture which serves
as a reference framework for the method. Section 3
treats the development method itself, starting off
with systems planning and the process model (Sec-
tion 3.1). The elicitation of information require-
ments, conceptual modelling and validation of the
resulting structures is treated in section 3.2. Section
3.3 describes the successive transformation of data
models towards a physical implementation and the
implementation of ETL processes. Conclusions and
discussion are found in section 4.
2 ADVANCED DATA
WAREHOUSE
ARCHITECTURE
2.1 Modelling Framework
In this section an advanced data warehouse architec-
ture is introduced, which serves as a modelling
framework for the method. A closer look on the data
warehouse layers reveals the stepwise data flow
from data sources towards analytical applications
situated in the presentation layer (see figure 1). This
physical perspective only covers a part of the tasks a
data warehouse has to cover and is insufficient to
capture the users information needs. In fact, a con-
ceptual perspective for representation of the business
tasks of a data warehouse is missing (Vassiliou et
al., 2000; Jarke et al., 1999; Quix, 2003). To utilize
data from operational Systems (OLTP) for informa-
tion supply and decision support not only from a
physical but also from a conceptual point of view, it
is necessary to explicitly describe each layer with an
own conceptual (data) model. This integrates the so
far isolated data flow perspective with an informa-
tion-use perspective. The conceptual perspective
respectively the conceptual (data) models support
the user/analyst interaction and can also be seen as
documentation of development steps. In terms of
language they can be seen as “close-to-user”, be-
cause they consist of modelling constructs that are
easy to understand. In addition they are a decisive
input for following stages of the development proc-
ess (Wand and Weber, 2002).
Storage layer
ETL layer
OLTP systems
(Online Transaction Processing)
OLAP layer
Presentation layer
Data
Warehouse
Logische
Schemata
Logische
Schemata
Operation-
al data-
base
Logical model
Operation-
al data-
base
Operation-
al data-
base
ETL processes
Konzeptionelle
Schemata
Konzeptionelle
Schemata
Conceptual model
Logical MDDMs
Conceptual
MDDMs
Consoli dation
Into
Individual
conceptual
multdimensional
models (cMDDMs)
Konzeptionelle
Benutzerschemata
(individuell)
Konzeptionelle
Benutzerschemata
(individuell)
Tranformation
into
Frontend-
client
definition of reports / navigation structures
Frontend-
client
Defines
Logical
multidimensional
models (lMDDMs)
Has
structure
OLAP-
Server
Conceptual
ETL model
Tranformation
into
i
m
p
l
e
m
e
n
t
e
d
b
y
Tranformation
into
Logical
ETL
model

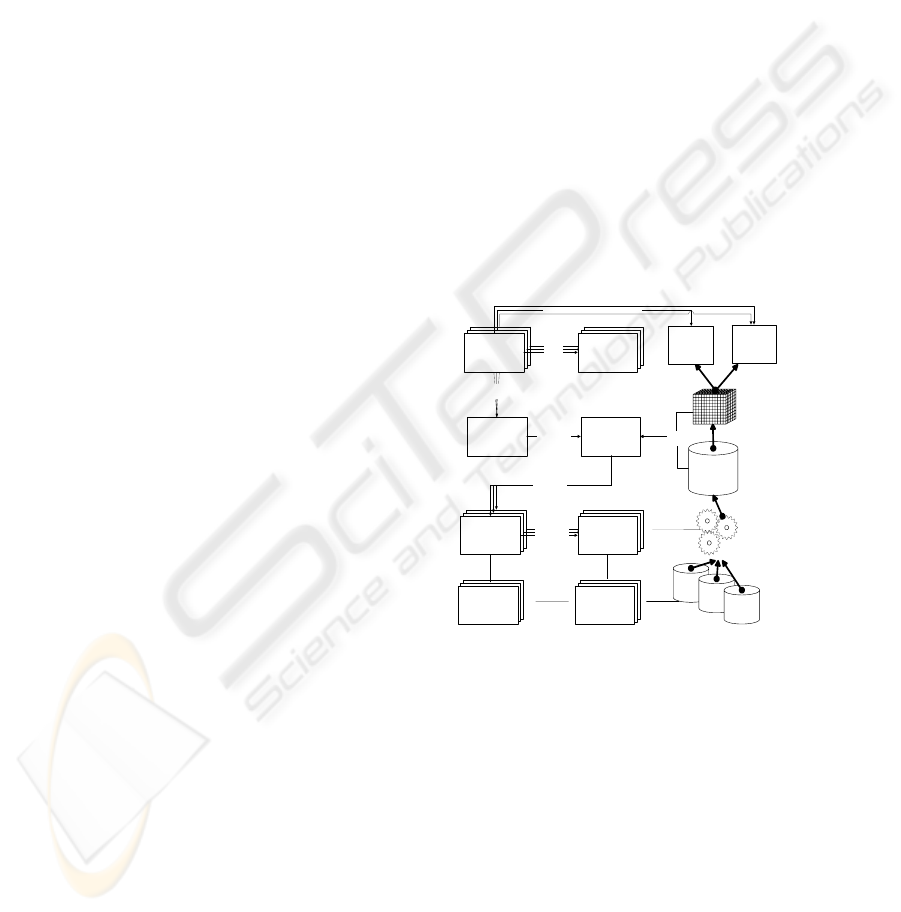

Figure 1: Extended data warehouse architecture.
To simplify the presentation it is assumed that
the data models of the storage layer and the OLAP-
layer don’t differ. This means the storage layer al-
ready consists of the data structures that are neces-
sary for relational OLAP. If a reconciled data layer
exists, the ETL processes described in section 3.4
will access this instead of the operational source
systems.
The described architecture is similar to the “meta
data framework” developed in the DWQ project on
(Vassiliou et al., 2000; Jarke et al., 1999; Quix,
2003). It differs in two points: on the one hand an
enterprise data model is assumed as given. Such
enterprise data models often don’t exist in reality
and are assumed as problematic, so these should not
be considered in this paper (Stahlknecht and Ha-
METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS
367
senkamp, 2005; Schelp, 2001). Instead, individual
user requirements should be the starting point of the
method. On the other hand a different integration
approach is followed. While the DWQ project fol-
lows the “local as view” approach, our approach
considers the content of the data warehouse as views
on the operational data sources. This “global as
view” approach can also be used as a description of
the data flow from data sources into the integrating
system.
2.2 Developing in the Framework
Conceptual multidimensional data models
(cMDDM) act as the starting point of the method
(see figure 1, left uppermost corner) and are used for
elicitation of information requirements and can be
seen as the work products of this stage. During this
development stage, single user (or user group) re-
quirements and final specifications are treated sepa-
rately. This separation corresponds to the often de-
manded addressee-orientation for management in-
formation systems and allows the traceability of re-
quirements to their origin. By using individual
cMDDM, addressee-appropriate reports, navigation
and alternatives for analyzing the information space
are provided. In addition these cMDDM could be
consolidated and transformed into logical multidi-
mensional data models (lMDDM; see figure 1, cen-
tre column). Furthermore lMDDM provide input for
conceptual ETL models, which can be used for
communication with the administrators of operative
data sources. Conceptual ETL models can be seen as
requirements of the data warehouse systems, which
should be fulfilled by OLTP systems. During the
development process, conceptual ETL models are
transformed into logical ETL models, which are then
physically implemented (see figure 1, 3
rd
row from
above).
This architecture allows a structured process for
data warehouse development and also secures
documentation on each semantic level. Furthermore
the architecture provides a framework for integration
of different modelling approaches existing in data
warehouse development. The goals pursued by (con-
ceptual) models, like documentation, input for later
development stages or communication with the user,
could be hardly realized by using just one modelling
language during the whole development process
(Wand and Weber, 2002). In further description of
our method, we exemplarily use ADAPT (Bulos and
Forsman, 2002) for conceptual multidimensional
modelling and the concept of Vassiliadis et al. (Vas-
siliadis et al., 2002a) for ETL modelling. Of course,
other modelling approaches fit as well, so that pre-
ferred or more suitable ones could be chosen by the
developer.
3 METHOD
3.1 Systems Planning and Process
Model
3.1.1 Systems Planning
To reduce the complexity of developing enterprise-
wide data warehouse systems, it is often suggested
to start off with data marts (“start small”) and incre-
mentally improve them towards an overall target
system. Incremental development means to focus a
well defined goal, which should be realized by step-
wise enhancement of incomplete parts (Gilb, 1988;
Larman and Basili, 2003). This allows handling the
dynamics oft the business environment as well as
fine-grain-planning the delivery of increments
(builds). Misunderstandings can be resolved during
the development process and early testing also helps
finding out whether the available information supply
matches the actual information demand. Following
an incremental approach requires that a target sys-
tem must be decomposable. If this is given, build
stages can be appointed into a build plan (Goguen
and Linde, 2003). The resulting loops in the devel-
opment process can then be seen as planned itera-
tions.
In the introduced development method, the over-
all target system is decomposed using two decompo-
sition criteria. Information and decision objects are
used as a business criterion on one side and the lay-
ers of the data warehouse architecture are used as
technical criterion on the other side. Information or
decision objects represent relevant aspects of the
business, which can be derived e.g. from the organ-
izational structure or a performance measurement
system. They define the data warehouse subjects on
an abstract level. Combining this business perspec-
tive with the layers of the data warehouse architec-
ture leads to development objects, which represent
modules of the overall target system (see figure 2).
Presentation layer
OLAP layer
Storage layer
ETL layer
Finance Sales
Production
. . .
Human
Ressource
Figure 2: Developing objects as a result of the system
decomposition.
These development objects are central subjects
for planning builds and prototypes. The build plan
shows which objects are realized in which order. For
ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
368
a more precise planning of the development stages
of a development object, it is viewed in form of the
introduced advanced data warehouse architecture. In
the build plan, milestones could be defined at which
a certain development process has to be completed.
Figure 3 shows a build timetable for an example
project.
Time
Information and
decision object 1
Information and
decision object n
. . .

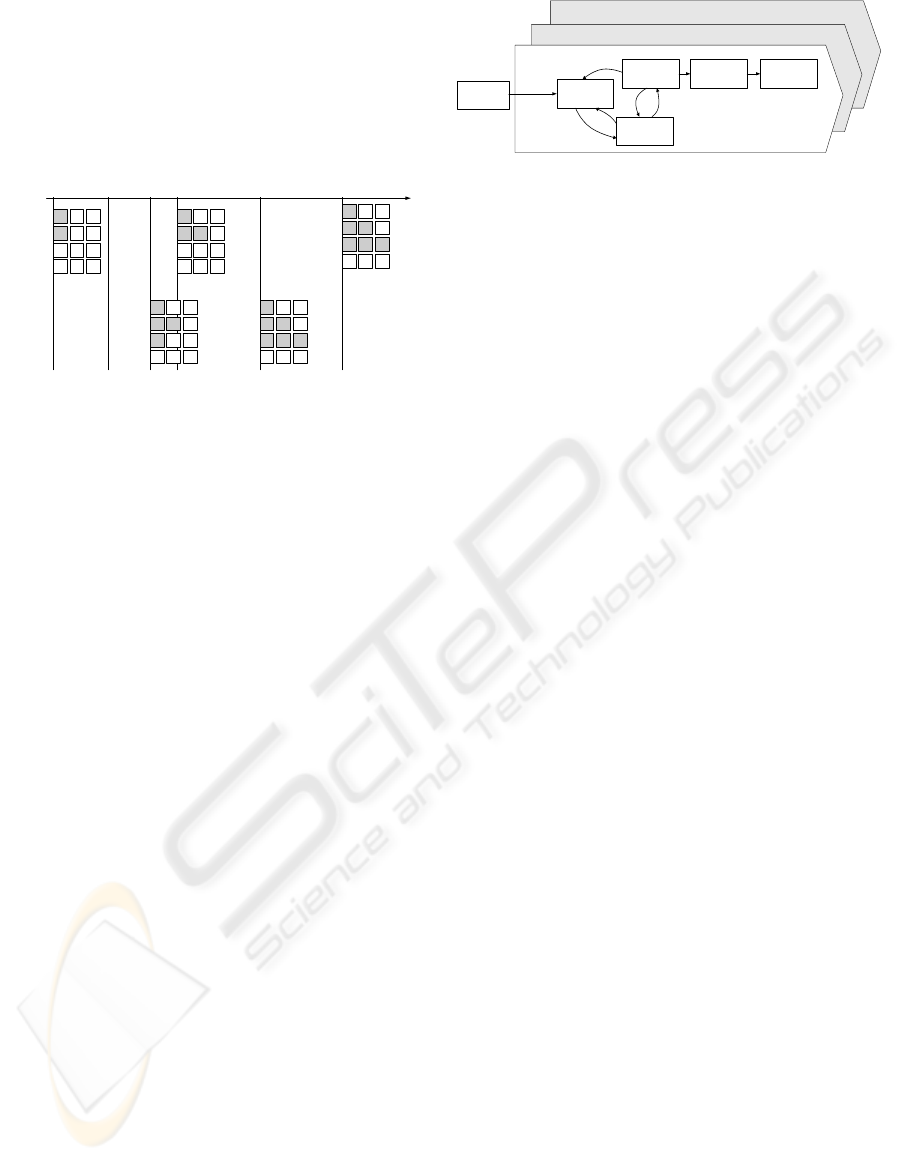

Figure 3: Exemplary build timetable of multiple subsys-
tems.
3.1.2 Process Model
The process for developing a build consists of sev-
eral steps. The starting point of the process is the
requirements elicitation stage in which the informa-
tion requirements of each individual user towards
the target system are acquired. At the beginning of
the design stage these requirements are converted
into individual cMDDM and are consolidated into a
conceptual overall view during the stage. At the end
of the conceptual design stage the overall cMDDM
is transformed into a logical data model (lMDDM)
which forms the basis for the construction of a vali-
dation prototype. During the validation stage the so
far generated conceptual structures are validated by
the future users. The constructed prototype supports
this step. If the prototype is rejected, the process will
loop back to earlier stages, depending on the reasons
for rejection. A positive validation triggers the speci-
fication stage. The generated lMDDM specify the
formalized information demand, which has to be
reconciled with the information supply in the ETL
layer. The transformation of the lMDDM into con-
ceptual ETL models as well as logical ETL models
based on that, are the foundation for their final
physical implementation. An overview of the proc-
ess model for the realisation of each development
object is provided in figure 4.
Planning
Specification Implementation
Requirements
acquisition
Validation
Conceptual design
Information and decision object 1
Information and decision object 2
Information and decision object n
Figure 4: Process model for the realisation of developing
objects.
3.2 Requirements Acquisition and
Conceptual Design
3.2.1 Requirements Acquisition
The requirements acquisition stage represents the
starting point for the cycle in which the information
need is acquired and formalized. First, the informa-
tion demand of each individual user (or user group)
is acquired. On the one hand it should be found out,
which facts and measures quantify an information
and decision object. On the other hand qualifying
perspectives on these measures or facts are created
by identifying user-defined dimensions and hierar-
chies (Lehner, 2003).
Due to the high level of abstraction encountered
in conceptual multidimensional modelling languages
(e.g. the Dimensional Fact Model (DFM), ADAPT
and others (Bulos and Forsman, 2002; Golfarelli et
al., 1998; Abello et al., 2002), they are often not
suitable for communicating with inexperienced users
about their requirements. The overcoming of the
above mentioned “linguistic gap” between analysts
and users is aggravated by using too formalized
modelling languages, especially when used for sup-
porting the articulation of information needs. In par-
ticular, it often turns out to be difficult to explain the
differences of multidimensional modelling con-
structs to users (for an empirical study which leads
to similar results see Nordbotten and Crosby, 1999).
Therefore analyzing and interpreting the users in-
formation needs remains a key task for the devel-
oper. For communication with the user, interroga-
tives or so called “w-questions” have turned out to
be quite useful, because they describe the constructs
of multidimensional modelling in colloquial speech
(Browne and Rogich, 2001; Stahlknecht and Ha-
senkamp, 2005; Quigley and Debons, 1999). Inter-
rogatives can be interpreted as a basic grammar
(construction plan for sentences) as it has been sug-
gested by Ortner for the method neutral conceptual
design (Ortner, 1995). For graphical representation,
simplified models could be used, which use only a
subset of common multidimensional modelling ele-
METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS
369
ments (facts, measures, dimensions, some early hier-
archies). In common performance measurement
concepts, dimensionality is often disregarded, so that
confronting “inexperienced” users with multidimen-
sionality might lead to the above described obsta-
cles. The confinement on few constructs of multidi-
mensional modelling may lead to a better under-
standing and enables the user to concentrate on gen-
eral aspects.
The results of the requirements acquisition stage
are the information needs of individual users or user
groups. A set of simplified conceptual models and
interrogatives are the work products, which are
passed to the next stage.
3.2.2 Conceptual Design
In the following section the design process is intro-
duced which realizes the information requirements
within the advanced data warehouse architecture.
Starting-point are the results of requirements ac-
quisition, which represent the information need of
the single users. The first step consists of the trans-
forming the simplified conceptual models into
common multidimensional models (e.g. in ADAPT)
and their consolidation into a conceptual overall
view. All objections against the use of common mul-
tidimensional modelling languages are omitted be-
cause these models are no longer used for user-
analyst-interaction, but for documentation and as a
central input for further transformations into
lMDDM (see figure 1 again).
To illustrate the process, the development of
parts of a sales information system should be taken
as an example for the rest of the paper. During the
requirements acquisition stage a couple of simplified
conceptual models for single users were generated.
Further the future system can be described by the
interrogative “Which amounts of money (in €), of
which kind (e.g. turnover, discounts, promotion
costs) have flown doing business with which cus-
tomer (e.g. wholesalers, retailers) in which region
(e.g. Nielsen-area, state) at which point of time (e.g.
fiscal year, calendar year) ?”. The ERP-system as
well as a not integrated marketing information sys-
tem should be seen as the data sources of the future
system.
The transformation of the simplified conceptual
models into common multidimensional models here
exemplarily should lead to ADAPT models, starting
off with the dimensions (Bulos and Forsman, 2002).
The formalisation of a dimension requires represent-
ing the elements of the hierarchical structure. In
common multidimensional modelling languages
dimensional hierarchies are often modelled col-
lapsed because a full display of the hierarchy would
soon become too hard to work with. Hence, dimen-
sions are modelled as generalised, abstracted dimen-
sion levels. Simple balanced hierarchies can be
transformed directly into a multidimensional model.
Dimensions with more complex structures, like mul-
tiple or unbalanced hierarchies as well as non-
additive roll-ups, couldn’t be transformed in the de-
scribed manner, which than requires an uncom-
pressed view of the hierarchy again (Schelp, 2000).
Ret a i le r s . . .Wholesal ers
Normal accountsKey accounts Key accounts Normal accounts
Müller Mei e r Schul ze Lehmann Hansen Borchers
Cus t o mer
Cus t o m e r
hi er ar ch y
Cust omer type
{ }
Cust omer Gr oup
{ }
Cus t o mer
{ }
Customer

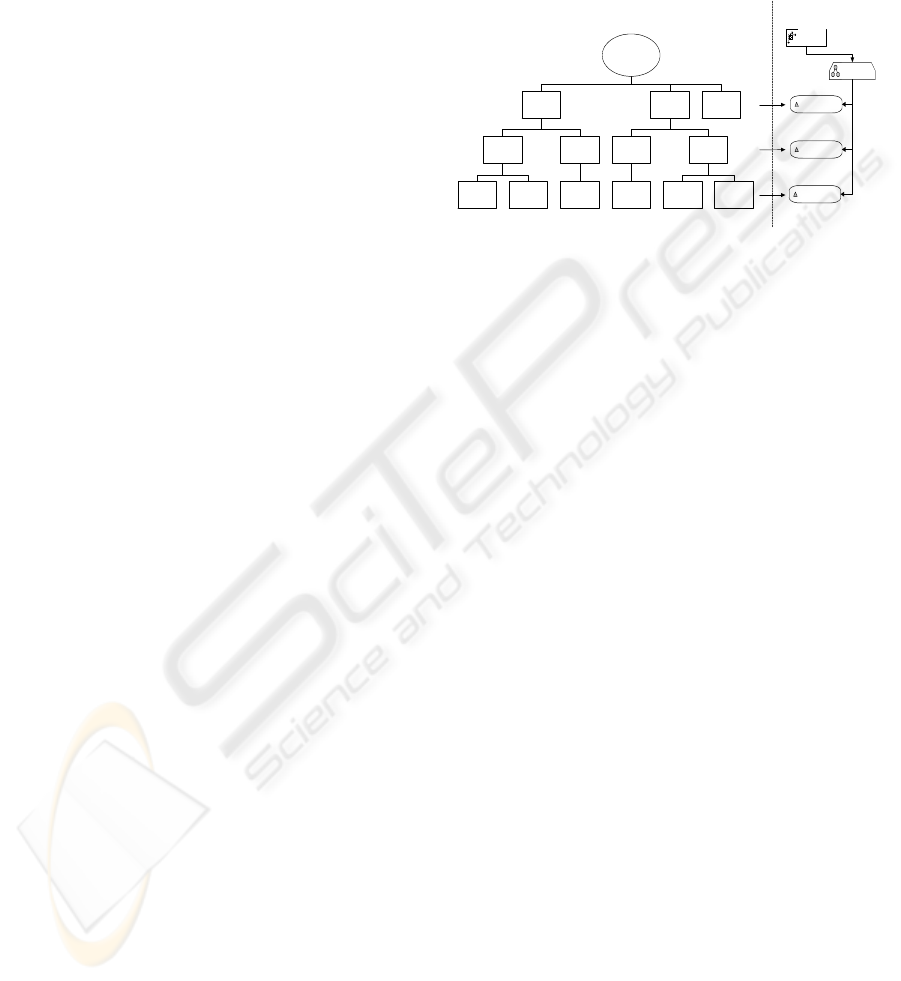

Figure 5: Transformation of a simple balanced hierarchy
into the ADAPT notation.
After the transformation of the simplified multi-
dimensional models of the single users into formal-
ized cMDDM, these are consolidated into a multiple
user cMDDM. The resulting model represents the
cMDDM of the storage/OLAP layer. Consolidating
the facts and measures usually does not impose big-
ger problems, because they usually origin from well
known corporate performance measurement sys-
tems. The consolidation of the dimensions could be
seen as a major challenge in the design process.
Hereby it is crucial to recognize different views on a
dimension and to consolidate these into one consis-
tent dimension. In the following the consolidation
process should be illustrated with an example, which
shows the consolidation of different views upon a
time dimension. Here, a finance officer needs a
deeper time hierarchy than the sales officer. The
latter uses the corporate fiscal hierarchy, while the

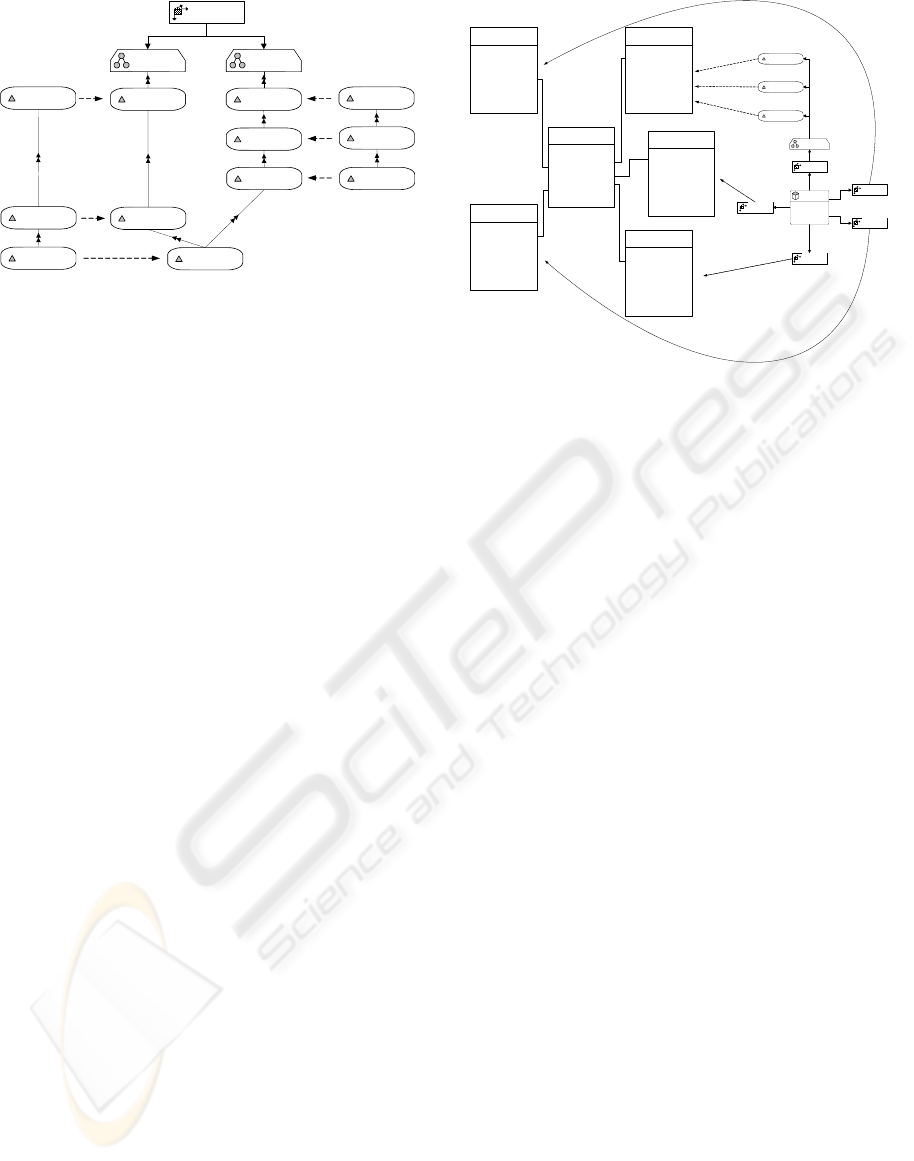

analyst uses the calendar hierarchy. Figure 6 shows
the consolidation of the described views upon the
time dimension.
After consolidating the individual cMDDM, the
resulting multiple user cMDDM has to be trans-
formed into the logical data model (lMDDM).
Though independent from physical implementation,
logical models of multidimensional data structures
are aligned to the chosen database technology. Be-
cause of the wide spread of relational database tech-
nology, the logical model of the multidimensional
data layer regularly is modelled as variants of the
star schema.
ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
370
Month
{ }
Fiscal quarter
{ }
Fiscal year
{ }
Time
Day
{ }
Month
{ }
Week
{ }
Fiscal quarter
{ }
Calendar year
{ }
Fiscal year
{ }
Calendar Fiscal calendar
Sales officer
Consolidated time
dimension
Day
{ }
Week
{ }
Calendar year
{ }
Finance officer
Figure 6: Consolidation of different views on a time di-
mension.
Deriving logical data models from conceptual
models constitutes a critical step in the development
process, because this transformation always means
the loss of semantics between the two models
(Schelp, 2000; Blaschka, 2000; Hahne, 2002). For
that reason the danger of mis-mapping is biggest in
this stage of the process. A close look on the trans-
formation of facts and measures shows that their
transformation could be handled in some few steps,
while the transformation of dimensions is a lot
harder. Though most of multidimensional modelling
languages are capable of representing complex hier-
archical structures, like multiple or unbalanced hier-
archies or non-additive roll-ups, just a few ap-
proaches exist that secure transformation into logical
multidimensional data models without the loss of too
much semantics (Herden, 2001).
For an example of mapping cMDDM to logical
ROLAP-models see (Blaschka, 2000). There this is
done by mapping the elements of the meta-models
of conceptual multidimensional modelling languages
onto the elements of the relational model. Doing so,
transformation rules, like “For each fact or dimen-
sion exactly one table should be created”, could be
derived. By applying these rules, a conceptual mul-
tidimensional model could be formally transformed
into a simple star schema. Figure 7 shows the exam-
ple of mapping an ADAPT model onto a star schema
(logical MDDM).
DIM_PaymentType
Key_AccountNo
ParentKey_AccountNo
Account_Description
RollUp_to_parent
DIM_Time
Time
Customer
Product
Time
Payment
Region
Sales (Finance)
Time
Sales region
Customer
Produkt
Product
Type of
payment
Custom er
hierarch y
Customer Type
{ }
Customer Group
{ }
Customer
{ }
DIM_Customer
Customer #
Level_CustomerType
Level_CustomerGroup
Level_Customer
DIM_SalesRegion
Key_Region
Level_SalesRegion
Level_SalesDistrict
Level_ZIPCode
DIM_Product
Key_Product
Level_ProductGroup
Level_Brand
Level_Product
Fact
Customer #
Key_Region
Key_Product
Key_AccoutNo
Time
Measure
Figure 7: Mapping of an ADAPT model onto a simple star
Schema (lMDDM).
To optimize a ROLAP-solution in terms of per-
formance, maintainability and storage, methods like
indexing, partitioning tables as well as materialized
views can be used (Herden, 2001; Peralta and Rug-
gia, 2003; Lehner, 2003). The discussion on the
mentioned methods should not take place in this
paper, because just the realization of informational
requirements should be demonstrated.
The lMDDM represents the informational re-
quirements of a data warehouse system using table
structures. To validate these generated structures,
they have to be filled with data. Because of the in-
cremental approach and the usage of prototyping, for
now, simulation data should be used during early
iterations, because the modelling and implementa-
tion of ETL processes result in major effort (Vassili-
adis et al, 2002a for example estimate the share of
total development at 80%). By further advancement
of the development process, real data should by used
to validate prototypes and secure a smooth transition
to operational use.
3.3 Validation
The validation of the conceptual model and the logi-
cal structures is realized in one single step. The fu-
ture users could validate, if the generated structures
correctly represent the universe of discourse, regard-
ing measures and dimensions. If the prototype
should be fully or partly rejected, a loop-back to
earlier stages takes place. To determine the stage
which should be looped back to, a verification of the

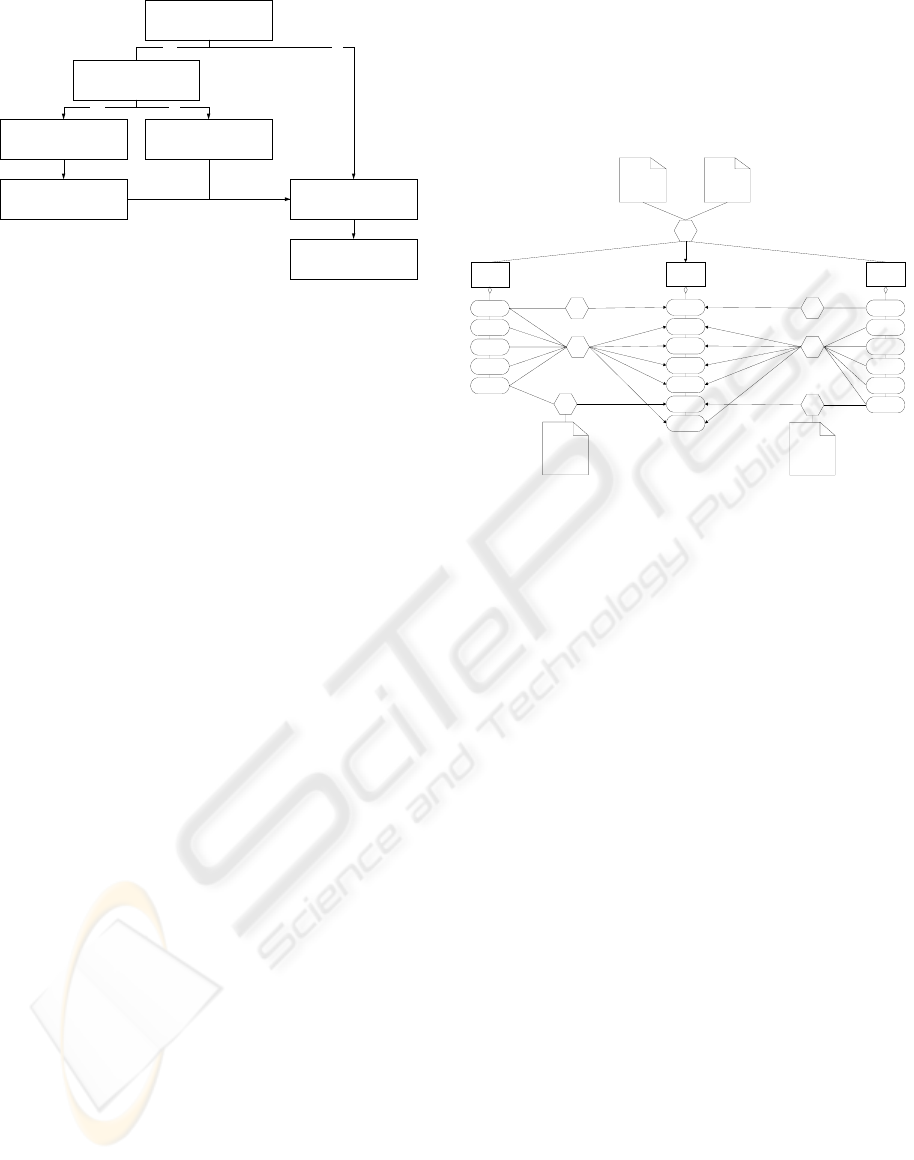

artifacts of passed stages is necessary. Figure 8
shows the procedure during the validation stage. If a
prototype is accepted, the development process ad-
vances to the specification stage.
METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS
371
Verification:
Prototype implements cMDDM
correctly?
Correct Prototype!
Verification:
cMDDM implements the
requirement correctly?
Repeat validation!
Correct the cMDDM!Back to Requirements Acquisition!
Correct the cMDDM!
Yes No
Yes No
Figure 8: Procedure when prototype is rejected.
3.4 Specification and Implementa-
tion
If the prototype is accepted during the validation
stage, the generated logical structures represent the
formalized information demand. The information
supply consists mainly of data from internal OLTP
systems and is enriched by additional external data.
The reconciliation of information demand and in-
formation supply in data warehouse systems takes
place in the ETL layer as ETL processes.
As before in the OLAP and storage layer, the
data acquisition layer could also be represented by
conceptual, logical and physical models (Vassiliadis
et al., 2002a, Trujillo and Lorán-Mora, 2003). Equal
to the simplified multidimensional data models used
during the requirements elicitation stage, conceptual
ETL models could be used for communication with
the administrators of OLTP systems.
The approach for conceptual modelling of ETL
processes from Vassiliadis et al. proposes the analy-
sis of user requirements as well as an analysis of the
structure and contents of the data sources, before
starting the modelling process (Vassiliadis et al.,
2002a). The user requirements as target of the ETL
process already exist as table definitions (lMDDM)
(in the following referred to as data consumer). On
the opposite internal and external data sources repre-
sent the information supply (in the following re-
ferred to as data provider). The creation of a concep-
tual ETL model takes place in a three step process
(Simitsis and Vassiliadis, 2003). In the first step
adequate data providers have to be chosen. Follow-
ing that, delivery and mapping relations between
potential data providers and data consumers have to
be concretizised. This second step is crucial for the
success of the modelling process due to the hetero-
geneity of source systems. It requires intense inter-
action with the OLTP systems administrators as well
as comprehensive testing, to secure the adequate
filling of the target tables. After modelling the map-
ping relations, the process can be annotated with
runtime constraints, like execution plan, supervision
and logging settings, as well as exceptions and error
handling. Additional requirements can be mentioned
(e.g. the level of data freshness) which have to be
considered during the physical implementation.
DW.Sales
K_Primary
Time
K_Customer#
K_Product
K_Region
K_AccountNo
Ammount
S.Sales
K_Customer#
Time
Turnover
K_Region
K_Product
Q.Promotion
K_Primary
K_Customer#
Time
Promotion costs
K_Region
K_Product
Y
SK
F
F
Y
SK
Lookup: Account type .
Here: Turnover
S
.
S
a
l
e
s
K
_
C
u
s
t
o
m
e
r
#
Q
.
S
a
l
e
s
.
T
i
m
e
Q
.
S
a
l
e
s
.
K
_
R
e
g
i
o
n
Q
.
S
a
l
e
s
.
K
_
P
r
o
d
u
c
t
Q
.
S
a
l
e
s
.
T
u
r
n
o
v
e
r
Lookup: Account type.
Here: Promotion cost s
Q
.
P
r
o
m
o
t
i
o
n
.
T
i
m
e
Q
.
P
r
o
m
o
t
i
o
n
.
C
u
s
t
o
m
e
r
#
Q
.
P
r
o
m
o
t
i
o
n
.
K
_
R
e
g
i
o
n
Q
.
P
r
o
m
o
t
i
o
n
.
K
_
P
r
o
d
u
c
t
Q
.
P
r
o
m
o
t
i
o
n
.
C
o
s
t
U
Necessary data
sources:
S.Sales
S.Promotion
Execute 5 days before
end of the month
Figure 9: Example of a conceptual ETL model.
An example of a conceptual ETL model is
shown in figure 9 (using the notation of Vassiliadis
et al., 2002a). The data consumer in this model is a
fact table (DW.Sales) of the sales information sys-
tem, which is supplied from two sources (S.Sales
and S.Promotion). In the example further transfor-
mations, besides simple mapping processes (Y (Ag-
gregations)) can be found. On the one hand a unique
surrogate key is assigned (SK), to avoid contradic-
tory values for the primary key in the fact table. On
the other hand a transformation function (F) is ap-
plied, which assigns a qualifying account-type to a
measure. For example, the account type ‘promotion
costs’ is assigned to records originating from the
data source ‘promotion’ and the account type ‘turn-
over’ is assigned to records from the data source
‘sales’. Further annotations were made regarding the
implementation of the process, e.g. execution re-
straints or the necessary data sources (U).
Vassiliadis et al. state that a logical ETL model
consists of the data flow process from the data
sources towards the data warehouse and several ETL
activities, which can be seen as logical abstract of
physical code (Vassiliadis et al, 2002b; Simitsis,
2003). Basic elements of the logical ETL model are
ETL activities, which can be described on multiple
levels. From the perspective of the meta model, ETL
activities consist of several components, like name,
input and output and the relationship between them.
Instances of these meta-activities are called template
activities (e.g. push, join, not-null-check etc.). Stan-
dard activities could be customized to fit the re-
quirements of a concrete ETL process. These
ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
372
adapted ETL processes can be seen as an instance of
the template.
ETL processes are described in so called ETL
scenarios, depicting a sequence of ETL activities,
which sketch the data flow between source and tar-

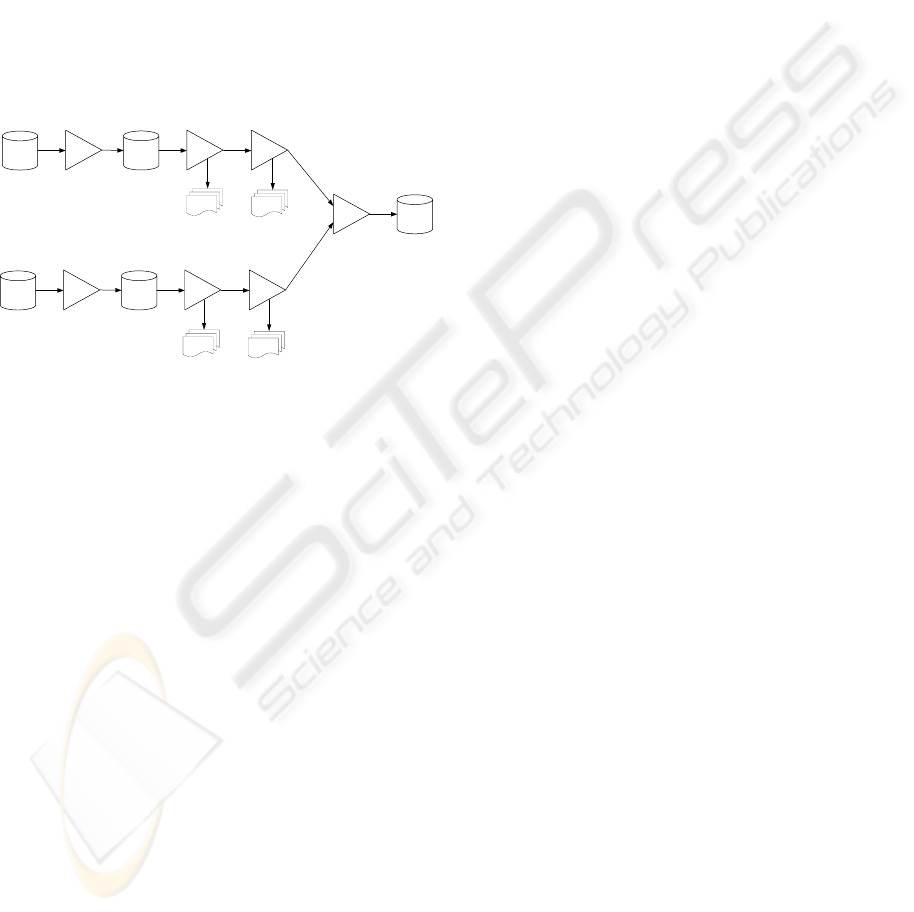

get records. Figure 10 shows the ETL scenario of the
introduced conceptual ETL model. The relevant re-
cords are loaded from the source databases (S.Sales,
S.Promotion) into the tables of the data staging area
(DS.Sales, DS.Promotion) via FTP. This is followed
by two ETL activities, the assigning of a unique sur-
rogate key and the lookup of the account type, in-
cluding the logging of failed transactions. The end-
ing activity unites the records from both data sources
and loads them into the data warehouse table
(DW.Sales).
DS.Sal es
S.Sales
FTP 1
DS.Promotion
S.Pr omoti on
FTP 2
SK 1
SK 2
Acc.Lookup
Acc.Lookup
U
DW.Sales
Log
Error
Log
Error
Log
Error
Log
Error
Figure 10: Logical ETL Scenario.
4 CONCLUSIONS
This paper introduced a method for user oriented
development of enterprise-wide data warehouse sys-
tems. The focus lay on the decomposition of the
system, which is used for planning builds for the
incremental design. Additionally a process model is
introduced, which defines stages and working prod-
ucts of the development process.
The method proved to be useful and handy in the
project EiSFach, which the authors worked in. The
projects subject is the design and implementation of
data warehouse based performance measurement
and management support systems for the Philipps
University of Marburg (Germany). Due to uncer-
tainty in laws and novelty of the field of perform-
ance measurement in universities, the specification
and dynamic of requirements were the key success.
The introduced method helped to tackle these prob-
lems, while the potential usefulness of the method in
a more complex business environment still has to be
proved.
Concrete techniques for elicitating the user re-
quirements were just mentioned. Possible techniques
should concretizised and assigned to the several
stages during further improvement of the method.
Therefore contingency approaches for situation-
specific choice of methods and techniques of re-
quirements elicitation could be useful. This would
allow a rational choice between available tech-
niques. In addition, techniques for inter-model trans-
formation should be more formalized, whereas the
possibility of tool support would arise.
Though the information requirements are the key
success factor of data warehouse development, other
requirements, like performance, usability and main-
tainability, were not regarded. The enhanced data
warehouse architecture from section 2 of this paper
can be used as a framework for modelling and im-
plementation this requirements. For example per-
formance requirements can be realized alternatively
through optimization of the logical data model (par-
titioning of tables or fractional design) or through
physical techniques (indexing). These advanced re-
quirements should be more regarded on further im-
provement of the method.
REFERENCES
Abello, A., Samos, J. and Saltor F., 2000. A Data Ware-
house Multidimensional Data Models Classification.
Grenada: Technical Report LSI-2000-6, Dept. Llen-
guages y Sistemas Informáticos.
Blaschka, M., 2000. FIESTA: A Framework for Schema
Evolution in Multidimensional Databases. Dr. Techni-
cal University Munich.
Bonifati, A. et al., 2001. Designing Data Marts for Data
Warehouses. ACM Transactions on Software Engi-
neering and Methodology, 10 (4), pp. 452483.
Browne, G. and Rogich, M., 2001. An Empirical Investi-
gation of User Requirements Elicitation: Comparing
the Effectiveness of Prompting Techniques. Journal of
Management Information Systems, 17 (4), pp. 223–
249.
Bulos, D. and Forsman, S, 2002. Getting started ADAPT –
OLAP Database Design. San Rafael: Symetry Corp,
White Paper.
Gilb, T., 1988. Principles of Software Engineering Man-
agement. Reading et al.: Addison-Wesley.
Goguen, J. A. and Linde, C., 1993. Techniques for Re-
quirements Elicitation. Proceedings of IEEE Interna-
tional Symposium on Requirements Engineering 1993
in San Diego.
Golfarelli, M. and Rizzi, S., 1998. A Methodological
Framework for Data Warehouse Design. Proceedings
of the ACM first international Workshop on Data
Warehousing and OLAP 1998 in Washington.
Golfarelli, M., Maio, D. and Rizzi, S., 1998. Conceptual
Design of Data Warehouses from E/R Schemes. Pro-
ceedings of the Hawaii International Conference On
Systems Science 1998 in Kona.
METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS
373
Hackney, D., 1998. Architectures and Approaches for
Successful Data Warehouses. [Online].
http://datawarehouse.ittoolbox.com/documents/docum
ent.asp?i=815
[Cited 19 January 2006].
Hahne, M., 2002. Transformation mehrdimensionaler
Modelle. In E von Maur and R Winter, eds. Vom Data
Warehouse zum Corporate Knowledge Center.
Heidelberg: Physica-Verlag, pp. 399–420.
Herden, O., 2001. Eine Entwurfsmethodik für Data
Warehouses. Dr. Universität Oldenburg.
Holten, R., 1999. Entwicklung von
Führungsinformationssystemen. Ein
methodenorientierter Ansatz. Dr. Universität Münster.
Jarke, M. et al., 1999. Architecture and Quality for Data
Warehouses: An Extended Repository Approach. In-
formation Systems, 24 (3), pp. 229–253.
Kimball, R. and Ross, M., 2002. The Data Warehouse
Toolkit. New York: John Wiley.
Larman, C. and Basili, V. R., 2003. Iterative and Incre-
mental Development: A Brief History. IEEE
Computer, 36 (6), S. 4756.
Lehner, W., 2003. Datenbanktechnologie für Data-
Warehouse-Systeme: Konzepte und Methoden. Heidel-
berg: dpunkt-Verlag.
List, B. et al., 2002. A Comparison of Data Warehouse
Development Methodologies Case Study of the Proc-
ess Warehouse. Proceedings of the 13
th
international
conference on Database and Expert Systems 2002 in
Aix-en-Provence.
Nordbotten, J. C. and Crosby, M. E., 1999. The effect of
graphic style on data model interpretation. Information
Systems Journal. 9 (2), pp. 139–155.
Ong, H., 1999. The Evolution Of A Data Warehouse Ar-
chitecture - One Size Fits All? [Online].
http://www.aurora-consult.com.au/white.html
[Cited 19 January 2006].
Ortner, E., 1995. Elemente einer methodenneutralen
Konstruktionssprache für Informationssysteme.
Informatik - Forschung und Entwicklung, 10 (3), pp.
148–160.
Peralta, V. and Ruggia, R., 2003. Using Design Guidlines
to improve Data Warehouse logical Design. [Online].
http://www.fing.edu.uy/inco/grupos/csi/esp/Cursos/cur
sos_act/2003/DAP_SistDW/Material/DesGuidelines-
VPRR.pdf
[Cited 19 January 2006].
Prakash, N. and Gosain, A., 2003. Requirements Driven
Data Warehouse Development. Short Paper Proceed-
ings of The 15th Conference on Advanced Information
Systems Engineering 2003 in Klagenfurt / Velden.
Quigley, E. J. and Debons, A., 1999. Interrogative Theory
of Information and Knowledge. Proceedings of the
ACM SIGCPR conference on Computer personnel re-
search 1999 in San Diego.
Quix, C. J., 2003. Metadatenverwaltung zur
qualitätsorientierten Informationslogistik in Data-
Warehouse-Systemen. Dr. Technische Hochschule
Aachen.
Schelp, J., 2000. Modellierung multidimensionaler
Datenstrukturen analyseorientierter
Informationssysteme. Dr. Universität Bochum.
Simitsis, A. and Vassiliadis, P., 2003. A Methodology for
the Conceptual Modeling of ETL Processes. Decision
Systems Engineering Workshop (DSE'03), in conjunc-
tion with the 15th Conference on Advanced Informa-
tion Systems Engineering (CAiSE '03) 2003 in Klagen-
furt / Velden.
Simitsis, A., 2003. Modeling and managing ETL Proc-
esses. Proceedings of the VLDB 2003 PHD Workshop
2003 in Berlin.
Stahlknecht, P. and Hasenkamp, U., 2005. Einführung in
die Wirtschaftsinformatik. 11. ed. Berlin et al.:
Springer.
Trujillo, J. and Lorán-Mora, S., 2003. A UML Based Ap-
proach for Modeling ETL Processes in Data Ware-
houses. Proceedings of the ER 2003 in Chicago.
Valusek, J. R. and Fryback, D. G., 1985. Information re-
quirements determination obstacles within, among and
between participants. Proceedings of the twenty-
firstannual conference on computer personnel re-
search 1985 in Minneapolis.
Vassiliadis, P., Simitsis, A. and Skiadopoulos, S., 2002a.
Conceptual Modeling for ETL Processes. Proceedings
of the 5th International Workshop on Data Warehous-
ing and OLAP 2002 in McLean.
Vassiliadis, P., Simitsis, A. and Skiadopoulos, S., 2002b.
On the logical Modeling of ETL Processes. Proceed-
ings of the 14th conference on advanced information
Systems Engineering 2002 in Toronto.
Vassiliou, Y. et al., 2000. Data Warehouse Research: Is-
sues and Projects. In M Jarke et al., eds. Fundamentals
of Data Warehouses. Berlin et al.: Springer, pp. 15–
21.
Wand, Y. and Weber, R., 2002. Research Commentary:
Information Systems and Conceptual Modeling - A
Research Agenda. Information Systems Research, 13
(4), pp. 363–376.
Winter, R. and Strauch, B., 2003. A Method for Demand-
driven Information Requirements Analysis in Data
Warehousing Projects. Proceedings of the 36th Hawai
International Conference on Systems Science 2003 in
Hawaii.
ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
374
