A GENERATOR FRAMEWORK FOR DOMAIN-SPECIFIC

MODEL TRANSFORMATION LANGUAGES

T. Reiter, E. Kapsammer, W. Retschitzegger

Dept. of Information Systems, Johannes Kepler University, Linz, Austria

W. Schwinger

Dept. of Telecooperation, Johannes Kepler University, Linz, Austria

M. Stumptner

Adv. Computing Research Center, University of South Australia, Adelaide, Australia

Keywords: Domain-specific languages, model transformation, QVT, MDA, workflow patterns.

Abstract: Domain specific languages play an important role in model driven development, as they allow to model a

system using modeling constructs carrying implicit semantics specific to a domain. Consequently, possibly

many reusable, domain specific languages will emerge. Thereby, certain application areas, such as business

process engineering, can be jointly covered by a number of conceptually related DSLs, that are similar in a

sense of sharing semantically equal concepts. Although, a crucial role in being able to use, manage and

integrate all these DSLs comes to model transformation languages with QVT as one of their most prominent

representatives, existing approaches have not aimed at reaping benefit of these semantically overlapping

DSLs in terms of providing abstraction mechanisms for shared concepts. Therefore, as opposed to a general-

purpose model transformation language sought after with the QVT-RFP, this work discusses the possibility

of employing domain-specific model transformation languages. These are specifically tailored for defining

transformations between metamodels sharing certain characteristics. In this context, the paper introduces a

basic framework which allows generating the necessary tools to define and execute transformations written

in such a domain-specific transformation language. To illustrate the approach, an example language will be

introduced and its realization within the framework is shown.

1 INTRODUCTION

Model transformations play a key part in the success

of model engineering in general, and for instance

OMG’s Model Driven Architecture (MDA) in

particular. Applying MDA, the transition between

PIM and PSM is facilitated by a model

transformation. In an effort to standardize a

language for specifying such model transformations,

the OMG issued the QVT-RFP (OMG, 2002)

(Queries/Views/Transformation). The QVT

language allows writing transformation

specifications between MOF-based metamodels. A

QVT engine is then able to execute these

transformations and create (or update) a target model

from a source model. At the time of writing, the

adoption of a QVT standard is in its final stages, but

various implementations of QVT-like languages are

available, such as (Bézivin, 2003), (Marschall,

2003), (INRIA Triskell, 2004). However, it is still to

be seen whether a final standard finds industry-wide

acceptance in the form of transformation engines, or

whether vendor specific interpretations or even

adaptations of the standard will emerge.

At present, the situation is somewhat comparable

to the so-called ‘method wars’ in the nineties

(Thomas, 2003), where different modeling methods

like OMT, Booch, and so forth, were competing for

standardization and adoption in the community. The

struggle finally resulted in the emergence of the

Unified Modeling Language (UML), which

Reiter T., Kapsammer E., Retschitzegger W., Schwinger W. and Stumptner M. (2006).

A GENERATOR FRAMEWORK FOR DOMAIN-SPECIFIC MODEL TRANSFORMATION LANGUAGES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 27-35

DOI: 10.5220/0002460000270035

 SciTePress

nowadays can be seen as the standard modeling

language everyone can (more or less) agree on. The

‘more or less’ refers to developers who find the

recent UML 2.0 version a too large and to wide-

scoped standard to be reasonably applicable in

software development. It can be argued, that as

opposed to such general-purpose modeling

languages, DSLs (domain-specific languages), for

instance in the form of UML profiles or custom-built

MOF-based metamodels, can contribute

significantly to make model-driven software

development work efficiently.

Based on this rationale and the intent to

capitalize on semantically equivalent concepts

inherent in various DSLs, this paper suggests the

employment of domain specific model

transformation languages (DSMTLs), which can

simplify certain transformation tasks by offering

appropriate abstraction mechanisms for such shared

concepts. Hence, DSMTLs are tailored for certain

recurring transformation tasks among a number of

languages (metamodels) covering same or similar

domains.

However, the focal point of this paper is not on

inventing a fully-fledged DSMTL for some family

of DSLs, but on motivating the approaches

applicability and on furthermore proposing a

generator framework that allows for the efficient

implementation of DSMTLs. Nevertheless, as a

running example a simple DSMTL is employed

throughout the paper to motivate our intent and

serve as a proof of concept for the application of the

generator framework.

The rest of this paper is structured as follows:

Section 2 will discuss the applicability of domain

specific languages for model transformations,

followed by Section 3 giving an overview of a

framework for the generation of DSMTLs. Section 4

gives an example of how a DSMTL transformation

definition is rendered executable. Lessons learned

throughout the implementation of a prototypical

framework are laid out in Section 5. Section 6 gives

an overview of related work on that topic, and

section 7 concludes with an outlook on future work.

2 DOMAIN SPECIFIC

TRANSFORMATION

LANGUAGES

Domain specific languages focus on a narrow

domain only, and can therefore take certain

assumptions about a domain. For instance, terms and

concepts of a certain domain that implicitly carry

specific semantics are immediately reused. Hence,

the main advantage of a DSL is that it is accessible

for persons having knowledge in a certain domain,

but who are laymen (non-programmers) to general

modeling per se. The disadvantage of DSLs is that

considerable effort goes into devising and

implementing them, as for every DSL a set of tools,

such as parsers, compilers or debuggers, which

support their application are required.

The idea of employing languages tailored to certain

domains is not a new one (Landin, 1966), and

numerous DSLs have been devised since.

Meanwhile, the DSL approach has also propagated

into the model engineering community. Actually,

considerable controversy is abound in terms of

whether MDD (model-driven development) should

focus on a general-purpose modeling language,

namely UML, or make use of a number of smaller,

domain-specific languages expressed as

metamodels.

In any case, model transformation technology

contributes an essential part to the successful

application of either approach. As opposed to a QVT

language, which can be considered as a general-

purpose model transformation language, a DSMTL

offers high-level transformation language primitives.

Through this raise in abstraction, transformation

tasks can be made easier to describe and understand,

especially considering the laymen factor. An

example for a DSMTL would be some kind of

‘refactoring language’, that would allow to refactor

programs written in a certain object-oriented

programming language. For instance, certain

common refactorings like changing ‘for-loops’ into

‘while-loops’ could be abstracted by that DSMTL.

Furthermore, a DSMTL can find application when

certain model transformation tasks do not require a

full blown query language like OCL, but specialized,

recurring queries suffice.

Although existing transformation languages

allow defining procedure-like ‘helper functions’ that

can for instance sum up the above mentioned

functionalities, these would still be written in a

general-purpose language. An important aspect in

developing a DSL is to explicitly narrow the scope

of a language, and disallow certain actions that

would be possible in a general-purpose language.

This deliberate infringement can avoid a certain

language from being misused in a certain context.

Examples for such misused DSLs are various

scripting languages, which for instance too often

prove malicious on the internet in the form of

worms, ad pop-ups and the like.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

To give a tangible example, in the following a

simple DSMTL applied to a concrete transformation

task is introduced. In this respect, domain specificity

refers to the notion that the example DSMTL is

tailored to be applicable for DSLs used for

describing workflows, such as BPEL (BEA, 2003),

UML-AD (OMG, 2005), WSFL (Leymann, 2001),

XLANG (Thatte, 2001) and the like. Hence, the

example DSMTL, which in the following will be

referred to as WFTL (“workflow transformation

language”), can capitalize on incorporating recurring

patterns that emerge when specifying

transformations from these workflow languages onto

for instance UML Activity Diagrams (Kramler,

2005). To be able to identify such common patterns,

the associated workflow languages have to cover

certain semantically equivalent concepts (Fig. 1).

...

WSFL

BPMN

XPDL

XLANG

BPEL

Workflow Domain

UML-AD

Specification

Languages

implementedBy

…

Workflow Patterns

AND AND

Sequence

Synchronization Parallel Split

...

WSFL

BPMN

XPDL

XLANG

BPEL

Workflow Domain

UML-AD

Specification

Languages

implementedByimplementedBy

…

Workflow Patterns

AND AND

Sequence

Synchronization Parallel Split

…

Workflow Patterns

ANDAND ANDAND

Sequence

Synchronization Parallel Split

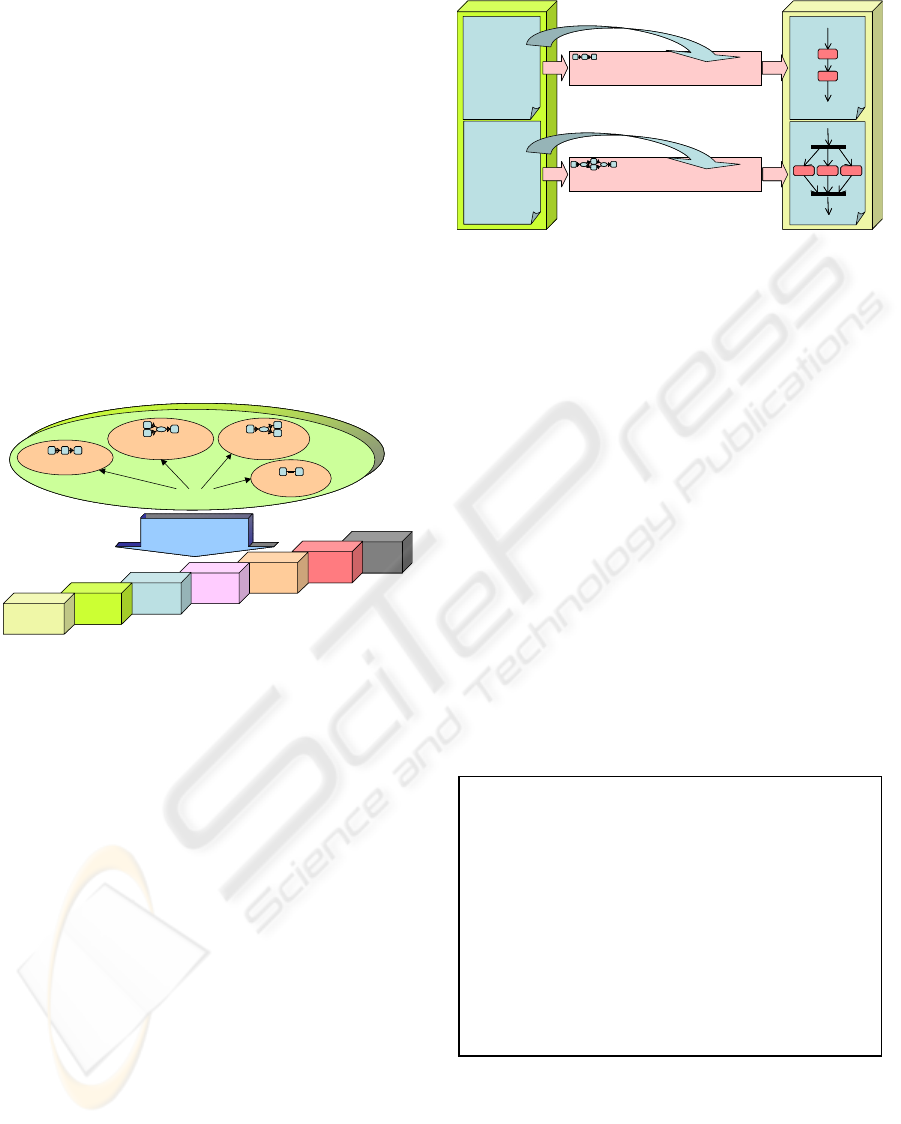

Figure 1: Workflow patterns covered by workflow

languages.

Appropriate abstraction mechanisms for the WFTL

can for instance be built upon workflow patterns

inherent in several workflow languages, such as

those proposed by (van der Aalst, 2003), which

capture concepts like parallelism, sequential

execution, synchronization, and so forth. The

incorporation of these patterns can be seen as

domain-specific assumptions representing the

implicit semantics carried by the syntactic elements

of the respective DSMTL. Hence, the DSMTL has

to offer syntax that allows to semantically bind the

respective concepts in the various workflow

languages onto the generic workflow patterns.

Taking the WFTL code samples in Figure 2 below,

the use of the high-level

§SeqExec statement binds

all BPEL ‘Activities’ contained in

Sequence, and

implicitly maps them onto a semantically equivalent

UML-AD representation consisting of

ActionNodes

connected by Transitions. The Activities of the BPEL

Flow are treated analogously.

WFTL UML-ADBPEL

…

</invoke>

...

</invoke>

…

</receive>

</sequence>

<flow>

…

</receive>

…

</assign>

…

</invoke>

</flow>

§ParExec(Flow.activity)

ANDAND

§SeqExec(Sequence.activity)

WFTL UML-ADBPEL

…

</invoke>

...

</invoke>

…

</receive>

</sequence>

<flow>

…

</receive>

…

</assign>

…

</invoke>

</flow>

§ParExec(Flow.activity)

ANDAND

§ParExec(Flow.activity)

ANDAND ANDANDAND

§SeqExec(Sequence.activity)§SeqExec(Sequence.activity)

binds

Figure 2: Workflow patterns as High-level WFTL

Statements.

Although possible, an attempt to express the high-

level constructs as depicted above in a general-

purpose model transformation language would

doubtlessly be more complicated. An imperative

approach to express the

§SeqExec pattern for

instance, would possibly result in some form of loop

iterating over the nodes to establish transitions

between them, whereas a declarative definition

might be counter-intuitive to find and understand.

Apart from the code snippets above, in the

following we discuss further concrete syntax

samples of WFTL applied to an actual example

transformation from BPEL to UML Activity

Diagrams. A transformation definition in WFTL

consists of a set of rules, which relate concepts in the

source extent with concepts in the target extent. The

following excerpts of WFTL transformation code

show a transformation rule mapping the BPEL

concept of

Process to a semantically equivalent

UML construct, namely Model.

Process2Model (1)

…

variables (2)

UseCase UseCase Use_Cases;

…

mapping (3)

…

Process.name =: Model.name; (4)

…

Model <> UseCase

A_namespace_ownedElement Core; (5)

…

Process.activity -> *; (6)

The transformation rule’s title is stated in (1).

Following, (2) denotes the instantiation of a

UseCase model element (in the UML Use_Cases

package) and binds it to the

UseCase variable. The

mapping (3) keyword specifies that the statements

to follow actually facilitate the transformation logic.

In (4) a value is assigned from left to right. (5) infers

A GENERATOR FRAMEWORK FOR DOMAIN-SPECIFIC MODEL TRANSFORMATION LANGUAGES

creating a link of A_namespace_ownedElement

type (in package Core) between model element

instances referred to by the variables Model and

UseCase. (6) explicitly initiates the execution of

transformation rules on every model element

referred to by activity contained in Process.

The above described example shows how a

DSMTL can provide specific constructs, in this case

for the BPEL-to-UML transformation. With this

raise of abstraction, a number of assumptions are

taken that finally tailor the language to its intended

application area. In the case of WFTL, the focus lies

on creating an imperative language with explicit rule

execution ordering and the ability to call sub-

transformations. Such a stand-point can be

reasonably justified when the language’s intended

target audience has a strong workflow engineering

background, and is used to think in an algorithmic,

step-wise manner. Although declarative

transformation definitions can be less verbose,

complex transformations can become somewhat

difficult to comprehend, especially for users who are

not familiar with the declarative style of ‘thinking’.

For reasons of brevity and due to the fact that the

introduction of a full-blown transformation language

is out of scope of this paper, neither the full

language definition (grammar) nor any other

transformation rules than the one explained above

can be elaborated on in this work. Consequently, we

kindly refer the reader to (Reiter, 2005b).

Nevertheless, after having motivated the approach

for DSMTLs above, the following section will

elaborate on our generator framework called Marius,

which plays a key role in partly automating the

realization of DSMTLs.

3 GENERATOR FRAMEWORK

For every DSL developed, an infrastructure making

that language executable has to be created as well.

The development of DSLs is generally following a

so-called source-to-source (Spinellis, 2001)

approach, meaning that code written in the DSL is

translated into intermediary code of a general-

purpose programming language that after

compilation eventually realizes the DSL’s high-level

semantics. To lower the involved effort, frameworks

(cf. Section 6) can be employed, which automate

some of the effort involved in implementing DSLs.

Basically, these language generation frameworks

utilize a parser generator and some code-generation

facility to produce output code. Thereby, the

language developer provides specific semantics by

specifying how constructs in the DSL are mapped

onto an implementation in the general-purpose

language. Analogously, for every DSMTL

developed, an executable implementation of this

language has to be generated, for which a supporting

generator framework is proposed. However, we

narrow the focus from providing a generic solution

to the implementation of a DSL towards a

framework specifically aimed at the implementation

of model transformation languages. This means that

the proposed generator framework offers specific

support for the generation of DSMTLs, which when

using generic language frameworks would require

considerable adaptation and parameterization effort.

For instance, one of the particular assumptions taken

about implementing a DSMTL framework is, that

every generated transformation language will rely on

a number of rules to define transformations.

Furthermore it can be assumed, that every such

transformation rule will require repository access to

query source models and create/update target

models. Consequently, such considerations are

reflected in the architecture of Marius by specific

framework components, which are elaborated on in

more detail in section 3.1 to 3.3.

In addition to the above taken assumption

concerning transformation languages that mainly

specialize the scope of our framework, a number of

general design goals influence architecture and

implementation related issues, too.

First of all, one of our design goals is to provide

a low cost of entry for language definition. Hence,

Marius is aimed at generating text-based languages

by utilizing EBNF grammars, for which simple text

editors suffice. Although nothing impedes the

devising of additional visual syntaxes, such

undertakings are out of Marius’ scope, as DSLs are

typically slim, focused languages that often do not

necessitate a visual syntax per se. Therefore, support

for language definition in terms of MOF 2.0 as

requested by the QVT-RFP is out of scope as well.

Furthermore, enabling higher-order transformations

(transformations of transformation definitions) may

be interesting for general-purpose transformation

languages, but not applicable for DSMTLs.

Secondly, the transformation logic produced by

Marius should be flexible and open. A source-to-

source transformation approach that maps DSMTLs

onto a general-purpose programming language

allows developers to easily analyze, optimize, and

customize the intermediary code, should the need

arise to incorporate special requirements or external

functionalities.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Thirdly, the definition of behavioral semantics

for DSMTL constructs should be possible in a

comprehensible and maintainable way. Hence, a

template-based approach in which code fragments in

the intermediary language are defined by the

developer and assembled by Marius into a

compilable language implementation is taken.

Finally, a design goal is to ensure easy

deployment and application of the generated

DSMTL implementation. Marius assembles

translated DSMTL transformation definitions and

auxiliary code pieces, such as repository access

code, into a single, executable software bundle,

representing a stand-alone model transformer.

Geared towards the above mentioned design

goals, Marius is a prototype implementation

developed for gaining hands-on experience (cf.

Section 5) in implementing domain-specific model

transformation languages. The remainder of this

section deals with describing the Marius generator

framework from an architectural point of view by

explaining how the components it consists of work

and interact.

As shown in Figure 3, the framework consists of

components either associated with build-time,

translation-time or execution-time. At build time, the

implementation of a specified transformation

language is generated. This means, that tools such as

parser and compiler are being built, which during

translation time are being used to generate model

transformers from transformation definitions at

translation time. Finally, at execution time these

stand-alone model transformers are applied to

models stored in a repository.

Apply Model

Transformer

Build Model

Transformer

Build Language

Implementation

Apply Model

Transformer

Build Model

Transformer

Build Language

Implementation

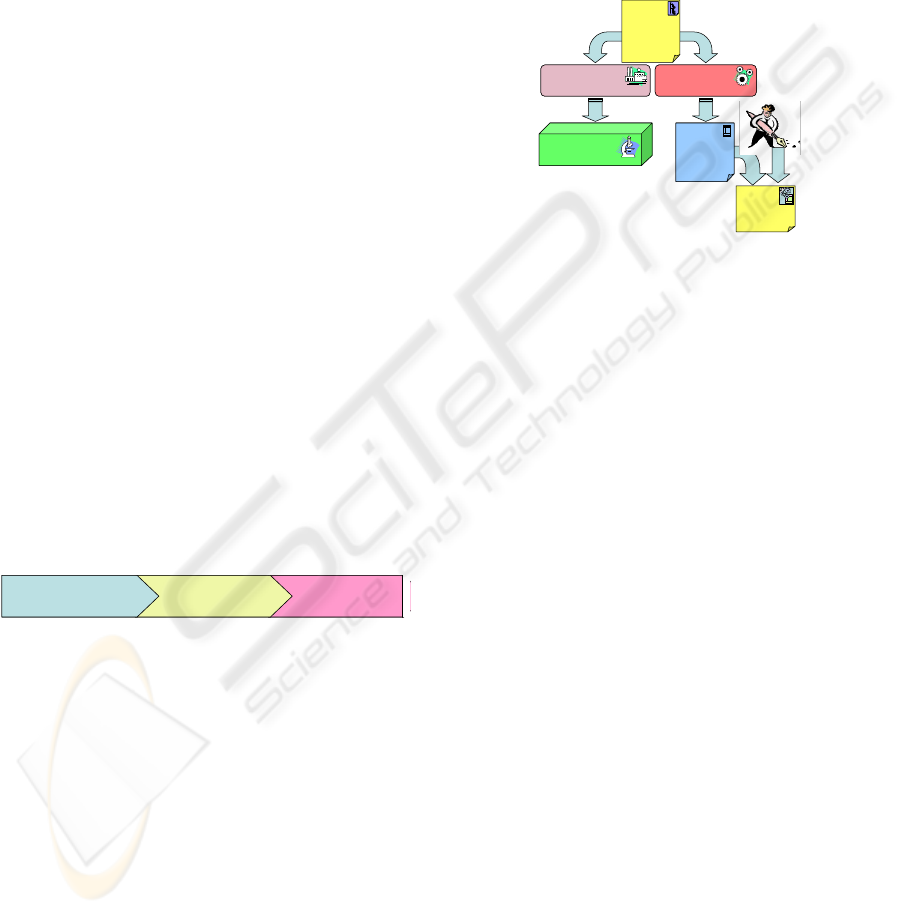

Figure 3: Marius Development Steps.

In the following, the framework’s components and

the activities associated with them will be described

in more detail, according to what ‘time’ of the

development phase they are active.

3.1 Build-time

The starting point for generating a language

implementation is to provide a language definition.

This is accomplished in terms of providing an EBNF

grammar (Fig. 4). This grammar is fed to SableCC

(Gagnon, 1998), an open source parser generator,

which produces a Java-based parser implementation

and tree-walker classes accordingly, which can serve

to visit a parsed syntax tree. However, Marius makes

use of the parser only and omits using the tree

walker classes, as the specification of semantics in

the form of Java code (intermediary language),

directly in the tree walker source code, suffers from

poor readability. Hence, Marius employs a template-

based approach for building a ‘compiler’. Java

Emitter Templates (JET) (Popma, 2004) are used to

generate the compilation output in a source-to-

source transformation.

Template

Generator

Template

Generator

Template

Skeleton

Template

Skeleton

JET

Template

SableCCSableCC

DSMTL

Parser

DSMTL

Parser

DSMTL

Grammar

Figure 4: Build-time Component Generation.

Thereby, Marius utilizes a template generator which

constructs a JET skeleton specific to the DSMTL’s EBNF

grammar that contains generic functionality to

conveniently traverse parse trees and rudimentary method

bodies into which a developer enters the desired Java

output code.

3.2 Translation-Time

During the translation step (Fig. 5), the parser

generated during build-time parses transformation

definitions (1) and passes the in-memory syntax tree

(2) on towards a JET template engine (3). In the next

step, this engine utilizes the JET template (4)

specified previously to generate Java source code

(5), which represents the executable transformation

definitions (6). To ensure maintainability,

traceability comments are incorporated into the

generated code that relate Java code blocks to their

counterpart constructs in the DSMTL transformation

definition. Furthermore, Marius provides a generic

logging mechanism preserving a transformation’s

execution trace by for instance storing

corresponding instances concerning source and

target model elements. Logging can serve useful for

lookup purposes during transformation execution as

well as for subsequent debugging purposes.

Similarly, Marius lays the way for utilizing specific

or external, pre-existing model query mechanisms.

For instance, in case of the WFTL samples

introduced earlier, a custom query resolver is

implemented and used. Code enabling to utilize

A GENERATOR FRAMEWORK FOR DOMAIN-SPECIFIC MODEL TRANSFORMATION LANGUAGES

either mechanism is placed into the according

intermediary code by the framework as required.

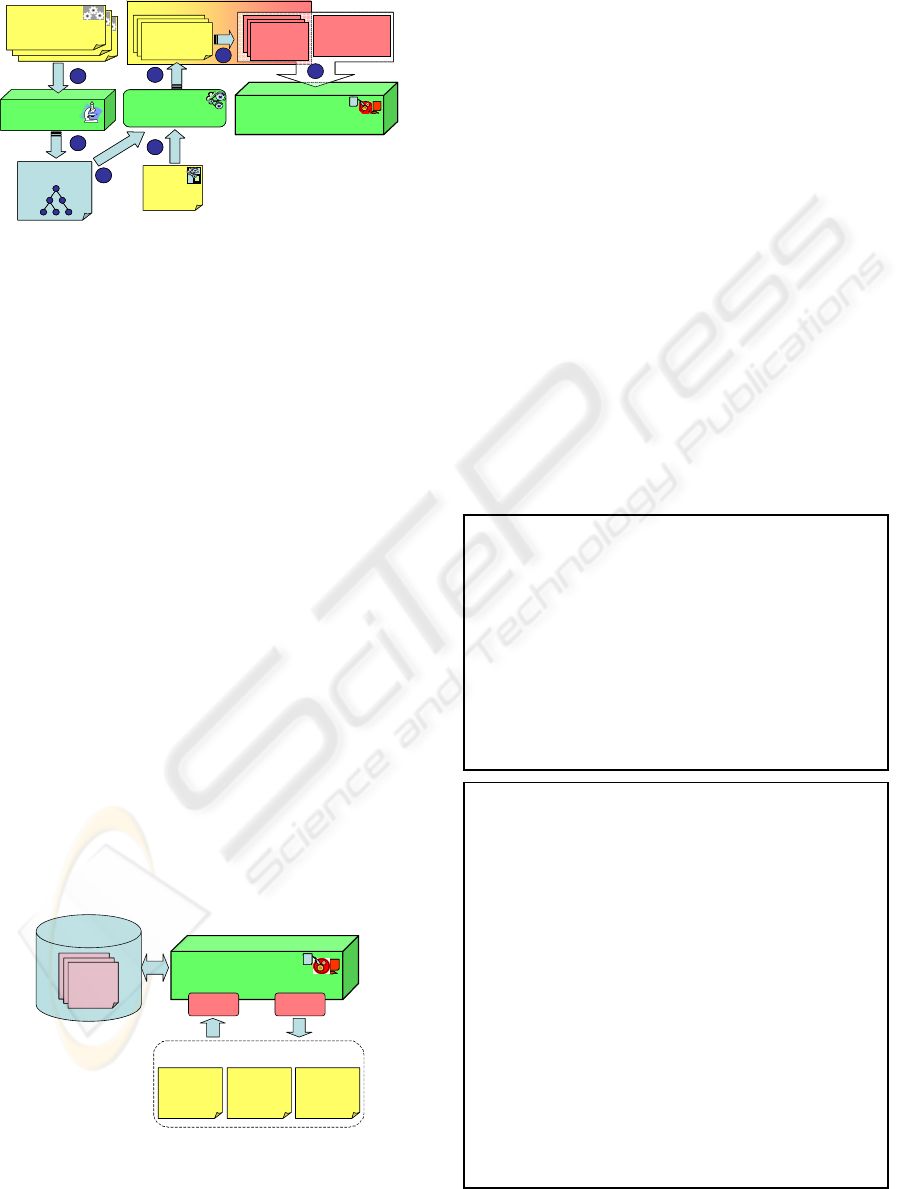

Figure 5: Generation of Stand-alone Model Transformer.

It is to note that the parsing process includes a check

for syntactical correctness of the transformation

definitions. A semantic analysis, however, is not

performed. Nevertheless, the use of a non-declared

identifier for instance will not result in a translation

error, but will subsequently lead to an unsuccessful

compilation of the JAVA transformation files.

Finally, after a successful compilation, the

resulting class files along with auxiliary classes for

managing repository access, factory classes for

instantiating executable transformations, and generic

framework base-classes are bundled into a .jar file,

constituting a stand-alone, executable model-

transformer (7).

3.3 Execution-Time

As a final point, during execution-time, the

generated model-transformer is put to work (Fig. 6).

This means, that the transformer is executed against

a model repository which holds source and target

models and metamodels. In the case of Marius, the

NetBeans MDR (Netbeans, 2003) is employed.

Repository access functionality is thereby already

incorporated into the stand-alone transformer, and its

execution will result in the generation of a target

model from a source model.

Figure 6: Repository Access & Manipulation.

This involves other components that do not directly

belong to the immediate setup of Marius, namely

readers/writers for source and target documents. An

example thereof is for instance a reader for BPEL

documents, which parses a BPEL source file and

instantiates a model accordingly in the repository,

requiring that a MOF-metamodel for the BPEL

language has been instantiated in the repository prior

to that. In our WFTL example, due to the XML-

based syntax of BPEL, the actual reader parsing

BPEL source files is implemented as an XSLT style

sheet for readability reasons.

4 TRANSFORMATION CLASSES

As mentioned earlier, during translation-time a Java-

based, stand-alone model transformer is being

generated. This section takes a look at the output of

the JET engine, which are the Java transformation

classes. For every transformation rule, one

transformation class is being generated. The

structure of these classes is similar, as determined by

the template they were produced from.

public class Process2Model implements

Transformation { (1)

…

private java.lang.Object UseCase_; (2)

…

public void doMapping() { … (3)

…

//AName2equTrafo START Line 25,

//Column 0

((RefObject)targetBase)

.refSetValue("name" , source);

//AName2equTrafo END (4)

…

targetPackage.refPackage("Core")

.refAssociation

("A_namespace_ownedElement")

.refAddLink((RefObject)source,

(RefObject)UseCase_); (5)

…

source = wrapAttributes(Process_, new

String(".activity")); (6)

…

myIt = source.iterator();

…

while(myIt.hasNext()) {

fromArg = myIt.next();

tr = TrafoGenerator.generate(fromArg,

this);

…

tr.doMapping();

…

Stand-alone

Model Transformer

Metadata

Repository

Reader Writer

BPEL

(XML)

Model

Source/Target Documents

UML-AD

(XMI)

...

JET

Template

JET

Template

JET

Template

.java

Stand-alone

Model Transformer

Executable Transformations

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

JET Engine

DSMTL

Parser

Class

File

Class

File

.class

Auxiliary

Classes

Parse-Tree

JET

Template

JET

Template

JET

Template

.java

Stand-alone

Model Transformer

Executable Transformations

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

DSMTL

Transformation

Definition

JET EngineJET Engine

DSMTL

Parser

DSMTL

Parser

Class

File

Class

File

.class

Auxiliary

Classes

Parse-Tree

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

If necessary, the generated Java source files can be

manually fine-tuned. The example below shows

generated Java code corresponding to the WFTL

code sample in Section 2. Note, that for reasons of

clarity the shown code omits exception handling and

assumes, that the variables

target, targetBase,

targetPackage, and source have been previously

resolved accordingly. In (1), the class for the

Process2Model rule is declared, and (2) defines a

UseCase_ helper variable. (3) is a framework

method used to implement rule execution. Apart

from a value assignment, (4) shows how comments

are used to establish traces to the original DSMTL

statements. (5) establishes a specific link between

two model element instances. (6) depicts the

resolution of a query (invocation of the

wrapAttributes method) followed by an explicit

invocation of sub-transformation rules, which are

instantiated by a factory (

TrafoGenerator).

5 LESSONS LEARNED

This section briefly reports on experiences gained

during the implementation of our DSMTL on basis

of Marius.

To evaluate the applicability of the approach

taken, a case study was carried out which aimed at

transforming BPEL process specifications into UML

Activity Diagrams. First of all, this involved

defining a MOF-based metamodel for BPEL to

consequently be able to instantiate and manipulate

BPEL documents in a model repository. The actual

mapping from BPEL to UML-AD was largely

reverse-engineered from (IBM, 2003). It is to note,

that BPEL is not a laconic language, which means

that to express the same semantic concepts, different

syntactic constructs can be used (e.g. ‘Flow’).

Hence, clean round-trip engineering poses a

challenge and possibly requires additional meta-

information. However, our main focus was to devise

the Marius framework that would allow for

developing a dedicated transformation language

(WFTL) suitable for the task at hand.

Generally, the creation of a domain specific

language can be approached from two sides: A top-

down approach will first define an abstract syntax of

the language to be realized, whereas a bottom-up

approach will start with the writing of concrete

syntax samples, of which eventually a language

grammar will be ‘re-engineered’. The latter

approach is typically the more explorative, best

suited for a rather ‘agile’ approach to the definition

of a transformation language. In iterative cycles,

new language constructs are explored. If applicable,

these are incorporated into the language definition,

which is then used to implement the language by

means of constructing a compiler/interpreter making

the language executable. If a set of test

transformations runs free of errors, the next iteration

can begin. During the development of WFTL this

approach proved to be very applicable and produced

quick results. However, languages developed

according to this approach are in danger of getting

fuzzy and possibly ambiguous, due to the constant

growth of functionality that can result in feature-

creep. Therefore, experience gained in the

development of WFTL has shown how important it

is to refactor the language definition every few

iterations, to avoid such problems. One can see, that

the bottom-up approach taken for developing a

DSMTL, can become problematic when trying to

implement too large, wide-scoped, language

definitions. However, domain-specific languages

have a narrow scope and usually a rather concise

language definition, for which the employed

approach will typically suffice.

6 RELATED WORK

This section will introduce related work in the field

of QVT-like model transformation languages

including yet available implementations thereof, and

frameworks supporting language generation in

general.

For specifying transformations, a distinction

between declarative, imperative and hybrid

languages can be made. Declarative languages allow

to state how the input and the output of a

transformation should be made up, without

specifying how the execution should go about. On

the contrary, imperative languages allow to do just

that, as they let a programmer exactly specify how a

source model should be transformed into a target

model. A hybrid transformation language allows

both declarative and imperative constructs to be

intermingled, for instance a declarative language

such as OCL (OMG, 2003) may be employed for

selecting input model elements by means of pattern

matching, whereas the specification of possibly

complex transformation rules can be facilitated

using imperative statements. A good example for

such a hybrid approach is ATL (INRIA Atlas, 2004).

From an implementation point of view, various

strategies are in use to implement model

transformation engines. For reasons of language

extensibility and to make it easier to comply with a

A GENERATOR FRAMEWORK FOR DOMAIN-SPECIFIC MODEL TRANSFORMATION LANGUAGES

final QVT syntax, ATL for instance employs a

virtual machine that operates on a specific byte-code

representation of ATL transformation definitions.

MTF (IBM, 2004) falls into the declarative category

and relies on an EMF-based (Eclipse Project, 2004)

transformation engine that proceeds in two stages

called mapping (evaluate relations by iterating

model instances) and reconciliation (satisfy relations

by deleting/modifying/creating model elements).

Aiming at flexibility, Marius does not enforce a

certain style of transformation definition, but leaves

it up to the user to specify semantics in a template-

based approach. Thereby, a source-to-source

transformation into Java allows for further flexibility

and customization potential.

MoTMoT (Model driven, Template-based,

Model Transformer) is a compiler generating

repository manipulation code from visual

transformation definitions. The compiler takes

models conforming to a UML profile for Story

Driven Modeling (SDM) (Shippers, 2004) and

generates JMI specific Java code. However, only

transformations between models conforming to the

same metamodel are supported. Furthermore,

MoTMoT does not aim at providing a framework for

the generation of DSMTLs in general, but focuses

on integration with the Fujaba tool and on making

transformations specified in SDM executable.

Microsoft’s work on software factories involves

the notion of software product lines, which

essentially means, that according to a domain-

specific language a set of tools is generated to drive

the software development process for fast

application assembly. Although the principle of

software factories aims at the implementation of

domain specific languages, its focus is more wide-

spread and is neither specific to MOF-based DSLs

nor to implementing model transformations engines

as the framework proposed in this paper does.

Sprint (Consel, 1998) is a framework for

designing and implementing domain specific

languages. The development of a DSL is

underpinned by an iterative method encompassing

several distinct steps, which finally result in an

interpreter or compiler. However, the Sprint

framework is not immediately applicable for model-

driven development, nor does it provide specific

support for the implementation of model

transformation languages. Furthermore, it seems that

Sprint’s development method would be a somewhat

heavyweight approach, compared to ours, which is

rather focused on immediate, template-based

realization.

The Kent Modelling Framework (KMF) (Kent,

2004) provides a set of tools to support model driven

software development. KMFStudio supports the

development of modeling tools, OCL4KMF

provides OCL support, and YATL4KMF

implements the QVT-like YATL transformation

engine. Although the infrastructure provided by

KMF can prove highly valuable for implementing

MDD tools, to the best of our knowledge the

framework does not provide a low-cost entry for the

development of DSMTLs through provision of

appropriate language definition, parsing and code

generation facilities.

The Modeling Turnpike Project (Wada, 2005) 0

(mTurnpike) is a framework that allows to define

domain-specific concepts through a combination of

both modeling and programming, with the goal to

raise the layer of abstraction programmers work on.

Although Marius and mTurnpike both build on

template-based code generation, mTurnpike is aimed

towards model-driven development in general and is

not tailored to implement DSMTLs. As an example,

mTurnpike does not immediately provide for an

EBNF-based grammar definition and the

construction of an associated parser.

7 OUTLOOK AND FUTURE

WORK

At current a research prototype of the Marius

framework exists. As a proof of concept, a

transformation language and example transformation

definitions for BPEL-to-UML have been created.

Future work in terms of extending the existing

framework will concentrate on enabling better tool

support for the generated languages. This shall also

encompass to extend the existing architecture to

allow external functionalities and components, e.g.

OCL checkers or String manipulation libraries, to be

better integrated into the implementation of a

language. Furthermore, the framework shall become

more flexible and allow to make use of other

repository implementations than NetBeans’ MDR.

The same applies for specifying a model

transformation language’s semantics not using JMI

(JSR 040, 2002) directly, but equivalent, general-

purpose QVT constructs.

Apart from overhauling the existing prototype,

our future work also focuses on identifying

application areas where the implementation of

domain specific model transformation languages can

prove beneficial. In this respect, some of our current

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

research efforts go into the direction of devising

model transformation languages specific to various

model integration tasks (Reiter, 2005a).

REFERENCES

van der Aalst, W.M.P., ter Hofstede, A.H.M.,

Kiepuszewski, B., Barros, A.P. Workflow Patterns.

2003. Distributed and Parallel Databases, 14(3).

BEA, IBM, Microsoft, SAP, Siebel, 2003. Business

Process Execution Language for Web Services

Specificaion. Version 1.1.

Bézivin, J., Dupé, G., Jouault, F., Pitette, G., Rougui, J.E.,

2003. First experiments with the ATL model

transformation language: Transforming XSLT into

XQuery. 2nd OOPSLA Workshop on Generative

Techniques in the context of Model Driven

Architecture.

Consel, C., Marlet, R., 1998. Architecturing software

using a methodology for language development. Proc.

of the 10th Int. Symposium on Programming

Languages, Implementations, Logics and Programs

(PLILP/ALP '98). Pisa, Italy.

Eclipse Project, 2004. Eclipse Modeling Framework.

http://www.eclipse.org/emf/

Gagnon, E., 1998. SableCC Java Parser Generator,

Version 2.18.2, http://sablecc.org/

JSR 040, Java Community Process, 2002. Java Metadata

Interface (JMI) Specification, http://www.jcp.org/

Landin, P.J., 1966. The next 700 programming languages.

Commun. ACM 9 (3), 157-166.

Leymann, F., IBM, 2001. Web Services Flow Language.

IBM Alphaworks, 2004. Model Transformation

Framework, www.alphaworks.ibm.com/tech/mtf

IBM, Amsden, J., Gardner, T., Griffin, C., Iyengar, S.,

Knapman, J., 2003. Draft UML 1.4 Profile for

Automated Business Processes with a Mapping to

BPEL 1.0.

INRIA Atlas, Université de Nantes, 2004. The ATL

Homepage, www.sciences.univ-nantes.fr/lina/atl/

INRIA Triskell, Université de Nantes, 2004. MTL Engine.

modelware.inria.fr/rubrique.php3?id_rubrique=8

Kramler, G., Kapsammer, E., Retschitzegger, W., Kappel,

G., 2005. Towards Using UML 2 for Modelling Web

Service Collaboration Protocols. Proc. of the First

International Conference on Interoperability of

Enterprise Software and Applications (INTEROP-

ESA'05), Geneva, Switzerland.

Marschall, F., Braun, P., 2003. Model Transformations for

the MDA with BOTL. Proc. of the Workshop on

Model Driven Architecture: Foundations and

Applications, CTIT Technical Report TR-CTIT-03-27,

University of Twente.

Netbeans, 2003. Netbeans Metadata Repository - MDR,

http://mdr.netbeans.org

OMG, 2003. UML 2.0 OCL Specification, Final Adopted

Specification, www.omg.org/docs/ptc/03-10-14.pdf

OMG, 2002. Request for Proposal: MOF 2.0 Queries /

Views / Transformations RFP. ad/2002-04-10.

OMG, 2005. Unified Modeling Language Specification.

http://www.omg.org/uml/

Popma, R., 2004. JET Tutorial Part 1 (Introduction to

JET), JET Tutorial Part 2 (Write Code that Writes

Code). www.eclipse.org/articles/Article-

ET/jet_tutorial1.html

Reiter, T., Kapsammer, E., Retschitzegger, W.,

Schwinger, W., 2005. Model Integration Through

Mega Operations. Proc. of the Int. Workshop on

Model-driven Web Engineering (MDWE2005).

Sydney, Australia.

Reiter, T., 2005. Transformation of Web Service

Specification Languages into UML Activity Diagrams,

Master Thesis. ftp://ftp.ifs.uni-

linz.ac.at/pub/diplomathesis/ reiter.pdf

Schippers, H., Van Gorp, P., Janssens, D., 2004.

Leveraging UML profiles to generate plugins from

visual model transformations. Software Evolution

through Transformations (SETra). Satellite of the 2nd

Intl. Conference on Graph Transformation.

Spinellis, D., 2001. Notable design patterns for domain-

specific languages. The Journal of Systems and

Software 56, p. 91-99.

Thatte, S., Microsoft, 2001. XLANG, Version 1.0,

http://www.gotdotnet.com/team/xml_wsspecs/xlang-

c/default.htm

Thomas, D., 2003. UML – Unified or Universal Modeling

Language? Journal of Object Technology, Vol 2, No 1.

University of Kent, 2004. Kent Modelling Framework,

http://www.cs.kent.ac.uk/projects/kmf/index.html

Wada, H., Suzuki, J., Takada S., Doi, N., 2005. A Model

Transformation Framework for Domain Specific

Languages: An Approach Using UML and Attribute-

Oriented Programming. Proc. 9th World Multi-

Conference on Systemics, Cybernetics and

Informatics, USA.

A GENERATOR FRAMEWORK FOR DOMAIN-SPECIFIC MODEL TRANSFORMATION LANGUAGES
