Discovering Relevant Services in Pervasive

Environments Using Semantics and Context

Luke Steller, Shonali Krishnaswamy and Jan Newmarch

Faculty of Information Technology, Monash University,

Peninsula Campus, Melbourne, Australia

Abstract. Recent advances have enabled provision and consumption of mobile

services by small handheld devices. These devices have limited capability in

terms of processing ability, storage space, battery life, network connectivity and

bandwidth, which presents new challenges for service discovery architectures.

As a result, there is an increased imperative to provide service requesters with

services which are the most relevant to their needs, to mitigate wastage of

precious device capacity and bandwidth. Service semantics must be captured to

match services with requests, on meaning not syntax. Furthermore, requester

and service context must be utilized during the discovery process. Thus, there is

a need for a service discovery model that brings together ‘semantics’ and

‘context’. We present a case for bringing together semantics and context for

pervasive service discovery by illustrating improved levels of precision and

recall, or in other words increased relevance. We also present our model for

integrating semantics and context for pervasive service discovery.

1 Introduction

Recent years have seen a rapid increase in the usage and availability of small

handheld wireless devices, which can provide or request services. These devices are

far more heterogeneous and resource constrained than traditional desktop PCs. There

is therefore an increased need for transmission of only relevant data and reduced

processing costs. In addition, mobile users time constraints, given the highly dynamic

and volatile operational environment they work in. Therefore, pervasive discovery

architectures must return results containing only the most relevant services as deemed

by the requester.

Current pervasive service discovery architectures utilise simple string attribute

based techniques or interface comparison which fail to adequately discover the most

relevant services. Capturing behaviour [1, 2] would allow requests to be matched with

services that may be described differently but are semantically equivalent in meaning.

It would also enable partial matching in the absence of an exact match. The

descriptions must be rich enough to allow reasoning on the semantics to infer

additional information from that provided, by exploiting logical relations between the

concepts used. For instance, if a user wishes to know whether device A was in room

Steller L., Krishnaswamy S. and Newmarch J. (2006).

Discovering Relevant Services in Pervasive Environments Using Semantics and Context.

In Proceedings of the 3rd International Workshop on Ubiquitous Computing, pages 3-12

DOI: 10.5220/0002476200030012

 SciTePress

B at time T, this can be inferred from the knowledge that device A was in room C at

time T, where room C is not physically located within room B.

W3C has defined semantic web service languages such as DAML-S/OWL-S [3]

which meet these requirements. They are used to construct ontologies, which provide

an abstract model, defining concepts and properties which relate to a domain of

interest [1] and a hierarchy of relations between these, using a set of axiom rules. This

is sufficient to define formal semantics of service behaviour that can be reasoned

about.

In addition, mobile users seek services that are most relevant to them and their

current situation. They generally prefer services that are from nearby locations, return

fresh up-to-date, newly created data and return results that are displayable on the

requester device [4]. Due to an increased freedom of mobility, the user’s environment,

location and the objects around the user are more dynamic. This necessitates the

collection and use of context during discovery. Context-aware discovery demands the

use of implicit information pertaining to both requester constraints and provider

requirements, which can affect the usefulness of the returned results [5].

The interpretation of context information, which is highly interrelated and

imperfect, can be influenced by perspective. It can be misleading if used out of

context or without relating it to the domain of interest. Therefore, context must be

described semantically so that valid deductions can be drawn from it. For instance,

displaying something to nearest display may not guarantee the user can actually see

the display; it might be behind a wall. Current architectures to date do not bring

semantics and context together, to enrich the service matching process during

pervasive service discovery.

In this paper, we demonstrate, through an illustrative case study, how matching

services with requests based on semantic meaning rather than syntax, while also

including context information, will improve the relevance of the pervasive services

returned to the requester. We also propose a preliminary conceptual model which will

support this assertion.

The remainder of this paper will be as follows: Section 2 reviews related work,

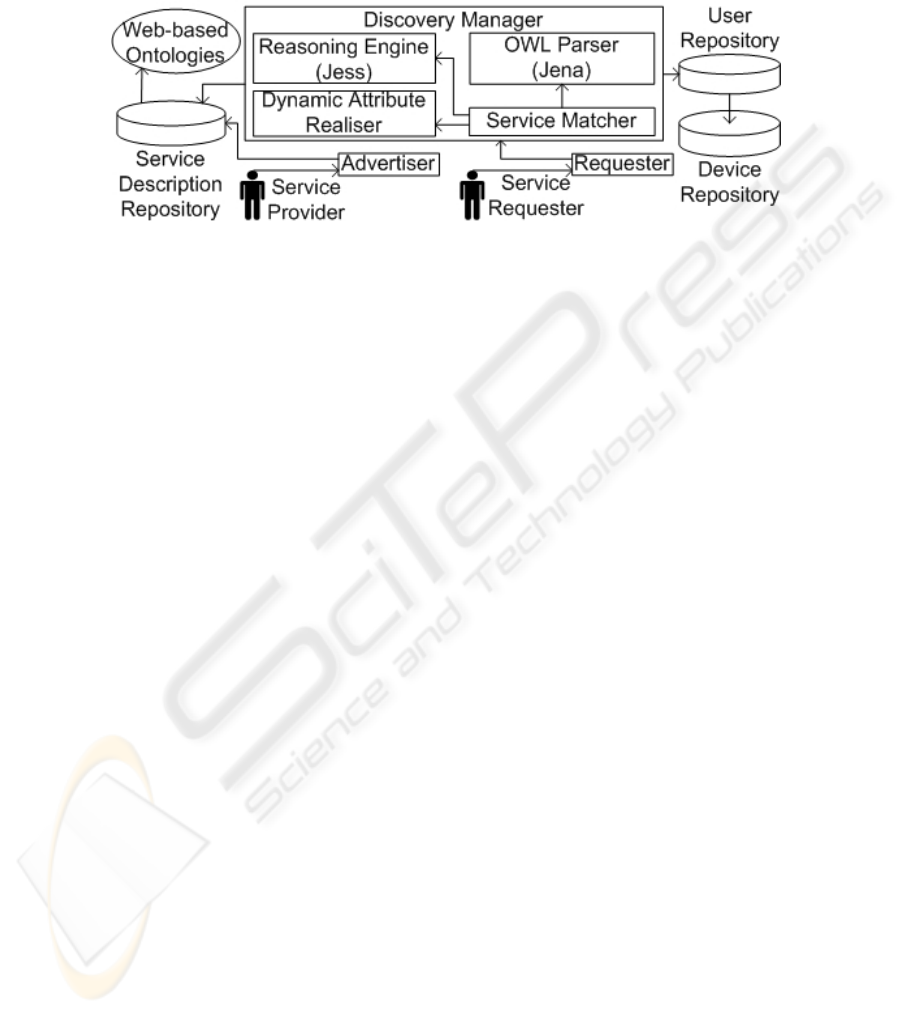

section 3 presents our motivating scenario, section 4 presents our preliminary

architectural model and section 5 concludes the paper.

2 Related Work

In this section we review related research and evaluate their support for rich

expression of semantic meaning and context-aware discovery. Table 1 presents a

comparison of these architectures.

In terms of semantics, Jini [6], UPnP [7] SLP [8, 9] and Salutation [10], Konark

[11] and SSDM [12] use either interface of string based matching. Anamika [13] and

MobiShare [4, 14] utilise RDF or OWL ontological service types to support limited

subclass relations. They do not consider other relations such as ‘part-of’ and service

type, alone, provides a category but leaves out the detail required to establish what the

service does. DReggie [15] utilises DAML and supports reasoning and approximate

matching. However, it is limited to a single predefined ontology which defines

characteristics such as service mobility and service requirements, only. COSS [1]

supports service type, inputs and outputs, approximate matching and ranking.

However, it does not allow definition attributes beyond this and does not support

reasoning.

In terms of context, both UPnP and Konark support state change events and LUDS

[16] extends these for use in discovery, based on string comparison. SSDM and Jini

Context only support easily rankable quality of service (QoS) context attributes and

MobiShare supports string context matching. COSS supports only a limited set of

predefined semantic attributes which can be classified into Boolean ‘present’ or ‘not

present’. However, this Boolean approach and a lack of reasoning support, provides

no real advantage over string based mechanisms.

Table 1. Comparison of related architectures.

Architecture Service Description and Matching Context-aware Discovery

Jini Interface/attribute string comparison None

UPnP Service name string comparison None, but supports state change events

SLP Service type/attribute string comparison None

Salutation Service type/attribute string comparison None

Anamika Ontological service type only None

DReggie DAML predefined ontology None

Konark Service type or keyword string comparison None, but supports state change events

SSDM String comparison and auctioning Limited to QoS

MobiShare Ontological service type Context string comparison

COSS Ontological service type, outputs and inputs Boolean ontological attributes

Jini Context See Jini Limited to QoS

LUDS String based comparison State context support

Existing pervasive discovery architectures lack the rich ontological representation

required to express the functionalities and capabilities of services, that separate parties

can agree upon and understand [15]. They also fail to support the broad range of

context information. This results in discovery of services which are less relevant to

the mobile user’s current situation or device constraints.

Semantic languages are still in an early stage of development and evaluation. This

and their inherent complexity have led to their slow uptake despite the promised

benefits. Inclusion of semantic languages into heavyweight reasoners such as Prolog

[17], Clips [18] and Jess [19] has been slow. Furthermore, the memory intensive

nature of these reasoners also presents challenges for incorporating reasoning into

pervasive environments. Lack of semantically represented context has hampered the

effectiveness of context-aware discovery. Challenges include addressing how to

represent context semantically and whether OWL is sufficiently rich.

3 Improving Recall and Precision – An Illustrative Argument

In this section we demonstrate how the integration of semantics and context will

improve the relevance of services, discovered in pervasive environments. We use the

metrics of precision and recall [20] to highlight this improvement.

3.1 Printer Service Scenario

Bob wishes to print a document from his PDA, but does not know where to find a

printer on his university campus. Bob issues the service request listed in Table 2. It

contains two kinds of attributes: static and dynamic. Static attributes are those in

which the value changes rarely, while in dynamic attributes the value changes

regularly. Bob’s static attributes indicate he wants the cheapest, non-colour printer.

His dynamic attributes indicate he wants the closest printer which is available to

students, ready (with paper and no paper jam) and with the shortest print queue. Each

attribute is also specified as either a vital or rank attribute. Vital indicates a service

must match the attribute in order to be included in the list of discovered services,

while rank indicates the attribute will assist in determining a ranking index for the

service and is associated with a weighting of importance to the requester. Any

requested attribute which is unspecified by the service description, is not ruled out,

but given lowest ranking for that attribute.

Table 3 lists Bob’s current context. Table 4 presents the services currently on offer,

listing service type and other attribute values for the service. The last column

indicates whether the service is relevant to Bob. Since Bob specifies colour, available

and ready as vital attributes, only three services are actually relevant to him.

Table 2. Bob's service request summary.

Attribute Name Value Vital/Rank Weighting

Service type Printer Vital

Colour No Vital

Price Cheap Rank 0.3

Available Yes Vital

Ready (has paper, no jam, etc) Yes Vital

Location Close Rank 1

Paper Jams Low Rank 1

Print Queue Short Rank 0.7

Table 3. Bob’s current context.

Name Value

Location Outside Building A

Table 4. Services on offer.

# Type Col-

our

Price Avail-

able

Ready Location Paper

Jams

Queue

Rel-

eva

1 Laser Printer Yes 50c Yes Yes Building A 0 5 No

2 Laser Printer No 15c No No Building B 0 0 No

3 Laser Printer Neg-

ative

15c Affir-

mative

Affir-

mative

Building C 0.3 0 Yes

4 Laser Copier No 10c Yes Yes Building G 0.01 5 Yes

5 Ink Jet Yes 30c No No Building A 0.3 0 No

6 Ink Jet No 15c Yes Yes Building F 0.2 3 Yes

7 Printer No 9c No Yes Building L 0.05 0 No

8 Printer

Magazine

9 Printing Agency Closed No

3.2 Impact of Semantics and Context on Recall and Precision

Bernstein and Klein [20] define two quality metrics to assess the quality of services

returned in a service list, with respect to relevance to the requester. These are recall

and precision. Recall measures how well a discovery architecture retrieves all the

relevant services; and precision, how well the architecture retrieves only the relevant

services. We define a service to be relevant if it is judged so by the requesting user.

In order to determine recall and precision: Let x be the number of relevant services

returned to the requester. Let n

be the total number of relevant services available. Let

N be the total number of services returned.

Recall = x / n

(1)

Precision = x / N

(2)

Supporting semantics improves both recall and precision, while supporting

context-aware discovery improves only precision. This is because context-aware

discovery involves ‘ruling out’ irrelevant services and does not ‘rule in’ services that

have already been discounted. However, since semantics affects both measures,

contextual attributes which are not described semantically would reduce both

precision and recall, because services could be ruled out due to misinterpreted

contextual representation. For instance, the ‘printer ready’ attribute could hold the

attribute ‘affirmative’, but ruled out because this was not equal to ‘yes’.

Current architectures match request attributes with service description attributes,

based on exact string matching and do not support context attributes. Table 5 presents

a ranked service list resulting from the discovery process using syntax based

techniques, where services are matched on service type alone. Context attributes are

also omitted since they are not supported. The vital attributes are used to determine

which services will comprise the list of discovered services. In terms of service type,

only those services which contain the word ‘printer’ would be discovered. Service 7

would be ranked first because it matches this keyword exactly. Service 8 and 9, which

refer to a magazine called ‘Printer’ and a printing agency, respectively, are

discovered, but are not relevant.

The recall ratio resulting from Table 5 is 1/3 or a decimal value of 0.33. The

precision ratio is 1/6 or decimal of 0.17. These results highlight the limited

effectiveness of such techniques because five irrelevant services were discovered and

only one of three relevant services were discovered.

Table 5. Service list returned by current architectures.

Type Colour Price Relevant

7 Printer No 9c No

1 Laser Printer Yes 50c No

2 Laser Printer No 15c No

3 Laser Printer Negative 15c Yes

8 Printer Magazine No

9 Printing Agency No

If static attributes ‘colour’ and ‘price’ were matched during discovery service 1

would be correctly ruled out, but service 3 would also be incorrectly ruled out because

‘negative’ does not match the requested ‘no’ colour value, even though it has the

same meaning. No relevant services would be discovered. The ‘price’ attribute cannot

be utilised by current architectures, because they cannot interpret the meaning of

‘cheap’ in Bob’s service request. No service has the value ‘cheap’ for ‘price’.

If current architectures were extended to support context attributes, the service list

provided in Table 6 would be returned. Since ‘available=yes’ and ‘ready=yes’ are

vital request attributes, services 7, 1, 2 were correctly removed from the discovered

services list. However, service 3 was also pruned from the list because ‘negative’ and

‘affirmative’ were different symbols to ‘no’ and ‘yes’, respectively. Consequently,

only services 8 and 9 were discovered. Both of these services are completely

irrelevant to Bob, as they do not assist him in his goal of printing a digital document.

Attributes such as ‘price’, ‘location’, ‘paper jams’ and ‘print queue’, were also

interpreted incorrectly. For instance, Service 9 was ranked higher than service 8,

because the requested ‘location=close’ matched service 9’s ‘location=closed’. This is

an example of a homonym in which terms are syntactically similar, but semantically

different. Service 9’s ‘closed’ value indicates that the agency is currently not trading

for business through its store front. This results in a zero finding for both recall and

precision.

Table 6. Service list returned by current architectures with context.

# Type Colour Price Available Ready Location Paper

Jams

Queue

Rele-vant

9 Printing

Agency

Closed No

8 Printer

Magazine

We propose a semantic data representation be adopted for pervasive service

discovery, to ensure that each request attribute is matched with service description

attributes based on meaning rather than symbol. Context information must also be

utilised and represented semantically. Table 7 presents the services discovered under

this approach, when considering vital attributes. In his request, Bob indicated he

sought a service of the type printer, which was matched as having the same meaning

as ‘Laser Printer’ and ‘Ink Jet’. The requested colour attribute’s ‘no’ value was

matched with ‘no’ and ‘negative’. For the ‘available’ and ‘ready’ attributes, ‘yes’ was

matched with ‘yes’ and ‘affirmative’.

Table 7. Discovered service list returned by proposed model using vital attributes.

# Type Colour Available Ready

3 Laser Printer Negative Affirmative Affirmative

6 Ink Jet No Yes Yes

4 Laser Copier No Yes Yes

Table 8 shows how the services were ranked to provide a ranked service list. Each

rank attribute of each service, was ranked relative to the corresponding attribute of the

other services in the discovered set. This provides a level of match for each attribute

of a service, with the request. For instance, in the case of the ‘frequency of paper

jams’ attribute, service 4 was ranked first because it had the fewest paper jams

(frequency of 0.01) comparative to the other services discovered, followed by service

6 then 4. The rankings are then weighted according to the weighting of importance to

the requester, specified in the service request, to provide an effective rank. For each

service, the effective rankings for each attribute are added together to provide an

overall rank index for that service. The service with the lowest overall rank index, is

ranked first in the final list returned to the requester.

Using the measures of recall and precision, it can be seen that bringing together

‘semantics’ and ‘context’ will dramatically improve the effectiveness of the service

discovery process, returning only the most relevant services to the requester. The

resulting recall ratio increases to 1, based on the service list presented in Table 7 and

Table 8, from 0.33 under syntax matching (Table 5). The precision ratio result

increases to 1 from 0.17.

Table 8. Service list ranking achieved by proposed model.

# Price Effective

Rank

Location Effective

Rank

Paper

Jams

Effective

Rank

Queue

Effective

Rank

Overall

Rank

3 15c 2*0.3=0.6 Building

1*1= 1 0.3 3*1= 3 0 1*0.7=0 0.6+1+3

+0.7=5.3

6 15c 2*0.3=0.6 Building

2*1= 2 0.2 2*1= 2 3 2*0.7=1.4 0.6+2+2

+1.4=6

4 10c 1*0.3=0.3 Building

3*1= 3 0.01 1*1= 1 5 3*0.7=2.1 0.3+3+1

+2.1=6.4

Recall has improved because all the relevant services were discovered and

precision improved because only the relevant services were discovered. This shows

there is a need for a pervasive service discovery model that facilitates service

matching using semantics and context. We now present our preliminary conceptual

model for pervasive service discovery.

4 Preliminary Conceptual Model

In this section we present our preliminary conceptual model, to realise our proposed

approach for bringing together ‘semantics’ and ‘context’.

4.1 Service Discovery

In our preliminary conceptual model we have several modules which support and

utilise semantically represented information and realise dynamic context attributes

(Fig 1). Existing discovery protocols are either end-to-end or involve a third party.

Dabrowski and Mills [21] term this third-party a service cache manager. Our model

may reside on a service cache manager or at the requester or provider.

Service providers advertise their services in the form of OWL-S service profiles, to

the Advertiser Module, which stores these profiles into the Service Description

Repository. Service profiles contain the functional and non-functional attributes,

which may include: inputs, outputs, preconditions, constraints, requirements and other

service attributes. Each of these attributes can be related to web-based ontologies to

give them semantic meaning.

Service requesters submit requests in the form of OWL-S service profiles, to the

Requester Module, which instructs the Discovery Manager to match the request with

services contained in the Service Description Repository. The requester’s current

context can be transparently obtained from the User and Device Repositories without

the user’s explicit knowledge. The requester will be provided with a ranked list

containing services which exactly or approximately match the request.

We discuss the functionality of the modules in Fig 1, in the next sections.

Fig. 1. Conceptual model for semantic context-aware discovery.

4.2 Semantic Management

In our architecture, static attributes comprise name and value pairs represented

semantically as ontological concepts, such that they can be reasoned about. When the

Discovery Manager receives a service request, the OWL Parser module, implemented

in Jena [22], is enacted to load and verify OWL-S service profiles and associated

ontologies and represent these as objects in our architecture. The Service Matcher will

obtain a set of candidate services from the Service Repository and transform these

into objects using the OWL Parser. The Service Matcher enacts the Reasoning

Engine, implemented in Jess [19], to perform matching between the service request

and individual services. It loads the parsed OWL-S service profiles, related web-based

ontologies, OWL relationship rules (for example, inverse, equivalence, disjoint, etc.)

and rules that will perform matching. The reasoner will rank each service for its

match to each functional and non-functional attribute defined in the request, as in

section 3.

4.3 Context Management

Dynamic attributes hold context information and are represented in the same way as

static attributes except their value is not determined until needed. The Service

Matcher utilises the Dynamic Attribute Realiser, to obtain their value, before

matching takes place. There may be two sides to a dynamic attribute to be obtained:

the requester’s context constraints or the service’s context requirements. Both sides

will not always be dynamic attributes; one side could be static. The requester’s

dynamic attributes are either explicitly contained within the service request or

implicitly provided by one of two repositories:

• User Repository: Details relating to the human user of the requesting device will

be stored in this repository. These may include user preferences explicitly provided

by the user when he or she used the system for the first time or data implicitly

collected by the architecture. Implicit data may include historical usage patterns

and user behaviour such as services previously invoked by the user. Implicit

context may be collected using a third-party architecture which has yet to be

decided on and is the subject of continued investigation.

• Device Repository: Each user will be associated with one or more devices. Each

device has its own set of specifications, such as processing capability, screen size,

input method, etc. This information will be collected from the device when it

registers with the system for the first time.

The service’s dynamic attributes will be specified in the service’s description located

in the Service Description Repository. A service can be associated with two main

kinds of dynamic attributes: (1) dynamic attributes which can be determined locally

by the discovery manager and (2) those which must be remotely determined by the

service provider. An example for the first type is quality of service (number of

network hops or delay). The second type, falls into two separate subcategories.

Attributes which are constantly changing (for example service state such as a locked

door) and those which change less often (for example server load or print queue). The

discovery manager must remotely query the service provider for the current value of

constantly changing attributes or is notified by the provider when the value changes

on a less frequently changing attribute. The provider will specify each attribute’s

category, in the service description. Once the dynamic attributes have been realised,

they are returned to the service matcher for matching, as with static attributes.

We are currently implementing this model in Java. We are using the Mindswap

OWL-S API [23] and Jena [22] for the OWL representation and OWL Parser module

in our model. We are using the OWLJessKB [24] API and Jess [19] to implement the

Reasoning Engine.

5 Conclusion and Future Work

Our paper demonstrates that bringing together ‘semantics’ and ‘context’ during

pervasive service discovery will improve the relevance of services to the requester.

This is paramount due to the constraints (time and resource) and dynamic/volatile

nature of pervasive environments. Thus, the main contribution of our paper is our

analytical illustration of the impact of semantics and context on precision and recall.

We also propose a preliminary conceptual model for achieving this and we are

implementing this model to create a prototype. We are working to address the

significant challenges involved in implementing this model on resource constrained

small devices. In future work we seek to expand the model’s ability to discover the

more relevant services, by not only utilising semantics and context, but also other

mechanisms for service filtering such as user preferences, historical data and others.

References

1. Broens T., Context-aware, Ontology based, Semantic Service Discovery [Master],

Enschede, The Netherlands, University of Twente, 2004.

2. O'Sullivan J., Edmond D. and Hofstede A. H. M. t., Service Description: A Survey of the

General Nature of Services, April, 2002.

3. OWL Services (OWL-S) 1.1, http://www.daml.org/services/owl-s/1.1/.

4. Doulkeridis C., Loutas N. and Vazirgiannis M., A System Architecture for Context-Aware

Service Discovery, 2005.

5. Doulkeridis C. and Vazirgiannis M., Querying and Updating a Context-Aware Service

Directory in Mobile Environments, In Proc. 4th VLDB Workshop on Technologies on E-

Services (TES'03), 2003.

6. Arnold K., O'Sullivan B., Scheifler R. W., Waldo J. and Woolrath A., The Jini

Specification, Addison-Wesley, 1999.

7. Universal Plug and Play (UPnP), http://www.upnp.org.

8. Guttman E., Perkins C. E., Veizades J. and Day M., Service Location Protocol, Version 2,

IETF, RFC 2608, June, 1999.

9. Guttman E., Service Location Protocol : Automatic Discovery of IP Network Services,

IEEE Internet Computing, 1999, 3(4), 71 - 80.

10. Miller B. A. and Pascoe R. A., Salutation Service Discovery in Pervasive Computing

Environments, IBM Pervasive Computing White Paper, February, 2000.

11. Lee C., Helal A., Desai N., Verma V. and Arslan B., Konark: A System and Protocols for

Device Independent, Peer-to-Peer Discovery and Delivery of Mobile Services, IEEE

Transactions on Systems, Man and Cybernetics, November, 2003, 33(6).

12. Issarny V. and Sailhan F., Scalable Service Discovery for MANET, In Proc. Third Annual

IEEE International Conference on Pervasive Computing and Communications (PerCom), 8

- 12 March, Kauai Island, Hawaii, 2005.

13. Chakraborty D., Joshi A., Yesha Y. and Finin T., Towards Distributed Service Discovery in

Pervasive Computing Environments, IEEE Transactions on Mobile Computing, 15 July,

2004.

14. Norvag K., Polyzos G. C., Valavanis E., Vazirgianis M. and Ververidis C., MobiShare:

Sharing Context-Dependent Data and Services among Mobile Devices, In Proc. IEEE/WIC

International Conference on Web Intelligence (WI'03), October, 2003.

15. Chakraborty D., Perich F., Avancha S. and Joshi A., DReggie: Semantic Service Discovery

for M-Commerce Applications, In Proc. Workshop on Reliable and Secure Applications in

Mobile Environment, In Conjunction with 20th Symposium on Reliable Distributed

Systems (SRDS), 12 October, 2001.

16. Catterall E., Davies N., Friday A., Pink S. and Wallbank N., Supporting Service Discovery,

Querying and Interaction in Ubiquitous Computing Environments, Wireless Networks,

2004, 10, 631-641.

17. SWI-Prolog, http://www.swi-prolog.org/.

18. CLIPS: A Tool for Building Expert Systems, http://www.ghg.net/clips/CLIPS.html.

19. Friedman-Hil E., Jess: Java Expert System Shell, the Rule Engine for the Java Platform,

http://herzberg.ca.sandia.gov/jess/, updated: 2 Nov 2005, accessed: 6 Nov 2005, Sandia

National Laboratories.

20. Bernstein A. and Klein M., Towards High-Precision Service Retrieval, In Proc.

International Semantic Web Conference (ISWC 2002), 9 - 12 June, 2002, p. 84 - 101.

21. Dabrowski C. and Mills K., Analyzing Properties and Behaviour of Service Discovery

Protocols using an Architecture-based Approach, In Proc. Working Conference on

Complex and Dynamic Systems Architecture, 2001.

22. Jena - HP Semantic Framework, http://www.hpl.hp.com/semweb/, Hewlett Packard.

23. Mindswap: OWL-S API, http://www.mindswap.org/2004/owl-s/, University of Maryland

Institute for Advanced Computer Studies.

24. OWLJessKB: A Semantic Web Reasoning Tool,

http://edge.cs.drexel.edu/assemblies/software/owljesskb/, Geometric and D. U. Intelligent

Computing Laboratory.
