PiXL: Applying XML Standards to Support the

Integration of Analysis Tools for Protocols

Mar

ıa del Mar Gallardo

, Jes

us Mart

ınez

, Pedro Merino

, Pablo Nu

nez

and

Ernesto Pimentel

Departamento de Lenguajes y Ciencias de la Computaci

University of M

alaga, Spain

NibiSoft S.L., M

alaga, Spain

Abstract. This paper presents our experiences on using XML [1] technologies

and standards for the integration of analysis tools for protocols. The core pro-

posal consists in the design of a new XML-based language named PiXL (Proto-

col Interchange using XML Languages), responsible for interchanging the whole

speciﬁcation of the protocol (data and control) among different existing tools. The

structure and ﬂexibility of XML has proven to be very useful when implementing

new tools such as abstract model checkers. In addition, the suitability of the pro-

posal has been applied to achieve a new kind of analysis, where PiXL and new

MDA [2] methodologies have been proposed to build integrated environments for

reliability and performance analysis of Active Network protocols.

1 Introduction

Protocols are of critical importance for the reliability of Distributed Enterprise Infor-

mation Systems. The application of formal methods during the Protocol Engineering

process is well-known and has proven to be very useful because the elevated cost and

consequences of failures among these concurrent and distributed systems are usually

unacceptable. However, there is no common standard methodology to apply formal

methods in the design and implementation of protocols, in contrast to those usually

applied in other engineering ﬁelds.

One of the most important drawbacks when using formal methods for the analy-

sis of protocols is the management of different system descriptions (models) for each

tool employed: one speciﬁcation for reliability analysis, another one for performance

analysis, templates for code generation or documentation proﬁles, among others.

In this sense, the use of a single common formal description having all the features

required by different analysis tools would maintain all the aspects to be analyzed in

a consistent way. Unfortunately, this approach presents two main difﬁculties. First of

all, it would be quite expensive to adapt the existing algorithms and tools to that new

common notation and, on the other, non-expert users would have to learn how to manage

it.

Work partially supported by projects TIN2004-7943-C04 and TIN2005-09405-C0201

del Mar Gallardo M., Martínez J., Merino P., Nuñez P. and Pimentel E. (2006).

PiXL: Applying XM L Standards to Support the Integration of Analysis Tools for Protocols.

In Proceedings of the 4th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages 57-66

DOI: 10.5220/0002479300570066

 SciTePress

An alternative approach to avoid the construction of new algorithms or the intro-

duction of new (and complex) language features consists of so-called tool integration,

which has been developed mainly in two directions: one of them relies on the construc-

tion of integrated environments to manage a group of possible analysis, using internal

translators between two tools (source and destination). The ETI [3] platform follows

this scheme. In ETI, the coordination among tools is obtained through the deﬁnition of

functionality taxonomies that each tool exports when it is integrated into the platform.

Thus, the environment is able to recognize common or compatible functionalities.

The second direction consists of the deﬁnition of intermediate languages, which

usually constitute new formal methods grouping common features used by the tools to

be integrated. This kind of intermediate format allows the interchange of models among

usual code generators and veriﬁcation or static analysis tools.

Some of these languages are not user-oriented, and are directly oriented to parsers

and algorithms of tools like CADP [4] or Bandera [5]. By contrast, IF [6] and Veritech

[7] approaches have created their own formal description technique for users, which

also acts as an intermediate language.

Traditionally, one of the main disadvantages of the second approach has been the

difﬁculty of extending the intermediate formats, because the expressivity of these lan-

guages is clearly coupled with the features of the tools to be integrated originally. There-

fore, it is not trivial to incorporate a new tool in order to take advantage of its comple-

mentary new features. This paper deals with this problem. We focus on the design of

a new intermediate format for analysis tools that is ﬂexible enough to allow its manip-

ulation and extension, so that the integration of tools can be understood as a seamless

process. That is, initially there will be no limits for features to be incorporated, allowing

future extensions for new tools.

In order to achieve these objectives, we have used standard tools to deﬁne the new

language. Our previous experiences in integrating tools and XML [8–10] have motivated

the deﬁnition and implementation of an intermediate interchange language called PiXL

(Protocol Interchange using XML Languages), which is designed to represent protocols

considering the extended communicating ﬁnite-state machine (ECFSM) model. PiXL

constitutes a new language based on a previous XML format used to perform abstract

model checking with SPIN [11]. We have also incorporated some guidelines of recent

Model Driven Engineering, such as MDA [2], to manage the integration of complemen-

tary analysis tools [10]. With PiXL we beneﬁt from a common set of XML elements

representing the usual ECFSM features, which can be easily extended and automati-

cally parsed with existing XML technologies. These extensions allow the representation

of formalisms such as PROMELA for SPIN, StateCharts or SDL.

The paper is organized as follows. Section 2 introduces the PiXL language, describ-

ing its main features and extension capabilities. The language constitutes the basis for

the implementation and integration of the tools described in Section 3. Finally, Section

4 presents our conclusions and lines of future work on PiXL.

Fig.1. Traditional APIs for extensions vs. an XML-based approach.

2 The PiXL Language

2.1 Justiﬁcation

XML is been widely used as a language to interchange data. Nevertheless, its features

have not been exploited within the domain of analysis tools. Transition-based for-

malisms like SDL, PROMELA, or variants of ECFSMs are commonly used to describe

and analyze critical systems and communication protocols. These formalisms focus on

describing the behavior of such systems, including concurrency, non-determinism, com-

munication channels or dynamic creation of different entities, among others. Modelling

languages share common characteristics; however, it is not easy to integrate tools that

use such notations. This section describes the use of XML to represent all functional

aspects of a complex system from the analysis point of view in order to facilitate its

combined use by different (and complementary) analysis tools.

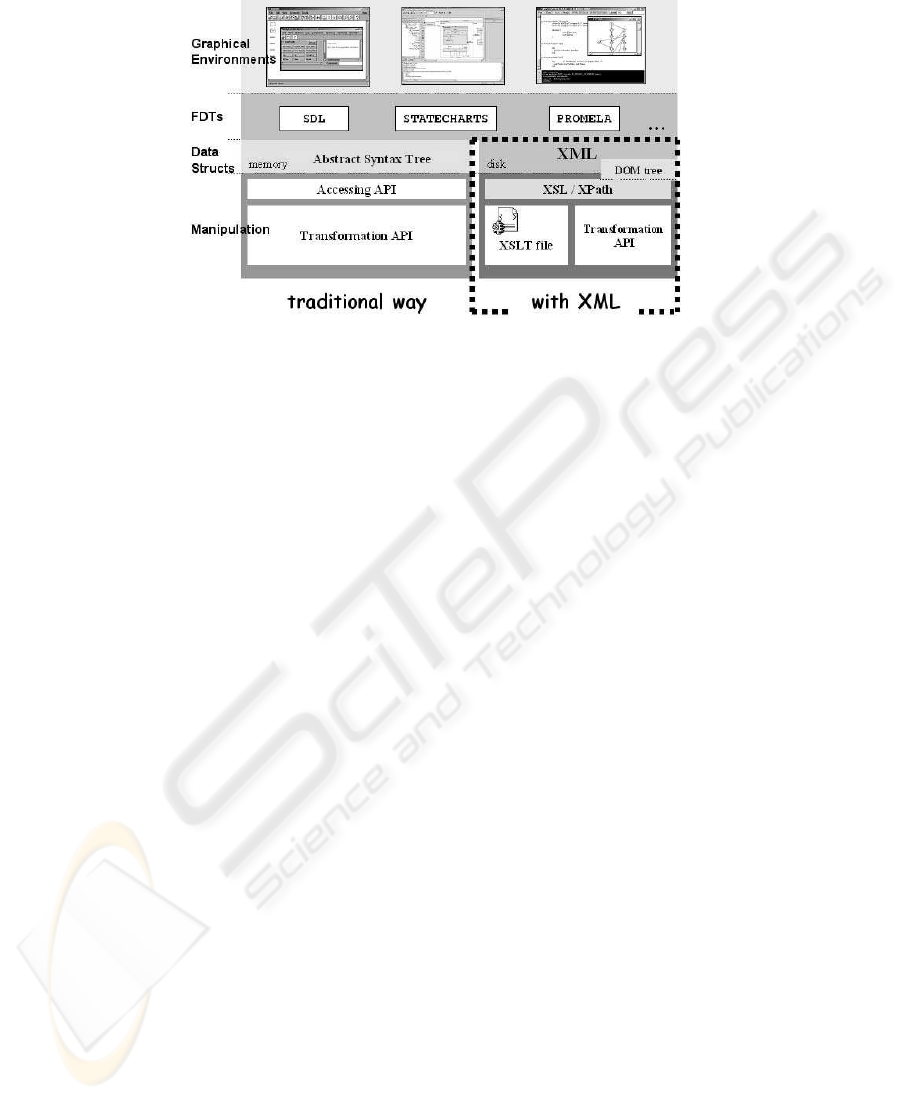

Fig. 1 presents the layered architecture of a typical analysis tool. Basically, the ﬁg-

ure depicts the different stages through which data pass before being processed by al-

gorithms. The upper layer consists of the graphical editor that helps users to deﬁne

analysis models using some formal notation (for instance SDL or PROMELA). The in-

termediate layer (“data structs” in the ﬁgure) represents the most particular feature for

each tool, because it deﬁnes the way in which model data are stored. Note that from

this intermediate level to the bottom, ﬁg. 1 has been divided into two columns. The left

one shows the classical way of manipulating data using programming libraries (APIs).

With this strategy, it is necessary to translate model data into an internal structure, like

an Abstract Syntax Tree (AST). In the best case, the designer of the tool provides an

open API with some limited extension capabilities. Using this API (and some technical

assistance), it would be possible to access the AST to update the tool with new capa-

bilities. However, even considering this method as successful, it is not clear whether

extensions developed in this way could be partially reused with other existing or new

emerging analysis tools.

Fig.2. Layered architecture of PiXL XML-Schemas.

Alternatively, we propose the use of XML to represent the original description of the

model, which additionally allows us to use powerful associated tools and APIs, such as

XPath and XSLT (to navigate and transform XML documents, respectively) or SAX and

DOM APIs (for parsing). With this approach (shown in the right hand column of ﬁg. 1),

the AST is now represented as an XML document which can be managed by external

developers in a more ﬂexible way. The rest of the section summarizes the XML and

PiXL features, along with extension capabilities of the language and associated tools

for processing PiXL.

2.2 XML Technologies to Design PiXL

The ﬁrst version of PiXL [12] was developed to describe PROMELA models in XML

using a DTD (document type deﬁnition). Although DTDs are not as expressive as they

should be to describe the complexity of a modelling language, we applied some strict

semantic rules that were embedded into our XML translator to PROMELA. We also found

some problems in dealing with extensions or modiﬁcations of previously declared XML

elements. Alternatively, the XML Schema recommendation improves the way in which

XML structures are created. It constitutes a full XML language, allowing direct XML

tool support. The current version of PiXL is based on XML Schema layers, a feature

which allows modularization and extensions, being more expressive to describe not

only PROMELA models but also other transition-based formalisms.

Extension mechanisms provided with XML Schemas make it simple to redeﬁne or

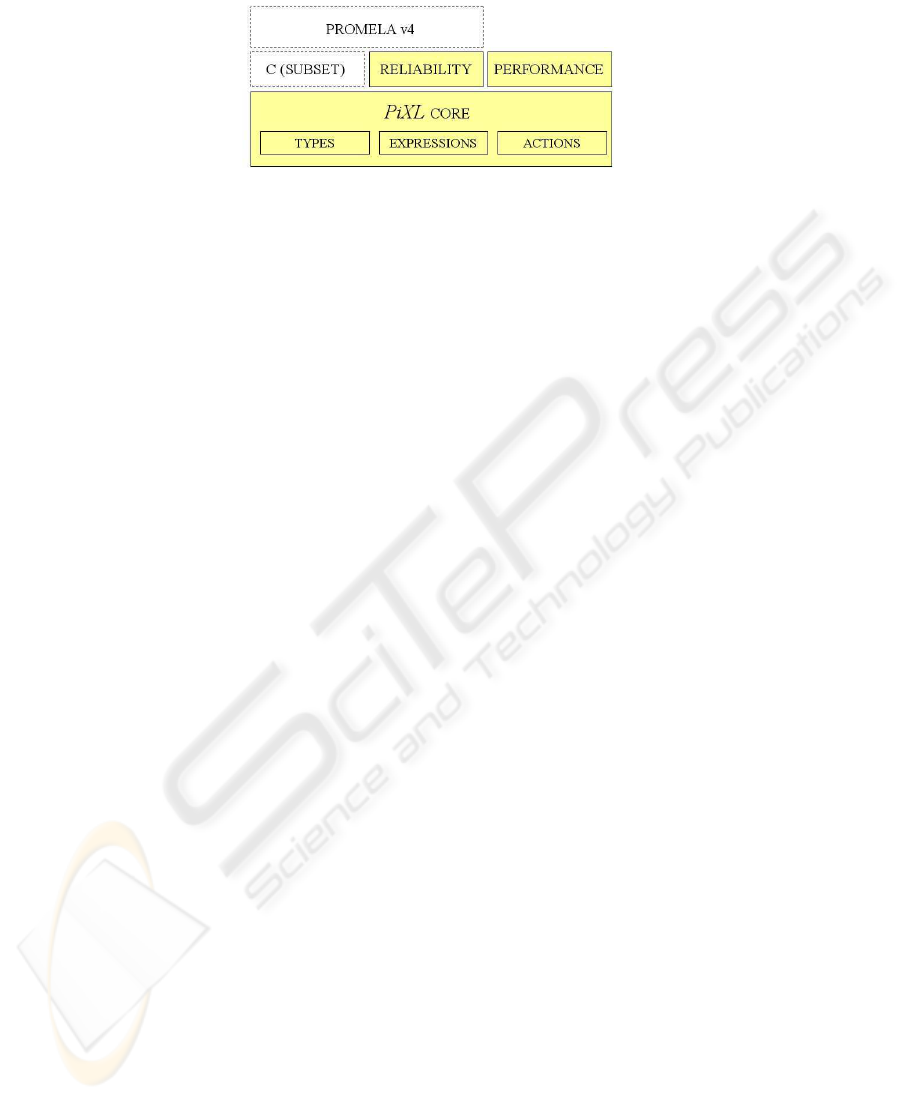

add new contents to existing language elements. Fig. 2 shows the architecture of dif-

ferent Schemas that are part of our proposal. The PiXL core is composed of three basic

XML Schemas (deﬁning types, expressions and actions as XML elements). Creating new

modelling components is done by reusing those provided in the core. The ﬁgure shows

how upper Schemas rely on functionality previously deﬁned in other Schemas. For in-

stance, the C language subset Schema deﬁnes elements for C code, which reuse other

elements existing in the PiXL core, by including its Schemas. We also provide Schemas

describing common reliability or performance features useful for analysis tools. Dotted

boxes constitute work in progress at the moment, oriented to building a new version of

the abstract model checker αSPIN, introduced in Section 3.1, to be compatible with the

new version of PROMELA [11].

Each of our PiXL Schemas beneﬁts from using XML namespaces to differentiate el-

ements; that is, in PiXL it is possible to deﬁne two XML elements with the same name,

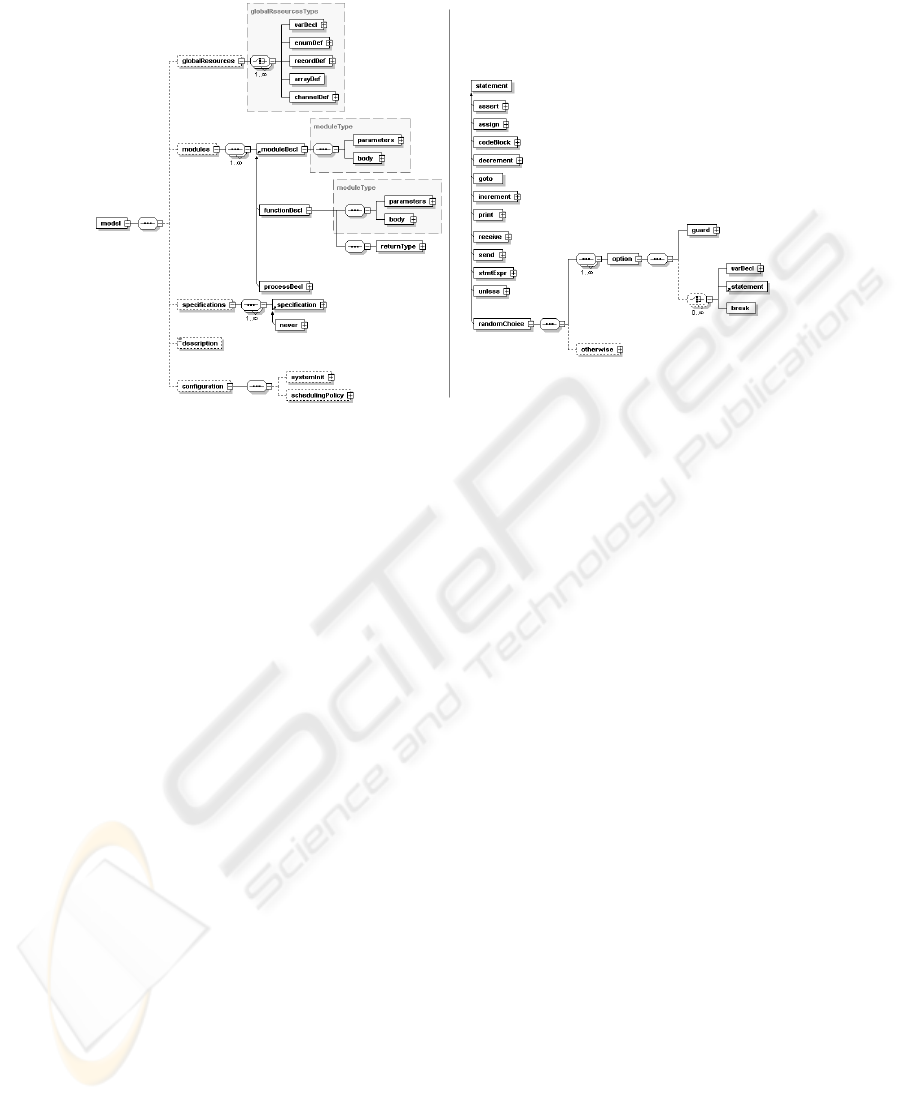

Fig.3. Some elements of a PiXL model: structural elements (left) and actions (right).

if they are used within a different context (its namespace). This feature is specially in-

teresting to build parsers that will manage only those XML elements that are interesting

for a speciﬁc tool. The PiXL core also deﬁnes complex types which constitute the base

of every XML element of the same type, as commented below.

2.3 Language Deatures

A PiXL model is composed of global resources and modules (ﬁg. 3, left). Global re-

sources describe variables, arrays, user deﬁned types or communication channels avail-

able for all the modules in the protocol model. As shown in ﬁg. 3, PiXL provides the

<moduleType> type to deﬁne parameterized modules. Fig. 3 makes use of this complex

type to create the abstract <moduleDecl> element. This is the base type to derive the

concrete PiXL modules <functionDecl> (function declaration) and <processDecl>

(process declaration), it being possible to include any of the concrete elements in-

side a <modules> element. Models may also contain requirements in the form of

<specifications>. Currently, PiXL provides the <never> element to model a B

uchi

automaton. This kind of automaton is used by model checking algorithms [13] to de-

scribe and analyze functional properties of protocols.

PiXL language includes support for expressions, statements and data types. For ex-

ample, binary and unary operations are available expressions, along with data chan-

nel queries, function calls, constants or references to variables. PiXL statements rep-

resent actions, as shown in ﬁg. 3 (right). The base type <statement> is redeﬁned

to create typical actions to be included in the <body> part of the PiXL modules: as-

signments, assertions or ﬂow control structures. Regarding ﬂow control, PiXL pro-

vides the <randomChoice> element to deﬁne non-deterministic choices. The optional

<model>

...

</declaration>

...

</refAsExpr>

</run>

</stmtExpr>

...

</codeBlock>

</send>

</systemInit>

</configuration>

</model>

Fig.4. Some excerpts of a PiXL model.

<otherwise> element shown as a dotted box in ﬁg. 3 (right), allows executing this

branch only when the other options cannot be selected (this is determined by checking

the guard element). Finally, data types in PiXL follow a similar hierarchy of prede-

ﬁned types available in XML Schemas, allowing extensions. The PiXL core provides

the primitive and complex types available in the PROMELA language.

A PiXL model optionally contains a system conﬁguration to initialize global re-

sources, to determine which processes are started at the beginning, or to deﬁne schedul-

ing parameters such as priority semantics for process scheduling. Fig. 4 shows part of

an example for a PiXL model that deﬁnes a system conﬁguration: the declaration and

use of the myChannel channel variable and the start of a process instance (myProcess)

having myChannel as a parameter. For a complete reference of all the elements avail-

able in the PiXL language along with some examples, see [14].

2.4 Extension Capabilities

Regarding structuring capabilities of XML Schemas, they allow the introduction of up-

per layers to reuse previous PiXL core elements, creating new ones or redeﬁning other

existing ones. Therefore, the introduction of new elements is done without interfering

with the way in which existing tools work, since XML technologies help to deal with

unknown syntax elements for a given model. At the moment, the PiXL core elements

allow the description of transition-based notations like PROMELA, or StateCharts di-

agrams, along with a subset of SDL. Some extensions to create suitable elements for

usual imperative languages like C and Tcl are now in progress.

2.5 Processing PiXL

PiXL models beneﬁt from using standard tools to manage their structure. Therefore,

it is possible to parse such a structure in order to perform static analysis, using XML

parsers and query languages like XSL. Another interesting feature of the XML parsing

tools is the support to build code generators, which can be considered as one of the most

important tasks in the tool integration approach.

Static analysis PiXL models may be analyzed with static analysis techniques, where

algorithms can be coded using typical programming languages (Java, C++), XSLT tem-

plates or a combination of both of them. Abstract interpretation for model checking

(described in the next section), constitutes a clear example of static analysis. Due to the

complexity of the method, XML DOM is used to manipulate the representation of the

PiXL model as a tree in Java.

Code generators Although the use of XSL to generate code from XML documents

is frequent, there are cases in which the complexity of the associated XML Schema

requires another kind of strategy. With PiXL we follow the Java architecture for XML

binding (JAXB) [15], a speciﬁcation that associates XML Schema components with their

equivalents in form of Java objects. Therefore, using a JAXB tool we can automatically

obtain Java source code (an API) corresponding to every element deﬁned in PiXL. This

API allows us to manage any PiXL model. Furthermore, it has been extended with our

code in order to generate input formats for different analysis tools.

3 Applications of PiXL

This section summarizes our previous experiences using PiXL to integrate analysis

tools. The ﬁrst experience was the development of an abstract model checker named

αSPIN, and more recently we have been working on an integrated environment to ana-

lyze active network protocols.

3.1 Abstraction and Model Checking

Model checking is effective when dealing with a useful version (a model) of the protocol

to be veriﬁed. By useful we mean that the model should contain only those aspects

necessary to analyze the critical properties of the protocol. Abstract interpretation [16]

is one of the most successful techniques utilized to reduce the size of models [17, 18]

and, therefore, to avoid the so-called state explosion problem.

Fig.5. A framework to perform abstraction in XML models.

For the effective application of this new technique, a complete support for the

automatic abstraction of models and properties is needed. In [8] we presented the

αSPIN tool, a distribution that integrates the functionality provided in the SPIN model

checker with abstraction capabilities. αSPIN performs a source-to-source transforma-

tion of PROMELA models and LTL properties. This approach beneﬁts from completely

reusing the SPIN algorithms to verify the resulting abstract model.

In order to perform the syntactic transformation of the model in a ﬂexible way, the

abstraction module (a Java application) is independent of the SPIN tool [12]. Both tools

interchange models using PiXL as the integration language which has full support to

represent PROMELA. From the implementation point of view, αSPIN is the ﬁrst abstrac-

tion tool based on XML standards able to perform automatic abstractions in PROMELA.

The abstraction GUI consecutively selects variables to be abstracted from a list sup-

plied by the user. For each variable, the (concrete) operations in which it appears are

analyzed and substituted by their corresponding abstract versions extracted from a pre-

deﬁned library. The abstraction engine makes use of a standard XML API to parse a

PiXL model, transform it and generate its corresponding abstract version to be veri-

ﬁed with SPIN. The abstraction engine is composed of specialized data structures (Java

objects) to manage suitable references of PiXL variables and expressions. It has also

containers to deal with an abstraction library; that is, a collection of abstract operations

to replace the original ones after the abstraction process. The abstraction library is also

stored in XML format, according to an extension of the PiXL grammar. All the syntac-

tic transformations are made within the PiXL document tree in memory, using XPath

queries.

In order to manage not only data abstractions but also event abstractions, the ab-

straction API of αSPIN was completely redeﬁned in [9]. The new objective was to apply

the same concepts to abstract UML StateCharts behavior diagrams [19], since currently

commercial tools like STATEMATE are also offering model checking capabilities. The

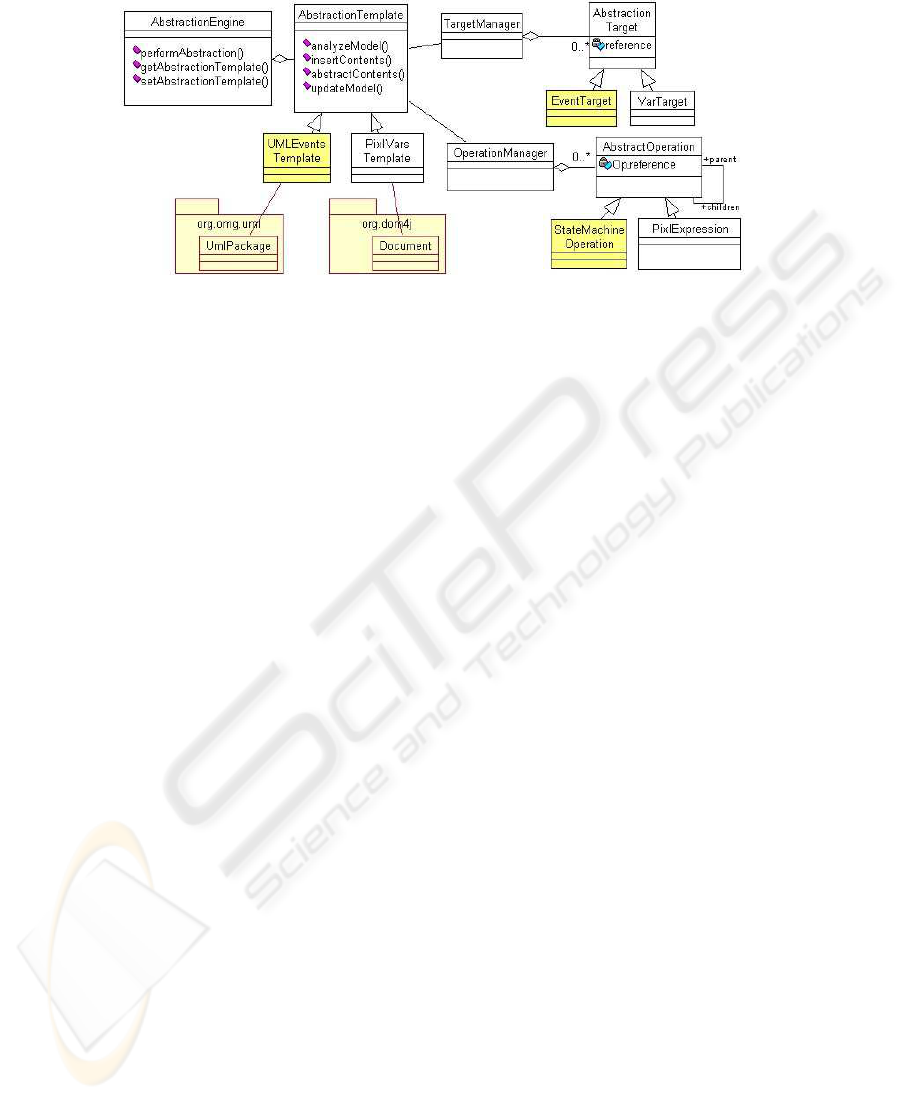

ﬁnal version of the current abstraction API is partially depicted in ﬁg. 5, where PiXL

elements may be embedded into existing XML representations of a UML StateChart.

3.2 Reliability and Performance Analysis

In [10] we proposed the use of MDA and XML as a way to integrate existing tools for

the analysis of new emerging telecommunication services. In the paper we presented a

methodology to obtain suitable input for the tools to be integrated, avoiding the need

for several hand-made speciﬁcations. We suggested the use of intermediate representa-

tion languages with XML support for the development of parsers and code generators.

In order to test the viability of our approach, we chose the domain of telecommunica-

tion services, particularly the Active Network paradigm [20], which offers ﬂexibility

to develop new telecommunication services without the slow standardization process

usually required by international institutions (ITU, IETF, IEEE or ANSI).

Following our proposal in [10] we are now using PiXL models to represent ac-

tive code and considering MDA guidelines to build platform-independent models and

platform-speciﬁc ones [2]. The former models are general PiXL models that represent

the expected behavior of active code. The latter are modiﬁed PiXL models which in-

corporate those features needed by speciﬁc destination platforms (analysis tools). We

are working on generating inputs for reliability and performance tools (as described in

[10]).

4 Conclusions and Future Work

Intermediate languages are usually employed to integrate tools within the context of

protocol analysis. However, such formats (formal methods) are prepared to deal exclu-

sively with speciﬁc tools. Thus, it is difﬁcult to integrate a new one without making

signiﬁcant modiﬁcations of the language and associated APIs.

This paper has introduced PiXL, a domain-speciﬁc language to connect analysis

tools for protocols. PiXL is an XML language that exploits all the beneﬁts of this ma-

ture technology: open tools and widely accepted standards. The main features of the

language allow the extension of new expressions, statements (actions) and types, using

the characteristics and possibilities available with the XML Schema. Up to now, PiXL

has been applied to the development of abstract model checkers and integrated environ-

ments to perform different analysis of communication protocols. The novelty in using

XML and MDA within the Protocol Engineering domain greatly facilitates the evolution

of tools and the development of new extensions. It is also worth noting that the use of

XML (and PiXL) technologies may support the introduction of formal techniques within

the Software Engineering community.

Our future work is focused on introducing more ﬂexible ways to deﬁne and em-

bed properties in PiXL models. Currently, we have support to deﬁne B

uchi automata

but having other logical formalisms in XML would be of great interest. Moreover, the

right combination of models, properties and analysis reports inside a single XML docu-

ment will ensure consistency among tools and a way of keeping analysis as uniﬁed as

possible.

References

1. W3Consortium: Extensible Markup Language (XML) 1.0 (Second Edition). Available at

http://www.w3.org/XML/ (2000)

2. Object Management Group: MDA guide version 1.0.1. omg/2003-06-01 (2003)

3. ETI: The ETI Platform. Available at http://eti.cs.uni-dormund.de (2004)

4. Fernandez, J., Garavel, H., Kerbrat, A., Mateescu, R., Mounier, L., Sighireanu, M.: CADP:

A Protocol Validation and Veriﬁcation Toolbox. In Springer, ed.: Proceedings of the 8th

Conference on Computer-Aided Veriﬁcation. Volume 1102. (1996) 437–440

5. Hatcliff, J., Dwyer, M., Pasareanu, C., Robby: Foundations of the bandera abstraction tools.

In: The Essence of Compution. Number 2566, Springer Verlag (2003) 172–203

6. Bozga, M., Fernandez, J., Ghirvu, L., Graf, S., Krimm, J., Mounier, L.: IF: A Validation

Environment for Timed Asynchronous Systems. In Springer-Verlag, ed.: Proceedings of

CAV’00. Volume 1855 of Lecture Notes in Computer Science. (2000) 543–547

7. Katz, S.: Faithful Translations among Models and Speciﬁcations. In: Proc. of Formal Meth-

ods Europe. (2001)

8. Gallardo, M., Martinez, J., Merino, P., Pimentel, E.: A Tool for Abstraction in Model Check-

ing. Software Tools for Technology Transfer 5 (2004) 165–184

9. Gallardo, M., Martinez, J., Merino, P., Pimentel, E.: Abstracting UML behavioral diagrams

for veriﬁcation. Chapter in In Hongji Yang. In Publishing, I.G., ed.: Software Evolution with

UML and XML. (2004)

10. Gallardo, M.M., Mart

ınez, J., Merino, P., Rodriguez, G.: Integration of Reliability and Per-

formance Analyses for Active Network Services. Volume 133 of Electronic Notes in Theo-

retical Computer Science. (2005) 217–236

11. Holzmann, G.: The SPIN Model Checker. Primer and Reference Manual. Addison Wesley

(2003)

12. Gallardo, M., Martinez, J., Merino, P., Rosales, E.: Using XML to implement Abstraction for

Model Checking. In: Proc. of ACM Symposium on Applied Computing. (2002) 1021–1025

13. Clarke, E., Grumberg, O., Peled, D.: Model Checking. MIT Press (2000)

14. University of M

alaga: The PiXL Project Web Page. Available at

http://www.lcc.uma.es/˜gisum/fmse/pixl (2006)

15. Sun-MicroSystems: Java Architecture for XML Binding (JAXB). Available at

http://java.sun.com/webservices/jaxb/ (2006)

16. Cousot, P., Cousot, R.: Abstract interpretation: A uniﬁed lattice model for static analysis of

programs by construction or approximation of ﬁxpoints. In: ACM Symp. on Principles of

Programming Languages. (1977) 238–252

17. Havelund, K., Visser, W.: Program model checking as a new trend. In: Software Tools for

Technology Transfer (STTT). Volume 2. (2002) 8–20

18. Dams, D., ed.: Abstraction in Software Model Checking: Principles and Practice. Num-

ber 2318 in Lecture Notes in Computer Science, 9th Int. SPIN Workshop. Model Checking

Software (2002)

19. Harel, D., Pnueli, A., Schmidt, J., Sherman, R.: On the formal semantics of statecharts. In:

Proccedings of the 2nd IEEE Symposium on Logic in Computer Science, New York, IEEE

Press (1987) 54–64

20. Calvert, K.L., Bhattacharjee, S., Zegura, E., Sterbenz, J.: Directions in Active Network

Research. IEEE Communications Magazine 36 (1998) 72–78
