Modeling Deceptive Action in Virtual Communities
*
Yi Hu and Brajendra Panda
Computer Science and Computer Engineering Department
University of Arkansas, Fayetteville, AR 72701 USA
Abstract. Trust and shared interest are the building blocks for most
relationships in human society. A deceptive action and the associated risks can
affect many people. Although trust relationship in virtual communities can be
built up more quickly and easily, it is more fragile. This research concentrates
on analyzing the Information Quality in the open rating systems; especially
studying the way deceptive data spread in virtual communities. In this paper,
we have proposed several novel ideas on assessing deceptive actions and how
the structure of the virtual community affects the information flow among
subjects in the web of trust. Furthermore, our experiments illustrate how
deceptive data would spread and to what extent the deceptive data would affect
subjects in virtual communities.
1 Introduction
Trust aggregation and propagation are attracting much attention in research in open
rating systems [1, 2, 3, 4, 7, 10, 11, 12]. We consider the problem of modeling
deceptive action in the web of trust, which forms the base for the online virtual
community. In such a community, a rumor or deceptive data may affect a group of
people with the spreading of the data. The situation can become worse, when an
adversary subject accumulates reputation gradually and later deliberately releases
some deceptive data, say a rumor about some merchandise. The deleterious effect
may not only be contained in a small range of the network. It may spread among
many other individuals in web of trust. A rumor circulated in a grocery store in a
small town may slowly affect local patrons, while the communication speed and the
number of affected people for the same information in an online community can be
much higher.
One can think of web of trust as a big network as well as a labeled directed graph
where the numerically labeled edges indicate the trust levels between two
corresponding subjects. Although the web of trust can generally be considered as a
connected graph, it has its own characteristics. For example, if we consider all trust
relationships among all subjects in epinions.com as the web of trust, we would find
many different communities based on people who are interested in different
categories of merchandises and who express ratings on them.
*
This work was supported in part by US AFOSR under grant FA9550-04-1-0429
Hu Y. and Panda B. (2006).
Modeling Deceptive Action in Virtual Communities.
In Proceedings of the 4th International Workshop on Security in Information Systems, pages 125-134
Copyright
c
SciTePress
Evaluation of the effect of deceptive data in order to prevent the trust network from
becoming unusable is critical for the normal operation of the semantic web or simply
an e-commerce web site. This paper addresses the analysis model based on the
structure of the web of trust and shared interest among people. In this paper, we
assume that information flow network is the same as the web of trust. The reason is
that, although generally speaking, information flow network can be totally different
from the web of trust network, the information flow policy then becomes too broad
and less useful in practice. For example, although a rumor releaser can send email to
anyone in the web of trust (in this case unrestricted information flow policy), if people
do not know him personally they will simply discard the email without even further
investigation. Although there’s an exception to this, for example, if the system
administrator of an online community sends out some rumor, almost every user will
believe him. But in this case, it is a role-based trust relationship. In this research, we
do not consider role-base trust or information flow. Interested users may refer to the
research on restricted lattice-based information flow policy [6].
2 Structural Property of the Web of Trust
In order to analyze the spread of deceptive data in the web of trust, a web of trust and
the information flow policy/network are needed. To quantitatively decide the exact
range of the spread of deceptive data, a full specification of web trust is needed. That
is, for each trust relationship, we need to know the exact trust rating. Even this
information is available, because different people have different trust propensity and
trust scales, for instance, “subject A trusts subject B 70%” does not mean the same
degree of trust as “subject C trusts subject D 70%”, it’s very difficult for trust ranking
on an information flow path.
In this paper, we propose a model for qualitatively estimating different affected
areas of the web of trust under the effect of deceptive data. The model only needs the
structural properties of web of trust and shared interest; subjective parameters of web
of trust such as trust ratings and individual trust thresholds are not used.
2.1 The Hierarchical Structure of the Web of Trust
The idea of trust hierarchies is based on the real-word relationship among human
beings. In web of trust, the most trusted ones are his acquaintance, i.e., family
members, closed friends, coworkers, etc. They share many common interests. Also,
each individual may belong to some community. For example, people from one
country may have their own community. All users belonging to the member of an
online forum compose the virtual community. Some people in the same community
share common interests. Each subject in the community has an interest circle for each
topic he is interested in (and we say this subject is the owner of the interest circle).
This interest circle contains all subjects in the community that are interested in this
topic and a message on this particular topic can be flowed to all these subjects directly
or indirectly from the owner of the interest circle. Outside the community, each
individual may belong to some meta-community. For example, people interested in
126
different communities must go along one of these few edges. Thus, the edges
connecting communities will have high edge betweenness.
Fig. 2. Communities in the Web of Trust.
The method for finding the community structure as defined by Girvan and
Newman can only reflect the hierarchical relationship of the vertices in the graph. It
cannot derive the number of communities present in the graph and, thus, is not ideal
for large complex graphs. We observed that the edge betweenness of an inter-
community edge is significantly greater than that of any edge inside the communities.
Based on this property, we designed the following algorithm for detecting the
communities in the web of trust. By using different thresholds, we can also identify
meta-community structures.
Algorithm: Find_Communities
1. Calculate the edge betweenness for all edges in the web of trust.
2. IF there is any edge deleted during community finding procedure
3. Pvalue = the edge betweenness of the deleted edge
4. Cvalue = the highest edge betweenness of the current graph
5. IF (Cvalue/Pvalue > threshold)
6. Delete the edge with the highest edge betweenness
7. ELSE
8. Return connected sub-graphs as communities
9. ELSE
10. Delete the edge with the highest edge betweenness
11. GOTO Step 2.
3 Model for the Spread of Deceptive Data
In the web of trust, when a malicious subject releases any deceptive data, we propose
to identify the spread of the data qualitatively as follows. The first step is to find out
the community/meta-community the malicious subject belongs, this can be achieved
based on the algorithm Find_Communities which is based on the edge betweeness. By
using different threshold in the algorithm, we can identify communities and meta-
communities. Once this structural information is available, we can identify the spread
range of the rumor as per following four hierarchies.
128
1. The acquaintance: The subjects who most easily would be affected are the
acquaintance, which are immediate neighbors of the rumor releaser in the web of
trust. They have the highest possibility of being affected.
2. The interest circle: Rumors with different topics have different spread range.
How the structural property of the web of trust and different topics affect the spread
range is our main concern. We will illustrate this in detail in the following sub-
sections.
3. The community: The community represents the group of densely connected
nodes in the web of trust. Because the formation of trust is based on shared interests
among human beings, the more densely nodes are connected, we can imagine that
more interests they share with each other. Thus the community is the next possible
range for the spread of the rumor.
4. The meta-community: The meta-community represents connected sub-graphs
each of which itself is densely connected. Very often, people in these sub-
communities share interests at a higher level. For example, home electronics meta-
community has digital camera community, home theater community, and others in it.
Thus, rumor can be spread to meta-community, but with the least likelihood.

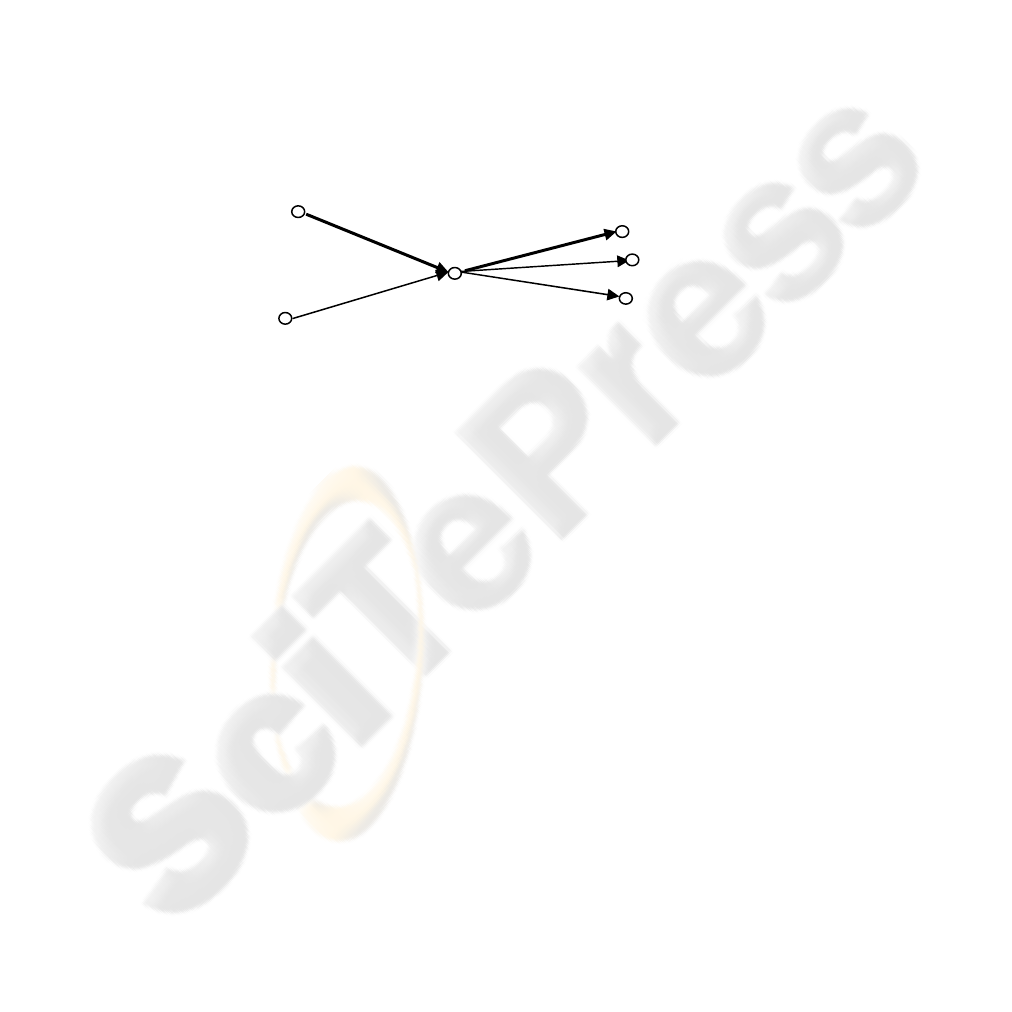

Fig. 3. Information Flow Based on Interest Propagation.
According to the study of information flow in social groups [5], while viruses tend
to be indiscriminate in infecting any susceptible individual, information is selective
and passed by its host only to individuals the host thinks would be interested in it.
Based on this observation, we propose that in the web of trust, the spread of deceptive
data/rumor is different from the spread of epidemic disease or computer virus. It is
also different from the random walker phenomenon used in many trust ranking
algorithms. For example, in Figure 3, α
1
releases a rumor to θ, in reality θ will not
blindly send information to all of β
1
, β
2,
and β
3
, nor will he forward this rumor
randomly to one of them. When θ receives this information, he may only forward the
information to the subject that is interested in it provided that θ thinks this rumor
might be true. Say θ knows that only β
1
is interested in this topic, in real world most
likely θ will propagate this information to β
1
only
.
3.1 Interest Propagation and Dynamic Interest Vector Tables
Since information is selective, in case some rumor releaser releases deceptive data in
the web of trust, this rumor will seldom be spread and as well trusted by every
subjects in the community where the rumor releaser belongs to. In this research, one
of our primary goals is to find out to what extent the rumor spreads in the community.
α
1
α
2
β
1
β
2
β
3
129
In order to estimate the worst-case scenario in spread of the rumor, following data
structures are employed.
Every subject has a list of topics that he is interested in and as well as his
acquaintances are interested in. We use I
i
<t
i1
, t
i2
, …, t
im
> to represent all the topics
that subject i and i’s acquaintances are interested in. I
i
is maintained for each subject
in the web of trust. Dynamic Interest Vector Table T
i
< v
i1
, v
i2
, …, v
im
> is a table in
which v
ik
is an interest vector which lists all subjects that are interested in t
k
and a
message on topic t
k
can be flowed to them directly or indirectly from node i. All nodes
in v
ik
form an Interest Circle of node i on topic t
ik
. Thus, for each topic t
ik
, node i has a
corresponding interest circle. Table 1 illustrates dynamic interest vector tables of the
nodes in Figure 3.
Table 1. Dynamic Interest Vector Tables.
We assume that every node trusts its acquaintance 100% in order to get a
maximum possible spread range. We also assume that every node will send
information only to its acquaintances that are interested in it. It must be noted that for
the same rumor, the spread range will be different for different sender nodes.
The following algorithm is proposed to find out the interest circle, which is
actually the interest vector corresponding to a particular topic. Since each node, N
i
,
only communicates with its acquaintance, in its dynamic interest vector table against
each topic it lists all its neighboring nodes that are interested in that topic; if N
i
itself
is also interested in the topic, N
i
is also added to the list. In order for node N
i
to know
what topics other nodes are interested in directly or indirectly, our algorithm will
propagate its interested vector table to all its neighboring nodes. It must be noted that
the whole table need not be propagated; only the topics that the neighboring node
interested in will be propagated. After its neighboring nodes get this table, each of
them will update their local interest vector table by adding subjects interested in
certain topic in its interest list. This procedure runs for every node periodically, thus
after a certain period, node N
i
will know which other people can be reached if N
i
sends
out a message on topic t
ik
. Also, we expected that each node’s interests may change
over time, i.e., each node may develop more interests on some other topics, or lose
interest in some previous topics. Following is the algorithm for finding out the interest
circle.
Algorithm: Find_Interest_Circle
1. Initialize I
i
<t
i1
, t
i2
, …, t
im
> for node i to contain a list of topics t
i1
, t
i2
, …, t
im
that i
is interested in.
InterestVec(α
1
, 1)
InterestVec(α
1
, 2)
InterestVec(α
1
, m)
InterestVec(
α
2
, 1)
InterestVec(α
2
, 2)
InterestVec(α
2
, n)
InterestVec(
θ
, 1)
InterestVec(θ, 2)
InterestVec(θ, i)
InterestVec(
β
1
, 1)
InterestVec(β
1
, 2)
InterestVec(β
1
, j)
α
1
α
2
θ
β
1
130
2. Initialize T
i
< v
i1
, v
i2
, …, v
im
> for node i, where v
it
= <i> for 1 t m.
3. Broadcast I
i
<t
i1
, t
i2
, …, t
im
> to all neighboring nodes of node i.
4. Broadcast T
i
<v
i1
, v
i2
, …, v
im
> to all neighboring nodes of node i.
5. Wait for incoming I
j
<t
j1
, t
j2
, …, t
jn
> and T
j
<v
j1
, v
j2
, …, v
jn
> sent from any node j
of node i’s neighboring node.
6. After node i received I
j
<t
j1
, t
j2
, …, t
jn
> and T
j
<v
j1
, v
j2
, …, v
jn
> from node j, do
operation:
//add j’s interested topic to I
i
I
i
<t
i1
, t
i2
, …, t
im
> = I
i
<t
i1
, t
i2
, …, t
im
> {t
jk
| t
jk
I
j
- I
j
I
i
and j v
jk
} .
//add a new interest vector containing j to T
i
for each of j’s interest topic is
not yet in T
i
For each t
jk
{t
jk
| t
jk
I
j
- I
j
I
i
and j v
jk
},
T
i
<v
i1
, v
i2
, …, v
im
> = T
i
<v
i1
, v
i2
, …, v
im
> { j }
//add a subject that’s not i’s neighbor but interested in i or j’s interest topics
For each row v
ik
T
i
<v
i1
, v
i2
, …, v
im
> where 1 k m
If (t
ik
= t
jl
), then v
ik
= v
ik
v
jl
, where 1 k n
//if j is no longer interested in certain topics, remove j from v
ik
in T
i
.
For each row v
ik
T
i
<v
i1
, v
i2
, …, v
im
> where 1 k m
If (j v
ik
) and t
ik
I
j
<t
j1
, t
j2
, …, t
jn
>
v
ik
= v
ik
- {j}.
7. Goto step 3
Note: At any run time of the algorithm, v
ik
contains all currently found subjects in
the interest circle of node i based on topic t
ik
. This interest circle is the maximum
possible spread range for the rumor on topic t
ik
sent by node i.
3.2 Experimental Results
Our experiments are conducted in a web of trust testbed which models trust and
interest decay among the nodes. The interest decay represents the average percentage
of interests not shared between a node and its neighboring nodes. That is, if node i to
node j’s interest decay is 15%, then node i shares 85% interest topics with node j. In
order to observe the extent to which the different community structure and interest
decay affect the spread of deceptive data, we use some baseline parameter in Table 2
for modeling our base model of web trust. By changing one parameter at a time, we
got some interesting results on spreading of deceptive data.
Our experiments proceeded as follows. In each test, a node is randomly selected as
rumor releaser. It knows its neighbors’ interest topics and only sends the rumor to its
neighbors that might be interested in the rumor. Once a neighbor receives the rumor,
he will give it a trust ranking. If the trust ranking is above the trust threshold, the
rumor will be sent to his neighbors that are interested in the rumor. Otherwise, he will
discard it. In order to estimate the maximum spread range, in our simulation, we
assume that each subject fully trusts its neighbors.
131
Table 2. Baseline Parameters for Our Web of Trust Test Bed.
Parameter Values
indegree 5
outdegree 5
interest-decay 30%
outdegree of rumor releaser 3
Number of Nodes 5000
0
100
200
300
400
500
600
700
800
1 2 3 4 5 6 7 8 9 10 25 50 75 100
Outdegree of rumor releaser
Number of nodes affected
1000 nodes 5000 nodes
Fig. 4. Relationship between Number of Nodes Affected and Outdegree of Rumor Releaser.
Misconception 1: In order to significantly increase the spread of the deceptive data,
simply send the rumor to as many people as you know. The number of people
affected by the rumor increases linearly with the increase in the number of the
neighbors of the rumor releaser.
Our experiment proved that the about misconception is not true. Although
increased outdegree of the rumor releaser can contribute to the augment of affected
nodes, the result depends on the average degree of the nodes in the web of trust. In
Figure 4, when the outdegree of the rumor releaser increases from 1 to average node
outdegree (which is 5 in our experiment), it does cause the affected nodes to increase
almost linearly (actually, this also depends on interest decay). However, if the
outdegree of the rumor releaser continues to increase, the spread range only increases
very slowly. For example, the difference in the number of affected nodes from 10-
outdegree and 100-outdegree rumor releasers is only 18 for a 1000-node community.
Misconception 2: The number of affected nodes increases linearly with the
increase of the number of nodes in the community.
Figure 4 and Figure 5 show that misconception 2 is only partially true. With all
other parameters remaining the same, the increase in the number of nodes in the
community only contributes insignificantly to the number of affected nodes. For
instance, as Figure 4 depicts, with the outdegree of the rumor releaser being 10, the
difference in number of affected nodes is only 141 between a 1000-node community
and a 5000-node community. Figure 5 also shows that by simply adding number of
nodes in a community without changing other parameters, the number of affected
nodes change insignificantly. Figure 6 illustrates that only when interest decay is very
132
low, e.g. 10%, the number of nodes affected increases significantly with the increase
of the number of nodes in a community.
0
50
100
150
200
250
300
12345678910
Average outdegree of all nodes
Average number of nodes affected
1000 nodes 5000 nodes
Fig. 5. Relationship between Number of Nodes Affected and Average Outdegree of all Nodes.
0
1000
2000
3000
4000
5000
6000
0% 10% 20% 30% 40% 50% 60% 70% 80% 90%
Interest decay
Number of nodes affected
1000 nodes 5000 nodes
Fig. 6. Relationship between Number of Nodes Affected and Interest Decay.
Fact: How actively each member involves in the community activity and whether
they have similar interests is the number one important factor when evaluating the
spread of rumor in the community.
Figure 6 shows that when the interest topics people share with each other in a
community increases, i.e., the interest decay decreases, the effect of the rumor
becomes more significant. It can be seen from Figure 6 that in a 5000-node
community, the number of affected nodes is 1254 with the interest decay value of
20%. Whereas, when the interest decay is 10%, the number of affected nodes in the
community is 4483, a 260% increase.
4 Conclusions
This paper studies the problem of evaluating the spread of deceptive data based on
structural property of web of trust and the shared interest between subjects in the web
of trust. Our model proposed structural characteristics of web of trust such as meta-
community, community, and interest circle to illustrate how the structural analysis of
133
web of trust can help evaluate the effect of spreading deceptive data. Our experiments
show that the amount of similar interests the members in the community have and the
amount of their active involvement in the community are the primary factors in
deciding the range of spread of the rumor.
Acknowledgements
We are thankful to Dr. Robert. L. Herklotz for his support, which made this work
possible.
References
1. M. Richardson, R. Agrawal, and P. Domingos. Trust Management for the Semantic Web.
In Proceedings of 2
nd
International Semantic Web Conference, USA, October 20-23, 2003.
2. R. Guha. Open Rating Systems. http://tap.stanford.edu/wot.pdf.
3. R. Guha, R. Kumar and P. Raghavan and A. Tomkins. Propagation of Trust and Distrust. In
Proceedings International WWW Conference, New York, USA, 2004.
4. B. Friedman, P. Kahn, and D. Howe. Trust Online. Communications of the ACM.
December 2000/Vol. 43, Issue 12.
5. F. Wu, B. Huberman, L. Adamic, and J. Tyler. Information Flow in Social Groups. In
Proceedings of CNLS conference on Networks, Santa Fe, NM, May 2003.
6. D. Denning. A Lattice Model of Secure information Flow. Communications of the ACM,
May 1976/Vol.19, Issue 5.
7. L. Xiong and L. Liu. PeerTrust: Supporting Reputation-based Trust for Peer-to-Peer
Electronic Communities. IEEE Transaction on Knowledge and Data Engineering, Vol. 16,
No. 7, July 2004.
8. M. Girvan and M. Newman. Community Structure in Social and Biological Networks. In
Proceedings of National Academy of Sciences, 2001.
9. L. Freeman. A Set of Measures of Centrality Based on Betweenness. Sociometry 40, page
35-41, 1977.
10. B. Yu and M. P. Singh. An Evidential Model of Distributed Reputation Management. In
Proceedings of the first international joint conference on Autonomous agents and
multiagent systems, 2002.
11. B. Yu and M. P. Singh. Searching social networks. In Proceedings of the 2nd International
Joint Conference on Autonomous Agents and MultiAgent Systems. (AAMAS), July 2003.
12. D. Dutta, A. Goel, R. Govindan, and H. Zhang. The Design of A Distributed Rating
Scheme for Peer-to-peer Systems. In Workshop on Economics of Peer-to-Peer Systems,
2003.
134
