Ayllu: Agent-Inspired Cooperative Services

for Human Interaction

Oskar Cantor, Leonardo Mancilla, Enrique González

Grupo de Investigación SIDRe, Pontificia Universidad Javeriana, Bogotá, Colombia

Abstract. Nowadays, people not only need to communicate, but also require to

cooperate in order to achieve common goals. Thus, groupware applications are

more complex, they have to satisfy new requirements of cooperation between

people in many areas such as: organizations, industries or entertainment.

Besides, due to the remarkable increment in the use of mobile devices and other

technologies, groupware has found new environments to provide solutions and

better services to end users. The Ayllu human cooperation model states that

people must interact using well defined and structured protocols as rational

cooperative agents do. This paper presents the Ayllu architecture, which is

intended to develop groupware applications with a cooperative approach, called

5C paradigm; based on software agents that act as mediators between users

working cooperatively. Cooperative services are constructed and executed by a

mechanism called volatile group. Ayllu supports the execution of cooperative

services, people can cooperate immersed in a pervasive environment, interact in

an organized fashion, conform communities and pursue common objectives

without concerning about their individual context.

1 Introduction

Most common people’s work tasks are supported by communication. Nowadays,

practically any application can be designed and implemented over different kind of

devices, from a cell phone to complex distributed information systems. People can

communicate without taking into account distance, time or place. However, new

requirements emerge beyond simple communication applications; people needs to

cooperate in order to achieve common goals. In fact, cooperation allows people to

increase productivity, to reduce costs, to conform groups based on common interests,

to negotiate, to facilitate decision making processes. For all these reasons, Groupware

CSCW applications (Computer Supported Cooperative Work), arise as an alternative

to fulfill these new requirements. CSCW applies within different contexts such as:

industry, organizations, entertainment, among others. Taking into account the variety

of devices that are available to support different applications, groupware can provide

mechanisms for communications between people in real time without taking into

account the place and respecting the individual context of each person.

Several models and tools oriented towards groupware have been developed that

incorporate agent technologies [15], providing more flexibility and scalability. Some

of the more developed frameworks of this type include the following ones: QuickStep

Cantor O., Mancilla L. and González E. (2006).

Ayllu: Agent-Inspired Cooperative Services for Human Interaction.

In Proceedings of the 3rd International Workshop on Computer Supported Activity Coordination, pages 55-64

DOI: 10.5220/0002480600550064

 SciTePress

[1] MOTION [2], Proem [3], eNcentive [4], DISCIPLE [5], DACIA [6], DreamTeam

[7], YCab [8], SALSA [9]. Each of these frameworks is based on a model that takes

into account different groupware-oriented requirements. The use of peer to peer

communication can be found in [2, 5, 3, 4]. Models based in N-tier architecture are

used by [2, 4, 6, 7]. The concept of interaction protocols is present in [3, 7, 8, 9] and

the notion of group services is employed in [2, 8, 9, 1]. Other interesting frameworks

that propose different groupware requirements are: COOPSCAN [10], RCSM [11],

that with [5, 7, 9, 4, 1], manage the group awareness abstraction. There also can be

found an explicit groupware replicated architecture at [5, 6, 10, 14]; some cooperation

models are introduced in [14, 15] and finally session management utilities can be

found at [4, 5, 7, 10]. Most of these approaches are focused in providing architectural

models and services to support human interaction; however, there are few works

oriented towards the way people must cooperate.

The Ayllu human cooperation model states that people must interact using well

defined and structured protocols as rational cooperative agents do. In fact, agents are

social entities acting in a proactive way to achieve goals. Cooperative agents work

together to fulfill collective goals, each agent does its best in spite of the multi-agent

system objectives. In the groupware context, humans interact with each other in order

to fulfill activities and accomplish objectives; based on this statement, in the Ayllu

model, humans can be seen as rational agents that might behave in a similar

cooperative way as agents do, and similar cooperation techniques, as those

successfully used by agents, can be used by a human community. The Ayllu

architecture includes mechanisms to facilitate the design, construction and use of

human interaction protocols based on a cooperative agent approach. In this

architecture, software agents act as mediators helping users to participate properly in

cooperative actions. The framework is based on the abstraction of cooperative

services, which include the definition of a schema where several persons participate in

a systematic way to achieve a goal. The operation of a cooperative service is

supported by the mechanism of volatile groups, which creates dynamically the

required mediator agents. The model includes agents charged of the adaptation of the

information to the user context and to different types of devices, also agents that aim

to reduce user intervention.

In this paper, the Ayllu architecture will be introduced briefly: in particular, the

important concepts of volatile groups and cooperative services. The focus of this

paper is to explain the cooperative services creation process.

2 Ayllu Architecture Model

Ayllu consists of five basic layers and an access point mechanism, called CAP. Each

layer is supported by the services provided on the lower ones. Figure 1 shows the

general structure of Ayllu architecture. A more detailed description of Ayllu can be

found in [17].

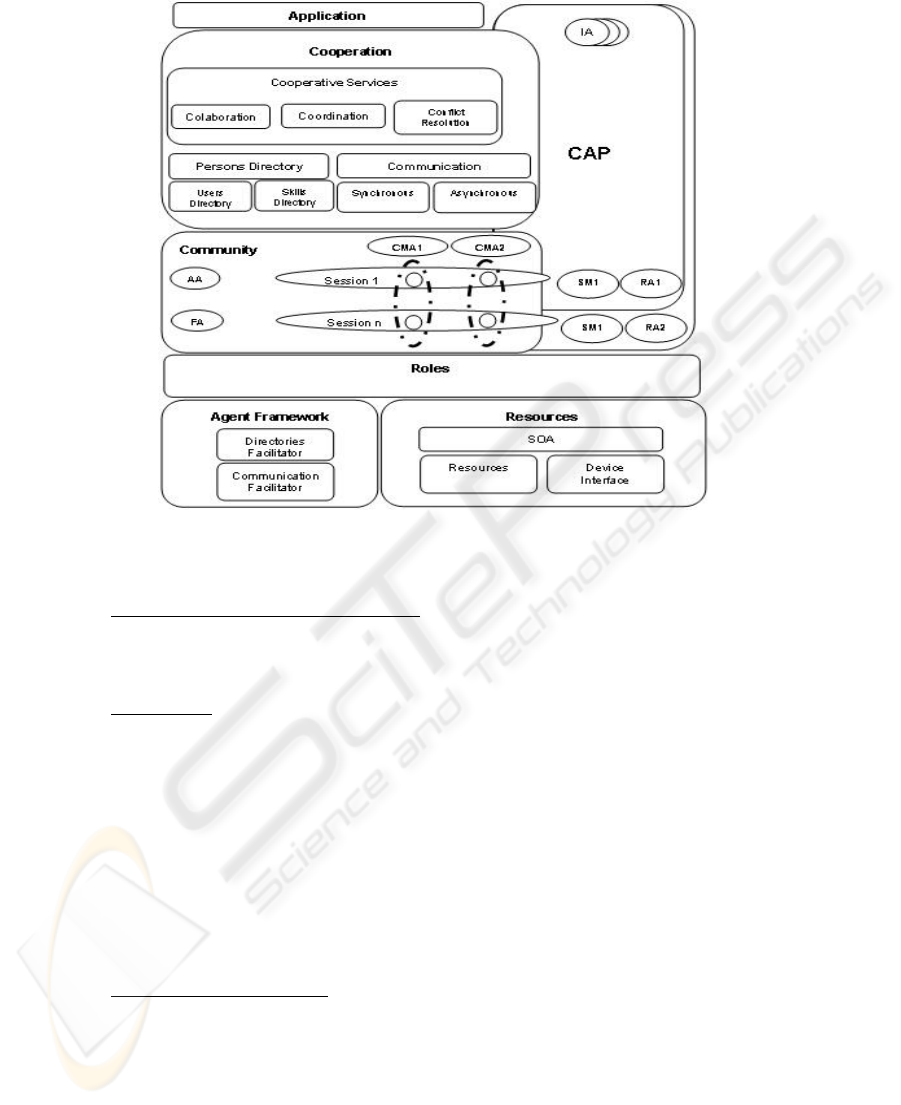

Fig. 1. The general architecture of Ayllu.

The five basic layers of the Ayllu architecture are the following:

1. Resources & Agent Framework Layer

: is based on the MAD model [12], allowing

to manage the limitations inherent of mobile devices. The basic agent framework

that supports all higher layers is BESA [16], which provides the infrastructure to

execute software agents.

2. Roles Layer

: is an agent-oriented layer; it associates a set of responsibilities to

generic types of agents, called roles. As new cooperative services are created, new

roles should be included. Ayllu provides some basic roles, which can be used to

create new generic cooperative services. These predefined roles include: the

Community Manager Agent role (CMA) responsible for creating the community

agents; the user Representative Agent role (RA) charged of representing the user in

its interactions with the community; the Session Manager role (SM) acts as bridge

between the user and community agents; the Interface Agent role (IA) acts as a

flexible input/output mechanism; the Community Agent role (CA) is in charge of

performing the cooperative tasks inside the volatile groups; the Administrator

Agent role (AA) performs the management of the users and groups; the Factory

Agent role (FA) responsible of the agent creation on demand.

3. Community Access Point

: the Community Access Point (CAP), provides the

access of users to the cooperative services supplied by the community layer. It has

three basic elements: the Interface Agent (IA), the Representative Agent (RA) and

the Session Manager Agent (SM). The CAP is also the one in charge of managing

the user connection state.

4. Community Layer: the community layer contains the user’s sessions and defines

the active volatile groups. A session is the set of agents that allow a user to

participate simultaneously in different cooperative services by means of the agents

representing him in the active volatile groups.

5. Cooperation Layer

: the cooperation layer is a user-oriented layer; it is the one in

charge of providing the high level abstraction of the available cooperative services.

The cooperative services offered by this layer provide the abstraction of

collaboration, coordination and conflict resolution mechanism in the user context.

This service abstraction offers an explicit way to access the cooperative interaction

protocols mediated by the software agents that form a community. The

programmer can design and easily include new cooperative services as required by

the application requirements.

6. Application Layer

: in the application layer resides any application that will make

use of the provided cooperative services. Normally in this layer, the cooperative

services are instantiated in terms of the application context.

3 Volatile Groups

A volatile group is a set of processes created dynamically with the purpose of

carrying out a joint task; each one of these processes represents a user. These groups

are created on demand and destroyed once the required task has been completed. In

the Ayllu context, volatile groups are formed by agents, Community Agents and

Community Manager Agents, and support the cooperative services provided by the

groupware system. The volatile groups are the basis for the accomplishment of

cooperative tasks in Ayllu. Hence, this mechanism allows the separation of the

interactions between members of the cooperative community and the user interface

access. As soon as a new cooperative service is requested by a user, a volatile group is

created to deal with all the agent-mediated interactions associated to the service.

A volatile group is composed by a facilitator agent and a set of participant agents.

The facilitator is the process that manages the group’s life-cycle. The volatile group

mechanism work in the following way (Figure 2):

1. The facilitator agent receives a service request generated by a user.

2. The facilitator agent identifies other users that could participate in the interactions

derived from the requested service.

3. The facilitator agent creates new participant agents; each one represents a user that

participates in the cooperative service.

4. While performing the service, the participant agents communicate to achieve a

well-defined interaction protocol implementing a cooperation technique.

5. Once the task has been completed the volatile group is destroyed; in some cases, an

answer can be returned to the user who made the initial request.

The volatile group mechanism can be used in a concurrent way. Several instances

of a cooperative service can operate simultaneously. Furthermore, a user can

participate in several cooperative tasks at the same time.

4 Cooperative Services

Ayllu proposes a new paradigm, the 5C paradigm, to manage people oriented

groupware mediated by software agents. In this paradigm, people, accessing the

system through different types of devices, are seen like agents that are part of a

community, performing their cooperative tasks by means of software agents (Figure

2). This approach gives as result an architecture for people oriented groupware in

which software agents are capable of making their own decisions on behalf of the user

without permanent human interaction. A detailed explanation of the 5C paradigm is

beyond the scope of this paper; more information about it can be found in [17].

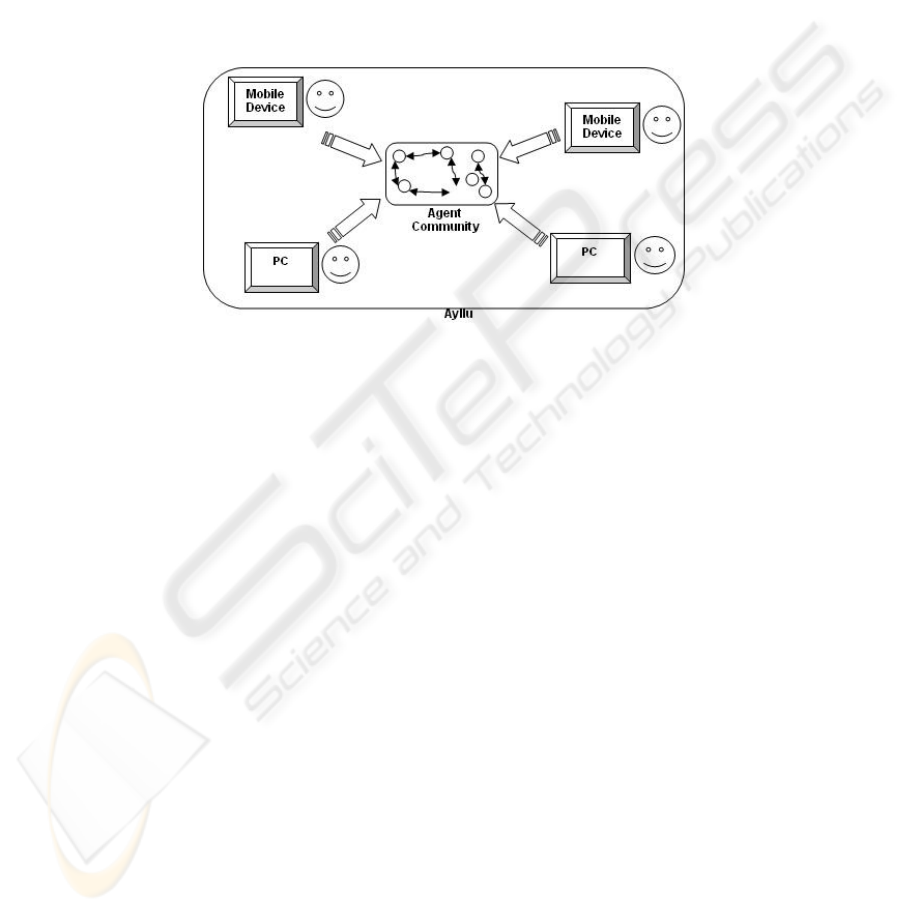

Fig. 2. Ayllu’s general approach.

A cooperative application is implemented by a set of cooperative services. A

cooperative service facilitates the execution of a well-defined cooperative task

between concerned users. Software agents are dynamically created to perform all the

necessary tasks to achieve the purpose of the service, respecting an interaction

protocol that defines the way intentional messages with a clear semantic are

exchanged between the adequate persons. In Ayllu, this group of agents conform a

volatile group, as explained earlier. Each concerned user communicates with its

community agents through its CAP; in particular, the session manager SM act as a

bridge between the agent community and the user’s CAP.

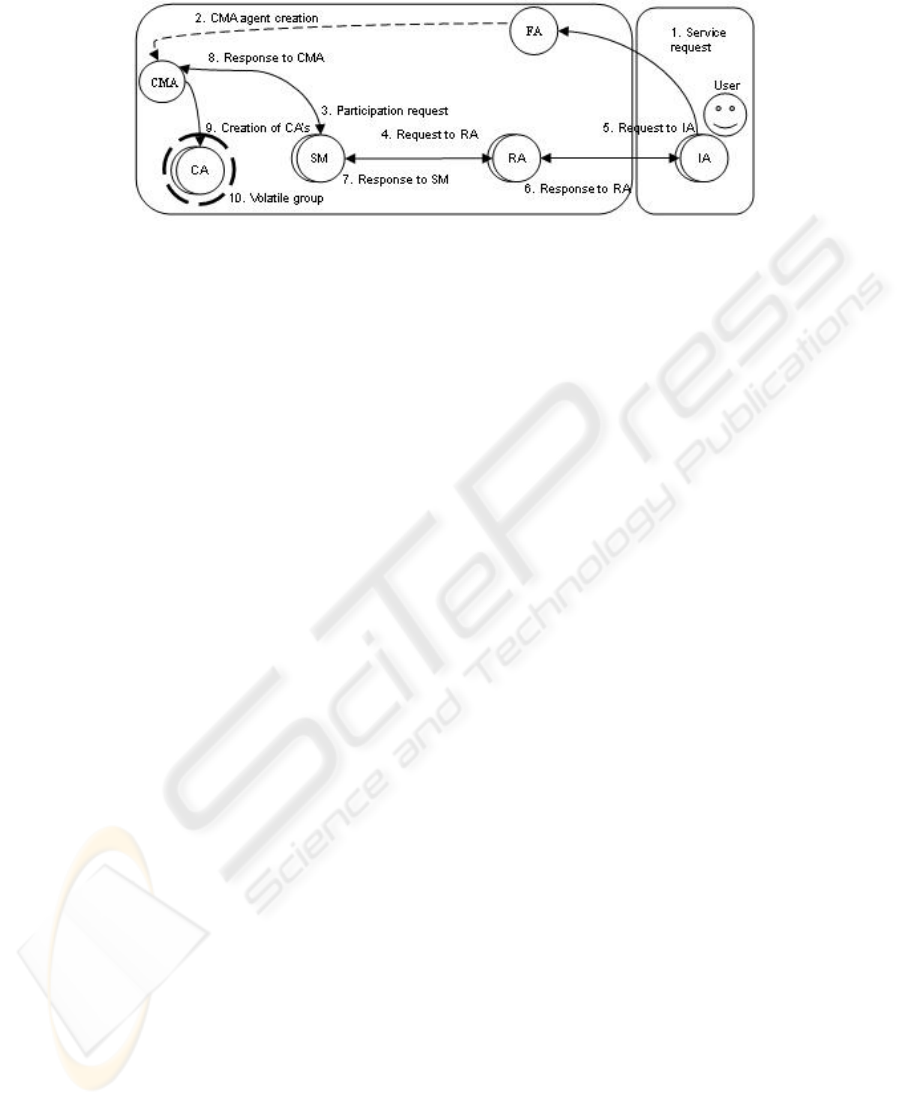

As figure 3. illustrates, any cooperative service in Ayllu requires three basic agent

types in order to work: a Community Manager Agent (CMA), some Community

Agenst (CA) and a Factory Agent (FA). The FA is the agent in charge of creating the

CMA agent required to start a cooperative service. There’s only one FA for an entire

application and the programmer must define which services will provide the

application and the types of CMAs it creates. Once the CMA of a requested service

has been created, it perform a look up on the person’s directory to find other users

that may participate in the service execution; the CMA creates the volatile group of

CA agents, each one representing one user. These three types of agents must be

specialized by the programmer for each specific cooperative service.

Fig. 3. Cooperative Service creation process in Ayllu.

In order to create a cooperative service in Ayllu, six steps must be followed:

1. Identify the cooperative services that the application will provide.

2. Identify the human agents (users) that will take part in the service.

3. Identify the software agents required to perform the task and the different roles that

they might take.

4. Create an interaction diagram, including software agents and users.

5. Establish the generic classes for the service in order to define the responsibilities

for each agent (role definition). These generic classes can be reused if needed.

6. Specialize the generic classes to obtain a cooperative service to cope with an

application’s specific requirements.

These steps will be explained in detail in the next section. The basic distribution of

the Ayllu framework provides a series of cooperative services which can be used by

any groupware application. These services are based on the abstract model previously

explained. These pre-defined services include the following functionalities: Group of

Interest and Presence Detection; Distributed Artifact Search, for managing shared

resources; Chat Service provides synchronous communication; Contract Net, for task

allocation, it is a task allocation technique inherited from cooperative agents;

Messaging Service provides asynchronous communication.

The programmer can create new cooperative services to cope specific application

requirements. Remark that the Contract Net service is a good example of how multi-

agent system cooperation techniques can be adapted to be used in groupware

cooperative scenarios, many other agent cooperation techniques can be implemented.

5 Creation of Cooperative Services in Ayllu

As mentioned earlier, Ayllu allows the creation of multiple generic types of

cooperative services that can be reused in different situations. These generic services

can be specialized according to the requirements of any cooperative application.

5.1 Creation of Generic Cooperative Services in Ayllu

To create a generic cooperative service in Ayllu, a set of well defined steps must be

followed, as mentioned in section 4. If these steps are followed in the appropriate

way, the development of cooperative services will be more efficient and the obtained

results will also be more reliable. In this section, these steps will be explained using

the Contract Net service as an example.

1. Establish the requirements of the application in order to identify the required

cooperative services. For the Contract Net service, the main requirement is to

provide a mechanism for users to make mutual agreements for task allocation.

2. Identify the types of users that will take part in the service. Users have different

needs of information and interaction with other users, depending on the activities

they perform and the roles that each one of them has in a given context. In a

Contract Net situation, there are two types of users: the manager and the

contractor. The manager sends offers to the contractors, which can decide to

respond with a proposal; the manager analyzes the proposals and decides which

contractor must perform the task. The contractors are informed of the decision.

3. Identify the software agents required to perform the task. As mentioned earlier,

Ayllu’s cooperative services are supported on three basic agent types.

4. Create an interaction diagram to specify the relationships between the community

agents. This diagram shows all the events that the agents must handle, and will be

used later in the implementation phase. Figure 4 shows the interaction diagram for

the Contract Net service. As can be seen, once the CA has been created, the CMA

sends a task request to the CA manager. This agent sends the task request to the

CA contractors, which ask their users for a bid. Once the bids have been collected,

the CA manager selects the best ones and sends them to its user, who decides

which one fits better his needs; finally, the CA manager informs the contractors

about the decision.

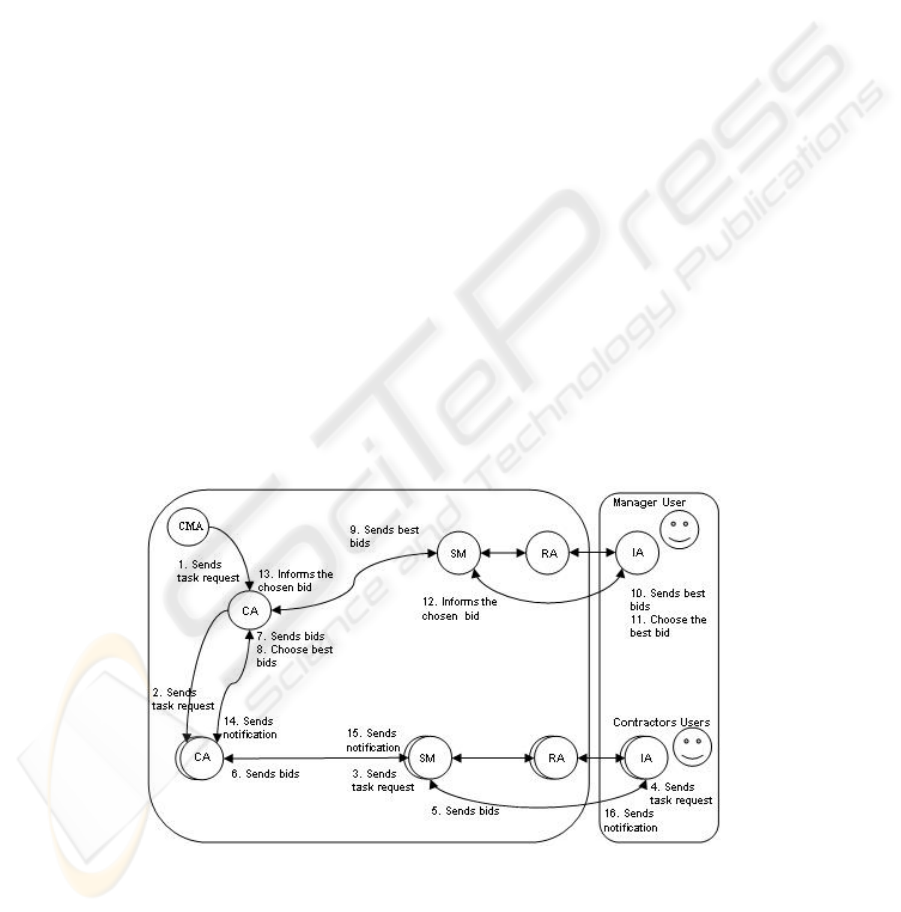

Fig. 4. Contract Net service interaction diagram.

Notice that interaction diagrams are not intended only to describe a sequence of

activities; the main goal of interaction diagrams is to provide a mechanism to

identify and characterize interactions between the agents used as mediators.

5. Define the generic classes for the cooperative service, which implies to extend

from the generic classes provided by Ayllu. These service role classes implement

the functionality and protocol of the general agents specified in the previous steps.

The Contract Net service requires the CMACnet specialized community manager

agent and CAContractNet community agent. The second one can be built to take

one of the two roles described earlier for the service, manager or contractor. For

the Factory Agent, only the list of services that the application will provide must be

defined, in this case the Contract Net service.

6. Finally, specialize the generic service taking into account the real application

context. This procedure implies to extend the generic service role classes. This

extension normally does not include any protocol change, only the methods already

invoked by the service roles must be supplied. For instance, if the Contract Net

service is used to negotiate a medical task allocation in a telemedicine application,

the specialized agents should have the necessary knowledge to handle the relevant

information, i.e. the medical staff information or the patient’s medical history.

5.2 Creation of Specialized Cooperative Services

In order to illustrate the creation of a specialized cooperative service in Ayllu, a

telemedicine application example will be used. The first step is to define which

services will be provided by the application. An entry in the Persons Directory must

exist for each service, describing and associating it with the users that may use it

during the execution of the application. A new Factory Agent must be created

specifically for the purpose of creating the CMA agents according to the service

requirements. The Factory Agent also verifies the permissions of the user who

invokes the service. The general structure of the generic Contract Net service in Ayllu

is shown in figure 5.

The CMAContractNet class provides the functionality of a community manager

agent and also controls the volatile group life cycle. It also associates responsibilities

to the service participants: it gives the responsibilities of a contract net manager to the

user who started the service, the other users involved are granted with the contractor

responsibilities. The CAContractNet is the agent that can assume any of the two roles

defined for the generic service, as mentioned before. The CAContractNet and the

CMAContractNet do not need to be specialized if a basic Contract Net service is

required; if any modifications to the interaction protocol need to be made, inheritance

will be required in order to do so.

The ContracNet class must be implemented by inheritance to suite the specific

requirements of information. In this class, the attributes to handle the Contract Net

service interactions should be defined by the programmer.

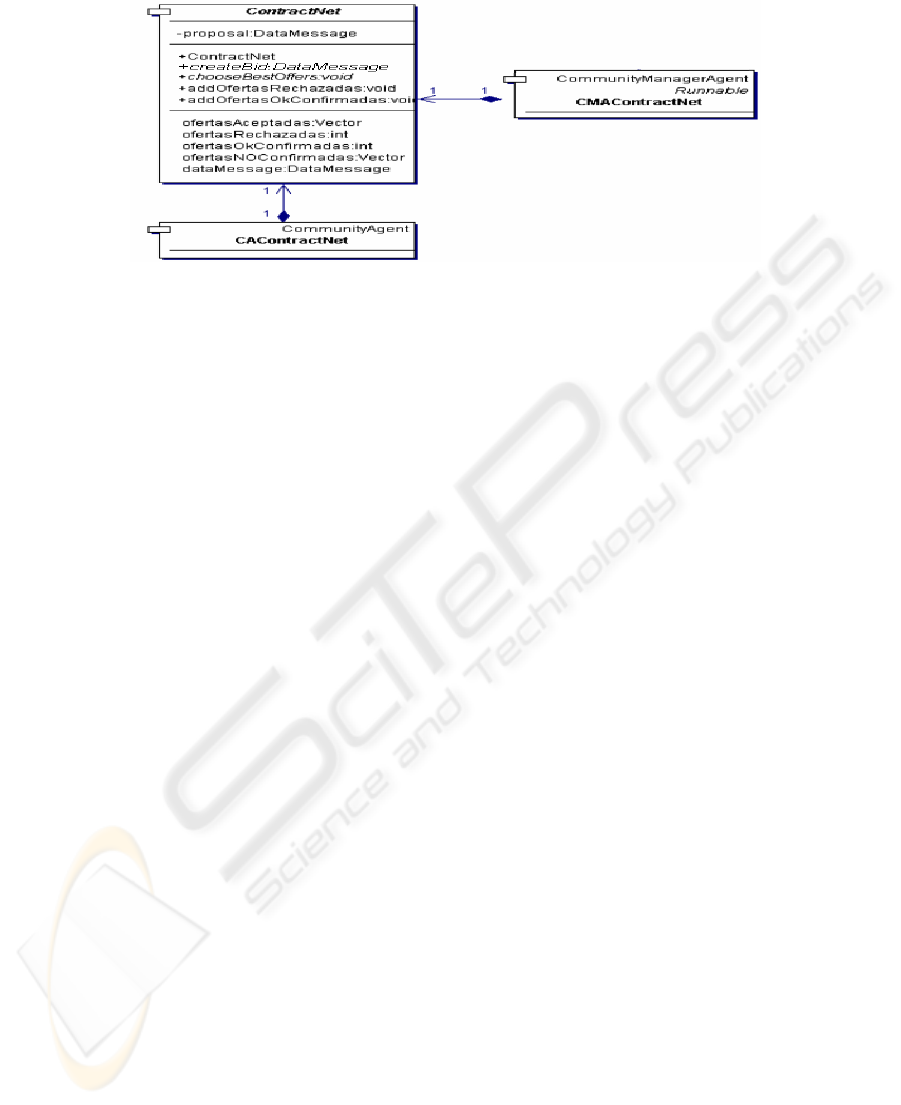

Fig. 5. Generic Contract Net service structure.

In the Contract Net service, the methods that need to be implemented are

createBid and chooseBestBids. They include the application logic to

construct a proposal in response to a task request, and to evaluate the collected bids.

After completing all the specialization process, the cooperative service is ready to use

by the cooperative application designed using the Ayllu framework.

As this section shows, Ayllu provides a simple way of creating cooperative

services, reducing development times and making a contribution to the CSCW field.

6 Conclusions

The increased development of mobile computation opens the possibility to design and

implement applications that will be capable to adapt and to satisfy the present

information needs that technology users require. In particular, user mobility facilities

must be provided in order to integrate people and services in a flexible way. The

groupware paradigm has been developed during years, oriented to the traditional

desktop devices like PCs or laptops; however, taking advantage of the possibilities

offered by the new wireless technologies requires not only a technical approach, but

also new paradigms centered in buster people cooperation.

The Ayllu´s human cooperation paradigm, contemplates the use of software agents to

support people cooperation; the paradigm states that users interact to collaborate

assuming tasks, coordinate planned actions, and solve conflict using MAS inspired

techniques; people is seen like being part of a multi-agent system, they act as human

rational cooperative agents. Ayllu is not only a groupware oriented architecture

mediated by agents, but also a paradigm for groupware development. The concept of

cooperation between people is extended through the implementation of software

agents that serve as mediators for their activities, facilitating the accomplishment of a

common objective in a successful way. The basic services provided by the Ayllu

framework reduce the development time of a cooperative application. Actual work

includes the creation and implementation of new generic cooperative services inspired

from SMA techniques, and also the identification of specialized cooperative services

for a business organization environment.

References

1. Roth, J., Unger, C.: Using handheld devices in synchronous collaborative scenarios.

Department of Computer Science-University of Hagen (2001).

2. Kirda, E., Fenkam, P., Reif, G., Gall, H.: A service architecture for mobile teamwork.

Technical University of Vienna (2002).

3. Kortuem, G.: Proem: A middleware platform for peer-to-peer computing. Mobile

Computing and Communications Review, Volume 6, Number 4, (2002).

4. Ratsimor, O., Finin, T., Joshi, A., Yesha, Y.: eNcentive: A framework for intelligent

marketing in mobile peer-to-peer environments. Departament of Computer Science and

Electrical Engineering, University of Maryland Baltimore Country (2003).

5. Wang, W., Dorohonceau, B., Marsic, I.: Design of the disciple synchronous collaboration

framework. The State University of New Jersey (1999).

6. Litiu, R., Prakash, A.: Developing adaptive groupware applications using a mobile

component framework. Department of Electrical Engineering and Computer Science,

University of Michigan (2000).

7. Roth, R., Unger, C.: Dreamteam a platform for synchronous collaborative applications.

Department of Computer Science- University of Hagen (2000).

8. Buszko, D., Lee, W.-H., Helal, A.: Decentralized ad-hoc groupware api and framework for

mobile collaboration. Motorola iDEN Group, CISE departmen, University of Florida

(2001).

9. Rodriguez, M., Favela, M.: A framework for supporting autonomous agents in ubiquitous

computing environments. Departamento de Ciencias de la Computación, CICESE,

Ensenada, Mexico (2003).

10. Balter, R., Atallah, S. B., Kanawati, R.: Architecture for synchronous groupware

application development. HCI, Tokyo, Japan (1995).

11. Yau, S. S., Karim, F., Wang, Y., Wang, B., Gupta, S. K.: Reconfigurable context sensitive

midleware for pervasive computing. Computer science and Engineering Department,

University of Arizona (2002).

12. Botero, A., Giraldo, H., Moyano, A.: Mad: Arquitectura basada en componentes

distribuidos para dispositivos móviles. Proyecto de Grado para optar por el título de

Ingeniero de Sistemas, Pontificia Universidad Javeriana, Noviembre (2004).

13. Roth, J.: A taxonomy for synchronous groupware architectures. Department of Computer

Science - University of Hagen (2000).

14. Gerosa, M. A.: Towards an engineering approach for groupware development. Software

Engineering Laboratory, Computer Science Department, Catholic University of Rio de

Janerio (2003).

15. J. Ferber, Multiagent Systems: An Introduction to Distributed Artificial Intelligence.

Addison-Wesley, 1999.

16. González, E., Bustacara, C., Avila, J.: Besa: Behavior- oriented, event-driven social-based

agent framework.”. PDPTA’03, Las Vegas-USA, CSREA Press, vol. 3, Junio 2003, pp

1033-1039.

17. Cantor, O., Mancilla, L., González, E: Ayllu: A Cooperative Approach to Groupware

Development. In proceedings of IEEE-ICC International Conference on Communications

(2006).
