A Practical Experience on Model-driven Heterogeneous
Systems Integration
Antonio Estévez
1
, José D. García
1
, Javier Padrón
1
, Carlos López
1
, Marko Txopitea
2
,
Beatriz Alustiza
3
, José L. Roda
4
1
Open Canarias, SL, Elías Ramos González, 4, ofc. 304, S/C de Tenerife, 38001 España
2
Open Norte, S.L., Madariaga Etorbidea, 1 – 4. Ezkerra, 48014 Bilbao, España
3
IZFE , S.A., Pinares Plaza, 1 – 4. solairua, 20001 Donostia – San Sebastián, España
4
ULL, Escuela Técnica Superior de Ingeniería Informática
Universidad de La Laguna, La Laguna, España
Abstract. The integration of heterogeneous systems is usually a complex task.
In this study we present a strategy which can be followed for the integration of
a framework based on Struts and J2EE, the transactional system CICS and the
document manager FileNet. The principal aim of the project was to redefine the
work methodology of the developers in order to improve productivity.
Following model-based development strategies, especially MDA, a single
framework for the three environments has been developed. Independent
metamodels were created for each one of the environments, which finally led to
a flexible, open and unified metamodel. The developer could then increase his
productivity by abstracting from the particular implementation details related to
each environment, and putting his efforts in creating a business model that is
able to represent the new system.
1 Introduction
Most large business corporations and concerns use frameworks and heterogeneous
tools in the running of their systems. Most of these systems need to integrate several
architectures, technologies and information systems. At the moment, there are few
consolidated solutions to solve these problems at a reasonable cost, which as well as
being in house problems, will also depend on the technologies used to solve them.
The latest leanings have been towards strategies based on the Model-Driven
Software Development (MDSD [13]), and more especially MDA [12] as a possible
solution to most of the existing problems. Through MDA strategies, businesses can
make sure that their business plans remain valid, independent from the frequent
changes in the technology involved. Examples of the use of these kinds of strategies
can be found in the following references: [3], [8 ].
In this paper we describe a general methodology for the integration of complex
systems, based on the fundamental principles of MDSD, and applied in a real
corporative environment. The principal objective of this project has been to put into
Gaillard G. (2006).
Model-Driven ERP Implementation.
In Proceedings of the 2nd International Workshop on Model-Driven Enterprise Information Systems, pages 98-107
DOI: 10.5220/0002482100980107
Copyright
c
SciTePress
place a system of high productivity in order to develop J2EE [7] applications, which
can interoperate with transactional systems such as CICS [4] and with content
managers such as FileNet [5].
In part 2, the technological area is described along with the different platforms that
have to be integrated. Then, we outline the development of three practical cases, using
the selected platforms. The results of the application of the methodology, conclusions,
and areas of future study will conclude this work.
2 Platforms Used in the Project
The Foral Society for Information Technology, pertaining to the Foral Department of
Gipuzkoa (IZFE) has established and maintain an IT zone, with machines and servers
made up from an IBM mainframe as well as more than 130 Windows, Unix and
GNU/Linux servers, which are utilised by the Foral Department as well as the Town
Councils of Gipuzkoa. IZFE is responsible for more than 90 new developments each
year and at the moment has more than 300 applications up and running in a state of
permanent evolution, with users as diverse as the Tax Office, the Departments of
Transport, Culture and Youth, the Social Services departments, the Emergency
services, as well as the Innovation. The number of persons working directly on these
development projects has reached 165, without counting those collaborating within
the closed environment of suppliers and providers.
The technologies used by IZFE in relation to this study are principally the
Websphere Application Server for z/OS, version 5.1. The related database is DB2
Server for z/OS, version 7.1.0.
Of the technologies that we would like to integrate in the project, we would include
the file manager FileNet, version 3.0, the transactional server CICS Transaction
Server for z/OS, version 2.3 and the IZFE framework based on Struts [17] which
allows for the development of J2EE applications.
This varied and complex group of platforms conform to the ideal scenario for the
development of this project and we can apply the methodology and different
integration strategies for the development of efficient software.
3 Methodology Used
Given the variety and complexity of the surroundings in which we worked, it was
decided to use a bottom up methodology, beginning with the most specific aspects
leading to generalizations and aspects in common. We thus planned a series of
repeated tasks, differentiated by the technologies used in the study. At the end of
these tasks, we proceeded to the integration of the different technologies, so as to link
together with a usable common integrated model. Figure 1 shows the sequence of
these tasks as well as the activities involved in each of them.
99

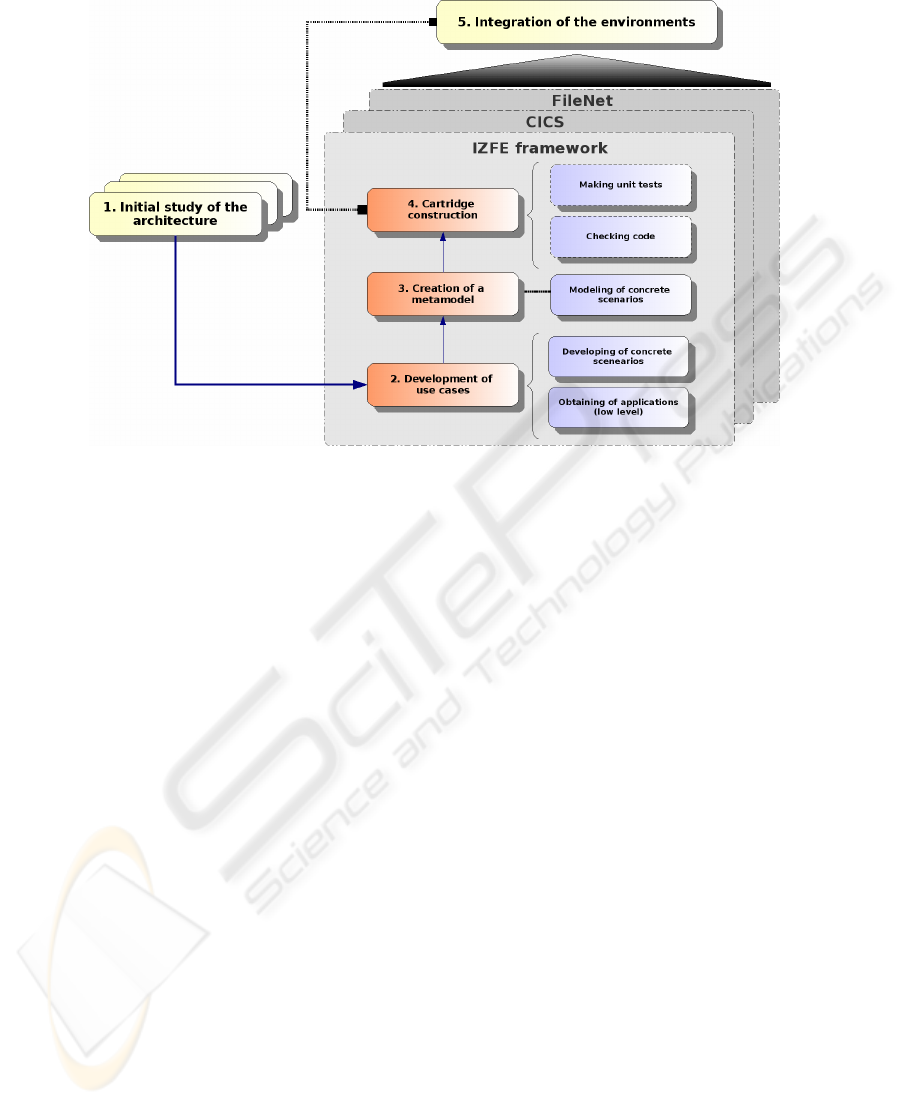

Fig. 1. Arrangement of the tasks with the methodology used.
Task 1. Initial study of the technology and architecture.
At this stage all the available information is obtained and studied. In order to do this,
the IZFE is asked for all the relative information concerning his technological set-up
that pertains to this project. All this information is checked, validated and developed.
As far as possible, we try to make the study as near as possible to real life
circumstances.
Task 2. Development of use cases.
At this stage, different applications (codes) are obtained for analysis and to define the
functions required. As a result, a series of concrete scenarios should be developed,
which comply in the most part with the functional requirements which have been
analysed. To obtain programmes, we need wide ranging programmes to cover the
technology that has been put in. These applications should for the most part cover the
intrinsic necessities of the IZFE, covering the most common work tasks. The
programmes are analysed and verified at a trial stage (with those technologies that
already exist). These programmes are considered separately and recodified in order to
easily create a metamodel, identifying structures and components which have the
possibility of being considered separately, along with general concepts which
previously had been modelled through the creation of templates. These templates
were previously used for the automatic generation of codes in subsequent phases.
Task 3. Creation of a Metamodel.
The alignment of the project with MDSD and especially with MDA also involve the
concept of UML Profiles [19], a specialised mechanism which is defined as being part
of the same UML. The profiles can help shape specific aspects of a software system.
The basic principle for obtaining each one of these profiles is to ascertain
100
generalisations between different programme languages, platforms and technologies,
as well as to incorporate other relevant aspects related to the integration of inherited
systems and applications.
Task 4. Cartridge Construction:
Having defined the functions and the metamodel, we can begin to construct the
cartridge, whose function is to direct the working, compilation and packaging of the
model exported in XMI [20]. In essence, a cartridge links the implementation of the
UML profiles in a platform context with the programme language in which the code
is generated, which in our case will be Java. This cartridge will contain a description
where the profiles of each of the stereotypes are defined, and the corresponding
template assigned. The new application is then checked through the IZFE’s own
technology.
These 4 tasks have been developed for the IZFE framework, CICS and FileNet areas,
which we shall now explain in detail, and outline the cases where we had to customise
the system in question.
4 Applying the Methodology
The development of the project followed a sequence through different technological
environments. The IZFE framework was the first, as it was already identified as a key
factor for the success of the project, as well as for its high level of complexity. The
IZFE framework is a J2EE framework which runs on a Websphere Application
Server. This is a server which is used extensively in the development of corporative
web applications. The second environment considered was a transactional manager,
identified as a CICS environment. In this environment there existed inherited
processes and logic at a corporative level with a high strategic value. The third
environment dealt with the development of an in company file manager, which was
FileNet environment. In this environment there was a great quantity of high critical
content, used in some areas of IZFE.
Each environment had definite tasks applied to them, using the methodology
previously explained. The final phase of the project was to make a big effort to
integrate all the environments into a common integrated metamodel.
4.1 IZFE Framework
Task 1. Study of the architecture. The IZFE framework is used for the creation of
applications in a corporative business environment. Basically it is a fork of the Struts
framework in the 1.1 version. The IZFE framework is divided into a series of
subsystems, with the listener, control and presentation subsystems being of the first
importance, as well as the business and the special security subsystems relevant in the
corporative environment. Once the guides and reference information had been
studied, an environment similar to that of IZFE was put in place.
101
Task 2. The development of use cases. Two applications were selected for the
administration of the framework. These applications were tested and run in a
simulated environment. Having these applications as a reference, the requirements
could be defined for a new application and reengineering techniques were used in its
implementation. During this phase, unitary components were identified, which could
be used as parametric components in the metamodel.
Task 3. Creating the metamodel. The objective of the metamodel is to create a
system with simplified architecture, which meets the requirements of the IZFE
framework. To reach this simplified level, the components that the framework offered
were mapped out to a model more inclined towards the MVC pattern [14], in which
the domains are clearly defined and focussed on the functions of self contained web
applications. With this simplification, we managed to reduce the elements of the
MDA architecture which should be in place in order to create a more integrated
application. It also permits a better distribution of the work needed to be done in the
specialised areas, dividing the knowledge between different people that made up the
team. The following domains and /or layers were defined: the initialisation, view,
business logic, and persistence domains.

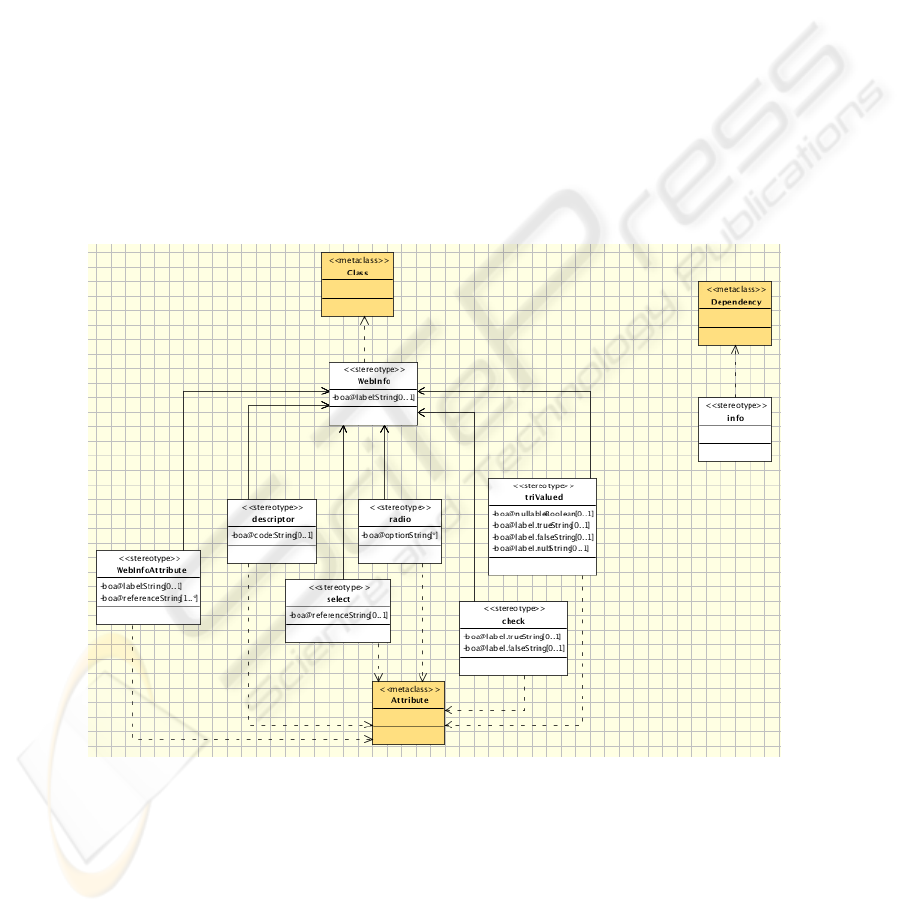

Fig. 2. Sample piece of the IZFE framework metamodel.
Task 4. Cartridge Construction. At this stage the objective proposed was the 100%
code generation. This considerably increased the complexity of the problem, above all
in the definition of the business logic. In order to reach this objective, state diagrams
were used, incorporating into these states action semantics [1] which are described in
102
the specifications 1.5 of the UML. To reach this approximation, Action Specification
Language was employed (ASL) [2], and with certain modifications a grammar and a
parser were developed, using a compiler from the SableCC [15] compiler. In this way
a cartridge which generated completely automatic applications was obtained. Now the
IZFE, instead of programming these interfaces directly, uses the metamodels defined
in the UML in order to represent their needs graphically. The system is capable of
automatically generating codes from these diagrams.
4.2 CICS Environment
Task 1. Architecture study. The objective to be reached in this environment is the
running of complex programmes hosted in CICS through J2EE components. An
exhaustive study of this area was needed, due to the non-existence of any previous
development programmes with the requirements specified in this study. Two key
problems were identified, the communication with the EIS, and the formatting of
types between domains.
Task 2. Development of existing cases. To solve the communication problem, the
CICS ECI Recorder Adapter was used, put through the CTG (IBM CICS Transaction
Gateway). The second problem identified in Task 1 was solved using the JRIO [10]
library. Finally the minimum functions required were obtained through unitary tests in
order to validate the solution.
Task 3. Creating the metamodel. The metamodel was developed by identifying the
general functional components, and parametricizing the minimum information which
is needed by the models in order for the previous correct generation to be attained. All
this has been effected using as a reference the use cases which were put together in
previous times.
Task 4. Cartridge Construction. Finally the cartridge was implemented, due to the
fact that the code was automatically generated in the context of the platform, which
included a small unitary test. This cartridge contains a descriptor where the profiles
are defined with each of the stereotypes assigned to the corresponding templates.
Beforehand, the generated systems were checked. In this way, and using a generation
motor, the IZFE can describe the model graphically through simple UML diagrams,
and generate 100% the code needed for the connection of the transactional manager.
4.3 FileNet Framework
Task 1. Architecture study. FileNet is a document manager with the added functions
of workflow and with its own framework based on Struts. It has an API for Java
which allows access to practically all of its functions. IZFE has developed and
maintains a small simplified API which makes easier the running of the contents of
the organisation’s internal uses.
103
Task 2. Development of existing cases. Two extracts from two different applications
were selected which made use of the API of IZFE. Based on the examples provided
and using inverse reengineering, the common functions were extracted in real
scenarios. Finally a series of unitary tests were made in the IZFE’s environment.
Task 3. Creating the metamodel. The metamodel was developed by identifying
functional components that needed to be generalised, and then parametricizing the
minimum information needed to the models for their correct working. All this was
carried out using past existing cases as a point of reference.
Task 4. Cartridge Creation. For the construction of the cartridge each one of the
stereotypes were mapped out to the units of generation. A template was defined for
each unit of generation, which allows for a generator motor for the creation of codes.
The use of a cartridge allows, through the definition of UML diagrams, for the 100%
generation of an access code of the resource contents defined in the corresponding
document manager.
4.4 Unification of the Metamodels
The last stage defined in point 3 corresponds to then integration of the different
environments. This can be done at a web level using the IZFE framework.
Initially integration with CICS was planned. A metamodel was obtained and a
cartridge for the modelling independent of an actual programme, in which some entry
parameters were effected and some exit parameters were obtained. Beforehand, this
function was incorporated as another element, to be integrated into the metamodel
used in the design of the models which are generated for the IZFE framework.

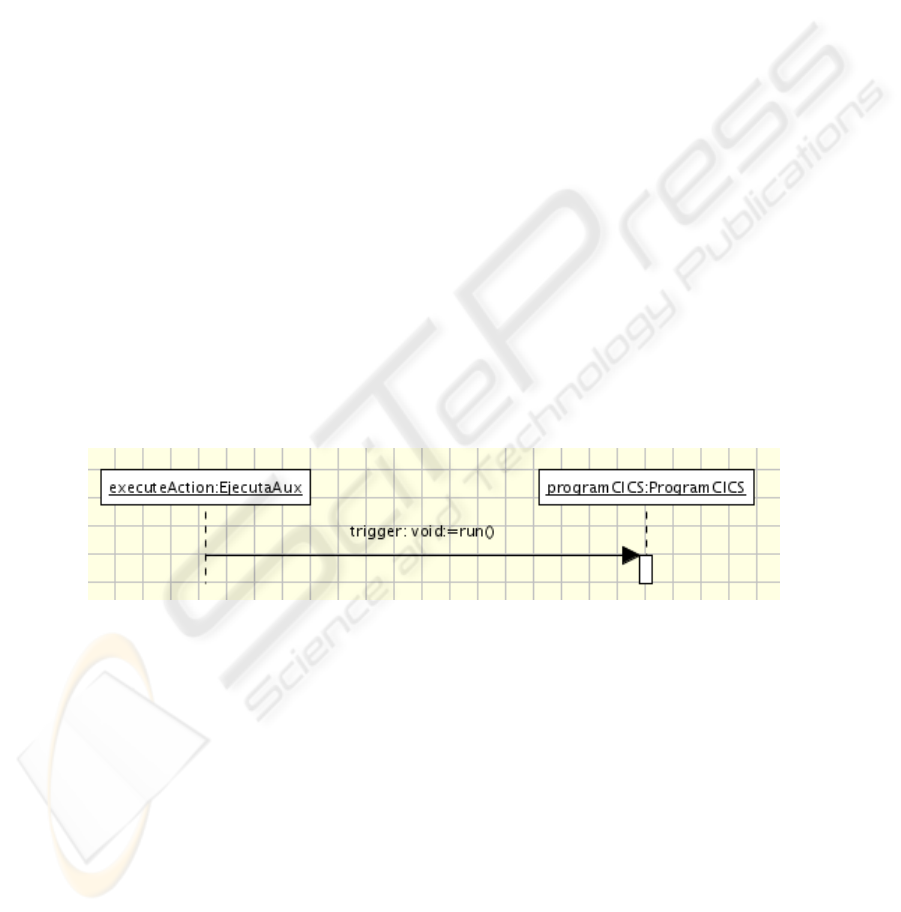

Fig. 3. Sequence diagram sample about CICS integration in IZFE framework in the view
domain.
Thus, two types of integration were accommodated in the IZFE framework
metamodel. One integration in the presentation domain, which permitted the use of
the CICS programme using a web form. A second integration was in the business
logic domain. This last integration was effected using state diagrams.
The integration with FileNet was approached in a similar way to the CICS. Once
the metamodel and cartridge have been created, they can be used independently and
in isolation, and be used along with the integration of the IZFE framework
metamodel. This implies an enlargement, not only in the persistence domain
(resource persistence), but also in the presentation domain. So a maintenance
104
environment has to be established, as well as the running of a general resource
manager, which in turn permits in a simple form the creation, modification, cleaning
and search for FileNet resources.
A two-step strategy for problem solving was used. The first step a complete system
was generated using a traditional model for IZFE framework. Beforehand, a system
generated to create templates was used, with a high abstract level, which in turn
allowed for the definition of a series of stereotypes, which simplifies even more the
definition of the integration models with FileNet. This strategy proved successful due
to the few cases of variation in the initial requirements in the use of the FileNet
resources.
5 Results Obtained
Using this system, an architect could construct a complete application, designing the
adequate models based on UML with profiles. In order to do this, it is not necessary
to be an expert in J2EE, nor in the IZFE framework, nor in CICS or FileNet; it is
enough just to have a basic knowledge of these technologies and in UML.
With the correct modelling, the engine on which the project is based is capable of
generating the total structure and codes needed for the start up and development of a
complete and full application of a J2EE server, as in the case of a Websphere
Application Server (WAS). This newly formed application is totally compatible with
the corporative IZFE framework, and could be used, in the business layer with
functions stored in CICS systems, or in the persistence layer, with defined resources
in the document FileNet database. All this can be achieved without inserting even one
line of code, and without being an expert in the technologies employed, solely by
simply correctly modelling through the UML diagrams.

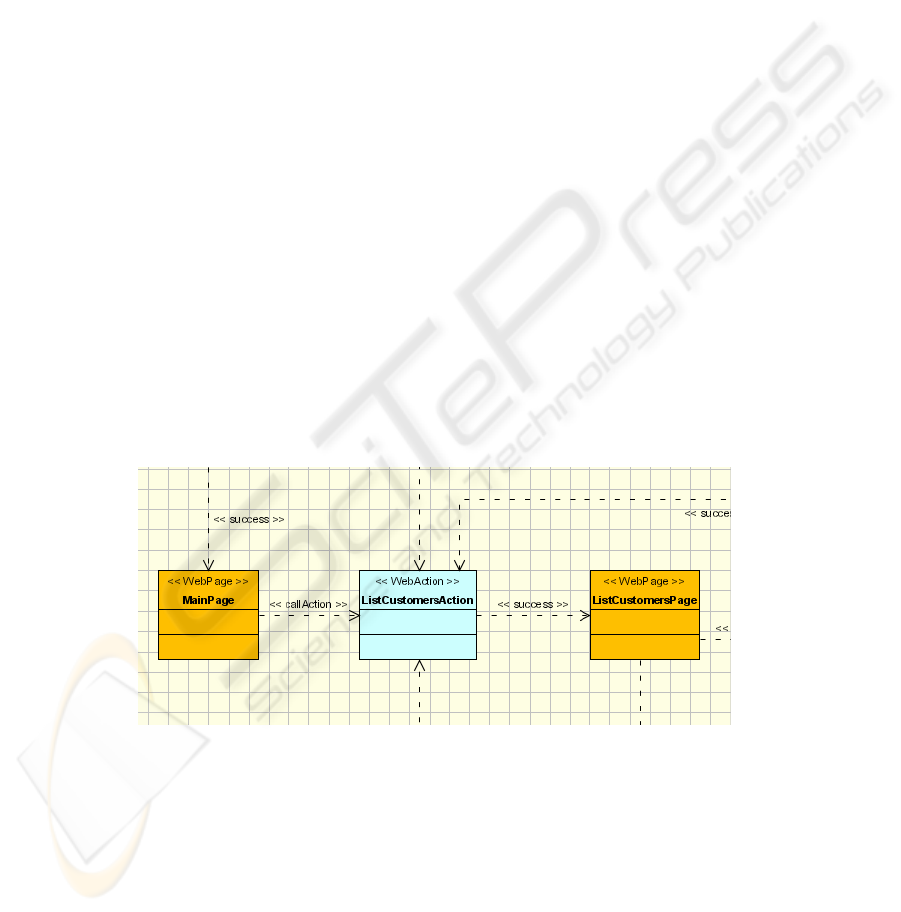

Fig. 4. Example of an actual model in the view domain.
It should also be noted that the persistence area of the business model in related
databases in the IZFE framework gives a free hand for those programmers who would
like to propose solutions that they feel are adequate to any given situation. We
therefore propose the use of Hibernate [6] for the running of this project as a viable
and efficient solution for the persistence of these objects with whichever database that
105
is being utilised. (in our case, DB2 ). This component was added, and then modelled
and run through an adequate cartridge. For the connection to the EIS, in this case the
CICS, we made use of the literature provided by JCA [9], where numerous references,
documents and up to date texts were consulted. And for the converting of data to
Cobol and vice versa, a crucial function in this area, texts and classes provided by
JRIO were used. The persistence of resources was also modelled using a FileNet
content manager. The metamodel had been sufficiently abstracted for it to be used
generally for other content managers, by solely modifying the cartridge.
Finally, it must be noted that on the completion of this project it was possible to
integrate all the previous metamodels into a common unified metamodel. With this,
the complete integration of specific environments has been reached which are
completely heterogeneous within a unified, efficient and ordered model, which in turn
allows for the development of new systems. Anyone developing these systems would
find a framework based on UML, with highly defined profiles in all three platforms,
which can lead to a higher level of abstraction, working independently from the
technological aspects.
6 Conclusions
This new paradigm in systems creation represents a big change in the traditional way
of working of the development teams in IZFE. A new methodology was embedded as
well as new work practices, along with the planning needed in the management of
change to the rapid adaptation of the new paradigm to take full advantage of the new
environment. The modellers of the new systems should possess a high degree of
knowledge of UML in order to work on the theory and creation of these systems.
Apart from the intrinsic advantages derived from a system based on an approximation
of MDA, we can also note:
The normalisation of the systems through UML models.
The integration of heterogeneous systems, which hide the complexities of each of
the technologies in question.
The development of one system only based on the Web.
The considerable rise in the quality of the systems developed, given that the codes
generated had been exhaustively tested.
The possibility of a rapid development of prototypes, which could be easily
converted into systems and final applications.
The improvement in the facility of implementing the persistence of the models,
independent from the continual technological change and evolution.
7 Future Proposals
For the future, we are working towards the adaptation and maintenance of the
cartridge that has been made, according to how the systems already integrated have
evolved (IZFE framework CICS and FileNet), as well as other technologies. Other
different cartridges can be generated for other programming languages apart from
106
Java (.NET for example), as well as the incorporation of other tools (Spring [16]) into
the corporative framework, or the interaction with other systems different from those
in place, which would mean a modification of the cartridges.
There is also the possibility of integrating the technology into portlets [11], a
challenge for the domain of our application. The portlet provided by Struts is
recommended in order to avoid any compatibility problems with the IZFE framework
controller.
In the MDA environment, it is worth noting the emergence and use of new engines
for code generation. In this case, a “translational” method has been used, where, apart
from the templates included in the corresponding cartridge, we also managed to put
the model designed into code. There also exists at the moment other methods known
as “elaborational”, where changes are made to models based on QVT [18]. This
method has a great future within MDA architecture.
References
1. Action Semantics Revised Final Submission. OMG document ad/01-08-04.SL
2. ASL – The Action Specification Language Reference Manual. http://www.kc.com
3. Brunton R., Brutzman D., Drake D., Hieb M., Morse K.L., Pullen J.M., Tolk A. : “Using
Web Services to Integrate Heterogeneous Simulations in a Grid Environment”, Lecture
Notes in Computer Science, Springer-Verlag Heidelberg (2004) pp. 835 – 847.
4. CICS – Customer Information Control System. http://www-306.ibm.com/software/htp/cics/
5. FileNet http://www.filenet.com P8 3.0.0 Documentation
6. Hibernate: http://www.hibernate.org
7. J2EE – Java 2 Platform, Enterprise Edition. http://java.sun.com/javaee/index.jsp
8. Jahnke, J.H., Wadsack, J.P. : “Towards Model-Driven Middleware Maintenance”, Proc. of
the OOPSLA 2002 Workshop on Generative Techniques in the context of Model-Driven
Architecture, Seattle, USA., November 2002.
9. JCA – J2EE Connector Architecture. http://java.sun.com/j2ee/connector/
10. JRIO – Java Record I/O. http://www-03.ibm.com/servers/eserver/zseries/software/java/jrio/
overview.html
11. JSR 168, portlet specification. http://www.jcp.org/en/jsr/detail?id=168
12. MDA – Model Driven Architecture. http://www.omg.org/mda/
13. MDSD – Model-Driven Software Development. http://www.mdsd.info/
14. MVC –Model View Controller pattern. http://java.sun.com/blueprints/patterns/MVC-
detailed.html
15. SableCC Parser generator. http://sablecc.org
16. Spring framework. http://www.springframework.org
17. Struts Framework http://struts.apache.org/
18. QVT – Query Views Transformations. http://www.omg.org/technology/documents/
modeling_spec_catalog.htm#MOF_QVT
19. UML – Unified Modelling Language http://www.uml.org/
20. XMI – XML Metadata Interchange. http://www.omg.org/technology/documents/formal/
xmi.htm
107
