Improving Intrusion Detection through Alert

Veriﬁcation

Thomas Heyman, Bart De Win, Christophe Huygens and Wouter Joosen

IBBT / DistriNet

Katholieke Universiteit Leuven, dept. of Computer Science

Celestijnenlaan 200A, B-3001 Heverlee, Belgium

Abstract. Intrusion detection systems (IDS) suffer from a lack of scalability.

Alert correlation has been introduced to address this challenge and is generally

considered to be the major part of the solution. One of the steps in the correlation

process is the veriﬁcation of alerts. We have identiﬁed the relationships and in-

teractions between correlation and veriﬁcation. An overview of veriﬁcation tests

proposed in literature is presented and reﬁned. Our contribution is to integrate

these tests in an extensible generic framework for veriﬁcation that enables fur-

ther experimentation. A proof-of-concept implementation is presented and a ﬁrst

evaluation is made. We conclude that veriﬁcation is a viable extension to the

intrusion detection process. Its effectiveness is highly dependent on contextual

information.

1 Introduction

The importance of computer security is increasing. Besides implementing security mea-

sures at the application level, operating system level and network level, there is also a

need for monitoring the protected infrastructure after deployment. This is what intrusion

detection systems (IDS) attempt to do: by monitoring local audit trails on a computer,

for example, host-based IDS attempt to detect local attacks. Network-based IDS, on the

other hand, attempt to detect attacks on the network they are monitoring.

In general, an IDS observes events and tries to detect signs of attacks. These attacks,

when successful, result in an intrusion. A correctly identiﬁed attack generates an alert,

called a true positive. Conversely, the absence of an alert in situations where no attacks

are executed is a true negative. IDS can make mistakes: an IDS can generate an alert

when no attack actually took place, this is a false positive. False positives are generated

because of insufﬁciently strict deﬁned rules in a misuse- or policy-based IDS, or an

insufﬁciently trained anomaly-based IDS, among others. The absence of an alert when

an attack did happen is a false negative. A non-relevant positive (or non-contextual

positive, [1]) is an alert generated because of an actual attack, but this attack could

never result in an intrusion, for example because the target is not vulnerable.

Intrusion detection systems are faced with four basic problems (as stated in [2]) that

need to be solved in order to make intrusion detection more scalable:

Heyman T., De Win B., Huygens C. and Joosen W. (2006).

Improving Intrusion Detection through Alert Veriﬁcation.

In Proceedings of the 4th International Workshop on Security in Information Systems, pages 207-216

 SciTePress

Too many alerts. IDS generate overwhelming amounts of alerts. Even in the case that

all alerts are correct (i.e. true positives), a deluge of low-level alerts severely de-

creases the usability of the IDS for the operator.

False and non-relevant positives. The alert stream contains a large fraction of false

alerts, both false and non-relevant positives.

Insufﬁcient diagnostic information. The generated alerts are at a semantically low

level: they do not provide sufﬁcient information to the administrator to allow him

to efﬁciently remedy the situation.

Low detection rate. The fourth concern is the detection rate, or false negative rate.

IDS still miss a fraction of the actual number of attacks, failing to generate alerts.

These problems, when combined, make it very easy to lose overview of what is

happening on the monitored infrastructure. While it is hard enough to try and get a

comprehensive overview of the current attacks and intrusions from a large amount of

low-level alerts containing lots of false and non-relevant positives, the presence of false

negatives further complicate matters. For instance, some key attacks necessary to com-

prehend the complete attack strategy of the attacker might have been missed by the

IDS.

Another issue is the amount of IDS sensors. Using a single IDS quickly becomes

impossible for larger infrastructures. One host-based IDS reaches its limit when more

than one system needs to be protected, the visibility of a network-based IDS is limited

to the local network. However, simply deploying more IDS is no scalable solution, as

this generates an over-abundance of alerts. The research community has developed a

category of methods to counter these scalability problems, i.e. alert correlation.

Alert correlation has some problems of its own. False and non-relevant positives

have a negative impact on correlation algorithms, as they might give rise to the genera-

tion of non-existent attack scenario’s [1]. This is what alert veriﬁcation tries to achieve:

it helps to improve the quality of alerts passed on to the later correlation steps. While

veriﬁcation is not a complete solution by itself, it is an indispensable element of corre-

lation that has not been studied in full depth.

We have studied the interaction between correlation and veriﬁcation, as well as

available methods proposed to verify alerts. The contribution of this paper lies in the

integration of veriﬁcation approaches in a generic, extensible framework for alert veri-

ﬁcation that enables experimentation. By using different heuristics, the relevance of an

alert (i.e. is the alert a true positive) is veriﬁed. A proof-of-concept implementation of

the veriﬁcation framework is presented and evaluated. From our preliminary results, we

conclude that veriﬁcation is indeed a viable extension to the intrusion detection process.

The rest of this paper is structured as follows. First, a generic architecture for intru-

sion detection is presented in Section 2, introducing the processes of alert correlation

and veriﬁcation. We then present a framework for alert veriﬁcation in Section 3 and

a proof-of-concept implementation. We discuss the status of our and related work in

Section 4 and we conclude in Section 5.

2 General Alert Correlation Architecture

In the ﬁrst part of this section, a brief overview of an intrusion detection architecture is

presented. The correlation and veriﬁcation components are situated in this architecture.

In the second part of this section, the use of veriﬁcation to counter the scalability issues

of intrusion detection is elaborated upon.

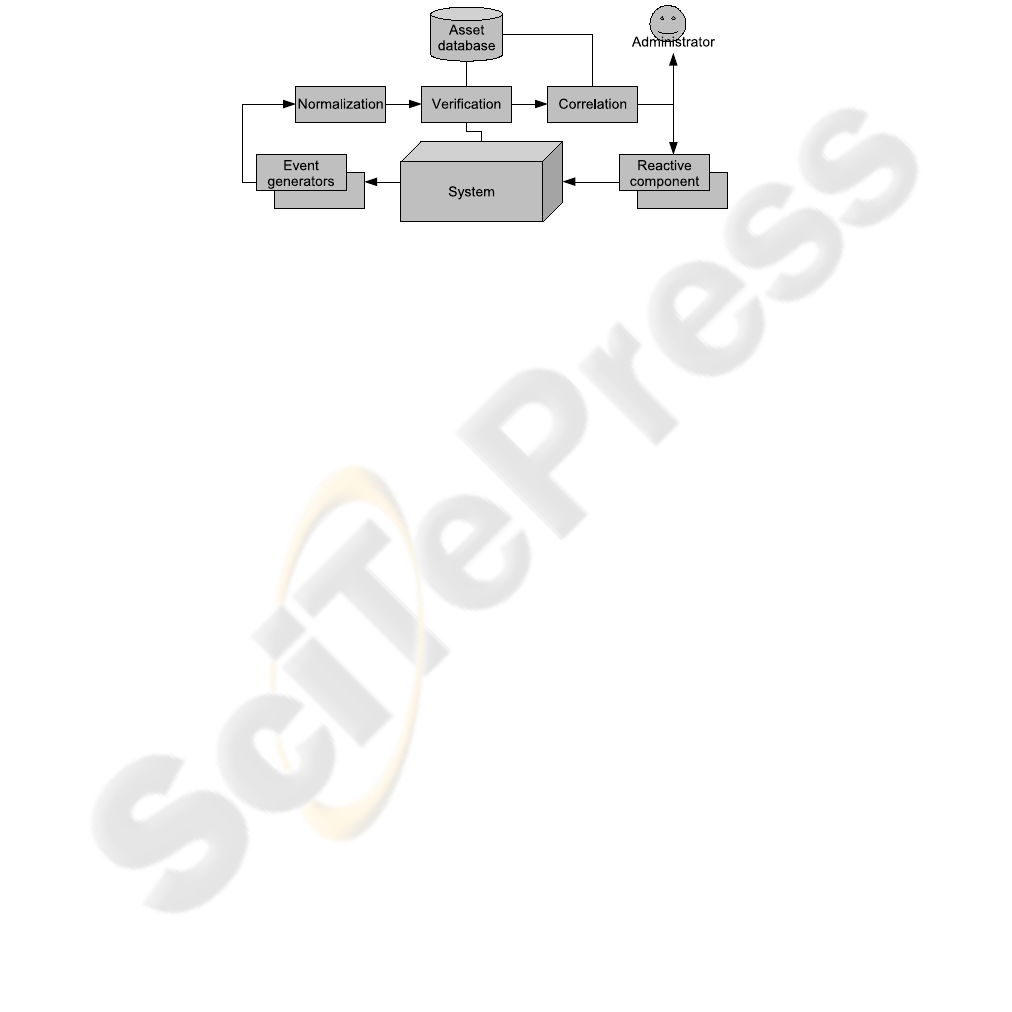

Fig.1. Generic intrusion detection architecture, supporting veriﬁcation and correlation.

A general intrusion detection architecture with veriﬁcation and correlation compo-

nents, is shown in Fig. 1. This architecture is loosely based on that presented in [1].

Events from the system being monitored are observed by different event generators.

The generators, low-level IDS, process these events looking for certain attack signa-

tures (in the case of misuse-based IDS) or anomalous behavior (in the case of anomaly-

based IDS). If attacks are detected, alerts are generated and passed to the normalization

component.

The normalization component accepts different alert formats from the heteroge-

neous sensors and outputs alerts in a normalized format — for example, the Intrusion

Detection Message Exchange Format, IDMEF [3], which is an XML-based format to

represent intrusion detection alerts. These normalized alerts are passed to a veriﬁcation

engine. This component tries to verify the alerts by distinguishing true positives from

false and non-relevant ones, based on information from an asset database and probing

of the system being monitored.

The asset database contains information on the the system being monitored. This

information includes: the hosts being protected, services offered, vulnerability informa-

tion, etc. It provides this information to the veriﬁcation component and the correlation

component. Asset data may be manually entered into the database, or gathered auto-

matically through various processes such as network and vulnerability scans. This data

may also be updated by the veriﬁcation component as a side effect of the veriﬁcation of

alerts.

The veriﬁed alerts are then sent to the actual correlation engine. Alert correlation

is the process of grouping and conceptually reinterpreting intrusion detection alerts. It

accepts (low level) intrusion detection alerts, generates groups out of these alerts and

can assign new meanings to these groups. The output is a lower number of alerts on

a higher semantic level (also called meta-alerts, [4, 1] e.a.). For example: independent

detections of strange network packets can be grouped and reinterpreted as one port scan.

A brief overview of correlation strategies is presented in Section 4.

The high-level alerts from the correlation component are then presented to the ad-

ministrator. Or, in the case of intrusion prevention systems that are able to actively react

to intrusions, the alerts can be fed to reactive components which then automatically

attempt to prevent the attack from resulting in an intrusion.

The correlation process, by presenting higher-level meta-alerts to the administrator

in stead of low-level sensor alerts, reduces the amount of alerts and is able to com-

plement them with diagnostic information. Some correlation methods are even able to

compensate for false negatives, by reasoning about attacks that might have been missed

by the IDS [5]. However, as mentioned, false and non-relevant positives still have a

negative impact on the correlation results.

Veriﬁcation, as an intelligent pre-processing ﬁlter in the alert correlation process,

separates false and non-relevant alerts from true positives, so that the actual correlation

algorithms are provided with true positives only (in the ideal case). By enhancing the

quality of the alert stream, it is a useful addition to every IDS: it helps to handle the

ﬁrst two IDS scalability issues and improves correlation results. Alert veriﬁcation is

not able to solve the other scalability problems, however. First of all, veriﬁcation does

not change the conceptual level of alerts. The low-level input alerts remain at their low

semantic level. Veriﬁcation is also unable to take false negatives into account. These

issues are handled by the correlation process.

Individual sensors are generally insufﬁciently aware of the context to decide if an at-

tack is likely to be real and could have resulted in an intrusion. The veriﬁcation process,

using information from the asset database or by actively probing systems or the net-

work, is not, and can make this distinction. In principle, even more contextual informa-

tion, like the security policy of a company, could be incorporated to distinguish between

attacks that the company does not deem important (i.e. port scanning an outside ﬁrewall)

and attacks that are. In this context, veriﬁcation can be used as a partial replacement for

a priori policy tuning of IDS

Veriﬁcation is able to handle intentionally generated false alerts, generated on pur-

pose by an attacker.

While all false alerts (both intentionally and unintentionally gen-

erated false positives, non-relevant positives) are detrimental to IDS, intentional alerts

should be especially avoided in intrusion prevention systems, as these systems are able

to actively try to prevent the attack from resulting in an intrusion. The prevention func-

tionality could be misused by an attacker to turn the IDS against legitimate users.

A priori policy tuning is the process of adjusting the conﬁguration of an IDS, before deploy-

ment, to the security policy of an organization.

For example, if alerts are generated for port scans, an attacker could misuse nmap

(http://www.insecure.org/nmap/), a popular port scanner, to fake the originating address or

generate decoys (−S and −D options, respectively).

3 Veriﬁcation Framework

3.1 Overview

In this section we present a framework for alert veriﬁcation: it accepts normalized ID-

MEF alerts, executes various veriﬁcation tests and outputs the same alerts with an added

plausibility p. This is a ﬂoating point value (p ∈ [0, 1]) that expresses the level of conﬁ-

dence in the alert: p = 0 is an indication that the alert is a non-relevant or false positive,

p = 1 suggests a true positive.

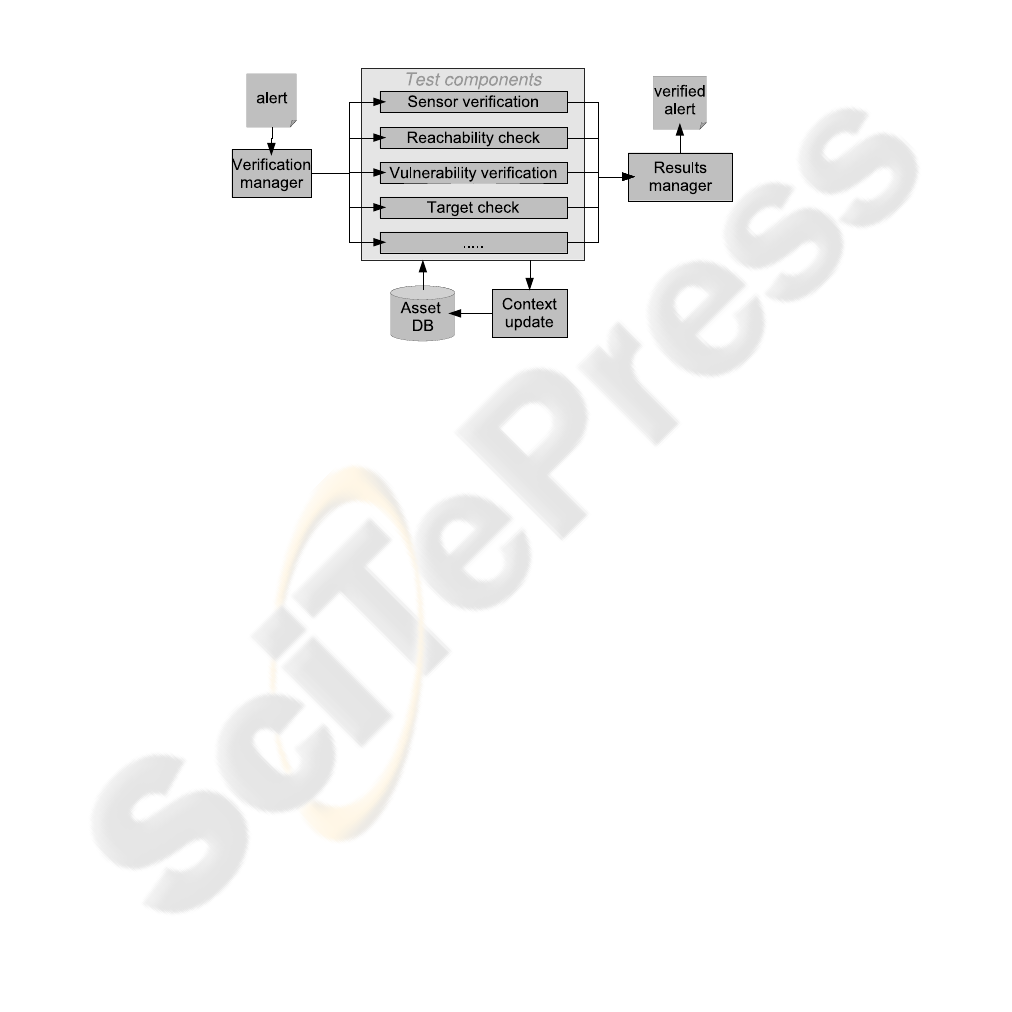

Fig.2. The alert veriﬁcation framework and implemented tests.

A high-level overview of the platform is depicted in Fig. 2. Normalized alerts (in

IDMEF-format) are accepted by the veriﬁcation manager. The alerts are passed to vari-

ous test components. Each test component attempts to verify a single aspect of the alert

to measure the likelihood that it corresponds to a true positive and assigns a partial plau-

sibility to the alert. This partial plausibility is also a ﬂoating point value in the interval

[0, 1], but can be simply 0 or 1 in the case of a boolean test. A test is not required to

produce relevant results in every situation. For example, the existence of vulnerabilities

can not be veriﬁed if the alert does not contain vulnerability references. In this case, a

test component is able to explicitly state that it is unable to verify the alert. A description

of the test components follows:

Sensor veriﬁcation: the sensor veriﬁcation test tries to verify the reliability of the sen-

sor that generated the alert. A sensor may be badly conﬁgured or compromised. By ap-

plying anomaly detection methodologies on the behavior of the sensor and optionally

correlating these results with the behavior of other sensors, conﬁguration problems or

misbehaving sensors can be detected. The test returns a partial plausibility approaching

0 for an unreliable sensor, or 1 for a reliable one.

It is also possible to take into account the conﬁdence an administrator has in a

sensor. For example, an administrator is able to express more trust in a hardened NIDS

that has been carefully tuned. On the other hand, an experimental HIDS on a non-

hardened host will be less trusted. By combining a static measure of trust in each sensor,

and observing alerts of attacks that target the originating sensor (taking into account

their plausibility), we derive a measure of conﬁdence in the integrity of the host of the

sensor and whether the sensor should be trusted.

Reachability check: this test attempts to check if the detected attack can reach the

target. If the asset database contains a model of the network, a passive check can be

made to ensure that the detected attack should be able to reach the intended target from

the point of detection, according to the model. This approach can ﬁlter out alerts of

attacks targeted at non-existing hosts.

The reachability check can also verify conﬁgurations of ﬁrewalls, proxies etc. to

ensure that the attack is able to reach the intended target. This info can be passively

gathered from the conﬁguration of these devices, or actively obtained using tools such

as ﬁrewalk (http://www.packetfactory.net/projects/ﬁrewalk/) among others, from the lo-

cation of the detecting sensor. In this test, the plausibility is discrete: p = 1 if the target

is reachable for the speciﬁed protocol and port, or p = 0 otherwise.

Vulnerability veriﬁcation: an important facet to distinguish true positives from non-

relevant ones, is the vulnerability of the target to the detected attack. This test attempts

to verify just that. Vulnerability data can be obtained using vulnerability scanners such

as Nessus (http://www.nessus.org/). This test also produces a discrete result: p = 1 if

the target is vulnerable, p = 0 otherwise.

Target check: the last test component attempts to verify the target of the detected attack.

Three aspects of the alert are veriﬁed: is the target host responding normally, are the

services offered by the target host responding normally and have any related alerts been

detected?

The ﬁrst two parts of the test check if the host is still responding, that all services that

should normally be provided are still responding as expected and that no new services

are found. The rationale behind this is that failed exploits sometimes crash a service or

even an entire host. When a host is compromised, however, usually back doors or illegal

services are installed. Information from the asset database is compared with results from

an nmap scan of the target: the services that the target should offer are compared with

those found. Anomalies result in p = 1, otherwise p = 0.

The third part of the test is able to verify if other, related, alerts have been detected.

In the ideal case, the veriﬁcation platform has a database with preconditions for each

attack (similar to the pre- and post-condition based correlation approaches), so that

possible preludes to an attack can be taken into account when verifying an alert cor-

responding to this attack. In our simpliﬁed approach, we only take the plausibility of

previous attacks targeted to the same host into consideration. If prior alerts with a high

plausibility have been detected, the maximum of this plausibility and the results of part

one and two of the test is returned.

Note that, although this test may beneﬁt from the same information as certain cor-

relation approaches (a list with pre- and postconditions for each attack), the purpose

of this test is not to correlate alerts. The information can be used by the veriﬁcation

component to verify if all preconditions necessary for a certain attack have been ful-

ﬁlled, besides allowing the correlation of this attack with other alerts in the correlation

component.

The test results are passed to the results manager. The results manager combines

these intermediate results using a results algorithm into a single ﬂoating point value.

Two categories of tests can be considered: tests that validate necessary conditions (e.g.

reachability and vulnerability of the target) and tests that check other indications of pos-

sible falsehood or non-relevance of the alerts (e.g. compromise of the detecting sensor

or anomalous results from the target check). While the latter provide extra contextual

information, the former should be satisﬁed. The asset database is updated with newly

gained asset information (from active scans by the veriﬁcation tests, for example), in

the context update.

The framework is extensible in the following ways: ﬁrst of all, new test components

can be added easily at runtime. An example of an extra test is mentioned in related work

(see Section 4). Another adjustable factor is the algorithm used to compute the ﬁnal

plausibility of alerts. While some algorithms are already provided (return the minimum

or maximum of the results of the test components, compute a weighted average), new

algorithms can be easily implemented and added. A third extensible factor is the asset

database: new contextual information on the monitored infrastructure is added easily,

enabling a more contextually aware alert veriﬁcation.

3.2 Proof-of-concept Implementation

We have implemented the platform in Java, using a MySQL asset database, the Con-

nector/J JDBC implementation and Apache Xerces to parse IDMEF alerts. The correct

operation of the platform is validated in a test setup with some sample attacks. Multi-

ple approaches are possible to evaluate the correctness and efﬁciency of the veriﬁcation

process, e.g. sets of off-line test data, like the DARPA sets

, deploying the veriﬁcation

platform in a simulated environment or use it in a live test setup. The active nature of

certain tests excludes the use of off-line test data, however. Therefore, preliminary tests

of the framework have been performed in a test setup.

To illustrate our veriﬁcation approach, test results of a sample alert are presented.

In our setup, a web server is protected by a ﬁrewall. Two network-based sensors (one

in front of the ﬁrewall and one behind it) and one host-based sensor on the web server

monitor the infrastructure and relay their alerts, in IDMEF format, to the veriﬁcation

platform. No further correlation is done. An alert is generated for a trinoo attack

. More

speciﬁcally: an attempt to contact a trinoo daemon is detected.

In the setup, the trinoo connection was blocked by a ﬁrewall protecting the web

server. Consequently, the target is marked as being unreachable for the attack and the

reachability test returns 0. The conﬁdence in the detecting sensor is 0.7. No irregular-

ities are detected by a port scan of the target and no other alerts have been detected,

http://www.ll.mit.edu/IST/ideval/data/data

index.html

Trinoo is a distributed denial-of-service attack. Trinoo daemons are installed on compromised

hosts. Afterward, a trinoo-master is able to remotely order these compromised hosts to execute

a denial-of-service attack against a speciﬁed target.

Table 1. Veriﬁcation results for the trinoo alert.

sensor target reachable vulnerable ﬁnal result

p 0.7 0.0 0.0 NO RESULT 0.107

therefore the target check returns 0. The vulnerability check does not produce results,

as the trinoo alert does not contain references to a vulnerability. A weighted combina-

tion of these results produces a ﬁnal plausibility of 0.107, marking this alert as being

likely false or non-relevant.

The quality of the results is highly dependent on the available asset information.

If no (or insufﬁcient) asset information is available, alerts are automatically given a

high plausibility to prevent the system from marking true positives as false. Because of

this, it is still possible that false or non-relevant positives receive a plausibility that is

indistinguishable from true positives, limiting the usefulness of verifying these alerts.

4 Discussion and Related Work

One of the major problems of intrusion detection is, as mentioned in Section 1, the in-

ability of (simple) IDS to distinguish relevant alerts from non-relevant ones. In essence,

the IDS is insufﬁciently context-aware to make this distinction. Veriﬁcation raises the

context-awareness of the intrusion detection process, by eliminating these non-relevant

alerts.

This context-awareness—extra information on the monitored infrastructure—is a

necessity to solve the intrusion detection scalability problems. The success of intrusion

detection is dependent on the quality of asset information, be it network topology infor-

mation, vulnerabilities etc. As we have seen, this information is used by the veriﬁcation

and correlation components. Also, extra information on attacks, like their pre- and post-

conditions, is required for some veriﬁcation tests and correlation methodologies.

As such, alert veriﬁcation and correlation do not completely solve the intrusion

detection problems, but shift them to the gathering of accurate information on the pro-

tected infrastructure and possible attacks. The accuracy of intrusion detection is pro-

portional to the quality of this information. The veriﬁcation framework allows to make

the trade-off between performance and quality of available contextual information for

the veriﬁcation process in a centralized and conﬁgurable fashion: the asset data could

be updated reactively, in response to a request for veriﬁcation of an alert. Conversely,

proactive scans could keep the asset information up-to-date at all times. In other situa-

tions, active scanning could be disabled altogether. The asset data could still be updated

by relying on passive techniques or information entered by the administrator.

Currently, there is no consensus on what the correlation process is and how it should

be implemented [1]. Multiple correlation strategies exist, for example: probabilistic

alert correlation [4], the STAT-framework [6], approaches developed by Ning et al. [7,

5,8], the CRIM-module of the MIRADOR project of the French defense department

[9] and statistical causality analysis [10]. A proposition for a general correlation model

is made in [1].

There is also no deﬁnitive answer to how veriﬁcation should be performed. Ideas

mentioned in other works include vulnerability scanning [1], checking network topol-

ogy and ﬁrewall conﬁgurations [11, 1], verifying the behavior of the target host and

service [1], administrator preferences [4] and veriﬁcation based on the absence of alerts

from other sensors that should have noticed the attack [2].

This last approach, as described in [2], uses a model of the network to infer and

compare two sets of IDS: the set of sensors that did detect the attack and those that

should have detected the attack, but did not—the potentially reactive set. Based on

this information, it is possible to distinguish false positives from true positives. This

approach is not able to detect the non-relevance of alerts, however.

Our work complements most of the above mentioned work. We focus on veriﬁcation

and enable the integration of the plausibility that an alert is a true positive as a factor in

the correlation process. Our future work on alert veriﬁcation will include searching for

a more optimal results algorithm to compute the actual plausibility of an alert, based on

intermediate results from the test components, and compiling a more exhaustive list of

veriﬁcation tests.

5 Conclusion

Intrusion detection suffers from scalability problems: IDS generate a large number of

alerts containing lots of false and non-relevant positives in the alert stream, the alerts

are of an insufﬁcient semantic level and the IDS still miss certain attacks. While these

issues can not be solved by deploying more intrusion detection systems alone, they can

be handled in combination with alert correlation. Veriﬁcation, as an intelligent ﬁlter

before the actual correlation algorithm, plays an important role by ﬁltering out false

and non-relevant alerts.

While general architectures for correlation and multiple correlation methodologies

have been proposed, no generic framework for veriﬁcation exists. We have developed

an extensible generic framework for alert veriﬁcation that allows for the integration of

different veriﬁcation tests, different results algorithms and contextual information on

the protected infrastructure, in order to enable experimentation.

Our contribution is to verify certain aspects of alerts, both necessary for the success

of the attack (i.e. is the target reachable and vulnerable) and aspects incorporating other

contextual information (i.e. is the sensor reliable and the target behaving abnormal). Our

ﬁrst experiences show that our approach enables a more effective distinction between

false and non-relevant positives on the one hand, and true positives on the other hand.

References

1. Valeur, F., Vigna, G., Kruegel, C., Kemmerer, R.A.: A comprehensive approach to intrusion

detection alert correlation. IEEE Transactions on Dependable and Secure Computing (2004)

2. Morin, B., M

e, L., Debar, H., Ducass

e, M.: M2d2 : a formal data model for ids alert cor-

relation. In: Proceedings of the 5th symposium on Recent Advances in Intrusion Detection

(RAID 2002). (2002)

3. Debar, H., Curry, D., Feinstein, B.: The intrusion detection message exchange format. Tech-

nical report, IEEE (2004)

4. Valdes, A., Skinner, K.: Probabilistic alert correlation. In: Recent Advances in Intrusion

Detection (RAID 2001). Number 2212 in Lecture Notes in Computer Science, Springer-

Verlag (2001)

5. Ning, P., Xu, D., Healey, C.G., Amant, R.S.: Building attack scenarios through integration

of complementary alert correlation methods. In: Proceedings of the 11th Annual Network

and Distributed System Security Symposium (NDSS ’04). (2004) 97–111

6. Vigna, G., Kemmerer, R.A., Blix, P.: Designing a web of highly-conﬁgurable intrusion de-

tection sensors. Lecture Notes in Computer Science 2212 (2001) 69+

7. Ning, P., Xu, D.: Learning attack strategies from intrusion alerts. Technical report, NC State

University (2003)

8. Ning, P., Xu, D.: Hypothesizing and reasoning about attacks missed by intrusion detection

systems. ACM Transactions on Information and System Security (2004)

9. Cuppens, F., Mi

ege, A.: Alert correlation in a cooperative intrusion detection framework. In:

Proceedings of the 2002 IEEE Symposium on Security and Privacy. (2002)

10. Qin, X., Lee, W.: Statistical causality analysis of infosec alert data. In: Proceedings of

The 6th International Symposium on Recent Advances in Intrusion Detection (RAID 2003).

(2003)

11. Chyssler, T., Burschka, S., Semling, M., Lingvall, T., Burbeck, K.: Alarm reduction and

correlation in intrusion detection systems. (2004)
