A Petri Net Based Methodology for Business Process

Modeling and Simulation

Joseph Barjis, Han Reichgelt

Georgia Southern University

P.O. Box 8150

Statesboro, GA 30460, U.S.A.

Abstract. In this paper we introduce a modeling methodology for the study of

business processes, including their design, redesign, modeling, simulation and

analysis. The methodology, called TOP, is based on the theoretical concept of a

transaction which we derive from the Language Action Perspective (LAP). In

particular, we regard business processes in an organization as patterns of

communication between different actors to represent the underlying actions.

TOP is supported by a set of extensions of basic Petri nets notations, resulting

in a tool that can be used to build models of business processes and to analyze

these models. The result is a more practical methodology for business process

modeling and simulation.

1 Introduction

Research into business processes has recently seen a re-emergence as evidenced by

the increasing number of publications and corporate research initiatives. Research

into business processes encompasses a broad spectrum of topics, including business

process design, redesign, modeling, simulation and analysis.

The reason for this resurgence in the study of business processes are not hard to

fathom. Although organizations have invested heavily in new IT applications, and the

software engineering community has worked diligently on producing new

methodologies and tools for constructing IT applications, the quality of many IT

applications remains poor (see, e.g., the articles in [7]). As organizations struggle to

ensure that their IT investments do indeed provide value, their focus is shifting

increasingly to the improvement, transformation and management of business

processes [9]. In the past few decades businesses, misguided by the belief that IT

alone will solve all their corporate woes, have overemphasized the role of IT in

gaining a competitive edge while underestimating the importance of a clear

understanding and critical analysis of their business processes. However, the tide has

shifted and the prevailing standpoint in recent publications suggests a much greater

focus on process-centric and process-driven organizations, where, by contrast, IT

becomes “second class citizen” and business processes take the lead. An extreme

proponent of this proposition is Carr [3], who argues that “the technology potential

Barjis J. and Reichgelt H. (2006).

A Petri Net Based Methodology for Business Process Modeling and Simulation.

In Proceedings of the 4th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages 3-15

DOI: 10.5220/0002504700030015

 SciTePress

for differentiating one company from the pack inexorably declines as IT becomes

accessible and affordable to all”. While Carr’s position was regarded as too extreme

by the majority of CEOs, CIOs, CTOs, as well as prominent academicians, there is a

consensus that Carr was right to point out that IT, in and by itself, does not provide

value. As Smith & Finger [10] put it, “IT doesn’t matter, business processes do.”

The renewed focus on business processes has led to the emergence of a large

number of computer supported methodologies for modeling, analyzing and designing

business processes. After all, following a well-established formal methodology will

help an analyst determine which business related information to look for and how to

represent this in a format that makes it easy to analyze and communicate with stake-

holders, such as end users, managers and so on. Unfortunately, none of the

methodologies that have emerged are entirely satisfactorily. Many either lack a clear

theoretical foundation. Although they often come with an easy to use notation, the

fact that they have no clear theoretical underpinning typically makes it hard to

objectively justify the models built in them. Others have a clear conceptual

foundation, but often lack an intuitive notation to construct and graphically represent

models in.

This paper tries to remedy this situation by proposing a methodology based on a

well understood theoretical foundation and containing an intuitive, easy to use

notation. Our methodology, which we will refer to as “TOP” for Transaction

Oriented Petri net methodology, is based on the concept of a transaction, which we

derive from the language action perspective (e.g., [5, 6]). A transaction is regarded as

a pattern of interactions between different actors, leading to a set of actions.

Transactions can then be strung together to produce business processes, or vice versa,

(complex) business processes can be analyzed as consisting of collections of (atomic)

transactions. In order to model these potentially complex webs of transactions, we

propose to use Petri nets. However, ordinary Petri nets are less likely to adequately

represent business processes. To this end, we contribute with a type of Petri nets that

has hierarchical structure and process boundary. More detailed discussion will follow

in the subsequent sections of the paper.

The organization of the paper is as follows. We first introduce the notion of a

“transaction” and trace its origins back to the language action perspective. We then

introduce transaction-oriented Petri nets. Finally, we introduce the TOP methodology

using an explanatory example.

2 The Transaction Concept

The central theoretical concept in TOP is that of a transaction. The term “transaction”

derives from the so-called language action perspective (LAP) as introduced in the

DEMO methodology [5]. The transaction concept is based on the idea that an

organization and its underlying business processes can be better understood through

the observation of communication between the members of the organization and the

organization’s interaction with its environment. Thus, this concept looks at

communication as a tool to capture action patterns that represent the business

processes. In this context, the notion of communication is not just an exchange of

information, but also includes the negotiation, coordination, agreement, and

commitment that lead to certain actions. In turn, these actions create new facts,

deliver results, and accomplish the mission of an organization.

LAP traces its origins to Searle’s speech act theory [8], which itself extended

earlier work by Austin [2]. Austin’s primary insight was that utterances have both a

constative aspect, i.e., they express meaning, and a performative aspect, i.e. they are

produced to achieve something. Winograd and Flores [11] used speech act theory to

develop a modeling approach that introduces the notion of “conversation for action”

as a sequence of communicative acts involving two actors. Dietz [5, 6] used the

Winograd and Flores approach to derive the concept of a business transaction and

made it the central concept in the DEMO methodology (Design & Engineering

Methodology for Organizations formerly known as Dynamic Essential MOdeling, or

Dynamic Essential Modeling of Organization).

In order to introduce the concepts of a transaction and business process, consider

the following, artificial, example:

A visitor calls a hotel’s reception to reserve a room. After being asked to

provide the details of the required room and the dates of his intended visit, the

visitor is asked to hold as the receptionist checks the availability of a room.

While the visitor is on hold, a piece of Mozart is played over the phone. After

a brief period, the receptionist gets back to the visitor and states that the hotel

has an appropriate room available for the dates required. However, in order

to confirm the reservation and give the visitor a confirmation number, the

visitor has to pay for the room by credit card. The receptionist therefore asks

the visitor for credit card information and, after receiving the information,

verifies the card and availability of sufficient fund with the credit card

company. Once the payment has been approved, the receptionist is able to

give the confirmation number to the visitor.

Business transactions are patterns of actions and interactions, as illustrated in

Figure 1a. The action is the core of a business transaction and represents an activity

that changes the state of the world and creates a new fact. An interaction is either the

initiation of an action or the communication of a fact as the result of the action. An

example of an interaction is a request made by one actor towards another actor that

leads to creation of a new fact. Other examples of interactions are clicking an “apply”

button, “submit” in an electronic form, or inserting a debit card into ATM to

withdraw cash. In the hotel reservation example, the visitor’s request for a room

reservation and the receptionist’s statement of the confirmation number are both

interactions; and reserving the room by the receptionist is an action. Thus a

transaction is interaction plus action (cf. Figure 1.b).

Action

Interaction

Transaction

OER

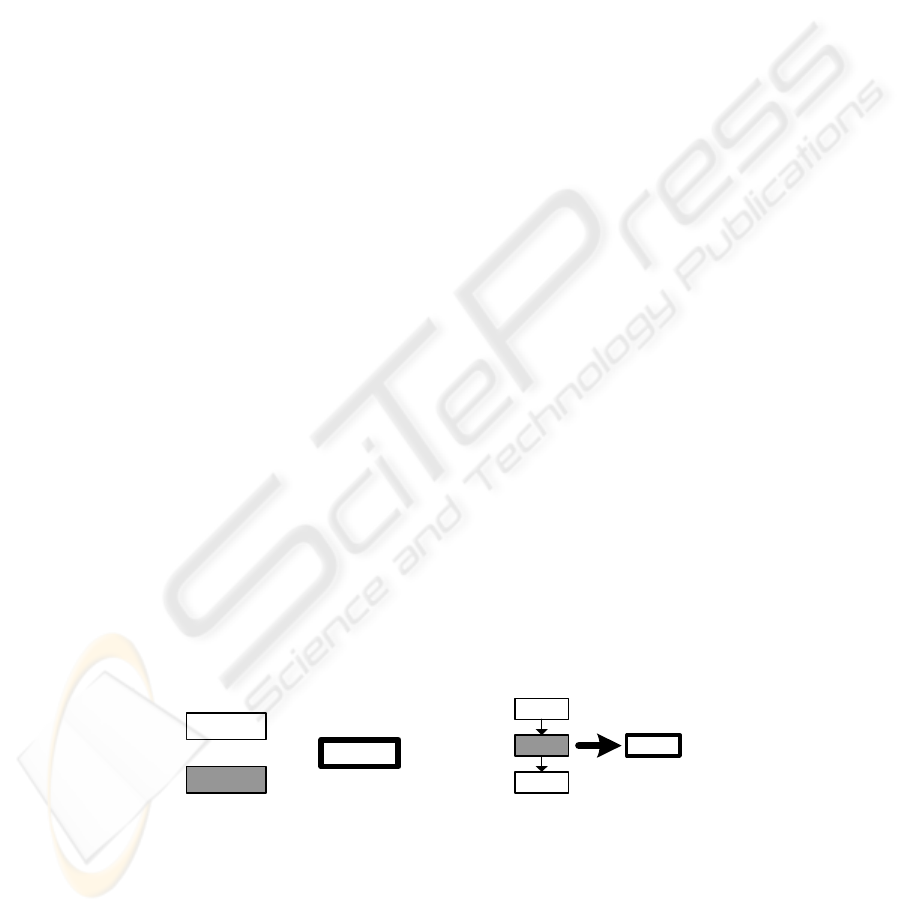

Fig. 1. a) The business transaction concept, b) The OER diagram (detailed and compact

notations).

Accordingly, each business transaction is carried out in three phases, the order

phase, the execution phase, and the result phase, corresponding to the first interaction

(when an action is requested), the action itself and the second interaction (when the

result of an action is communicated to the requester) respectively. The phases are

abbreviated as O, E and R correspondingly and are the basis of the OER paradigm, as

illustrated in Figure 2. Note that the order (O) phase and result (R) phase are

interactions and the execution (E) phase an action, therefore they are represented by

different colors.

We distinguish between simple and complex (composite) transactions. Business

processes typically consist of numerous transactions that are chained together and

nested into each other. Simple transactions do not involve, i.e., trigger or cause, other

transactions during their execution. In complex transactions, on the other hand, one or

more phases will trigger further, nested, transactions. Thus, in the hotel reservation

example above, the receptionist can only make the reservation after she has received a

credit card payment from the visitor. However, this transaction can only be

completed once the receptionist has made the necessary checks with the credit card

company. Thus, the “receive payment” transaction can only be completed once the

receptionist initiates a transaction with a credit card company and this transaction

maybe nested inside a larger transaction.

The hotel reservation example also illustrates that each transaction involves two

actors. By two actors we mean two interacting parties. The actor that initiates the

transaction is called the initiator of the transaction, while the actor that executes the

transaction is called the executor of the transaction. Actors can be human actors,

software agents or machines. For example, if the hotel reservation application is

submitted online, a software agent, rather than a human receptionist, will make the

hotel reservation.

This leads to the following series of definitions of the concept of a business

transaction:

Definition 1: A business transaction is a generic pattern of activity carried out

between two actors, an initiator and an executor. The activity is carried out in

three phases, the order phase, the execution phase, and the result phase, (OER)

in which the first and last phases are interactions and the execution phase is an

action. The activity creates a new fact and changes the state of the world.

Definition 2: A business transaction comprises two types of actions:

communicative action, which represents an interaction, and productive action,

which represents an action. An interaction is coordinating or negotiating the

essence of an action and communicating the result of an action. Thus an

interaction takes place twice, before an action is carried out and after an action

is carried out and a result is achieved.

Definition 3: A business transaction can have even deeper structure when it

nests further transactions. Thus the primary transaction is called composite (or

nesting) transaction and the embedded ones are called nested transactions.

Definition 4: A business transaction has a single start point and a single end

point. A transaction starts with a request by an actor and ends with a result

accepted by the same actor.

As the example above illustrates, the initiation, execution, or completion of a

business transaction may lead to initiation and execution of new transactions. In this

way transactions are chained into arbitrarily large structures, called business

processes [5].

This then leads to the following definition of the concept of a business process:

Definition 5: A business process is a network of interrelated business

transactions that delivers value to an external agent through the production of

products (goods or service).

3 Transaction-Oriented Petri Nets

Earlier attempts made to map a business transaction into Petri nets were made using classical

Petri nets [4]. However, the principles and features of the Transaction-Oriented Petri net adhere

to the same of standard (classic) Petri net as well as features of hierarchical Petri nets. The

extensions made are more towards suitability of Petri nets as a modeling technique for language

action based business process modeling, where processes have deep structure (nested

transactions).

3.1 Transaction-Oriented Petri Net Extensions

Although especially hierarchical Petri nets are eminently suitable for business process

modeling [1], we add a few minor extensions. The primary extension derives from

the fact that basic Petri nets do not allow one to model the fact that different parts of

the process being modeled take place in units that are somehow distinguishable.

Clearly, the ability to do is potentially of great importance in business process

modeling, as one wants to be able to distinguish between departments, and indeed

organizations involved in the same business process. Second, by introducing these

extensions it is made feasible to distinguish between an interaction (or communicative

action) and an action (or productive action). However, the most important reason of

the proposed extension is the very nature of business processes that have deep

structure (nested transactions). We therefore provide a simple extension to Petri nets

that allows analysts to address the mentioned issues. Figure 2 represents the set of

basic elements that we use in building Transaction-Oriented Petri Nets, and Table 1

gives description of each of the elements.

Start

Interaction

Action

Transaction

Composite

End

Link

Optional

Border

State

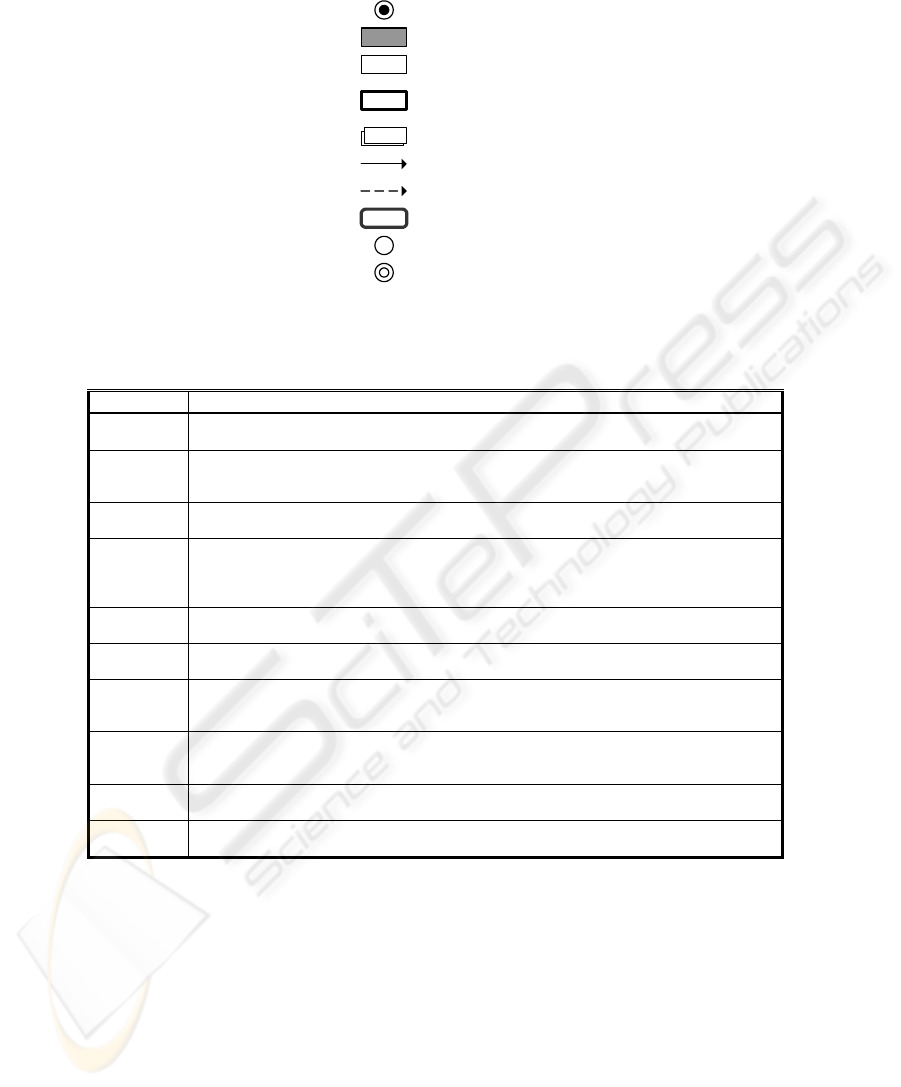

Fig. 2. Basic elements of TOP.

Table. 1. Elements in Transaction-Oriented Petri Nets.

Element Description

Start

A start represents a starting point for a process that leads to the creation of a new result or

a previously unknown fact. A start place is characterized with a token.

Interaction

An interaction represents the transfer of some information from one actor to another, e.g., a

request to perform some action, or a communication of the result of some action. In terms

of the OER model, both the Order and the Result phases are interactions.

Action

An action represents a production act when a certain result is created. The Execution phase

in the OER model is an action.

Transaction

A transaction encompasses the entire OER cycle. The introduction of a symbol for an

entire transaction shows that our notation is an example of a hierarchical Petri net. The

reason for the introduction is that it allows the modeler to abstract away from certain details

that he or she considers irrelevant to the model.

Composite

Transaction

A composite transaction is a set of transactions, and thus summarizes a sub-net. It is

useful if the modeler wants to hide certain details.

Sequence Flow

A sequence flow indicates the order in which interactions and actions are initiated and

performed.

Optional

An optional link represents a link that is neither a condition for proceeding nor it is essential,

but it usually takes place. E.g., in order to apply for a policy usually customers requests a

quote; relation of requesting a quote and applying for a policy is an optional one.

Boundary

A boundary illustrates the boundary of a business process (department or organization). It

is this feature that allows to model intra- and inter-departmental and intra- and inter-

organizational processes.

Intermediate

state

An intermediate state represents a result or state achieved after an interaction or action.

End

An end notation represents a termination point for a process, and thus represents the final

result of the process.

As Table 1 illustrates, the Transaction-Oriented Petri nets contain distinct

graphical elements for actions and interaction. Moreover, they include short-cut

notations for a complete transactions and composite transactions, consisting of a set of

transactions, and Transaction-Oriented Petri nets are therefore an example of

hierarchical Petri nets. The reason for introducing short-cut notations for complete

and composite transactions is to enable the modeler to (temporarily) hide details of

the model under construction. This feature is useful both when it comes to

constructing the model (modelers can temporarily ignore the details of certain

transactions as they concentrate on other transactions within the business process) and

when it comes to seeking feedback on a model under construction from a stake-holder

(hiding irrelevant information from stake-holders makes it easier for them to provide

feedback on those aspects of the model that are of more direct relevance to them.)

Since these are transitions in the sense in which the term is used in Petri nets, all are

represented by rectangles.

OER

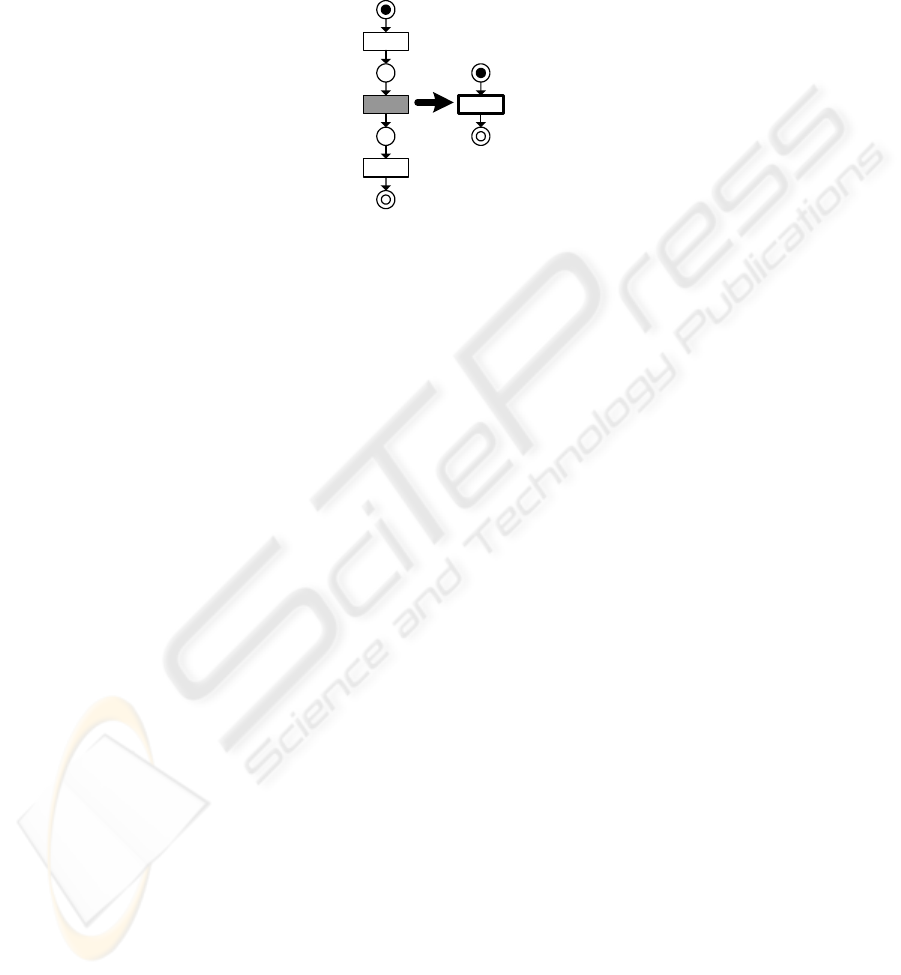

Fig. 3. The OER diagram using Petri net (detailed and compact).

A further extension is the inclusion of two special places, namely start place and

end place, to indicate where a process starts and terminates respectively. Because the

start and end place are special places, we represent them by additional marking on

circles.

A third extension is the inclusion of the boundary element. It is this element that

allows us to distinguish between intra-organizational and inter-organizational

processes. This element allows an analyst to model the interaction of one process

with another process within an organization or with the environment. This interaction

can be modeled with a set of places between the process boundaries.

The final extension concerns the introduction of an optional link. In standard

Petri nets, all input places must hold in order for a transition to be executed; otherwise

said, execution of a transition is guaranteed only whenever all its input places hold a

token. Optional links weaken this assumption and therefore allow the analyst to

represent situations where the transition is executed, even when a state represented by

its input places does not hold. For instance, in order to apply for a policy, usually a

customer requests a quote; however, it doesn’t prevent the customer to apply for a

policy, if she hasn’t requested a quote before. Thus, the relation of requesting a quote

and applying for a policy is an optional one.

In concluding this section, Figure 3 represents a business transaction both in

detailed and compact (compressed) forms and its three phases known as OER using

elements of TOP that we just introduced.

3.2 An Example of a Transaction-Oriented Petri Net

In order to illustrate Transaction-Oriented Petri nets, we build a partial model of the

hotel reservation example. Figure 4 represents the hotel reservation process at a very

high level, and simply shows the process as having a starting place and an end place,

and being conducted within the confines of the hotel, at least as far as the initiator is

concerned. Given the fact that the reservation process is a composite transaction

(involving further transactions), we use the notation of composite transaction to

represent this high level model.

hotel

Fig. 4. The high-level “Room Reservation” model.

However, a little thought will quickly show that the analysis is too simple. While

the visitor will initiate the business process, in order for the process to be completed,

the hotel must receive payment from the visitor. Paying is an action initiated by the

receptionist, who asks for the payment, but executed by the visitor. We therefore

have two transactions:

Transaction 1:

Initiator:

Executor:

Fact:

Transaction 2:

Initiator:

Executor:

Fact:

Reserving a room

Visitor

Receptionist

A room is reserved

Making payment

Receptionist

Visitor

Payment is made

Since the second transaction is triggered while the first transaction is being

completed, we have to expand our representation of the first transaction to make its

three phases explicit. Figure 5a illustrates:

hotel

T1/O

T1/R

T1/E

hotel

T1/O

T1/R

T1/E

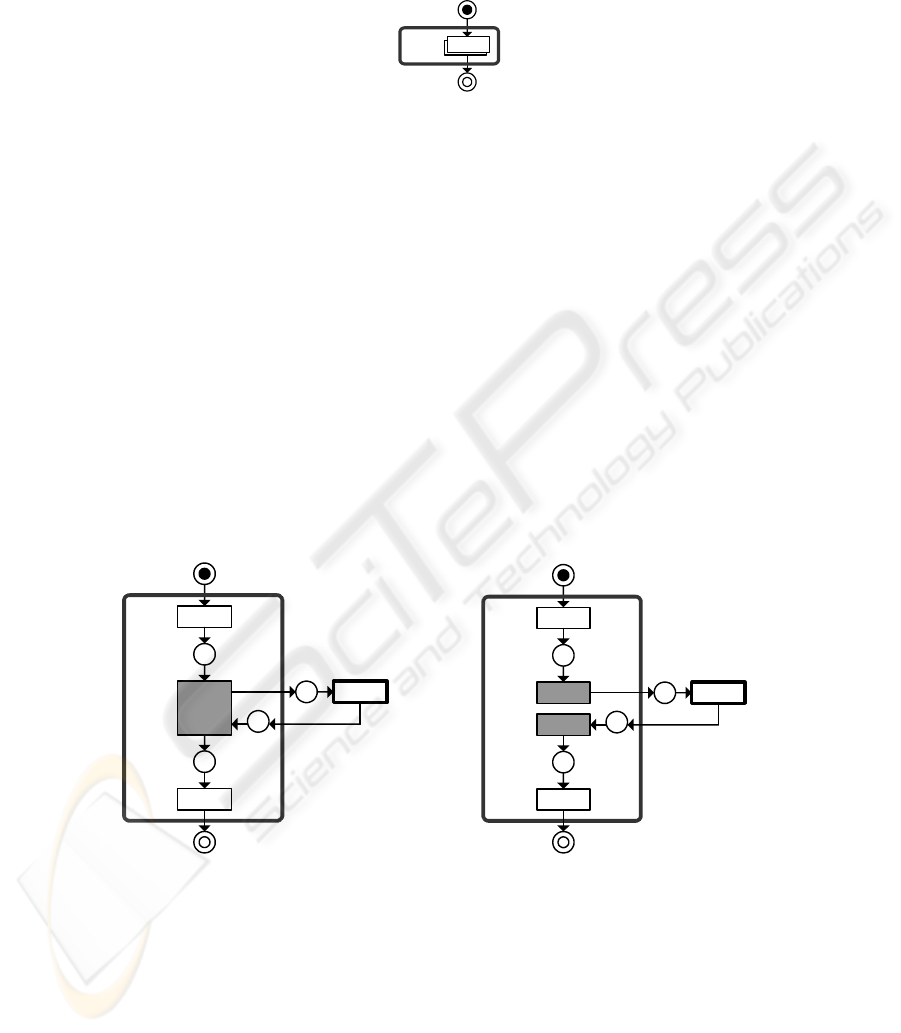

Fig. 5. a) The detailed “Room Reservation” model, b) Low level Petri net model of the “Room

Reservation”.

There is one further, but fundamental, clarification that is the core of TOP. This

clarification concerns the nested structure of TOP that makes it a suitable technique

for business process modeling based on the language action perspective. At first

glance, it may seem that the model in Figure 5a is defective because it does not

represent a clear sequence of actions. After all, in order for the process to be

completed successfully, Transaction 2 has to be completed before transition T1/E can

be completed. We therefore assume that if any transition calls a nested transaction

and the result of the nested transaction is needed for the completion of the nesting

transaction, the nested transaction has to be completed before the transition itself can

complete. Figure 5b illustrates this with more accurate syntax. In this figure TOP

model is mapped into low level Petri net as a proof of syntactic and semantic

soundness. The figure illustrates that T1/E phase starts immediately after T1/O is

completed; however for its completion T2 should be entirely executed.

Since the purpose of this explanatory example is to introduce TOP, let add some

more flavors of complexity and alterations to the hotel example. For instance, let

think that the receptionist should cancel an existing reservation before requesting

payment for the new reservation. In order to cancel an existing reservation, the

receptionist should interact with the reservation system (e.g., database). This will

change list of the transactions involved in the “Room Reservation” process:

Transaction 1:

Initiator:

Executor:

Fact:

Transaction 2:

Initiator:

Executor:

Fact:

Transaction 3:

Initiator:

Executor:

Fact:

Reserving a room

Visitor

Receptionist

A room is reserved

Canceling a reservation

Receptionist

Database

Cancellation is confirmed

Making payment

Receptionist

Visitor

Payment is made

Modified models of the “Room Reservation” incorporating the new transaction is

illustrated in Figure 6. In this figure both TOP model (a) and low-level Petri net

model (b) are illustrated.

hotel

T1/O

T1/R

T1/E

T2T3

hotel

T1/O

T1/R

T1/E

T1/ET3

T1/E

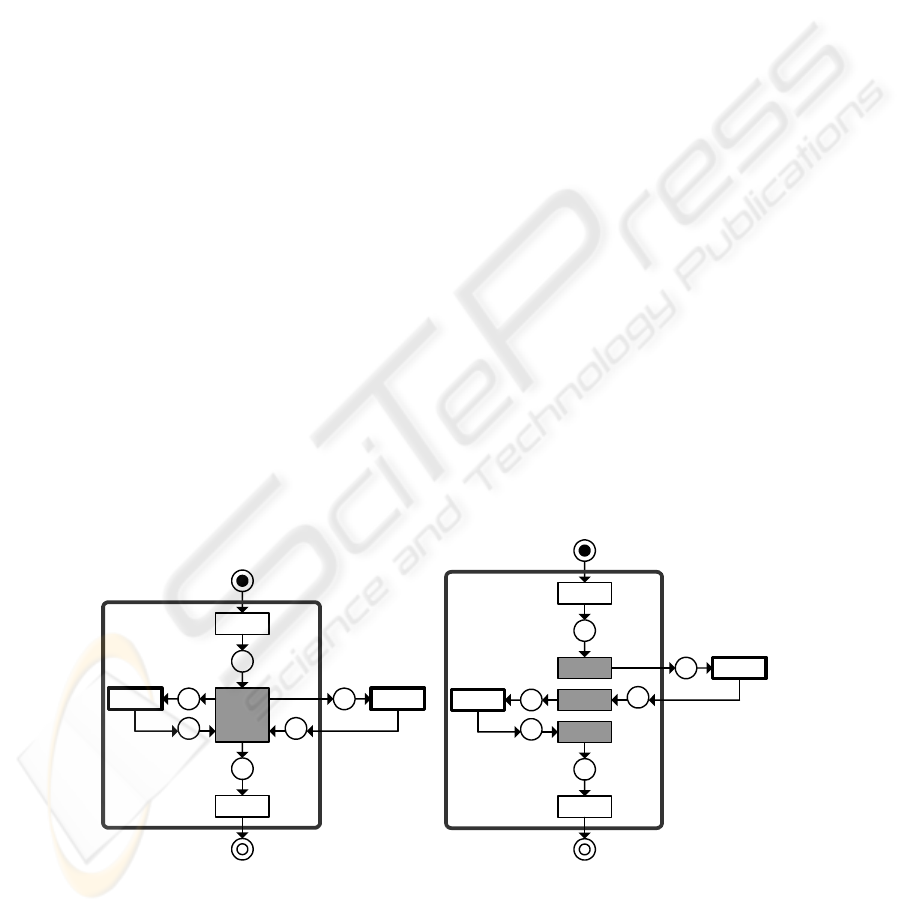

Fig. 6. a) Modified model of “Room Reservation”; b) and its low level Petri net model.

One final modification and then this introduction will be concluded. In the above

modified model we stated that the cancellation of existing reservation should take

place first before the receptionist can request for a payment. Let change it to a parallel

process where both transactions (cancellation and payment) can be executed in

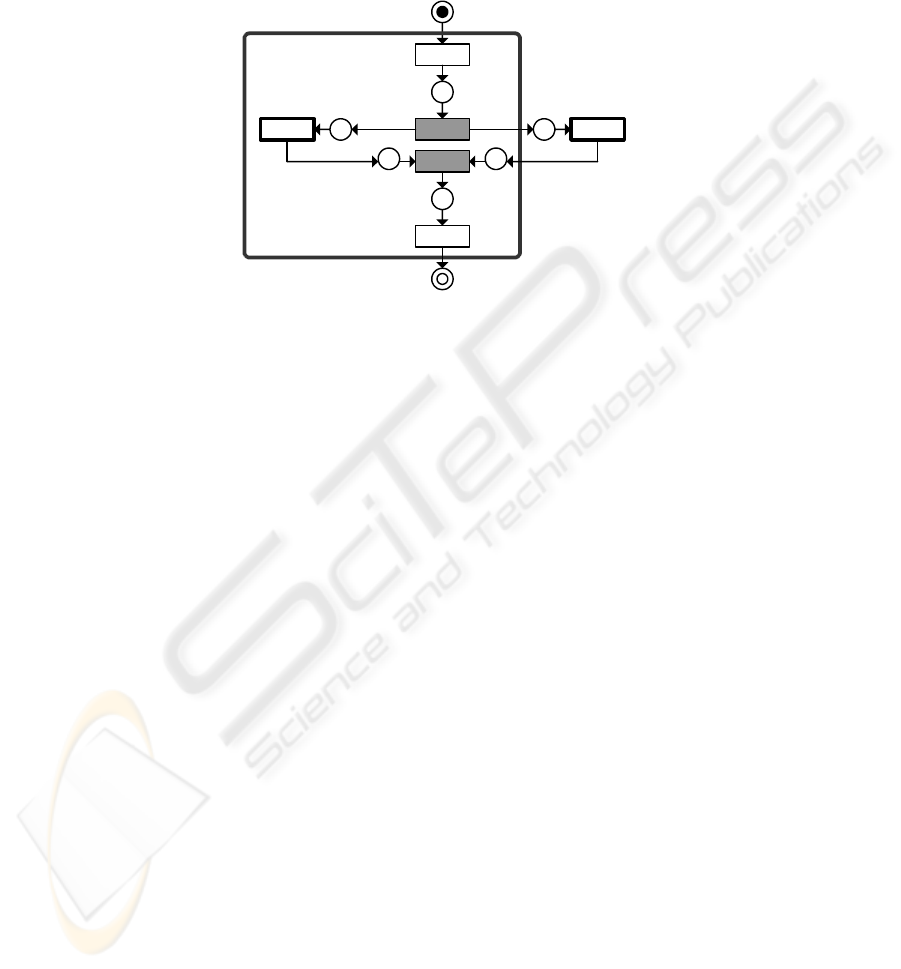

parallel as depicted in Figure 7.

hotel

T1/O

T1/R

T1/E

Fig. 7. Modified low level Petri net model of “Room Reservation”.

Based on the explanatory example and discussed notions, the following extended

definition of TOP can be formulated:

Definition 1: The Transaction-Oriented Petri net is a nested model that can

be completely mapped (or represented) into standard place-transition Petri net.

The TOP models both communicative action (interaction) and productive

action (action). The main building blocks of TOP are business transactions.

Each transaction is represented as a set of three transitions whereas each

transition corresponds to one of the three transaction phases (OER). Two of

these transitions represent an interaction and one of these three transitions

represents an action. Overall, TOP can be classified as a hierarchical Petri net,

but with some principal distinctions that are obvious from the example

introduced.

In the following section we describe the steps used within the TOP Methodology,

a roadmap describing all the phases and activities in each phase, for business process

modeling.

4 The TOP Methodology

As we stated in the introduction, most current methodologies for business process

modeling are deficient in that they either lack a clear theoretical basis, or an intuitive

easy to use and understand notational framework. The Transaction-Oriented Petri

Net-Based methodology TOP was designed specifically to provide both a clear

theoretical foundation and an intuitive notational framework. In this section, we

introduce the TOP methodology and illustrate its use through a simple case study.

The TOP methodology is a top-down design process that uses incremental

refinement to arrive at a detailed model of a business process. The business process

modeling process therefore starts with the identification of the major high-level

business processes that an organization is engaged in, such as order processing,

customer call processing, inventory control, admission to hospital, new member

enrollment, insurance claim processing. Once the major business processes have

been identified, they need to be described, based on internal documents used within

the organization (e.g., policy manuals, training material, and so on) and/or interviews

with for example the manager in charge of the specific business process.

The next step involves an analysis of each major business process as a network of

business transactions, each involving two actors and each bringing about a change in

the state of the system. In order to do so, one first identifies the basic transactions and

the actors involved in them before constructing a model using transaction-based Petri

nets. Given the hierarchical nature of transaction-based Petri nets, the construction of

the model may itself take place in a top-down incremental refinement fashion in that

the details of certain interactions or actions may initially be glossed over.

In short, the TOP methodology consists of the following steps:

1 Identification of major business processes (this will lead to a “big picture” of an

organization)

2 Definition of major business processes (this will lead to a series of detailed

pictures)

3 For each major business process,

- Identification of business transactions

- Description of business transactions

- Construction of Transaction-Oriented Petri net.

4.1 Application of the TOP Methodology

For better application of TOP for business process modeling, a real life example

should be considered. However, due to page restrictions per paper, an example of real

life system is studied and presented in a companion paper published in the second part

of this book.

5 Conclusion and Future Research

This paper has presented the TOP methodology for business process modeling. The

TOP methodology combines a sound theoretical grounding in the concept of a

transaction as developed within the Language Action Perspective with a powerful, yet

easy to use and read graphical notation in the form of Transaction Oriented Petri nets.

There are a number of avenues for future research that we intend to explore. First,

we will continue to use the TOP methodology to build additional models and to ask

others to do so too. As more models are constructed, we will get a better

understanding of the strengths and weaknesses of the current notation. While we

believe it is relatively easy to learn (a belief that is partly based on the fact that some

of our students have been able to use the TOP methodology to build business process

models), it is useful to put this belief to an empirical test. Further testing of the

methodology may also reveal weaknesses in our graphical notation. It may for

example be necessary to explicitly include the initiator and executor of a transaction.

Also, continuous development of models, certainly for organizations in a similar line

of business, will allow us to build a library of business processes. This in turn can be

used to identify best practices.

Second, until now our work has primarily concentrated on building static models.

However, one of the attractions of Petri net is that as model, once constructed, can be

used to simulate a business process as well, and we are currently working on software

that allows us to make our models “active” and run simulations. Since our main

graphical tool is based on the widely accepted Petri net notation, we expect to be able

to use an existing simulation package.

Third, a simulation package opens up an array of possibilities for future research.

For example, once we can “run” our models, and collect meaningful statistics about

them, it becomes possible to determine whether possible process changes are likely to

be beneficial to the organization. In other words, a TOP simulator will allow us to

determine whether a proposed redesign of a set of business processes is likely to lead

to improved organizational performance, thereby taking the guess work out of many

business process redesign exercises.

A TOP simulator may also provide a powerful tool that one can use to increase the

success of IT applications. It is well know that many IT applications fail not because

of technical reasons but because of “soft” reasons, including the non-acceptance of

the new application by end users or a mismatch between the processes that an

organization currently has in place, and the processes that would have to be

implemented if the IT application is to be successful. While the need to take

processes into account when it comes to implementing IT applications is generally

accepted, the continuing failure of many IT applications suggests that IT professionals

do not have a good handle on modeling how the introduction of an IT application

affects organizational processes. A TOP based simulator would see how a proposed

IT application is likely to impact the organization and to determine whether this

impact is likely to be positive or negative, and what measures have to be put in place

to increase its chances of success. This paper then merely presents a first step towards

a comprehensive set of tools and techniques that should help analyst in modeling,

simulating, and analyzing business processes.

References

1. Aalst, W. van der; Hee, K. van (2002). Workflow Management: Models, Methods, and

Systems, MIT Press.

2. Austin, J. L. (1962). How to Do Things with Words, Cambridge, Mass.: Harvard Uni Press.

3. Carr, Nicholas G. (2003). IT Doesn't Matter. Harvard Business Review, May 2003, 81(5)

4. Dietz J.L.G.; Barjis J. (1999). Supporting the DEMO Methodology with a Business

Oriented Petri Net. In the proceedings of the International Workshop on Evaluation of

Modeling Methods in Systems Analysis and Design, Heidelberg, Germany, June 14-15.

5. Dietz, J.L.G. (1999). Understanding and modelling business processes with DEMO. In the

Proceedings of the Annual International Conference on Conceptual Modelling, Paris,

November.

6. Dietz, J.L.G. (2002). The Atoms, Molecules and Matter of Organizations. In the

Proceedings of the Seventh International Workshop on the LAP, Delft, Netherlands, ISBN:

90-9015981-9.

7. Duggan, E. & Reichgelt, H. (2006) Measuring Information Systems Delivery Quality.

Hershey, PA: Idea Group

8. Searle, J. (1969). Speech Acts: An Essay in the Philosophy of Language, Cambridge, Eng.:

Cambridge University Press.

9. Smith, H.; Finger, P. (2003a). Business Process Management (BPM): The Third Wave.

Meghan-Kiffer Press.

10. Smith, H.; Finger, P. (2003b). IT Doesn’t Matter Business Processes Do. Meghan-Kiffer

Press

11. Winograd, T.; Flores, F. (1986). Understanding Computers and Cognition: A New

Foundation for Design. Ablex, Norwood.
