TASK MODELS FOR PROACTIVE WEB APPLICATIONS

Melanie Hartmann, Daniel Schreiber

Telecooperation Group, TU Darmstadt, Hochschulstr. 10, Darmstadt, Germany

Matthias Kaiser

SAP Research Center Palo Alto, 3475 Deer Creek Road, Palo Alto, CA 94304, U.S.A.

Keywords:

Intelligent User Interface, Task Modeling Language, Interface Agents, Human-Computer Interaction.

Abstract:

In this paper, we propose a task modeling language for augmenting web applications with a proactive user in-

terface (PUI). PUIs cooperate with the user to accomplish his tasks and facilitate the usage of web applications.

They provide user-sensitive support mechanisms and adapt the interface to the user’s needs and preferences.

Further, they can suggest which data to enter by inferring it from the context or previous interactions. For these

purposes, the required knowledge about the application is stored in a task model. We propose a task modeling

language that allows to easily enriching the automatically created initial task model with additional semantics.

We deﬁne requirements for such a language and show that none of the existing languages fulﬁls all of them.

As UML statecharts meet the most requirements, we use them as basis for our task modeling language. We

show the applicability of this language and the capabilities of PUIs by enhancing an existing web application

with a PUI.

1 INTRODUCTION

Web applications gain more and more functionality,

bit by bit reaching the complexity of traditional desk-

top applications. In addition, many desktop applica-

tions are complemented or replaced by their web ver-

sions. The increasing complexity of options mostly

leads to a decreasing usability of the interface. How-

ever, an intuitive and easy-to-use interface is of great

importance especially for web applications, because

the multitude of existing applications and their sim-

ple accessibility enable the user to switch easily to

another application. This can be achieved by adapt-

ing the interface to the user’s needs, by explaining

him how to use the application or by assisting the user

with his tasks by performing actions on his behalf or

by suggesting content for input ﬁelds. Proactive user

interfaces (PUI) aim at combining all these features in

an augmentation of traditional user interfaces. PUIs

are a special type of intelligent user interfaces or in-

terface agents that cooperate with the user to accom-

plish his task, and function as the user’s personal as-

sistant. We state that the main features of a PUI are

Support Mechanisms (provide online help that adapts

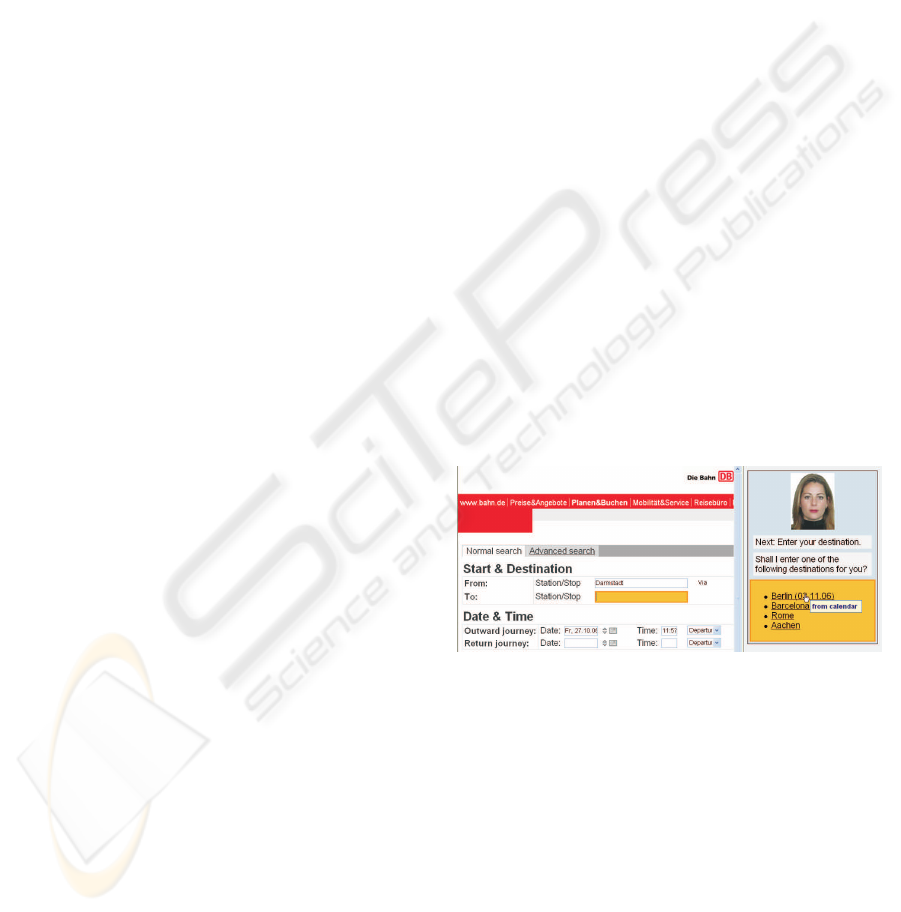

Figure 1: Screenshot of a PUI that assists the user in book-

ing a train ticket.

to the user and his current working context), Inter-

face Adaptation (adapt the provided options and con-

tent to the user’s needs and preferences), Content Pre-

diction (suggest data to be entered that is inferred

from previous interactions and context information)

and Task Automation (recognize usage patterns to au-

tomate repetitive tasks).

Support Mechanisms: An inherent problem in

user interface (UI) design is that it is hardly ever pos-

sible to build a UI that ﬁts the needs of all users and

provides everybody with the appropriate amount of

functionality. Thus, the application has to i) adapt to

150

Hartmann M., Schreiber D. and Kaiser M. (2007).

TASK MODELS FOR PROACTIVE WEB APPLICATIONS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Web Interfaces and Applications, pages 150-155

DOI: 10.5220/0001267201500155

 SciTePress

each possible user (see Interface Adaptation) or ii) of-

fer easy access to the whole functionality. The latter

strategy mostly forces the user to ﬁnd needed func-

tionality using trial and error. This can decrease user-

satisfaction, especially if the number of provided op-

tions gets too large. The traditional method to cope

with this problem is to fall back on classical sup-

port mechanisms like manuals or training courses.

The most signiﬁcant drawback of all these mecha-

nisms is that they only provide ofﬂine help, i.e., the

user is forced to interrupt his work to use them. Al-

though rational behavior would be to read the man-

ual up front as this saves time in total, there are psy-

chological factors preventing users from doing this

(Carroll and Rosson, 1987). Microsoft’s Ofﬁce As-

sistant presents a more advanced support mechanism

(Horvitz, E. et al., 1998), as it provides online help ac-

cording to the user’s current task. However, the Ofﬁce

Assistant does not adapt to the user’s needs and pref-

erences. Our research prototype proactively displays

online support information adapted to the user’s needs

and preferences in an unobtrusive manner as shown in

ﬁgure 1.

Interface Adaptation: As stated before, the other

way of overcoming the problem of providing the user

with easy access to the required functionality is to

adapt the provided content and options to the user. A

novice user should only be confronted with a basic set

of operations to reduce his cognitive load, whereas an

expert also needs quick access to more advanced op-

erations depending on his needs. These conﬂicting

demands make it difﬁcult to design a generic inter-

face that ﬁts the needs of all users and thus stress the

need for a user-adaptive interface.

Content Prediction and Task Automation:

A PUI also helps the user performing his task by

suggesting how to ﬁll ﬁelds and by automating

repetitive tasks. Therefore, we need a way to predict

the content for input ﬁelds based on knowledge

inferred from context information or from previous

user interactions. This content prediction mechanism

recognizes repetitive workﬂows and enables its

automation by providing a generalization of these

workﬂows.

An important issue for PUIs is that the user should

never feel losing control of the system nor should the

PUI hamper the normal usage of the application. For

these reasons, we use different levels of proactive be-

havior that can be determined by the user. For ex-

ample, the user can specify to what degree the PUI

acts autonomously (just provide suggestions or per-

form actions autonomously on behalf of the user) or

how much support he wants.

The PUI consists of three key components: the

Process Guidance that assists the user in performing

a task (e.g., by providing him with step-by-step in-

structions, by adapting the interface to his needs, by

using context and previous behavior to make sugges-

tions, or by automating repetitive tasks), the Gener-

ation of Justiﬁcations that helps the user understand

the system’s suggestions and thus induces trust in it

and the Generation of Explanations that explains

terms used within an application or why certain ac-

tions are necessary.

All these components need additional knowledge

about the web application to be able to provide as-

sistance that is not only based on observed behavior.

This knowledge is stored in task models. Ideally, this

task model is provided with the web application, oth-

erwise the PUI builds up the task model for the ap-

plication itself, and allows the user to augment it with

additional information.

PUIs can be built into web applications from

scratch or can be used as an overlay to existing web

applications. The advantage of an overlay architec-

ture is that it relieves programmers of web applica-

tions from integrating these features into every single

application. Additionally, it easily allows enhancing

legacy web applications and sharing knowledge be-

tween applications.

The remainder of this paper is organized as fol-

lows, in section 2 we give an overview of other in-

telligent user interfaces and how they gain knowledge

for providing support. In section 3.1, we list require-

ments for a task modeling language for PUIs. We dis-

cuss advantages and drawbacks of existing task mod-

eling languages. Next, we present our task modeling

language resulting from this discussion that is most

suitable for developing proactive web applications. In

section 5, we show the applicability of our task mod-

eling language for building PUIs by applying it to a

web application. We conclude with a summary and

directions for future work.

2 RELATED WORK

There exist two main approaches to intelligent user

interfaces: Learning interface agents (LIAs) that have

no prior knowledge of the task, and agents that are

based on a prebuilt model of the task. Maes, one of

the most prominent advocates for LIAs, investigates

agents that learn by observing a user working with an

application in (Maes, 1994). She states that agents

which result from such a learning process are better

accepted than pre-programmed expert systems, be-

cause they are personalized to the user. The agents’

TASK MODELS FOR PROACTIVE WEB APPLICATIONS

151

decisions and advices can be explained to the user

in an understandable manner, e.g., name the previous

observed actions of the user that now lead to the sug-

gestion.

In contrast, the importance of a prebuilt task

model is stressed by the Collagen project (Rich and

Sidner, 1998). Its goal is to build an architecture for

creating collaborating agents, that work together with

the user like human experts would. A task model is

used as the primary knowledge source for creating

the UI of the application as well as the corresponding

agent (Eisenstein and Rich, 2002). In Collagen, a hi-

erarchical task decomposition model similar to CTT

(Patern

o et al., 1997) is used. As the agent has to

be created together with the application, the approach

lacks ﬂexibility. Moreover, learning patterns that in-

volve multiple applications is difﬁcult with such an

approach.

Closely related to our work on task models for

web applications is the AGUSINA (Amandi and Ar-

mentano, 2004) project that also bases on a prebuilt

task model. Amandi and Armentano develop an ar-

chitecture for separating the agent from the applica-

tion it works on. This is done by using a modiﬁed

CTT model as application description. Their agents

can offer advice or take actions on behalf of the user.

The programmer has to specify when to perform these

actions by providing a mapping from encountered sit-

uations to the action to take. How and if the created

agents learn to enhance themselves is not described in

the paper.

In our opinion, the best support can be achieved by

combining LIAs with task model driven approaches.

LIAs need no modeling of the application in advance,

and thus can be easily applied to various applications.

However, even Maes concedes in (Maes, 1994) that

some minimal background knowledge has to be given

to the interface agent. We conclude, that we should al-

low the developer of the application and also the end-

user with minimal technical knowledge to enrich our

PUI with as much knowledge as he is able and willing

to provide. To encode this knowledge, we need a task

model, which has to meet several requirements that

are discussed in the next section.

3 ANALYSIS OF EXISTING TASK

MODELING LANGUAGES

The task model of an application is composed of the

interaction elements of the application. In the case of

web applications these are the different form elements

and links. It has to be easy to understand and update

and has to support constructs for additional semantic

information (like dependencies between elements) in

a machine readable way. Thus, we deﬁne the follow-

ing requirements for a task modeling language suit-

able for PUIs:

• R1: Understandability. The resulting task mod-

els have to be comprehensible for the application

designer and for the end-user with minimal IT ex-

perience. The easier it is to add additional seman-

tics, the easier it is to improve usability beyond

the state reachable with pure machine learning.

• R2: Incremental modeling. PUIs may not de-

pend on up front semantic modeling, because not

every goal or usage is known during design-time

and therefore can not be modeled. Thus, the task

modeling language has to support adding seman-

tics later.

• R3: Conditions. Conditions refer to any require-

ments the application imposes on the entered data.

This information is used to help the user achieve

his goal by telling him which data he still has to

provide and which actions he has to perform. For

example, a customer relationship management ap-

plication may require that a principal contact for a

customer is deﬁned before an email can be sent to

this customer. The PUI uses this knowledge to au-

tomatically guide the user to the contact creation

mask accompanied by an explanation, in case the

user tries to send an email to a customer without

principal contact.

• R4: Dependency relations. The interaction or

the data entered into an application can depend on

previously entered data, external sources (context

information) or on other user interface elements,

e.g., a certain choice may depend on the current

location. This restricts the amount of data that has

to be considered for predicting data and recogniz-

ing usage patterns.

• R5: Mapping to UI. The elements of the task

model have to be connected to the elements of the

UI. This enables the PUI to map user’s actions in

the normal UI to the task model. This mapping

must be easy to generate to gain wide adoption.

• R6: Mapping to ontology. Finally, the elements

of the task model should be mapped to an ontol-

ogy to allow the creation of user understandable

explanations like in (Wilcock and Jokinen, 2003).

This mapping can also be used to gain additional

information, like inferring conditions (R3) (e.g.,

required ﬁelds for a valid postal address) or de-

pendencies between elements (R4).

WEBIST 2007 - International Conference on Web Information Systems and Technologies

152

Figure 2: Components of our task modeling language.

3.1 Existing Task Modeling Languages

In this section, we analyze how existing task model-

ing languages perform with regards to these require-

ments. We brieﬂy discuss GOMS, STRIPS and CTT.

Further, we inspect UML as one of the most widely

used modeling languages. Although UML does not

have an explicit task model diagram, several diagram

types of UML can be used for task modeling. Here

we consider activity diagrams and statecharts.

GOMS GOMS (John and Kieras, 1996) represents

procedural knowledge required to operate a system

by stating its atomic operations like mouse move-

ments or time the user needs to come to a decision.

The model is used for studying and comparing perfor-

mance of existing user interfaces. They model much

more than just the interaction with the interface, there-

fore, the elements are too ﬁne grained for applying it

to PUIs.

STRIPS Logical formalisms like STRIPS (Fikes

and Nilsson, 1971) have the advantage of having well

understood semantics. They are often applied for ex-

pressing planning problems. The major drawback is,

that they are hard to visualize and understand for a hu-

man. Another problem is to consider external sources,

because their values do not change deterministically.

Thus, it is no appropriate representation for PUIs.

CTT The Concurrent Task Tree (CTT) formalism

(Patern

o et al., 1997) allows to structure work hierar-

chically using task / subtask relations. Sibling tasks

of the same level can be connected using various tem-

poral relationship operators. To avoid ambiguities in

the temporal constraints, it may be necessary to intro-

duce artiﬁcial super tasks which are of no value for the

user. These make the model harder to understand for

the user violating requirement (R1). Further, it is dif-

ﬁcult to model conditions (R3) and non-temporal rela-

tions between tasks, especially dependence on exter-

nal sources (R4). Incremental modeling (R2) is also

hard with such an approach, as often semantics can-

not be added by an edit at one place, and new tasks

have to be introduced.

UML 2.0 Activity Diagrams The semantics of

UML activity diagrams are based on Petri nets and

thus are well deﬁned. Activity diagrams support con-

ditions and dependencies (R3 and R4) in form of Ob-

ject Constraint Language expressions. However, they

do not offer a mapping to UI elements (R5) or to an

ontology (R6). Incremental modeling is possible with

activity diagrams (R2), as activities are non-atomic

and can be reﬁned. In form based web applications,

usually many activities can be carried out in an arbi-

trary order (e.g., ﬁlling out an address form starting

with ﬁrst or last name or shipping address). In order

to model this, every activity would have to be linked

to every other activity resulting in a model that lacks

easy understandability (R1).

UML 2.0 Statecharts Statecharts do not suffer

from this problem, as web pages can be represented

as states and the available actions on this page

as transitions. Statecharts allow the modeling of

conditions by guard expressions on transitions

(R3, R4). Incremental modeling is possible (R2),

e.g., the guard expressions of transitions can be

transformed into states and transitions themselves.

One drawback of statecharts is that it is not possible

to refer to user input from previous interactions.

Further, as activities are just modeled by transi-

tions without attributes, it is particularly difﬁcult

to map UI or ontology elements to activities (R5, R6).

Although workaround solutions to meet the re-

quirements exist for most modeling languages, e.g.,

by modeling every additional piece of information as

extra attribute, these should be avoided, as they intro-

duce unnecessary complexity into the resulting mod-

els which decreases understandability and thereby vi-

olates (R1). Hierarchical task decomposition is not

essential for the user’s cognitive model of a web ap-

plication, because web pages are seldom organized hi-

erarchically and we just need one level of granularity.

To build task models suitable for PUIs for web ap-

plications we propose a new task modeling language,

without focus on hierarchical task decomposition. As

TASK MODELS FOR PROACTIVE WEB APPLICATIONS

153

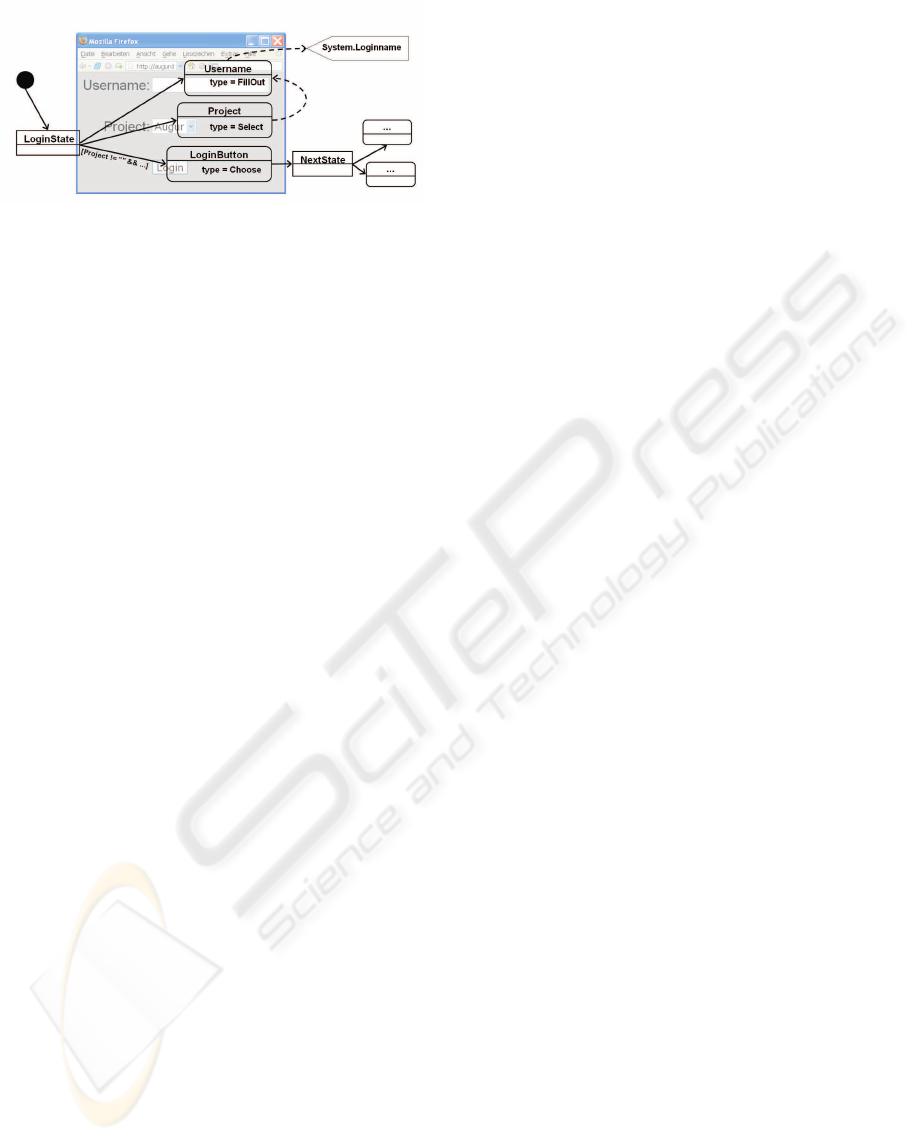

Figure 3: Graphical representation of the task model with

underlying web page.

UML statecharts miss only few requirements and are

the most intuitive, we chose to build upon them and

augment them with activities with richer semantics

(e.g., mapping to UI elements or an ontology) as de-

scribed in the next section.

4 TASK MODELING LANGUAGE

FOR PROACTIVE UIS

We chose a task modeling language with a graphical

representation, because it is easier to understand (R1).

Task models can be represented as directed graphs

where the nodes represent states and activities, us-

ing a mixture of statecharts and activity diagrams (see

ﬁgure 3). We distinguish between states and activi-

ties, because this maps naturally to the user’s view of

a web application where states represent web pages,

and activities the different interactors on the page.

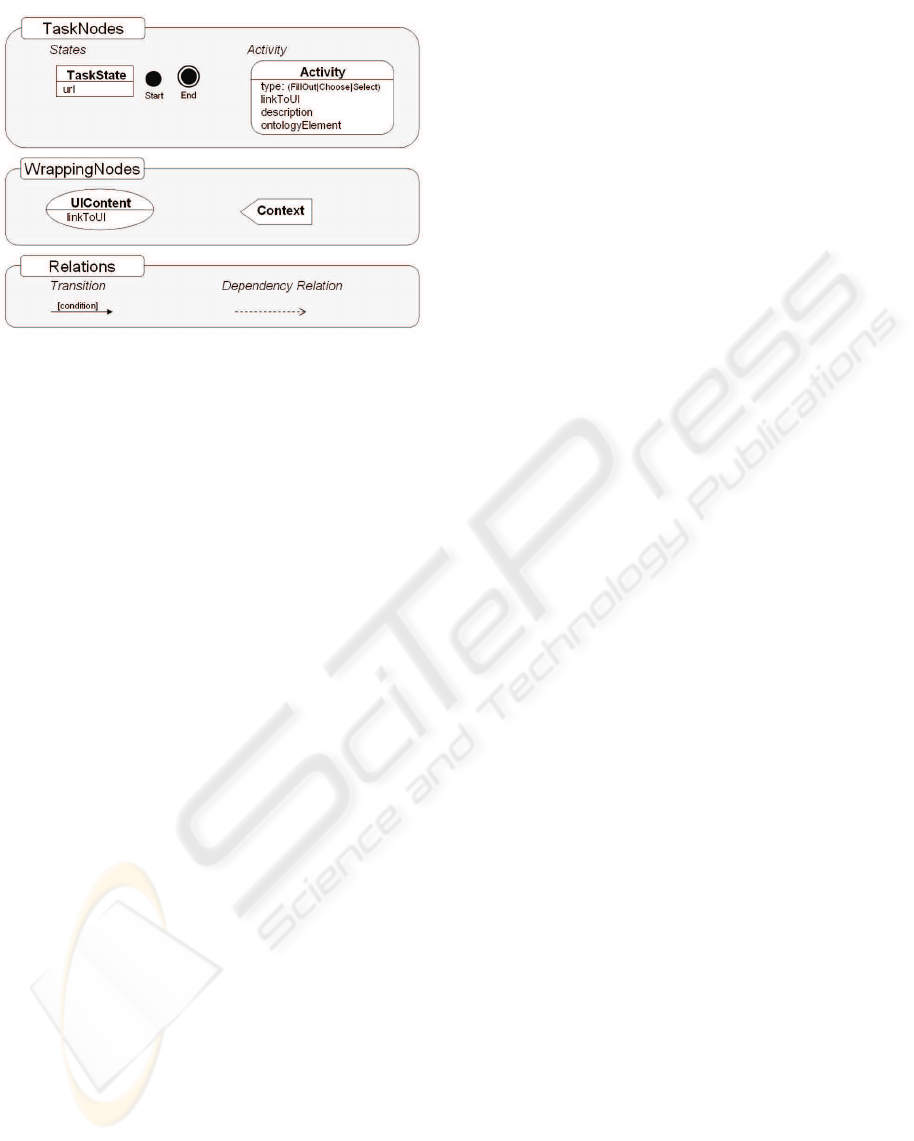

An overview of the node types and attributes of

our task model can be found in ﬁgure 2. We illus-

trate the elements of our task modeling language with

a simple example: A login page containing an input

ﬁeld for the username, a drop down menu for select-

ing the project to work on and a “Login”-button for

submitting the data (see ﬁgure 3).

We distinguish three different types of states, the

start and end state, representing the start and end of

a task without referring to a speciﬁc web page, and

the task states that refer to a web page. Further, we

model three types of interactors: FillOut (input ﬁeld

for arbitrary text), Choose (clickable UI element) and

Select (select from a set of predeﬁned items). In our

example, we would model the input ﬁeld for the user-

name as FillOut interactor, the drop down menu as

Select interactor and the “Login”-button as Choose

interactor.

The state nodes are linked via transitions to ac-

tivities corresponding to the input elements on the site

represented by the state. The activity nodes again are

linked to the state the user reaches when performing

the activity. In the majority of cases, this is the same

state as before and the transition from the activity to

the state can be omitted in the graphical representa-

tion.

Each activity node is coupled to a UI element

via its linkToUI attribute stating the corresponding

XPath expression (R5). Dependency relations are

also modeled as attributes of the activity nodes (R4).

In general, the input of activity nodes can depend

on other activity nodes, other UI elements and exter-

nal information gathered from context sensors. Thus,

we also need a way to represent additional UI ele-

ments and context data with our task modeling lan-

guage. For that purpose we introduce wrapping nodes

UIContent and Context for information that is not

directly related to the workﬂow process. The UICon-

tent nodes are also linked to the interface by XPath ex-

pressions. The Context nodes hold a reference to the

corresponding sensor. In our example, we model two

dependencies: the selection of the project is related to

the entered username, and the username corresponds

to the windows login name that can be retrieved from

a context sensor modeled as Context node.

Further, all activity nodes can be linked to an el-

ement in a common ontology which can be used to

generate explanations for these elements (R6). If

no ontology is used, the description attribute should

contain a short explanation of the element. Additional

factors that help guide the user through the workﬂow

of a task are conditions that state what has to be done

to be able to perform an activity (in our example the

was entered and a project was chosen) (R3). Condi-

tions are modeled as attributes of the corresponding

transitions.

All of the above mentioned attributes are optional,

but the more additional information is present the bet-

ter assistance can be provided (R2). The whole task

model for a web application can be partly automati-

cally created by the PUI by analyzing the interactors

on a webpage (Paganelli and Patern

o, 2003) or by ob-

serving the user’s interaction with it.

5 APPLICATION OF OUR TASK

MODELING LANGUAGE

In order to test our task modeling language, we built a

task model and a PUI for an existing web application.

We modeled one of the most frequently used function-

alities of the Deutsche Bahn website (German Rail-

ways, http://www.bahn.de): the booking process for

train tickets.

An example of the resulting website augmented

WEBIST 2007 - International Conference on Web Information Systems and Technologies

154

with a PUI is depicted in ﬁgure 1. The left frame con-

tains the normal website, and the right frame the PUI

displaying suggestions and explanations. In the ex-

ample, the PUI has identiﬁed the FillOut activity for

the destination as next step. The PUI guides the user

by highlighting the corresponding input ﬁeld of the

web application and by suggesting the user what to

do next in the PUI frame.

Further, the PUI suggests values to ﬁll in the form

element (for FillOut and Select activities). These val-

ues are derived from previous interactions or from

context sensors speciﬁed in the task model. In our ex-

ample, the PUI suggests four values to be entered as

destinations. The ﬁrst two of them are derived from

the user’s calendar and the remaining two from pre-

vious entered data. The source of the data is shown

as tooltip of the suggestions. Moreover, the user can

ask for more detailed justiﬁcations, including where

the data was derived from and why a suggestion was

made. Our example shows that PUIs go beyond sim-

ple form ﬁlling, e.g., by taking into account context

data. Our modeling language allows to deﬁne a sen-

sor which delivers the value and link it to the corre-

sponding FillOut Activity via the “dependencies” at-

tribute like in our case the calendar sensor. The user

still has the possibility to enter any other destination

on the website or take a different action. The new data

would then be observed by the PUI, and incorporated

into future advices. Thus, the PUI does not hamper

the normal interaction with the application.

In generating task models for the booking appli-

cation, our initial assumption that three activity types

(FillOut, Choose and Select) are sufﬁcient for model-

ing interactions could be conﬁrmed. We could also

show that it is possible to generate the initial task

model automatically with a tool we built for that pur-

pose. Further, it proved to be easy to enhance existing

task models with additional semantics, like links to

context data, as the corresponding parts of the task

model could be easily found with help of the graphi-

cal representation.

6 CONCLUSION

In this paper, we presented a step towards improving

the usability of web applications with PUIs by creat-

ing one important building block: the task modeling

language. We deﬁned requirements for such a task

modeling language, and showed that none of the ex-

isting approaches meets all our requirements. Thus,

we deﬁned a new language building upon statecharts

fulﬁlling all requirements. We demonstrated the ap-

plicability of our task modeling language with a pro-

totype that augments an existing web application with

a PUI.

Building on this task modeling language, we strive

to further enhance the support given by the PUI by in-

corporating knowledge about high level goals of the

user. These can be used to deductively generate step-

by-step instructions. The support for context data

that can be shared by several applications will be im-

proved, as this will be a major step in connecting ap-

plications with the needs of the user.

ACKNOWLEDGEMENTS

We would like to thank SAP Research Darmstadt for

supporting our research in the AUGUR project.

REFERENCES

Amandi, A. and Armentano, M. (2004). Connecting web

applications with interface agents. International Jour-

nal of Web Engineering and Technology, 1(4).

Carroll, J. M. and Rosson, M. B. (1987). Paradox of the ac-

tive user. In Interfacing Thought: Cognitive Aspects of

Human-Computer Interaction, chapter 5. MIT Press,

Cambridge, MA, USA.

Eisenstein, J. and Rich, C. (2002). Agents and GUIs from

task models. In IUI 2002. ACM Press.

Fikes, R. and Nilsson, N. J. (1971). STRIPS: A new ap-

proach to the application of theorem proving to prob-

lem solving. In IJCAI 1971.

Horvitz, E. et al. (1998). The Lumiere Project: Bayesian

User Modeling for Inferring the Goals and Needs of

Software Users. In UAI 1998. Morgan Kaufmann.

John, B. E. and Kieras, D. E. (1996). The GOMS family

of user interface analysis techniques: comparison and

contrast. ACM Trans. Comput.-Hum. Interact., 3(4).

Maes, P. (1994). Agents that reduce work and information

overload. Communications of the ACM, 37(7).

Paganelli, L. and Patern

o, F. (2003). A Tool for Creating

Design Models from Web Site Code. International

Journal of Software Engineering and Knowledge En-

gineering, 13(2).

Patern

o, F., Mancini, C., and Meniconi, S. (1997). Engi-

neering Task Models. In ICECCS 1997. IEEE Com-

puter Society.

Rich, C. and Sidner, C. L. (1998). COLLAGEN: A collab-

oration manager for software interface agents. User

Modeling and User-Adapted Interaction, 8(3-4).

Wilcock, G. and Jokinen, K. (2003). Generating Responses

and Explanations from RDF/XML and DAML+OIL.

In IJCAI Workshop on Practical Dialogue Systems.

TASK MODELS FOR PROACTIVE WEB APPLICATIONS

155
