DYNAMIC SERVICE COMPOSITION FOR VIRTUAL UPNP

DEVICE CREATION IN HOME NETWORK ENVIRONMENT

Sheng-Tzong Cheng, Chun-Yen Wang, Mingzoo Wu,Wan-Ting Ho

Department of Computer Science and Information Engineering, National Cheng Kung University, Tainan, Taiwan

Chia-Mei Chen

Department of Information Management, National Sun Yat-Sen University, Tainan, Taiwan

Keywords: UPnP, data type ontology, service composition, virtual application probing, virtual device creation.

Abstract: Exploiting UPnP techniques, home users can easily control intelligent devices through control points.

However, UPnP devices lack a composition mechanism to complete a novel application or value-added

service. This paper proposes a dynamic service composition system which coordinates the primitive UPnP

services at home to create a virtual device. We define data type ontology for UPnP devices to describe their

service interfaces. The interface matching mechanism is employed to construct a service graph that

describes which services can be composed together. Finally, the proposed system travels on the service

graph, and probes a suitable execution path to generate a new device.

1 INTRODUCTION

With the proliferation of home networked devices,

all sorts of devices could be discovered and

controlled by UPnP architecture. The goal of UPnP

architecture is to define the communication

protocols between control point (CP) and devices.

UPnP uses common protocols which are

independent of the underlying physical media and

transports, and ensure every device vendors could

follow. Many industry companies and research

initiatives such as UPnP, OSGi, DLNA, and HAVi

have tried to understand the communication protocol

between CP and devices. However, up to now, they

are very little to get in touch with composing the

primitive services to create value-added services.

Each UPnP service description lists the service

type, name, URLs for a service description, control,

and eventing. The description is recorded in XML-

based syntax. UPnP is an open networking

architecture that uses Web technologies to enable

seamless proximity networking in addition to control

and data transfer among networked devices. UPnP is

a Web-based communication protocols between CP

and devices.

As Web services become more and more

prevalent, many Web service composition (SC)

technologies are proposed and developed.

BPEL4WS (

Curbera, 2001) supports process-oriented

SC, which represents a specific process composition

flow. CoSMoS (

Fujii, 2004) can integrate the services

to construct a semantic graph. Given a user request,

CoSMoS checks the semantics and generate an

execution path. In eFlow (

Casati, 2000), a composite

service is designed by a template which defines an

order of execution of the services. User can choose

an application template from the repository or by

creating a template by himself. The request

application is composed through selecting the

services specified in the template and combining

them according to the structure described in the

template.

In this paper, we aim at designing and

implementing a dynamic SC (DSC) system and

create a virtual device in home network environment.

We propose data type ontology to define interfaces

for services. And we show how to use semantic

descriptions to aid in the DSC system. Also, we

present a method called Virtual Application Probing

(VAP) which allows home virtual applications can

be dynamically and semantically composed from the

individual services of home networked devices. We

349

Cheng S., Wang C., Wu M., Ho W. and Chen C. (2007).

DYNAMIC SERVICE COMPOSITION FOR VIRTUAL UPNP DEVICE CREATION IN HOME NETWORK ENVIRONMENT.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 349-352

DOI: 10.5220/0001269603490352

 SciTePress

design and implement the DSC system using

existing technologies such as UPnP, ontology, and

XML.

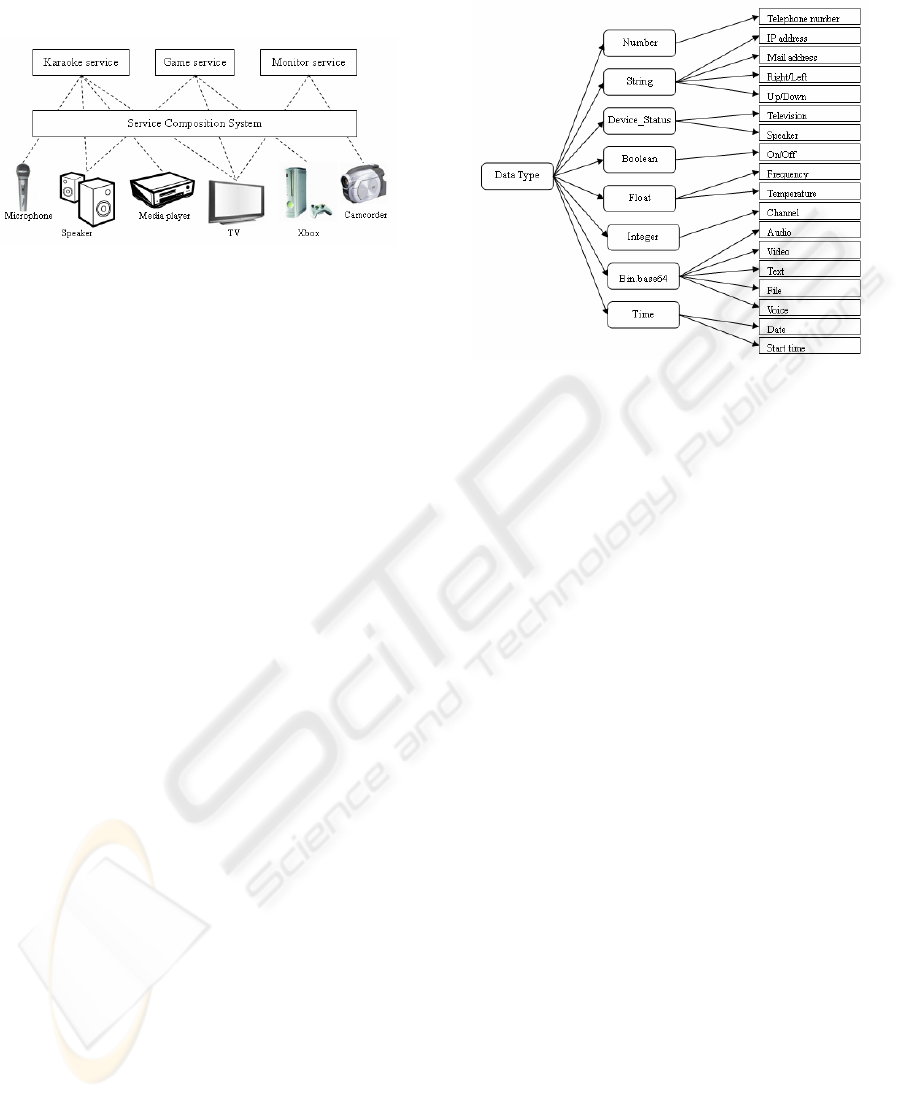

Figure 1: The concept of dynamic service composition.

This paper is organized as follows. Sec. 2

describes the DSC system. Sec. 3 describes the

implementation techniques. Sec. 4 presents the

demonstration of the proposed system. Conclusion

remarks are drawn in Sec. 5.

2 SYSTEM ARCHITECTURE

Fig. 1 illustrates the concept of DSC. There are

many independent devices, such as Microphone,

Speaker, Media player, TV, Xbox, Camcorder, etc.

Through DSC system, these useful services could

cooperate with each other to create a virtual device

or a novel application.

2.1 Data Type Ontology Classification

We extend the service description and add semantics

information to define a service interface. The I/O

variables are classified according to their data type

and further classified according to semantics.

UPnP CP retrieves device and service

information with semantics to provide accessible

services. If the data type ontology share and publish

the same underlying ontology of the used terms, then

CP can extract and aggregate the data type and

semantic information to do service matching. The

benefit of using data type ontology is that it is easy

for developers to design service interfaces and is

easy for users to understand. After defining the data

type ontology, we use the data type and semantic

information to describe the service interface. With

interface matching method, we could know whether

the service’s output can be fed into the next service’s

input. Fig. 2 shows the ontology diagram of the

variables for communication interface of home

networked devices.

2.2 Service Interface Matching

Figure 2: Data type ontology for home-domain devices.

A service interface specifies methods that can be

performed on the service. Service’s interfaces are

public for an external use. A service can hold two

sorts of interfaces: input and output interfaces.

Traditionally, UPnP service description only has

data type and I/O information to describe a service

interface, but it is not enough to perform DSC.

With the support of data type ontology,

semantics of a service can be freely defined, thus

providing high extensibility. We use data type and

semantic information to describe service interfaces.

With interface matching method, we could know

whether the service’s output can be fed into the next

service’s input.

2.3 Service Graph Construction

Service graph (SG) is an intuitive way to represent

composition concepts. Two types of nodes are

defined in SG: DataSemanticNode (DSN) and

ServiceInfoNode (SIN). The links between these

nodes represents their associations. The SG clearly

represents the composition information. The benefit

of using SG for DSC is its understandability for

users. Also, the SG is easy to maintain and handle

for generator and designer.

y DSN: Each DSN represents a pair of data type

and semantic defined by the data type ontology to

represents the service’s interface. We denote (Data

Type, Semantic) as a DSN.

y SIN: We take down the device and service

information in the SIN, which has two kinds of

information, the device name and the service name.

We denote SIN as (Device name, Service name).

WEBIST 2007 - International Conference on Web Information Systems and Technologies

350

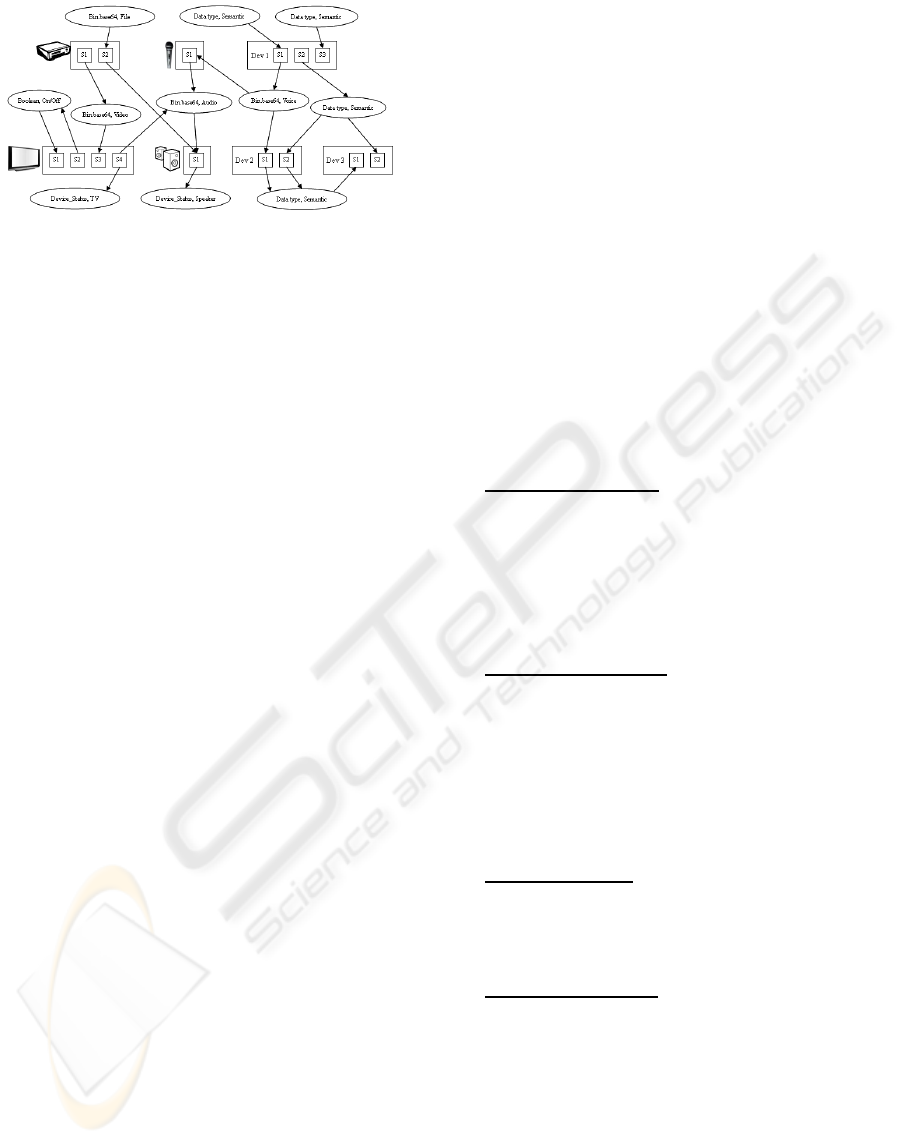

Figure 3: Directed service graph.

To construct a directed SG, we create links

between the DSNs and SINs. When a device is

discovered by CP, our system checks the service

interface's data type and semantics of the added

device. If the DSN's data type and semantics are the

same with the service input interface's data type and

semantics, then a link is directed from DSN to SIN.

Otherwise, if the DSN's data type and semantic are

the same with the service output interface's data type

and semantics, then a link is directed from SIN to

DSN. Each time when a device is discovered by CP,

our system would make links between DSN and SIN

automatically. Fig. 3 represents the directed SG.

2.4 Execution Path Exploration

We use Virtual Application Probing (VAP) to find a

composite service path in the directed SG. To

implement this scheme, we place each visited node

into a linked list and record its preceding node with

index information. Then we use VAP to find a

shortest execution path (EP) in SG. Step 0: Check

virtual device description. CP reads the virtual

device's description to know the virtual service's

input and output interfaces' data types and semantics.

Step 1: Put the DSN which represents the virtual

service's input interface into linked list. Step 2: Put

SINs whose input interface is the DSN from step 1

into linked list. Record their indexes as the number

of the preceding nodes in the linked list. Step 3: Put

the DSN which represents the output interface of the

SIN from step 2 into list. And record the index as the

number of the predecessor nodes in the linked list.

Step 4: If we find DSN of the virtual service's

output interface, stop searching and export the EP

according to their indexes. Otherwise, repeat Step 2

and 3 until there are no nodes left in linked list.

2.5 Virtual Service Provision

Once all EPs of virtual device are explored, the

virtual device with the EPs will be created and CP

would invoke the services which was required in the

EP sequentially. Here we describe two types of

flows: control flow and data flow. Control flow is

used to trigger the required service in EP. If we

invoke the virtual service, the CP would invoke the

primitive services automatically with the control

flow. And data is exchanged between services

without going through the CP.

3 SYSTEM IMPLEMENTATION

Our device model is refined from CyberLink for

Java (CyberLink 2004), which is a development

package for UPnP developers. We append some

classes and methods to implement our DSC system.

y ControlPoint Class

: Method DeviceAdded()

checks whether a service can be composed with

other service by interface matching. If the added

service’s interface exactly matches another service’s

interface then we connect the two service nodes in

SG. If a device is leaving the UPnP network, method

DeviceRemoved() removes the links between the

service nodes.

y SemanticType Class

: This class is used to

describe the data structures of SG. DSN represent

the interfaces of a service. And SIN records the

service information including device name and

service name. With the aid of semantics, we use

“interface matching” approach to find out what

service’s output can be fed to the next service’s

input. Then we use VAP to find a virtual service in

the directed SG.

y LinkedList Class

: The LinkedList class is used

to find EP of virtual device. We implement a linked

list to record the SG nodes in EP. Extra index

information is used to record the preceding node’s

number in the linked list.

y VirtualDevice Class

: In the beginning of VAP

process, CP will check the virtual device’s

descriptions. If the virtual service can be composed

from the primitive services, we create an instance of

virtual device with the EP and user can invoke the

virtual device from CP. Unlike the real device, the

virtual service/device is not implemented beforehand.

The virtual device can receive a composite EP found

by VAP. The virtual service is a composite service

composed from the primitive services. Once the

virtual service is invoked, CP would sequentially

invoke the primitive services involved in EP.

DYNAMIC SERVICE COMPOSITION FOR VIRTUAL UPnP DEVICE CREATION IN HOME NETWORK

ENVIRONMENT

351

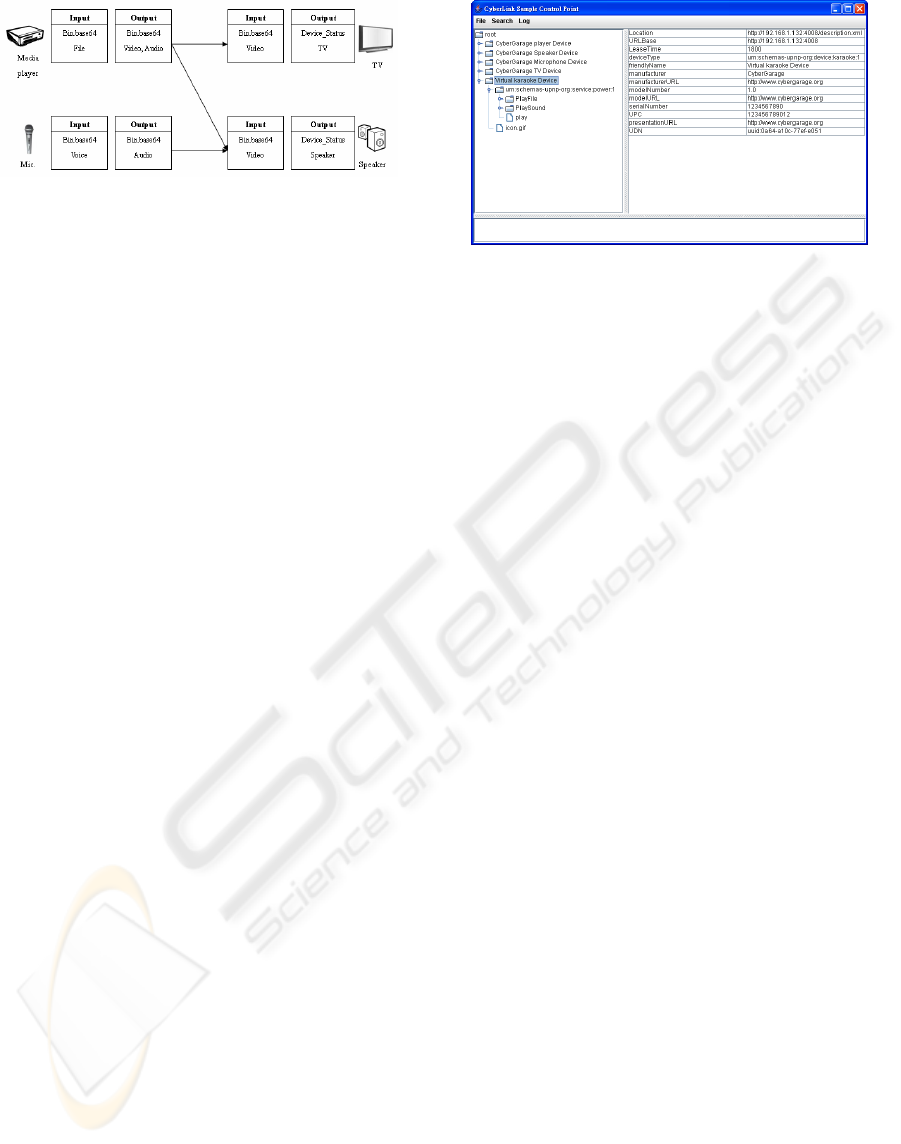

Figure 4: Creation of virtual Karaoke.

4 DEMO SCENARIO

We implement a virtual Karaoke which is composed

of TV, Player, Speaker and Microphone. In our

system, VAP creates a virtual Karaoke from these

four devices. Fig. 4 shows the creation of virtual

Karaoke from the four devices using interface

matching.

4.1 Semantic Service Description

We make description files of devices and services to

create device. A service must be able to represent

data type, I/O, and semantic information. We add

semantic tags in XML-based service description.

When a device is plugged into the network, the CP

retrieves the device and service descriptions from

the discovery message.

4.2 UPnP Devices Simulation

Using CyberLink for UPnP package (CyberLink

2004), we can implement devices and CP easily. The

Media player has two services: SetPower and

PlayFile. The input data type of PlayFile is

Bin.base64 and its semantic is File. The output data

type of PlayFile is Bin.base64 and its semantic is

Audio and Video.

4.3 Virtual Karaoke Creation

Once CP finds the TV, Player, Speaker and

Microphone devices, DSC system would create a

virtual Karaoke which is composed from the four

devices automatically. A composite path that found

by the VAP is: (Bin.base64, File) → (Player,

PlayFile) → (Bin.base64, Video) → (TV, Visual) →

(Device_Status, TV) and (Bin.base64, Voice) →

(Microphone, Mike) → (Bin.base64, Audio) →

(Speaker, PlaySound) → (Device_Status, Speaker).

Fig. 5 shows that users can view and invoke the

virtual Karaoke through CP, which can invoke the

required services on the EP.

Figure 5: Virtual Karaoke.

5 CONCLUSIONS

In this paper, we present using semantic descriptions

to aid DSC. We design the service interface with

data type and semantic information. Each interface

is specified by data type and semantic tags. With

interface matching method, we could know which

the service’s output can be fed into the next service’s

input. We also present SG and VAP to find

composite EPs of virtual device. SG is an intuitive

way to represent composition concepts in an

understandable way.

ACKNOWLEDGEMENTS

This work was supported in part by

TWISC@NCKU, ITRI, and National Science

Council under the Grants NSC 94-3114-P-006- 001-

Y, B95-063B, and NSC 95-2218-E-006-011.

REFERENCES

Curbera, F., etc. 2001. Business Process Execution

Language for Web Services.

Fujii, K., Suda, T., 2004. Dynamic Service Composition

Using Semantic Information, In International

Conference on Service Oriented Computing.

Casati, F., etc. 2000. Adaptive and dynamic service

composition in eFlow, In CAiSE.

CyberLink for Java 2004, http://www.cybergarage.org/.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

352
